Product identification
- Model
- KARA II (10 IN)-K210II-Compact line array, 2-way passive, dual 10'' LF
- Product category
- Line Array Systems

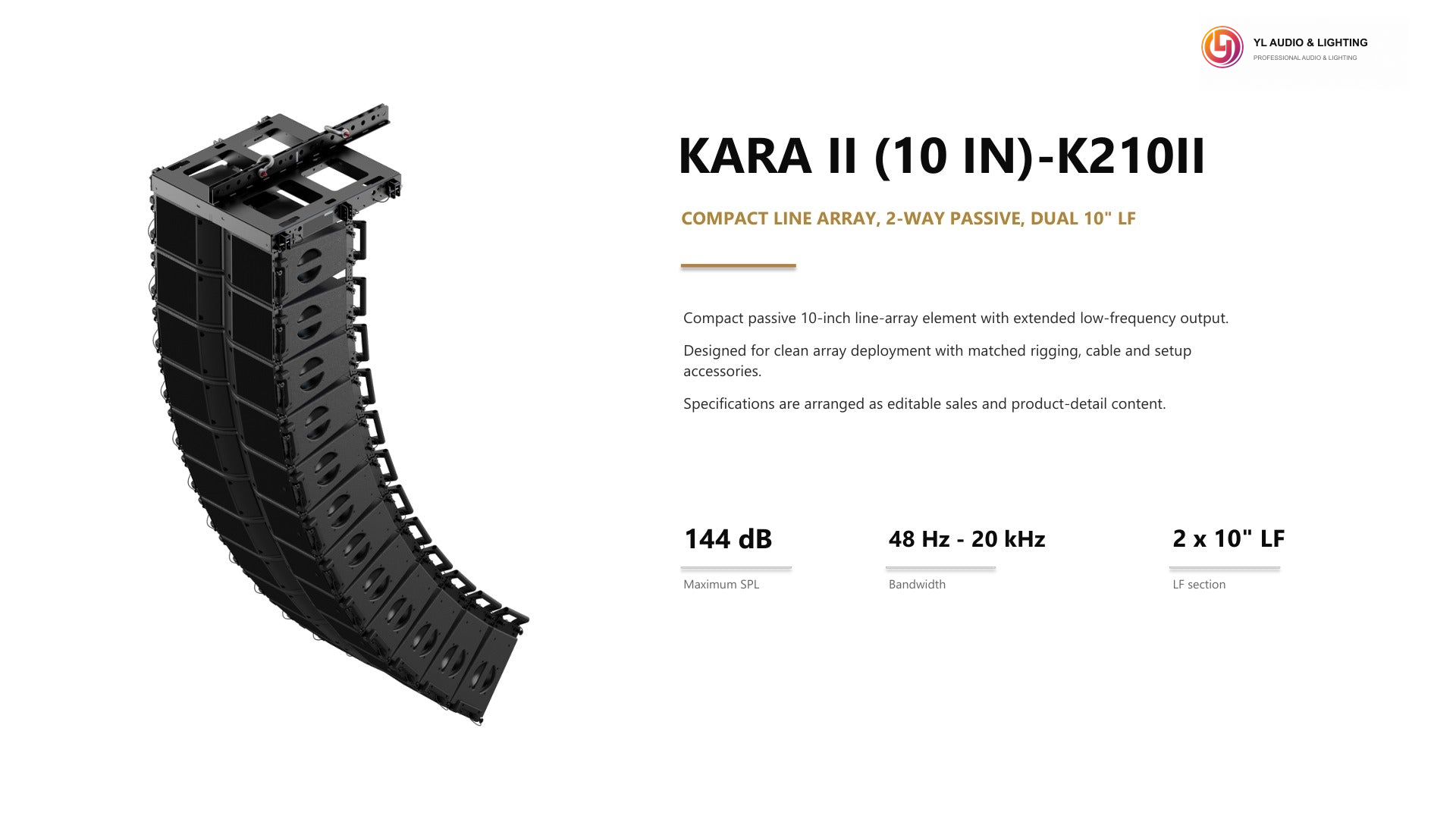

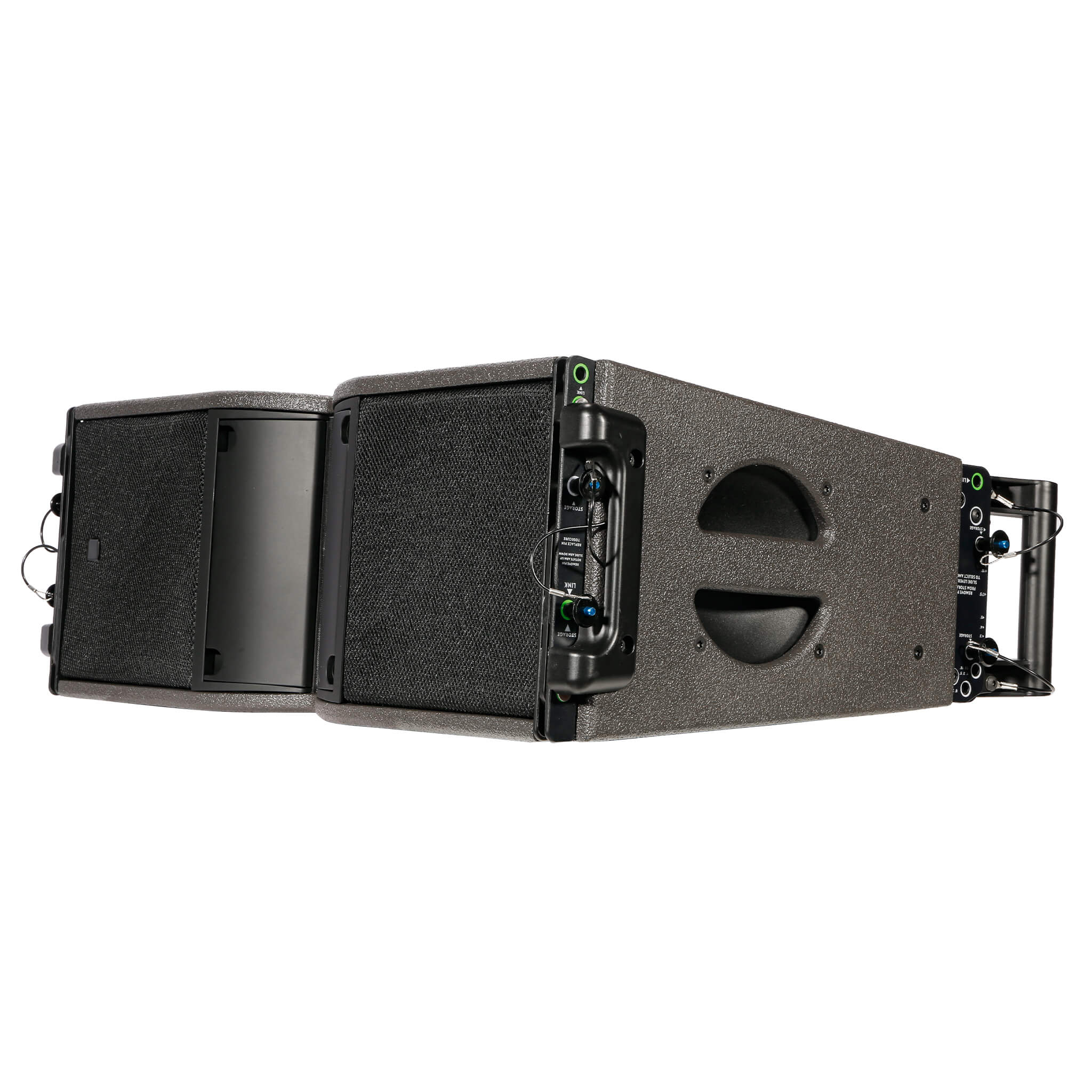

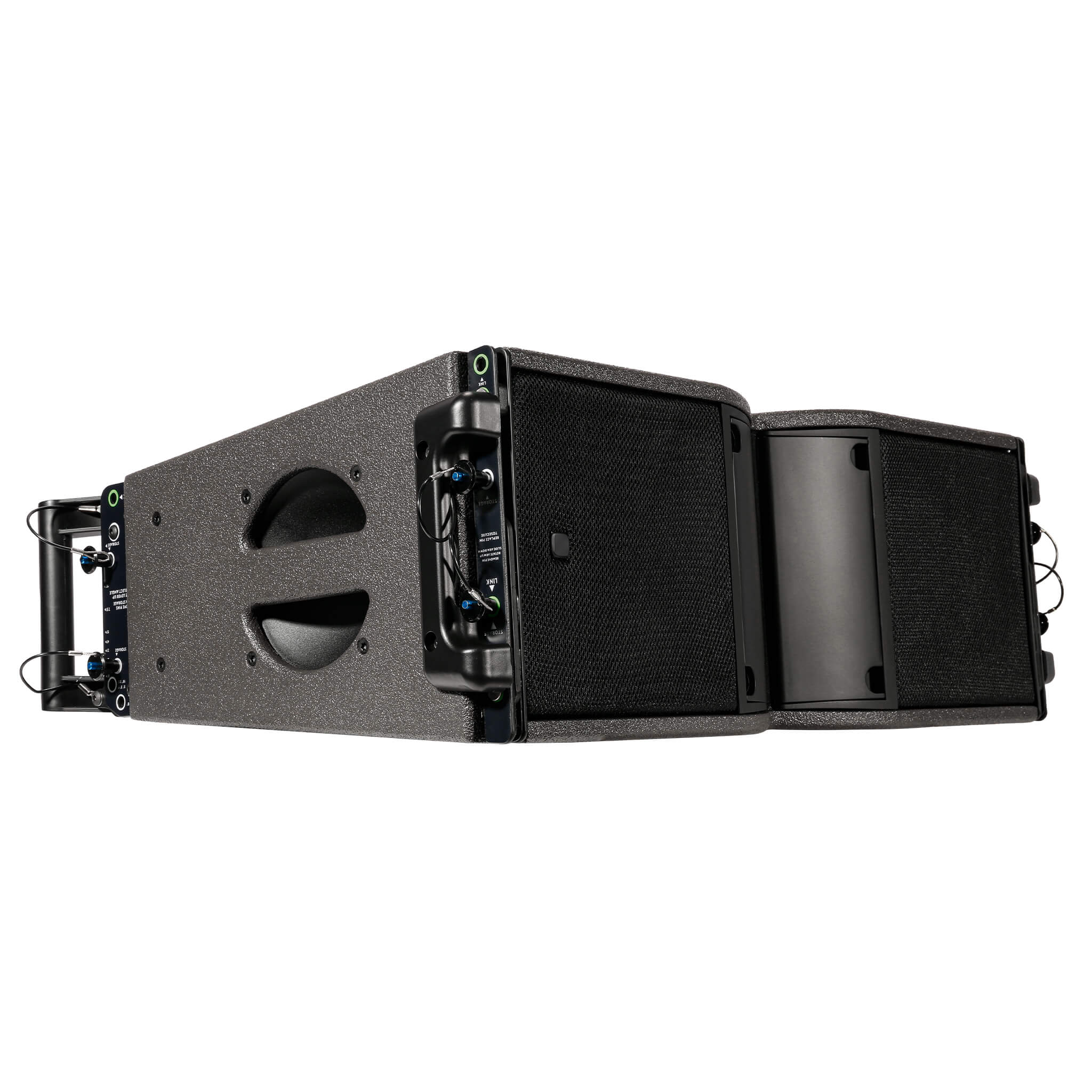

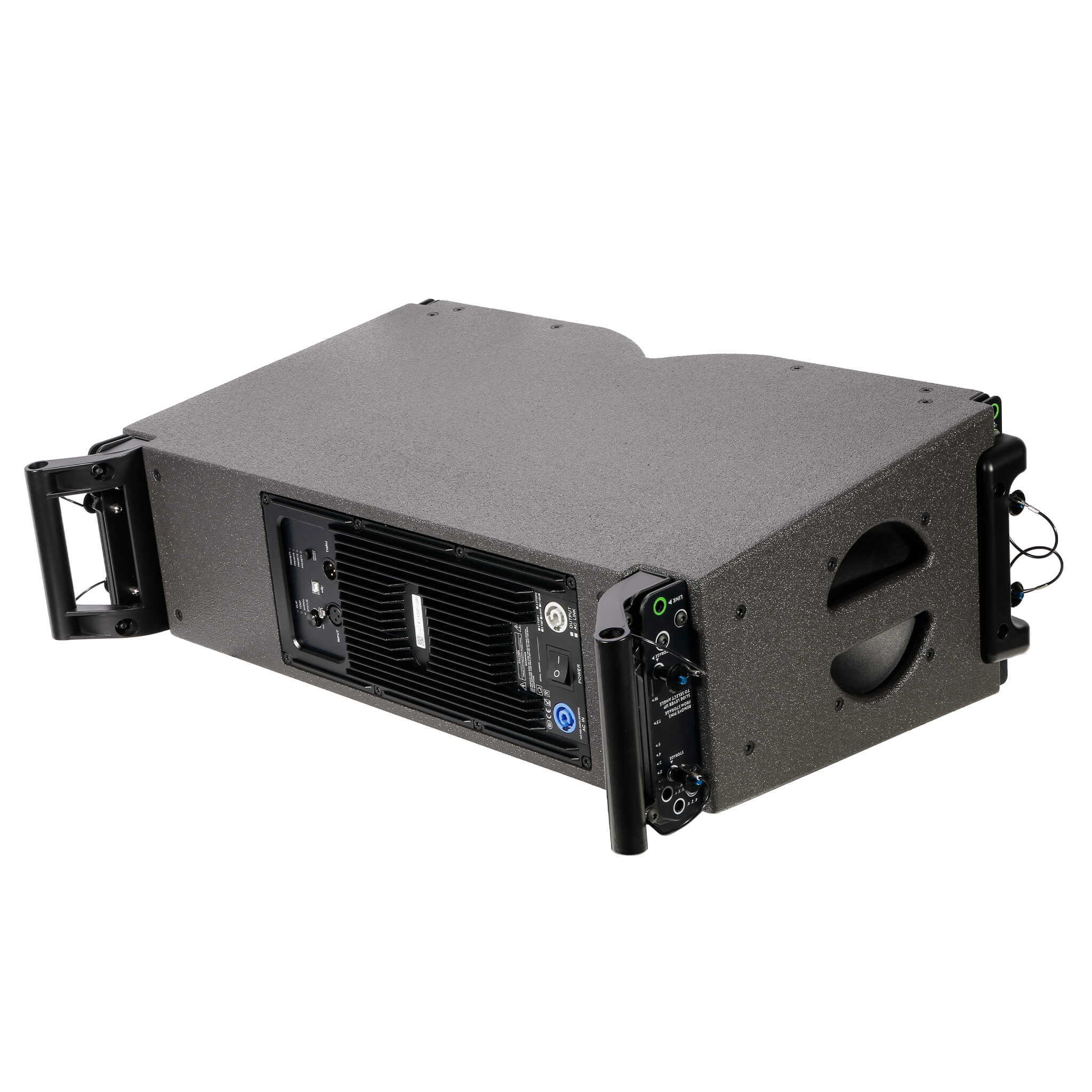

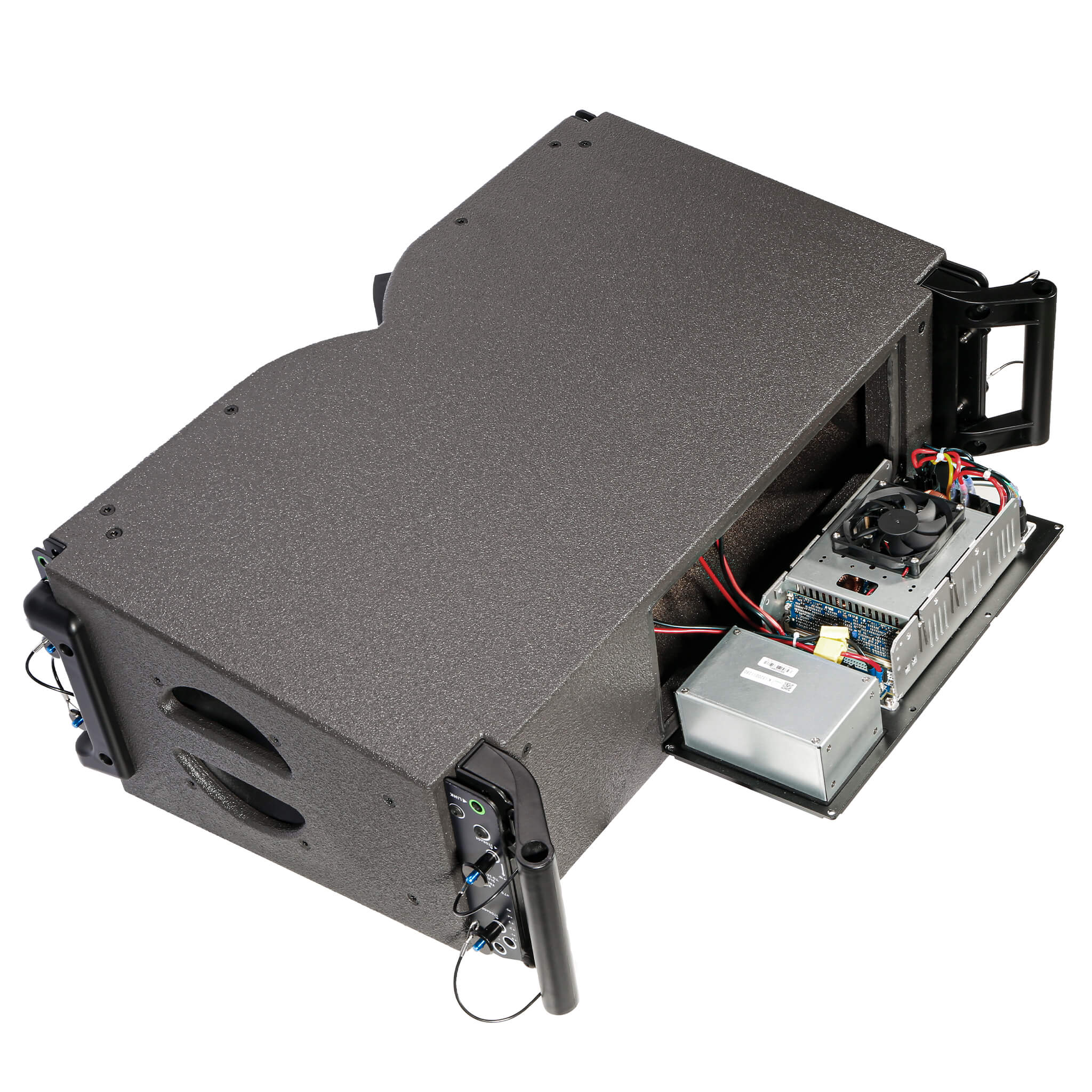

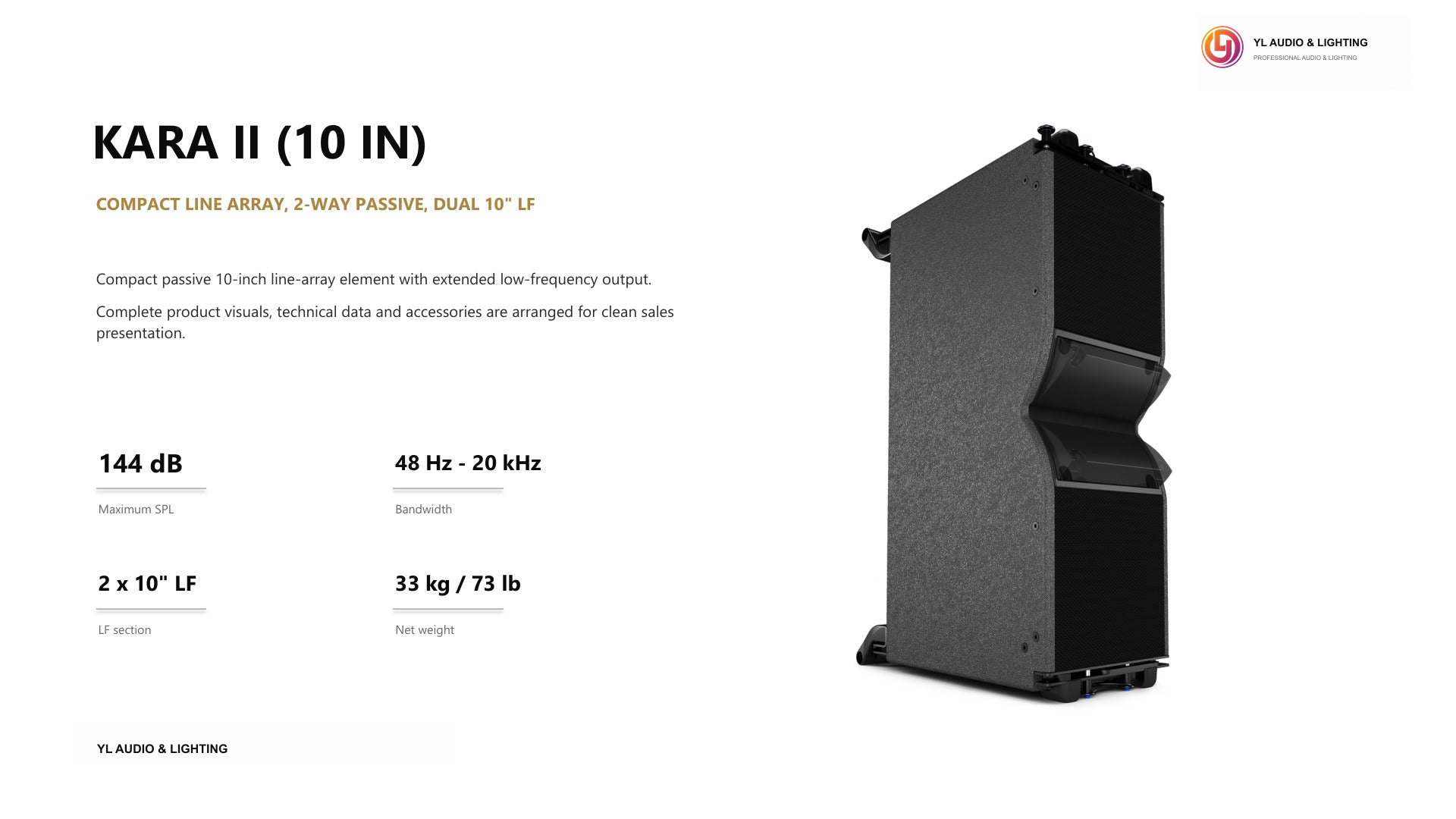

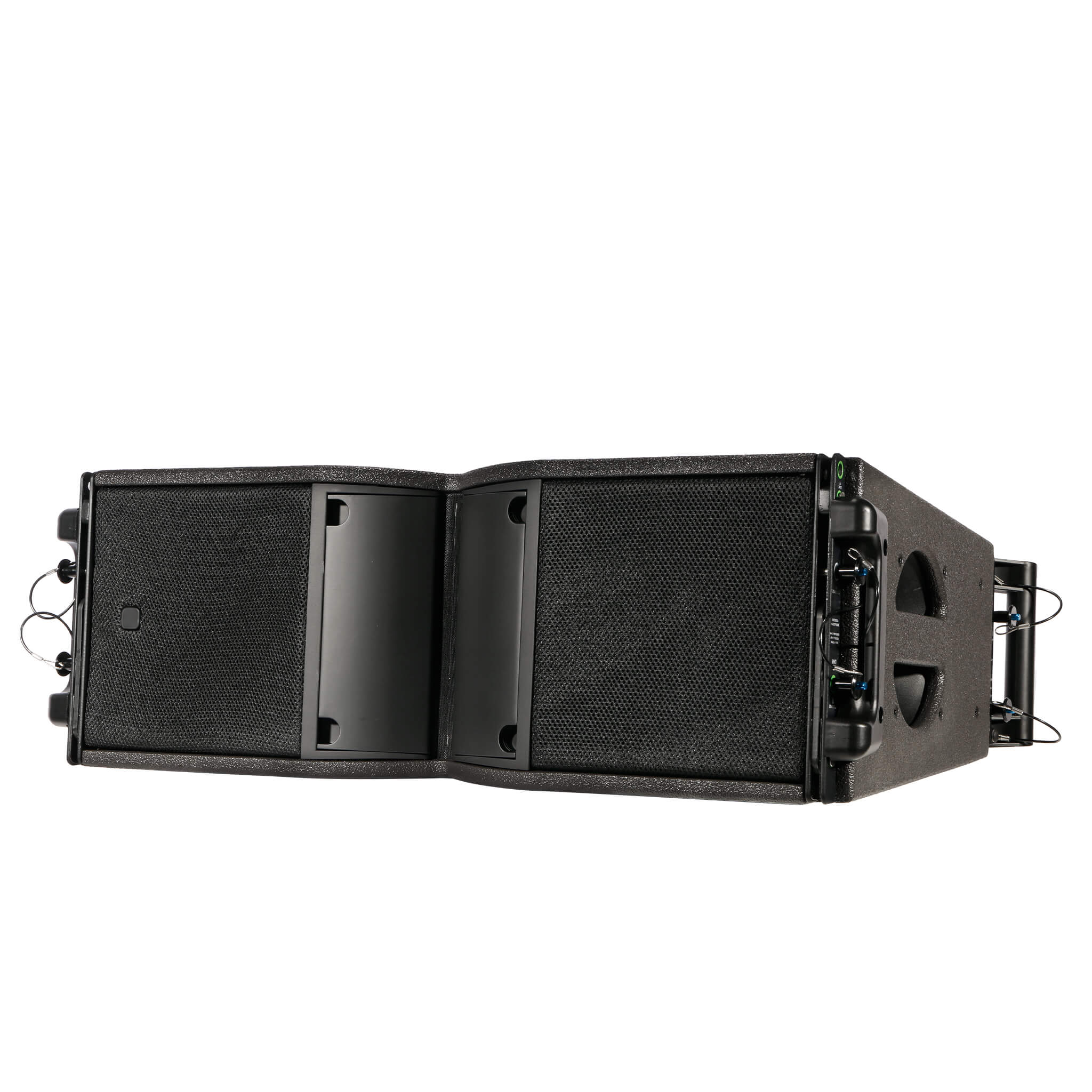

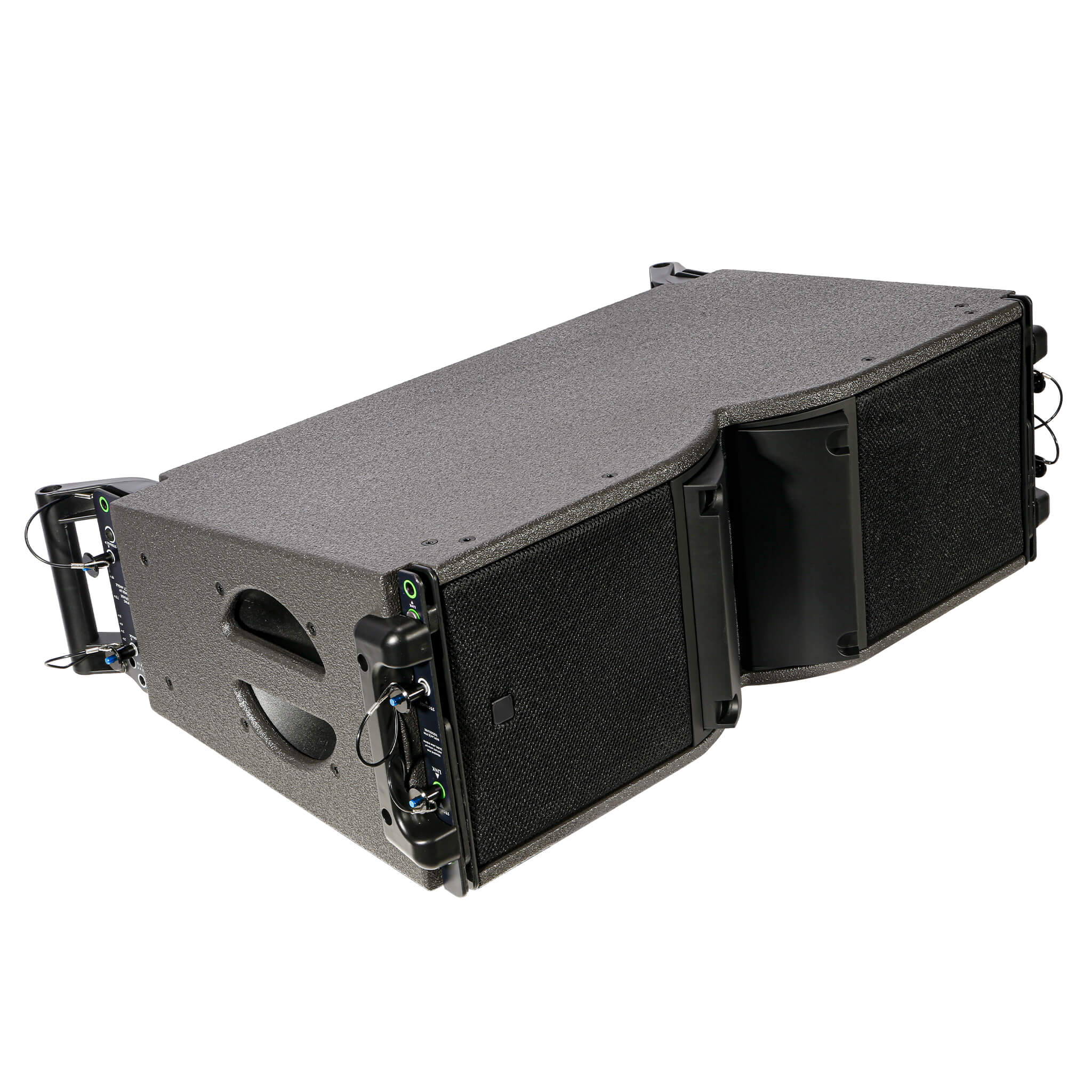

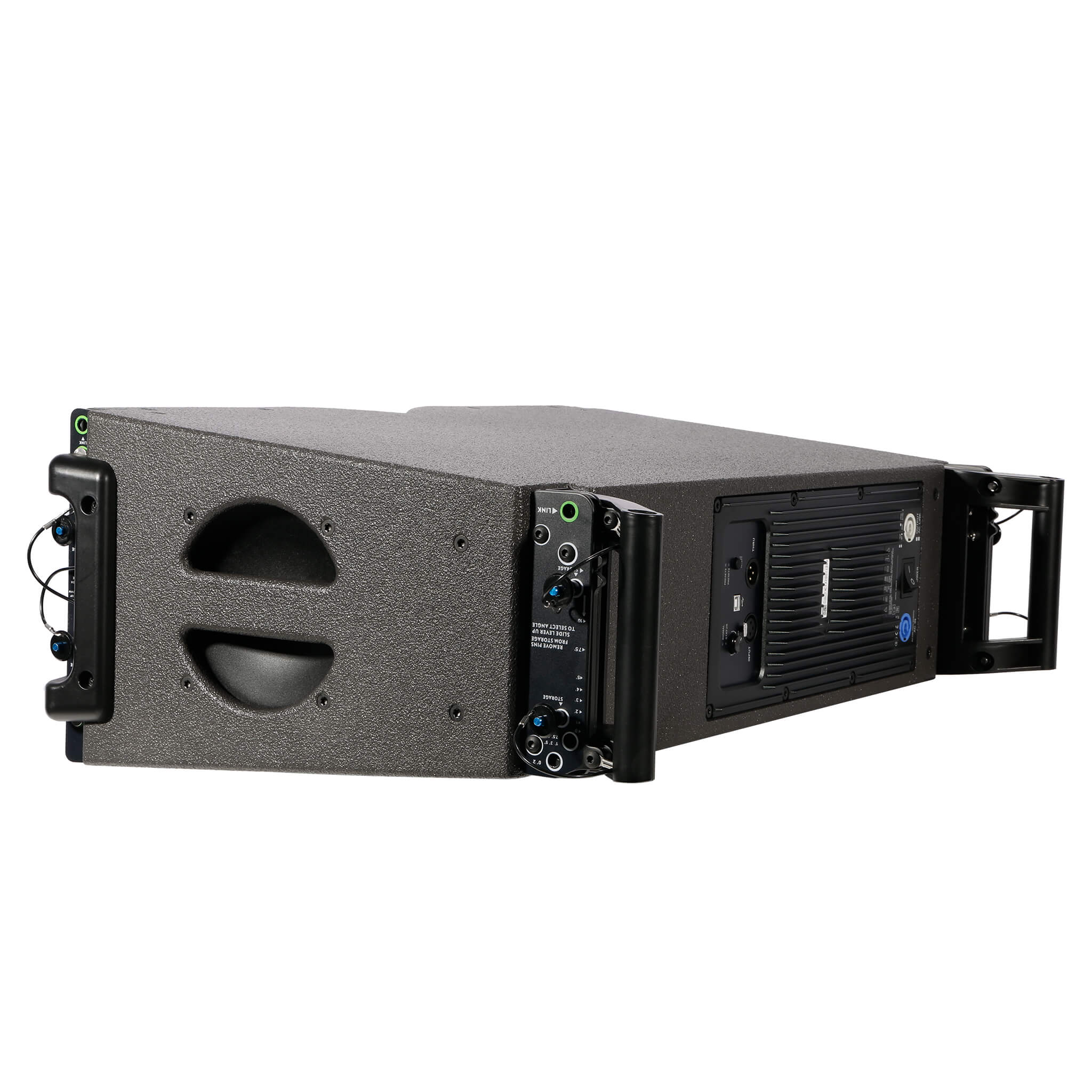

KARA II (10 IN)-K210II-Compact line array, 2-way passive, dual 10'' LF
KARA II (10 IN)-K210II-Compact line array, 2-way passive, dual 10'' LF is listed in the line array systems category as a line array system. The reference lists maximum spl: ≈ 144 dB; bandwidth: 48 Hz – 20 kHz. Confirm the exact model, current specifications and supply details before use.

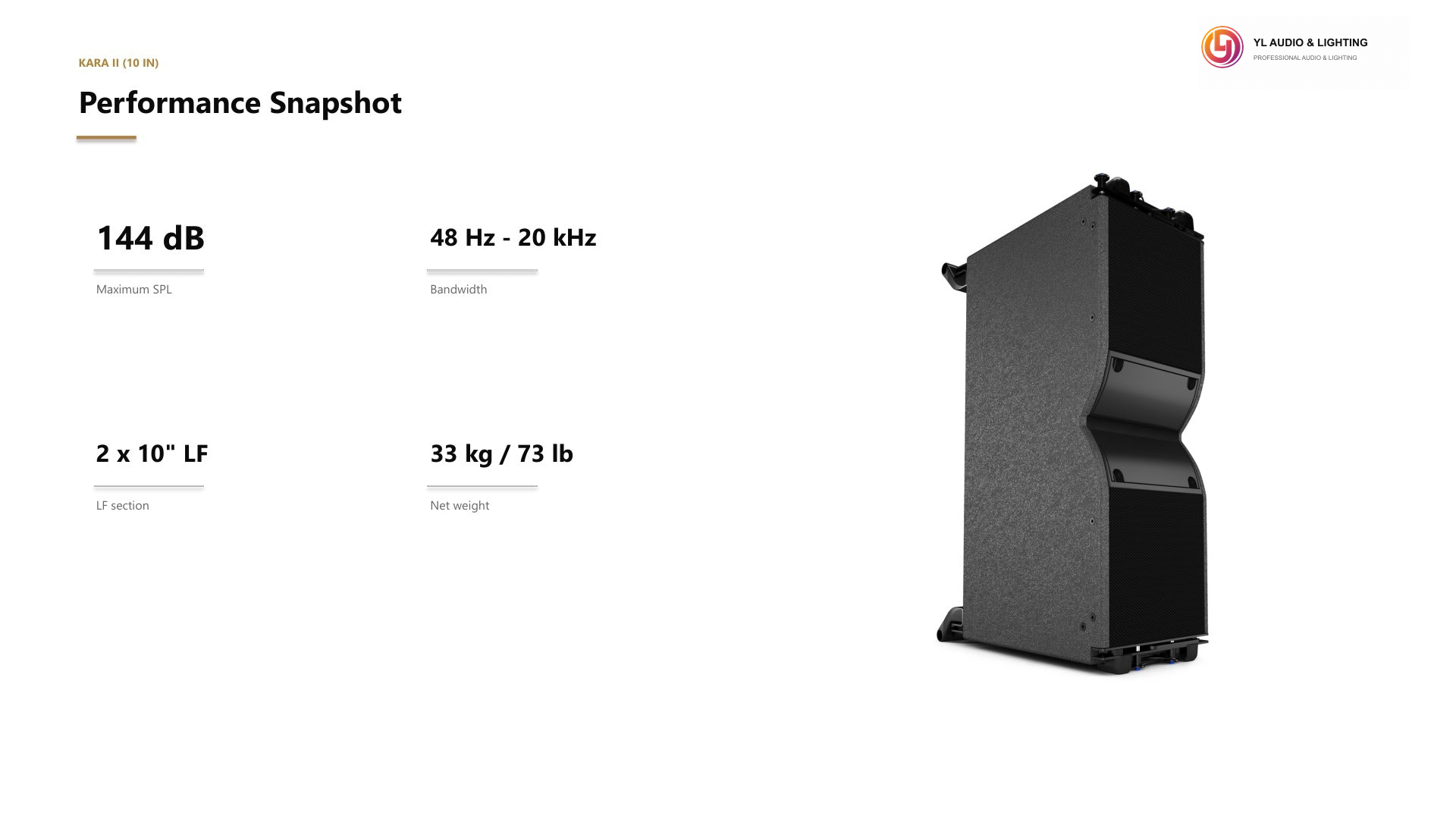

WHATSAPPRequest a Quote- Maximum SPL
- ≈ 144 dB
- Bandwidth
- 48 Hz – 20 kHz
- Weight
- ≈ 33 kg / 73 lb
Technical specifications
- Maximum SPL
- ≈ 144 dB
- Bandwidth
- 48 Hz – 20 kHz
- Transducers
- LF: 2 × 10″ • HF: 1 × 3″ compression driver
- Nominal directivity (-6 dB) Horizontal
- 70° / 110° symmetric or 90° asymmetric
- vertical
- dependent upon the number of elements and the line source curvature

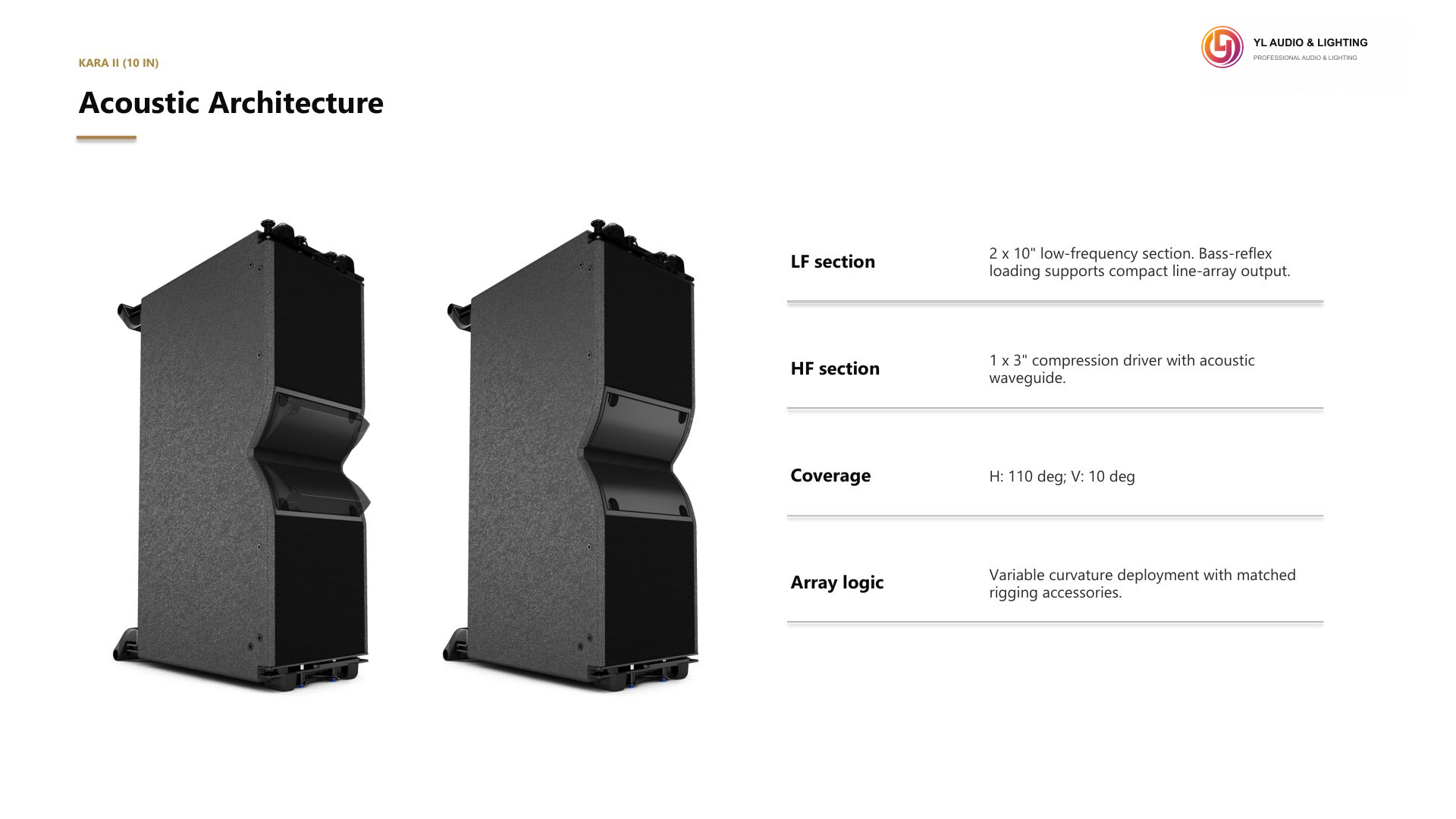

- Transducers LF
- 2 ×10″ neodymium cone drivers
- HF transducers
- 1 × 3″ neodymium diaphragm compression driver
- Acoustical load LF
- bass-reflex
- HF
- DOSC waveguide, Panflex
- Nominal impedance LF
- 8 Ω
- HF impedance
- 8 Ω
- vertical
- dependent upon the number of
- Transducers LF
- 2 ×10″ neodymium cone
- HF transducers
- 1 × 3″ neodymium diaphragm compression
Physical specifications
- Dimensions
- 750 × 300 × 480 mm
- Weight
- ≈ 33 kg / 73 lb

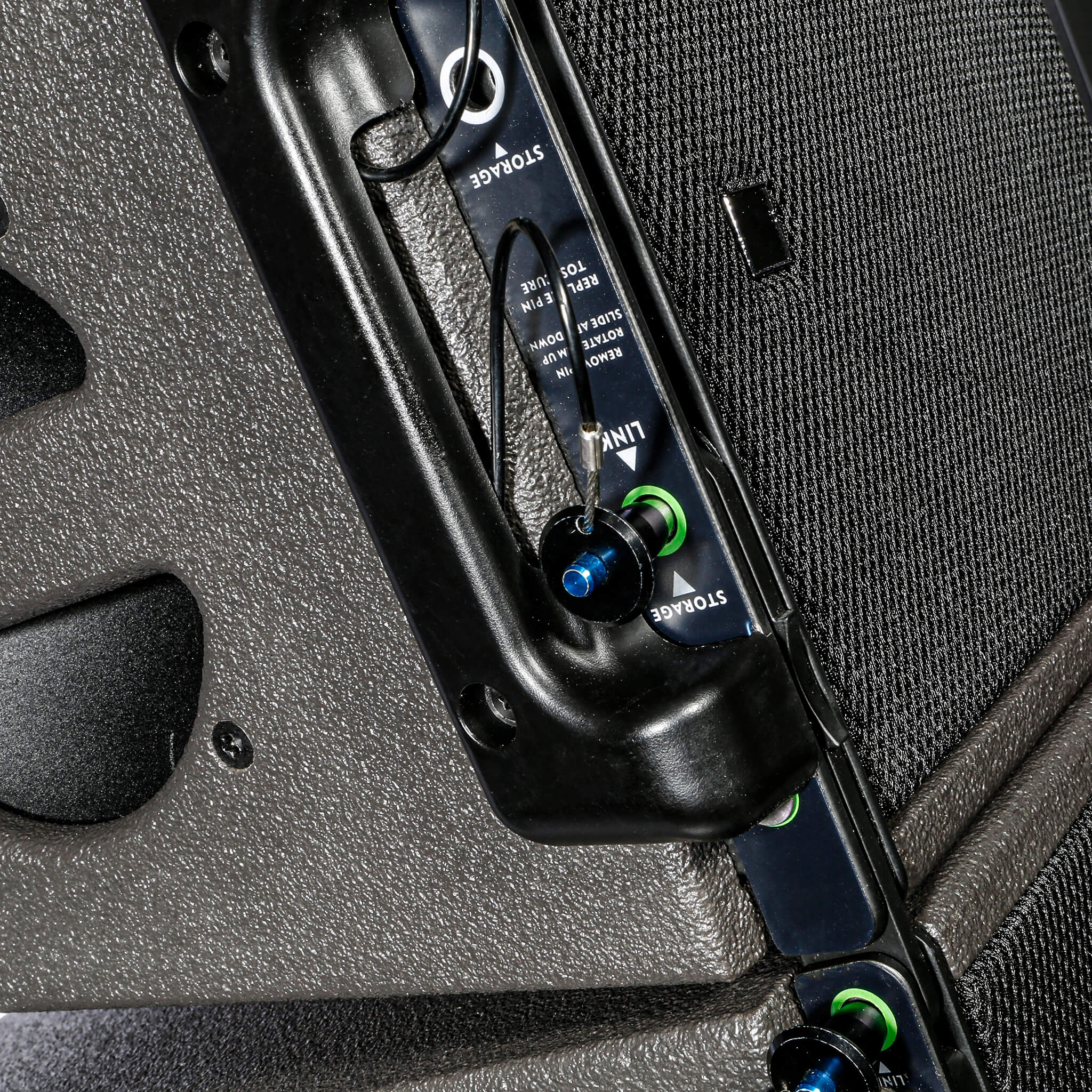

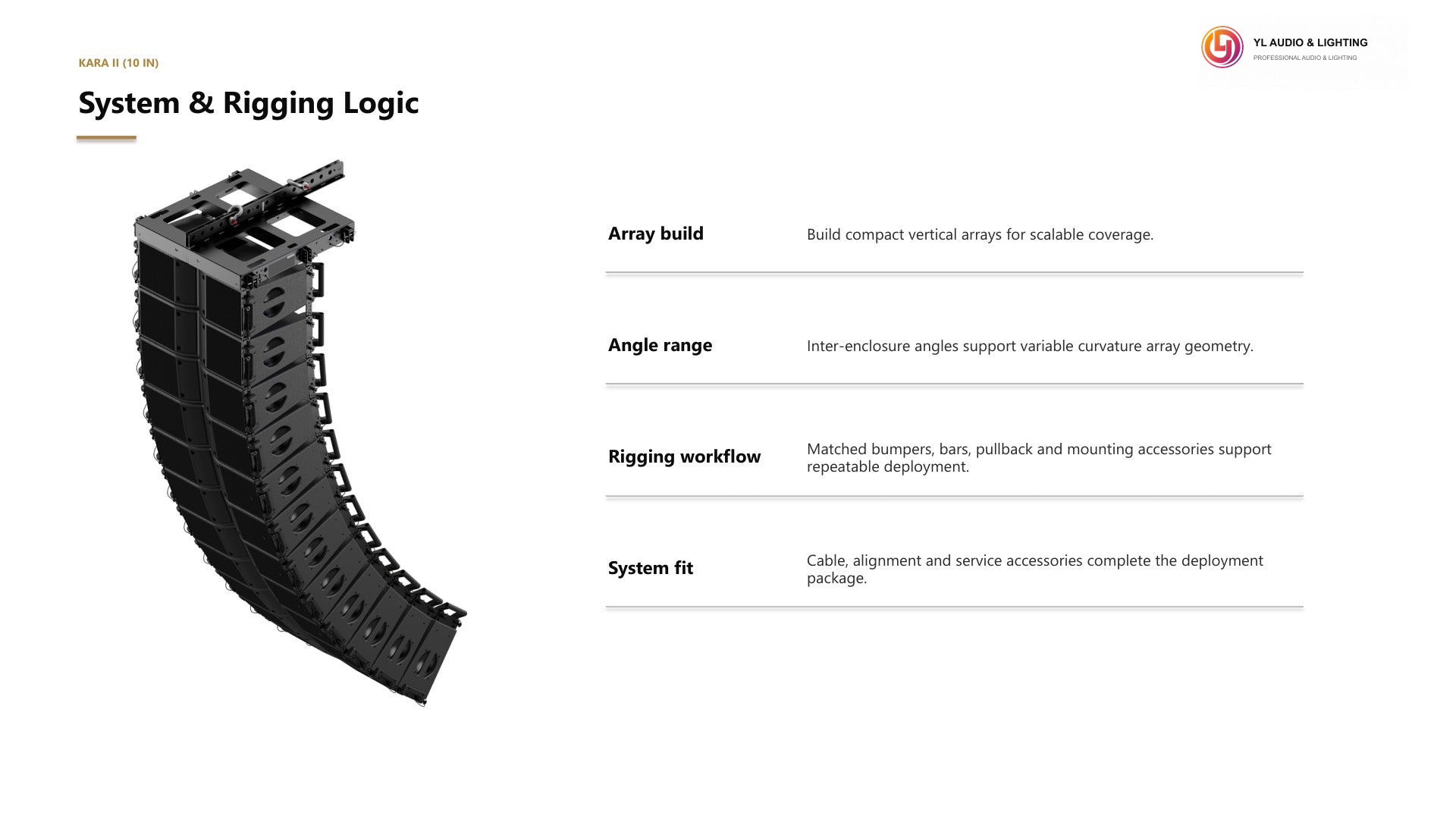

- inter-enclosure angles
- 0°, 1°, 2°, 3°, 4°, 5°, 7.5° or 10°
Compatibility and deployment
- Function / configuration
- 2-Way active WST enclosure (installation version)
- Function / configuration
- amplified by / LA4X / LA12X
- Function / configuration
- Usable bandwidth (-10 dB) 55 Hz – 20 kHz
- Function / configuration
- Maximum SPL1 142 dB ([KARA II 70]) with
- Function / configuration
- LA4X / LA12X
- Function / configuration
- 137 dB ([KARA 210] with LA2Xi
- Function / configuration
- / 110° symmetric or 90° asymmetric
- Function / configuration
- 1 Peak level measured at 1 m under
- Function / configuration
- free field conditions using pink noise with crest factor 4 (preset specified in
- Function / configuration
- brackets).
- Function / configuration
- Connectors 2 × 4-point terminal block with push-in
- Function / configuration
- Rigging and handling External rigging kits
- Function / configuration
- or 10°
- Function / configuration
- 2-Way active WST enclosure (installation version) amplified by / LA4X / LA12X
- Function / configuration
- Usable bandwidth (-10 dB) 55 Hz – 20 kHz ([KARA II 70])
- Function / configuration
- Maximum SPL1 142 dB ([KARA II 70]) with LA4X / LA12X
- Function / configuration
- 1 Peak level measured at 1 m under free field conditions using pink noise with crest factor 4 (preset specified in brackets).
- Function / configuration
- Connectors 2 × 4-point terminal block with push-in connection
TECHNICAL REFERENCE
Product specifications.
Published product details. Ask our team about any configuration that is not listed.
| Maximum SPL | ≈ 144 dB |
|---|---|
| Bandwidth | 48 Hz – 20 kHz |
| Transducers | • LF: 2 × 10″ • HF: 1 × 3″ compression driver |
| Dimensions | 750 × 300 × 480 mm |
| Weight | ≈ 33 kg / 73 lb |
| Nominal directivity (-6 dB) Horizontal | 70° / 110° symmetric or 90° asymmetric |
| vertical | dependent upon the number of elements and the line source curvature |
| Transducers LF | 2 ×10″ neodymium cone drivers |
| HF | 1 × 3″ neodymium diaphragm compression driver |
| Acoustical load LF | bass-reflex |
| HF | DOSC waveguide, Panflex |
| Nominal impedance LF | 8 Ω |
| HF | 8 Ω |
| inter-enclosure angles | 0°, 1°, 2°, 3°, 4°, 5°, 7.5° or 10° |
Downloads
| Title | File type | Download |
|---|---|---|
| YL K210II Product DetailsEnglish | PDF4.3 MB |

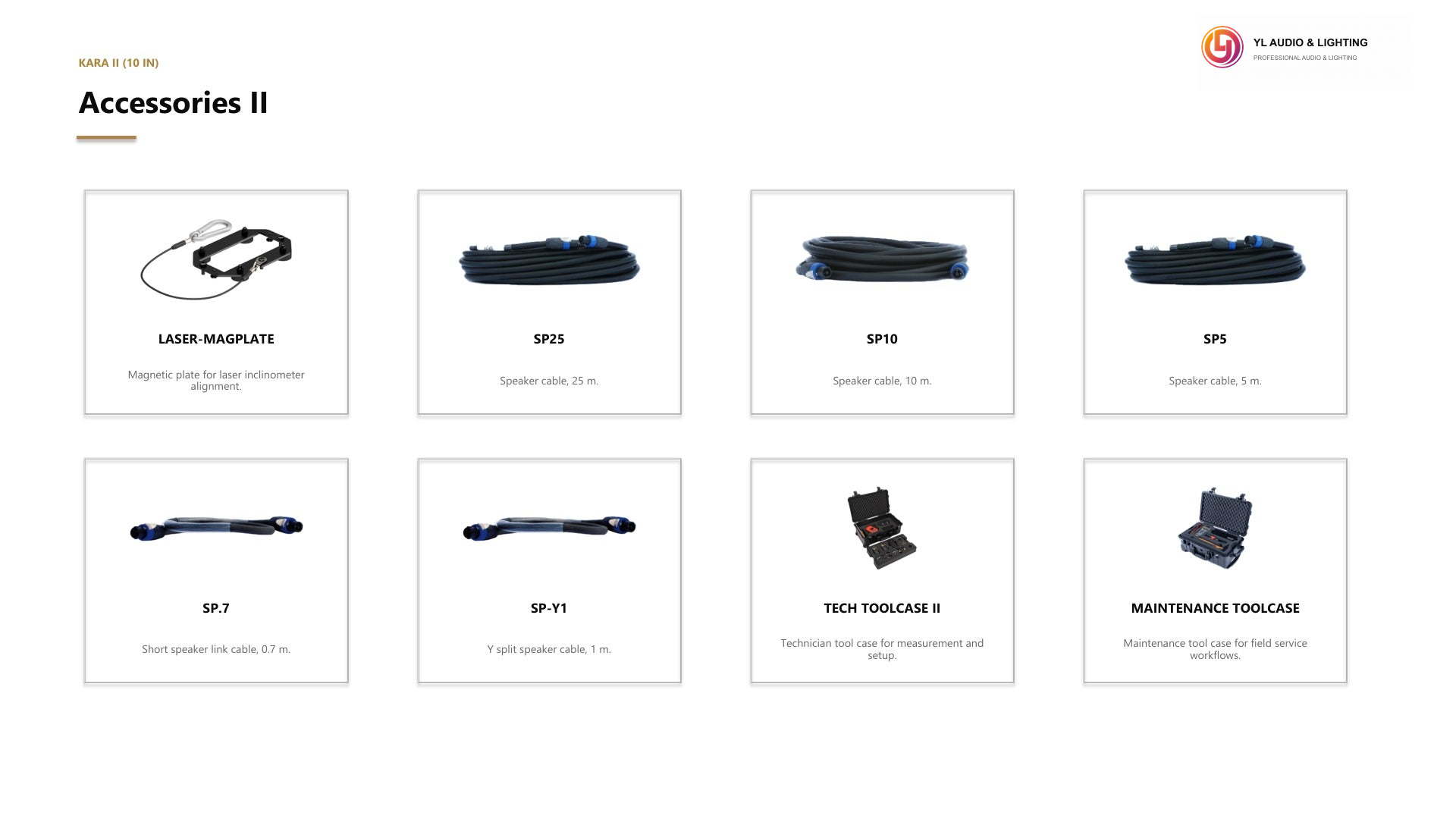

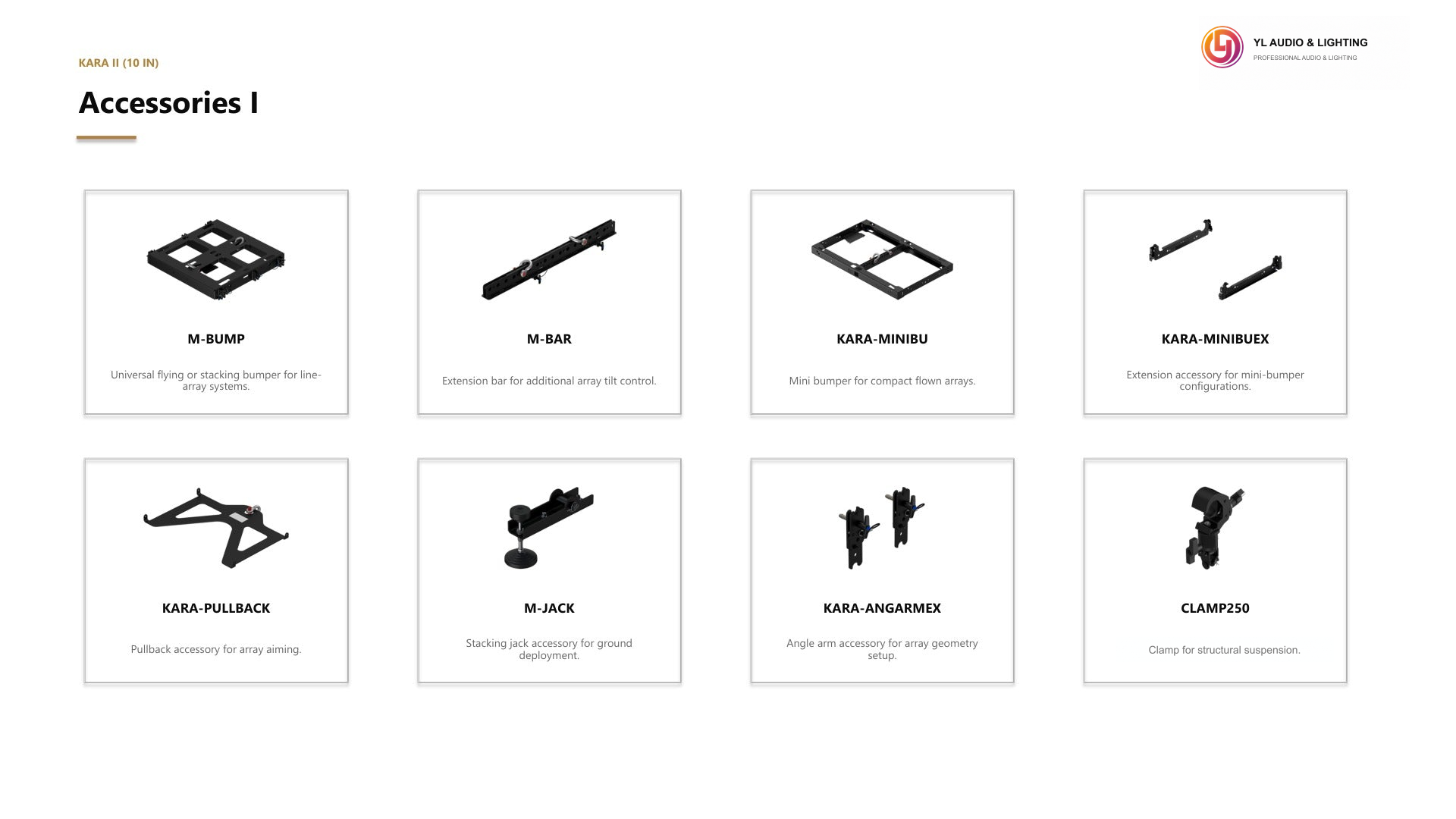

System accessories
