Product identification
- Model
- KARA II Active (10 IN)-K210II Active-Active compact line array, 2-way active, dual 10'' LF
- Product category
- Line Array Systems

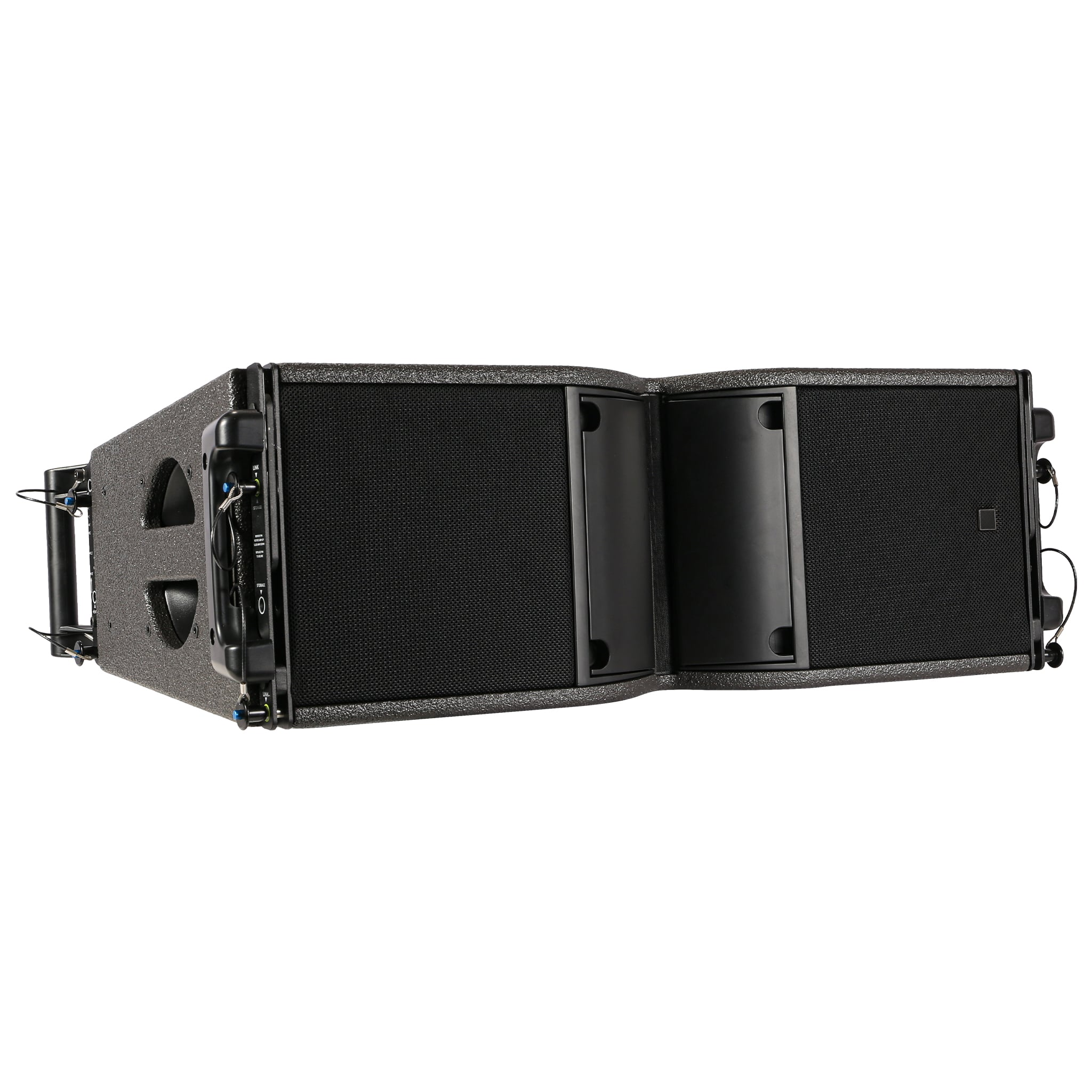

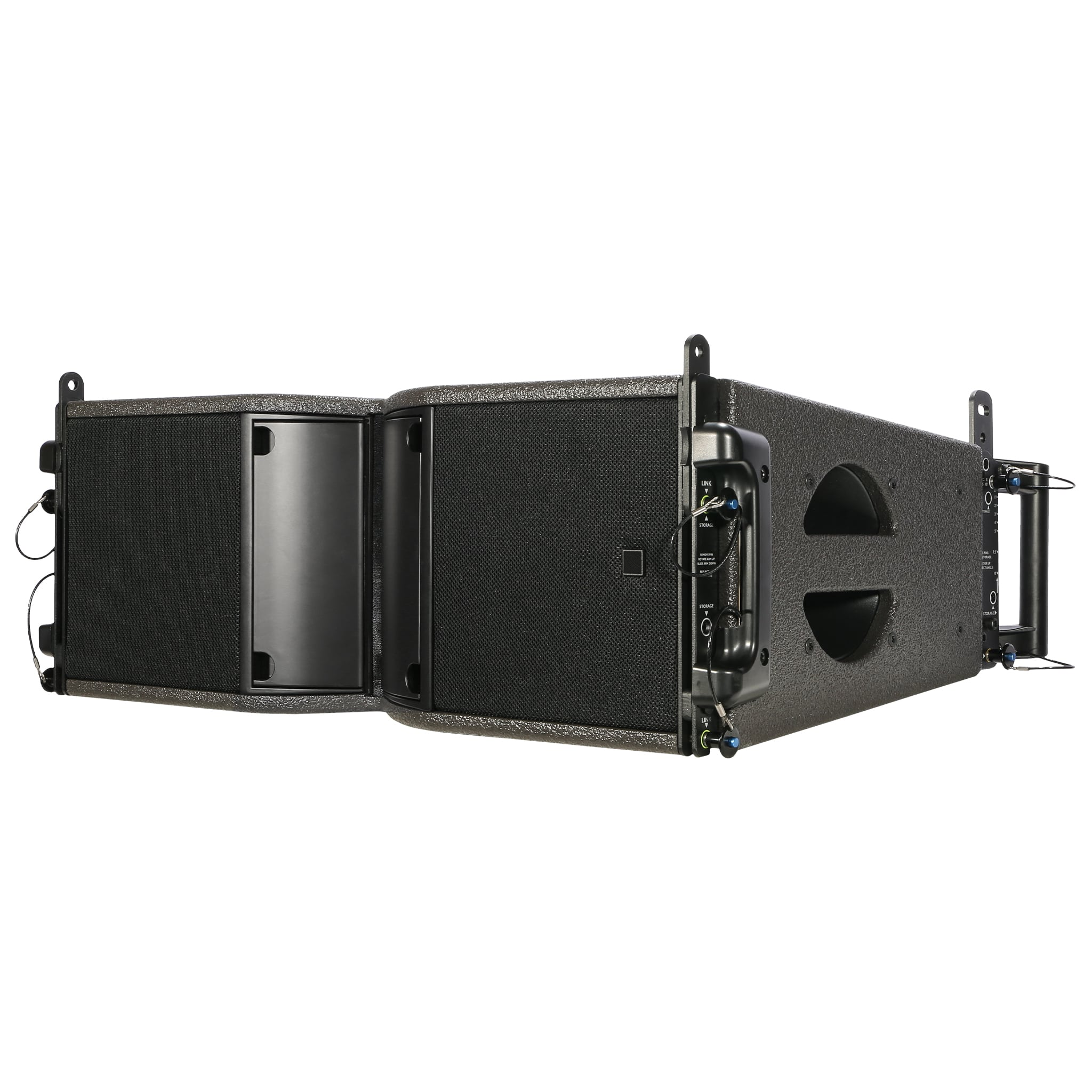

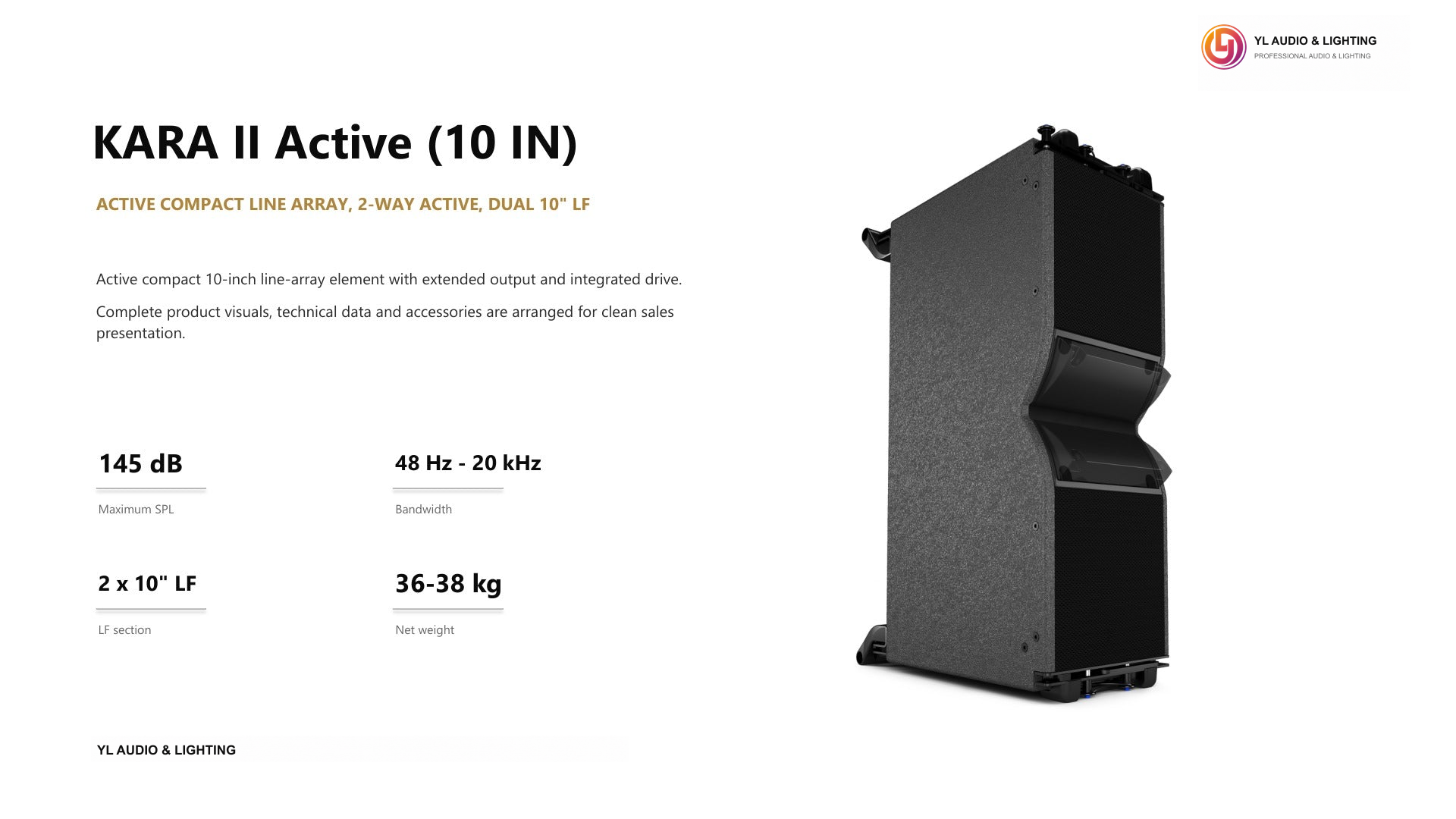

KARA II Active (10 IN)-K210II Active-Active compact line array, 2-way active, dual 10'' LF

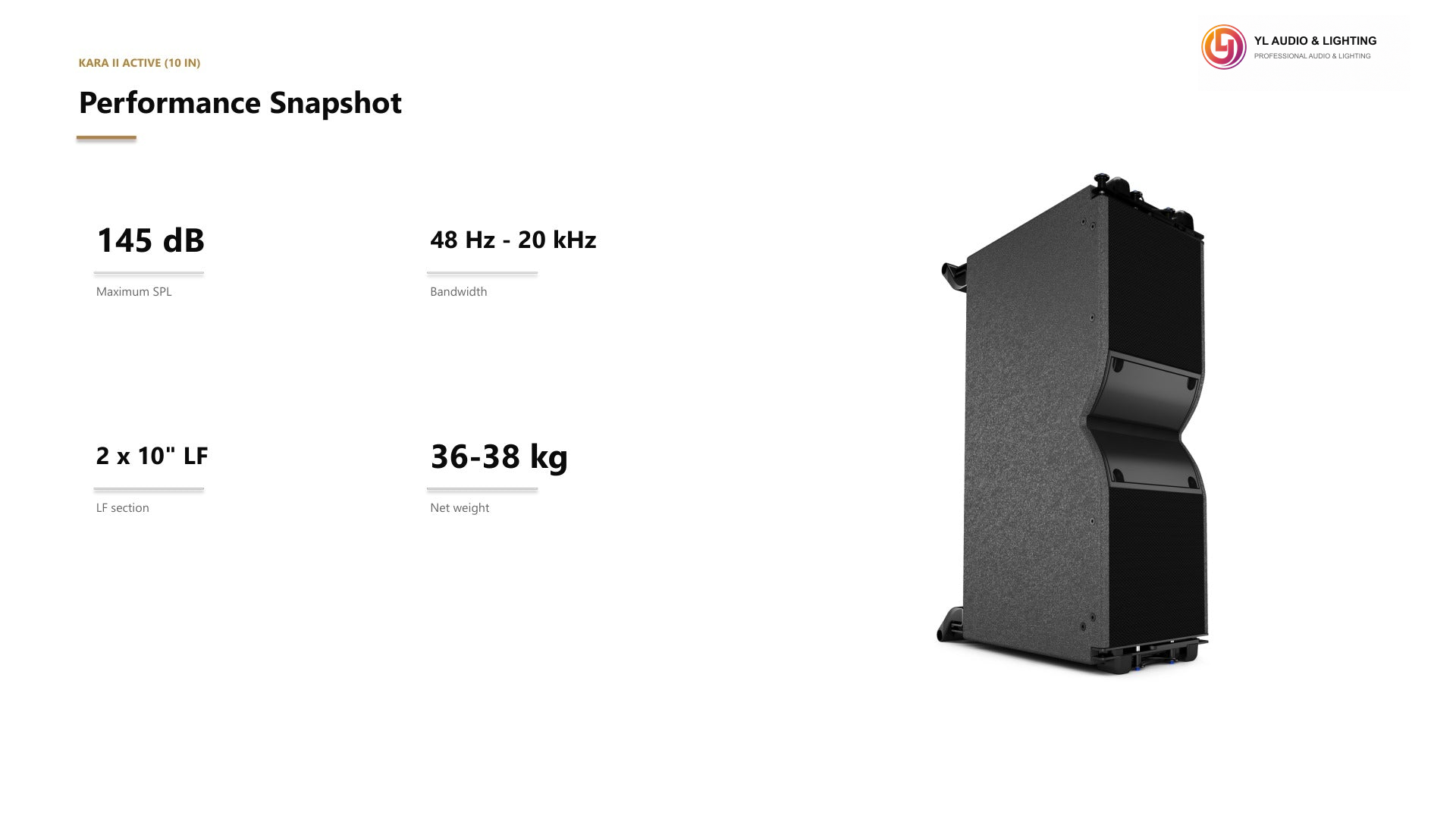

KARA II Active (10 IN)-K210II Active-Active compact line array, 2-way active, dual 10'' LF is listed in the line array systems category as a line array system. The reference lists maximum spl: ≈ 145 dB; bandwidth: 48 Hz – 20 kHz. Confirm the exact model, current specifications and supply details before use.
WHATSAPPRequest a Quote- Maximum SPL
- ≈ 145 dB
- Bandwidth
- 48 Hz – 20 kHz
- Weight
- ≈ 36–38 kg / 79–84 lb
Technical specifications
- Maximum SPL
- ≈ 145 dB
- Bandwidth
- 48 Hz – 20 kHz
- Transducers

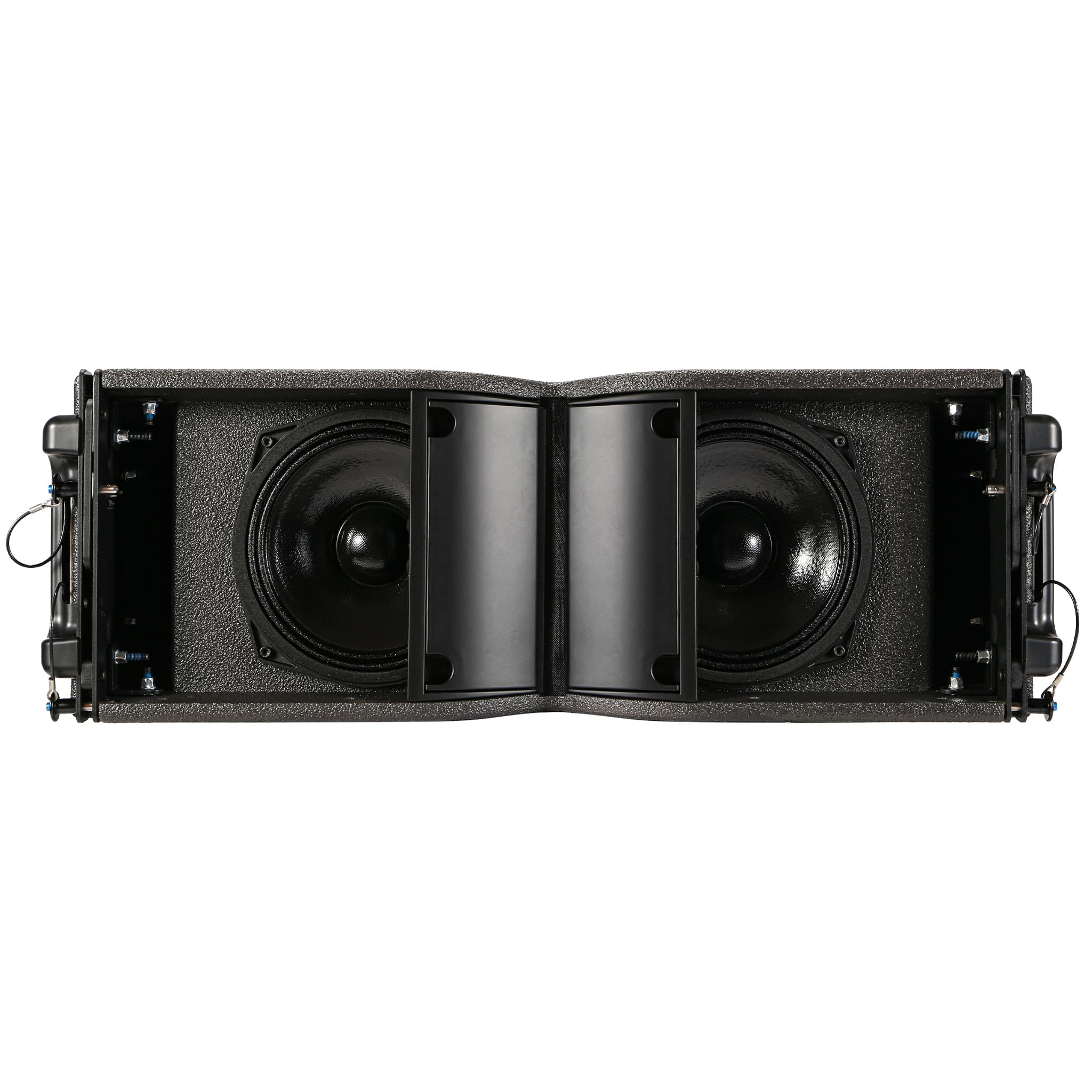

- LF: 2 × 10″ • HF: 1 × 3″ compression driver
- Nominal directivity (-6 dB) Horizontal
- 70° / 110° symmetric or 90° asymmetric
- vertical
- dependent upon the number of elements and the line source curvature
- Transducers LF
- 2 × 10″ neodymium cone drivers
- HF transducers
- 1 × 3″ neodymium diaphragm compression driver
- Acoustical load LF
- bass-reflex
- HF
- DOSC waveguide, Panflex
- Nominal impedance LF
- 8 Ω
- HF impedance
- 8 Ω
- Nominal directivity (-6 dB) Horizontal
- 70° / 110° symmetric or 90°
- vertical
- dependent upon the number of
- HF transducers
- 1 × 3″ neodymium diaphragm compression
Physical specifications

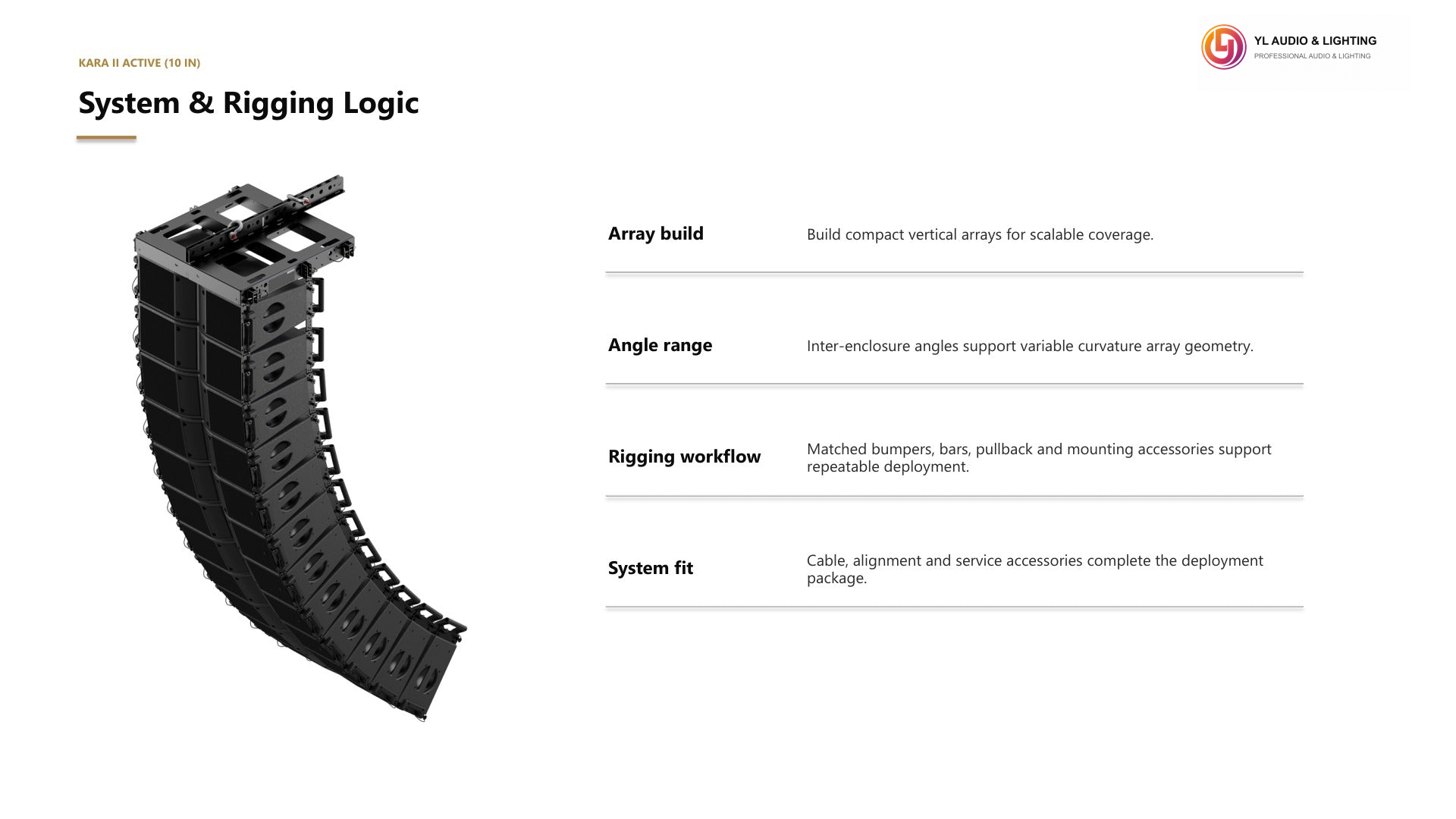

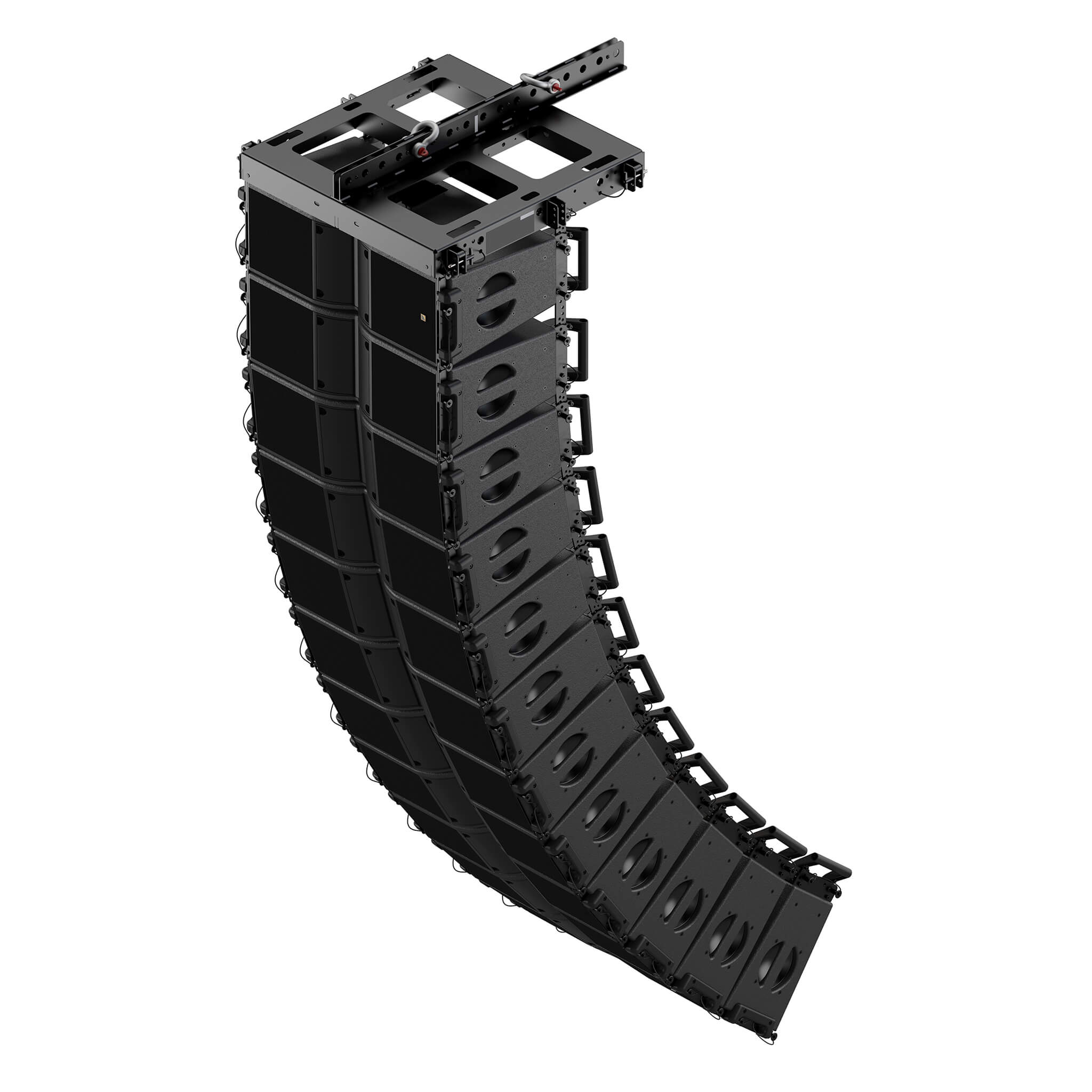

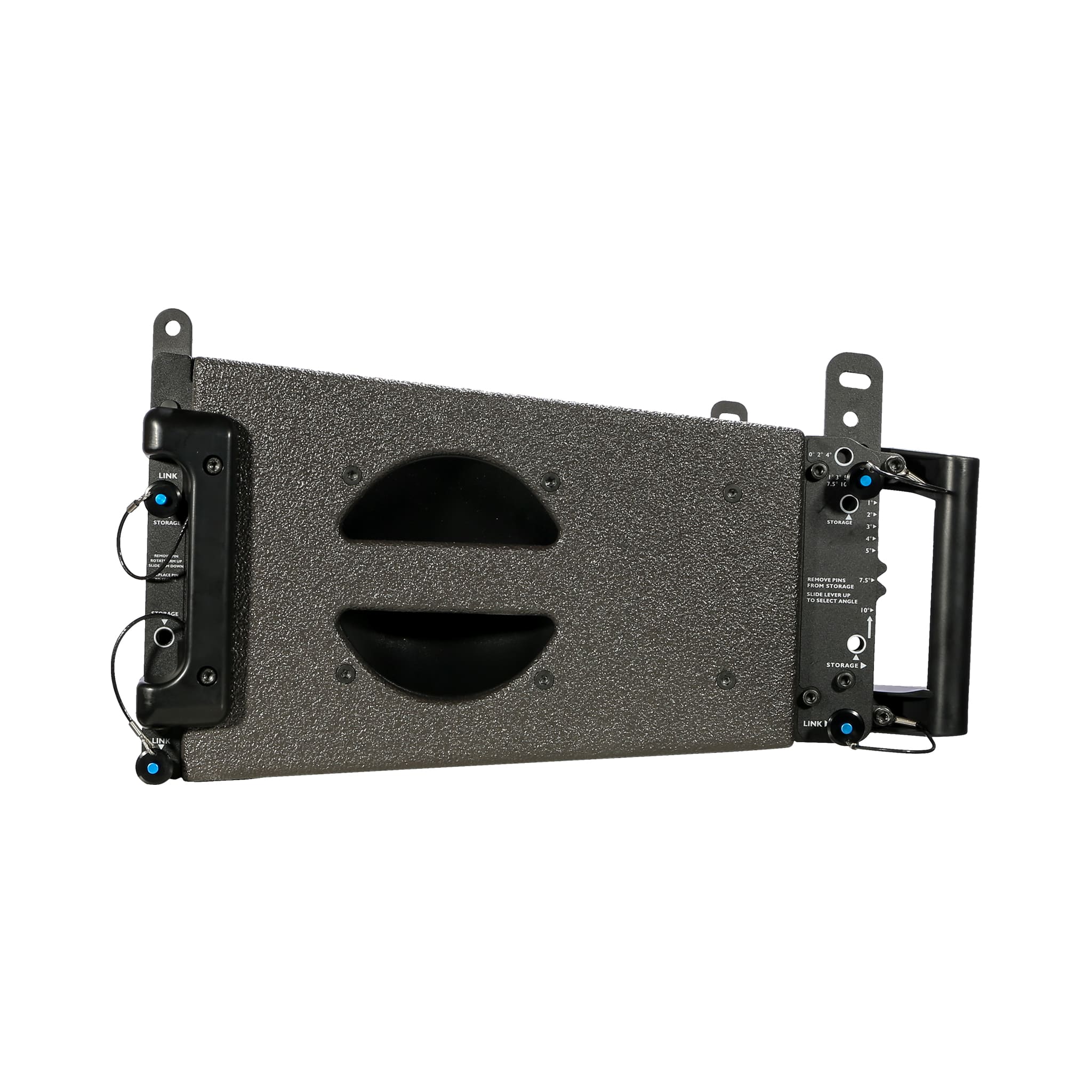

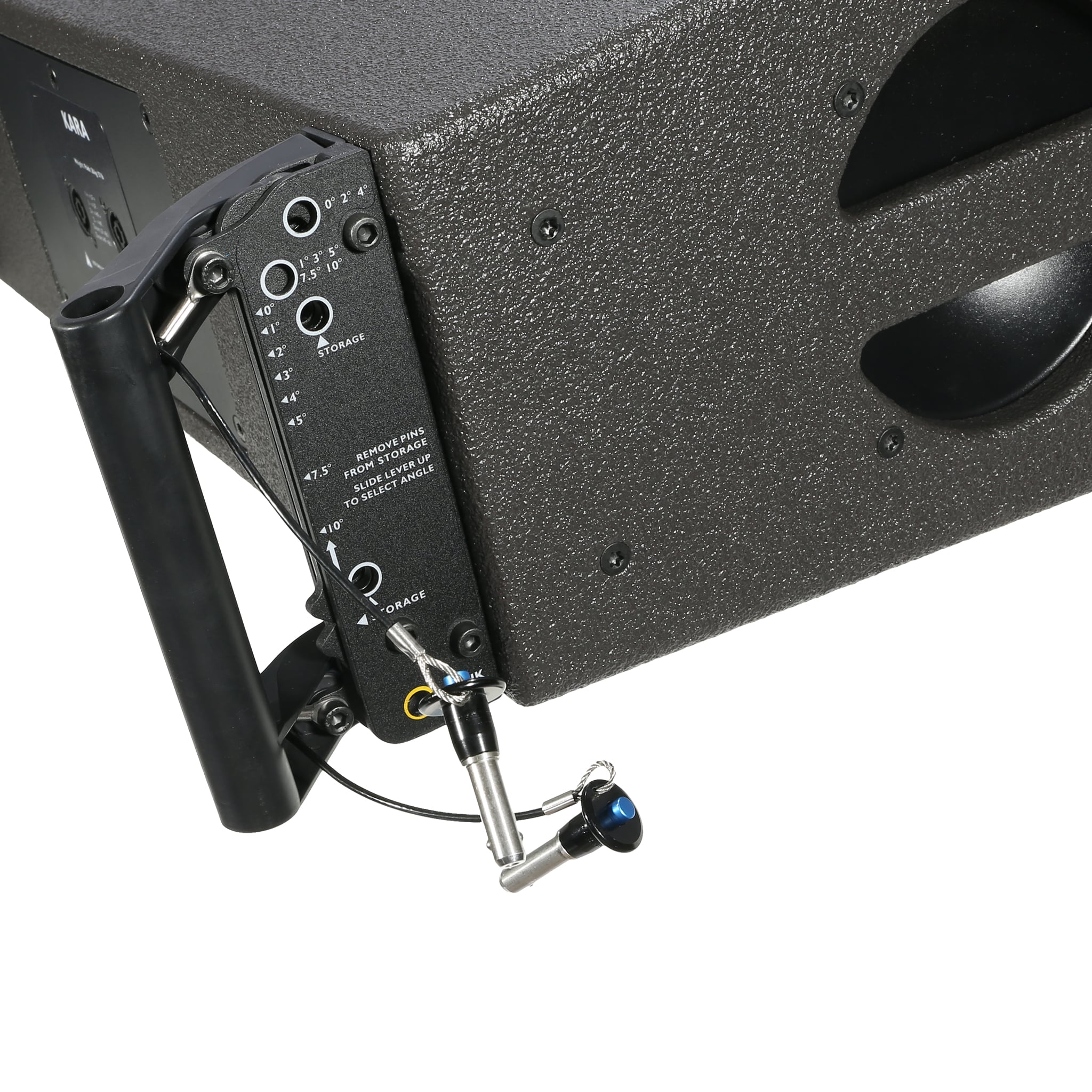

Dimensions: 750 × 300 × 500 mm Weight: ≈ 36–38 kg / 79–84 lb Connectors 2 × 4-point speakON Rigging and handling 4-point captive rigging system 2 side handles 2 rear handles inter-enclosure angles: 0°, 1°, 2°, 3°, 4°, 5°, 7.5° or 10° inter-enclosure angles: 0°, 1°, 2°, 3°, 4°, 5°, 7.5° or 10°
Compatibility and deployment
- Function / configuration
- 2-way active WST enclosure
- Function / configuration
- amplified by LA4X / LA12X
- Function / configuration
- Usable bandwidth (-10 dB) 55 Hz – 20 kHz ([KARA 210 ])
- Function / configuration
- Maximum SPL1 142 dB ([KARA II 70])
- Function / configuration
- 1Peak level measured at 1 m under free field conditions using pink noise with crest factor 4 (preset specified in brackets).
- Function / configuration
- Connectors 2 × 4-point speakON
- Function / configuration

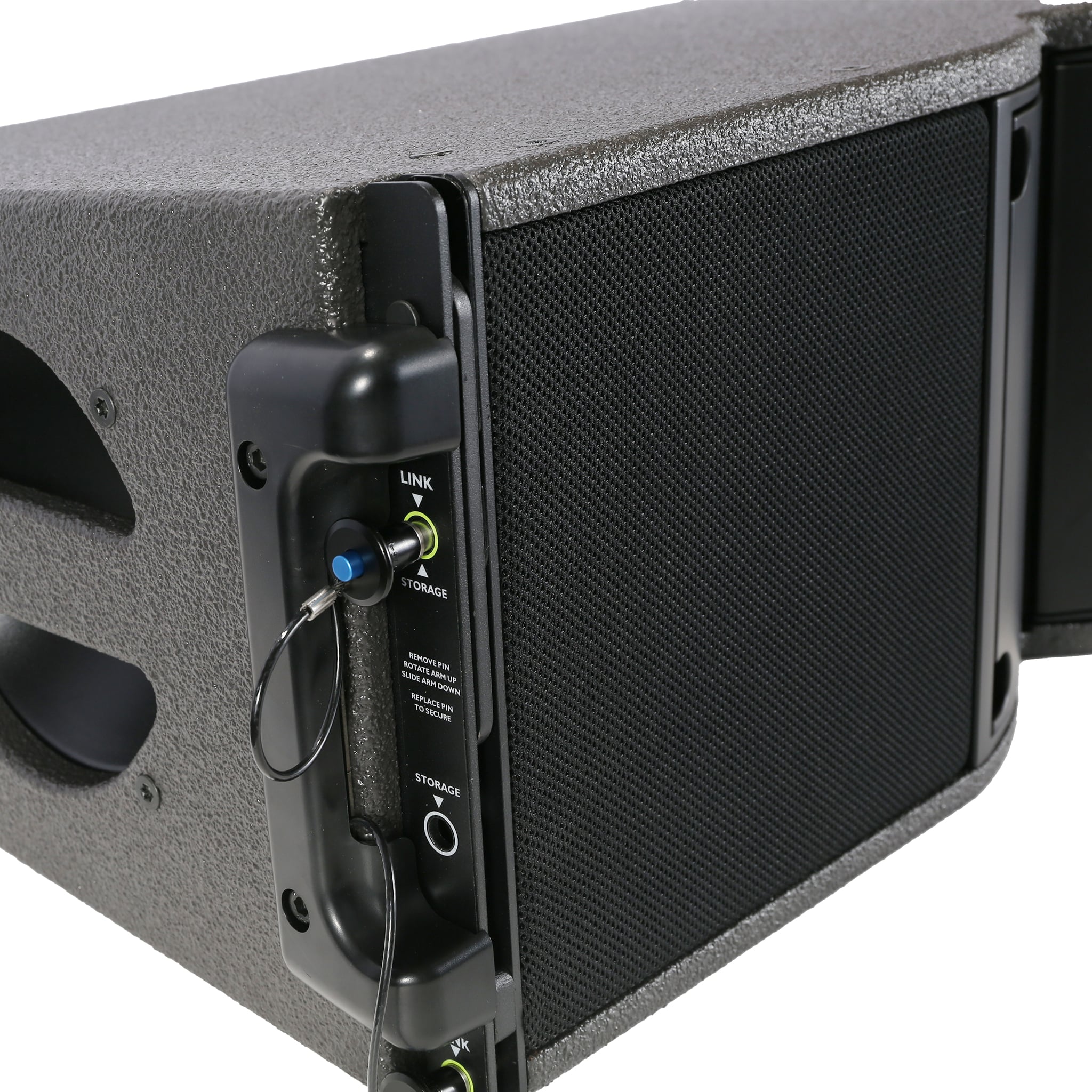

- Rigging and handling 4-point captive rigging system
- Function / configuration
- Rigging components High grade
- Function / configuration
- 2-way active WST enclosure amplified by LA4X / LA12X
TECHNICAL REFERENCE
Product specifications.
Published product details. Ask our team about any configuration that is not listed.
| Maximum SPL | ≈ 145 dB |
|---|---|
| Bandwidth | 48 Hz – 20 kHz |
| Transducers | • LF: 2 × 10″ • HF: 1 × 3″ compression driver |
| Dimensions | 750 × 300 × 500 mm |
| Weight | ≈ 36–38 kg / 79–84 lb |
| Nominal directivity (-6 dB) Horizontal | 70° / 110° symmetric or 90° asymmetric |
| vertical | dependent upon the number of elements and the line source curvature |
| Transducers LF | 2 × 10″ neodymium cone drivers |
| HF | 1 × 3″ neodymium diaphragm compression driver |
| Acoustical load LF | bass-reflex |
| HF | DOSC waveguide, Panflex |
| Nominal impedance LF | 8 Ω |
| HF | 8 Ω |
Downloads
| Title | File type | Download |
|---|---|---|
| YL K210II Active Product DetailsEnglish | PDF4.4 MB |

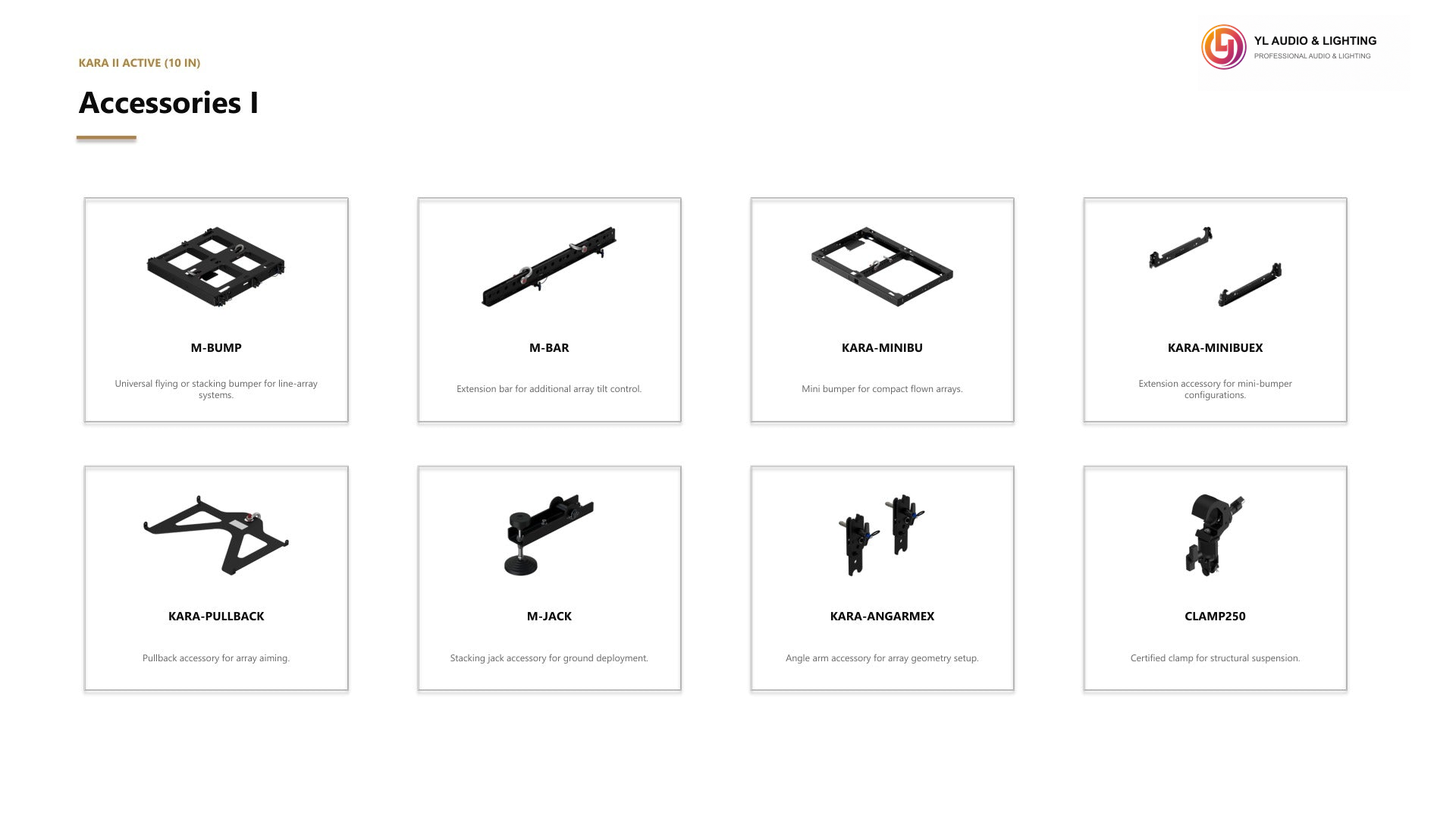

System accessories
YL LightSystem Accessories
Rigging & Accessories
Audio Flight Case for Professional Sound Systems
Audio Flight Case for Professional Sound Systems is listed in the rigging & accessories category as a audio rigging or accessory product. The source does not provide a clearly labelled technical specification for this item. Confirm the exact model, current specifications and supply details before use.
YL LightYL-LA
Rigging & Accessories
KARA-ANGARMEX
KARA-ANGARMEX is listed in the rigging & accessories category as a audio rigging or accessory product. The source does not provide a clearly labelled technical specification for this item. Confirm the exact model, current specifications and supply details before use.
YL LightYL-LA
Rigging & Accessories
KARA-DOWNK1
KARA-DOWNK1 is listed in the rigging & accessories category as a audio rigging or accessory product. The source does not provide a clearly labelled technical specification for this item. Confirm the exact model, current specifications and supply details before use.
YL LightYL-LA
Rigging & Accessories
KARA-MINIBU (KARA)
KARA-MINIBU (KARA) is listed in the rigging & accessories category as a audio rigging or accessory product. The source does not provide a clearly labelled technical specification for this item. Confirm the exact model, current specifications and supply details before use.
YL LightYL-LA
Rigging & Accessories
KARA-MINIBUEX
KARA-MINIBUEX is listed in the rigging & accessories category as a audio rigging or accessory product. The source does not provide a clearly labelled technical specification for this item. Confirm the exact model, current specifications and supply details before use.
YL LightYL-LA
Rigging & Accessories
KARA-PULLBACK
KARA-PULLBACK is listed in the rigging & accessories category as a audio rigging or accessory product. The source does not provide a clearly labelled technical specification for this item. Confirm the exact model, current specifications and supply details before use.
YL LightYL-LA
Rigging & Accessories
KARADOWNK2
KARADOWNK2 is listed in the rigging & accessories category as a audio rigging or accessory product. The source does not provide a clearly labelled technical specification for this item. Confirm the exact model, current specifications and supply details before use.
YL LightYL-LA
Rigging & Accessories
M-BAR(KARA II)
M-BAR(KARA II) is listed in the rigging & accessories category as a audio rigging or accessory product. The source does not provide a clearly labelled technical specification for this item. Confirm the exact model, current specifications and supply details before use.
YL LightYL-LA
Rigging & Accessories
M-BUMP(KARA II)
M-BUMP(KARA II) is listed in the rigging & accessories category as a audio rigging or accessory product. The source does not provide a clearly labelled technical specification for this item. Confirm the exact model, current specifications and supply details before use.
YL LightYL-LA
Rigging & Accessories
M-JACK (KARA II)
M-JACK (KARA II) is listed in the rigging & accessories category as a audio rigging or accessory product. The source does not provide a clearly labelled technical specification for this item. Confirm the exact model, current specifications and supply details before use.
YL LightYL-LA
Rigging & Accessories
KARA-DOWNK3
KARA-DOWNK3 is listed in the rigging & accessories category as a audio rigging or accessory product. The source does not provide a clearly labelled technical specification for this item. Confirm the exact model, current specifications and supply details before use.
YL LightYL-LA
Rigging & Accessories
KARA-BAR - KARA-BAR – Extension bar for KARA-BUMP
KARA-BAR - KARA-BAR – Extension bar for KARA-BUMP is listed in the rigging & accessories category as a audio rigging or accessory product. The reference lists weight: ~18–20 kg; dimensions (h × w × d): approx. 120 × 850 × 220 mm. Confirm the exact model, current specifications and supply details before use.
YL LightYL-LA
Rigging & Accessories
KARA-CHARIOT - KARA-CHARIOT – Transport cart for up to 4 × KARA (II)
KARA-CHARIOT - KARA-CHARIOT – Transport cart for up to 4 × KARA (II) is listed in the rigging & accessories category as a audio rigging or accessory product. The reference lists dimensions (l × w × h): 1100 × 800 × 220 mm. Confirm the exact model, current specifications and supply details before use.
YL LightYL-LA
Rigging & Accessories
KARA-CHARIOTCOV - KARA-CHARIOTCOV – Protective cover for 4 × KARA (II) on CHARIOT
KARA-CHARIOTCOV - KARA-CHARIOTCOV – Protective cover for 4 × KARA (II) on CHARIOT is listed in the rigging & accessories category as a audio rigging or accessory product. The reference lists dimensions (h × w × d): Tailored fit for KARA-CHARIOT loaded with 8 × KARA; weight: ~10 kg. Confirm the exact model, current specifications and supply details before use.

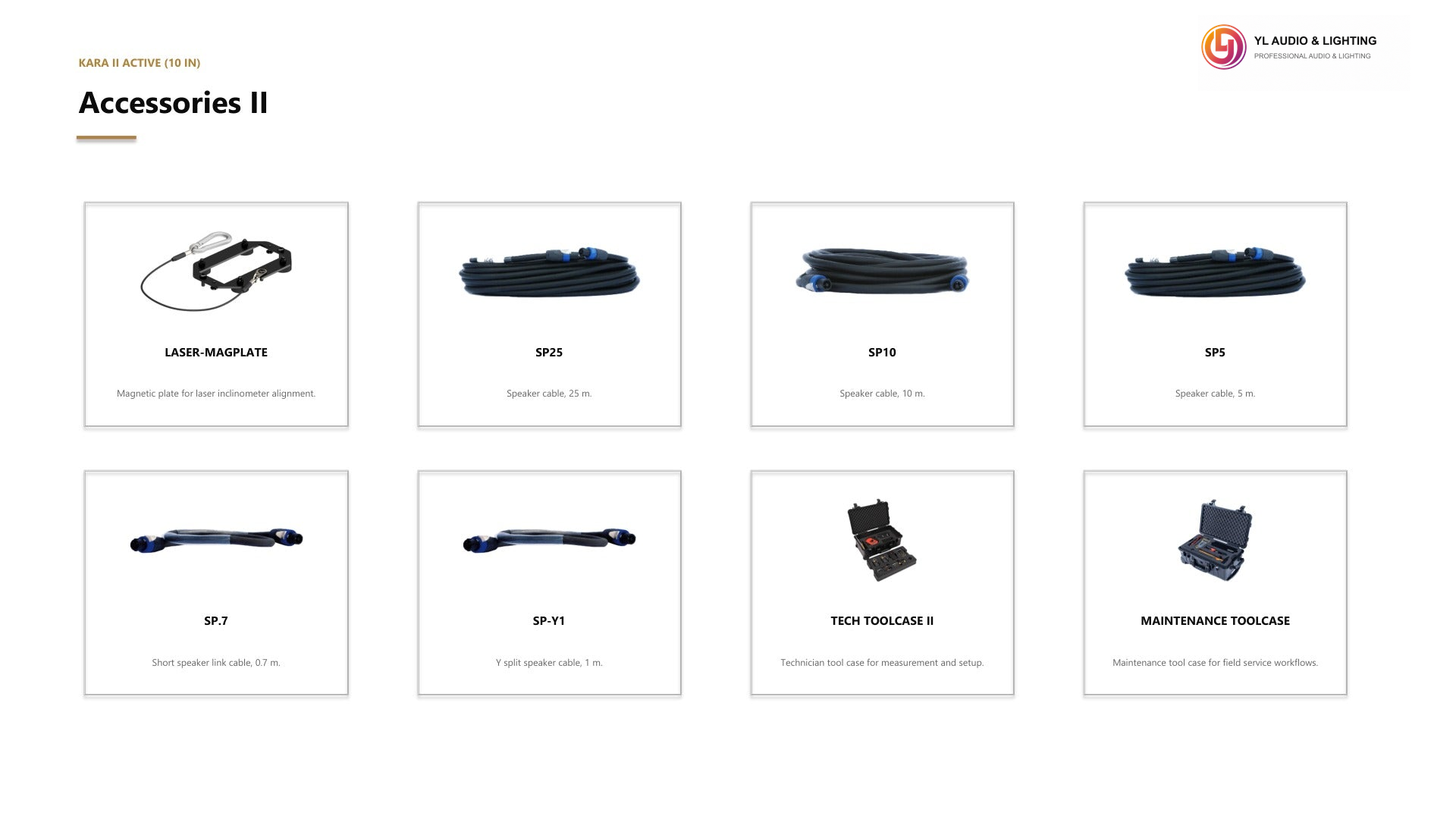

CableYL LightSystem Accessories
