Product identification
- Model
- J212F Large-Format 3-Way Line Array Loudspeaker
- Product category
- Line Array Systems

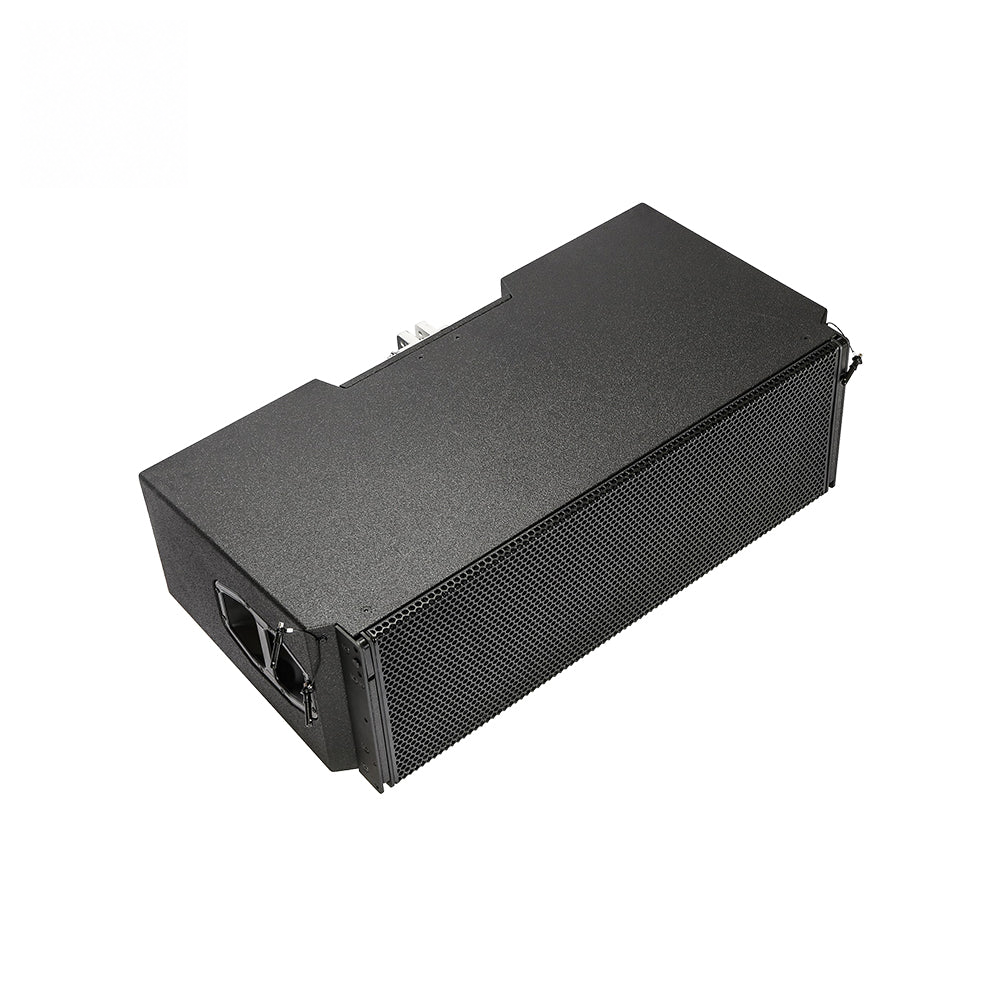

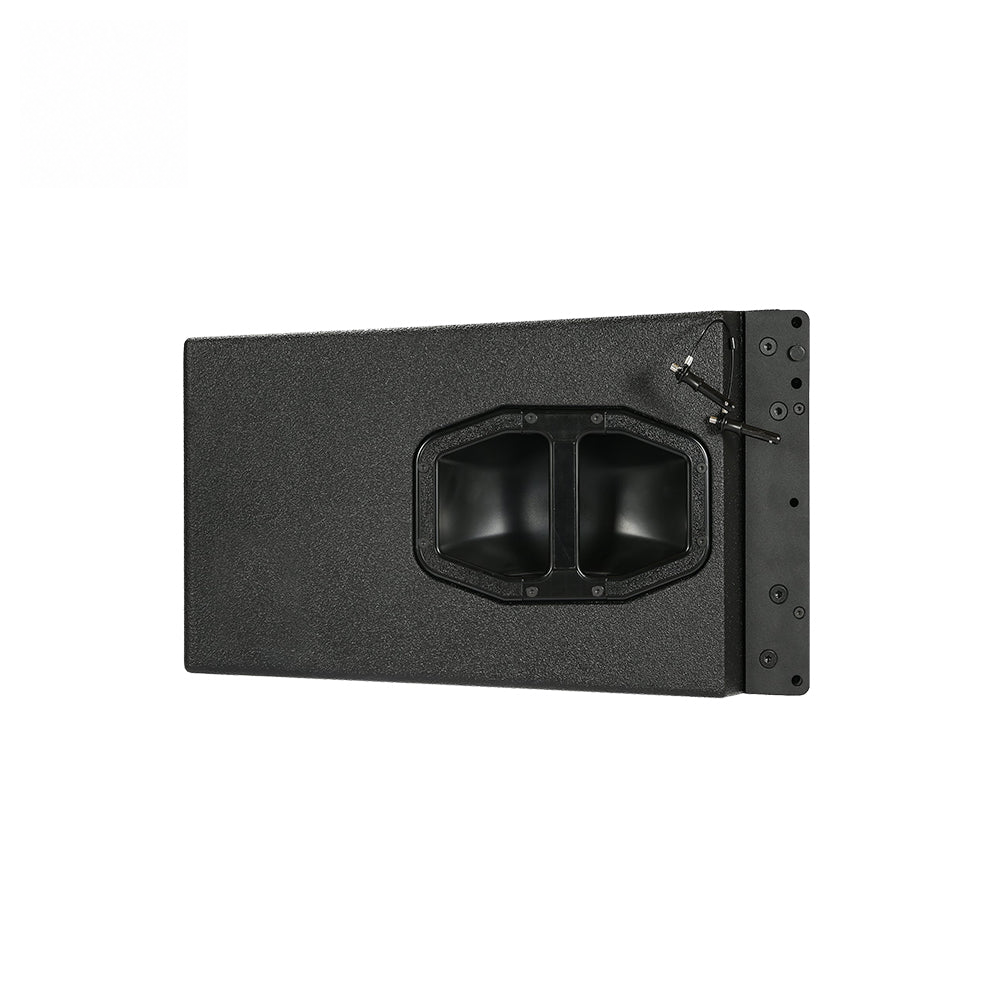

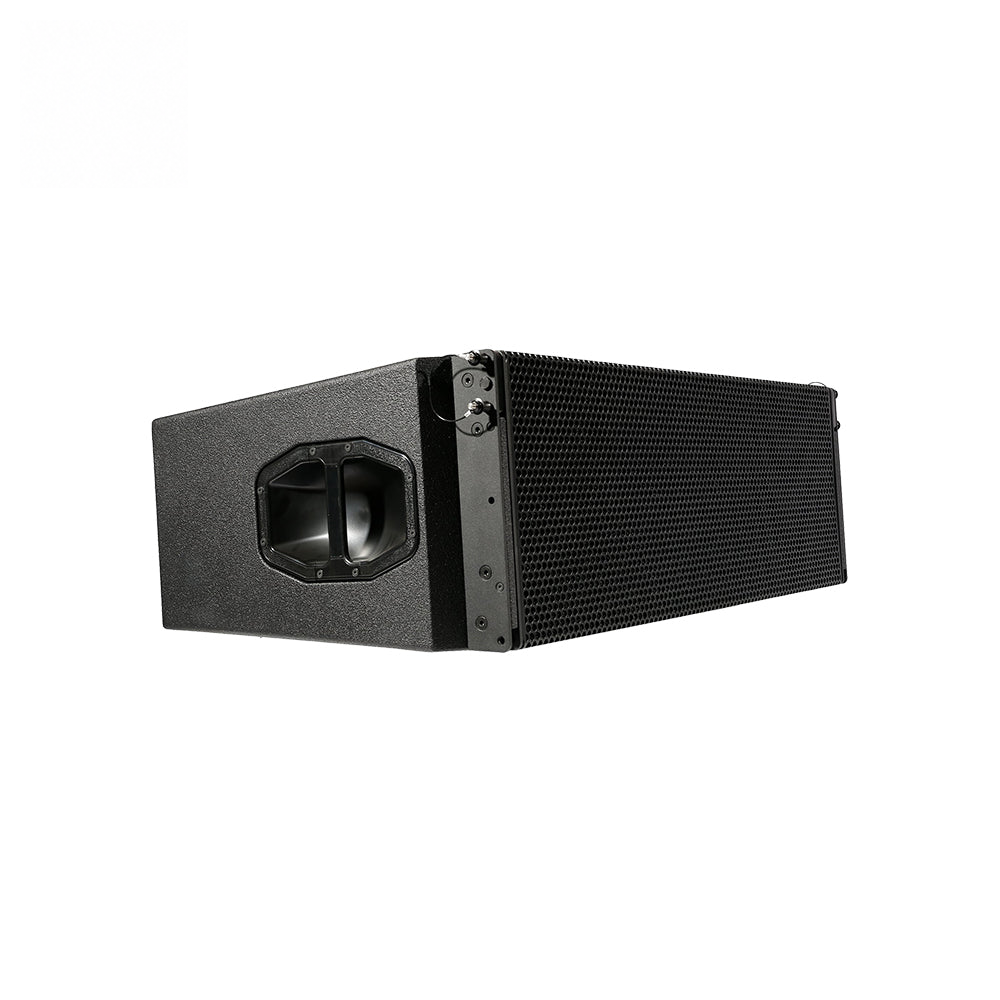

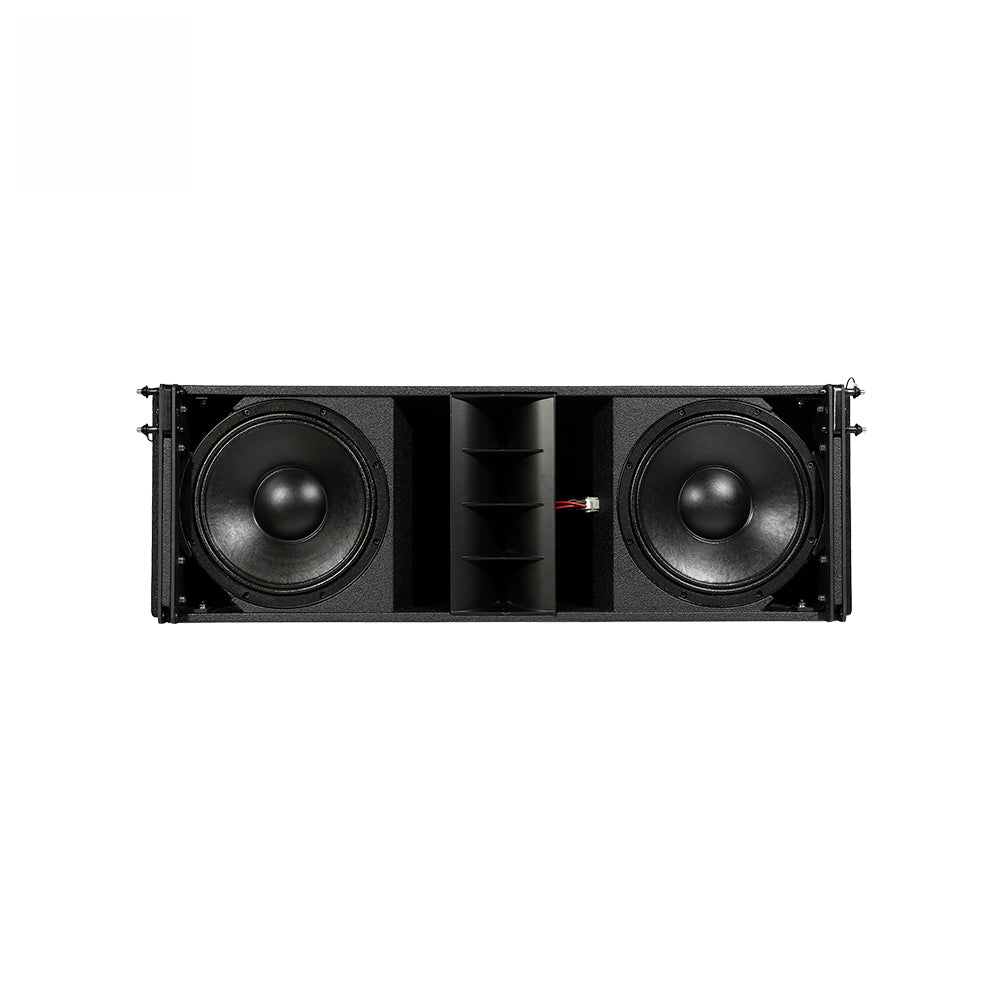

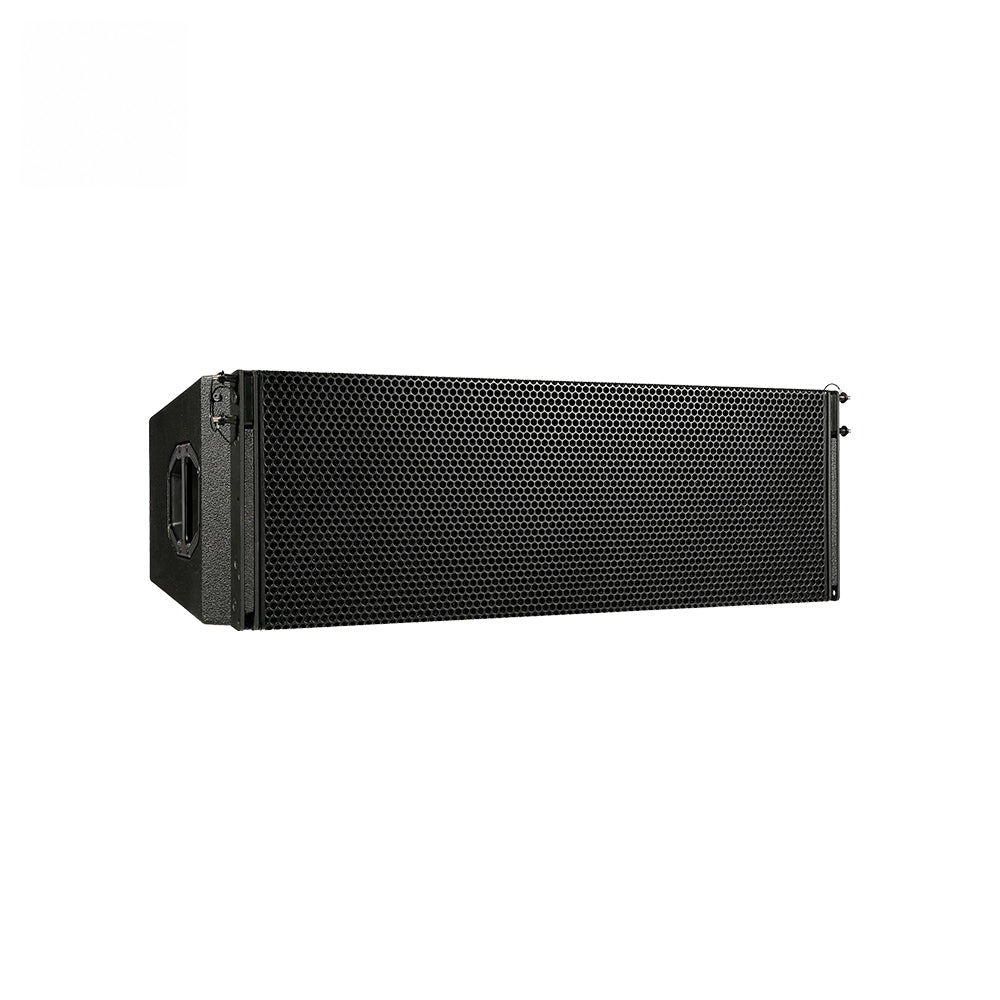

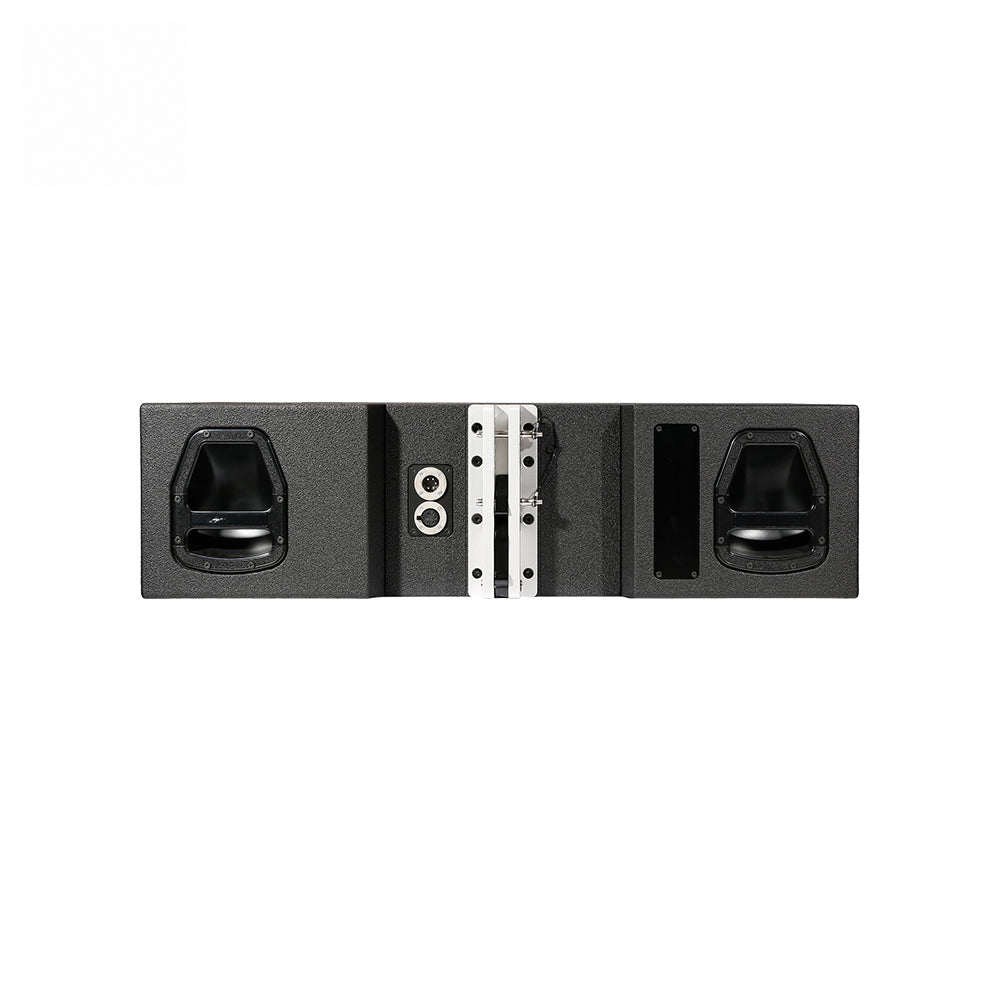

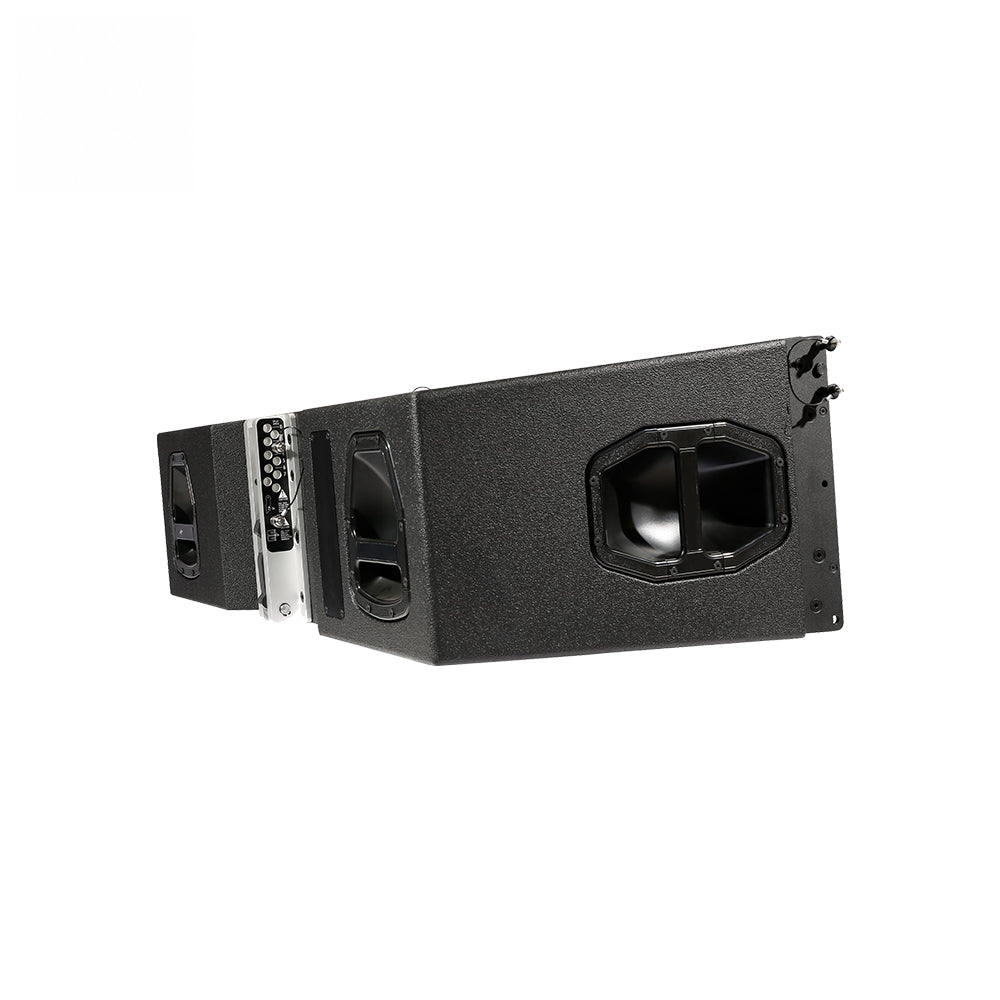

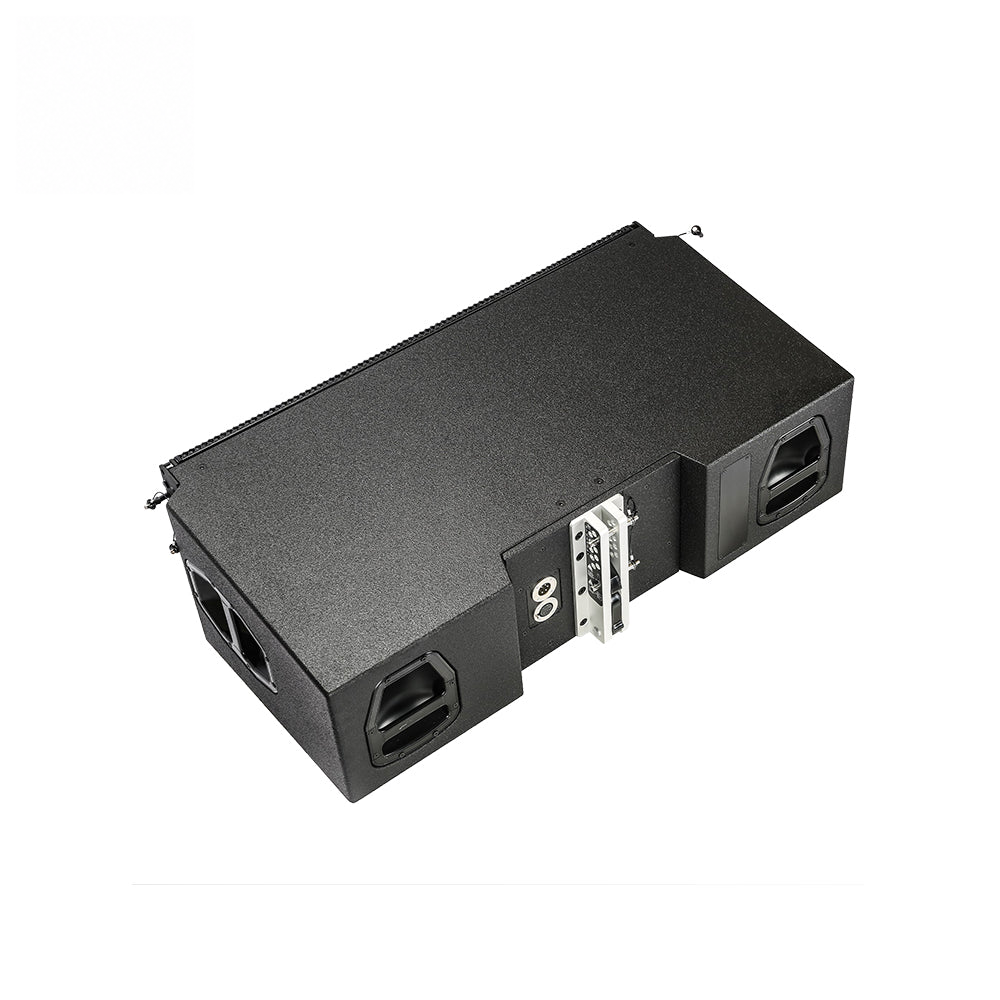

J212F Large-Format 3-Way Line Array Loudspeaker
J212F Large-Format 3-Way Line Array Loudspeaker is listed in the line array systems category as a line array system. The reference lists max spl: 145 dB; bandwidth (-5 db): 39 Hz – 20 kHz. Confirm the exact model, current specifications and supply details before use.
WHATSAPPRequest a Quote- Max SPL
- 145 dB
- Bandwidth (-5 dB)
- 39 Hz – 20 kHz
- Weight
- 60 kg 132 lb
Technical specifications
- Configuration
- Large-format line array, 3-way
- Max SPL
- 145 dB
- Bandwidth (-5 dB)
- 39 Hz – 20 kHz
- LF transducers
- 2 × 12″
- MF transducers
- 1 × 10″
- HF transducers
- 2 × 1.4″ compression drivers
- Directivity
- J212F H: 80° | J212W H: 120° | V: 10°
- Nominal Impedance
- 8 Ω
- Power Handling
- 800 W AES / 1600 W Program / 3200 W Peak
- Frequency response (-5 dB standard)
- 48 Hz - 17 kHz
- Frequency response (-5 dB CUT mode)
- 85 Hz - 17 kHz
- with 30D
- 145 dB with D80:145 dB
- Configuration
- Large format 3-way line array loudspeaker
- Power handling capacity LF (RMS/peak 10 ms)
- 500/2000 W
- Power handling capacity MHF (RMS/peak 10 ms)
- 200/800 W
- Components
- 2 x 12" driver / 1 x 10" driver 2 x 1.4" exit compression driver passive crossover network
- Connections
- 2 x NLT4 F/M optional 2 x NL8Dimensions / weight
- Transducers
- LF: 2 × 12″
Physical specifications
- Weight
- 54 kg / 119 lb
- Dimensions (H × W × D)
- 580 × 1100 × 600 mm
- Cabinets per D80 (ArrayProcessing)
- 2
- Cabinets per D80 (Line or Arc mode)
- 4
Compatibility and deployment
- Nominal dispersion angle (h x v)
- 80°2
- Splay angle settings
- 0 - 7° (1° increment)
- Function / configuration
- Loudspeaker data
TECHNICAL REFERENCE
Product specifications.
Published product details. Ask our team about any configuration that is not listed.
| Configuration | Large-format line array, 3-way |
|---|---|
| Max SPL | 145 dB |
| Bandwidth (-5 dB) | 39 Hz – 20 kHz |
| LF | 2 × 12″ |
| MF | 1 × 10″ |
| HF | 2 × 1.4″ compression drivers |
| Weight | 54 kg / 119 lb |
| Directivity | J212F H: 80° | J212W H: 120° | V: 10° |
| Dimensions (H × W × D) | 580 × 1100 × 600 mm |
| Nominal Impedance | 8 Ω |
| Power Handling | 800 W AES / 1600 W Program / 3200 W Peak |
| Frequency response (-5 dB standard) | 48 Hz - 17 kHz |
| Frequency response (-5 dB CUT mode) | 85 Hz - 17 kHz |
| with 30D | 145 dB with D80:145 dB |
| Cabinets per D80 (ArrayProcessing) | 2 |
| Cabinets per D80 (Line or Arc mode) | 4 |
| Configuration | Large format 3-way line array loudspeaker |
| Nominal impedance | 6 Ω (LF) / 12 Ω (MHF) |
| Power handling capacity LF (RMS/peak 10 ms) | 500/2000 W |
| Power handling capacity MHF (RMS/peak 10 ms) | 200/800 W |
| Nominal dispersion angle (h x v) | 80°2 |
| Splay angle settings | 0 - 7° (1° increment) |
| Components | 2 x 12" driver / 1 x 10" driver 2 x 1.4" exit compression driver passive crossover network |
| Connections | 2 x NLT4 F/M optional 2 x NL8Dimensions / weight |
| Dimensions (H x W x D) | 360 x 1100 x 570 mm 14.2 x 43.3 x 22.4" |
| Weight | 60 kg 132 lb |
Downloads
Product documents are being prepared. Contact YL for the current information for J212F Large-Format 3-Way Line Array Loudspeaker.
Request product documentsSystem accessories
