Product identification
- Model
- GSL8-G214F Large-Format 3-Way Dual 14-Inch Line Array
- Product category
- Line Array Systems

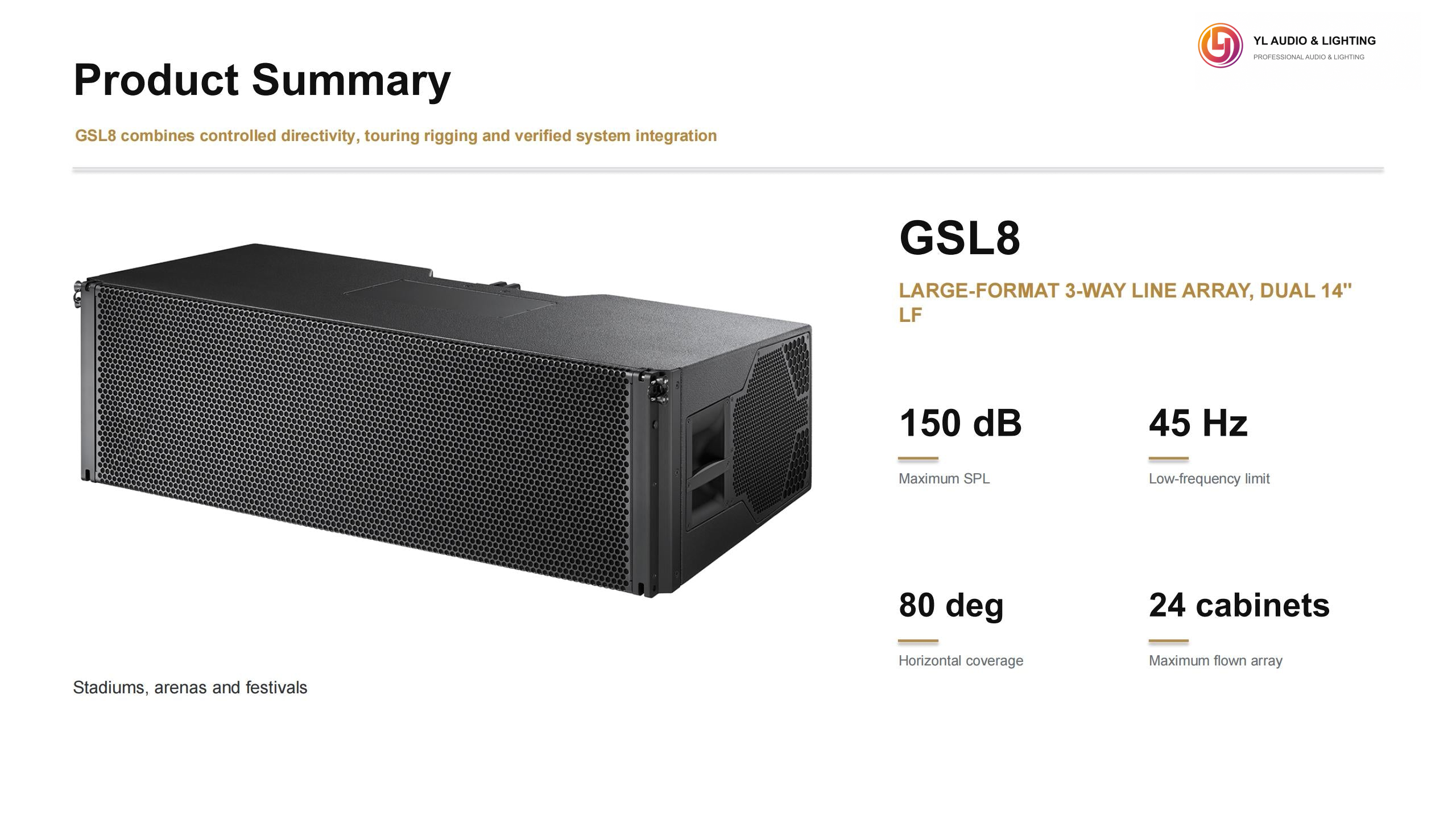

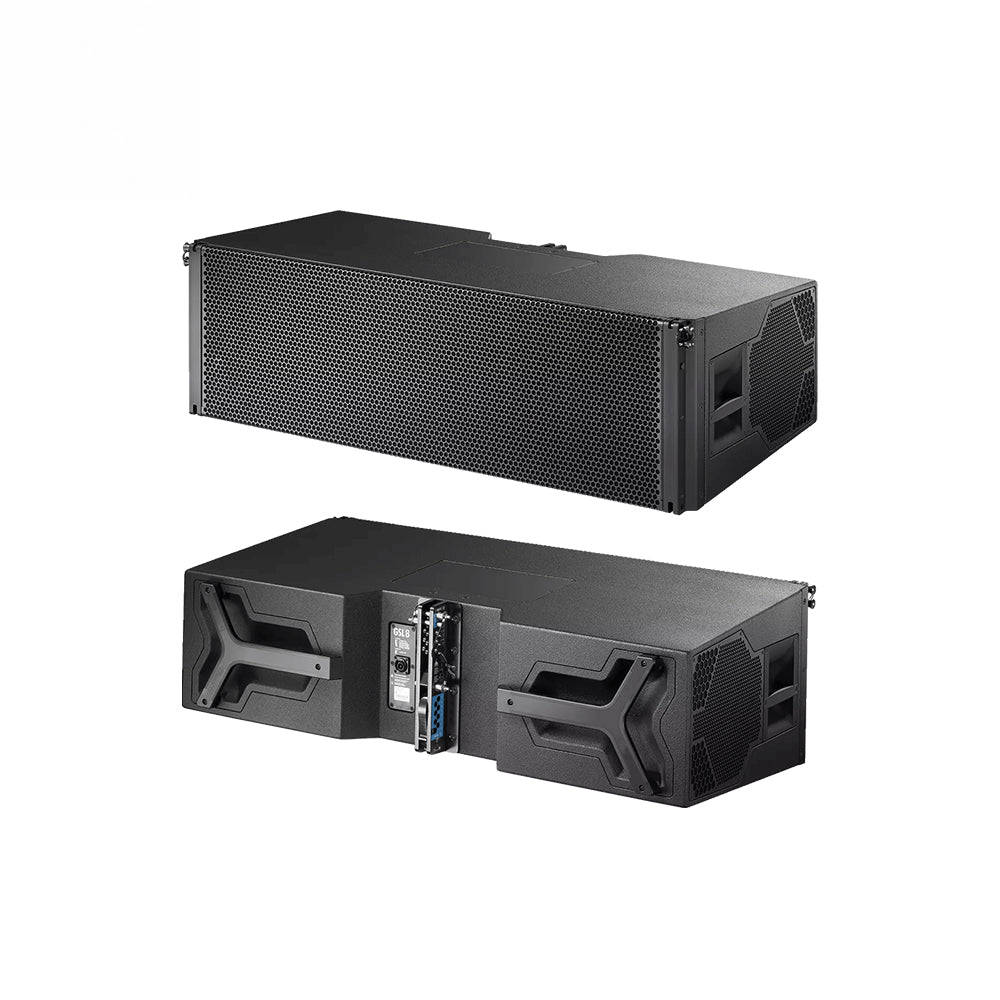

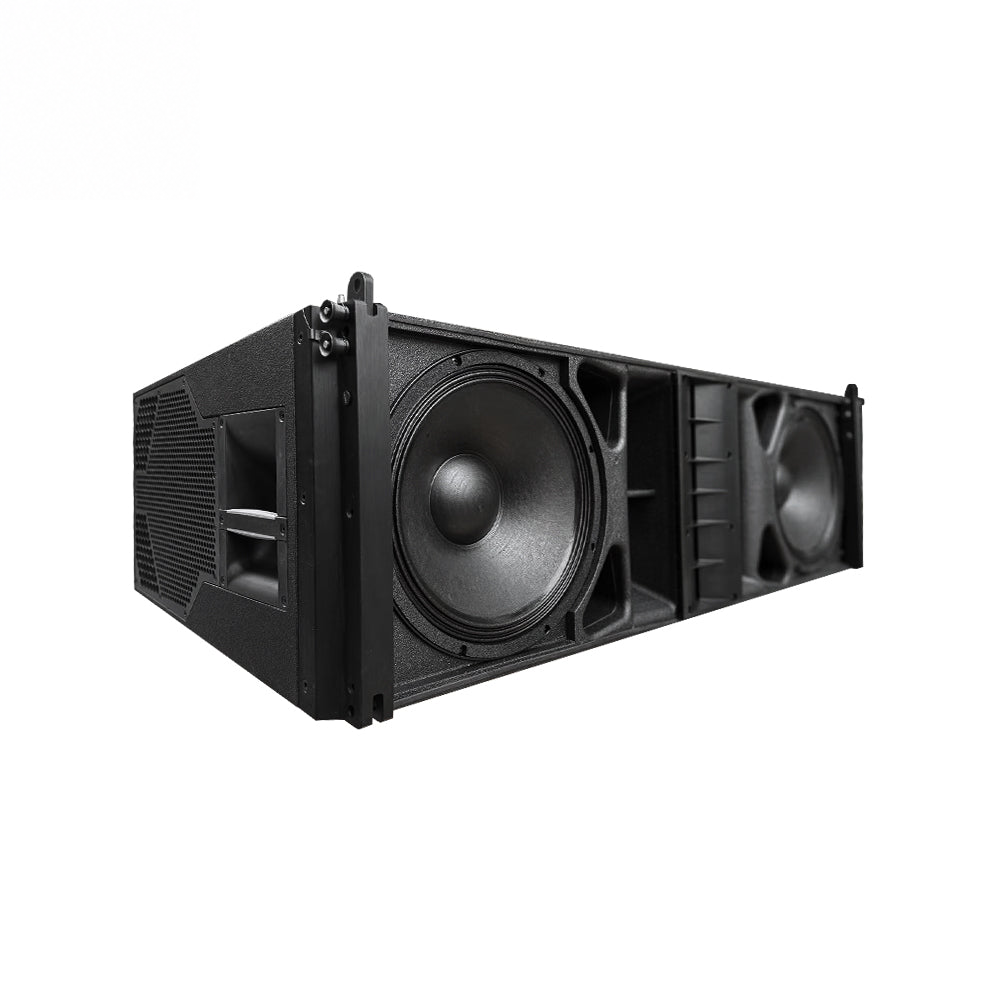

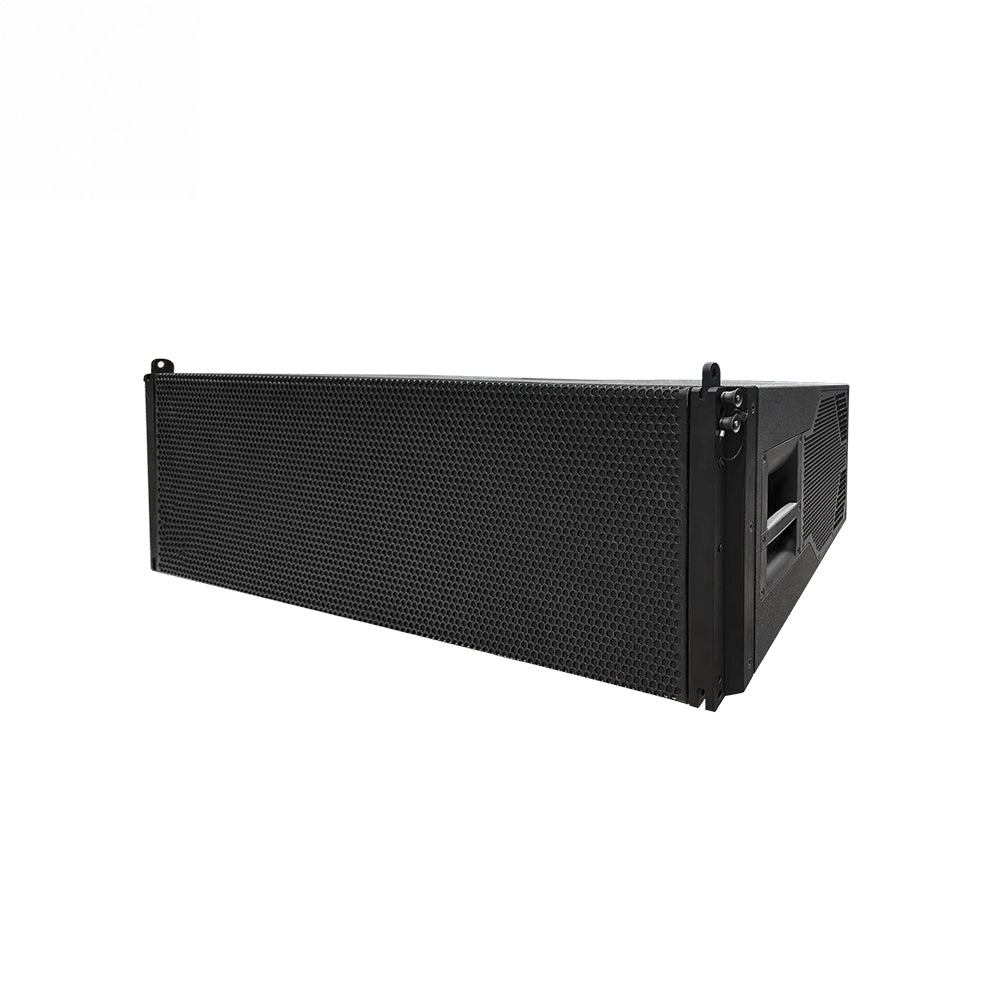

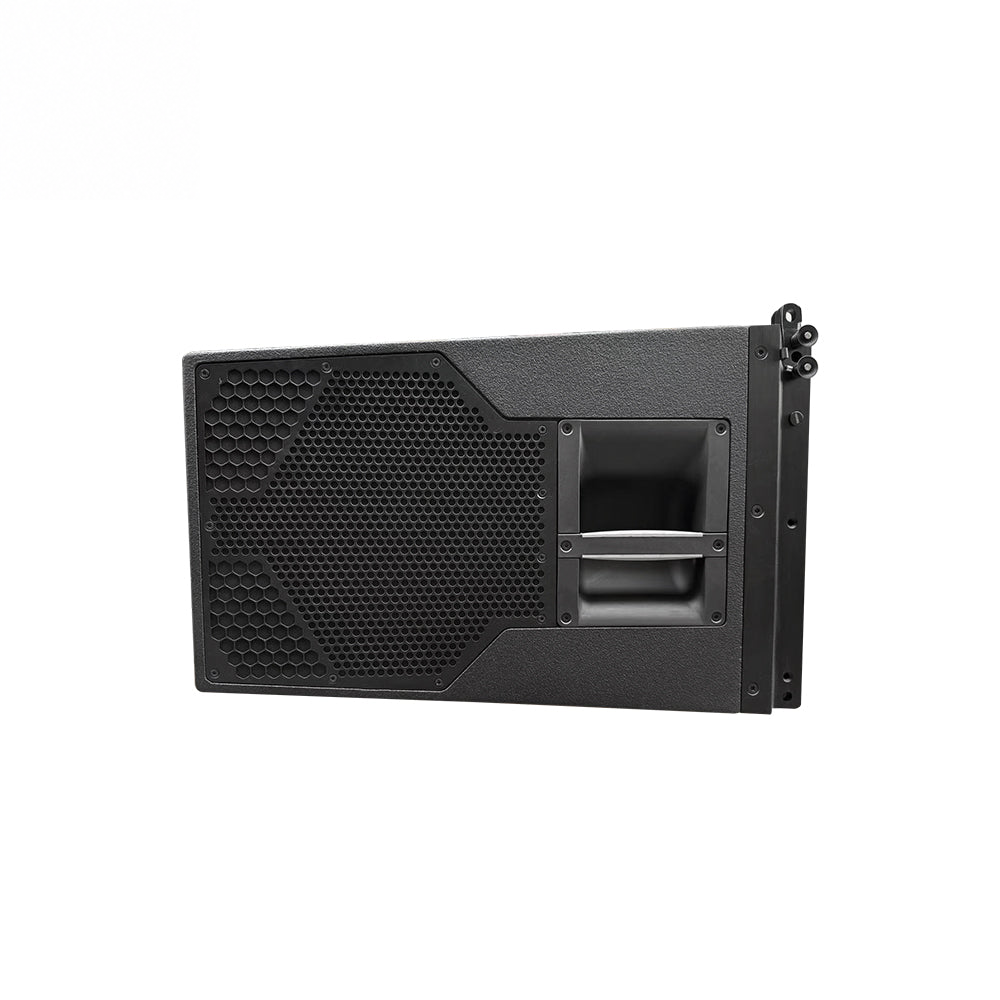

GSL8-G214F Large-Format 3-Way Dual 14-Inch Line Array
GSL8-G214F Large-Format 3-Way Dual 14-Inch Line Array is listed in the line array systems category as a line array system. The reference lists drivers: 2 x 14-inch front LF; 2 x 10-inch side LF; 1 x 10-inch MF; 3 x 1.4-inch exit HF compression drivers with 3.4-inch coil; passive crossover network; frequency response: 45 Hz - 18 kHz (-5 dB standard); 70 Hz - 18 kHz (-5 dB CUT); 41 Hz - 20 kHz (-10 dB standard); 54 Hz - 20 kHz (-10 dB CUT). Confirm the exact model, current specifications and supply details before use.
WHATSAPPRequest a Quote- Maximum SPL
- 150 dB single cabinet; 162 dB for 4 cabinets, far field scaled to 1 m
- Weight
- 80 kg / 176 lb
- Nominal Impedance
- 4 ohms front LF; 4 ohms side LF/MF/HF

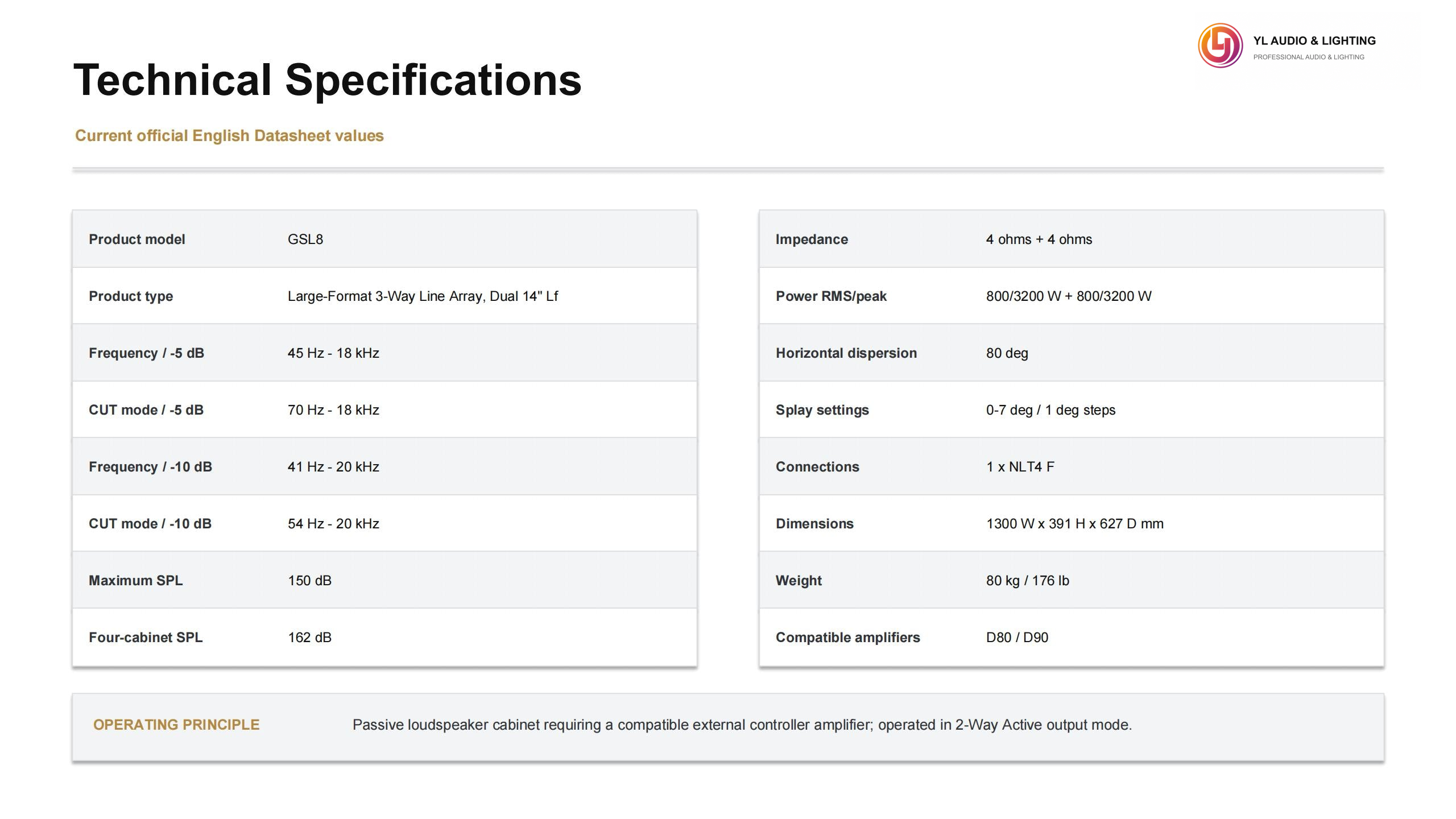

Technical specifications
- Product Model
- GSL8 / G214F
- Type
- Large format 3-way line array loudspeaker
- Drivers
- 2 x 14-inch front LF; 2 x 10-inch side LF; 1 x 10-inch MF; 3 x 1.4-inch exit HF compression drivers with 3.4-inch coil; passive crossover network
- Frequency Response
- 45 Hz - 18 kHz (-5 dB standard); 70 Hz - 18 kHz (-5 dB CUT); 41 Hz - 20 kHz (-10 dB standard); 54 Hz - 20 kHz (-10 dB CUT)
- Rated Power
- 800 W RMS front LF; 800 W RMS side LF/MF/HF
- Peak Power
- 3200 W peak, 10 ms front LF; 3200 W peak, 10 ms side LF/MF/HF
- Maximum SPL
- 150 dB single cabinet; 162 dB for 4 cabinets, far field scaled to 1 m
- Nominal Impedance
- 4 ohms front LF; 4 ohms side LF/MF/HF

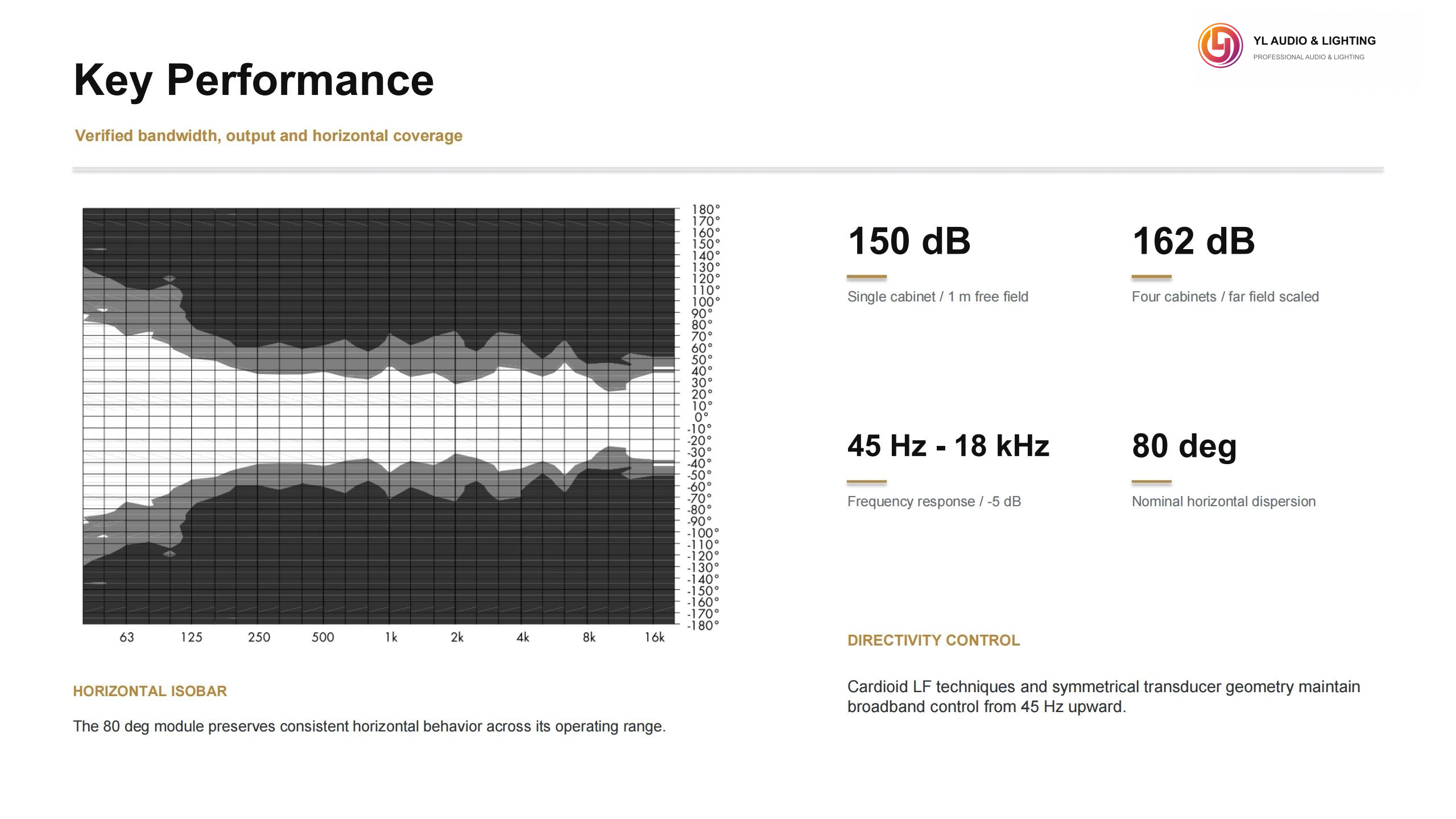

- Coverage / Dispersion
- 80° horizontal; splay angle 0° - 7° in 1° increments
- Connectors
- 1 x NLT4 F; 1+/1- front LF; 2+/2- side LF/MF/HF
- Sensitivity
- Not specified in the product PDF
- Recommended Amplifier

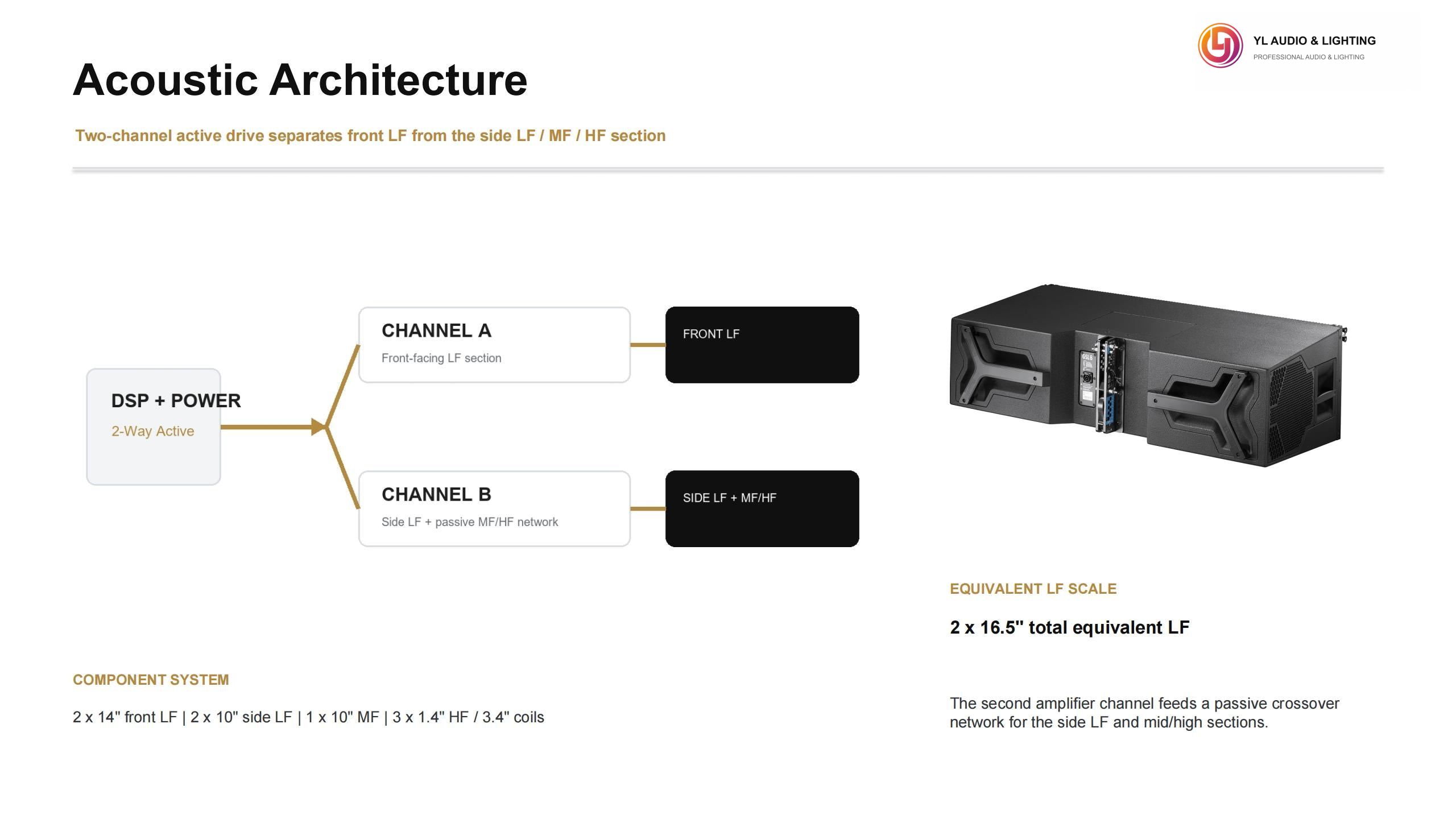

- Compatible two-channel active system amplifier; output mode: 2-Way Active
- Model
- GSL8 / G214F
- Drivers
- 2 x 14" front LF; 2 x 10" side LF; 1 x 10" MF; 3 x 1.4" exit compression drivers with 3.4" coil; passive crossover network
- Peak power
- 3200 W peak 10 ms front LF; 3200 W peak 10 ms side LF/MF/HF
- Coverage
- 80° horizontal; splay 0 ... 7° in 1° increments
- Recommended amplifier
- D90/D80; 2-Way Active
- System configuration

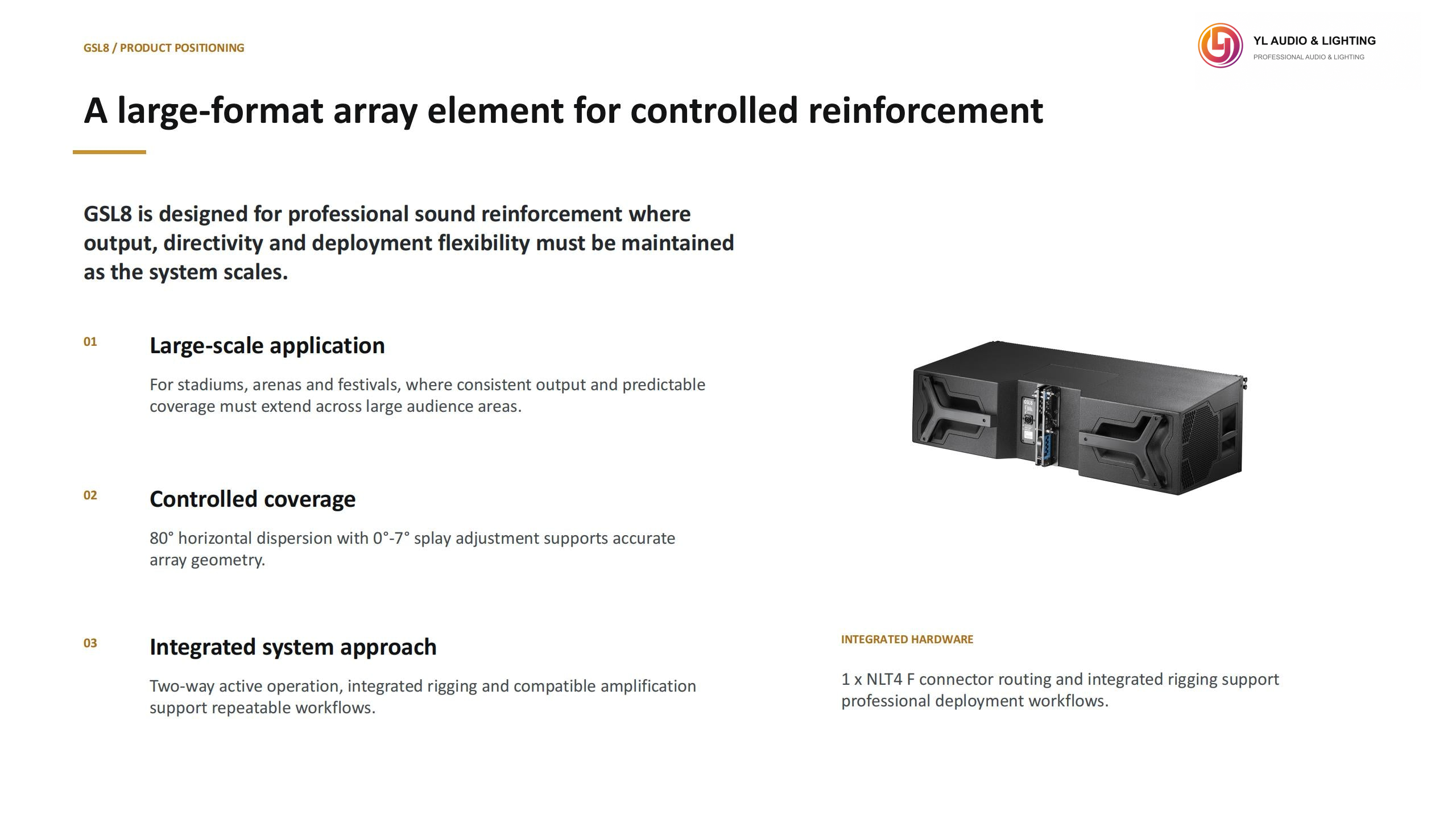

- A high-output large-format 3-way line array loudspeaker for touring, arenas, festivals and permanent large-venue sound systems
- System configuration
- controlled 80° horizontal dispersion, cardioid low-frequency directivity and scalable 2-Way Active array deployment
- Supplied Fittings

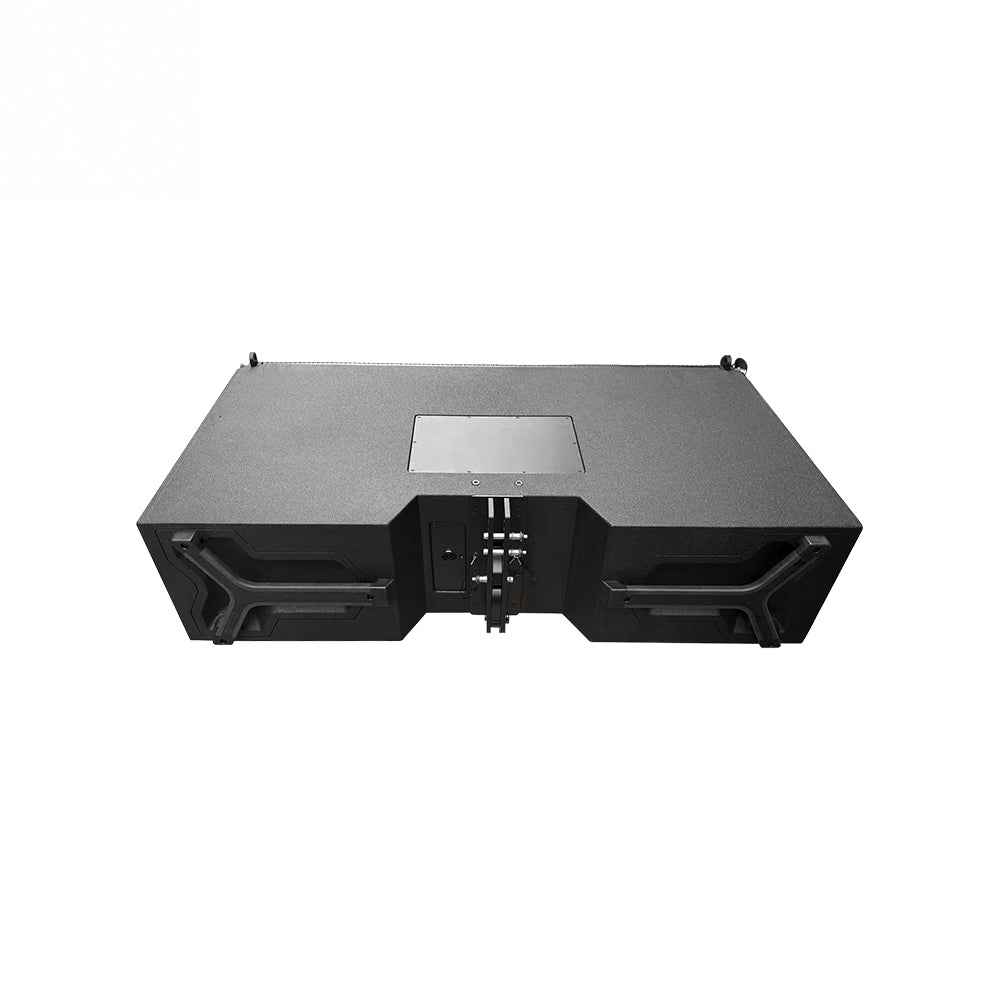

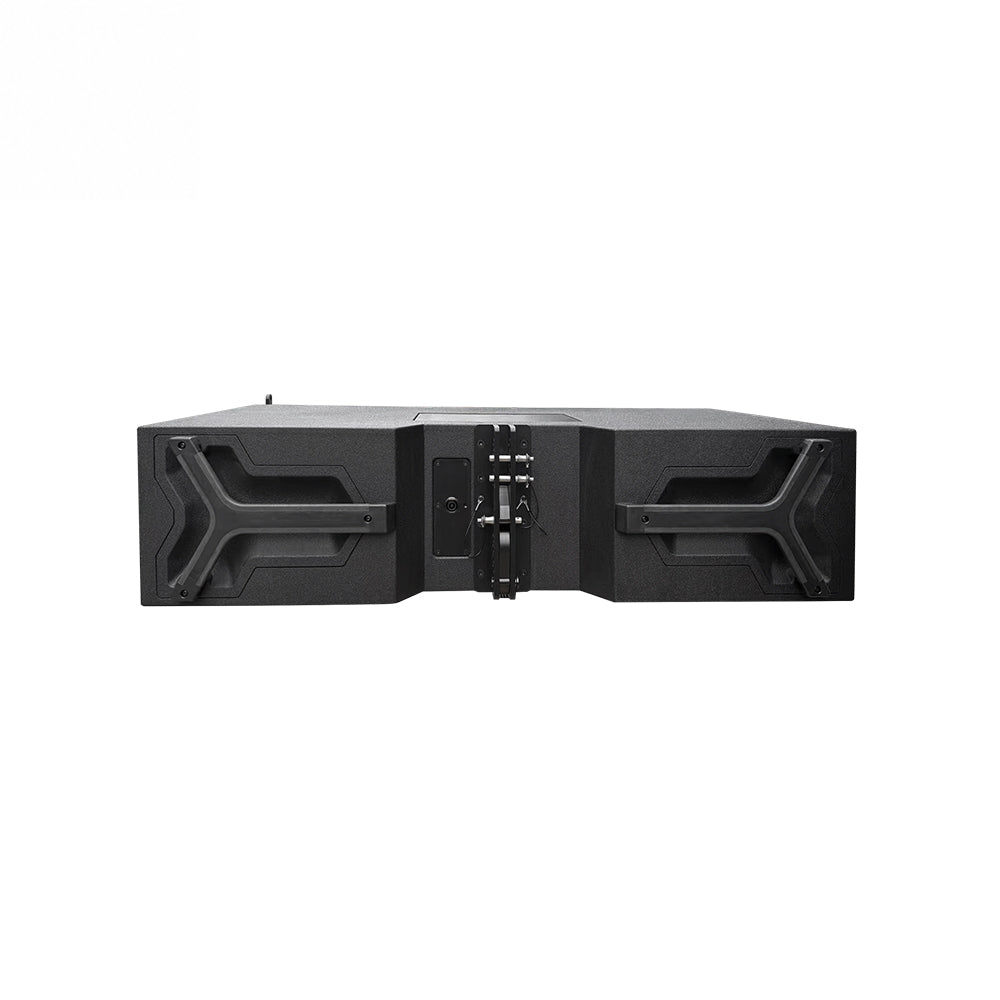

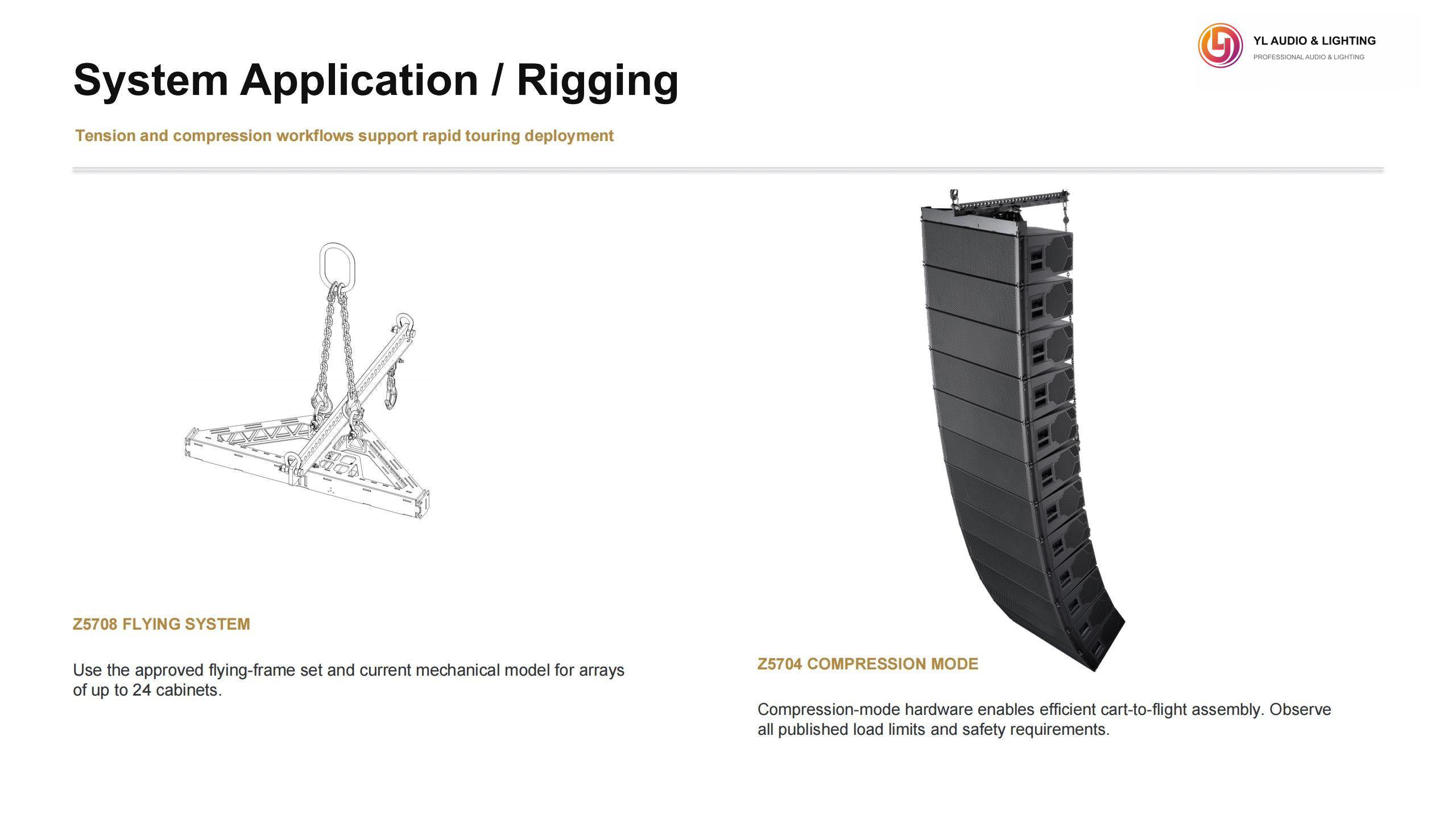

- Integrated three-point rigging hardware; front links and central splay/rear link mounted on cabinet
- Array Scale
- Up to 24 cabinets per vertical column
- System configuration

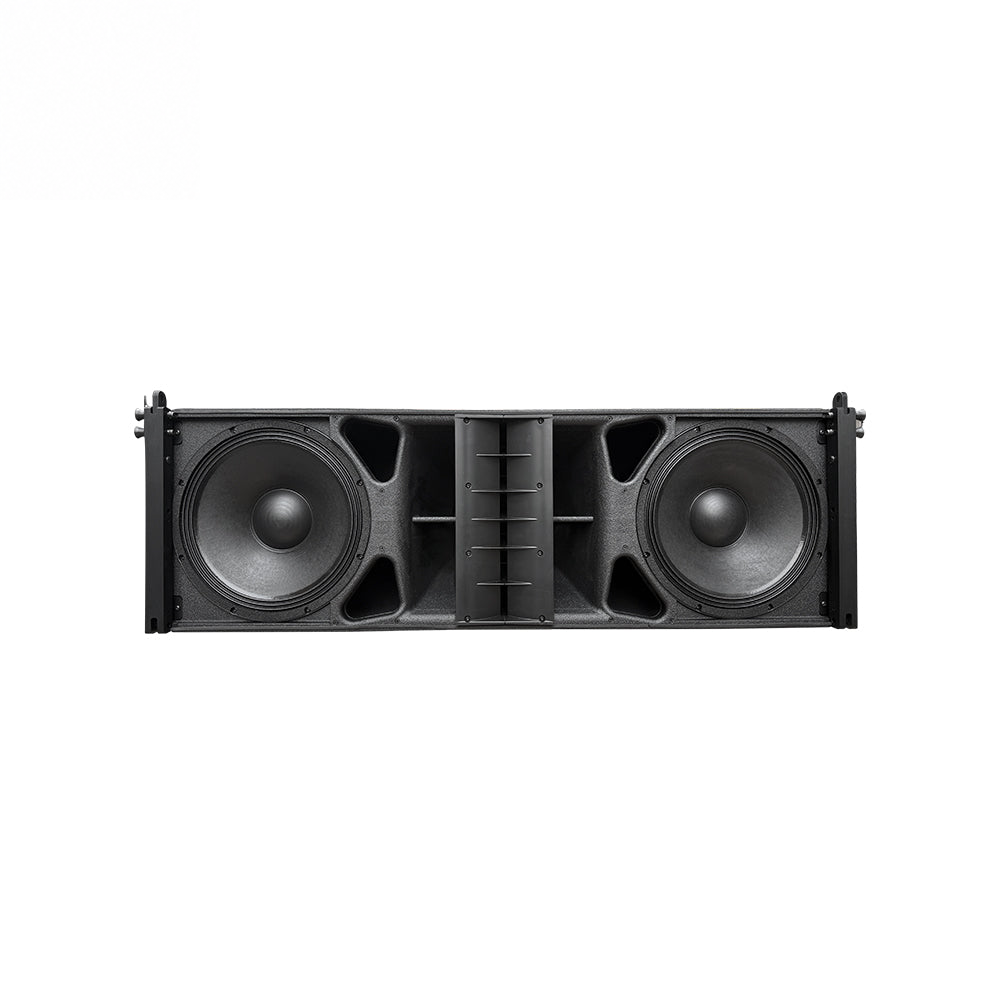

- dual 14" front LF, dual 10" side LF, a 10" MF driver and three 1.4" exit compression drivers
- System configuration
- D90/D80 2-Way Active operation
Physical specifications
- Enclosure
- Marine plywood enclosure
- Finish
- Impact and weather protected PCP (Polyurea Cabinet Protection) finish
- Protective Grille
- Rigid metal grilles with acoustically transparent and water repellent fabric

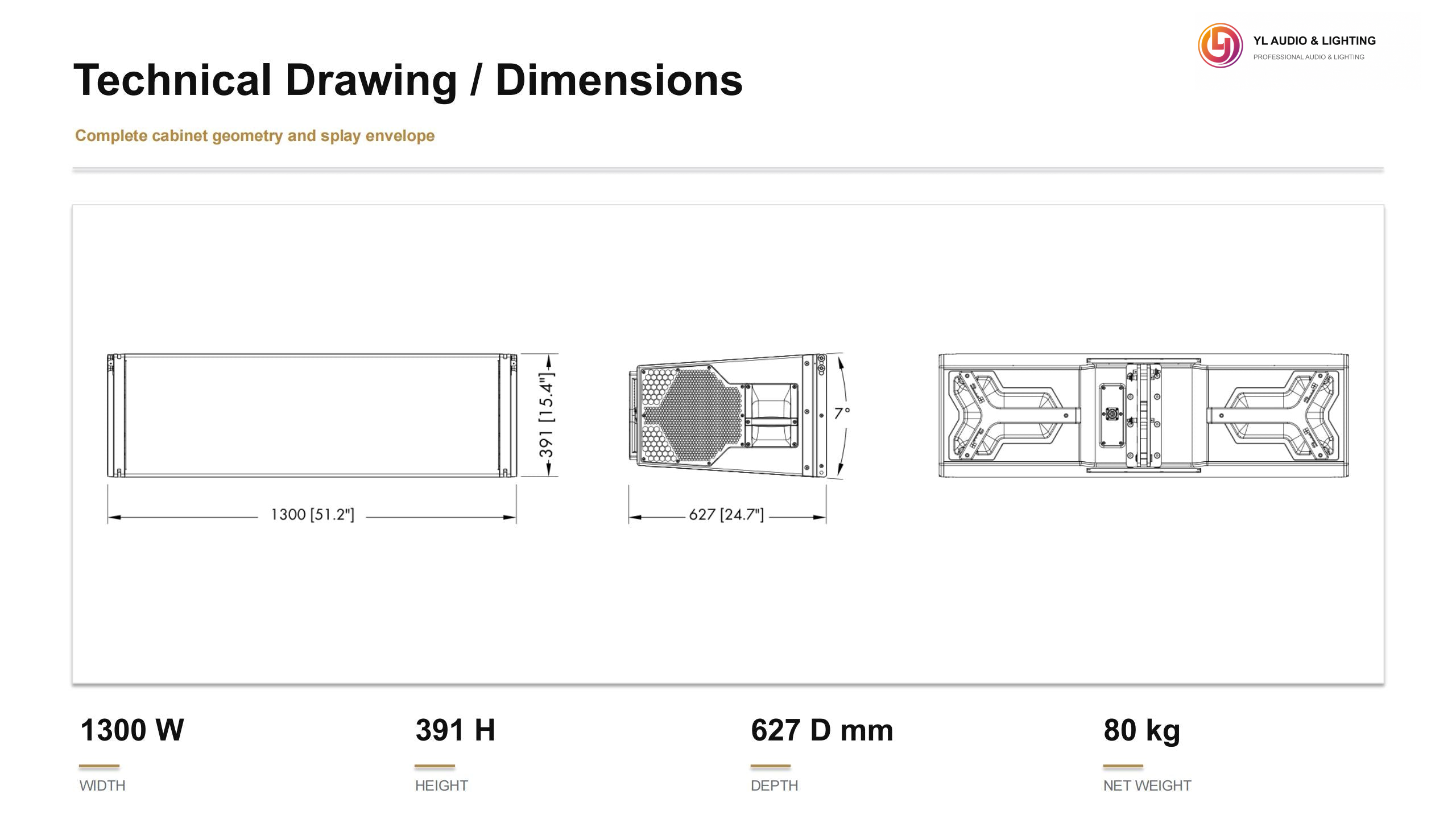

- Dimensions (H x W x D)
- 391 x 1300 x 627 mm (15.4 x 51.2 x 24.7 inches)
- Weight
- 80 kg (176 lb)
- Enclosure
- Marine plywood with PCP (Polyurea Cabinet Protection) finish
- Weight
- 80 kg / 176 lb

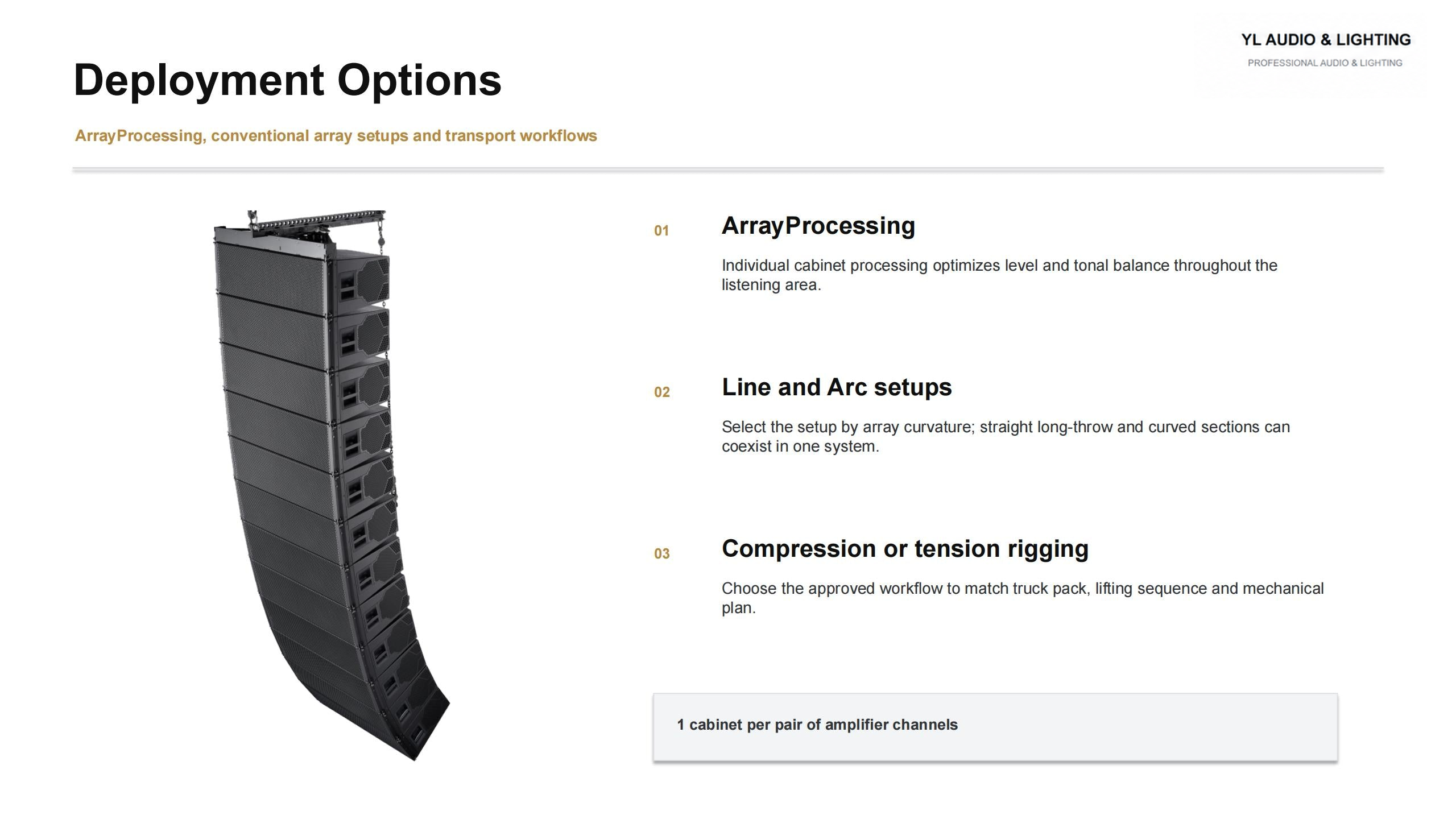

ArrayProcessing is a system-specific processing function. Its availability depends on the compatible controller, software, presets and licensed system configuration; it is not a generic function supplied by every amplifier or array.
TECHNICAL REFERENCE
Product specifications.
Published product details. Ask our team about any configuration that is not listed.
| Product Model | GSL8 / G214F |
|---|---|
| Type | Large format 3-way line array loudspeaker |
| Drivers | 2 x 14-inch front LF; 2 x 10-inch side LF; 1 x 10-inch MF; 3 x 1.4-inch exit HF compression drivers with 3.4-inch coil; passive crossover network |
| Frequency Response | 45 Hz - 18 kHz (-5 dB standard); 70 Hz - 18 kHz (-5 dB CUT); 41 Hz - 20 kHz (-10 dB standard); 54 Hz - 20 kHz (-10 dB CUT) |
| Rated Power | 800 W RMS front LF; 800 W RMS side LF/MF/HF |
| Peak Power | 3200 W peak, 10 ms front LF; 3200 W peak, 10 ms side LF/MF/HF |
| Maximum SPL | 150 dB single cabinet; 162 dB for 4 cabinets, far field scaled to 1 m |
| Nominal Impedance | 4 ohms front LF; 4 ohms side LF/MF/HF |
| Coverage / Dispersion | 80° horizontal; splay angle 0° - 7° in 1° increments |
| Enclosure | Marine plywood enclosure |
| Finish | Impact and weather protected PCP (Polyurea Cabinet Protection) finish |
| Protective Grille | Rigid metal grilles with acoustically transparent and water repellent fabric |
| Connectors | 1 x NLT4 F; 1+/1- front LF; 2+/2- side LF/MF/HF |
| Dimensions (H x W x D) | 391 x 1300 x 627 mm (15.4 x 51.2 x 24.7 inches) |
| Weight | 80 kg (176 lb) |
| Sensitivity | Not specified in the product PDF |
| Recommended Amplifier | Compatible two-channel active system amplifier; output mode: 2-Way Active |
| Model | GSL8 / G214F |
| Drivers | 2 x 14" front LF; 2 x 10" side LF; 1 x 10" MF; 3 x 1.4" exit compression drivers with 3.4" coil; passive crossover network |
| Peak power | 3200 W peak 10 ms front LF; 3200 W peak 10 ms side LF/MF/HF |
| Coverage | 80° horizontal; splay 0 ... 7° in 1° increments |
| Enclosure | Marine plywood with PCP (Polyurea Cabinet Protection) finish |
| Weight | 80 kg / 176 lb |
| Recommended amplifier | D90/D80; 2-Way Active |
Downloads
| Title | File type | Download |
|---|---|---|
| YL G214F Product DetailsEnglish | PDF9.5 MB |
