14R BEAMYL Light
Moving Head Beam Lights
295W Moving Head Beam
A 295W moving head with an approximately 2° beam, motorized focus and 8-facet / 48-facet prisms.
LED BSW CMY + CTO

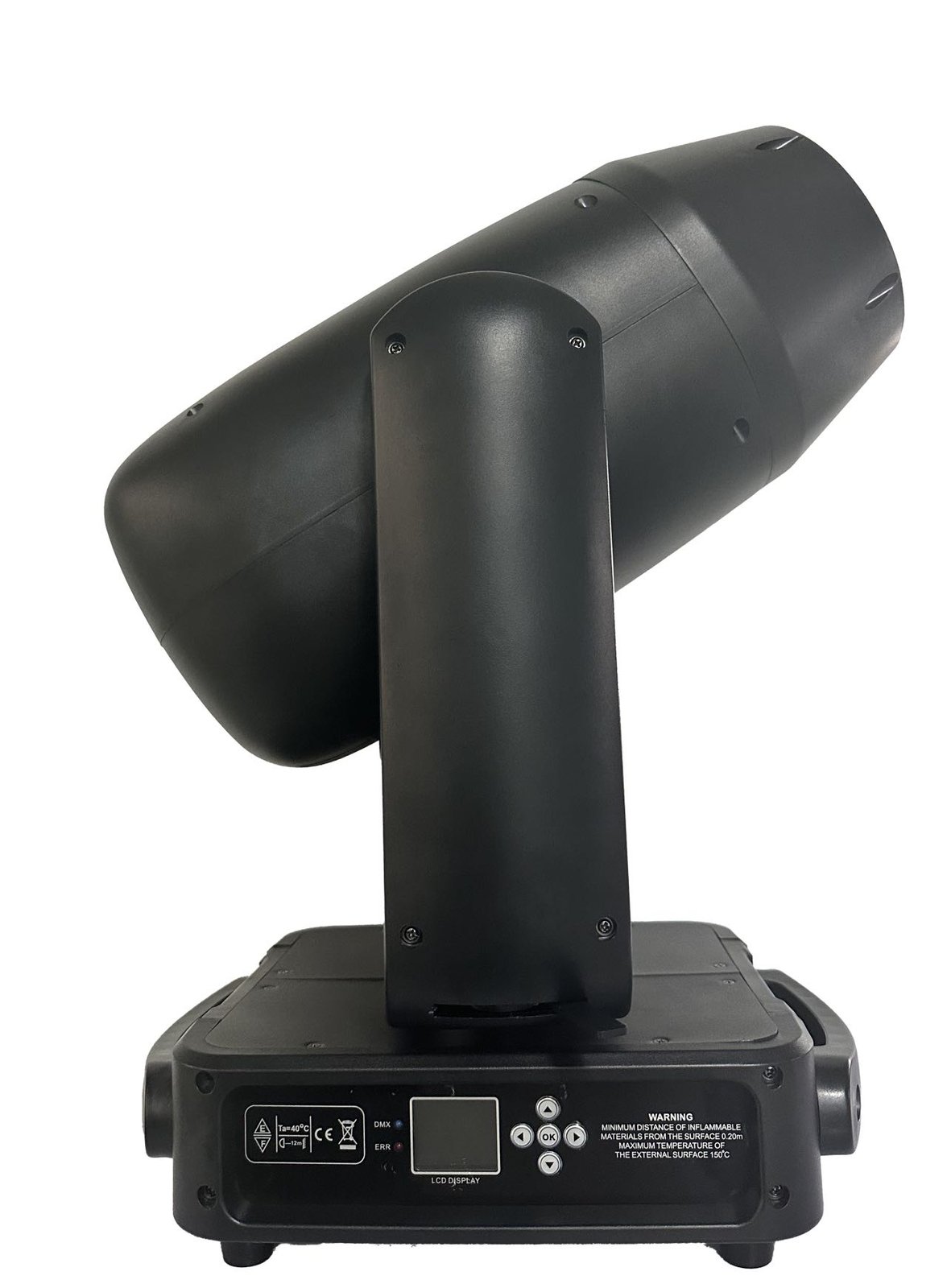

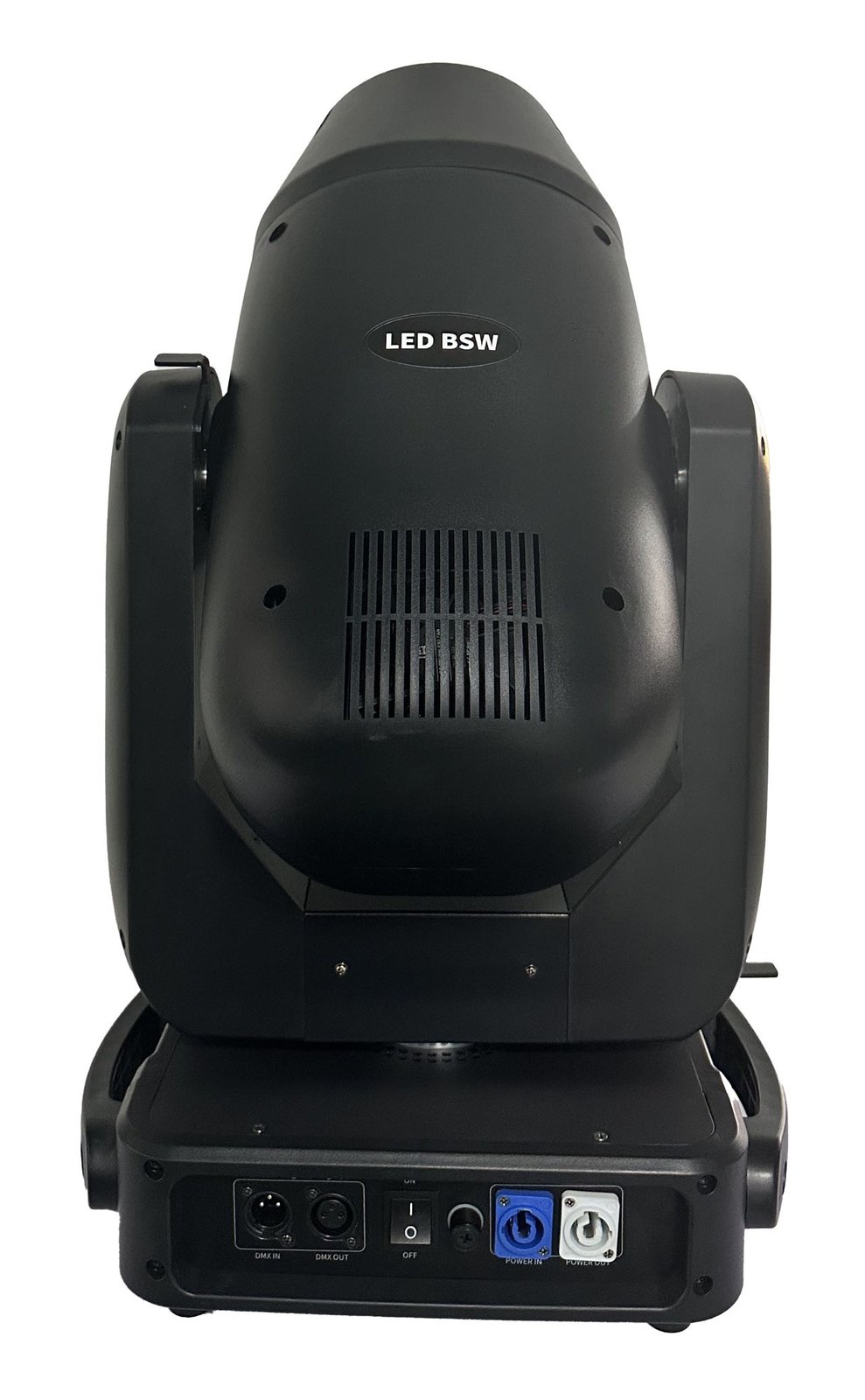

An LED moving head with CMY + CTO colour mixing, rotating gobos and a 4–35° zoom range.
WHATSAPPRequest a Quote- Light source life
- 50,000 hours
- Zoom range
- 4–35°
- Net weight
- 22.5 kg
TECHNICAL REFERENCE
Product specifications.
Published product details. Ask our team about any configuration that is not listed.
| Colour temperature | 8000 K |
|---|---|
| Colour rendering index | 75 |
| Power input | AC 110–220 V, 50/60 Hz |
| Light source life | 50,000 hours |
| Control | DMX512 / RDM, 20 channels |
| Movement | Pan 540° / tilt 270°, 16-bit |
| Dimming | 0–100% |
| Focus range | 4–50 m |
| Frost | Independent frost effect |
| Zoom range | 4–35° |
| Strobe | 0–30 flashes per second |

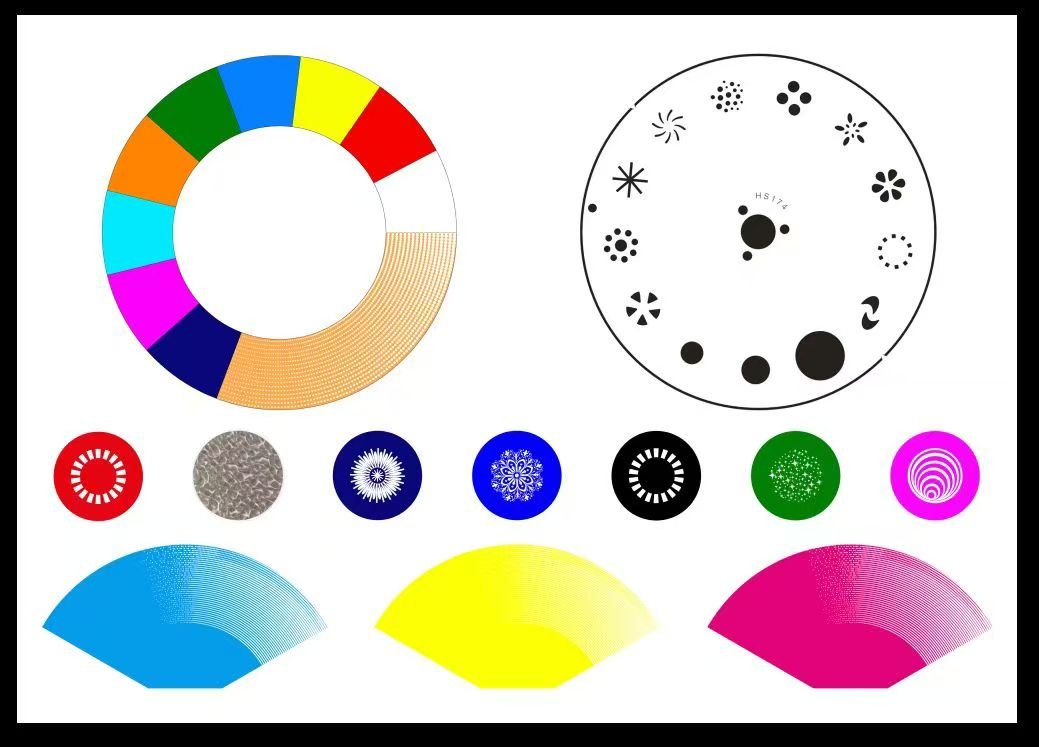

| Colour wheel | 8 colours + open |
| Colour mixing | CMY + CTO |
| Fixed gobos | 12 gobos + open |
| Rotating gobos | 7 glass gobos, individually reversible |
| Prisms | 6-row and 8-facet, independently reversible |
| Cooling | Axial fans |
| Housing | High-temperature resistant plastic |
| Protection rating | IP20 |
| Net weight | 22.5 kg |
Downloads
Product documents are being prepared. Contact YL for the current information for LED BSW CMY + CTO.
Request product documentsSystem accessories
Contact YL to confirm the available accessories and the exact configuration for LED BSW CMY + CTO.
Ask about compatible accessoriesProduct videos
