Product identification
- Model
- LA-4X Amplified Controller
- Product category
- Amplifiers

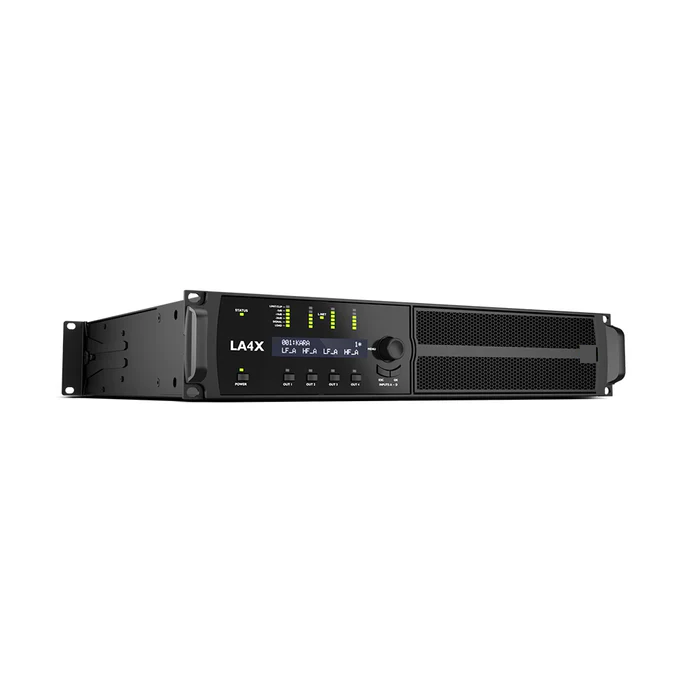

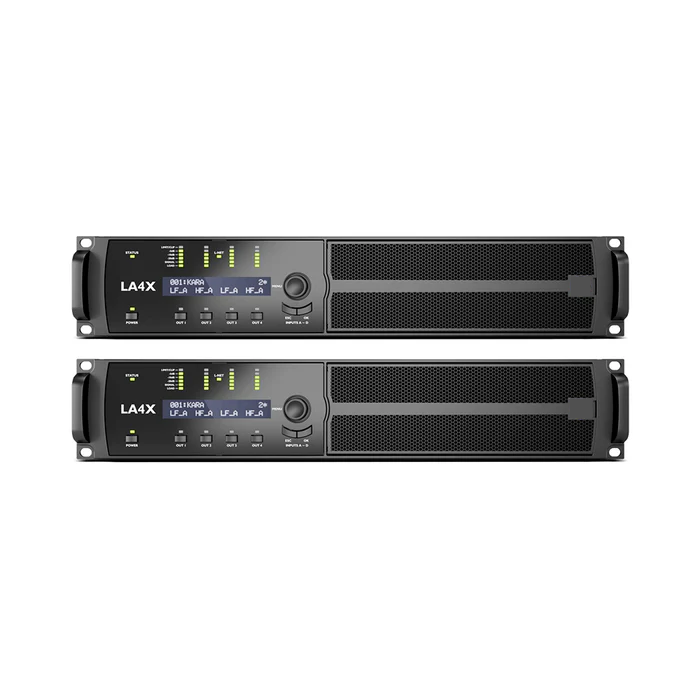

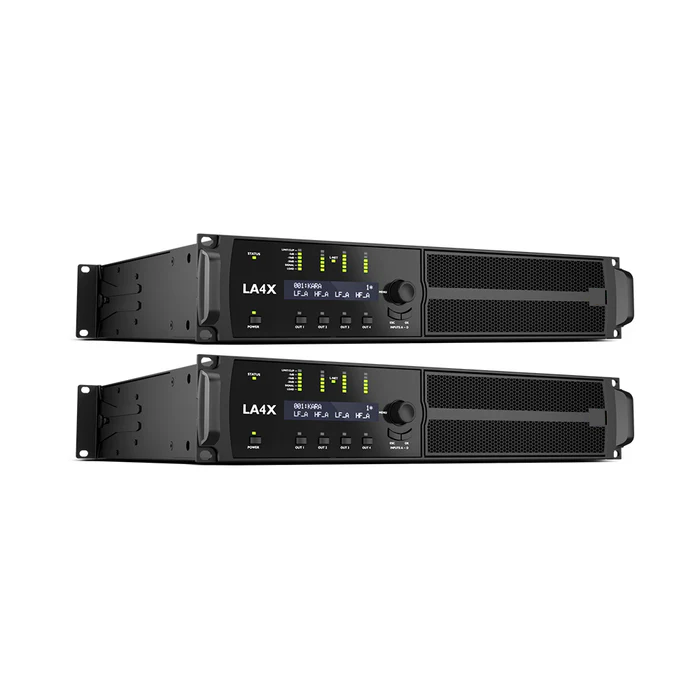

LA-4X Amplified Controller
A four-channel amplified controller with DSP, 4 × 1000 W at 8 Ω and 4 × 1400 W at 4 Ω.
WHATSAPPRequest a Quote- Bandwidth (−5 dB)
- 10 Hz – 20 kHz
- Weight
- 14.5 kg / 32 lb
Technical specifications
- Configuration
- 4-channel amplified controller with DSP
- Output power, all channels driven
- 4 × 1000 W @ 8 Ω
- Bandwidth (−5 dB)
- 10 Hz – 20 kHz
- DSP & Processing
- 96 kHz / 32-bit floating point, FIR + IIR EQ, array morphing, air absorption, limiters, delay (up to 1000 ms)
- Inputs / outputs
- Milan-AVB, AES/EBU, Analog | 4×4 Routing
- Latency
- 3.84 ms (standard) | 0.76 ms (low-latency)
- Power input
- 100–240 V~, 50/60 Hz, PFC
Physical specifications
- Weight
- 14.5 kg / 32 lb
- Dimensions (H × W × D)
- 88 × 483 × 427 mm
Compatibility and deployment
- Function / configuration
- A four-channel amplified controller with DSP, 4 × 1000 W at 8 Ω and 4 × 1400 W at 4 Ω.
- Function / configuration
- 4-channel amplified controller with DSP
TECHNICAL REFERENCE
Product specifications.
Published product details. Ask our team about any configuration that is not listed.
| Configuration | 4-channel amplified controller with DSP |
|---|---|
| Output power, all channels driven | 4 × 1000 W @ 8 Ω |
| Output power, all channels driven | 4 × 1400 W @ 4 Ω |
| Bandwidth (−5 dB) | 10 Hz – 20 kHz |
| DSP & Processing | 96 kHz / 32-bit floating point, FIR + IIR EQ, array morphing, air absorption, limiters, delay (up to 1000 ms) |

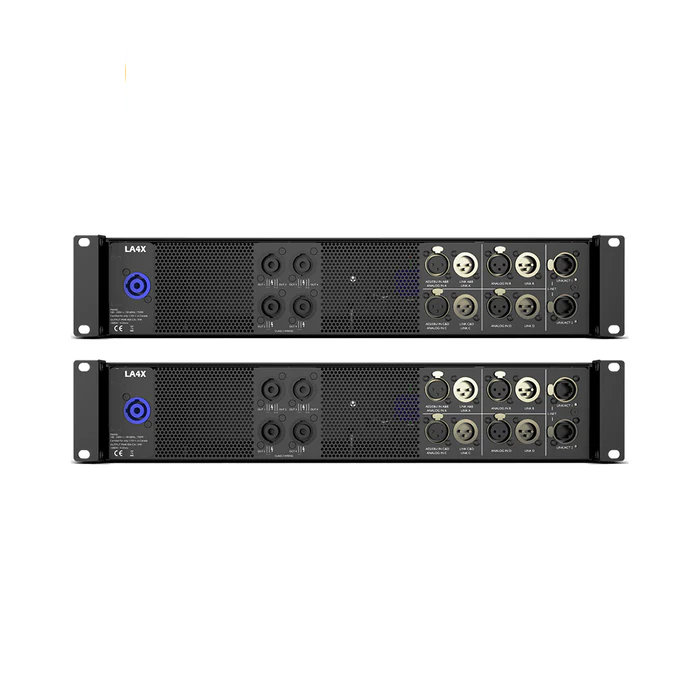

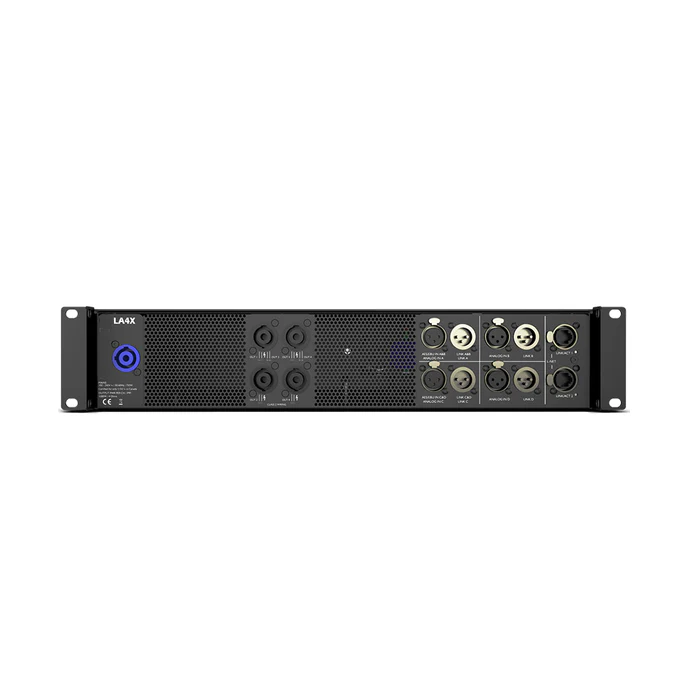

| Inputs / outputs | Milan-AVB, AES/EBU, Analog | 4×4 Routing |
| Latency | 3.84 ms (standard) | 0.76 ms (low-latency) |
| Weight | 14.5 kg / 32 lb |
| Dimensions (H × W × D) | 88 × 483 × 427 mm |
| Power input | 100–240 V~, 50/60 Hz, PFC |
Downloads
Product documents are being prepared. Contact YL for the current information for LA-4X Amplified Controller.
Request product documentsSystem accessories
Contact YL to confirm the available accessories and the exact configuration for LA-4X Amplified Controller.
Ask about compatible accessoriesProduct videos
Ask for an available demonstration of LA-4X Amplified Controller and the configuration you need.
