Product identification
- Model
- D90 Power Amplifier
- Product category
- Amplifiers

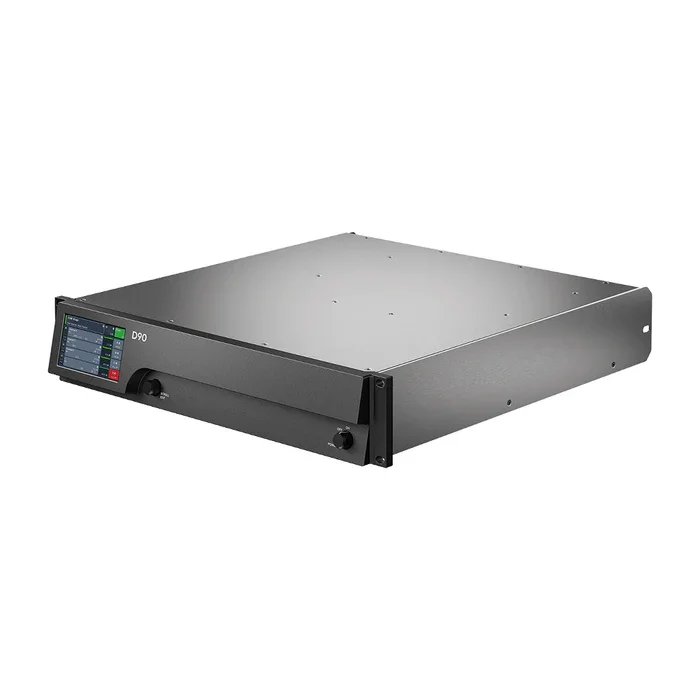

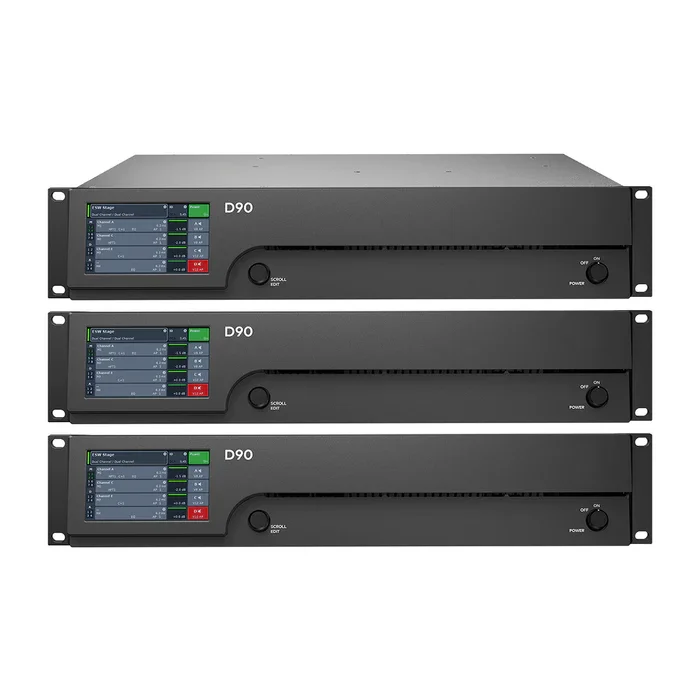

D90 Power Amplifier
A four-channel amplifier with digital signal processing, analog / digital inputs and Ethernet connections.
WHATSAPPRequest a QuoteTechnical specifications
- Channels
- 4
- Maximum output power
- 4 × 5400 W into 4 Ω / 4 × 2700 W into 8 Ω
- Maximum voltage / current
- 210 V peak / 78 A peak
- Equalizer
- 2 × 16-band PEQ / notch / shelving / asymmetric
- Latency
- 0.3 ms, analog and digital inputs
- Delay
- 0.3 ms–10 s
- Signal generator
- Pink noise or sine wave, 10 Hz–20 kHz
- Digital sampling rates
- 44.1 / 48 / 96 / 192 kHz

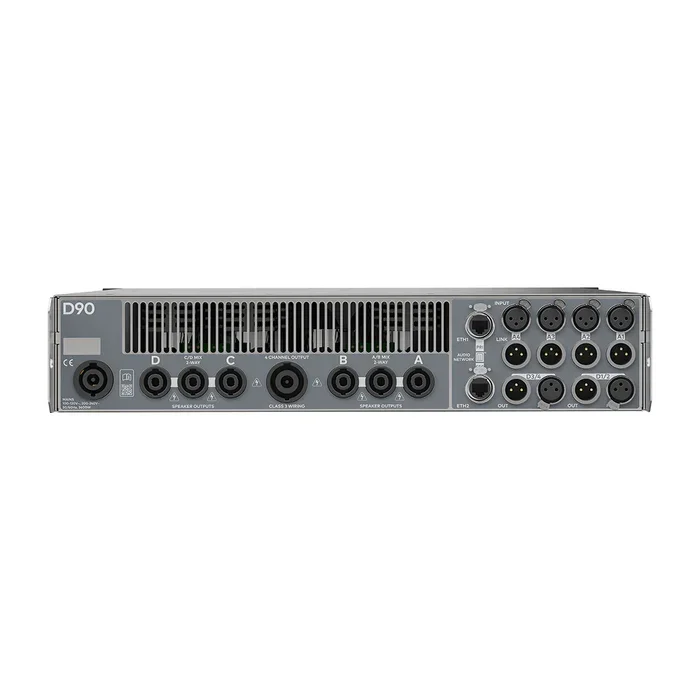

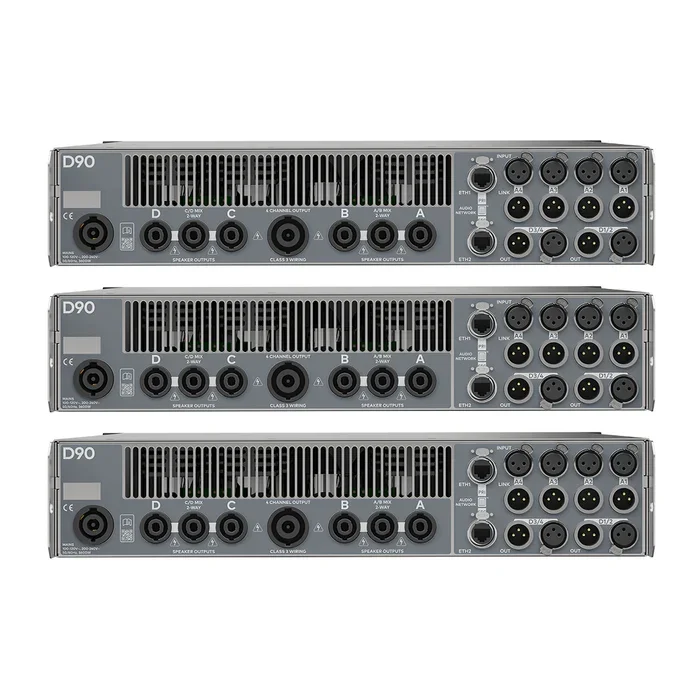

- Analog inputs
- 4 × 3-pin XLR female
- Analog links
- 4 × 3-pin XLR male
- Digital inputs
- 3-pin XLR female, AES3
- Digital link
- 3-pin XLR male
- Speaker outputs
- 4 × NL4, 2 × NL4 mix outputs, 1 × NL8
- Ethernet
- 2 × RJ45, 1 Gbit / 100 Mbit
Compatibility and deployment
- Function / configuration
- A four-channel amplifier with digital signal processing, analog / digital inputs and Ethernet connections.
- Function / configuration
- 4-channel power amplifier
TECHNICAL REFERENCE
Product specifications.
Published product details. Ask our team about any configuration that is not listed.
| Channels | 4 |
|---|---|
| Maximum output power | 4 × 5400 W into 4 Ω / 4 × 2700 W into 8 Ω |
| Maximum voltage / current | 210 V peak / 78 A peak |
| Equalizer | 2 × 16-band PEQ / notch / shelving / asymmetric |
| Latency | 0.3 ms, analog and digital inputs |
| Delay | 0.3 ms–10 s |
| Signal generator | Pink noise or sine wave, 10 Hz–20 kHz |
| Digital sampling rates | 44.1 / 48 / 96 / 192 kHz |
| Analog inputs | 4 × 3-pin XLR female |
| Analog links | 4 × 3-pin XLR male |
| Digital inputs | 3-pin XLR female, AES3 |
| Digital link | 3-pin XLR male |
| Speaker outputs | 4 × NL4, 2 × NL4 mix outputs, 1 × NL8 |
| Ethernet | 2 × RJ45, 1 Gbit / 100 Mbit |
Downloads
Product documents are being prepared. Contact YL for the current information for D90 Power Amplifier.
Request product documentsSystem accessories
Contact YL to confirm the available accessories and the exact configuration for D90 Power Amplifier.
Ask about compatible accessoriesProduct videos
Ask for an available demonstration of D90 Power Amplifier and the configuration you need.
