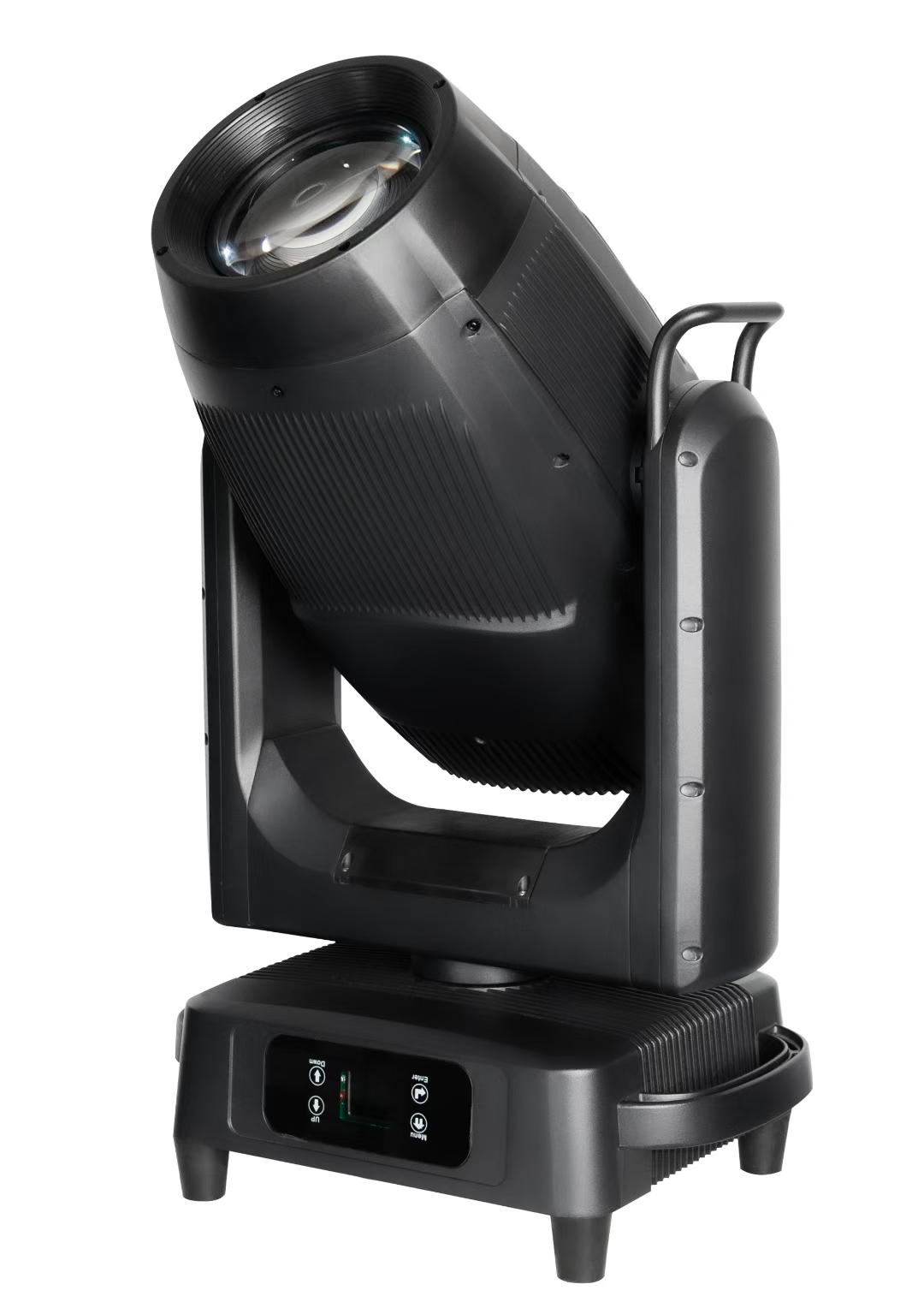

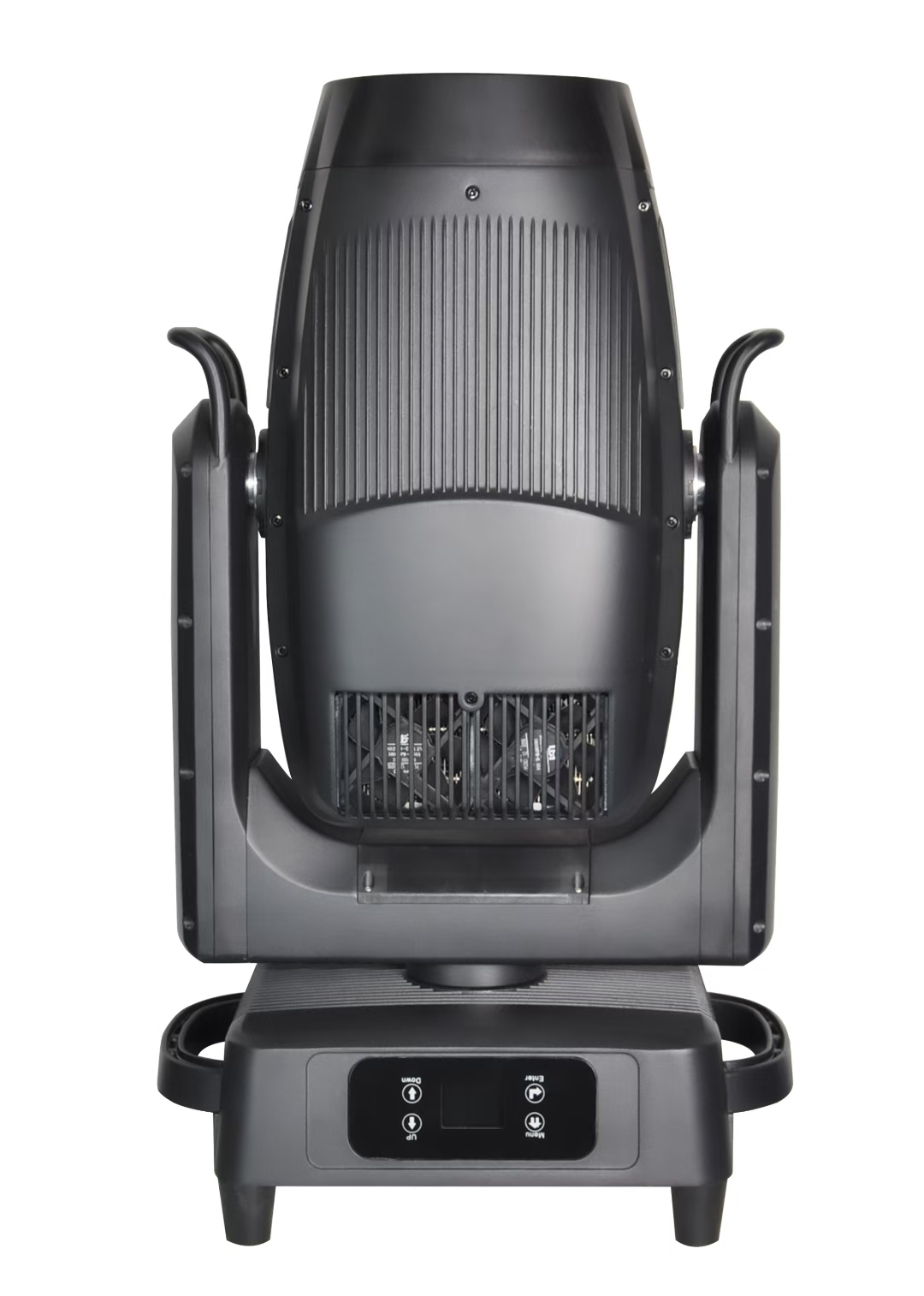

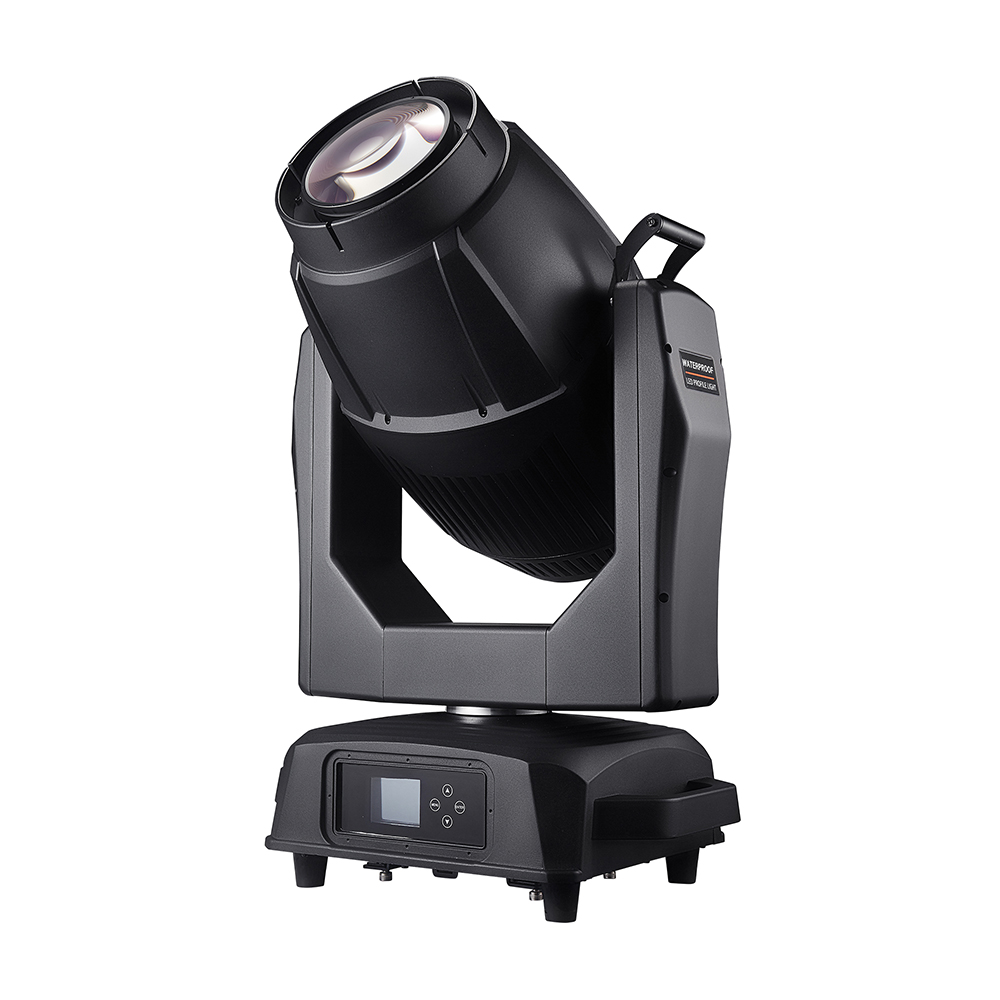

800W LED Outdoor IP66 Profile Moving Head with CMY + CTO
Outdoor LED Profile Moving Head
An IP66 outdoor LED profile moving head with an 800W LED engine in a magnesium-alloy body, for festivals, outdoor theatres, theme parks and architectural shows. The 6-50° zoom from a 140 mm lens combines linear CMY with linear CTO from 2500K to 6500K and a 6-colour wheel.
Six fixed and seven replaceable rotating gobos, a water-effect wheel, a bidirectional 4-facet prism, frost and 1-25 Hz strobe. Waterproof power and 3/5-pin DMX connectors, an auto-rotating 2.8-inch display, and DMX512 / RDM in 37 channels.

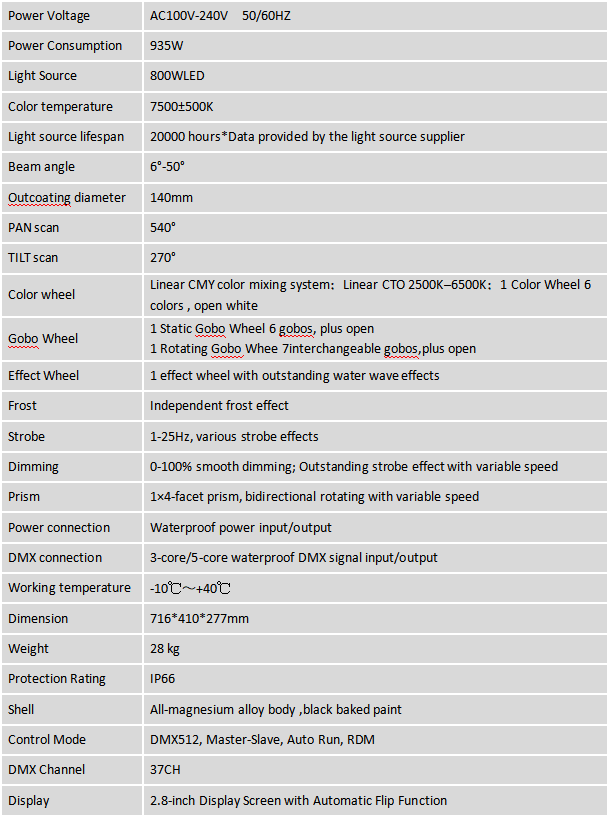

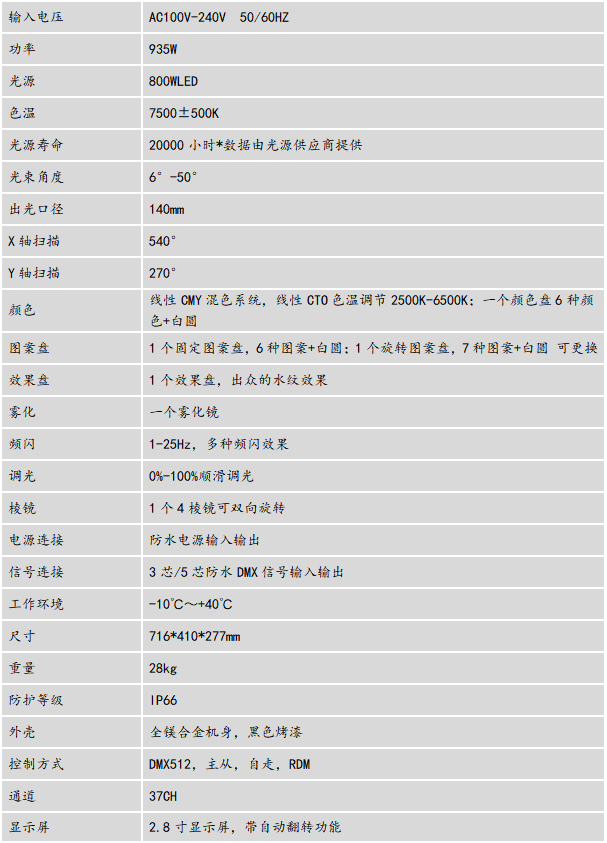

Specification
| Light source | 800W LED, 7500K ±500K |
|---|---|
| Lamp life | 20,000 hours (light-source supplier data) |
| Rated power | 935W |
| Input voltage | AC100-240V, 50/60Hz |

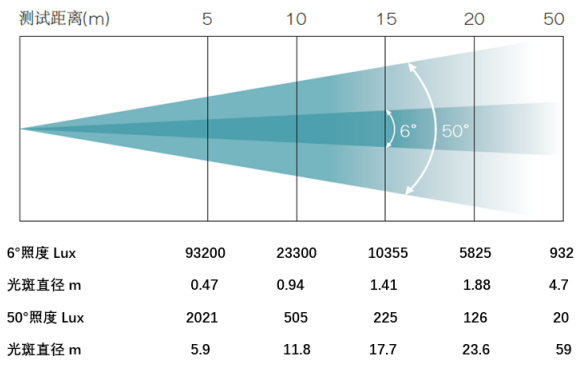

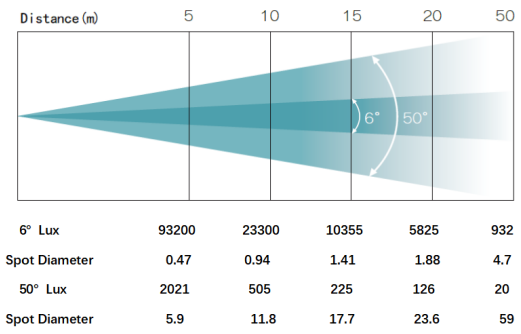

| Zoom | 6-50° |
| Front lens | 140 mm |
| Color mixing | Linear CMY + linear CTO 2500-6500K |
| Color wheel | 6 colours + open |
| Fixed gobos | 6 gobos + open |
| Rotating gobos | 7 replaceable gobos + open |
| Effects | Water-effect wheel |
| Prism | 4-facet, bidirectional |
| Frost | Frost filter |
| Strobe | 1-25 Hz with multiple strobe effects |
| Dimming | 0-100% smooth |
| Pan / Tilt | 540° / 270° |
| Control modes | DMX512, RDM, master-slave, auto |
| DMX channels | 37CH |
| Display | 2.8-inch display, auto-rotating |

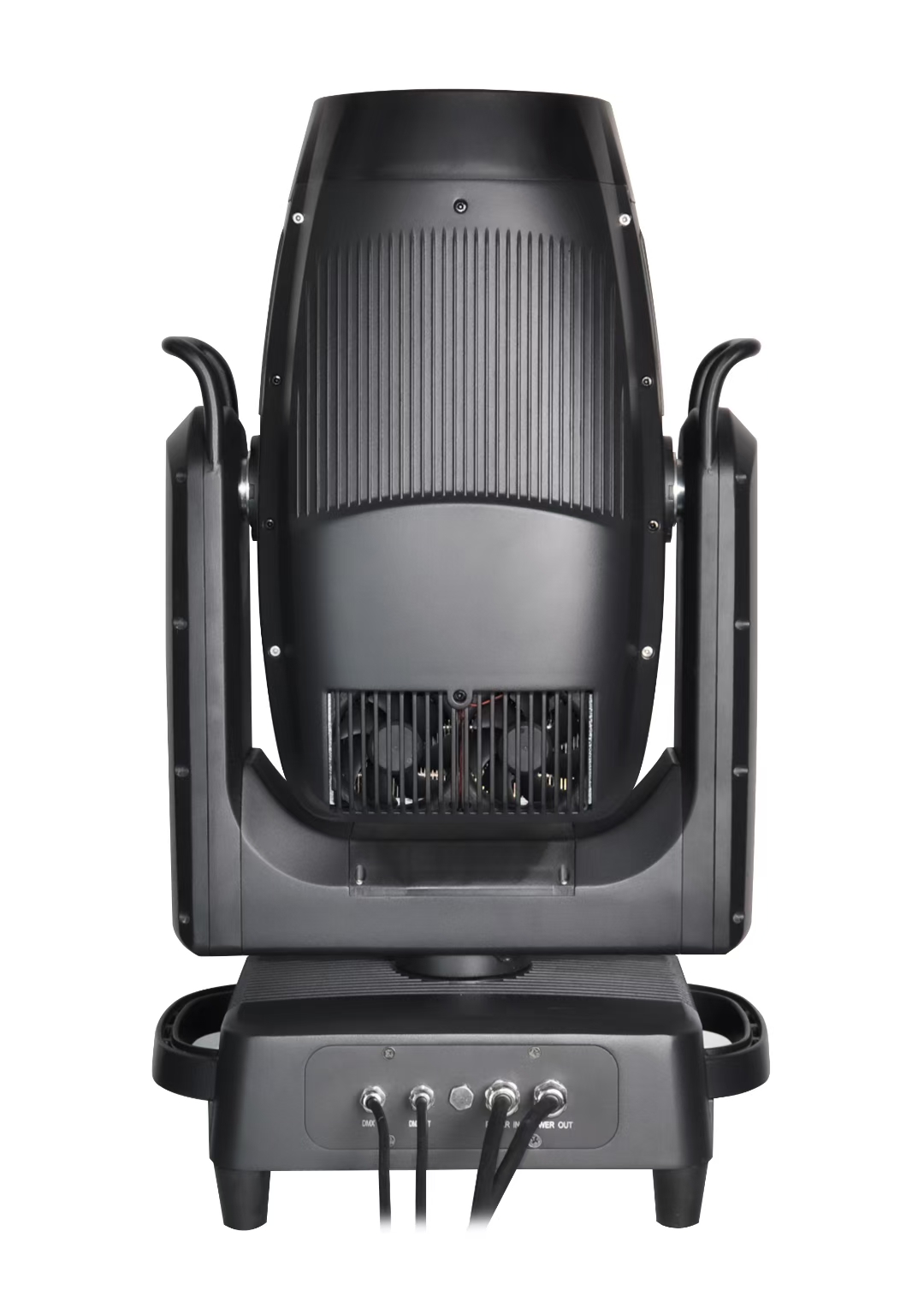

| Connections | Waterproof power in / out; waterproof 3-pin / 5-pin DMX in / out |
| Housing | Magnesium-alloy body, black finish |
| Protection rating | IP66 |
| Operating temperature | -10°C to 40°C |

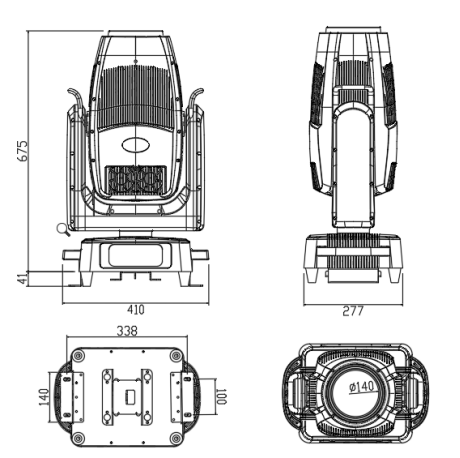

| Product size | 716 x 410 x 277 mm |
| Net weight | 28 kg |
