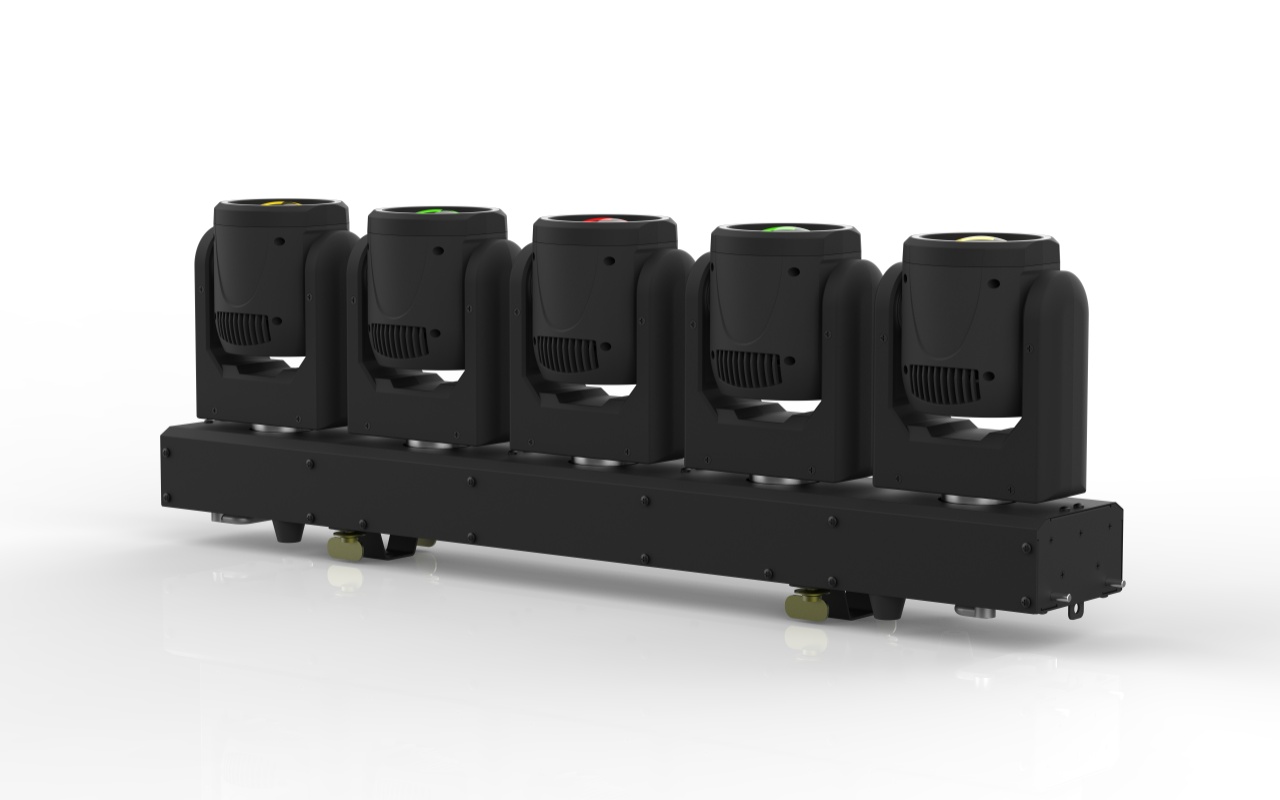

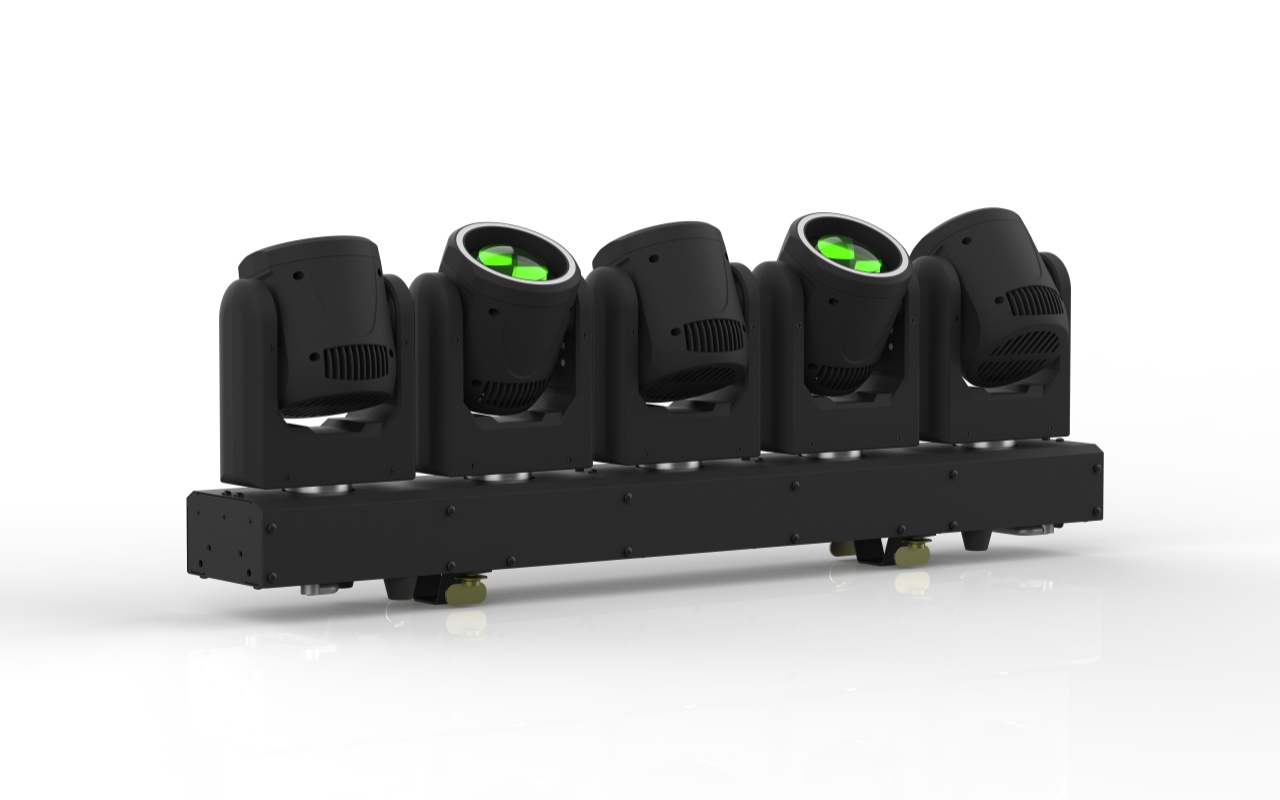

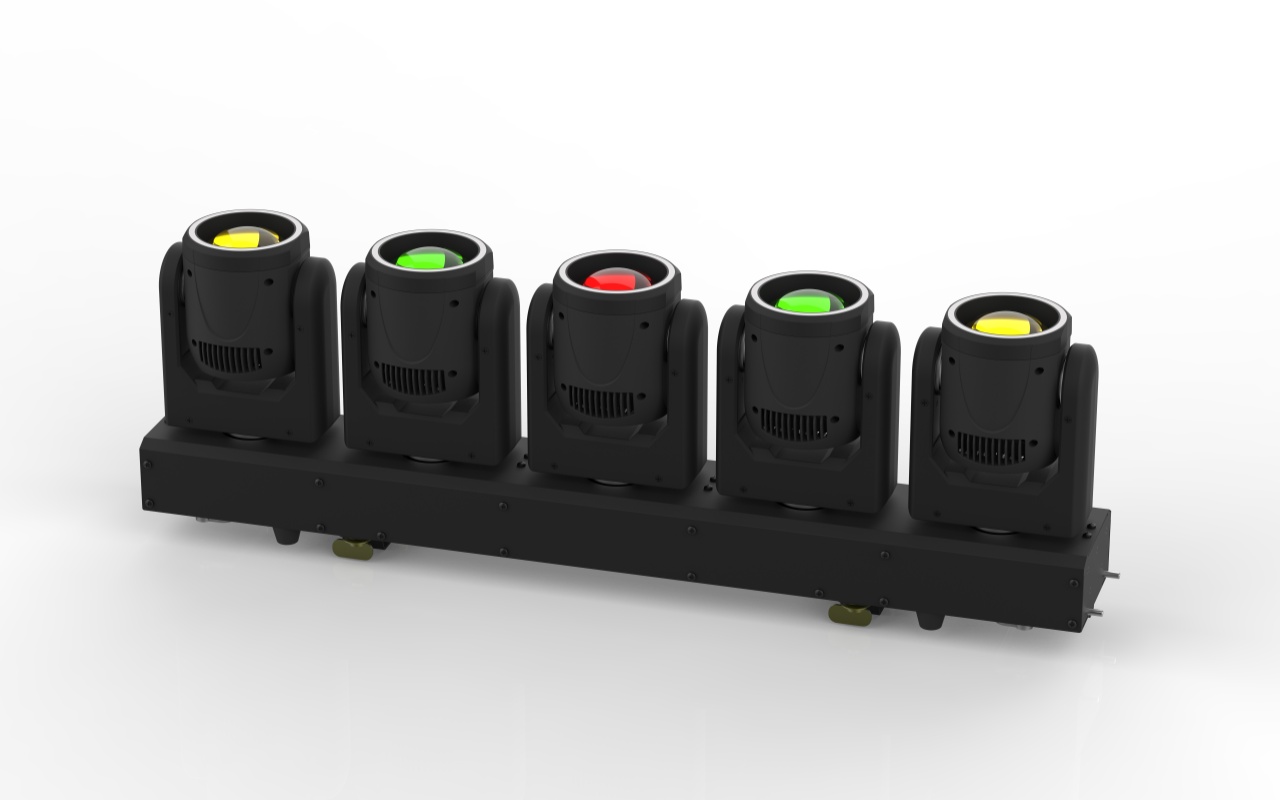

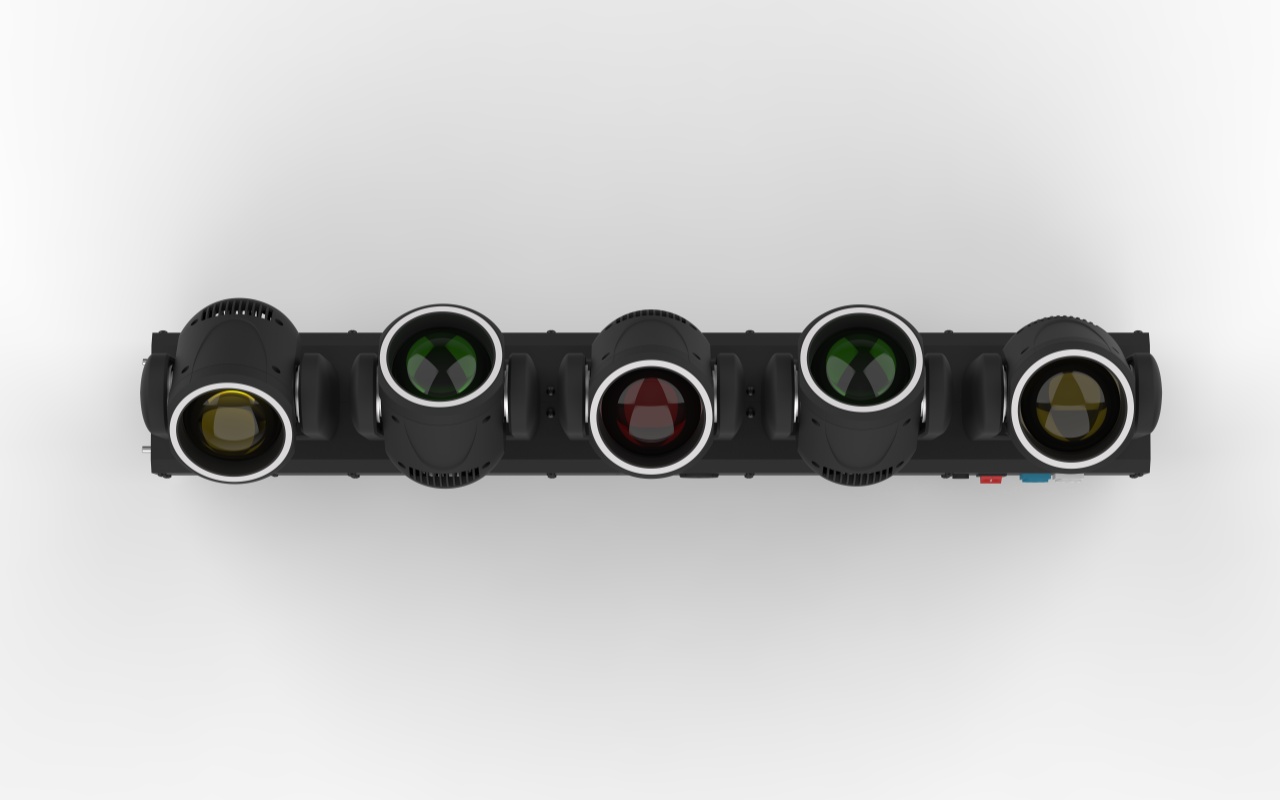

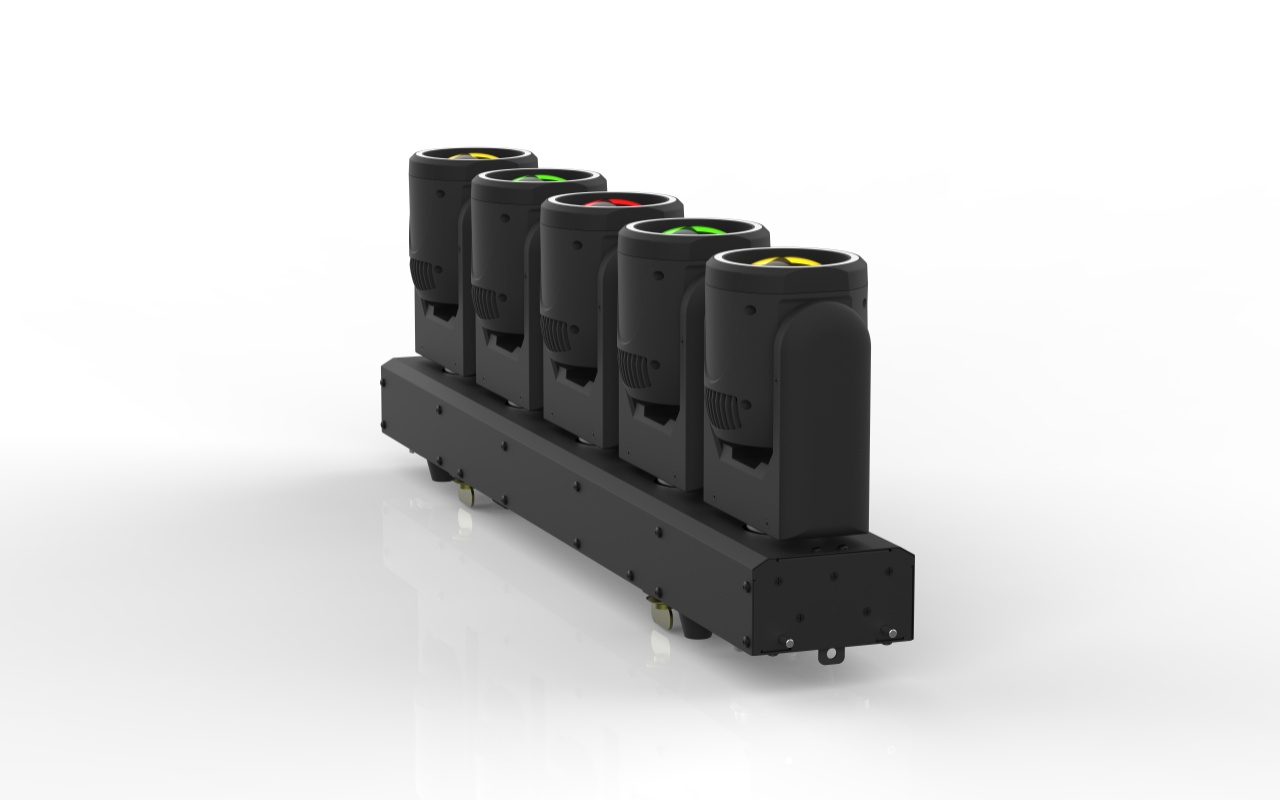

5-Head RGBW Tornado Moving Bar Light with Pixel Rings

Moving Head Bar Light

A five-head RGBW tornado moving bar with endless rotation and an 18-pixel RGB ring around each head. The 4-in-1 RGBW beams spin continuously while the rings chase colour, for club, KTV and stage effects.

32-bit linear dimming, 1-30 Hz strobe, RDM and DMX512 in 26 or 75 channels. 324W.

DOWNLOAD FILE
WHATSAPPRequest a QuoteMoving Head Bar Lights

Specification

5-Head RGBW Tornado Moving Bar Light with Pixel Rings — Specification
Light source5 x RGBW 4-in-1 LEDs (6065)
Auxiliary LEDs5 x 18 RGB 5050 pixel rings
Rated power324W
Input voltageAC100-240V, 50/60Hz
FeaturesInfinite rotation, auxiliary rings, beam
Dimming32-bit, 0-100% linear
Strobe1-30 Hz
Control modesDMX512, RDM, auto, sound-active
DMX channels26CH / 75CH
HousingMetal, black
Protection ratingIP20 (indoor)
Operating temperature-30°C to 50°C

Download

Original technical file - 810+479+534+A561+A555+P09-5-headed wind tornadoAs suppliedDOCXUser manual (Chinese)ChineseDOCX
