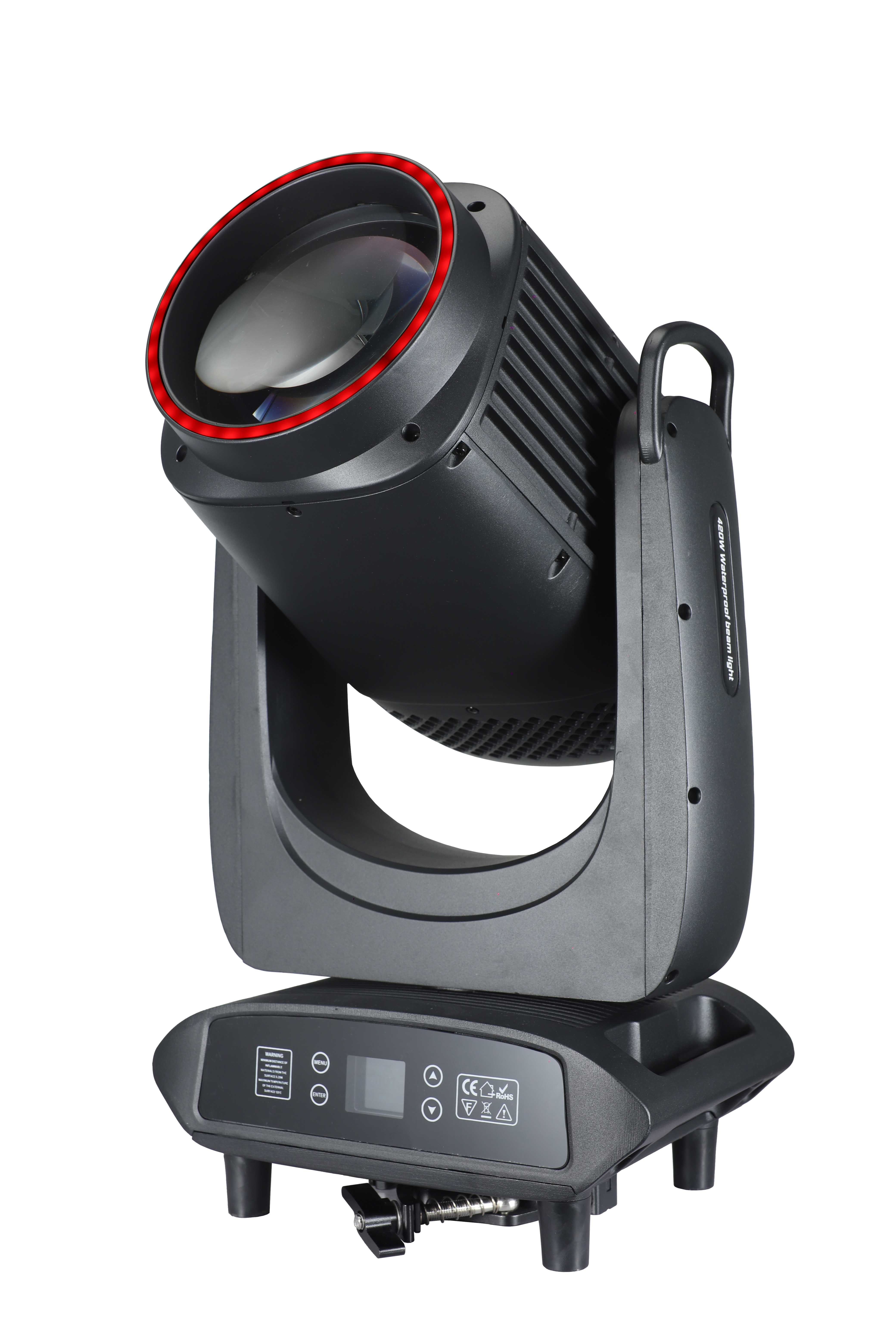

380W / 420W Outdoor IP65 Prism Beam Moving Head
Outdoor Moving Head Beam Light
A full die-cast IP65 outdoor beam moving head built around its prism system: six prisms (8-facet, 8+16, 8+8+8 honeycomb, 8+16+24 honeycomb and high and low 6-row linear) stack and rotate in both directions for 15 prism looks. Choose an OSRAM 380W or a Philips 420W lamp.
The 1.8° beam leaves a 165 mm lens with 13 colours, rainbow and half-colour effects, 14 gobos and 0-100% frost. Three-phase pan / tilt motors with 16-bit control, RDM and photo-electric reset. 19.8 kg; dual flight case available.
Specification
| Light source | OSRAM 380W lamp or Philips 420W lamp |
|---|---|
| Rated power | 800W |
| Input voltage | AC100-240V, 50/60Hz |
| Color temperature | 7800-8500K |
| Beam angle | 1.8° |
| Front lens | 165 mm |
| Color wheel | 13 colours + white; rainbow, half-colour, bidirectional rotation |
| Fixed gobos | 14 gobos (including 5 wave gobos) |
| Prism | 6 prisms: 8, 8+16, 8+8+8 honeycomb, 8+16+24 honeycomb, high and low 6-row; stackable, bidirectional, 15 combinations |
| Frost | 0-100% linear frost |
| Focus | Electronic linear HD focus, high-density glass optics |
| Strobe | 1-14 flashes per second |
| Pan / Tilt | 540° / 270°, 16-bit, three-phase motors, photo-electric reset |
| Control modes | DMX512, RDM, sound-active, auto, master-slave |
| DMX channels | 22CH |
| Display | LCD |
| Housing | Full die-cast aluminium, no plastic parts |
| Protection rating | IP65 |
| Product size | 329 x 228 x 603 mm |
| Net weight | 19.8 kg |
| Packing size | 64.5 x 49 x 42 cm |
| Gross weight | 24 kg |
| Flight case | 2-in-1: 81 x 41 x 85 cm, 75 kg |
