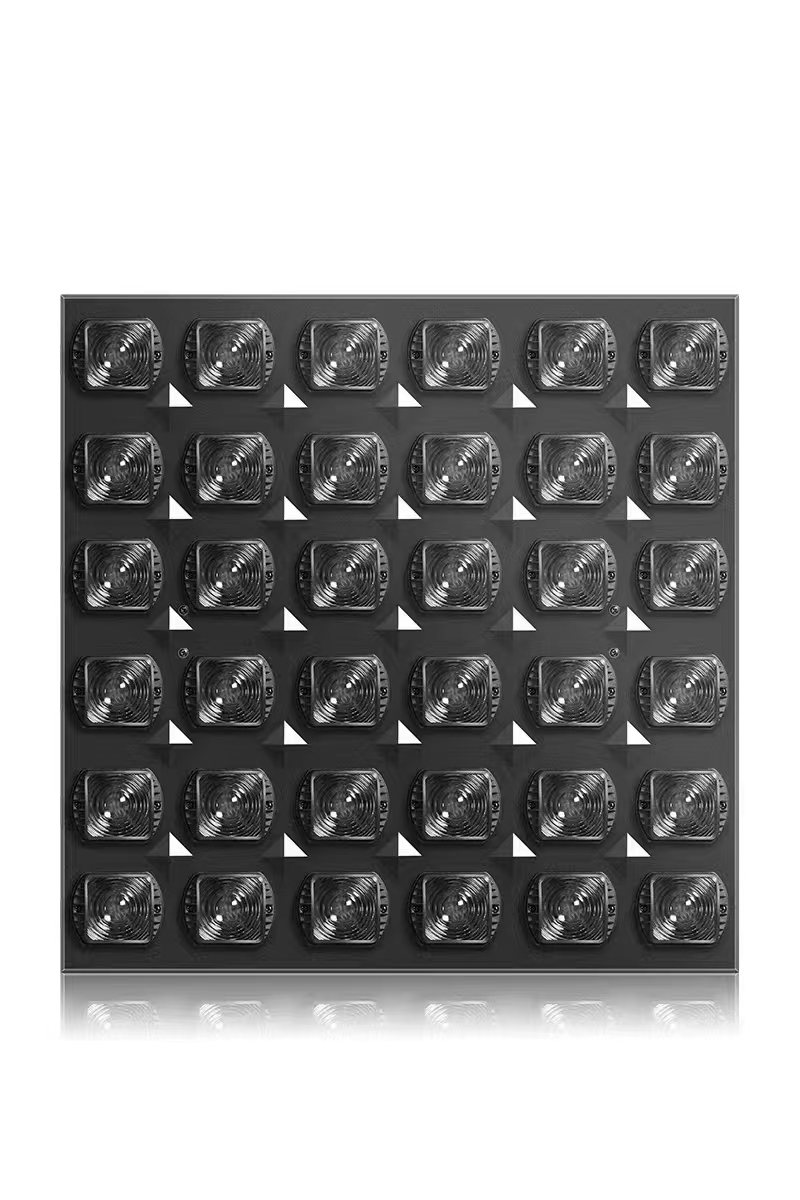

36 x 8W RGBW LED Diamond Matrix Panel — Classic Housing
LED Pixel Matrix Light
A 36 x 8W RGBW LED diamond matrix panel for walls of light, audience blinders and graphic pixel effects. Panels splice horizontally and vertically into larger matrix walls on stages, TV sets and club walls.
Pixel control in a 144-channel mode, plus 4 and 12-channel modes, infinite strobe, 0-100% dimming, and DMX512, auto, master-slave and sound-active operation. 300W; 7.35 kg; classic housing with a rear control box.
Specification
| Light source | 36 x 8W RGBW 4-in-1 LEDs |
|---|---|
| Rated power | 300W |
| Input voltage | AC100-240V, 50/60Hz |
| Features | Colour wash + strobe; horizontal and vertical splicing |
| Dimming | 0-100% linear |
| Strobe | Infinite strobe |
| Control modes | DMX512, auto, master-slave, sound-active |
| DMX channels | 4CH / 12CH / 144CH |
| Protection rating | IP20 (indoor) |
| Operating temperature | -10°C to 50°C |

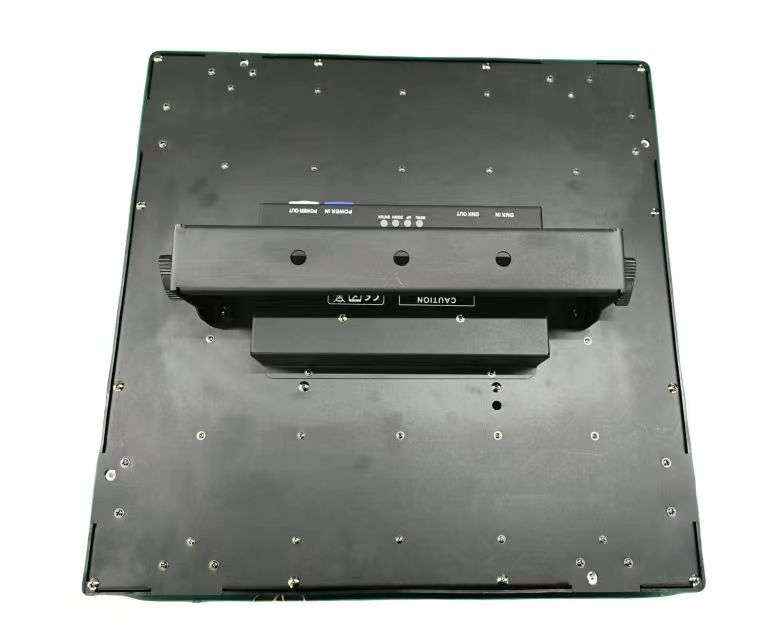

| Housing | Classic housing with rear control box |
| Product size | 50 x 50 x 18 cm |
| Net weight | 7.35 kg |
| Packing size | 55 x 55 x 19 cm |
| Gross weight | 8.55 kg |
