150W kaleidoscope tornado moving head is a stage lighting catalogue item in the kaleidoscope effect moving head light category. Reference specifications list rated power: 150W; main led source: 1 x 120W RGB plus lemon-yellow LED. Confirm the exact fixture version, specifications and current supply details before ordering.
| Rated power | 150W |
|---|---|
| Main LED source | 1 x 120W RGB plus lemon-yellow LED |
| DMX modes | 17CH / 26CH |
| Protection | IP20 indoor |
| Product | 150W kaleidoscope tornado moving head |
| Input voltage | AC100-240V, 50/60Hz |
| Movement record | R20: moving head, pan 540 degrees / tilt 270 degrees |
| Dimming / strobe | 32-bit 0-100% linear / 1-30Hz |
| Optical rotation | Stroke plus forward and reverse variable-speed rotation |
| Auxiliary LEDs | 24 x 0.5W 5050 RGB LEDs |
| Connection | DMX input/output and locking power input/output |
| Product size | 21 x 23.2 x 34 cm |
| Housing | Metal, black |
Select this effect around the visual role it needs to perform and its position in the rig. Pixel mapping, movement and channel modes should be confirmed for the exact fixture rather than inferred from an effect video.

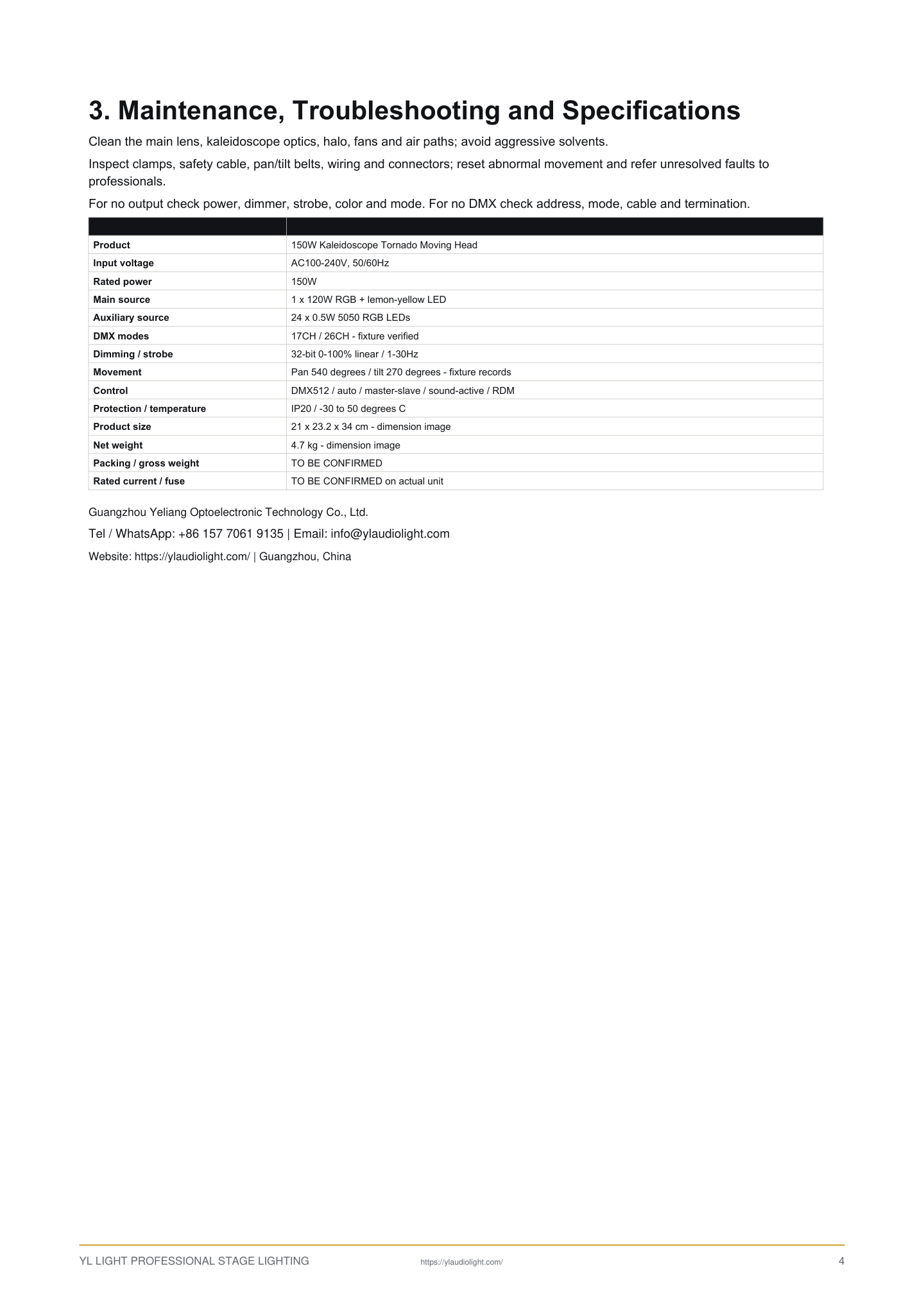

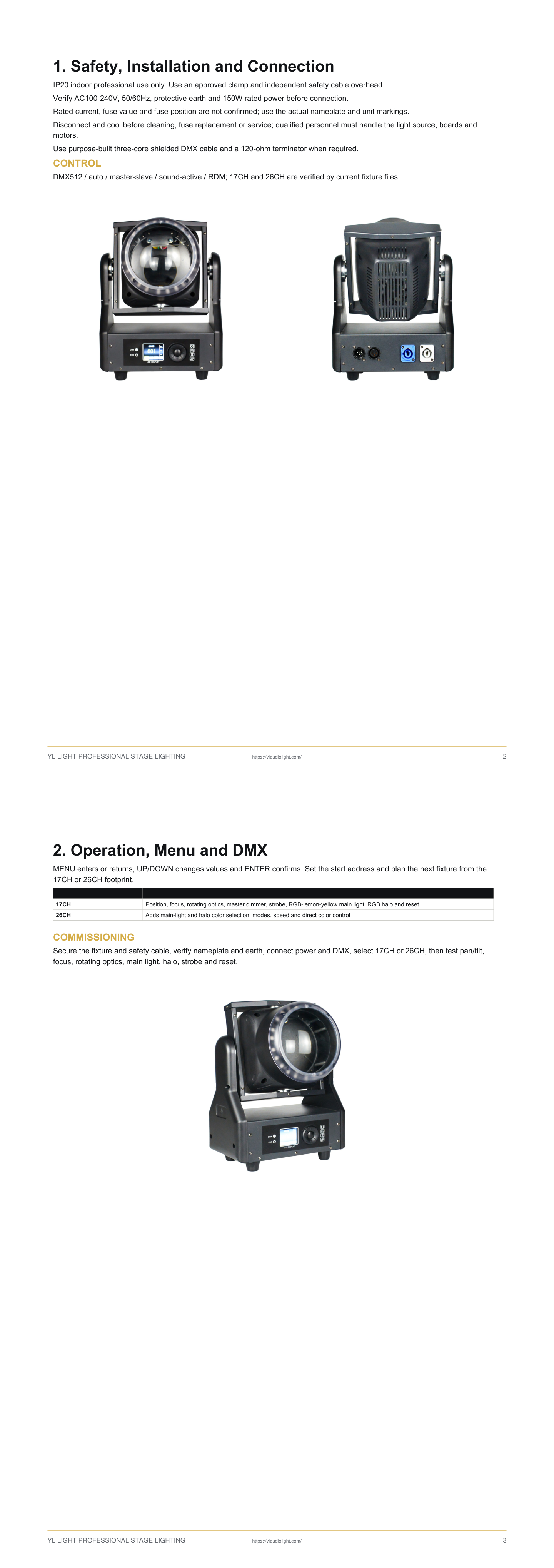

Model-specific setup, control and technical reference pages. Follow the verification notes shown in the guide; unconfirmed modes, ratings and installation data are not a final specification for the supplied fixture. Download the full reference guide for readable tables and all stated limitations.
Model-specific setup, control and technical reference pages. Follow the verification notes shown in the guide; unconfirmed modes, ratings and installation data are not a final specification for the supplied fixture. Download the full reference guide for readable tables and all stated limitations.
150W kaleidoscope tornado moving head
