X40 4-Channel Amplified Controller with DSP

Name: X40 4-Channel Amplified Controller with DSP
Brand: YL Light

X40 4-Channel Amplified Controller with DSP is listed in the amplifiers & processing category as a amplifier or audio processing product. The reference lists bandwidth: 10 Hz – 20 kHz; dimensions: 88 × 483 × 427 mm. Confirm the exact model, current specifications and supply details before use.

WHATSAPPRequest a Quote

View specifications

Bandwidth: 10 Hz – 20 kHz
Weight: 14.5 kg / 32 lb
TWeight: 11.3 kg / 24.9 lb

Product identification

Model: X40 4-Channel Amplified Controller with DSP
Product category: Amplifiers & Processing

Technical specifications

Bandwidth: 10 Hz – 20 kHz
Amplification class: Class D
Output power, all channels loaded: 4 x 1000 W at 4 ohms/ 4 x 1000 W at 8 ohms
Power supply model: Universal Switched Mode Power Supply (SMPS) with Power Factor Correction (PFC)
Mains rating: 100 V - 240 V ±10%, 50-60 Hz
Digital Signal Processor (DSP): SHARC 32-bit, floating point, 96 kHz sampling rate
I/O routing: Flexible 4x4 routing matrix
Per output channel: UBuilt-in EQ station with 8 IIR, 4 FIR linear phase EQ filters Array morphing, Air absorption compensation filters Internal IIR and FIR EQ algorithms L-DRIVE advanced system protection Output delay from 0 to 1000 ms
Loudspeaker management: L-DRIVE advanced system protection
Standard latency (analog/digital inputs): 3.84 ms
AVB: 4 channels from 1 stream (of up to 8 channels)
AES/EBU: 4 channels AES/EBU (2 x AES3) with SRC
Analog: 4 channels

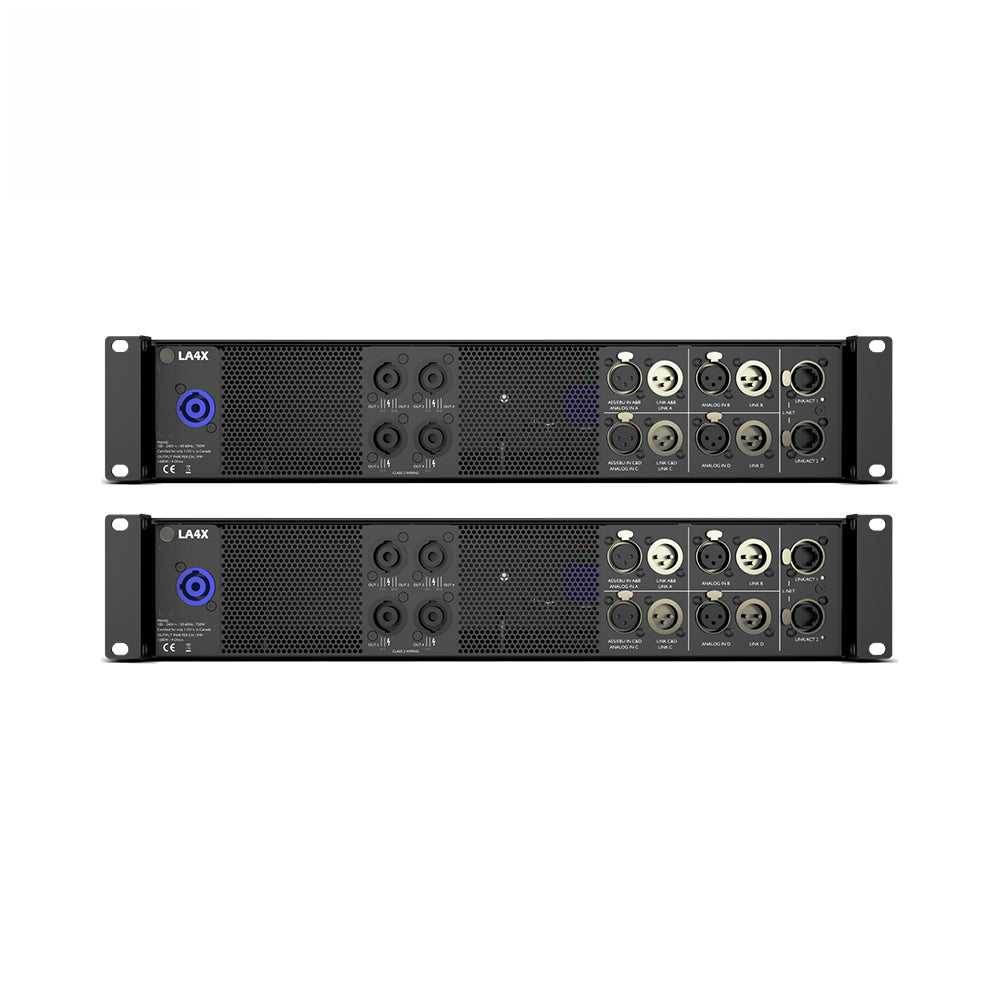

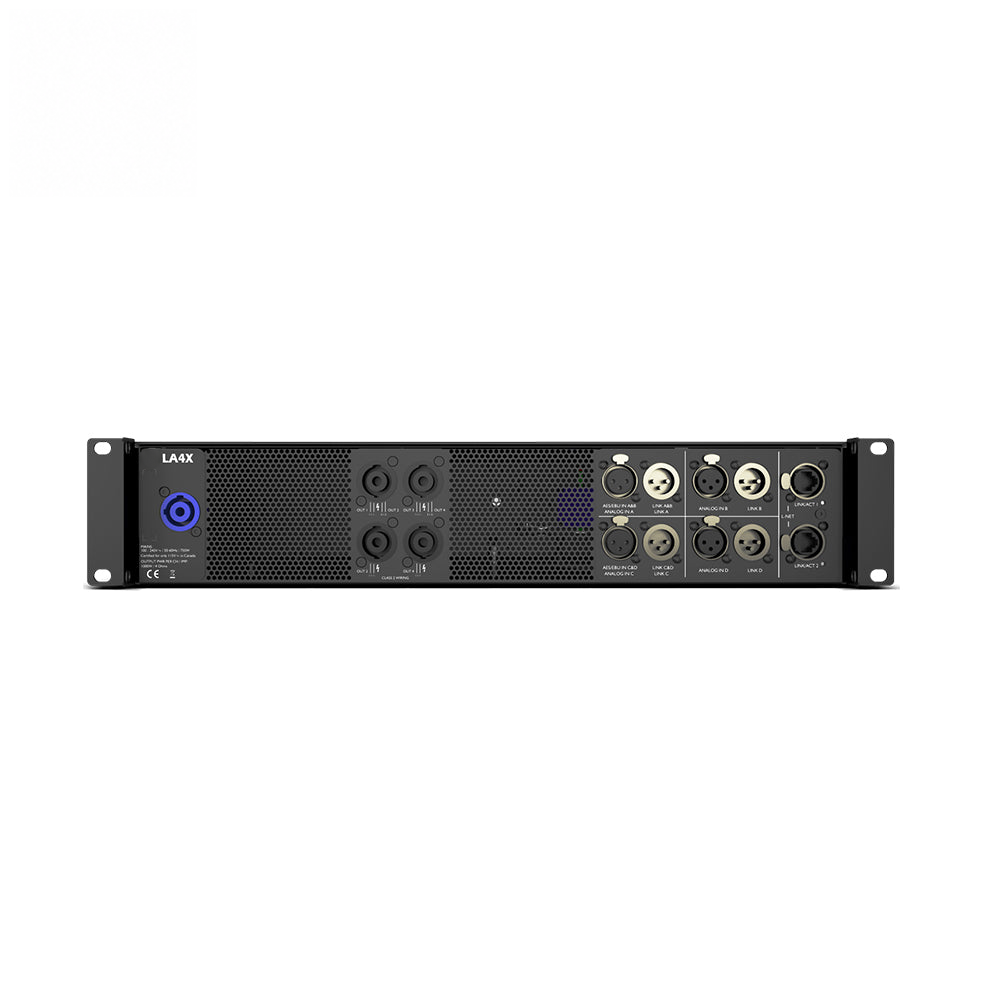

Connections: 2 etherCON 1 Gb/s I/O+ control 4 female 3-pin XLR (2 x switching analog/AES3) 4 male 3-pin XLR links
Loudspeaker connections: 4 x SpeakON

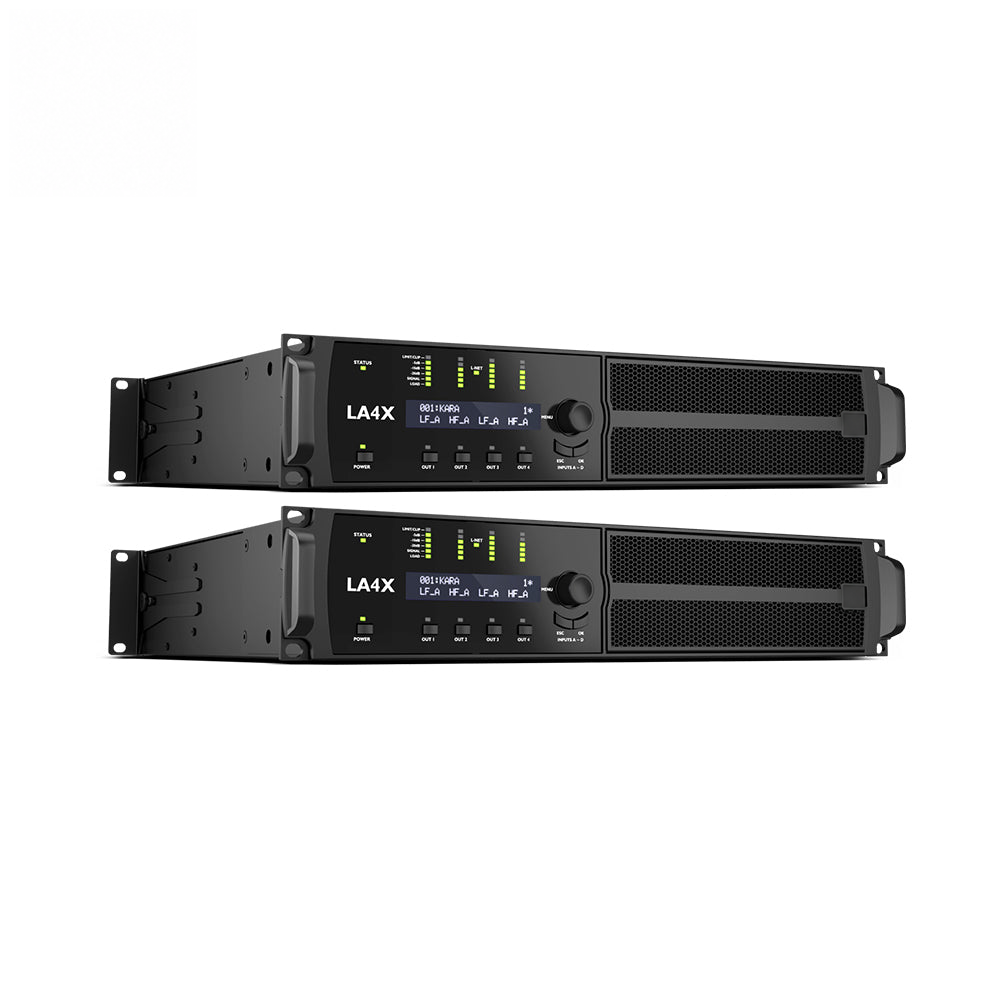

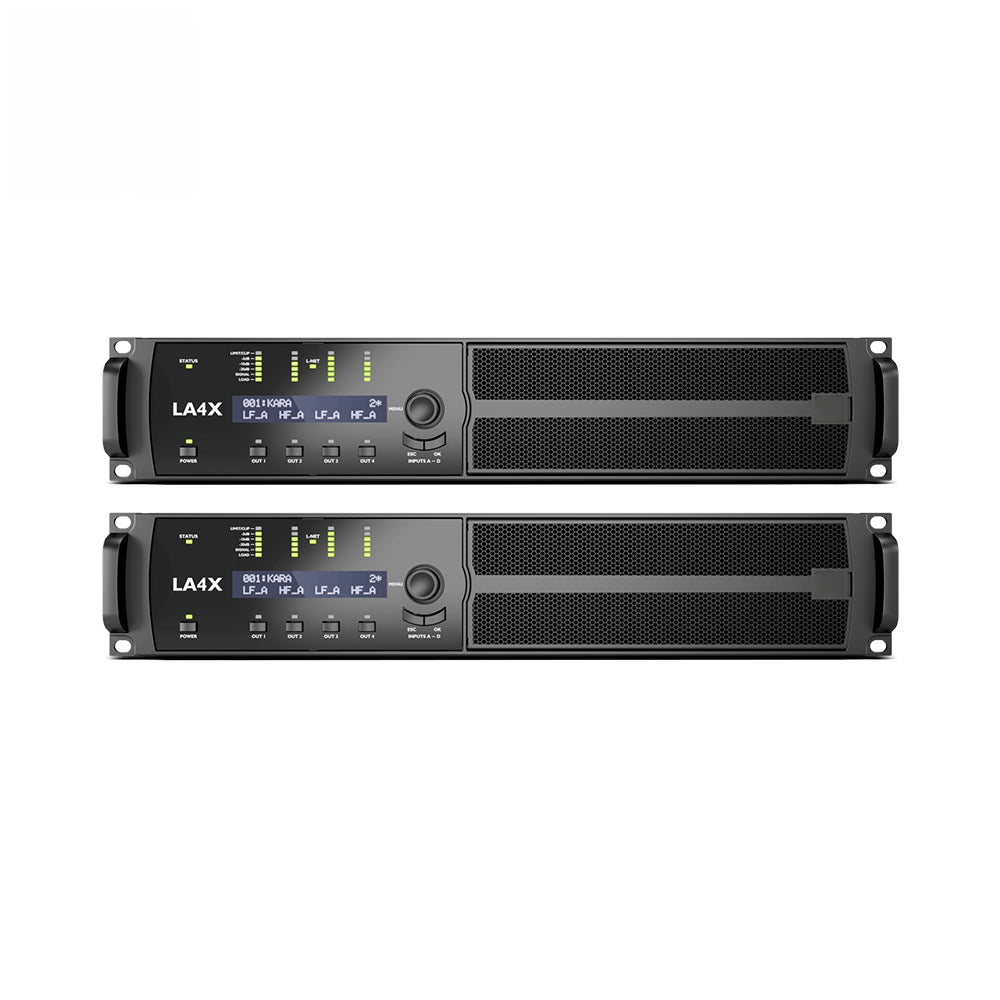

Display/indicators: LCD and LED's
Navigation: Rotary encoder, power and mute keys
Third-party management solutions: Q-SYS / Crestron / Control4 / Savant/ SNMP / Extron
Temperature: 0º C / 32º F to +50º C / 122º F
remote control software: LA Network Manager

Physical specifications

Dimensions: 88 × 483 × 427 mm
Weight: 14.5 kg / 32 lb
Height: 2U
TWeight: 11.3 kg / 24.9 lb
Protection rating: IP30

TECHNICAL REFERENCE

Product specifications.

Published product details. Ask our team about any configuration that is not listed.

X40 4-Channel Amplified Controller with DSP technical specifications
Bandwidth	10 Hz – 20 kHz
Dimensions	88 × 483 × 427 mm
Weight	14.5 kg / 32 lb
Amplification class	Class D
Output power, all channels loaded	4 x 1000 W at 4 ohms/ 4 x 1000 W at 8 ohms
Power supply model	Universal Switched Mode Power Supply (SMPS) with Power Factor Correction (PFC)
Mains rating	100 V - 240 V ±10%, 50-60 Hz
Digital Signal Processor (DSP)	SHARC 32-bit, floating point, 96 kHz sampling rate
I/O routing	Flexible 4x4 routing matrix
Per output channel	UBuilt-in EQ station with 8 IIR, 4 FIR linear phase EQ filters Array morphing, Air absorption compensation filters Internal IIR and FIR EQ algorithms L-DRIVE advanced system protection Output delay from 0 to 1000 ms
Loudspeaker management	L-DRIVE advanced system protection
Standard latency (analog/digital inputs)	3.84 ms
AVB	4 channels from 1 stream (of up to 8 channels)
AES/EBU	4 channels AES/EBU (2 x AES3) with SRC
Analog	4 channels
Connections	2 etherCON 1 Gb/s I/O+ control 4 female 3-pin XLR (2 x switching analog/AES3) 4 male 3-pin XLR links
Loudspeaker connections	4 x SpeakON
Display/indicators	LCD and LED's
Navigation	Rotary encoder, power and mute keys
Third-party management solutions	Q-SYS / Crestron / Control4 / Savant/ SNMP / Extron
Temperature	0º C / 32º F to +50º C / 122º F
Height	2U
TWeight	11.3 kg / 24.9 lb
Protection rating	IP30
