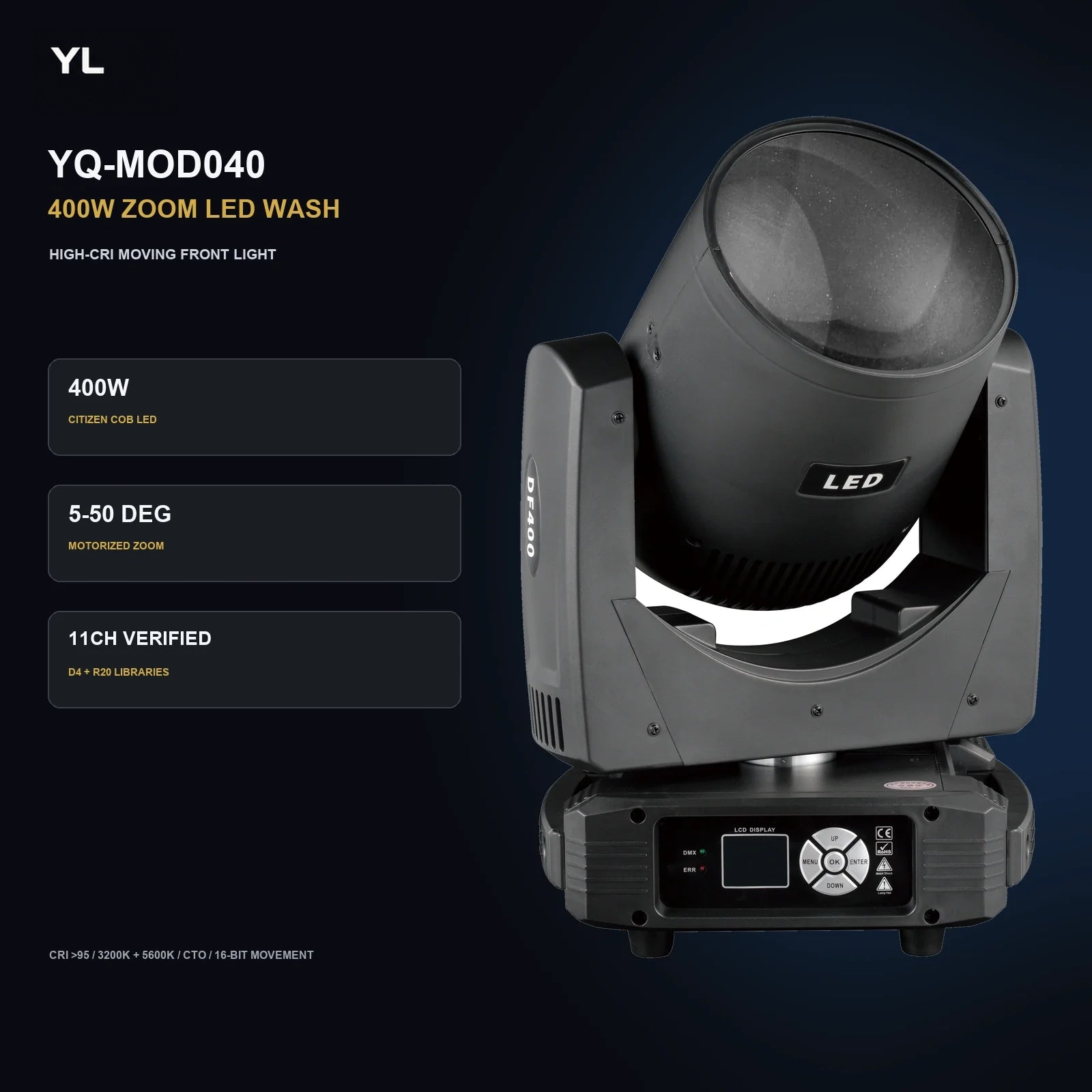

YQ-MOD040 400W Zoom LED Wash Moving Head is a stage lighting catalogue item in the led zoom wash moving head light category. Reference specifications list dmx channels: 11CH verified by complete D4 offsets and matching R20 declaration; manual menu has isolated 12CH conflict; movement: 540-degree pan / 270-degree tilt / 16-bit fine positioning. Confirm the exact fixture version, specifications and current supply details before ordering.
WHATSAPPRequest a QuoteFor a wash or area-lighting position, establish the coverage and colour required across the subject. Compare the listed optics and control functions with the working distance and the way the fixtures will be positioned.
TECHNICAL REFERENCE
Published product details. Ask our team about any configuration that is not listed.
| DMX channels | 11CH verified by complete D4 offsets and matching R20 declaration; manual menu has isolated 12CH conflict |
|---|---|
| Movement | 540-degree pan / 270-degree tilt / 16-bit fine positioning |
| Input voltage | AC100-240V, 50/60Hz |
| Product | YQ-MOD040 400W Zoom LED Wash Moving Head |
| Strobe | 1-25 flashes/second |
| Dimming | 0-100% linear dimming |
| Size / weight | Approx. 298 x 226.5 x 463.1mm envelope; gross weight 10.95kg; net weight TBC |
| Environment | IP20 indoor; operating range -20C to 40C |

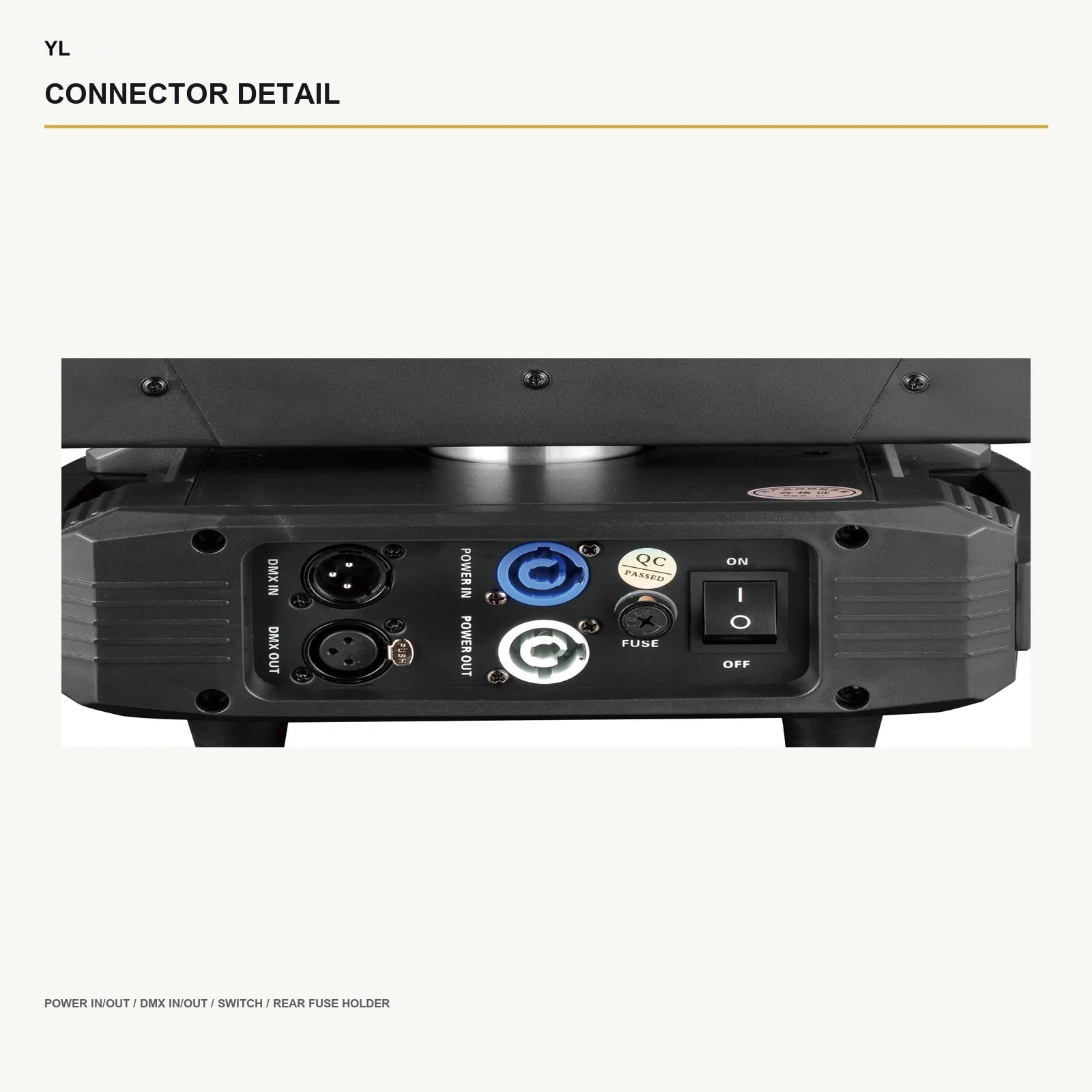

| Electrical protection | Grounded Class I supply required. Rear fuse holder is photograph-verified; rated current and fuse value remain TBC. |
Product documents are being prepared. Contact YL for the current information for YQ-MOD040 400W Zoom LED Wash Moving Head.
Request product documentsContact YL to confirm the available accessories and the exact configuration for YQ-MOD040 400W Zoom LED Wash Moving Head.
Ask about compatible accessoriesAsk for an available demonstration of YQ-MOD040 400W Zoom LED Wash Moving Head and the configuration you need.
Request a product demonstration
