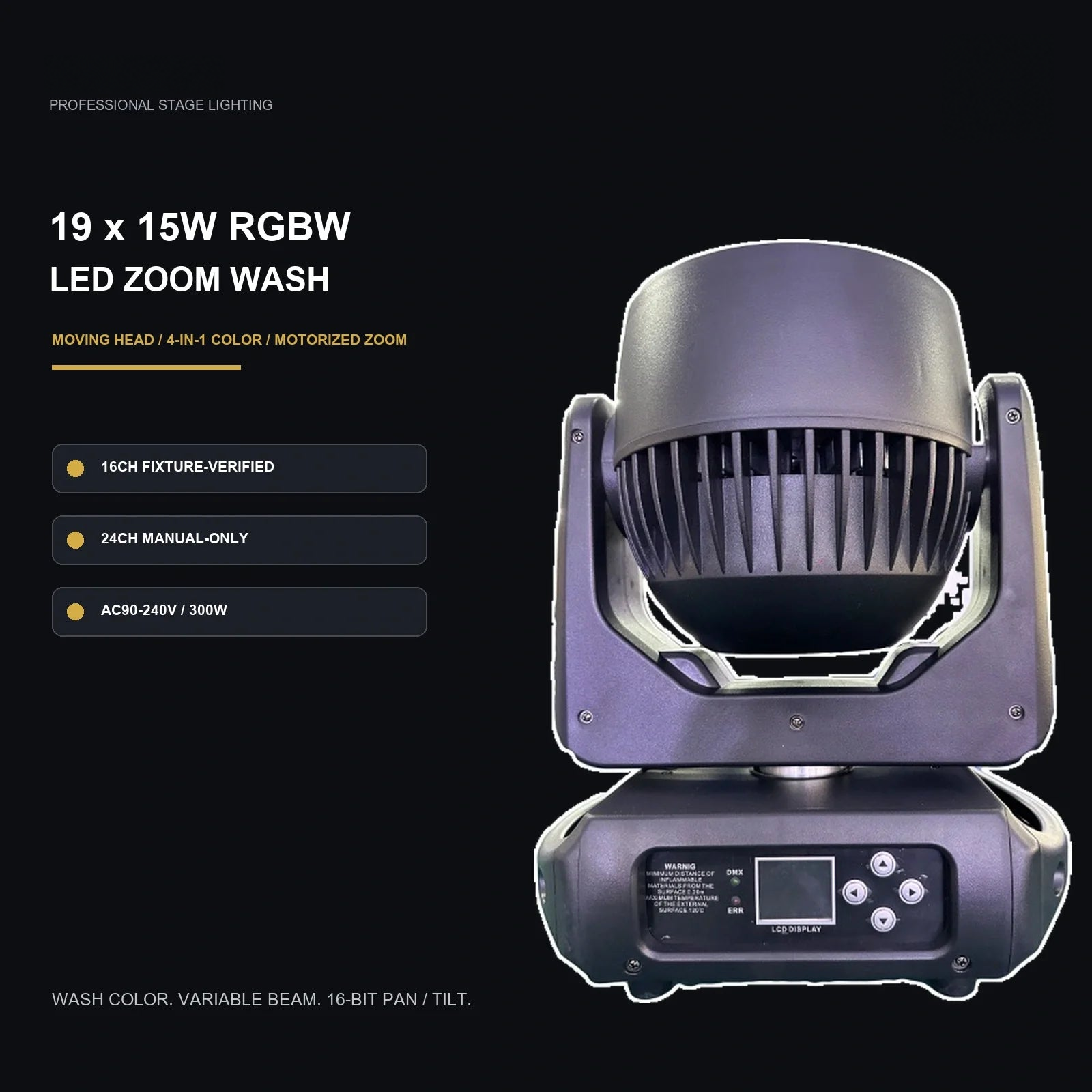

19 x 15W LED Zoom Wash Moving Head is a stage lighting catalogue item in the led zoom wash moving head light category. Reference specifications list light source: 19 x 15W RGBW four-in-one LEDs; nominal LED load 285W; dmx modes: 16CH fixture-verified; 24CH manual-only and unverified. Confirm the exact fixture version, specifications and current supply details before ordering.
WHATSAPPRequest a QuoteFor a wash or area-lighting position, establish the coverage and colour required across the subject. Compare the listed optics and control functions with the working distance and the way the fixtures will be positioned.

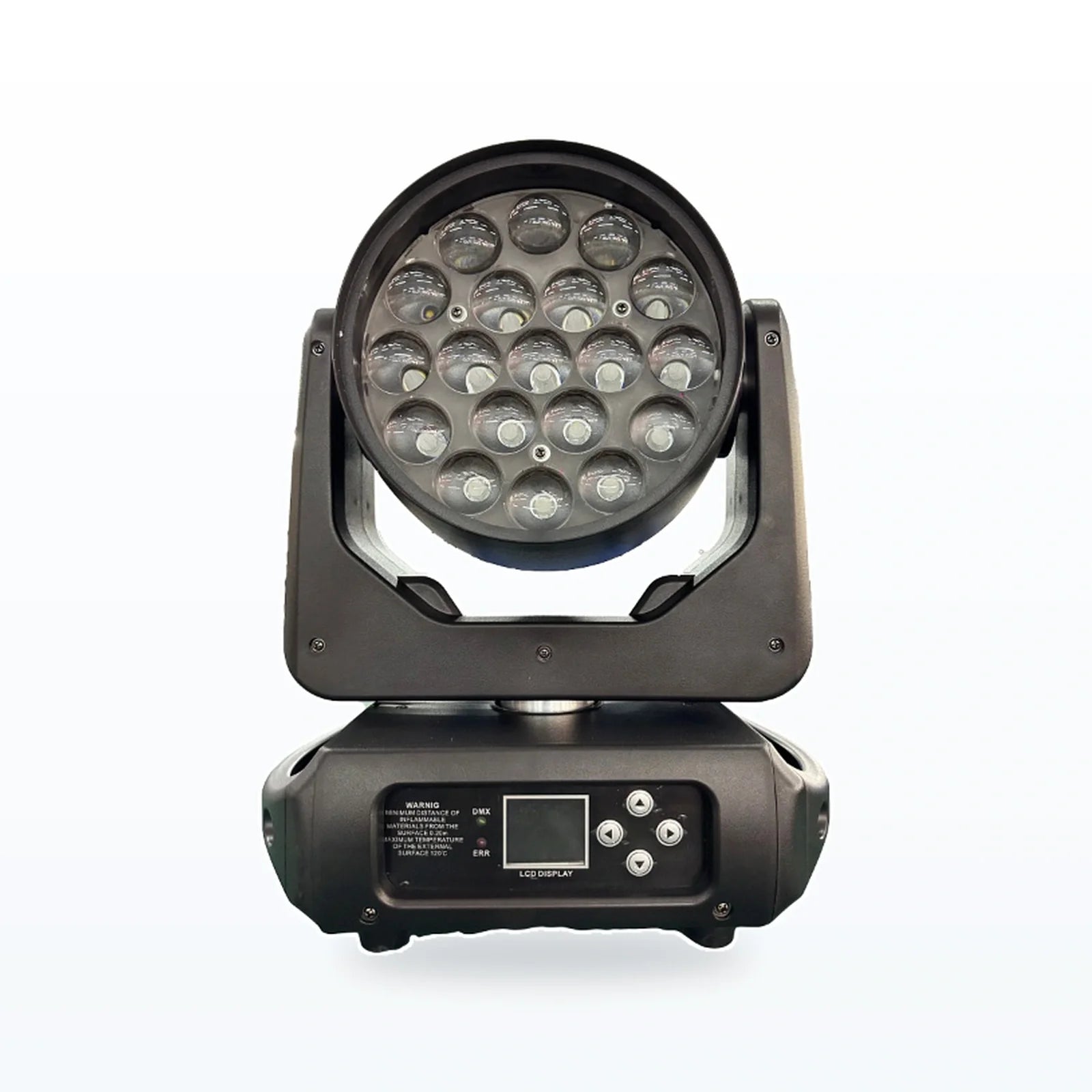

Light source: 19 x 15W RGBW four-in-one LEDs; nominal LED load 285W
TECHNICAL REFERENCE
Published product details. Ask our team about any configuration that is not listed.
| Light source | 19 x 15W RGBW four-in-one LEDs; nominal LED load 285W |
|---|---|
| DMX modes | 16CH fixture-verified; 24CH manual-only and unverified |
| Movement | Pan 540 degrees; note tilt 250 degrees, manuals tilt 270 degrees |
| Input voltage | AC90-240V, 50/60Hz |
| Product | 19 x 15W LED Zoom Wash Moving Head |
| Dimming / strobe | 0-100% linear dimming / 1-30Hz in manuals |
| Protection | IP20 indoor |

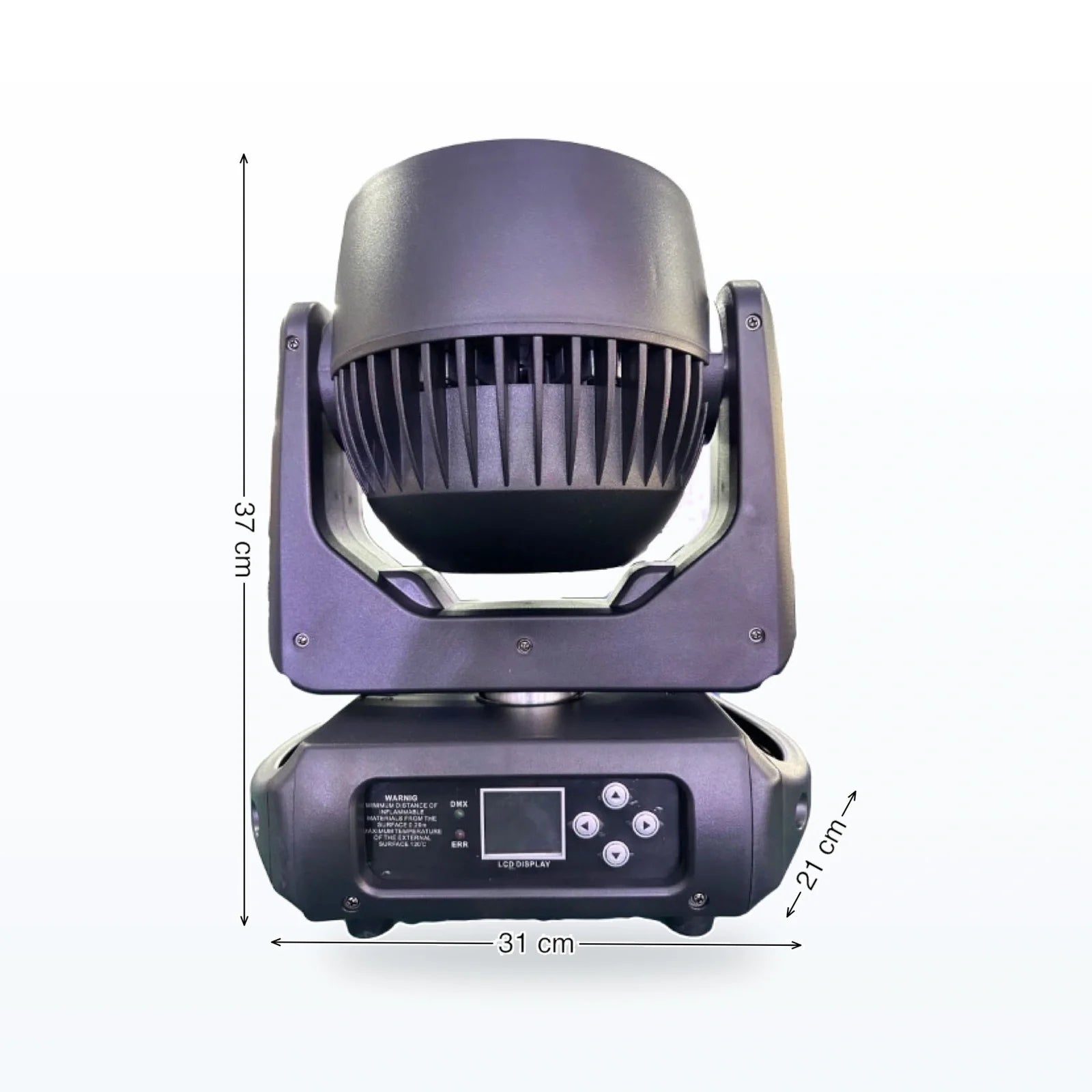

| Product size | 31 x 21 x 37 cm |
| Packing | 46 x 29 x 37 cm / 8.3 kg gross, product note |
| Housing | Black high-temperature plastic plus die-cast alloy, per manuals |
Product documents are being prepared. Contact YL for the current information for 19 x 15W LED Zoom Wash Moving Head.
Request product documentsContact YL to confirm the available accessories and the exact configuration for 19 x 15W LED Zoom Wash Moving Head.
Ask about compatible accessoriesAsk for an available demonstration of 19 x 15W LED Zoom Wash Moving Head and the configuration you need.
Request a product demonstration
