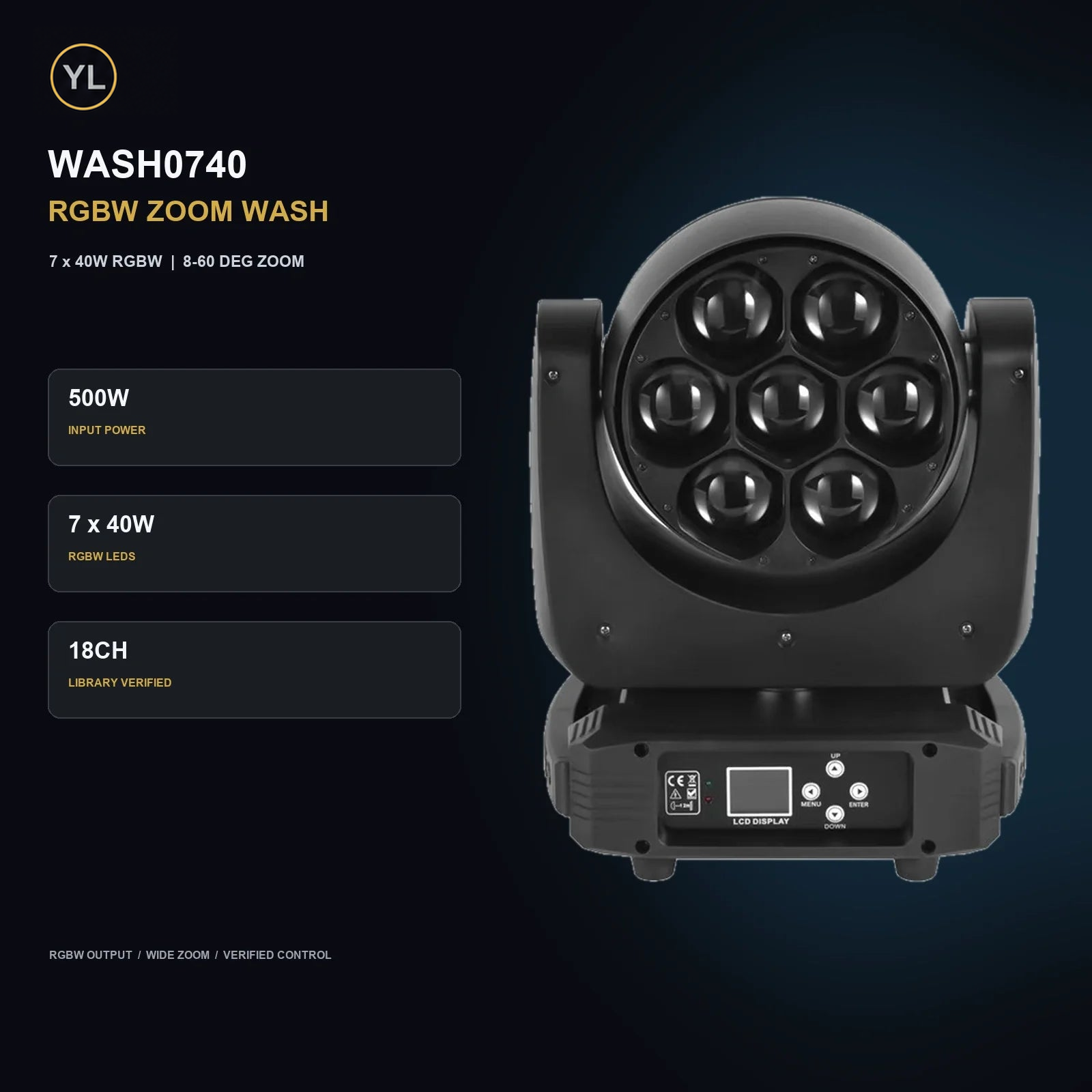

WASH0740 7 x 40W RGBW Zoom Wash Moving Head

Name: WASH0740 7 x 40W RGBW Zoom Wash Moving Head
Brand: YL Light

WASH0740 7 x 40W RGBW Zoom Wash Moving Head is a stage lighting catalogue item in the led zoom wash moving head light category. Reference specifications list light source: 7 x 40W four-in-one RGBW LEDs; LED6065 and 30,000-hour claims in supplied product note; dmx channels: 18CH fixture-library verified; 21CH / 28CH / 49CH manual-documented. Confirm the exact fixture version, specifications and current supply details before ordering.

WHATSAPPRequest a Quote

View specifications

Light source: 7 x 40W four-in-one RGBW LEDs; LED6065 and 30,000-hour claims in supplied product note
Electrical protection: Grounded Class I supply required. Rated current, fuse value and fuse-holder location: TBC.
Control modes: DMX512 / RDM / auto / sound

Planning this product into your project

For a wash or area-lighting position, establish the coverage and colour required across the subject. Compare the listed optics and control functions with the working distance and the way the fixtures will be positioned.

Product configuration

Movement: 540-degree pan / 270-degree tilt / 16-bit fine positioning
Product: WASH0740 7 x 40W RGBW Zoom Wash Moving Head
Strobe: 0.3-25 flashes/second; synchronized, asynchronous and random modes
Dimming: 0-100% linear dimming
Environment: IP20 base fixture; optional rain-cover claim up to IP44

Optical performance

Light source: 7 x 40W four-in-one RGBW LEDs; LED6065 and 30,000-hour claims in supplied product note
Color system: RGBW mixing, CTO, foreground/background color and built-in programs

Control and connections

DMX channels: 18CH fixture-library verified; 21CH / 28CH / 49CH manual-documented
Input voltage: AC100-240V, 50/60Hz
Control modes: DMX512 / RDM / auto / sound

Construction and dimensions

Size / weight: 29 x 21 x 37CM; 7 KG NET / 8 KG GROSS
Electrical protection: Grounded Class I supply required. Rated current, fuse value and fuse-holder location: TBC.

What to confirm for your quotation

Provide the subject dimensions, throw distance, fixture spacing and mounting height.
Confirm beam or zoom range, colour channels, dimming and any supported pixel control.
For faces or cameras, request relevant colour-quality and flicker data for the intended settings.
Verify supply, connectors, weight and environmental requirements for the actual location.

TECHNICAL REFERENCE

Product specifications.

Published product details. Ask our team about any configuration that is not listed.

WASH0740 7 x 40W RGBW Zoom Wash Moving Head technical specifications
Light source	7 x 40W four-in-one RGBW LEDs; LED6065 and 30,000-hour claims in supplied product note
DMX channels	18CH fixture-library verified; 21CH / 28CH / 49CH manual-documented
Movement	540-degree pan / 270-degree tilt / 16-bit fine positioning
Input voltage	AC100-240V, 50/60Hz
Product	WASH0740 7 x 40W RGBW Zoom Wash Moving Head
Control modes	DMX512 / RDM / auto / sound
Color system	RGBW mixing, CTO, foreground/background color and built-in programs
Strobe	0.3-25 flashes/second; synchronized, asynchronous and random modes
Dimming	0-100% linear dimming
Size / weight	29 x 21 x 37CM; 7 KG NET / 8 KG GROSS
Environment	IP20 base fixture; optional rain-cover claim up to IP44
Electrical protection	Grounded Class I supply required. Rated current, fuse value and fuse-holder location: TBC.
