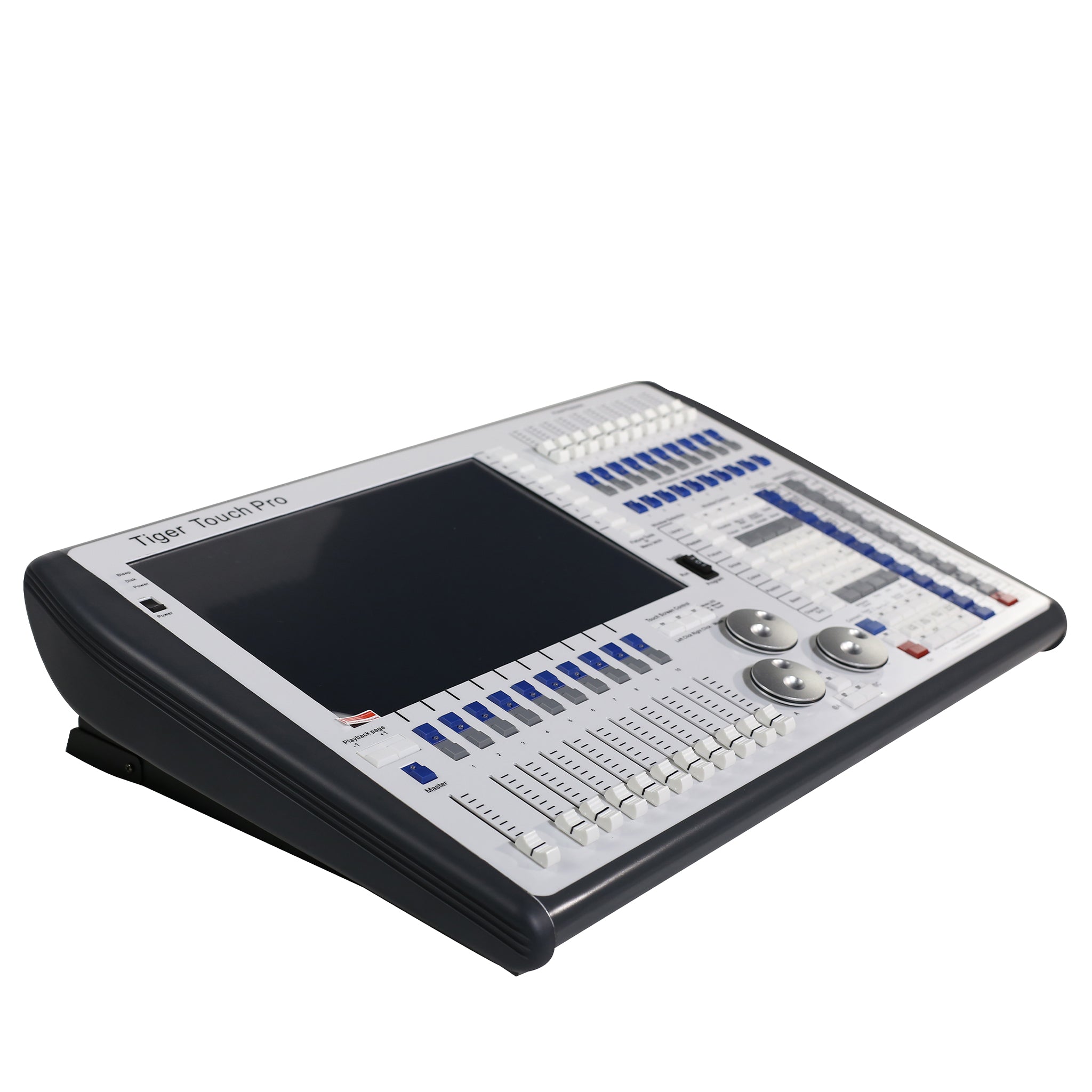

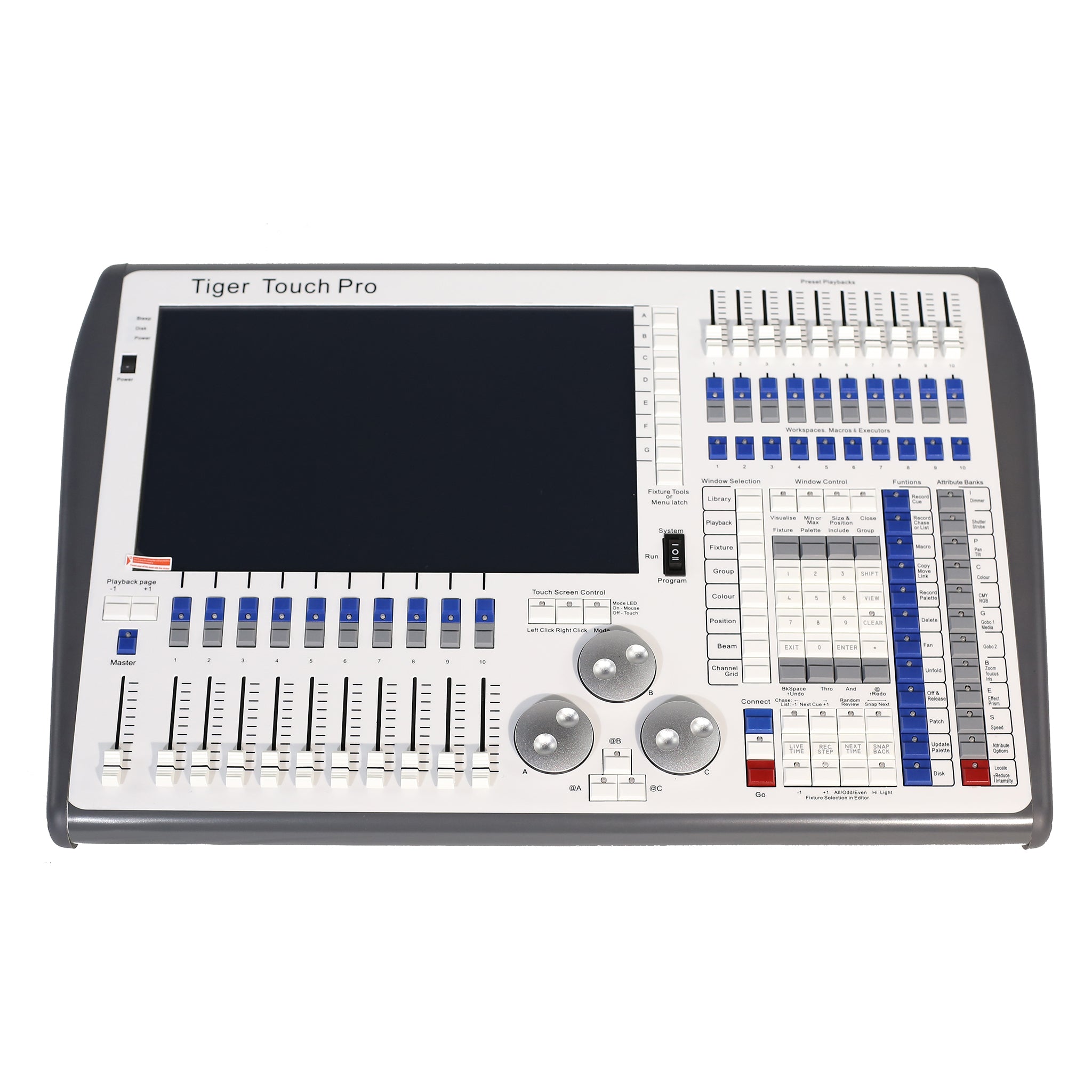

Tiger Touch Pro V16

Name: Tiger Touch Pro V16
Brand: YL Light

Tiger Touch Pro V16 is a stage lighting catalogue item in the lighting control category. Reference specifications list gross weight: 44kg; software version: V16. Confirm the exact fixture version, specifications and current supply details before ordering.

WHATSAPPRequest a Quote

View specifications

Gross weight: 44kg

Planning this product into your project

Assess this lighting-control product against the fixture inventory and the way the show will be programmed. Port counts, channel capacity and protocol names need to be checked for the exact hardware and software configuration.

Product configuration

Software version: V16
Processor / memory / storage: i7 CPU, 8G RAM, 128G SSD
Fader configuration: 10 program paged playback faders & 10 program non- paged playback faders

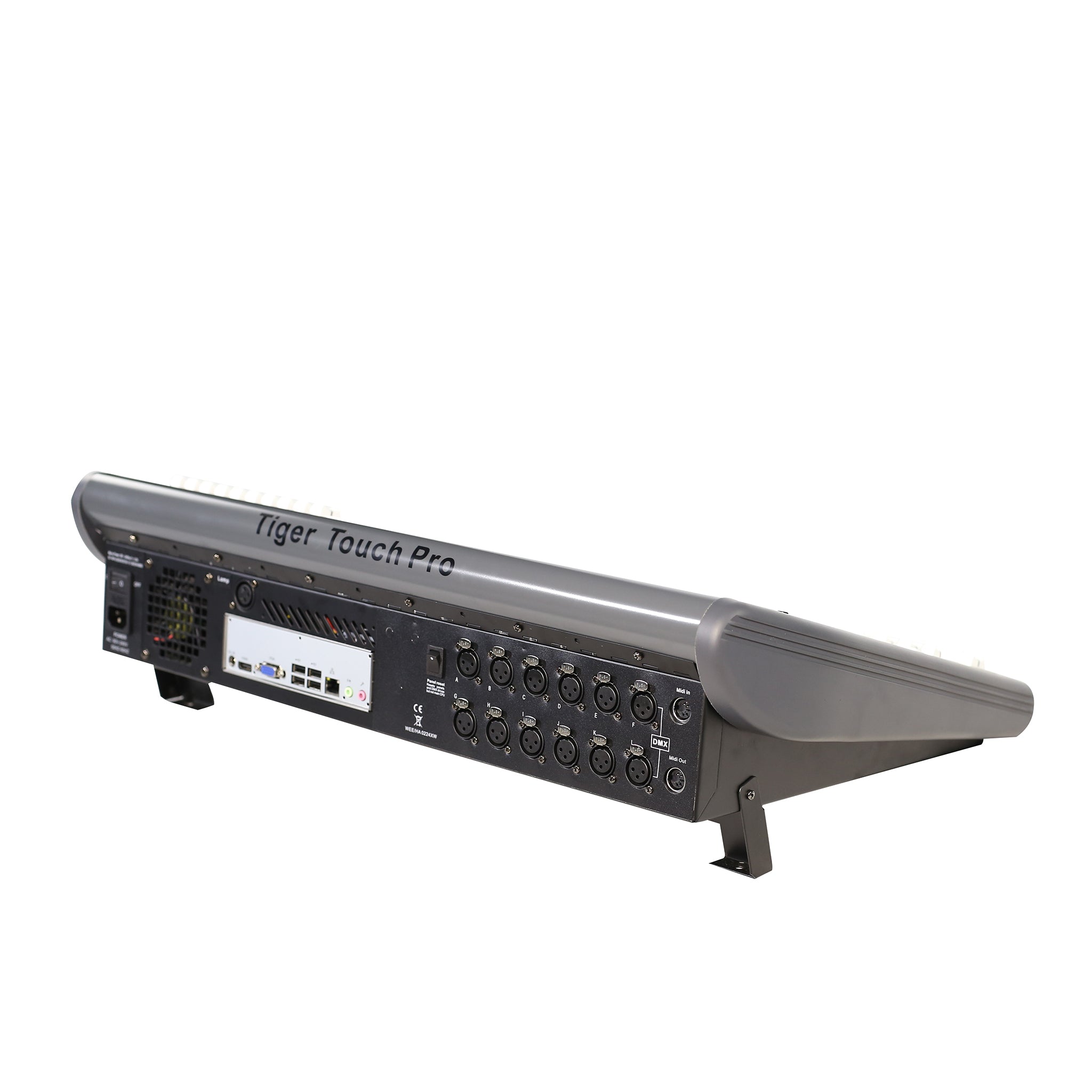

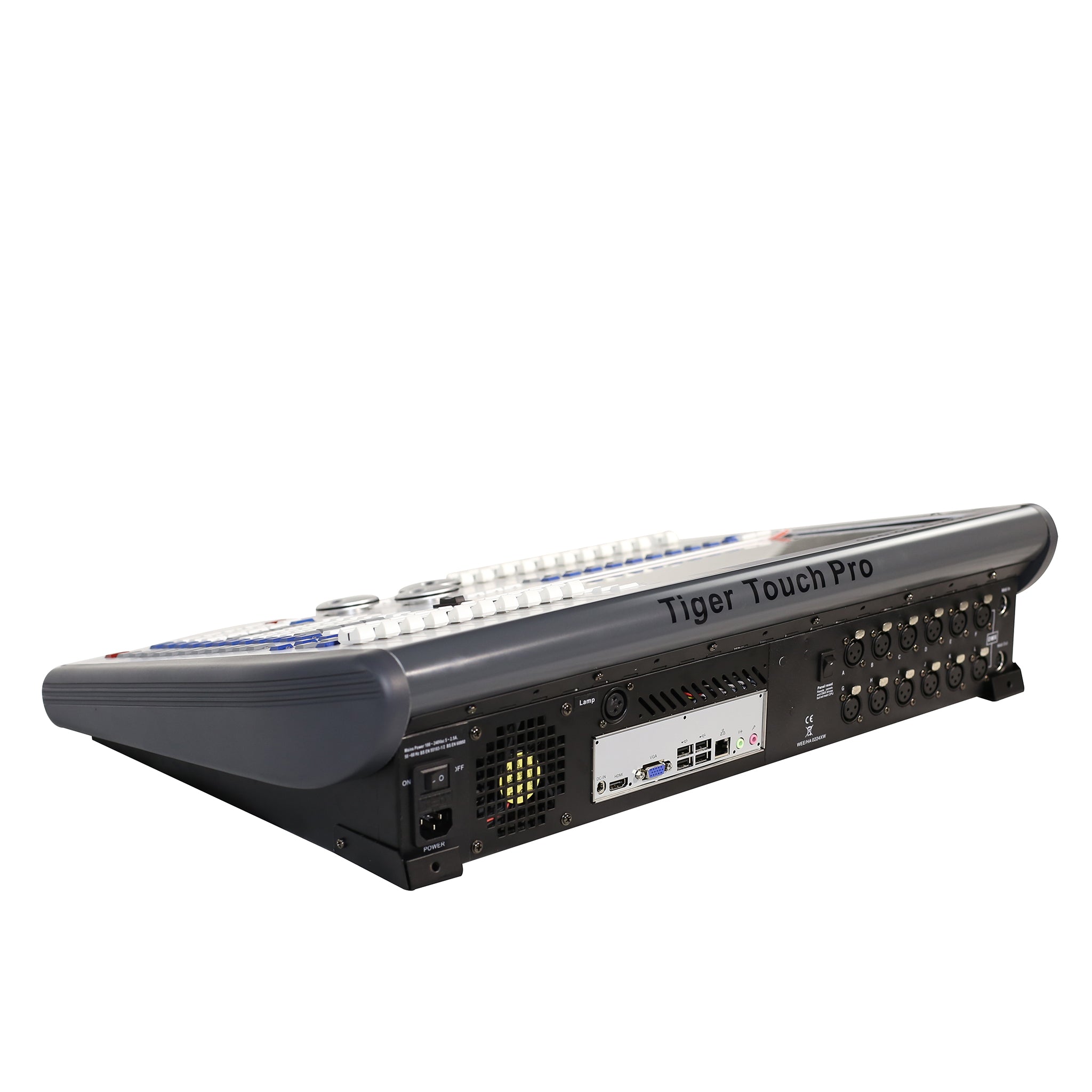

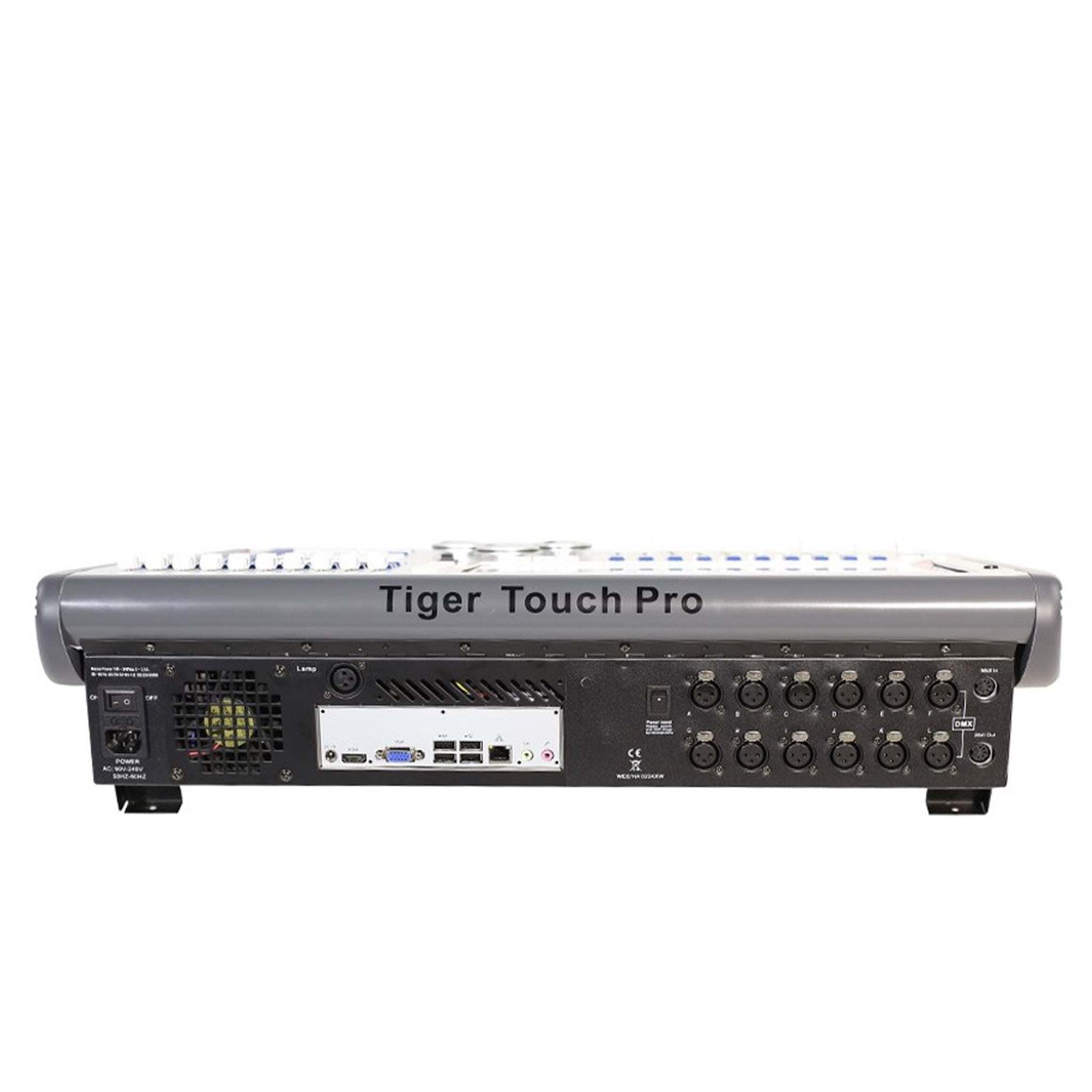

Control and connections

Display: 15.4 inch touch screen
Control capacity: 12×DM512output,Compatible with Titan Net up to 64 universes, 32,768 channels

Construction and dimensions

Dimensions: 90*66*34cm
Gross weight: 44kg

What to confirm for your quotation

List the fixture models, selected channel modes and total control requirements.
Confirm physical DMX ports, network protocols and any licensed or hardware-dependent capacity.
Request the current software version, supported fixture profiles and backup or show-file workflow.

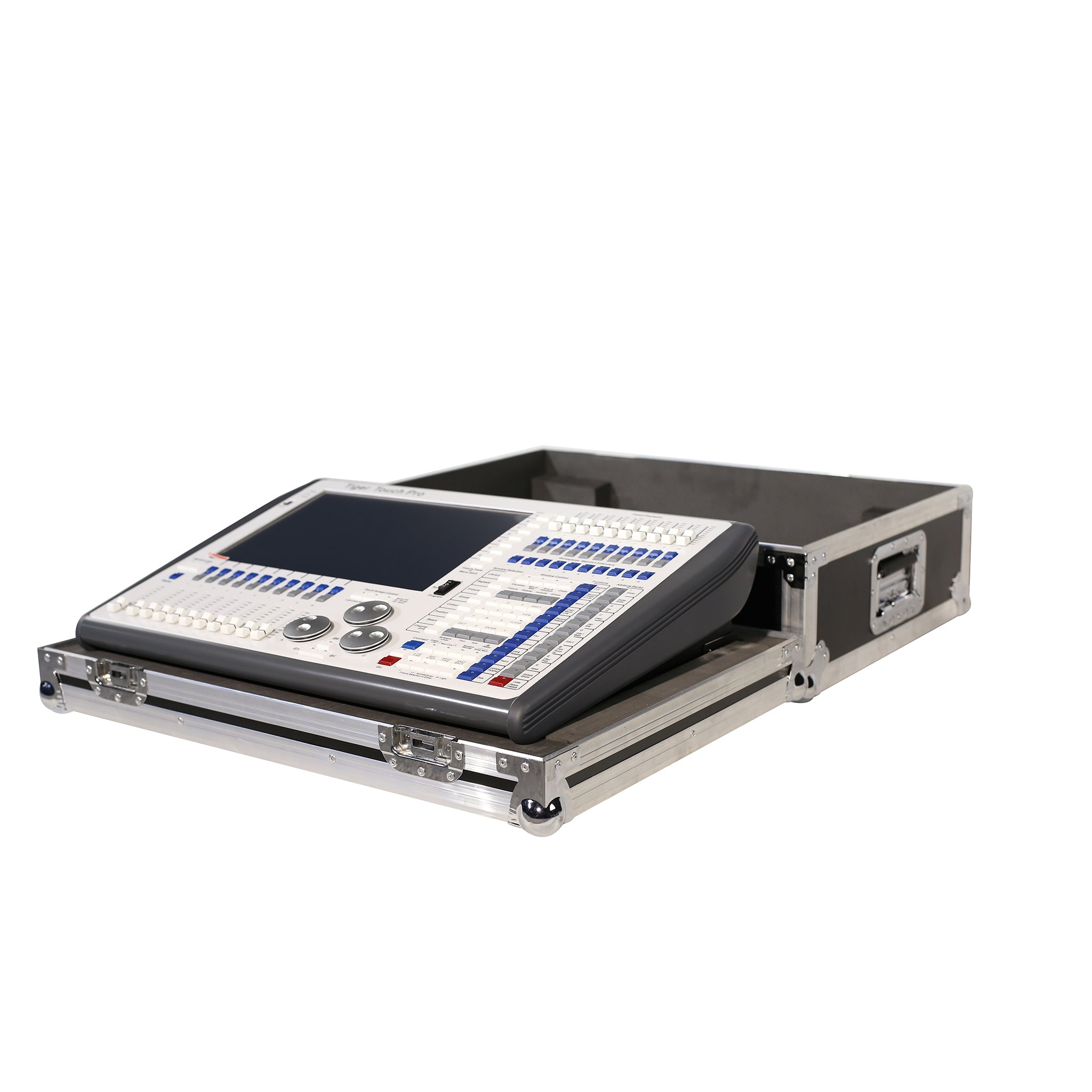

Check power, dimensions, case requirements and included cables or accessories.

TECHNICAL REFERENCE

Product specifications.

Published product details. Ask our team about any configuration that is not listed.

Tiger Touch Pro V16 technical specifications
Dimensions	906634cm
Gross weight	44kg
Software version	V16
Processor / memory / storage	i7 CPU, 8G RAM, 128G SSD
Display	15.4 inch touch screen
Control capacity	12×DM512output,Compatible with Titan Net up to 64 universes, 32,768 channels
Fader configuration	10 program paged playback faders & 10 program non- paged playback faders
