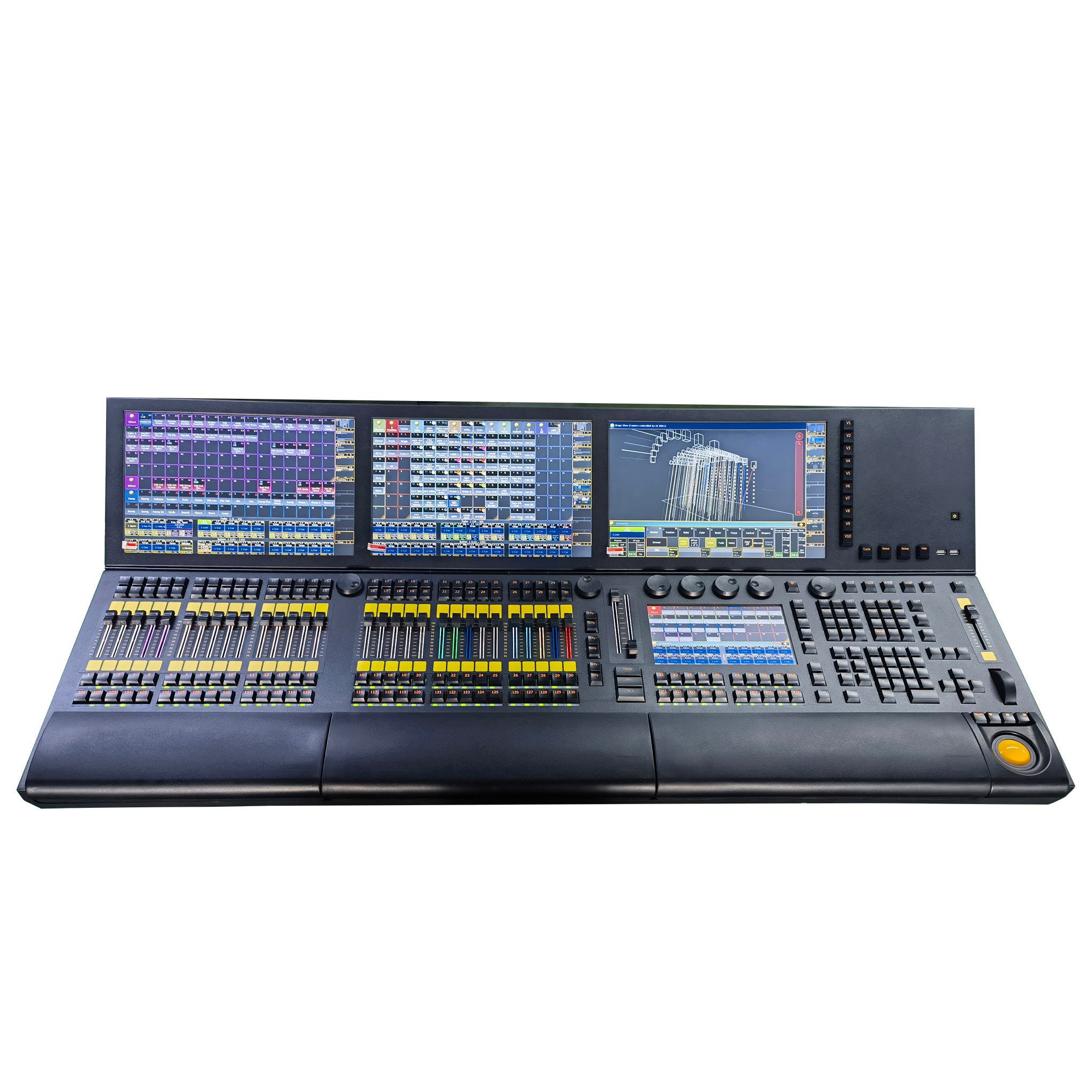

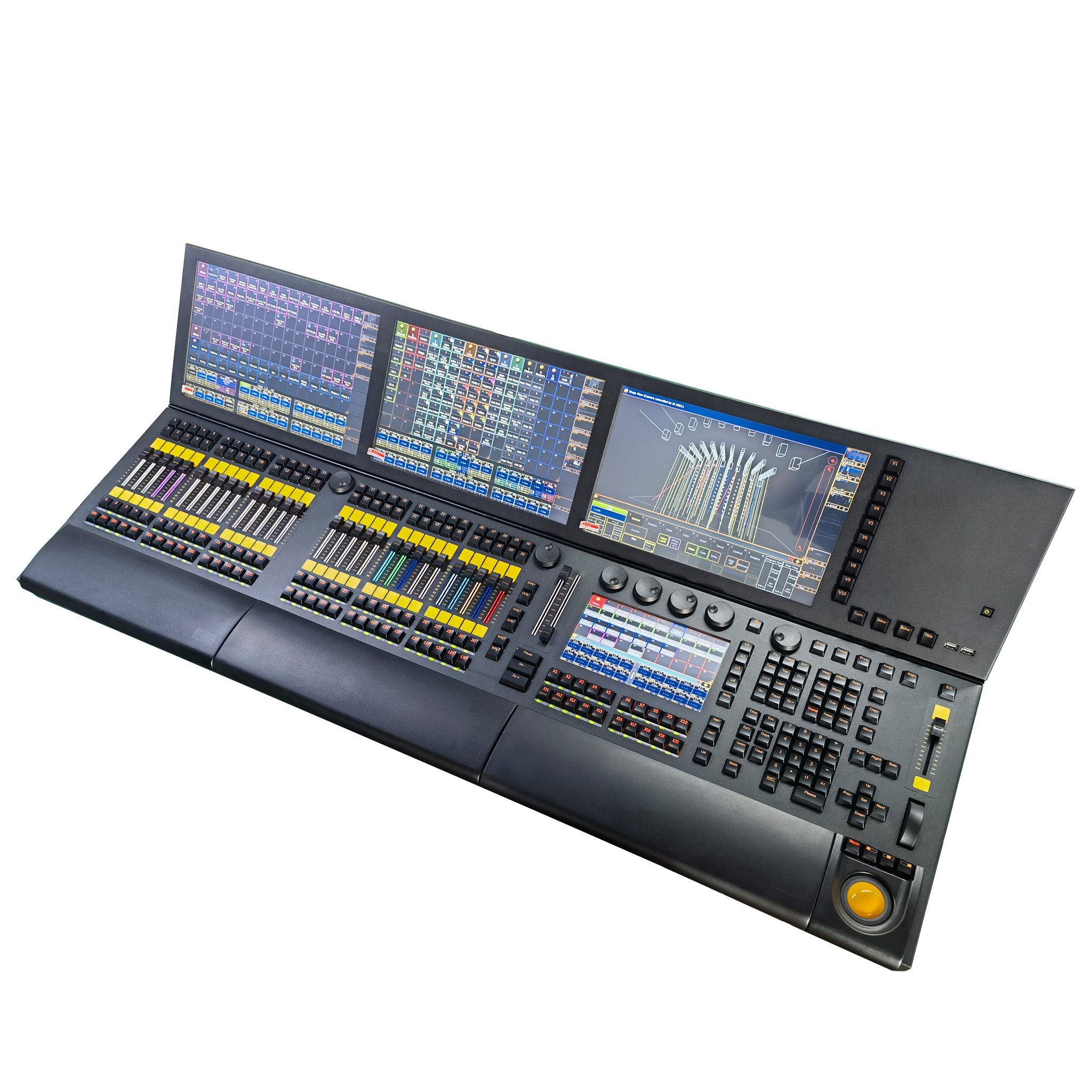

MA2 P3 Pro S

Assess this lighting-control product against the fixture inventory and the way the show will be programmed. Port counts, channel capacity and protocol names need to be checked for the exact hardware and software configuration.

Operating system

Linux operating system, the version of any upgrade

Processor / memory / storage

Industrial motherboard, i5CPU, 8GB RAM, 128GB SSD

Fader configuration

30 RGB backlight touch sensing motorized faders

Fader configuration

2 RGB backlit motorized A/B faders

Fader configuration

1 motorized master fader，1 dimmer wheel

Trackball

1 controlled XY axis high precision imported track ball

Encoder configuration

7 High precision wear-resistant optical encoders (with Push function)

USB interfaces

5 USB ports, 2 working light ports

MIDI / timecode interfaces

MIDI input/output interface and LTC/SMPTE time code

Keyboard / drawer

2 drawers with built-in adjustable yellow backlit mechanical keyboard

RDM

RDM supports

Power supply

Wide voltage industrial power supply 100V-240V 50/60Hz

Backup power

Built-in high-power UPS, 0 delay automatic switching

Display

Three 15.4"full view industrial touch screen, electric adjustment of viewing Angle

Display

one 9"touch screen, built-in independent graphics card, can be connected 2 screens

DMX interfaces

6 DMX output, 1 compound input (can be set as output)

Control capacity

It supports up to 65536 channel parameters when connected to NPU

Playback controls

80 executive program keys

Network interfaces

tow gigabit network ports, support MA NET, ARTNET signal

Dimensions

136*90*37cm

Gross weight

98kg

• List the fixture models, selected channel modes and total control requirements.
• Confirm physical DMX ports, network protocols and any licensed or hardware-dependent capacity.
• Request the current software version, supported fixture profiles and backup or show-file workflow.
• Check power, dimensions, case requirements and included cables or accessories.
