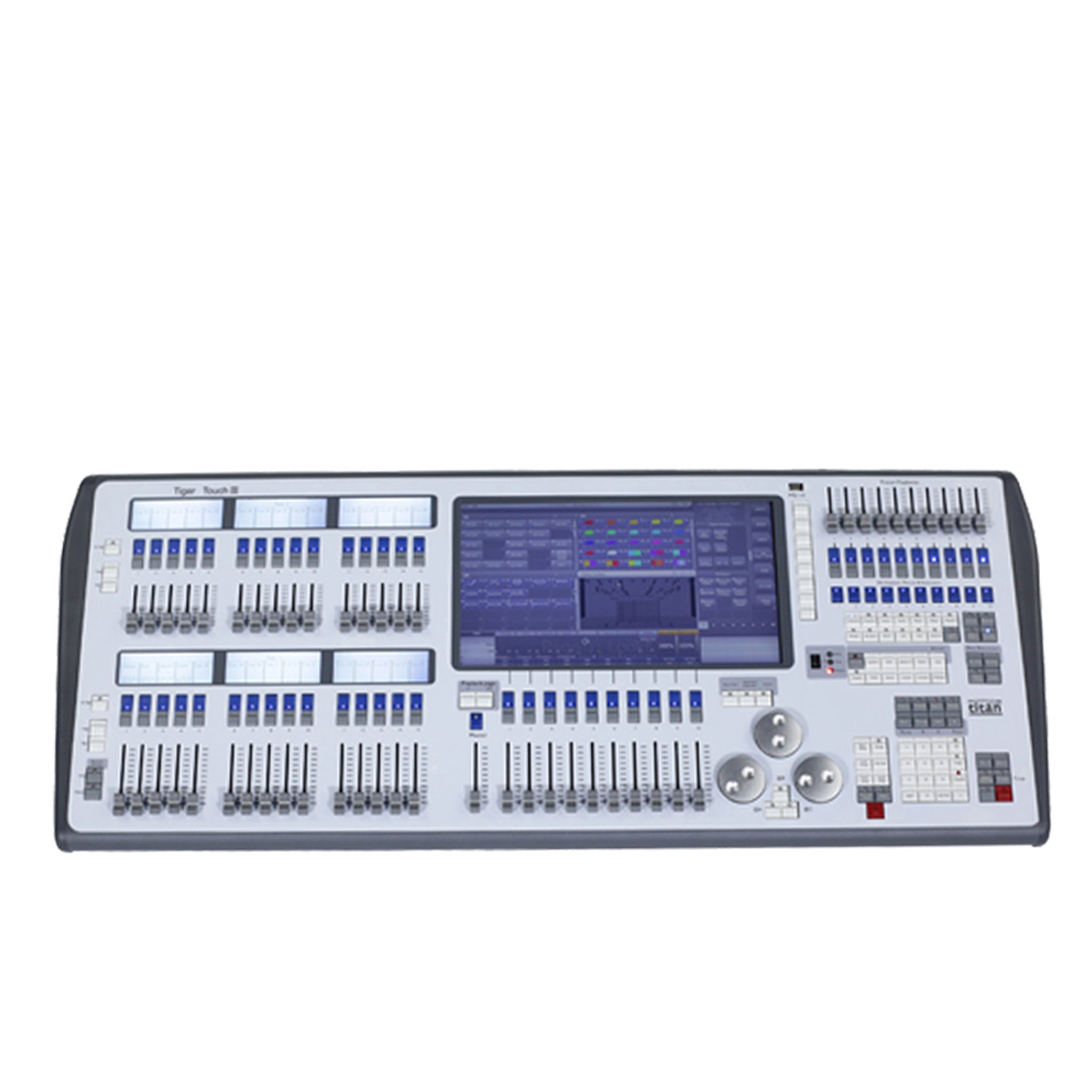

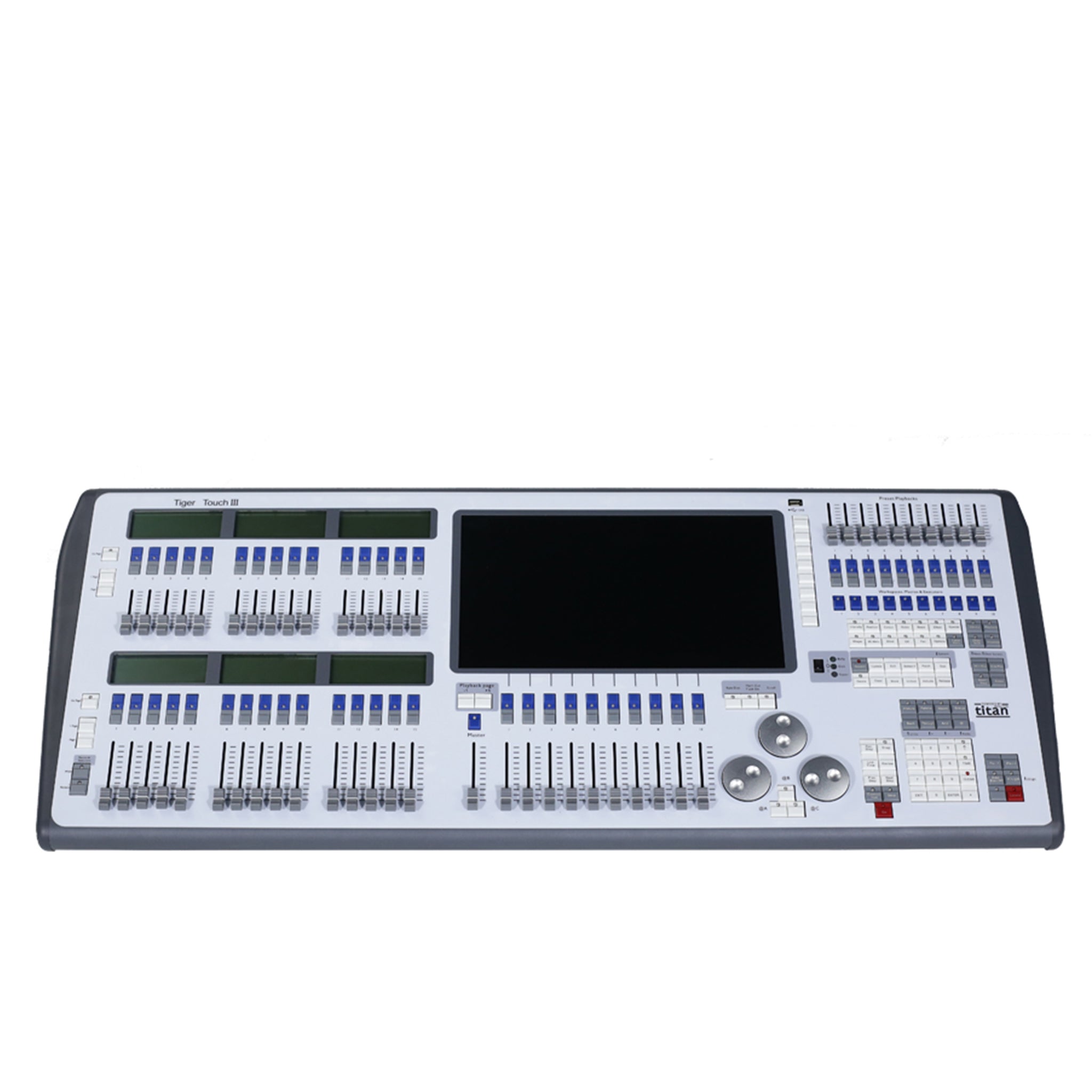

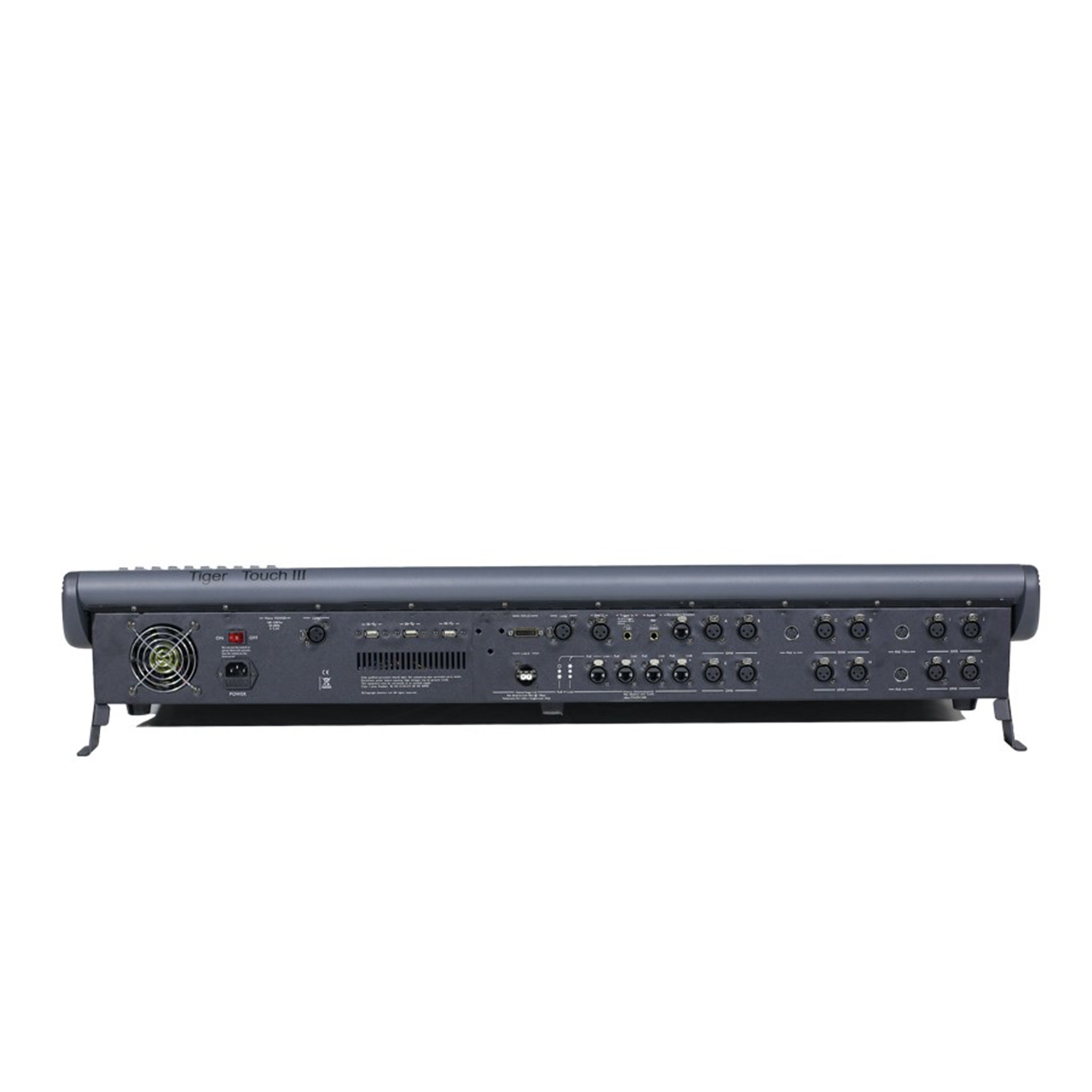

Tiger Touch Ⅲ

Assess this lighting-control product against the fixture inventory and the way the show will be programmed. Port counts, channel capacity and protocol names need to be checked for the exact hardware and software configuration.

Fader configuration

50 precision playback faders in four pageable groups

Encoder configuration

3 metal shaft optical attribute encoders

Encoder configuration

4 optical playback encoder pots

Processor / memory / storage

i5 CPU, 4G RAM, 128G SSD

USB interfaces

4 USB3 ports，1 front, 3 rear

MIDI / timecode interfaces

MIDI in/out & LTC/SMPTE Timecode

Backup power: UPS battery back-up

Display

15.6 super-bright 15.6-inch capacitive widescreen touch screens

Display

6 mono LCD screens for digital fader legends

DMX interfaces

12 DMX out，Compatible with Titan Net up to 64 universes, 32,768channels

Network interfaces

Built-in 4-port managed gigabit network switch

Dimensions

117*50*30cm

Gross weight

40kg

• List the fixture models, selected channel modes and total control requirements.
• Confirm physical DMX ports, network protocols and any licensed or hardware-dependent capacity.
• Request the current software version, supported fixture profiles and backup or show-file workflow.
• Check power, dimensions, case requirements and included cables or accessories.
