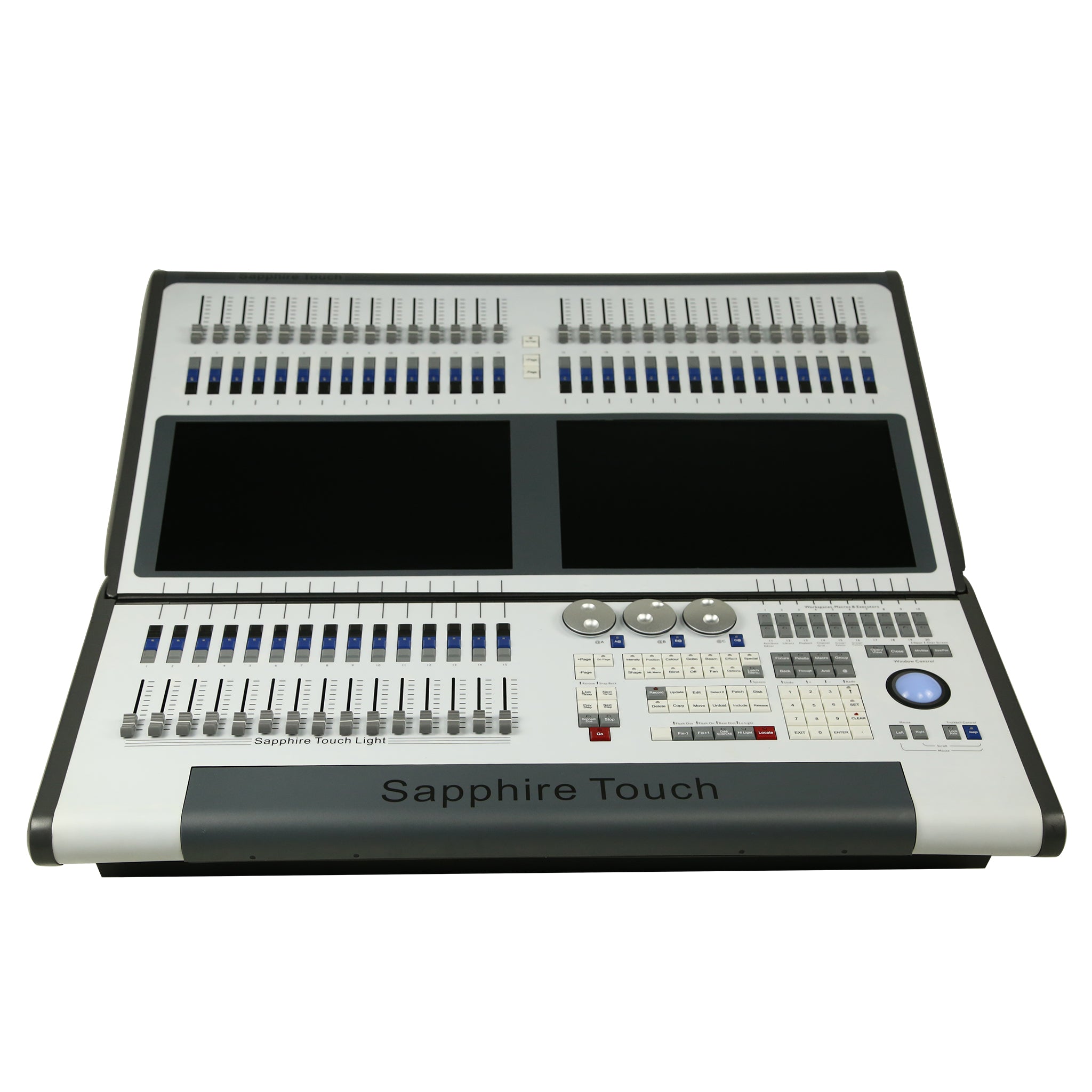

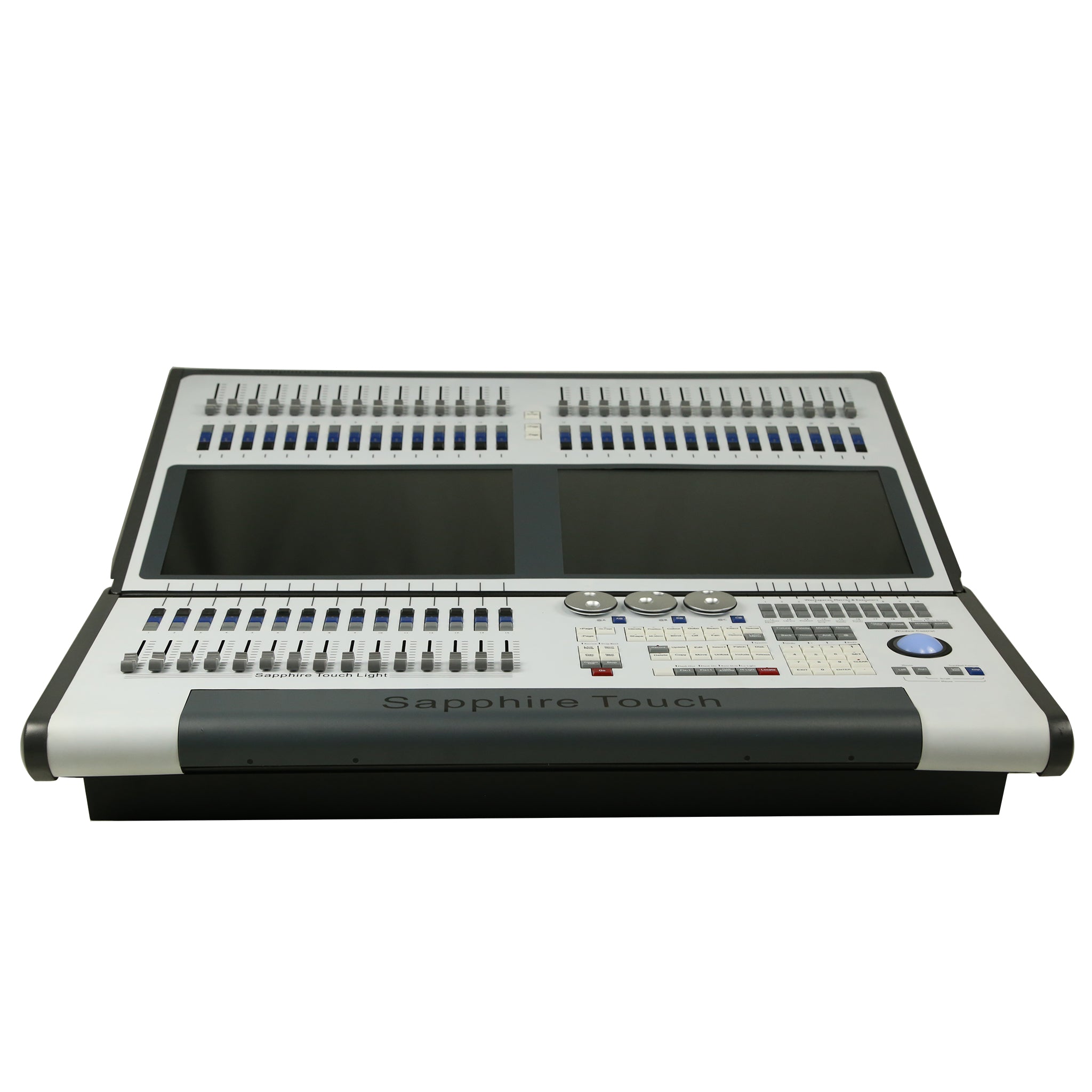

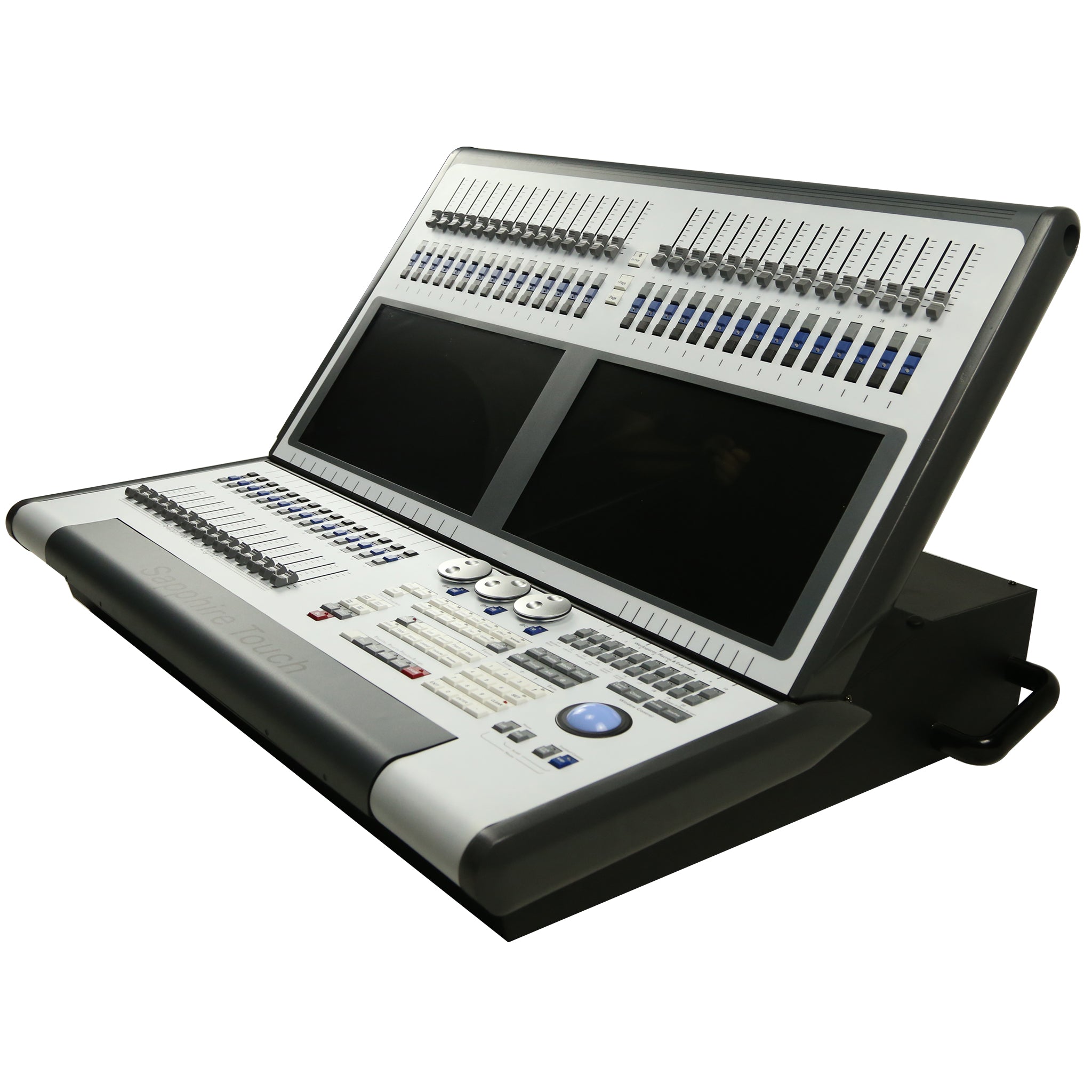

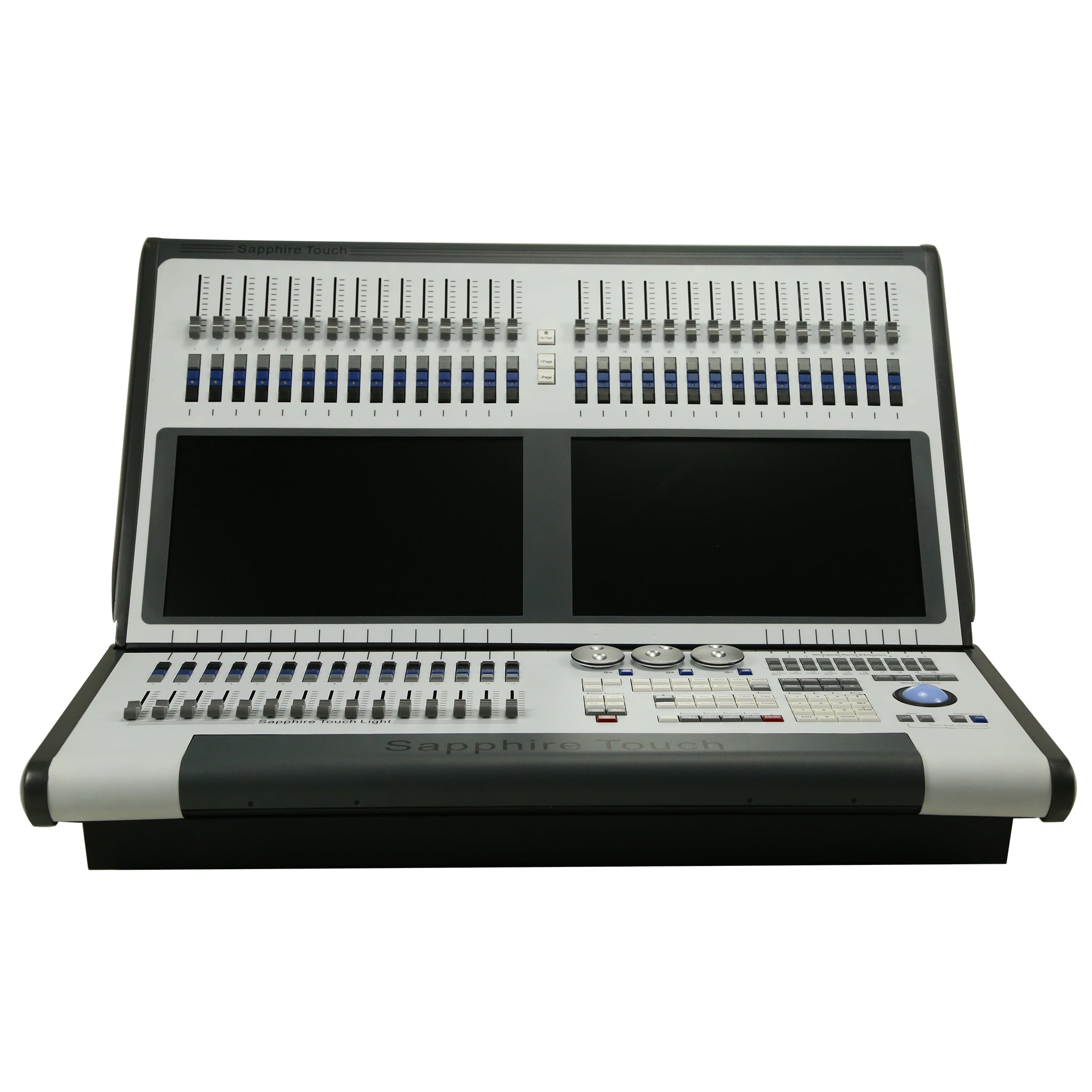

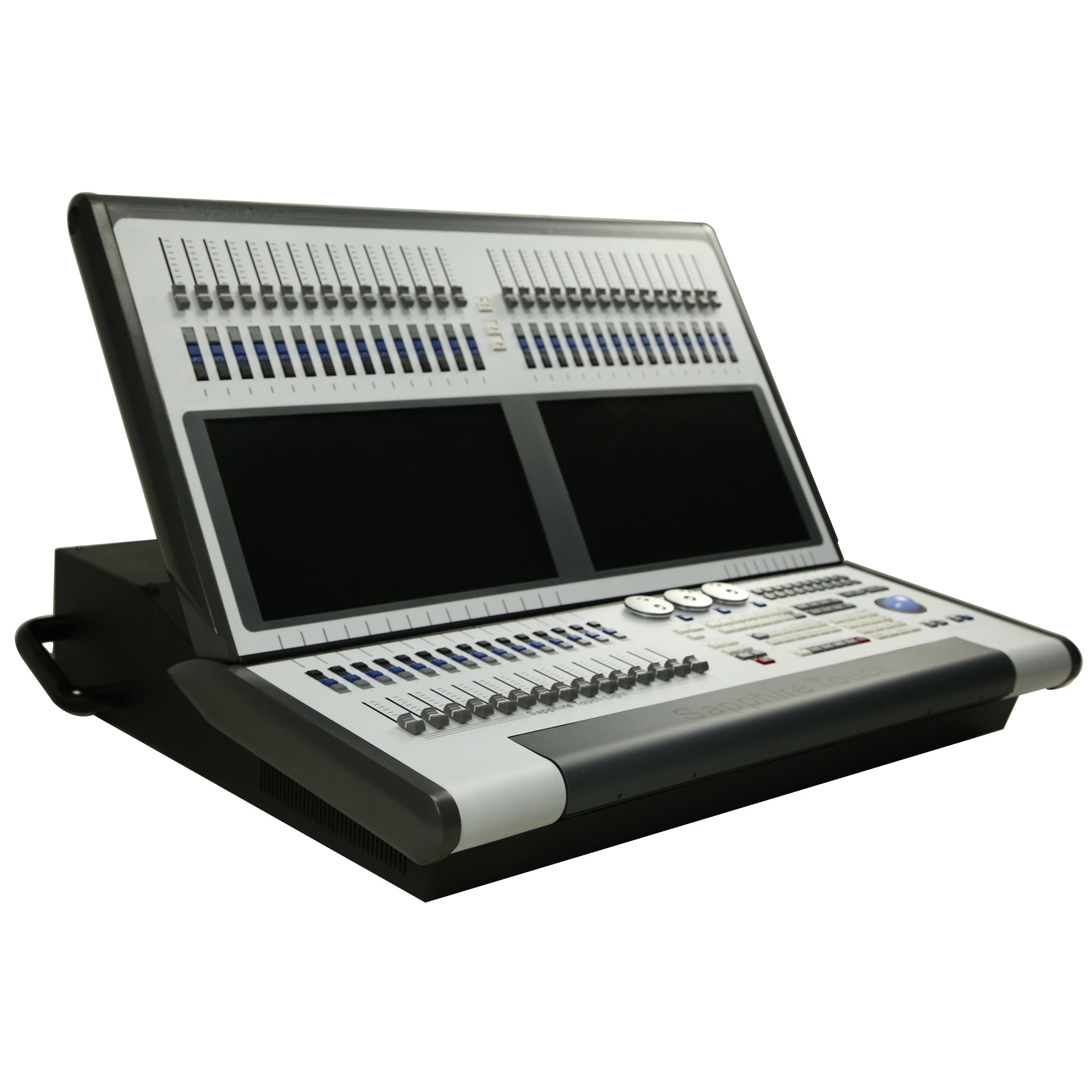

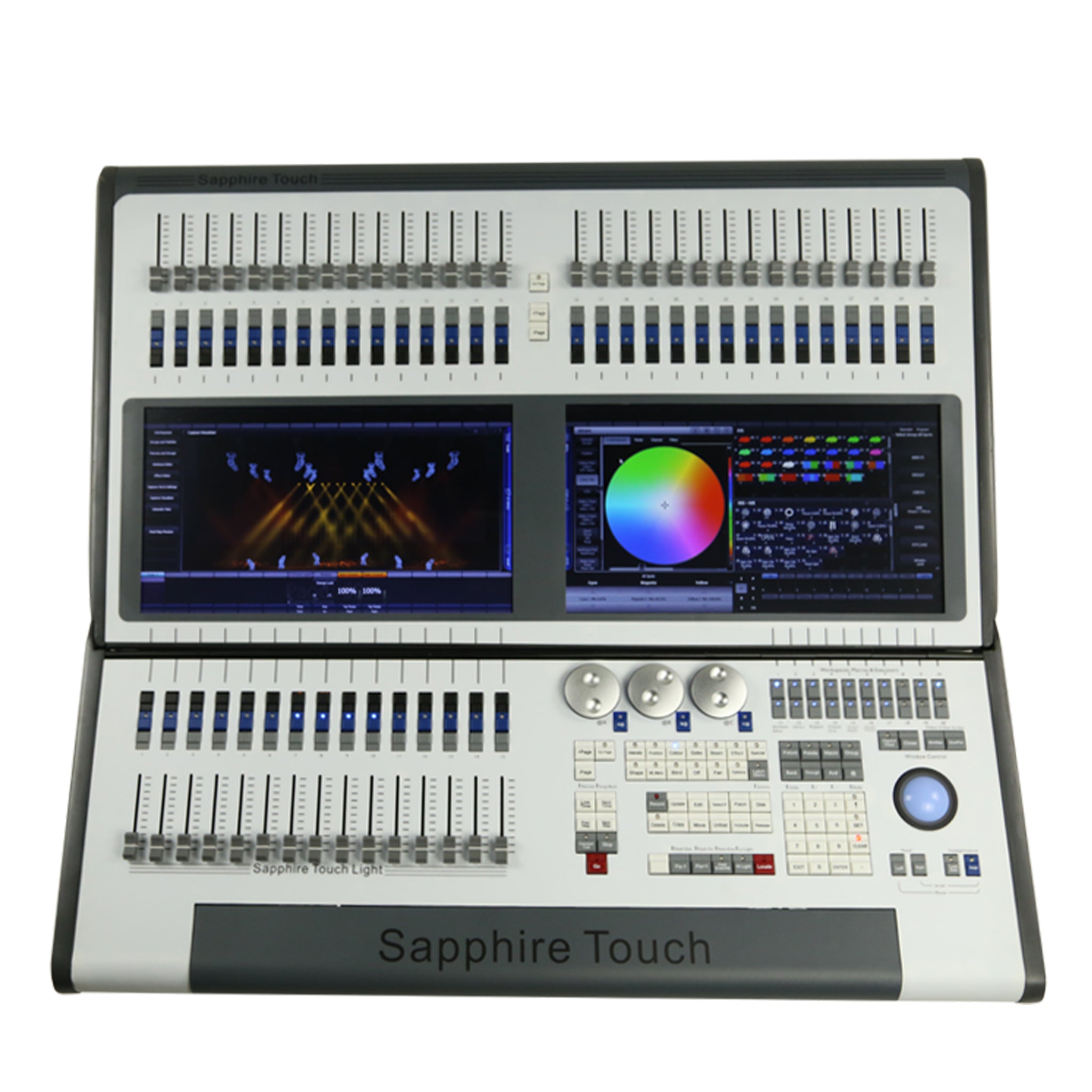

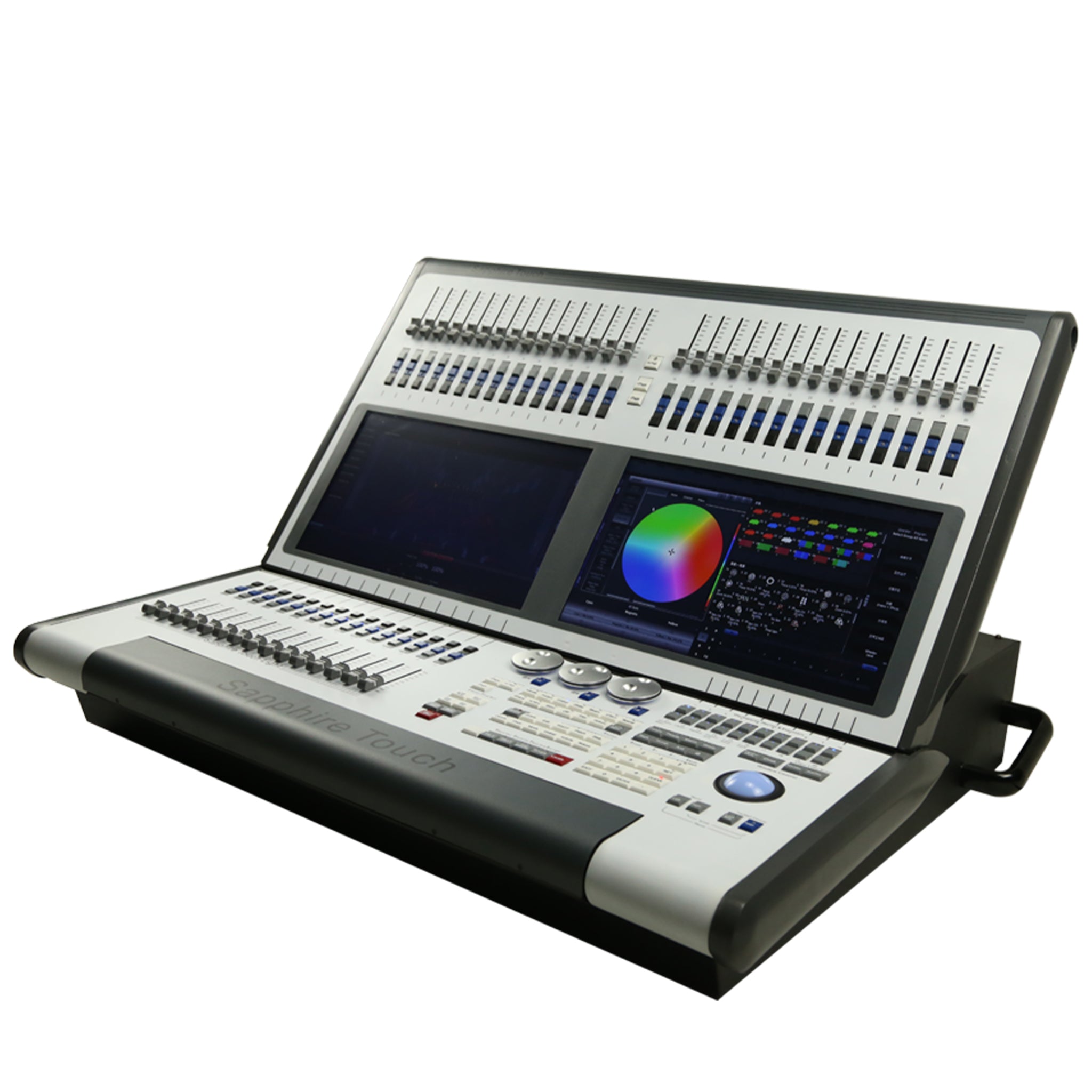

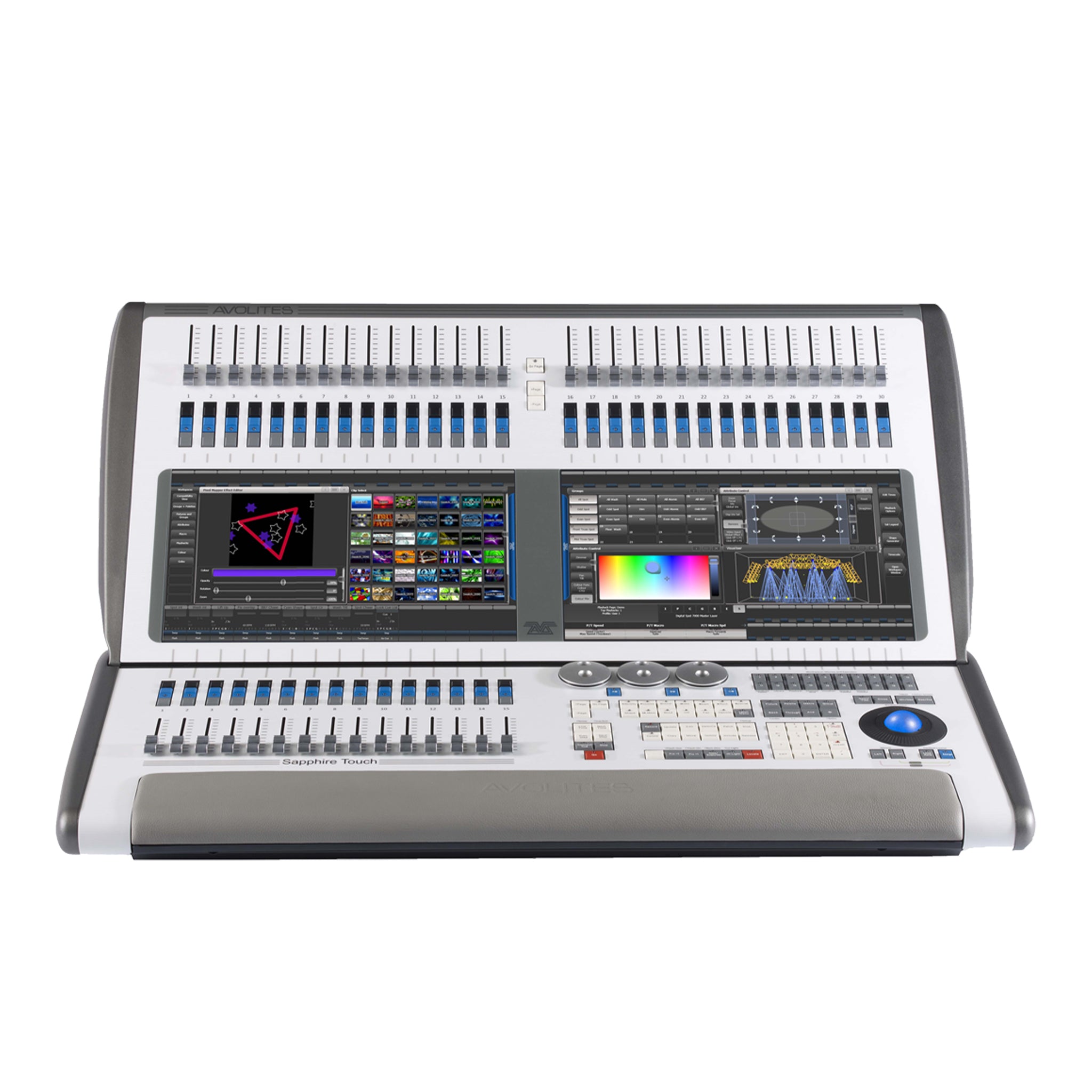

Sapphire Touch V16

Assess this lighting-control product against the fixture inventory and the way the show will be programmed. Port counts, channel capacity and protocol names need to be checked for the exact hardware and software configuration.

Software version

V16

Processor / memory / storage

i7CPU, 8GB RAM, 128GB SSD

Fader configuration

45 motorised faders

Encoder configuration

3 back-lit optical attribute encoders

Trackball

1 trackball for mouse and attribute control

USB interfaces

2 x USB ports inside armrest, 1 x USB on the rear panel

MIDI / timecode interfaces

MIDI in/out & LTC/SMPTE Timecode

Backup power

UPS power backup built in

Backup power

Built-in high-power UPS, 0 delay automatic switching

Display

2 super-bright 15.6-inch capacitive widescreen touch screens

Network interfaces

1 independent Ethercon network ports

Display

1 x DVI external screen outputs

DMX interfaces

16 DMX output. Titan network can be expanded to 32768 channels

Dimensions

98*47*96cm

Gross weight

85kg

• List the fixture models, selected channel modes and total control requirements.
• Confirm physical DMX ports, network protocols and any licensed or hardware-dependent capacity.
• Request the current software version, supported fixture profiles and backup or show-file workflow.
• Check power, dimensions, case requirements and included cables or accessories.
