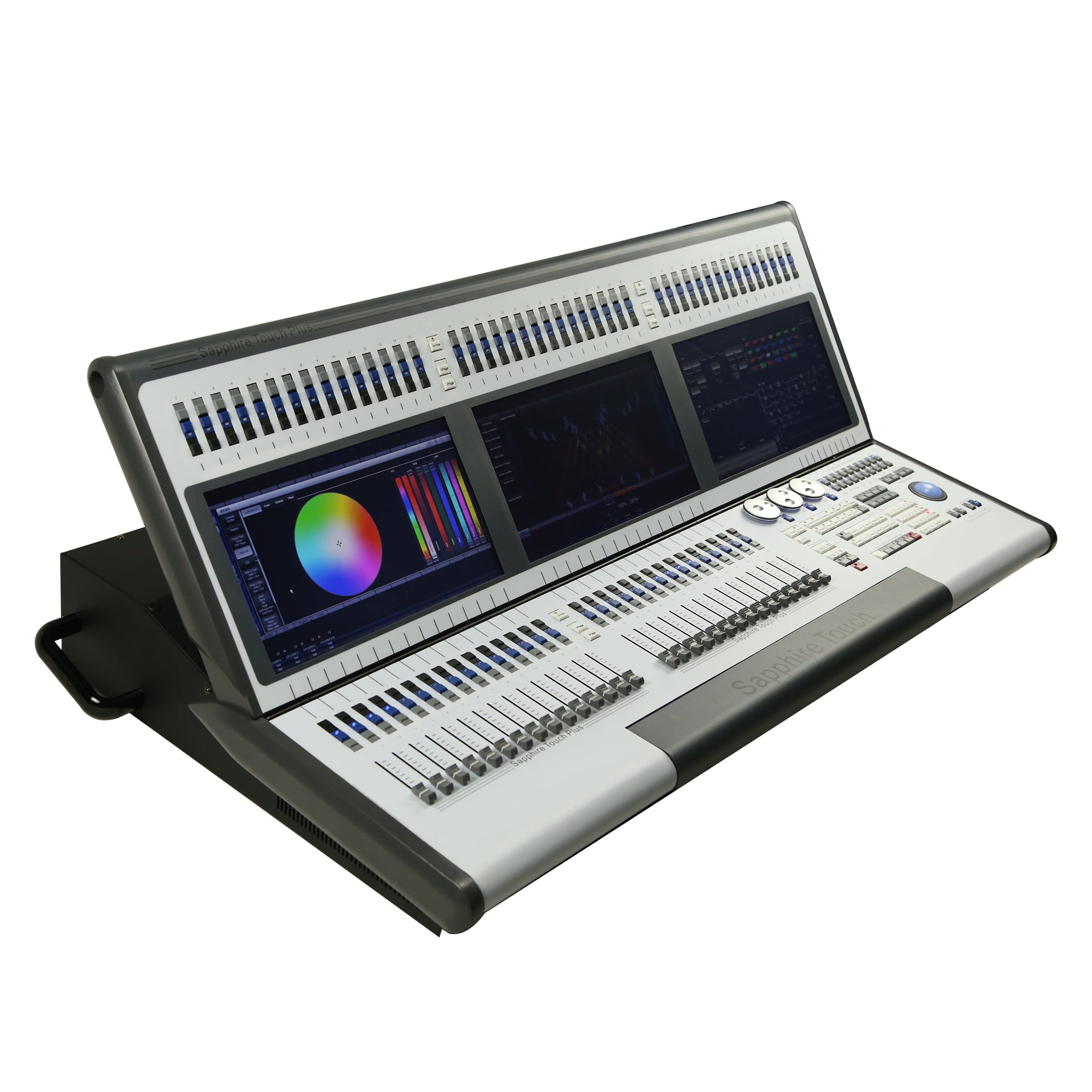

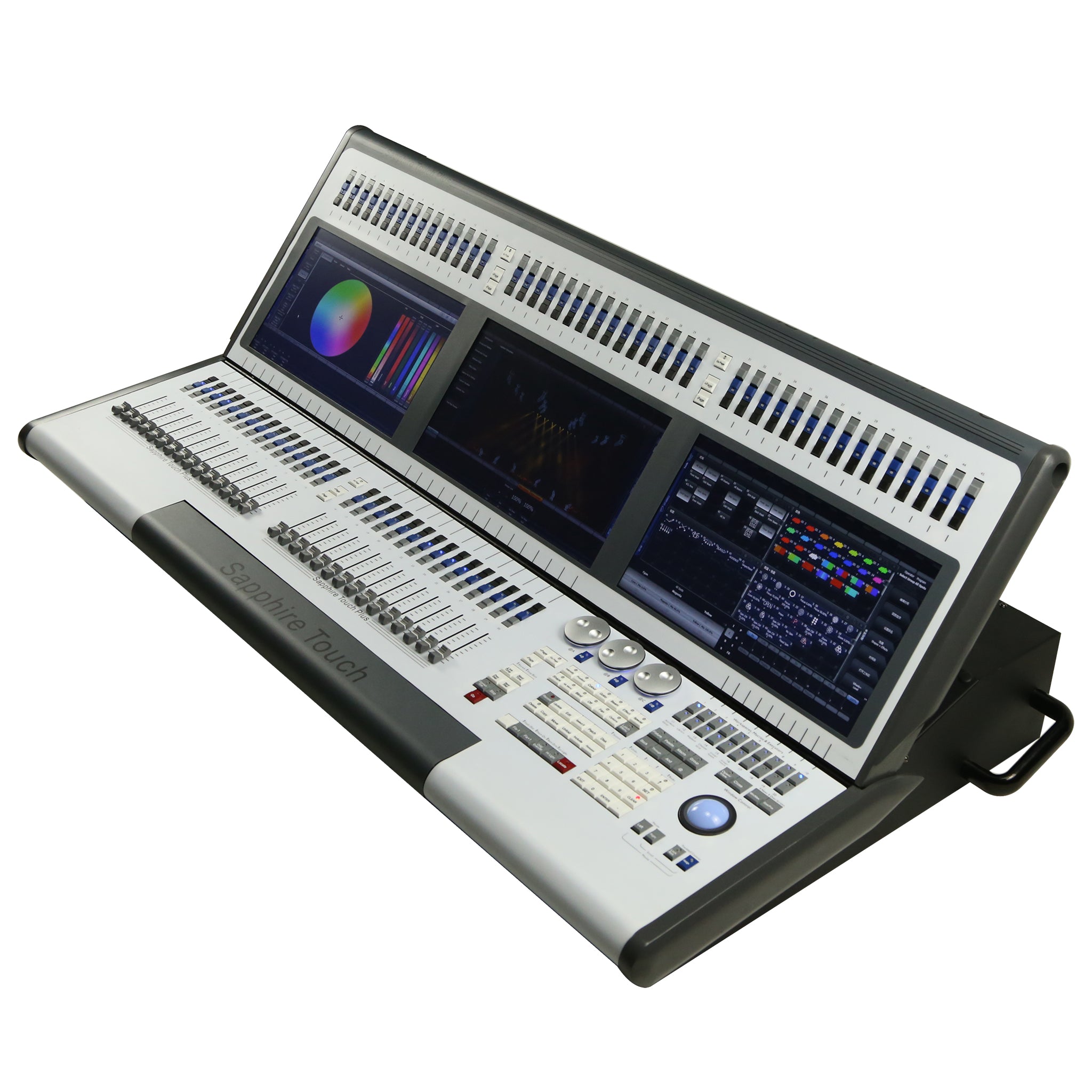

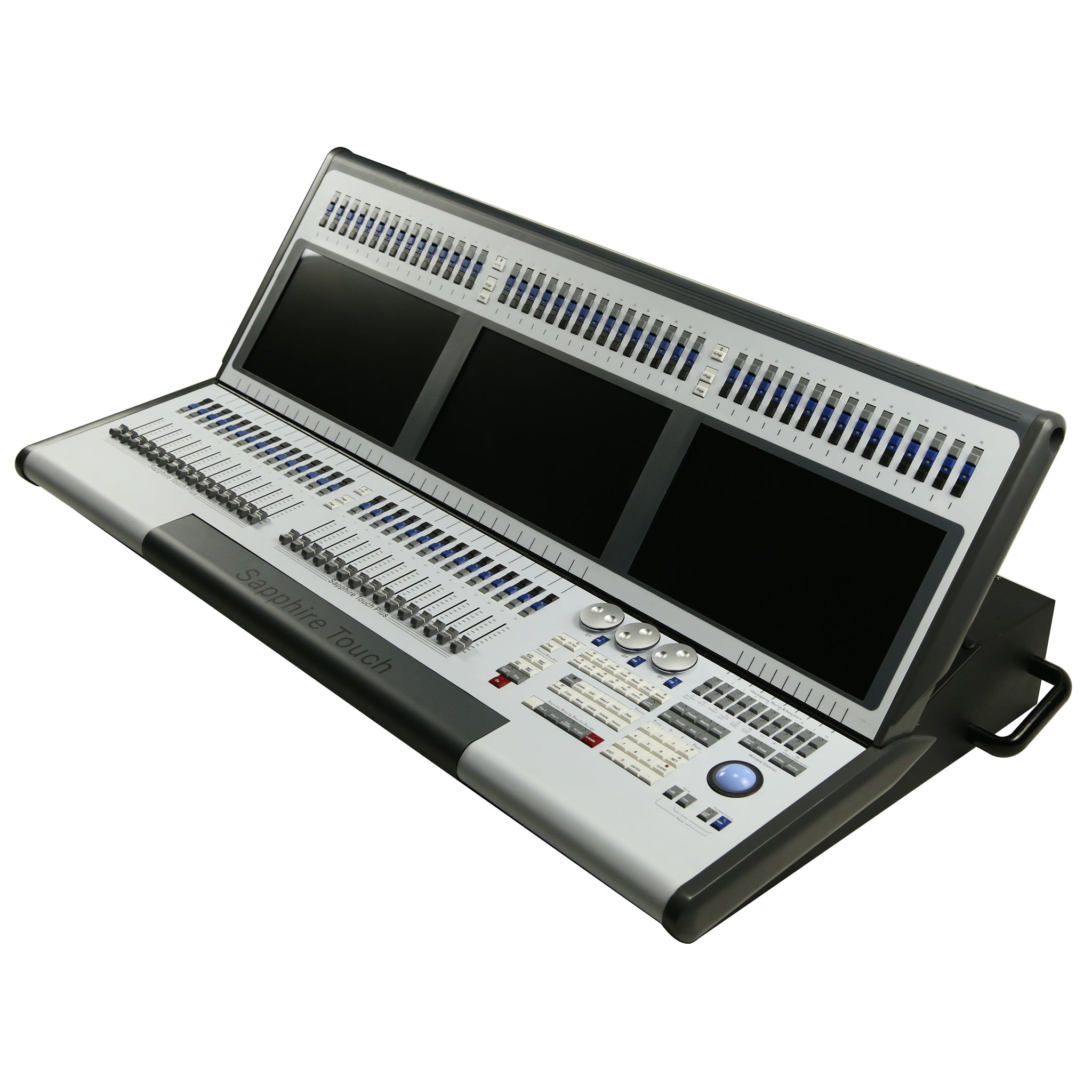

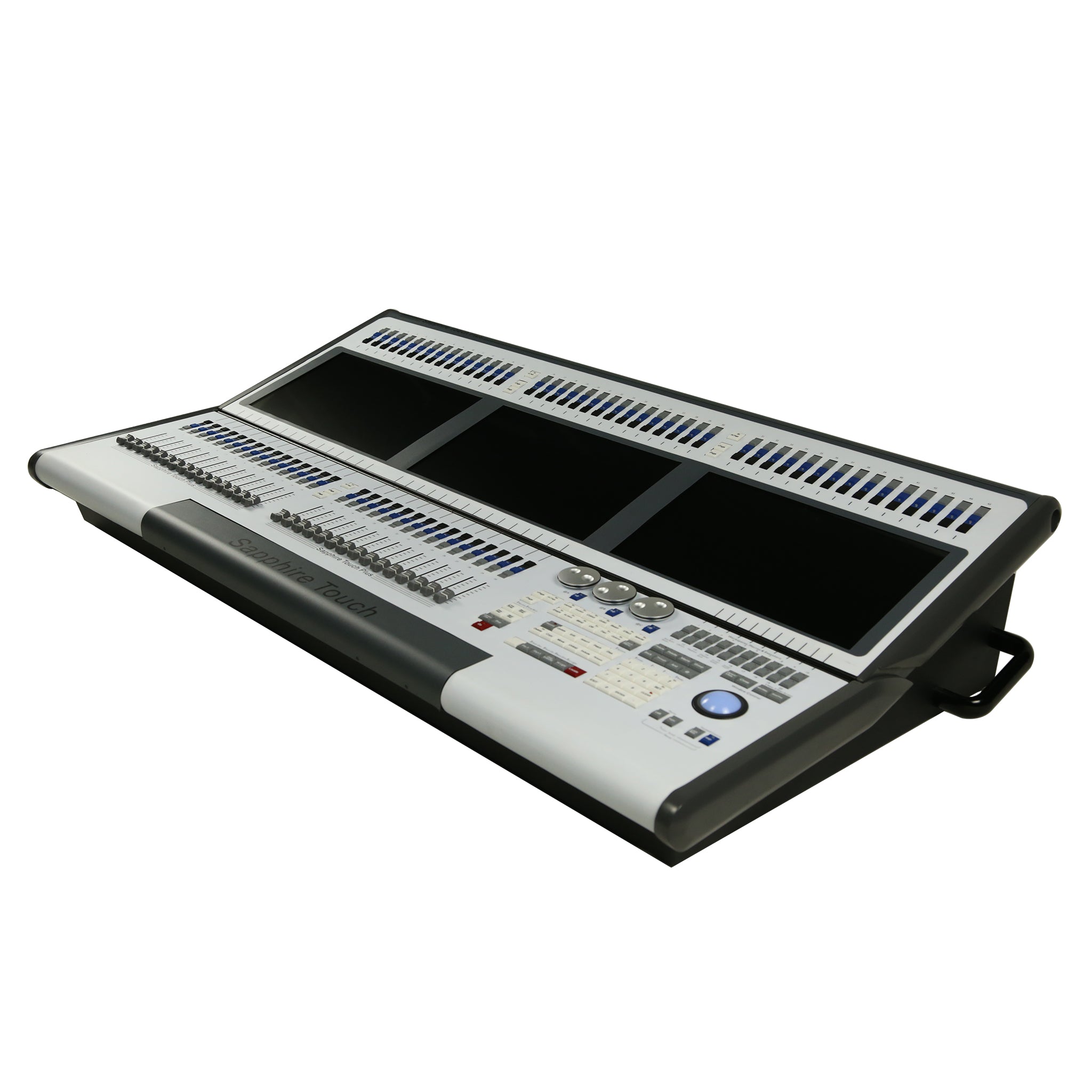

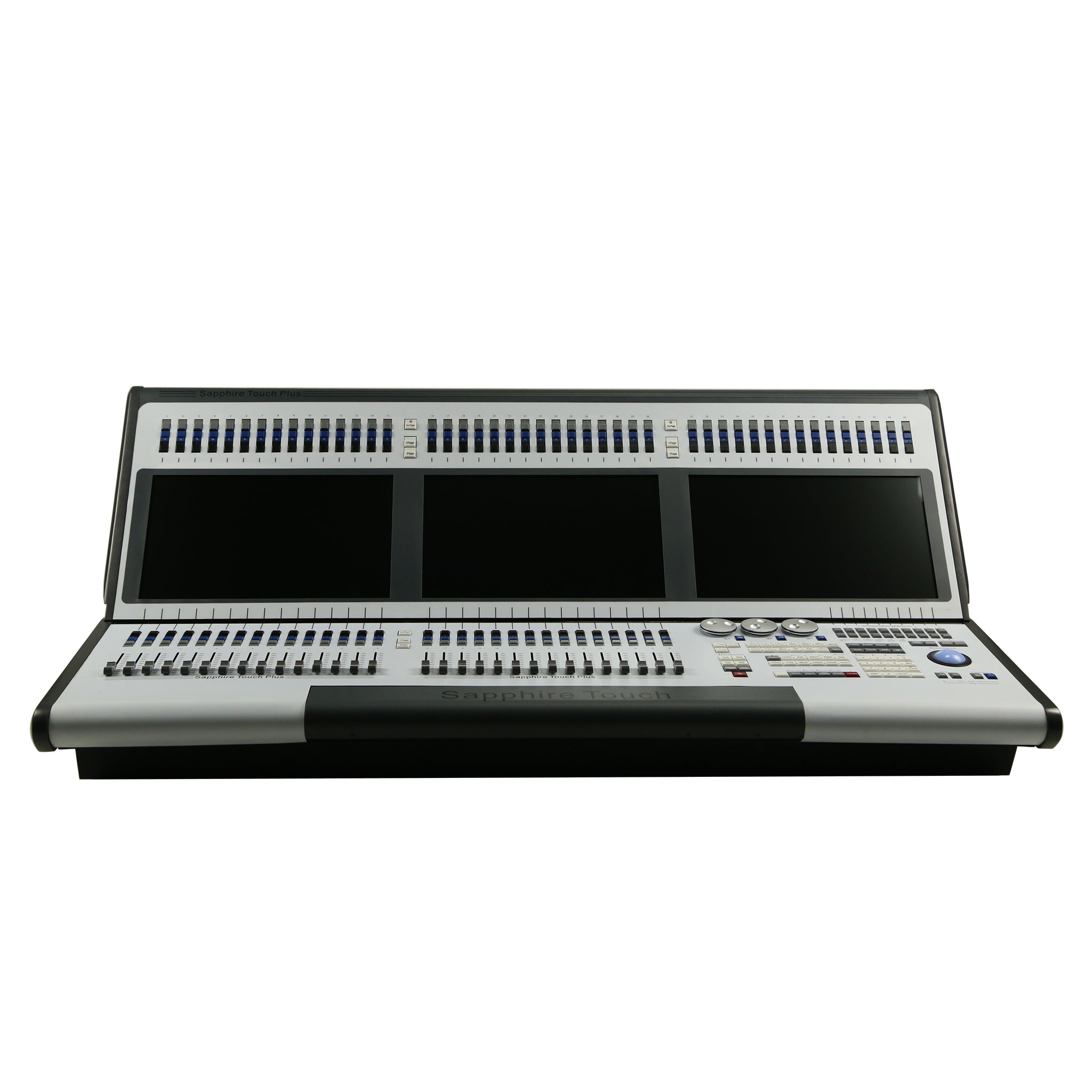

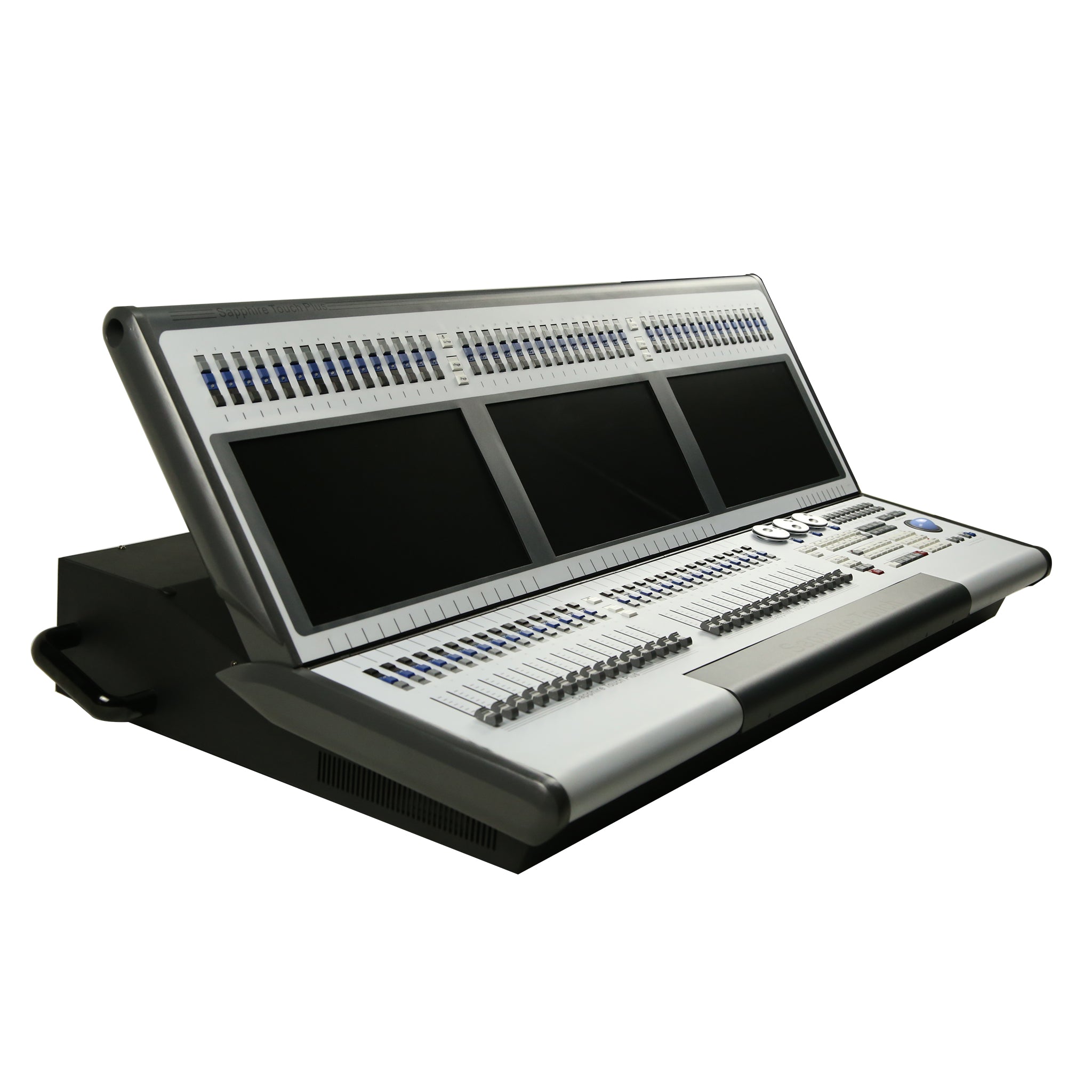

Sapphire Touch Plus V11.3

Name: Sapphire Touch Plus V11.3
Brand: YL Light

Sapphire Touch Plus V11.3 is a stage lighting catalogue item in the lighting control category. Reference specifications list gross weight: 44kg; fader configuration: 30 motorised faders. Confirm the exact fixture version, specifications and current supply details before ordering.

WHATSAPPRequest a Quote

View specifications

Gross weight: 44kg

Planning this product into your project

Assess this lighting-control product against the fixture inventory and the way the show will be programmed. Port counts, channel capacity and protocol names need to be checked for the exact hardware and software configuration.

Product configuration

Fader configuration: 30 motorised faders
Encoder configuration: 3 back-lit optical attribute encoders
Processor / memory / storage: i5CPU, 4GB RAM, 128GB SSD
USB interfaces: 2 x USB ports inside armrest, 1 x USB on the rear panel
MIDI / timecode interfaces: MIDI in/out & LTC/SMPTE Timecode

Optical performance

Backup power: UPS power backup built in
Backup power: Built-in high-power UPS, 0 delay automatic switching

Control and connections

Display: 3 super-bright 15.6-inch capacitive widescreen touch screens
Network interfaces: 1 independent Ethercon network ports
DMX interfaces: 16 DMX output. Titan network can be expanded to 32768 channels

Construction and dimensions

Dimensions: 90*66*34cm
Gross weight: 44kg

What to confirm for your quotation

List the fixture models, selected channel modes and total control requirements.
Confirm physical DMX ports, network protocols and any licensed or hardware-dependent capacity.
Request the current software version, supported fixture profiles and backup or show-file workflow.
Check power, dimensions, case requirements and included cables or accessories.

TECHNICAL REFERENCE

Product specifications.

Published product details. Ask our team about any configuration that is not listed.

Sapphire Touch Plus V11.3 technical specifications
Dimensions	906634cm
Gross weight	44kg
Fader configuration	30 motorised faders
Display	3 super-bright 15.6-inch capacitive widescreen touch screens
Encoder configuration	3 back-lit optical attribute encoders
Processor / memory / storage	i5CPU, 4GB RAM, 128GB SSD
Network interfaces	1 independent Ethercon network ports
Backup power	UPS power backup built in
USB interfaces	2 x USB ports inside armrest, 1 x USB on the rear panel
DMX interfaces	16 DMX output. Titan network can be expanded to 32768 channels
MIDI / timecode interfaces	MIDI in/out & LTC/SMPTE Timecode
Backup power	Built-in high-power UPS, 0 delay automatic switching
