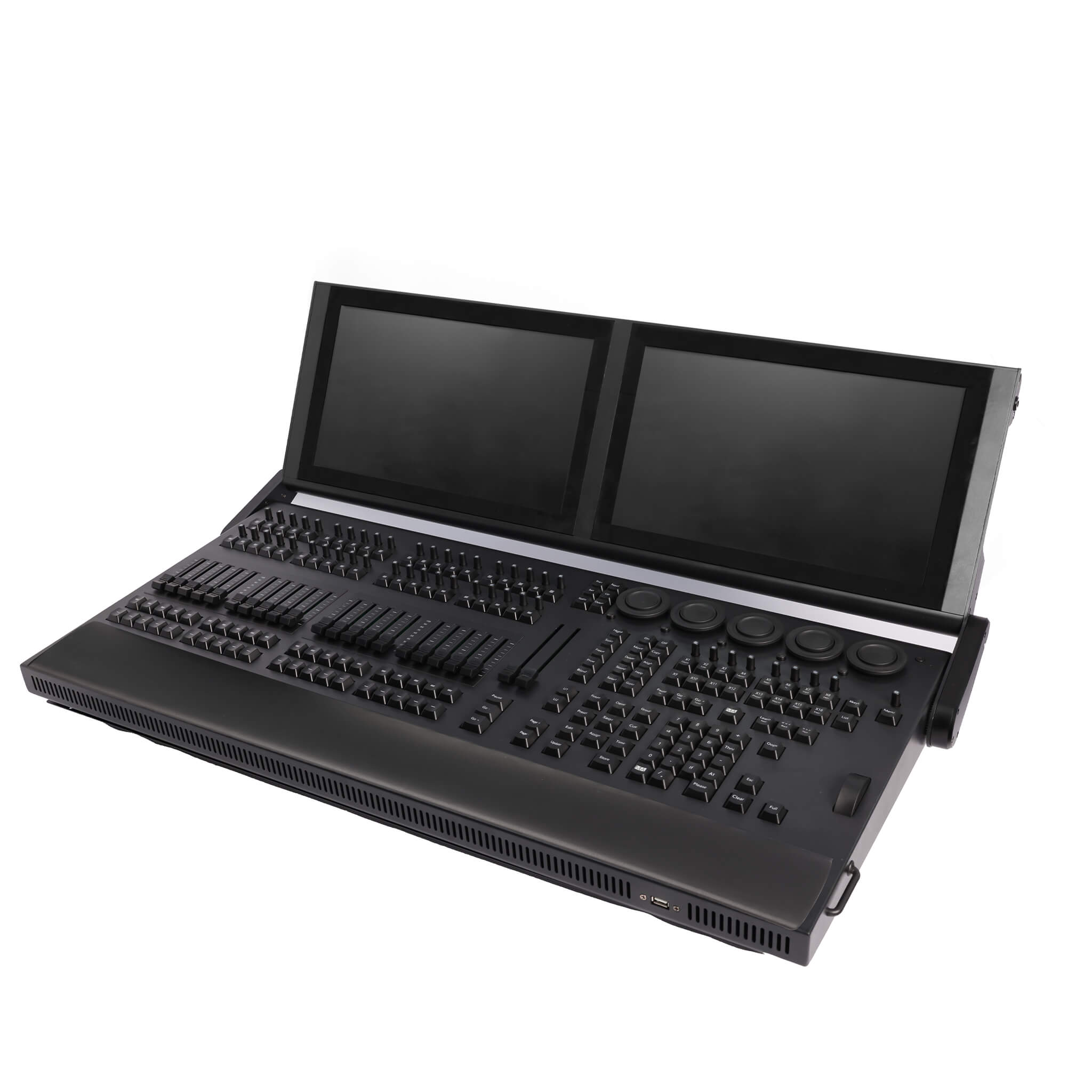

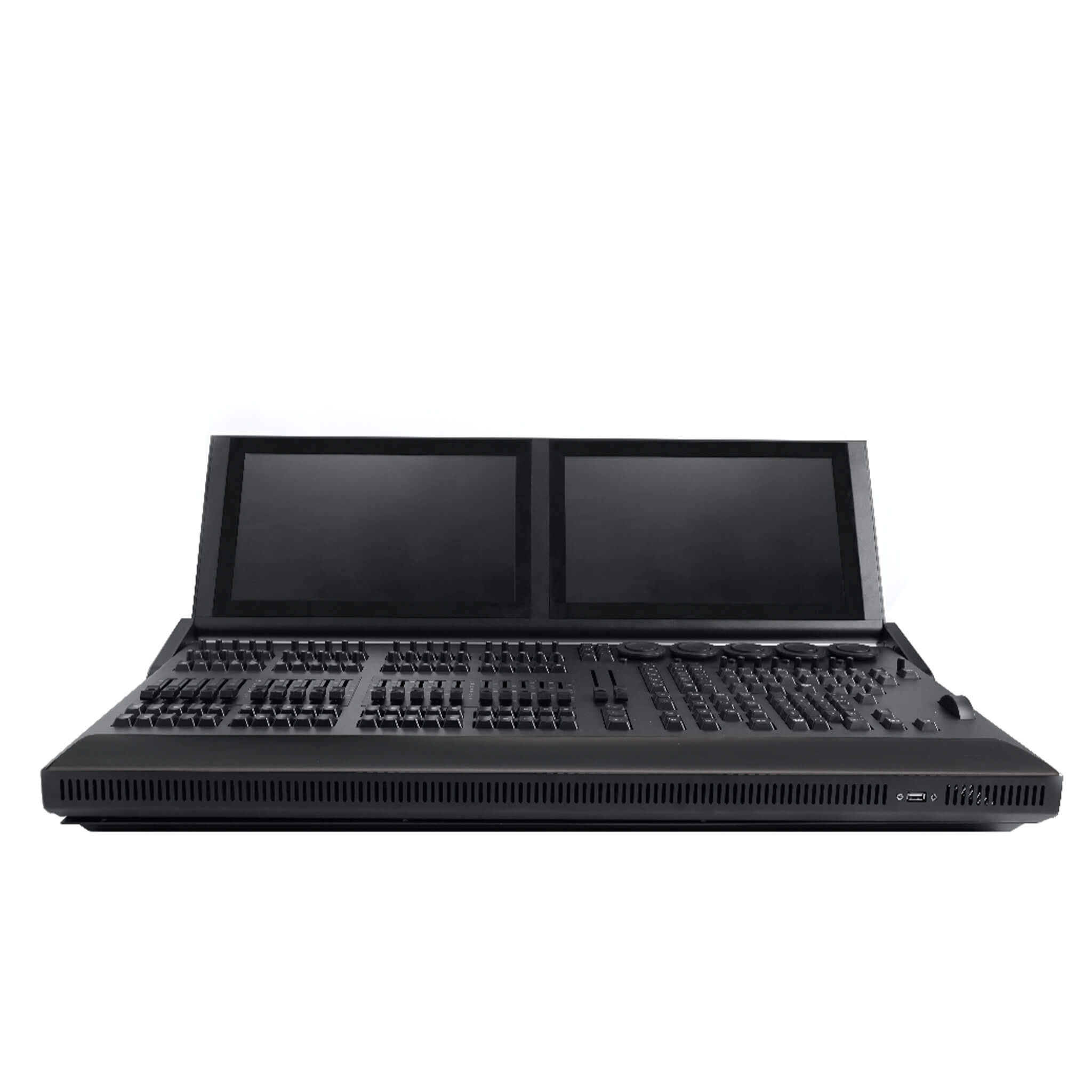

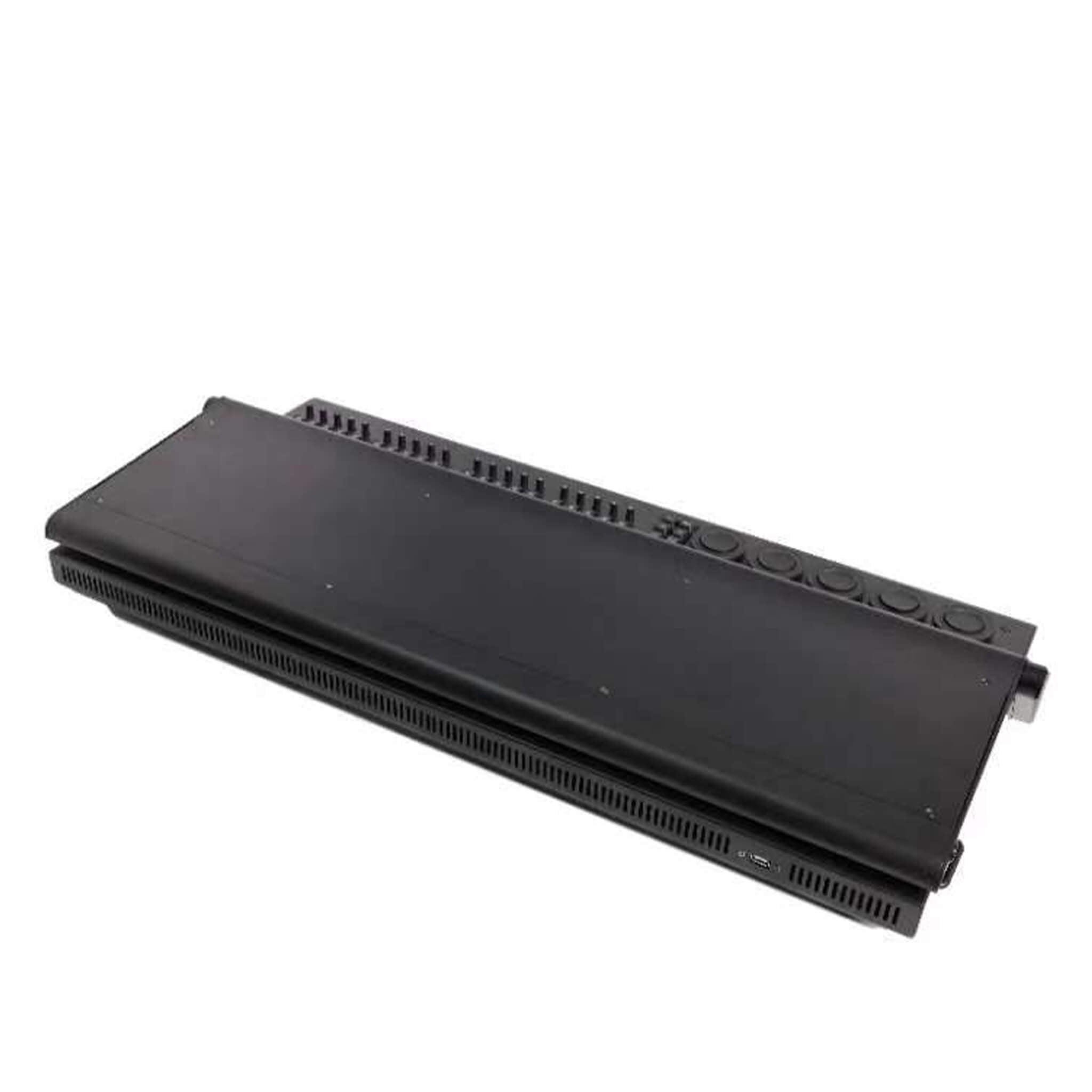

MA3 fader wing is a stage lighting catalogue item in the lighting control category. Reference specifications list operating system: The Windows 10 64-bit customized operating system is preinstalled; processor / memory / storage: i7 CPU, 8GB RAM, 128GB SSD. Confirm the exact fixture version, specifications and current supply details before ordering.
WHATSAPPRequest a QuoteAssess this lighting-control product against the fixture inventory and the way the show will be programmed. Port counts, channel capacity and protocol names need to be checked for the exact hardware and software configuration.
TECHNICAL REFERENCE
Published product details. Ask our team about any configuration that is not listed.
| Operating system | The Windows 10 64-bit customized operating system is preinstalled |
|---|---|
| Processor / memory / storage | i7 CPU, 8GB RAM, 128GB SSD |
| Display | Built-in 2 15.6-inch capacitive touch screens |
| Control capacity | Real-time control of 4096 parameters |

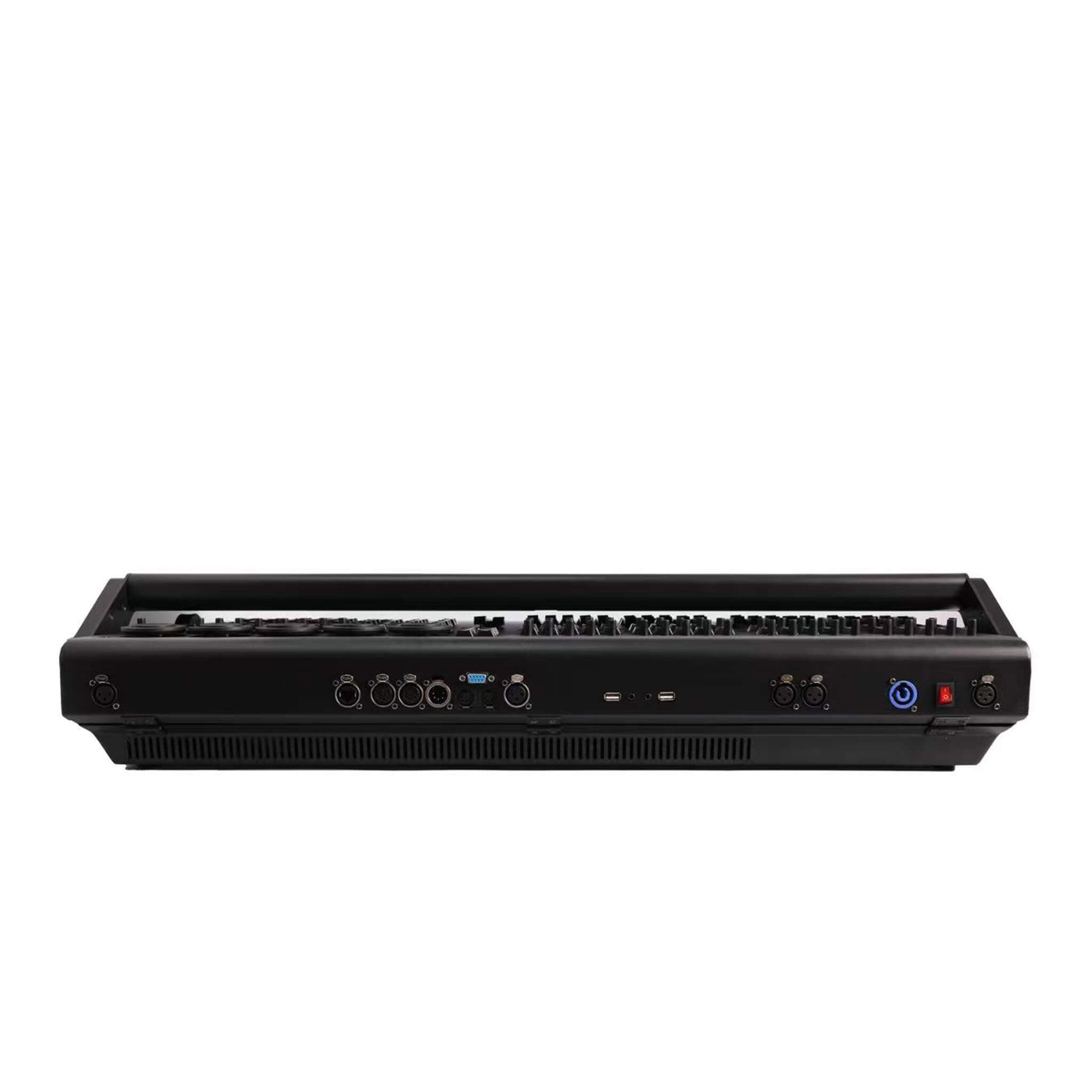

| DMX interfaces | 5 DMX input/output interfaces |
| Encoder configuration | 49 rotary RGB backlight encoders |
| Encoder configuration | 5 dual encoders |
| Fader configuration | 20 electric 60mm faders |
| Playback controls | 80 individual replays |
| Playback controls | 16 assignable x keys |
| Fader configuration | 2 electric A/B faders 100mm |
| Level wheel | 1 dimmer wheel |
| Network interfaces | 1 network interface |
| USB interfaces | 3 USB ports |
Product documents are being prepared. Contact YL for the current information for MA3 fader wing.
Request product documentsContact YL to confirm the available accessories and the exact configuration for MA3 fader wing.
Ask about compatible accessoriesAsk for an available demonstration of MA3 fader wing and the configuration you need.
Request a product demonstration
