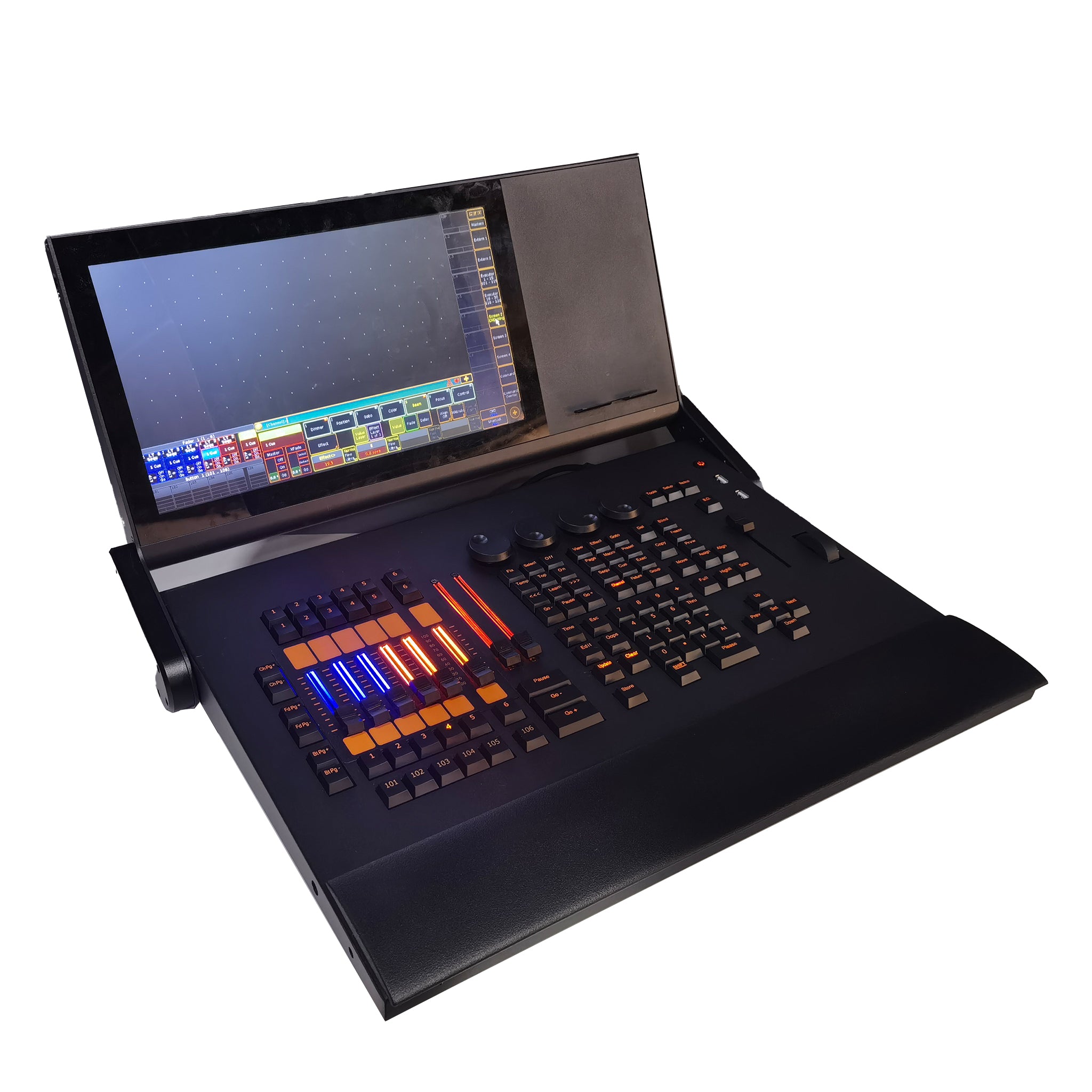

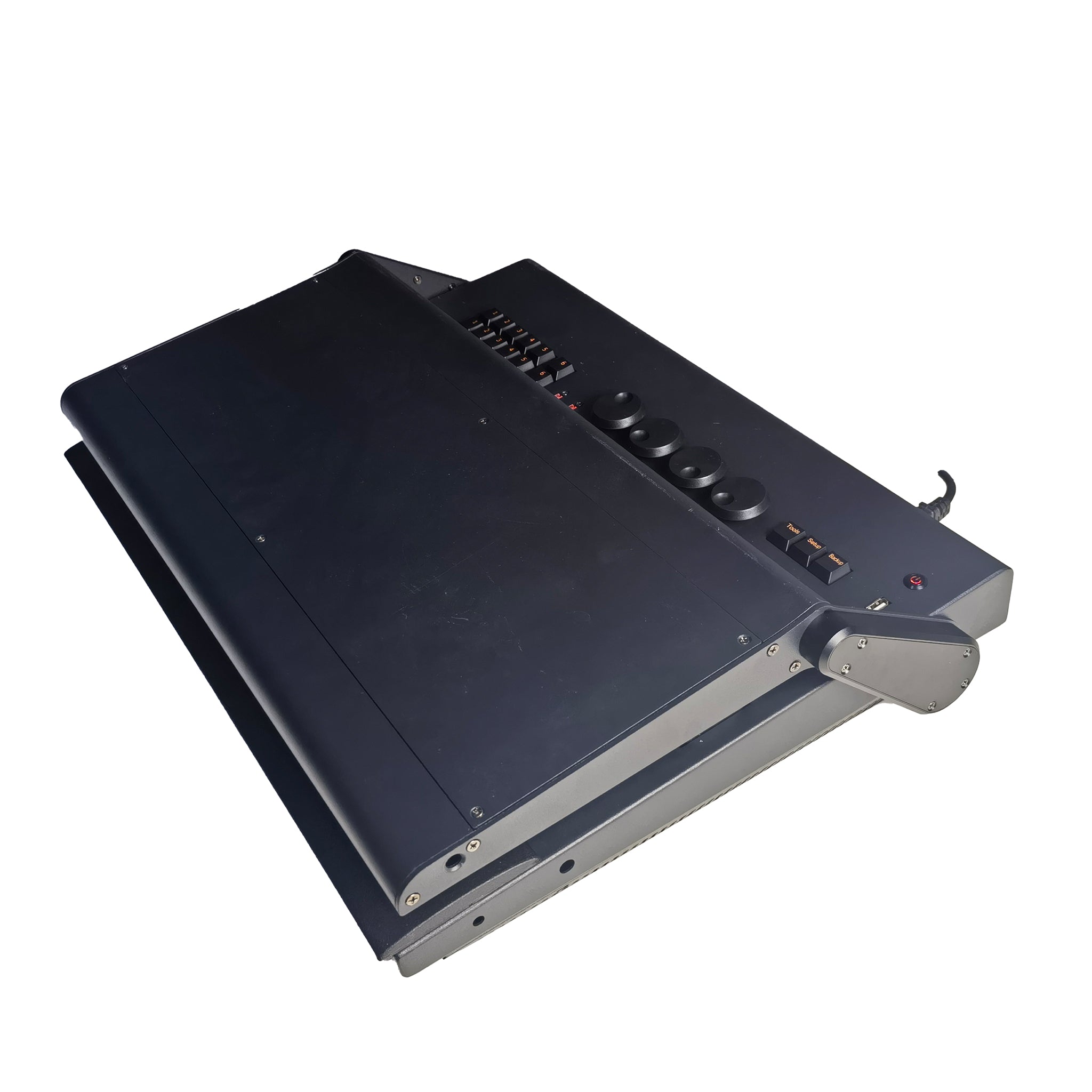

MA2 onPC T1

Assess this lighting-control product against the fixture inventory and the way the show will be programmed. Port counts, channel capacity and protocol names need to be checked for the exact hardware and software configuration.

Operating system

Preinstall Win 10 64-bit customized operating system

Processor / memory / storage

i7 CPU, 8GB RAM, 128GB SSD

Fader configuration

6 RGB backlit touch sensing motorized faders

Fader configuration

2 RGB backlit motorized A/B faders

Fader configuration

1 master fader, 1 dimmer wheel

Encoder configuration

4 wear-resistant encoders (with Push function)

USB interfaces

4 USB ports, 2 working light ports

MIDI / timecode interfaces

MIDI input/output, LTC/SMPTE time code, audio trigger

Backup power: Built-in UPS uninterruptible power supply

Display

1 15.6"folding capacitive touch screens

DMX interfaces

2 DMX output, 1 composite DMX input (can be set as output)

Dimensions

66*56*34cm

Weight

33kg

• List the fixture models, selected channel modes and total control requirements.
• Confirm physical DMX ports, network protocols and any licensed or hardware-dependent capacity.
• Request the current software version, supported fixture profiles and backup or show-file workflow.
• Check power, dimensions, case requirements and included cables or accessories.
