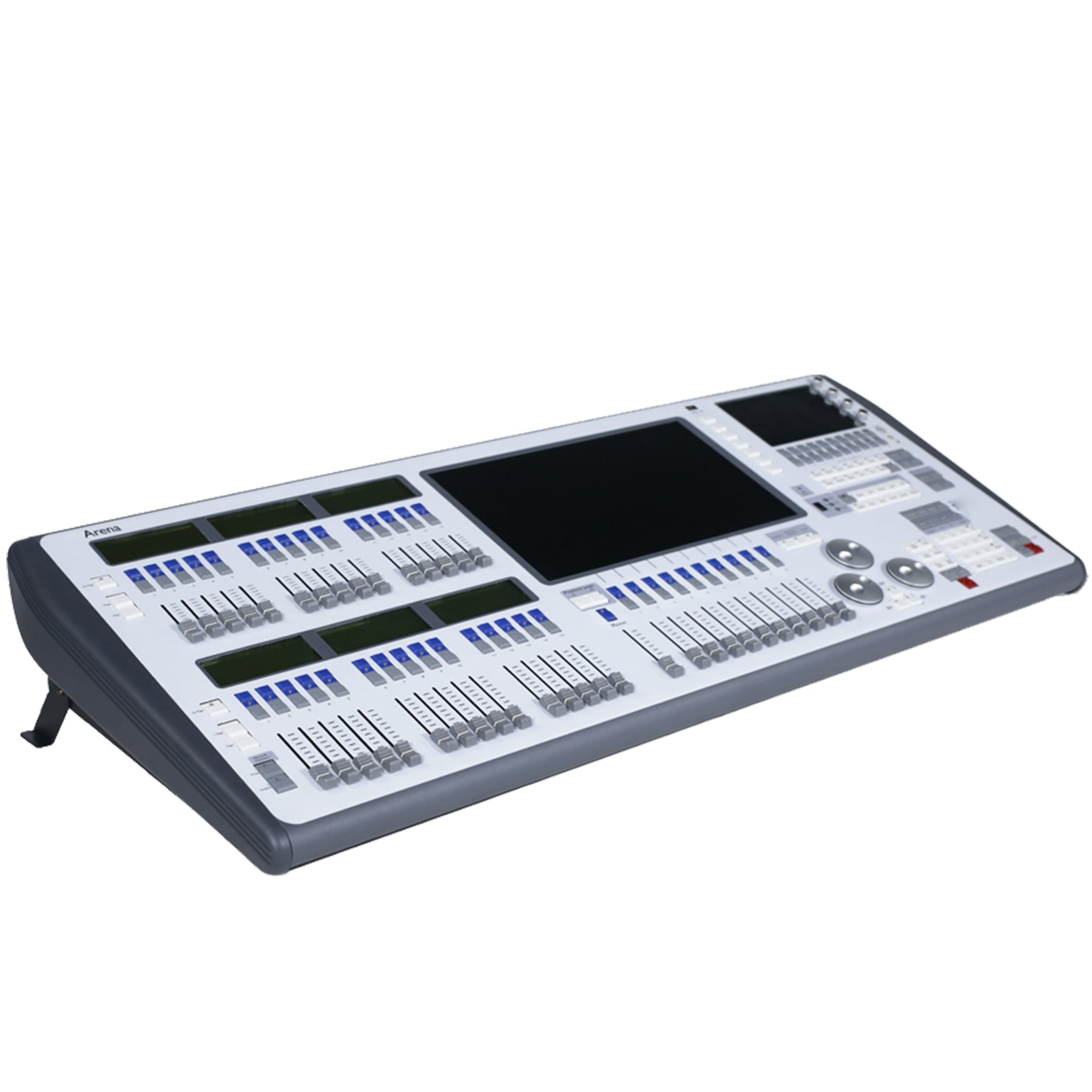

Arena V16

Name: Arena V16
Brand: YL Light

Arena V16 is a stage lighting catalogue item in the lighting control category. Reference specifications list gross weight: 42kg; software version: V16. Confirm the exact fixture version, specifications and current supply details before ordering.

WHATSAPPRequest a Quote

View specifications

Gross weight: 42kg

Planning this product into your project

Assess this lighting-control product against the fixture inventory and the way the show will be programmed. Port counts, channel capacity and protocol names need to be checked for the exact hardware and software configuration.

Product configuration

Software version: V16
Processor / memory / storage: i7 CPU, 8G RAM, 128G SSD
Fader configuration: 40 precision playback faders in three pageable groups
Encoder configuration: 3 metal shaft optical attribute encoders
Encoder configuration: 4 optical playback encoder pots
USB interfaces: 4 USB3 ports，1 front, 3 rear
MIDI / timecode interfaces: MIDI in/out & LTC/SMPTE Timecode

Optical performance

Backup power: UPS battery back-up

Control and connections

Display: 15.6-inch super-bright capacitive widescreen touch screens
Display: 7 inch capacitive touch screen
Display: 6 mono LCD screens for digital fader legends
DMX interfaces: 16 DMX output，Compatible with Titan Net up to 64 universes,32,768 channels
Network interfaces: Built-in 4-port managed gigabit network switch

Construction and dimensions

Dimensions: 117*50*30cm
Gross weight: 42kg

What to confirm for your quotation

List the fixture models, selected channel modes and total control requirements.
Confirm physical DMX ports, network protocols and any licensed or hardware-dependent capacity.
Request the current software version, supported fixture profiles and backup or show-file workflow.
Check power, dimensions, case requirements and included cables or accessories.

TECHNICAL REFERENCE

Product specifications.

Published product details. Ask our team about any configuration that is not listed.

Arena V16 technical specifications
Dimensions	1175030cm
Gross weight	42kg
Software version	V16
Processor / memory / storage	i7 CPU, 8G RAM, 128G SSD
Fader configuration	40 precision playback faders in three pageable groups
Encoder configuration	3 metal shaft optical attribute encoders
Encoder configuration	4 optical playback encoder pots
Display	15.6-inch super-bright capacitive widescreen touch screens
Display	7 inch capacitive touch screen
Display	6 mono LCD screens for digital fader legends
Backup power	UPS battery back-up
DMX interfaces	16 DMX output，Compatible with Titan Net up to 64 universes,32,768 channels
Network interfaces	Built-in 4-port managed gigabit network switch
USB interfaces	4 USB3 ports，1 front, 3 rear
MIDI / timecode interfaces	MIDI in/out & LTC/SMPTE Timecode
