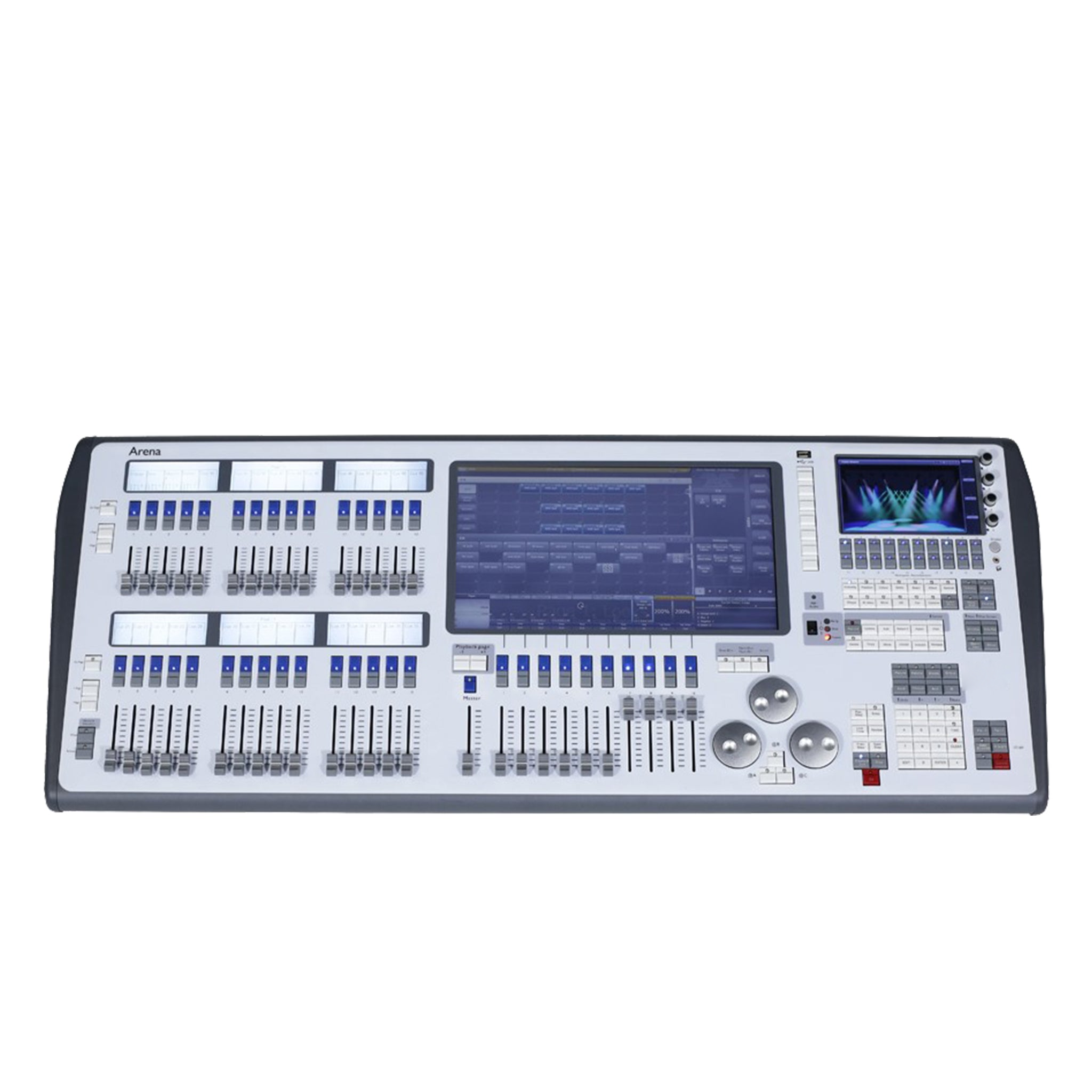

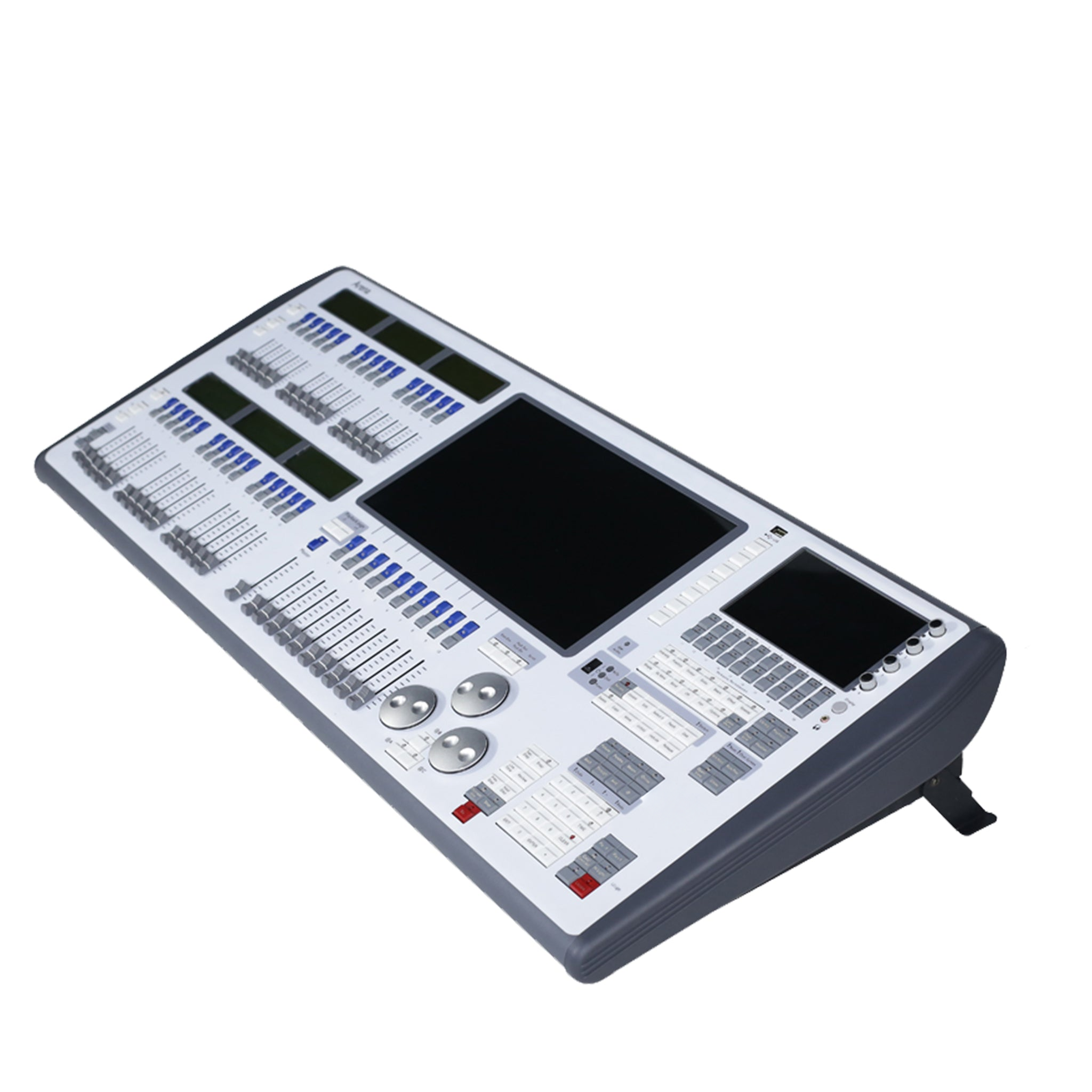

Arena is a stage lighting catalogue item in the lighting control category. Reference specifications list gross weight: 42kg; fader configuration: 40 precision playback faders in three pageable groups. Confirm the exact fixture version, specifications and current supply details before ordering.
WHATSAPPRequest a QuoteAssess this lighting-control product against the fixture inventory and the way the show will be programmed. Port counts, channel capacity and protocol names need to be checked for the exact hardware and software configuration.
Backup power: UPS battery back-up
TECHNICAL REFERENCE
Published product details. Ask our team about any configuration that is not listed.
| Dimensions | 117*50*30cm |
|---|---|
| Gross weight | 42kg |
| Fader configuration | 40 precision playback faders in three pageable groups |
| Encoder configuration | 3 metal shaft optical attribute encoders |
| Encoder configuration | 4 optical playback encoder pots |
| Processor / memory / storage | i5 CPU, 4G RAM, 128G SSD |
| Display | 15.6-inch super-bright capacitive widescreen touch screens |
| Display | 7 inch capacitive touch screen |
| Display | 6 mono LCD screens for digital fader legends |
| Backup power | UPS battery back-up |

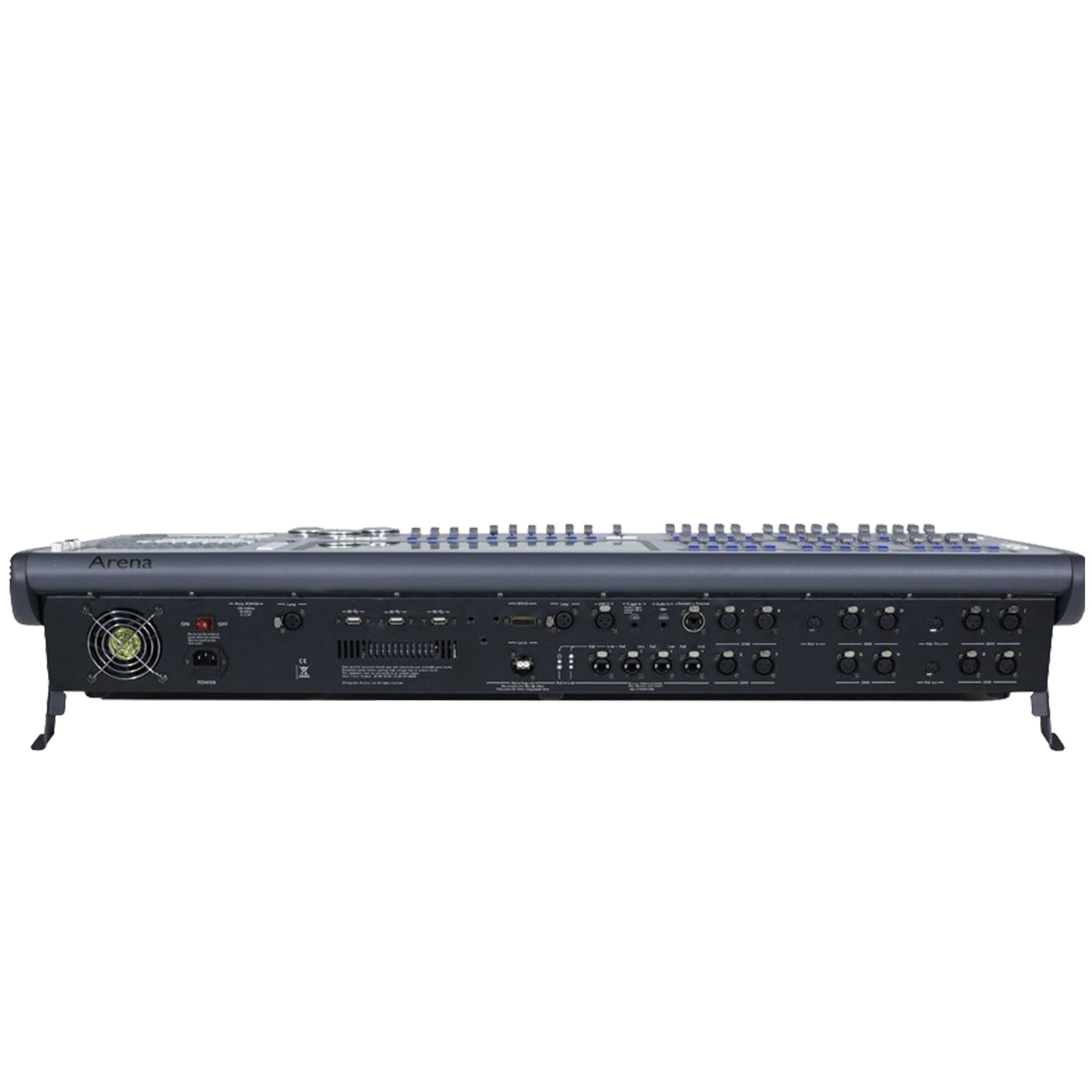

| DMX interfaces | 16 DMX output，Compatible with Titan Net up to 64 universes,32,768 channels |
| Network interfaces | Built-in 4-port managed gigabit network switch |
| USB interfaces | 4 USB3 ports，1 front, 3 rear |
| MIDI / timecode interfaces | MIDI in/out & LTC/SMPTE Timecode |
Product documents are being prepared. Contact YL for the current information for Arena.
Request product documentsContact YL to confirm the available accessories and the exact configuration for Arena.
Ask about compatible accessoriesAsk for an available demonstration of Arena and the configuration you need.
Request a product demonstration
