Planning this product into your project
For a profile or framing position, define the area to illuminate and the control needed at its edges. Compare the documented optics, zoom, colour and shaping features at the intended working distance.

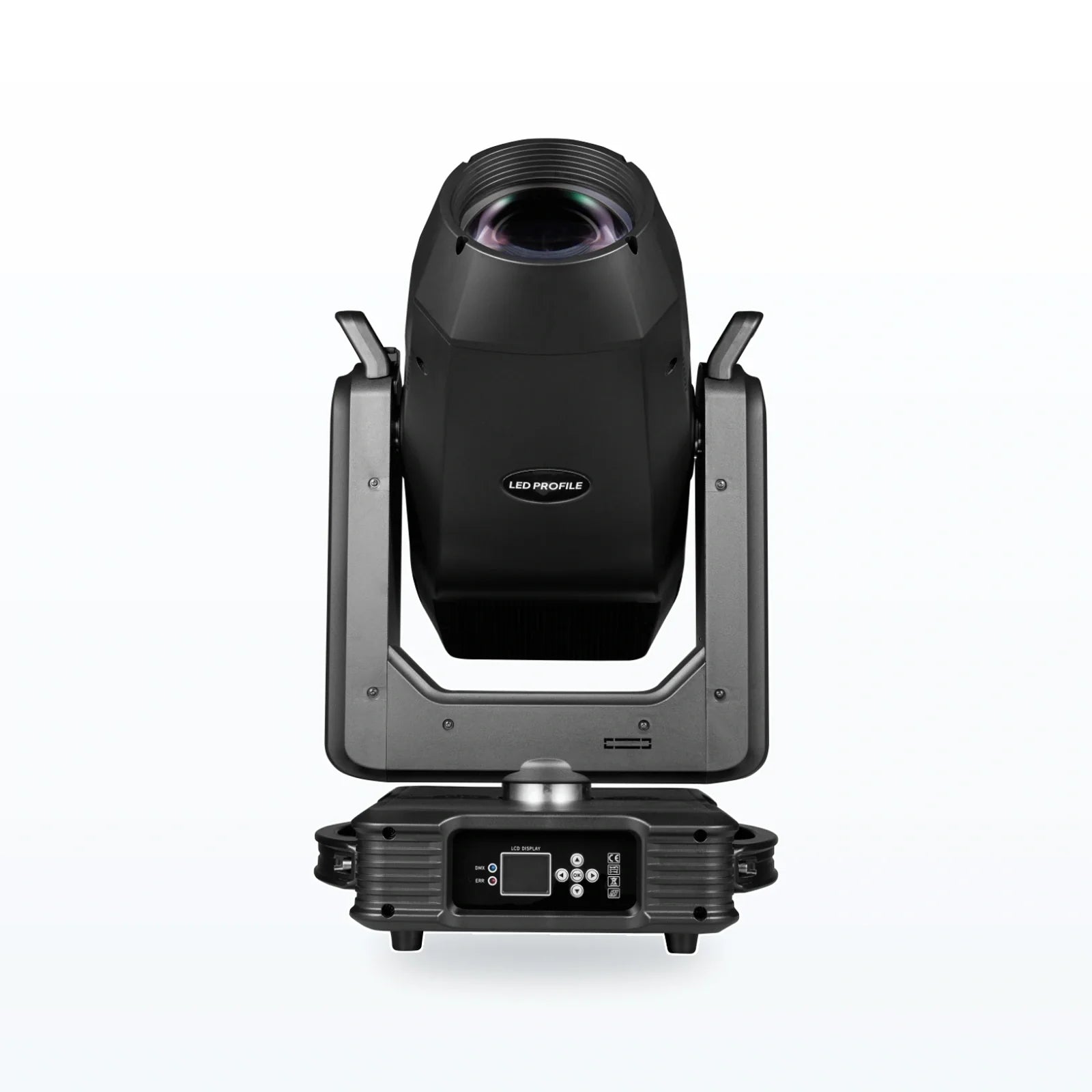

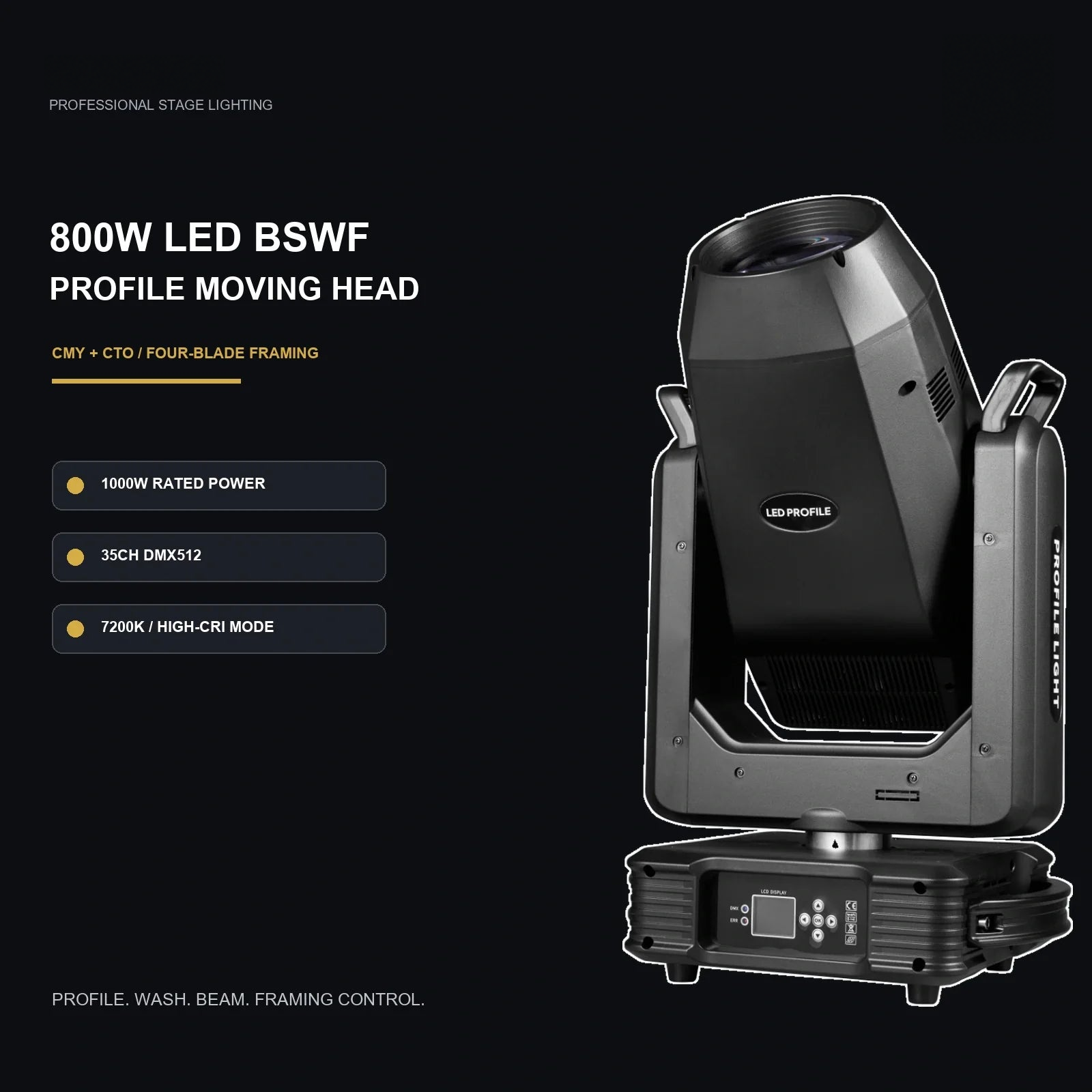

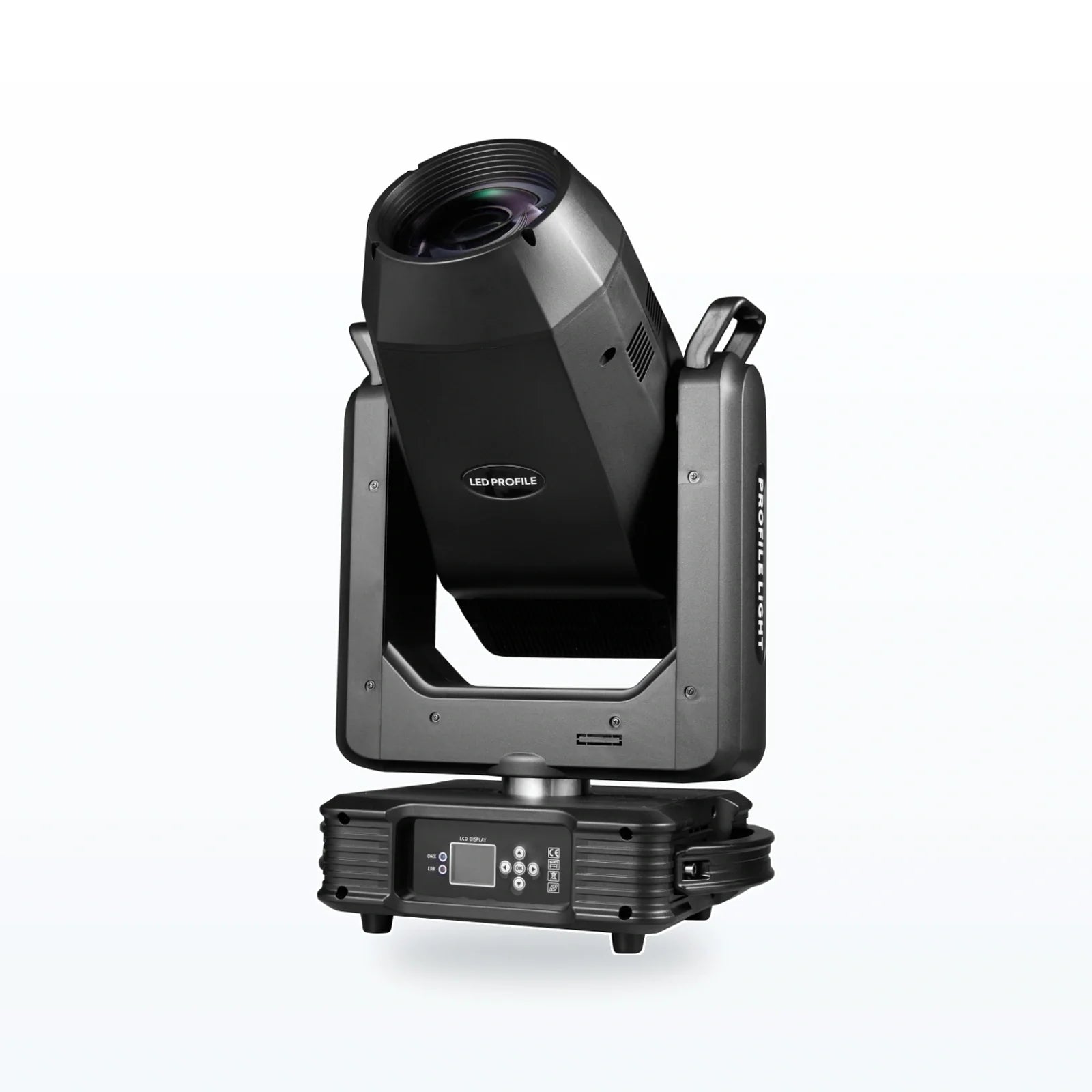

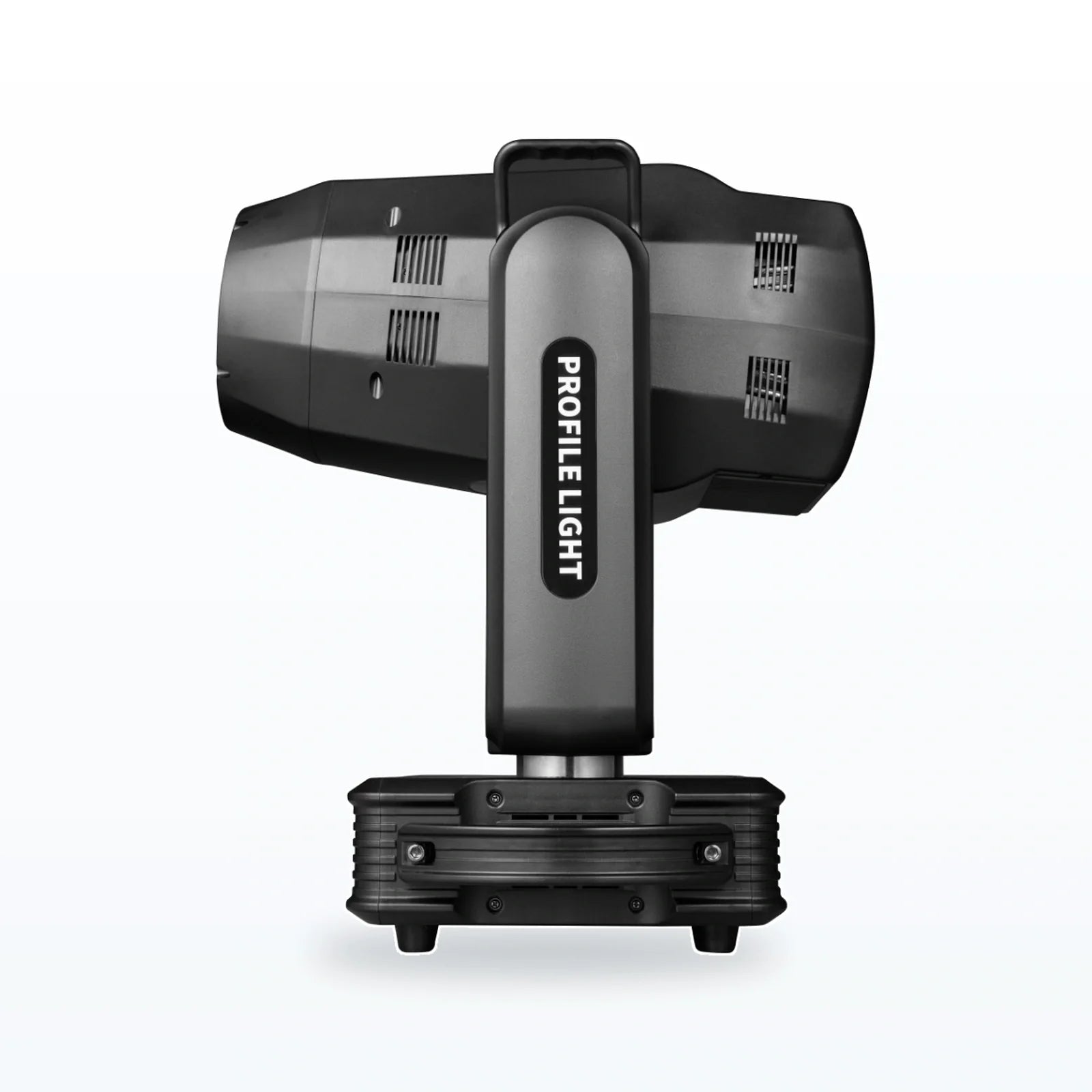

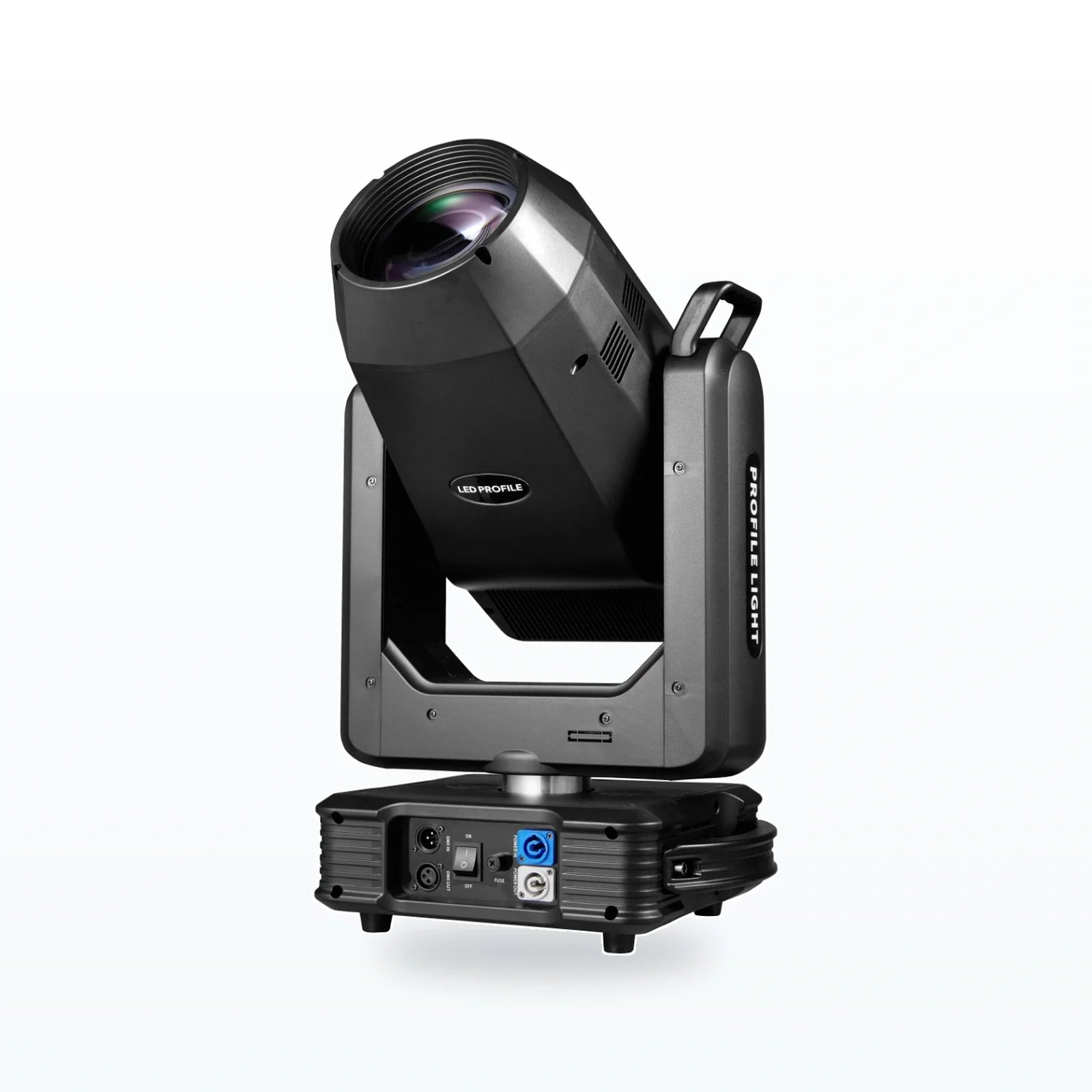

800W LED BSWF Profile Moving Head with CMY + CTO
800W LED BSWF Profile Moving Head with CMY + CTO is a stage lighting catalogue item in the led profile / bswf moving head light category. Reference specifications list rated power: 1000W; light source: 800W LED module; 7200K; Ra >75 standard / Ra >90 high-CRI; 20,000 hours. Confirm the exact fixture version, specifications and current supply details before ordering.
WHATSAPPRequest a Quote- Light source
- 800W LED module; 7200K; Ra >75 standard / Ra >90 high-CRI; 20,000 hours
- Protection
- IP20 indoor; verify actual voltage and protective earth before connection.
- Control modes
- DMX512 / master-slave / automatic; menu lists sound-active
Product configuration
- Movement
- Pan 540 degrees / tilt 270 degrees / 16-bit fine channels
- Product
- 800W LED BSWF Profile Moving Head with CMY + CTO
- Focus
- / zoom
- Packing
- Gross weight and packing size TO BE CONFIRMED
Optical performance
- Rated power
- 1000W
- Light source
- 800W LED module; 7200K; Ra >75 standard / Ra >90 high-CRI; 20,000 hours
- Color system
- CMY + CTO plus color wheel; channel 13 labeling conflict
Control and connections
- DMX channels
- 35CH DMX512; XML, D4 and R20 agree
- Input voltage
- TO BE CONFIRMED: note AC100-240V; manuals AC200-240V
- Control modes
- DMX512 / master-slave / automatic; menu lists sound-active
Construction and dimensions
- Product size
- 37 x 27 x 67 cm
- Protection
- IP20 indoor; verify actual voltage and protective earth before connection.
What to confirm for your quotation
- Provide the throw distance, mounting height and required image or illuminated area.
- Confirm which framing, focus, iris, gobo and frost functions are included in this exact model.
- For camera work, request relevant colour and flicker information and arrange a test under the intended settings.
- Check the control mode, power requirements, operating noise and environmental rating.
TECHNICAL REFERENCE
Product specifications.
Published product details. Ask our team about any configuration that is not listed.
| Rated power | 1000W |
|---|---|
| Light source | 800W LED module; 7200K; Ra >75 standard / Ra >90 high-CRI; 20,000 hours |
| DMX channels | 35CH DMX512; XML, D4 and R20 agree |
| Movement | Pan 540 degrees / tilt 270 degrees / 16-bit fine channels |
| Product | 800W LED BSWF Profile Moving Head with CMY + CTO |
| Input voltage | TO BE CONFIRMED: note AC100-240V; manuals AC200-240V |
| Control modes | DMX512 / master-slave / automatic; menu lists sound-active |
| Color system | CMY + CTO plus color wheel; channel 13 labeling conflict |
| Focus | / zoom |
| Product size | 37 x 27 x 67 cm |
| Packing | Gross weight and packing size TO BE CONFIRMED |
| Protection | IP20 indoor; verify actual voltage and protective earth before connection. |
Downloads
Product documents are being prepared. Contact YL for the current information for 800W LED BSWF Profile Moving Head with CMY + CTO.
Request product documentsSystem accessories
Contact YL to confirm the available accessories and the exact configuration for 800W LED BSWF Profile Moving Head with CMY + CTO.
Ask about compatible accessoriesProduct videos
