Planning this product into your project
For a profile or framing position, define the area to illuminate and the control needed at its edges. Compare the documented optics, zoom, colour and shaping features at the intended working distance.

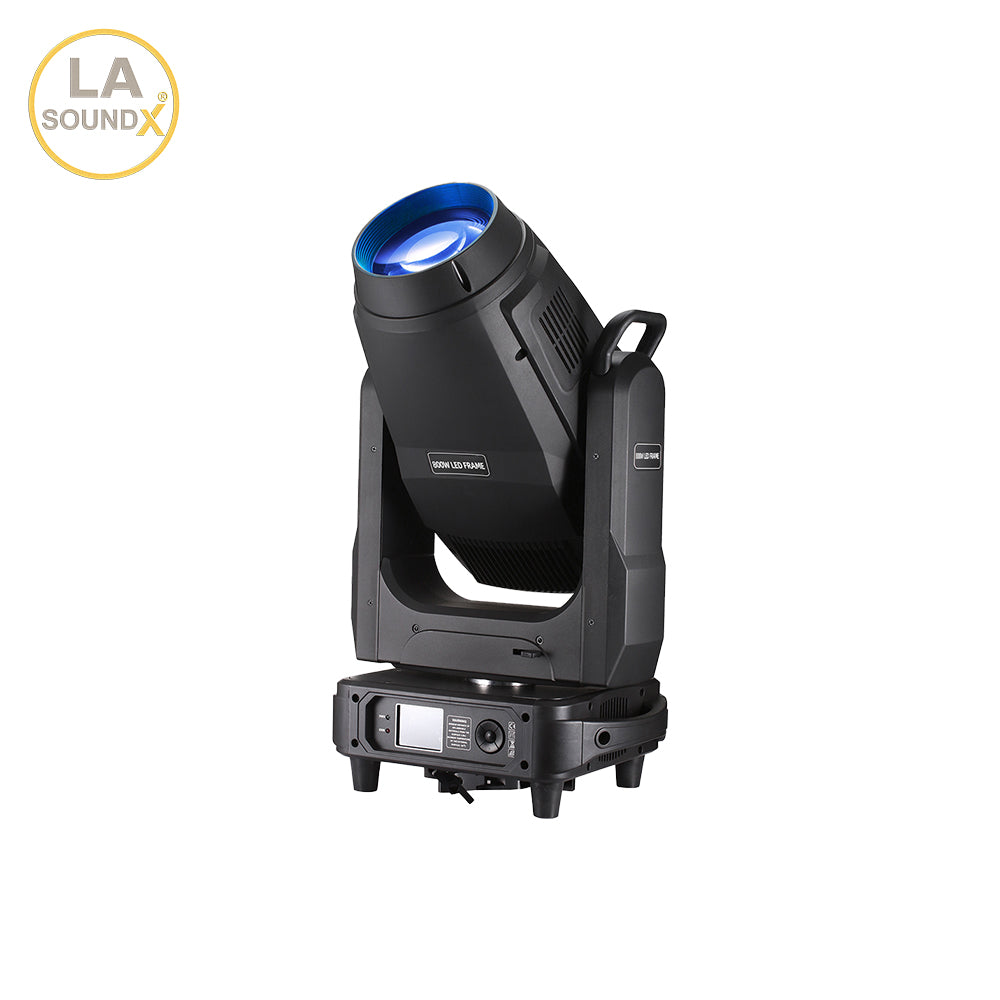

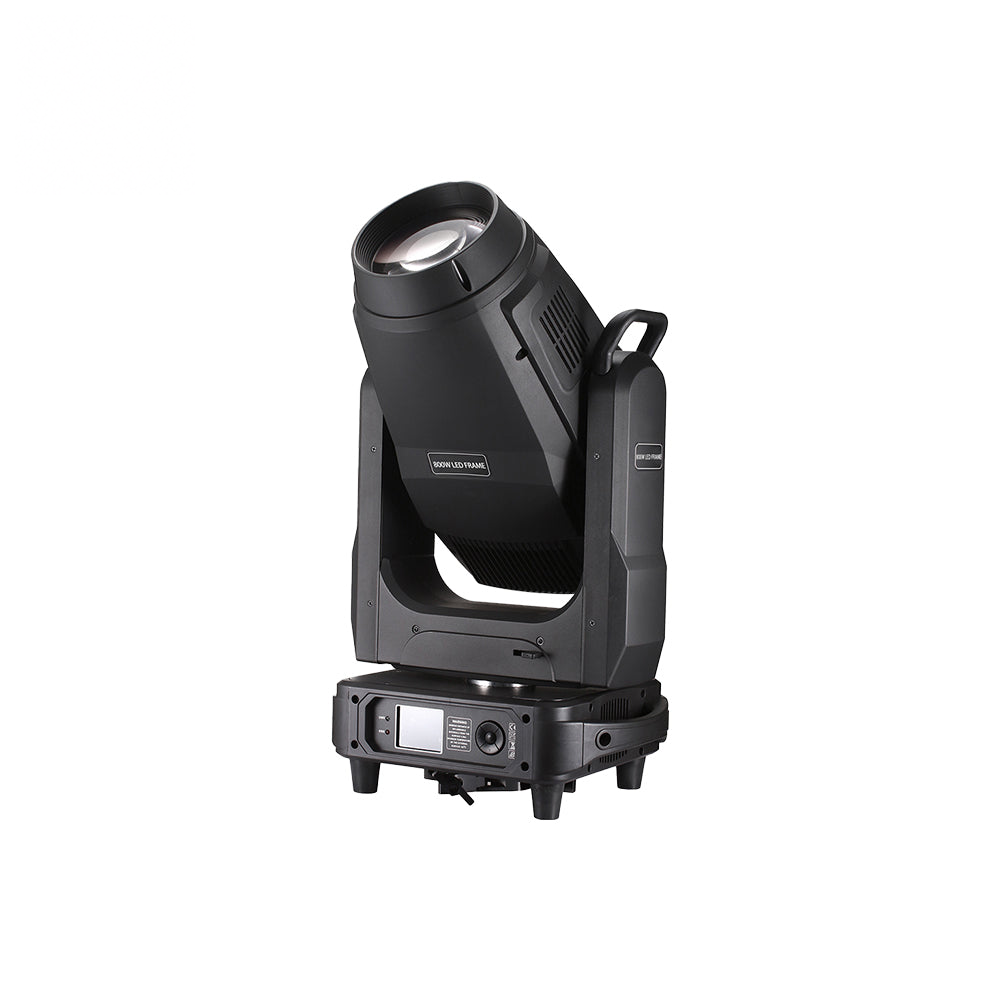

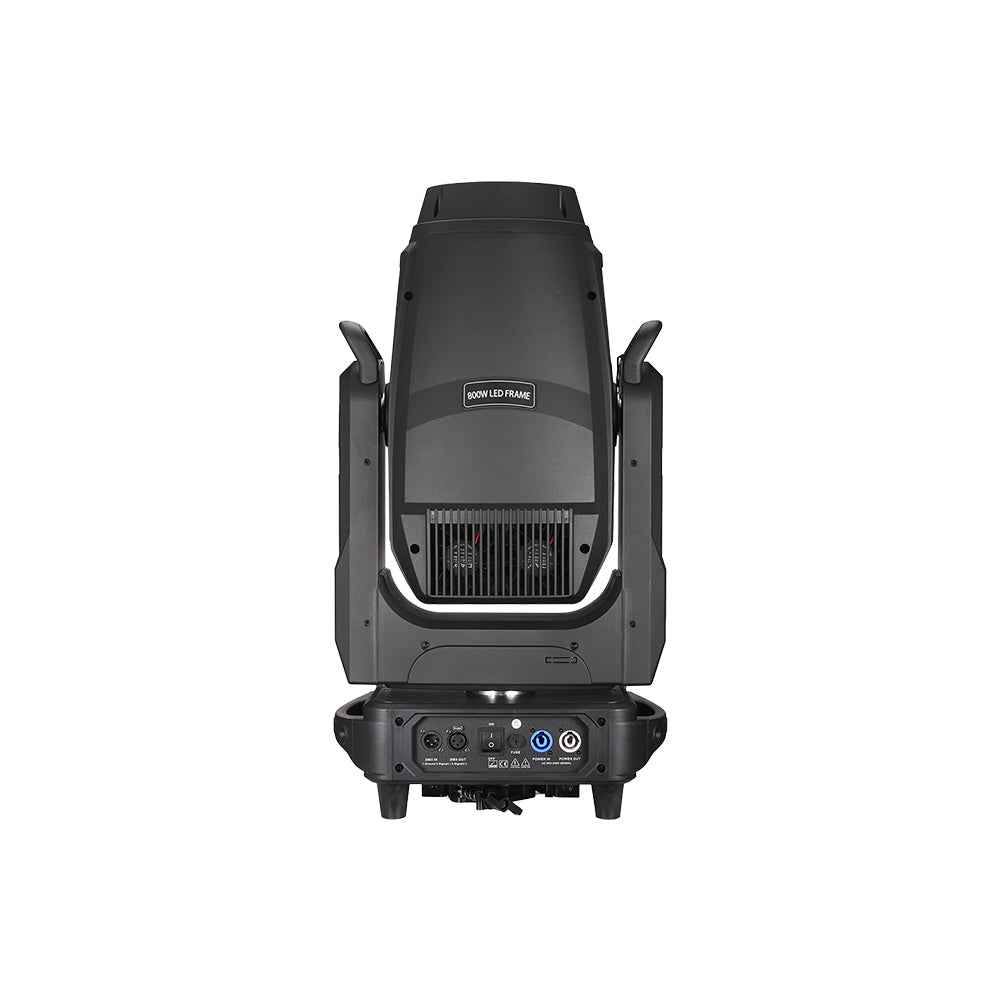

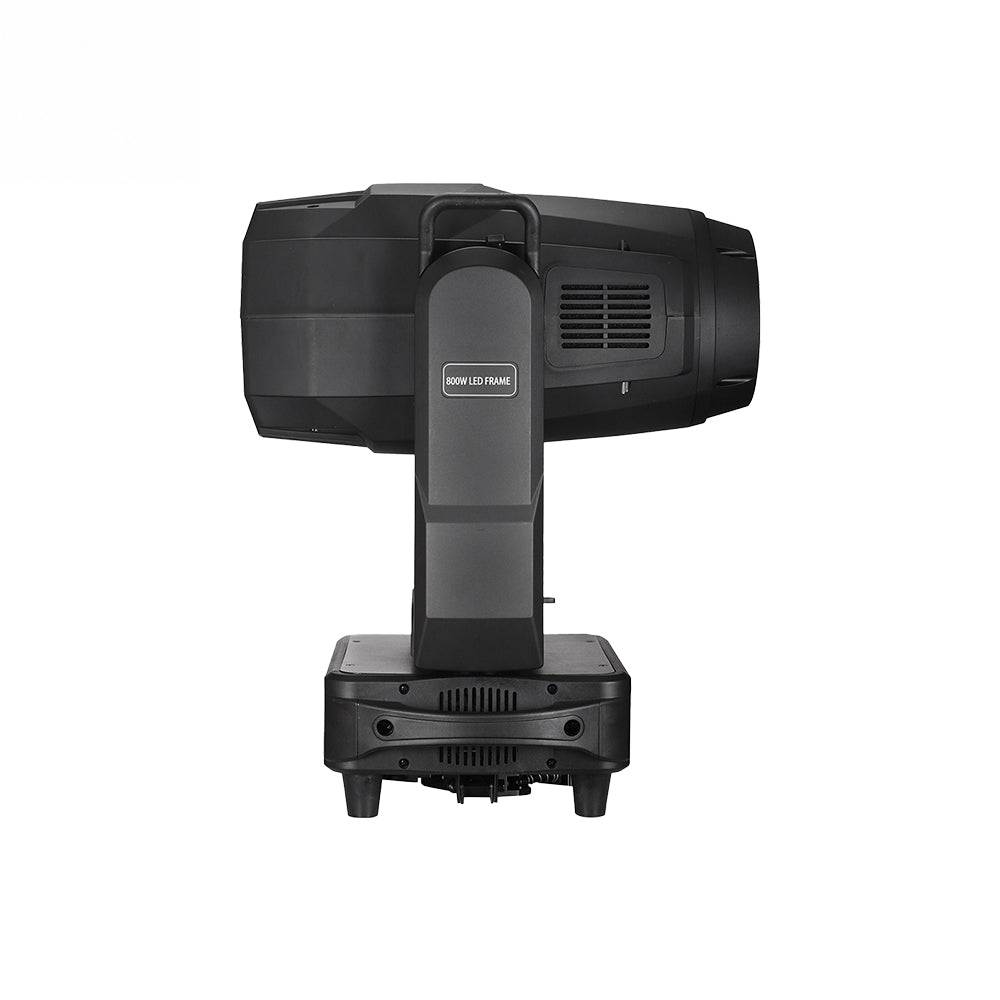

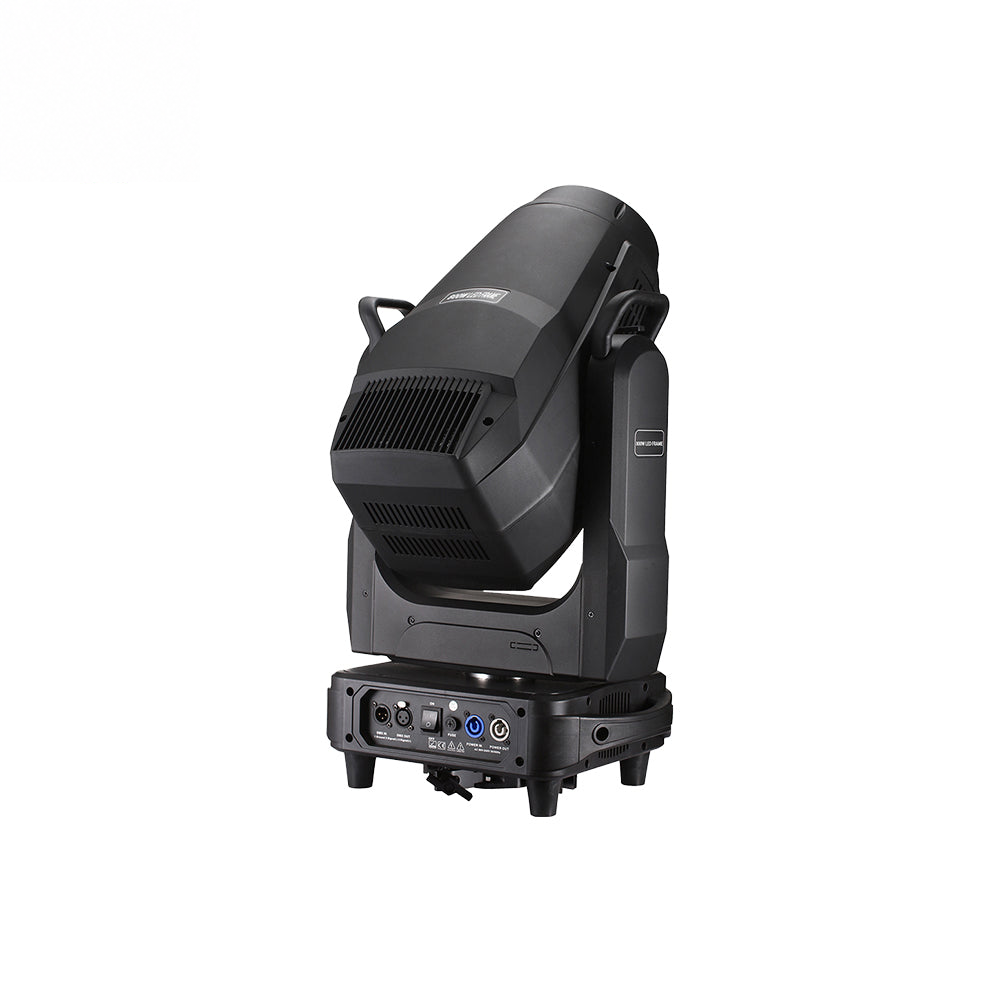

800W LED Profile Moving Head
800W LED Profile Moving Head is a stage lighting catalogue item in the led profile / bswf moving head light category. Reference specifications list light source: 800W LED, 20,000h lifespan; zoom range: 5°–50° Linear Zoom. Confirm the exact fixture version, specifications and current supply details before ordering.
WHATSAPPRequest a Quote- Light Source
- 800W LED, 20,000h lifespan
- Zoom Range
- 5°–50° Linear Zoom
- Weight
- 27.5 kg
Product configuration
- CTO
- 3200K–7200K Adjustable
- Framing System
- 4 Blades, ±90° Rotation
- Dimming & Strobe
- 0–100% Linear / 0–25Hz
- Pan/Tilt
- 540° / 270° (16-bit Precision)
Optical performance
- Light Source
- 800W LED, 20,000h lifespan
- Zoom Range
- 5°–50° Linear Zoom
- Color System
- CMY Mixing + 6 Colors Wheel
- CRI
- Ra >70 / Ra >90 (High Mode)
Control and connections
- Control
- DMX512, 39CH
- Display
- LCD Touch Screen (180° Rotation)
Construction and dimensions
- Protection
- IP20
- Size
- 38.5 × 27 × 69 cm
- Weight
- 27.5 kg
What to confirm for your quotation
- Provide the throw distance, mounting height and required image or illuminated area.
- Confirm which framing, focus, iris, gobo and frost functions are included in this exact model.
- For camera work, request relevant colour and flicker information and arrange a test under the intended settings.
- Check the control mode, power requirements, operating noise and environmental rating.
TECHNICAL REFERENCE
Product specifications.
Published product details. Ask our team about any configuration that is not listed.
| Light Source | 800W LED, 20,000h lifespan |
|---|---|
| Zoom Range | 5°–50° Linear Zoom |
| Color System | CMY Mixing + 6 Colors Wheel |
| CTO | 3200K–7200K Adjustable |
| CRI | Ra >70 / Ra >90 (High Mode) |
| Framing System | 4 Blades, ±90° Rotation |
| Dimming & Strobe | 0–100% Linear / 0–25Hz |
| Control | DMX512, 39CH |
| Pan/Tilt | 540° / 270° (16-bit Precision) |
| Display | LCD Touch Screen (180° Rotation) |
| Protection | IP20 |
| Size | 38.5 × 27 × 69 cm |
| Weight | 27.5 kg |
Downloads
Product documents are being prepared. Contact YL for the current information for 800W LED Profile Moving Head.
Request product documentsSystem accessories
Contact YL to confirm the available accessories and the exact configuration for 800W LED Profile Moving Head.
Ask about compatible accessoriesProduct videos
Ask for an available demonstration of 800W LED Profile Moving Head and the configuration you need.
