Planning this product into your project
For a profile or framing position, define the area to illuminate and the control needed at its edges. Compare the documented optics, zoom, colour and shaping features at the intended working distance.

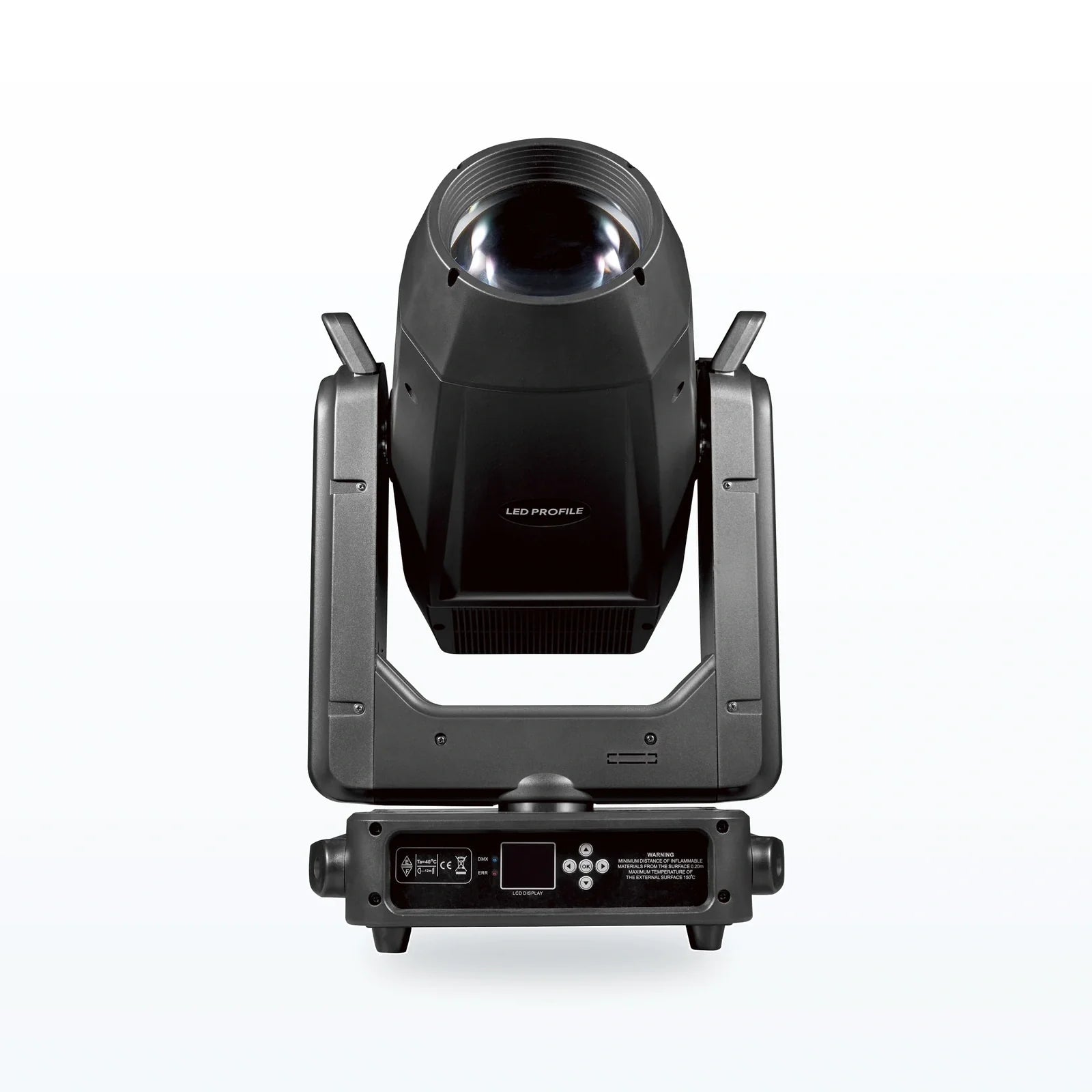

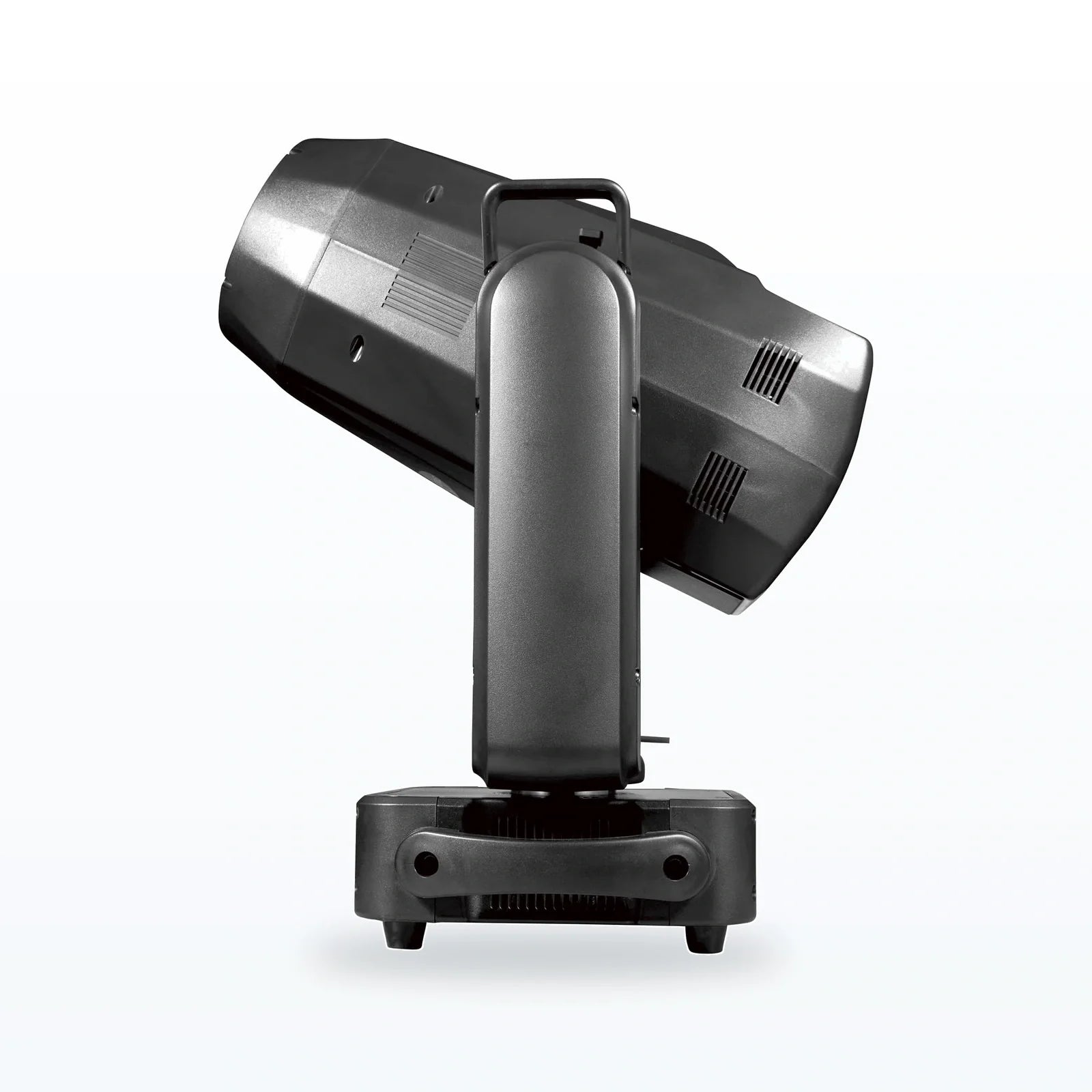

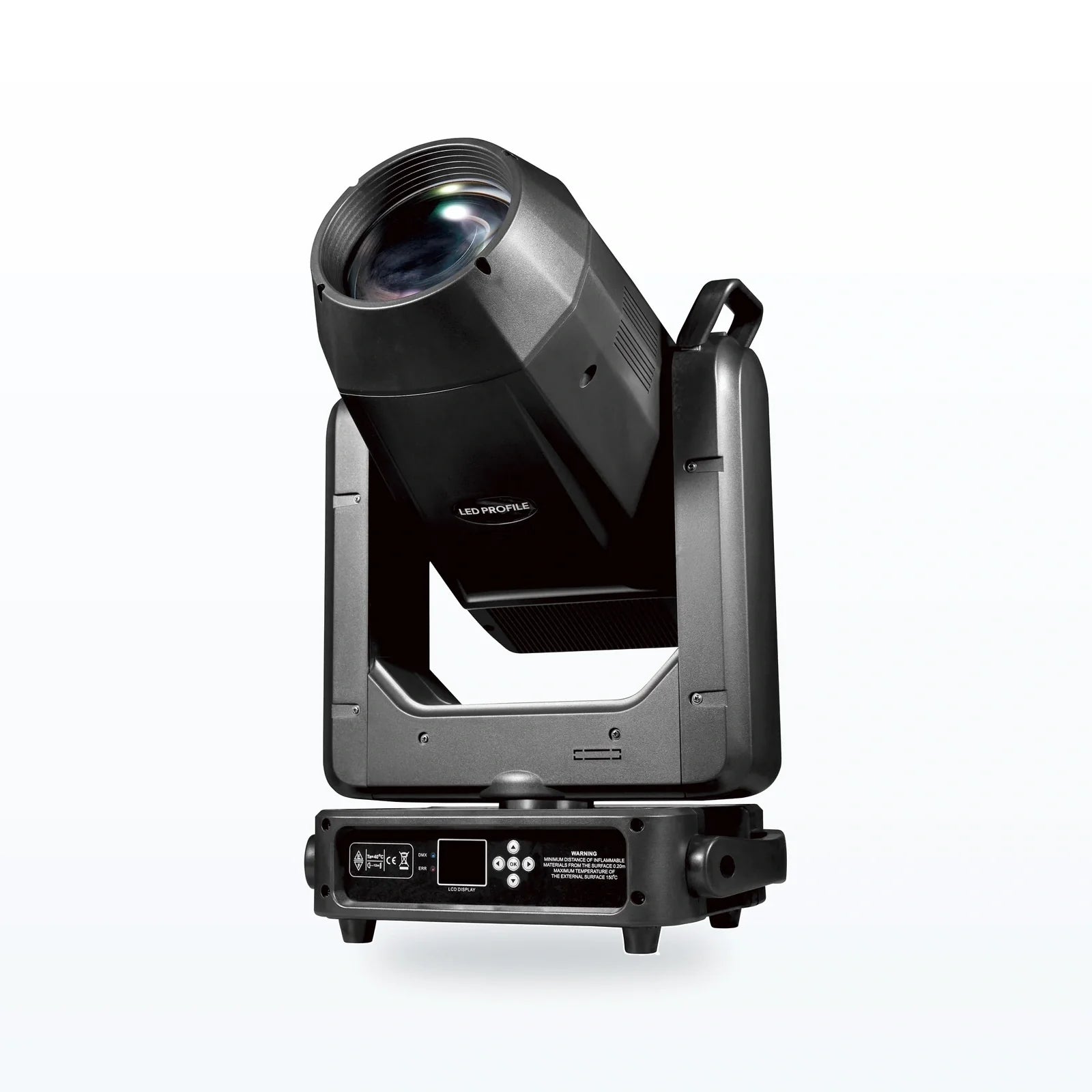

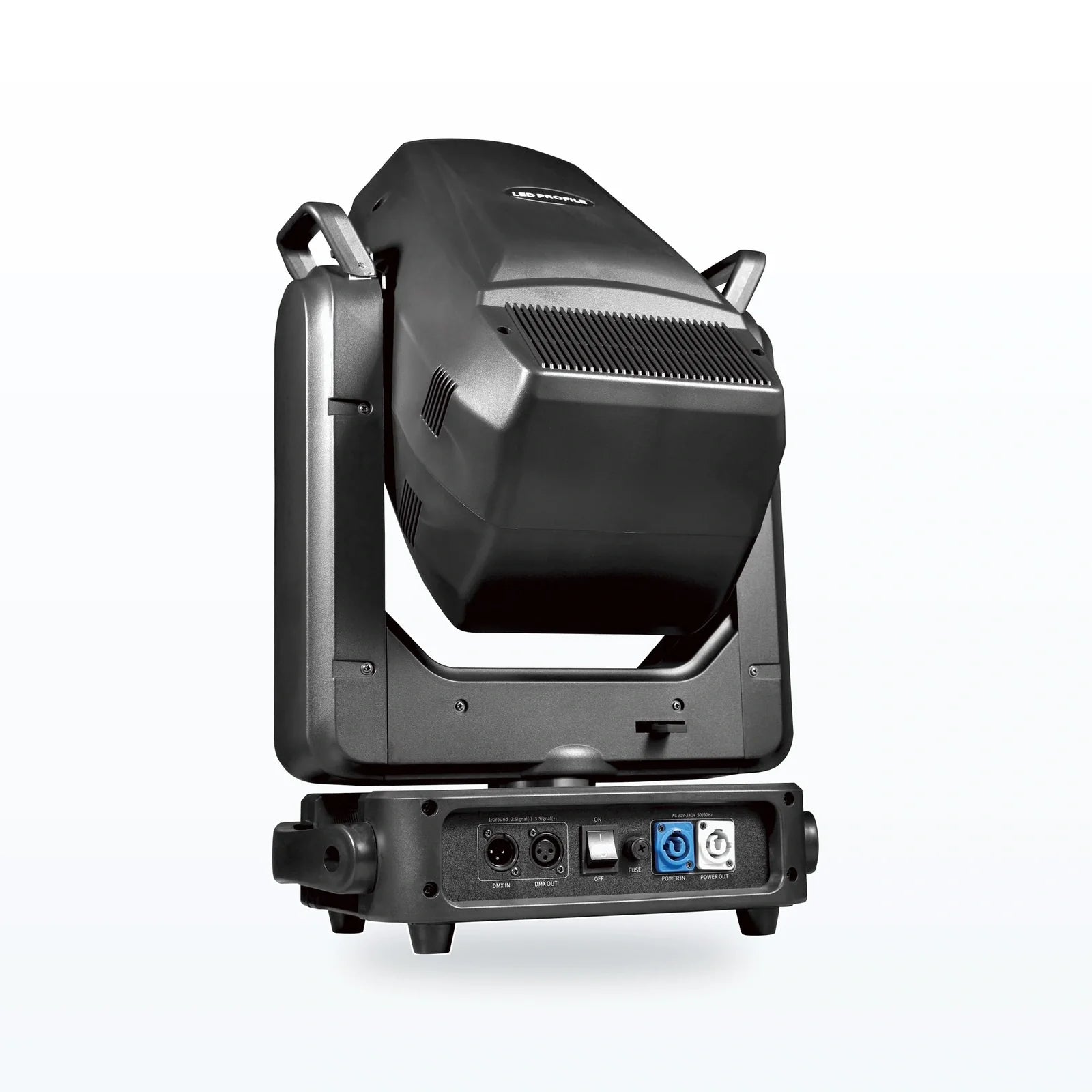

700W LED BSWF Profile Moving Head with CTO + CMY
700W LED BSWF Profile Moving Head with CTO + CMY is a stage lighting catalogue item in the led profile / bswf moving head light category. Reference specifications list rated power: 800W; light source: 700W LED source; exact brand/model TO BE CONFIRMED. Confirm the exact fixture version, specifications and current supply details before ordering.
WHATSAPPRequest a Quote- Light source
- 700W LED source; exact brand/model TO BE CONFIRMED
- Beam angle
- TO BE CONFIRMED (Profile evidence / 35-degree Wash XML conflict)
- Electrical protection
- Use a grounded supply. Rated current and fuse value, type and position remain TO BE CONFIRMED.
Product configuration
- Movement
- Pan 540 degrees / tilt 270 degrees / fine channels
- Product
- 700W LED BSWF Profile Moving Head with CTO + CMY
- Dimming / strobe
- 0-100% dimming; strobe 0-20Hz claim from source video
- Packing
- Packing size and gross weight TO BE CONFIRMED
Optical performance
- Rated power
- 800W
- Light source
- 700W LED source; exact brand/model TO BE CONFIRMED
- Color system
- CMY + CTO + five-color wheel + open
Control and connections
- DMX channels
- 35CH DMX512 (fixture-library authority)
- Input voltage
- TO BE CONFIRMED (AC100-240V / AC200-240V conflict)
Construction and dimensions
Electrical protection: Use a grounded supply. Rated current and fuse value, type and position remain TO BE CONFIRMED.
What to confirm for your quotation
- Provide the throw distance, mounting height and required image or illuminated area.
- Confirm which framing, focus, iris, gobo and frost functions are included in this exact model.
- For camera work, request relevant colour and flicker information and arrange a test under the intended settings.
- Check the control mode, power requirements, operating noise and environmental rating.
TECHNICAL REFERENCE
Product specifications.
Published product details. Ask our team about any configuration that is not listed.
| Rated power | 800W |
|---|---|
| Light source | 700W LED source; exact brand/model TO BE CONFIRMED |
| DMX channels | 35CH DMX512 (fixture-library authority) |
| Movement | Pan 540 degrees / tilt 270 degrees / fine channels |
| Product | 700W LED BSWF Profile Moving Head with CTO + CMY |
| Input voltage | TO BE CONFIRMED (AC100-240V / AC200-240V conflict) |
| Color system | CMY + CTO + five-color wheel + open |
| Dimming / strobe | 0-100% dimming; strobe 0-20Hz claim from source video |
| Beam angle | TO BE CONFIRMED (Profile evidence / 35-degree Wash XML conflict) |
| Packing | Packing size and gross weight TO BE CONFIRMED |
| Electrical protection | Use a grounded supply. Rated current and fuse value, type and position remain TO BE CONFIRMED. |
Downloads
Product documents are being prepared. Contact YL for the current information for 700W LED BSWF Profile Moving Head with CTO + CMY.
Request product documentsSystem accessories
Contact YL to confirm the available accessories and the exact configuration for 700W LED BSWF Profile Moving Head with CTO + CMY.
Ask about compatible accessoriesProduct videos
