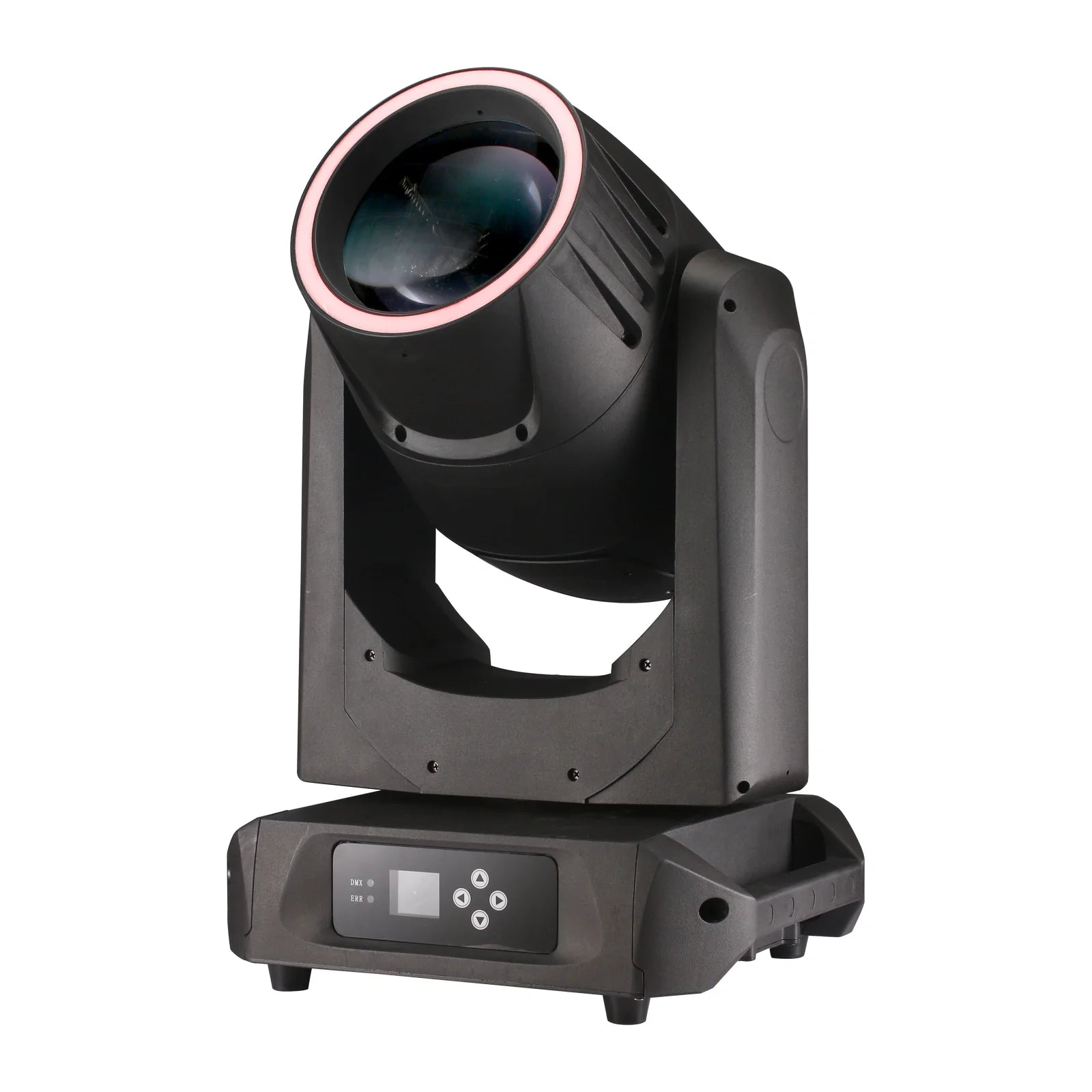

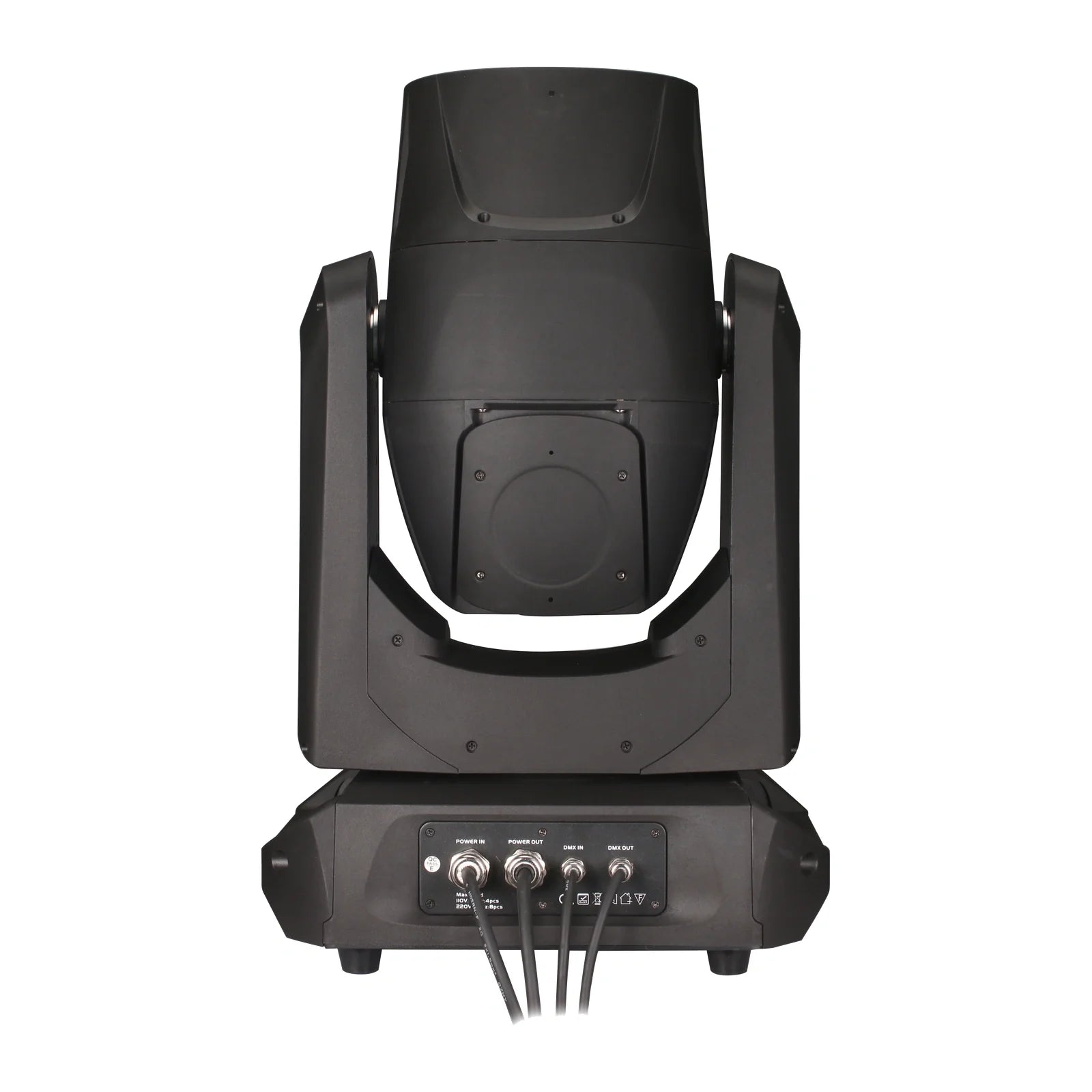

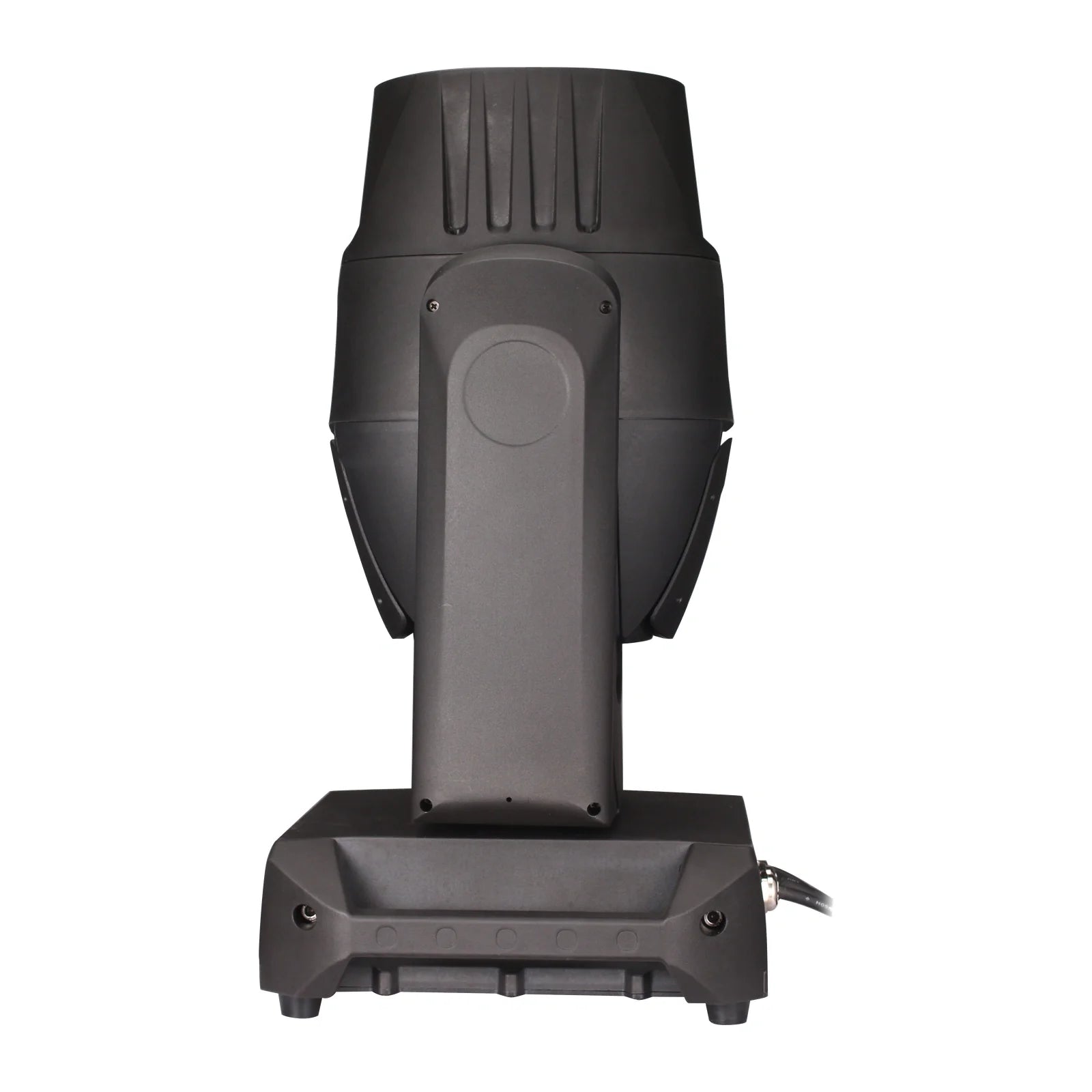

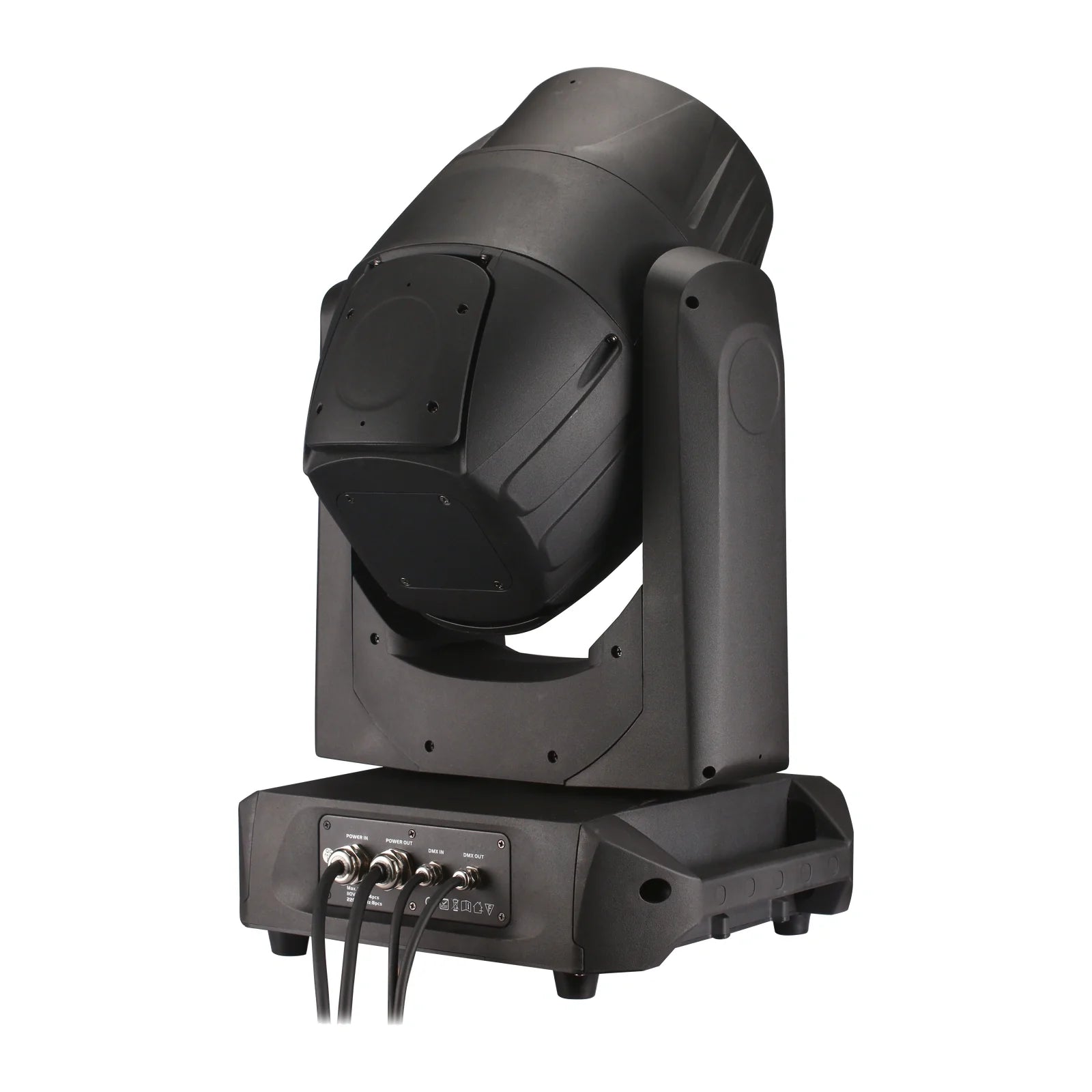

380W IP55 Beam Moving Head with RGB Ring

380W IP55 Beam Moving Head with RGB Ring is a stage lighting catalogue item in the waterproof moving head beam light category. Reference specifications list rated power: 540W; light source: 380W discharge source. Confirm the exact fixture version, specifications and current supply details before ordering.

WHATSAPPRequest a Quote
View specifications
Light source
380W discharge source

Planning this product into your project

Start with the visual task and the distance from this fixture to the stage or subject. Compare its documented optics, movement, colour and control functions against that position in the lighting plan.

Product configuration

Movement
540-degree pan / 270-degree tilt / 16-bit fine
Current / fuse
Rated current, fuse value and holder position TBC
Packing
Carton size and gross weight TBC
Focus
Focus 10
Focus
000-255 far to near

Optical performance

Rated power
540W
Light source
380W discharge source
Color wheel
Color wheel 2
Frost / colorful
effect
Color wheel
000-149 fixed and split colors; 150-200 reverse wheel fast-slow; 201-255 forward wheel slow-fast
Frost / colorful
000-127 open; 128-191 colorful effect; 192-255 frost

Control and connections

Input voltage: AC100-240V, 50/60Hz - manual claim

What to confirm for your quotation

  • Provide the throw distance, mounting height and beam or coverage required.
  • Confirm the exact light source, optical functions and channel mode for the quoted variant.
  • Request relevant photometric data and a demonstration using the intended colour and zoom settings.
  • Check power, connectors, weight, protection rating and the included mounting accessories.

TECHNICAL REFERENCE

Product specifications.

Published product details. Ask our team about any configuration that is not listed.

380W IP55 Beam Moving Head with RGB Ring technical specifications
Rated power540W
Light source380W discharge source
Movement540-degree pan / 270-degree tilt / 16-bit fine
Input voltageAC100-240V, 50/60Hz - manual claim
Current / fuseRated current, fuse value and holder position TBC
PackingCarton size and gross weight TBC
Color wheelColor wheel 2
FocusFocus 10
Frost / colorfuleffect
Color wheel000-149 fixed and split colors; 150-200 reverse wheel fast-slow; 201-255 forward wheel slow-fast
Focus000-255 far to near
Frost / colorful000-127 open; 128-191 colorful effect; 192-255 frost

Downloads

Product documents are being prepared. Contact YL for the current information for 380W IP55 Beam Moving Head with RGB Ring.

Request product documents

System accessories

Contact YL to confirm the available accessories and the exact configuration for 380W IP55 Beam Moving Head with RGB Ring.

Ask about compatible accessories
