Product identification
- Model
- LAK10 Dual Channel Digital Amplifier
- Product category
- Amplifiers & Processing

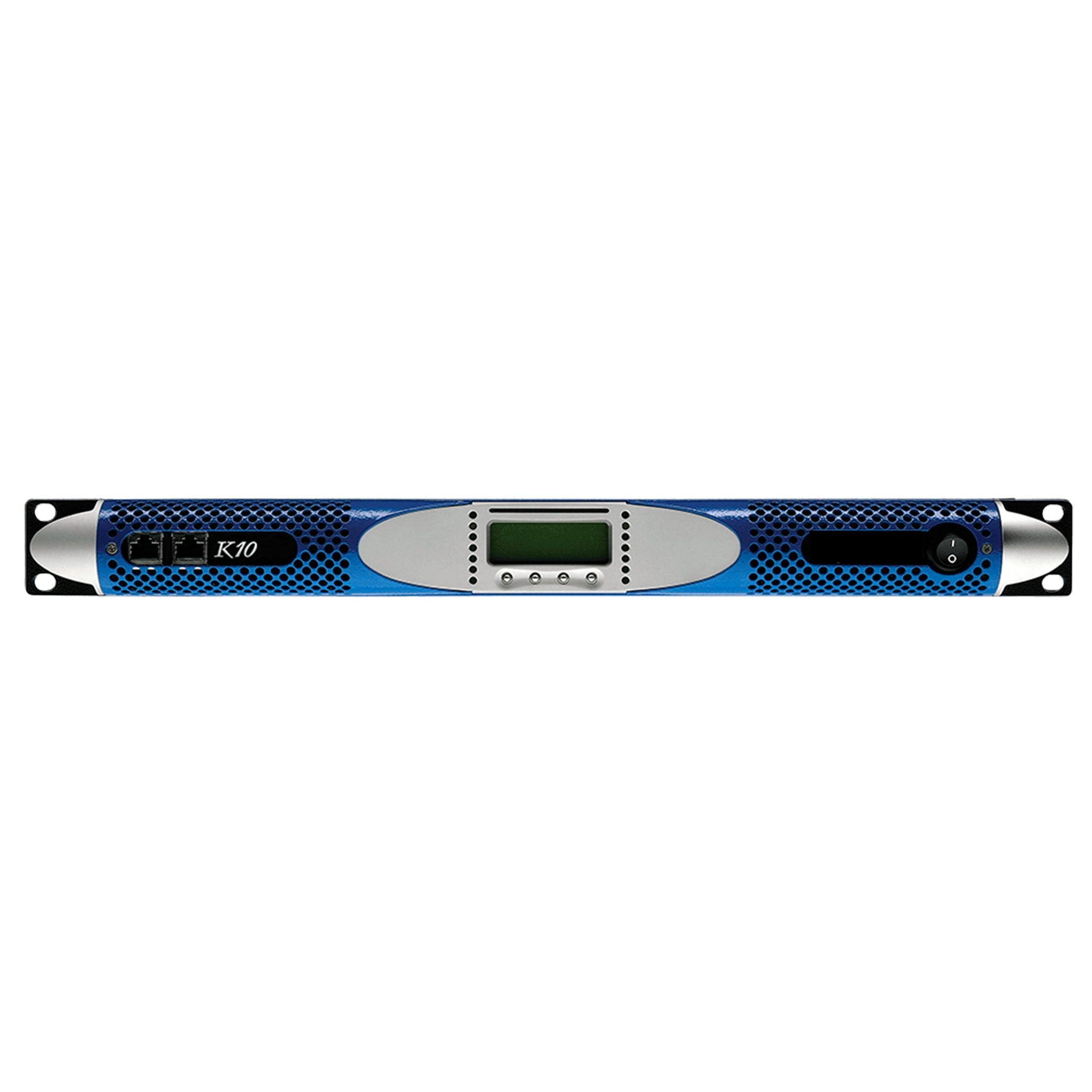

LAK10 Dual Channel Digital Amplifier
LAK10 Dual Channel Digital Amplifier is listed in the amplifiers & processing category as a amplifier or audio processing product. The reference lists maximum output power (eiaj test standard): Stereo 2*2000W/8Ω, 2*4000W/4Ω, 2*6000W/2Ω; bridged 8000W/8Ω, bridged 12000W/4Ω; working voltage: 90V-264V. Confirm the exact model, current specifications and supply details before use.
WHATSAPPRequest a Quote- Frequency response
- 20Hz-20kHz (±0.5dB)@1W, 8Ω
- Weight
- about 12kg
Technical specifications
- Maximum output power (EIAJ test standard)
- Stereo 2*2000W/8Ω, 2*4000W/4Ω, 2*6000W/2Ω; bridged 8000W/8Ω, bridged 12000W/4Ω
- Working voltage
- 90V-264V
- Gain
- 26dB\29dB\32dB\35dB
- Input sensitivity
- 6.34V/4.49V/3.18V/2.25V
- Frequency response
- 20Hz-20kHz (±0.5dB)@1W, 8Ω
- Signal-to-noise ratio
- >110dBA (20Hz-20kHz, A weighted)
- Crosstalk isolation
- >66dB@1kHz
- THD+N
- < 0.3% from 1W to full power
- DIM100
- < 0.3% from 1W to full power
- Input impedance
- 10kΩ balanced
- Conversion rate
- 50V/μs@8Ω, input filter bypassed
- Damping coefficient
- >5000@20-200Hz
- Such as
- overheating, AC, DC, short circuit, overload, clipping limiter, long-term limiter, etc.
- System configuration
- Global adaptive wide voltage power supply (90V-264V) • Class D amplifier
Physical specifications
- Size (L*H*W)
- 483mm*44.5mm*475mm
- Weight
- about 12kg
Compatibility and deployment
- Function / configuration
- Global adaptive wide voltage power supply (90V-264V)
- Function / configuration
- Temperature forecast, LCD screen historical temperature display
- Function / configuration
- User selectable maximum output power per channel
TECHNICAL REFERENCE
Product specifications.
Published product details. Ask our team about any configuration that is not listed.
| Maximum output power (EIAJ test standard) | Stereo 2*2000W/8Ω, 2*4000W/4Ω, 2*6000W/2Ω; bridged 8000W/8Ω, bridged 12000W/4Ω |
|---|---|
| Working voltage | 90V-264V |
| Gain | 26dB\29dB\32dB\35dB |
| Input sensitivity | 6.34V/4.49V/3.18V/2.25V |
| Frequency response | 20Hz-20kHz (±0.5dB)@1W, 8Ω |
| Signal-to-noise ratio | >110dBA (20Hz-20kHz, A weighted) |
| Crosstalk isolation | >66dB@1kHz |
| THD+N | < 0.3% from 1W to full power |
| DIM100 | < 0.3% from 1W to full power |
| Input impedance | 10kΩ balanced |
| Conversion rate | 50V/μs@8Ω, input filter bypassed |
| Damping coefficient | >5000@20-200Hz |
| Size (L*H*W) | 483mm*44.5mm*475mm |
| Weight | about 12kg |
Downloads
Product documents are being prepared. Contact YL for the current information for LAK10 Dual Channel Digital Amplifier.
Request product documentsSystem accessories
Contact YL to confirm the available accessories and the exact configuration for LAK10 Dual Channel Digital Amplifier.
Ask about compatible accessoriesProduct videos
Ask for an available demonstration of LAK10 Dual Channel Digital Amplifier and the configuration you need.
