Product identification
- Model
- LA5.2K Dual Channel Digital Amplifier
- Product category
- Amplifiers & Processing

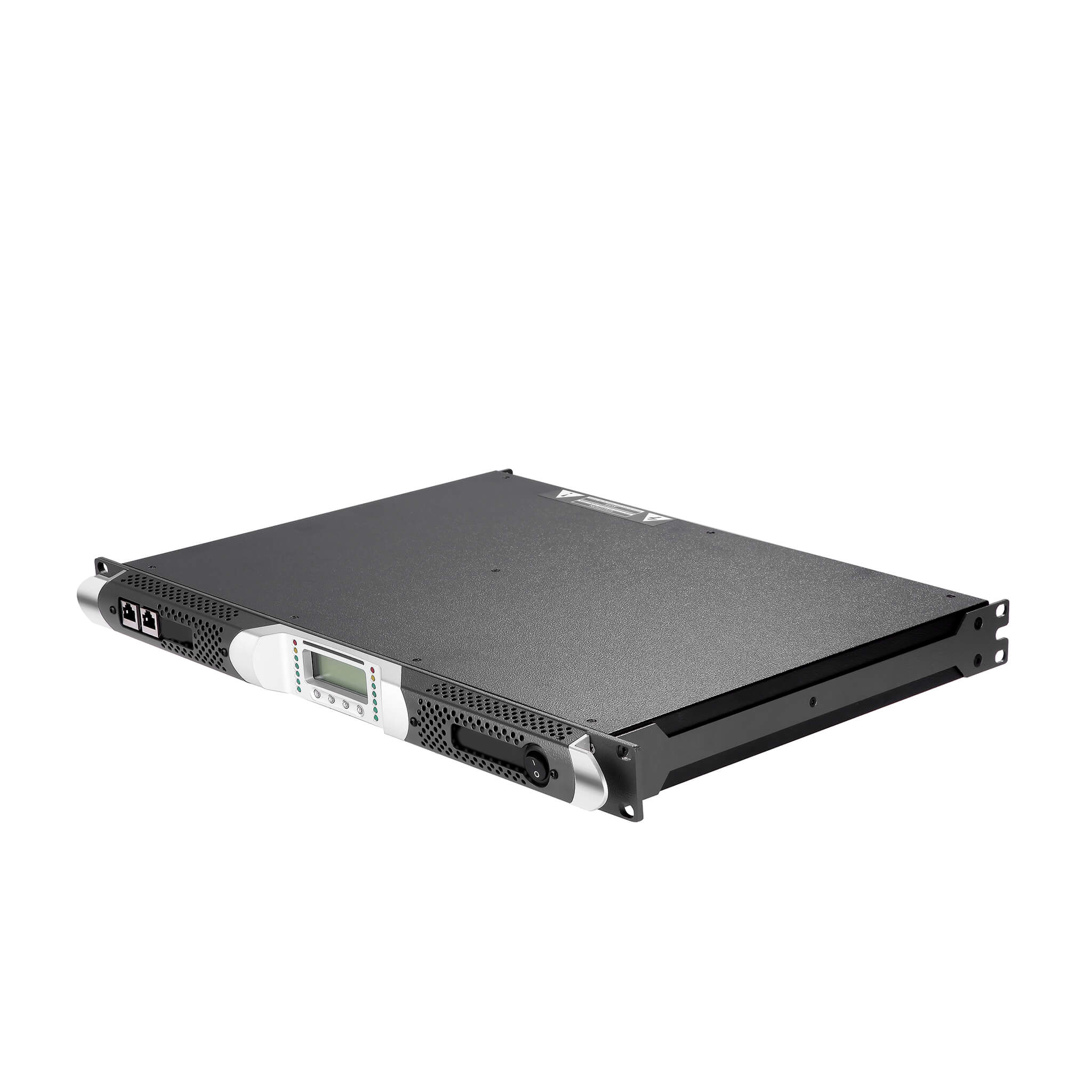

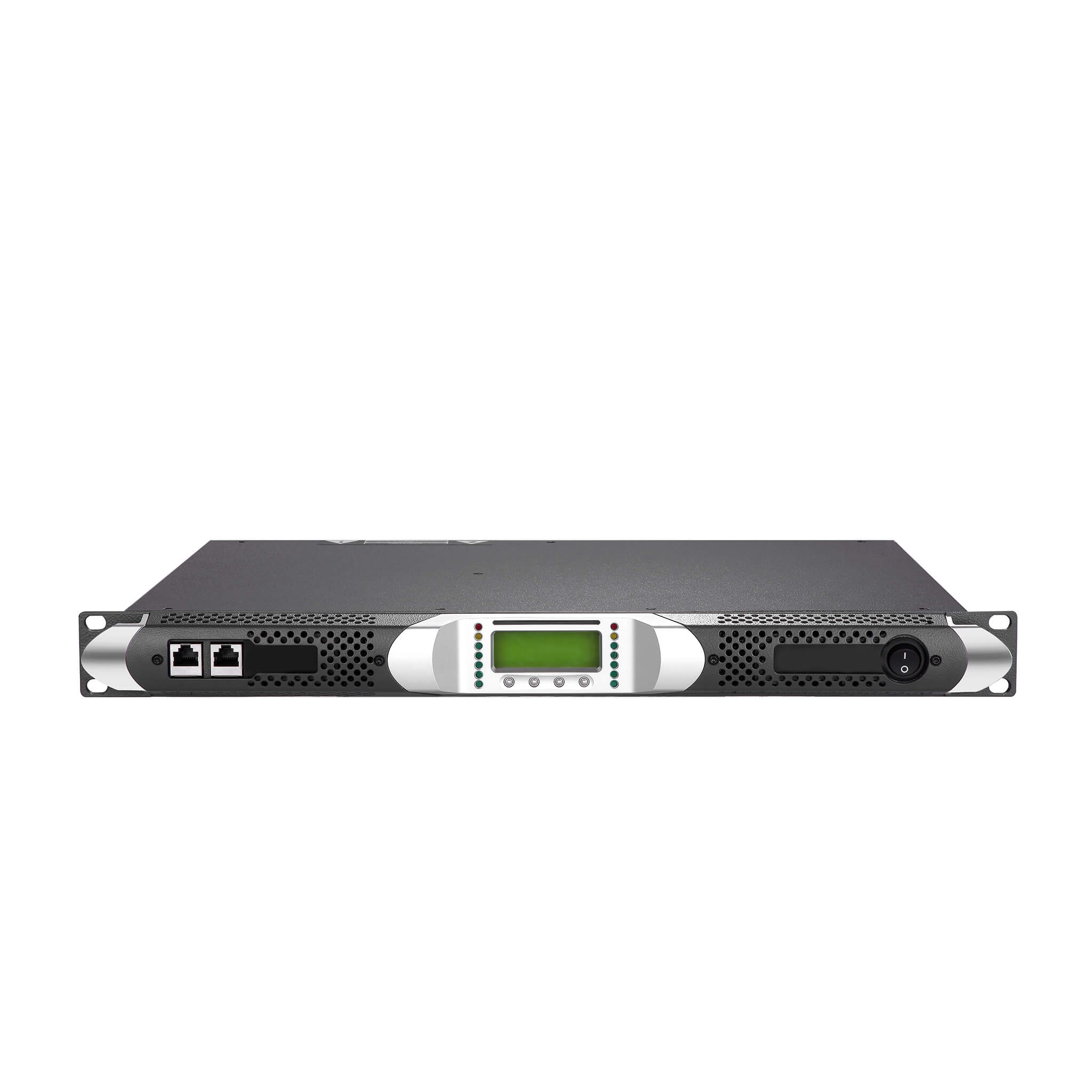

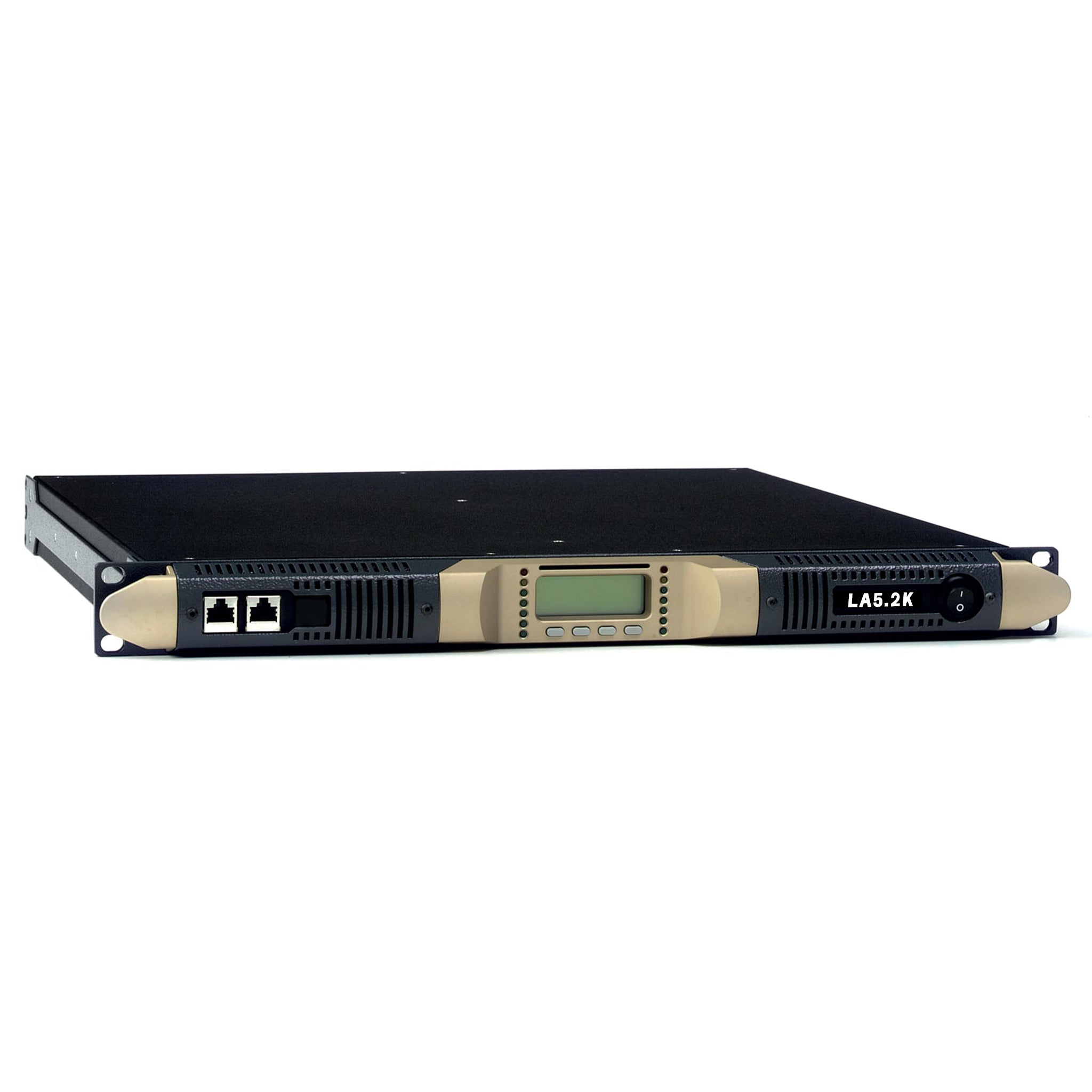

LA5.2K Dual Channel Digital Amplifier
LA5.2K Dual Channel Digital Amplifier is listed in the amplifiers & processing category as a amplifier or audio processing product. The reference lists maximum output power (eiaj test standard): Stereo 2*1400w/8ω, 2*2600w/4ω, 2*2800w/2ω; Bridged 5200w/8ω, Bridged 5600w/4ω; working voltage: 90v-264v. Confirm the exact model, current specifications and supply details before use.
WHATSAPPRequest a Quote- Frequency Response
- 20hz-20khz (±0.5db)@1w, 8ω
- Weight
- About 9.1kg
Technical specifications
- Maximum Output Power (Eiaj Test Standard)
- Stereo 2*1400w/8ω, 2*2600w/4ω, 2*2800w/2ω; Bridged 5200w/8ω, Bridged 5600w/4ω
- Working Voltage
- 90v-264v
- Gain
- 26db\29db\32db\35db
- Input Sensitivity
- 5.3v/3.75v/2.66v/1.88v
- Frequency Response
- 20hz-20khz (±0.5db)@1w, 8ω
- Signal-To-Noise Ratio
- >106db (20hz-20khz, A Weighted)
- Crosstalk Isolation
- >70db@1khz
- Thd+N
- < 0.3% From 1w To Full Power
- Dim100
- < 0.3% From 1w To Full Power
- Input Impedance
- 10kω Balanced
- Conversion Rate
- 50v/μS@8ω, Input Filter Bypassed
- Damping Coefficient
- >5000@20-200hz
Physical specifications
- Size (L*H*W)
- 483mm*44.45mm*358mm
- Weight
- About 9.1kg
TECHNICAL REFERENCE
Product specifications.
Published product details. Ask our team about any configuration that is not listed.
| Maximum Output Power (Eiaj Test Standard) | Stereo 2*1400w/8ω, 2*2600w/4ω, 2*2800w/2ω; Bridged 5200w/8ω, Bridged 5600w/4ω |
|---|---|
| Working Voltage | 90v-264v |
| Gain | 26db\29db\32db\35db |
| Input Sensitivity | 5.3v/3.75v/2.66v/1.88v |
| Frequency Response | 20hz-20khz (±0.5db)@1w, 8ω |
| Signal-To-Noise Ratio | >106db (20hz-20khz, A Weighted) |
| Crosstalk Isolation | >70db@1khz |
| Thd+N | < 0.3% From 1w To Full Power |
| Dim100 | < 0.3% From 1w To Full Power |
| Input Impedance | 10kω Balanced |
| Conversion Rate | 50v/μS@8ω, Input Filter Bypassed |
| Damping Coefficient | >5000@20-200hz |
| Size (L*H*W) | 483mm*44.45mm*358mm |
| Weight | About 9.1kg |
