Product identification
- Model
- LA12K Dual Channel Digital Amplifier
- Product category
- Amplifiers & Processing

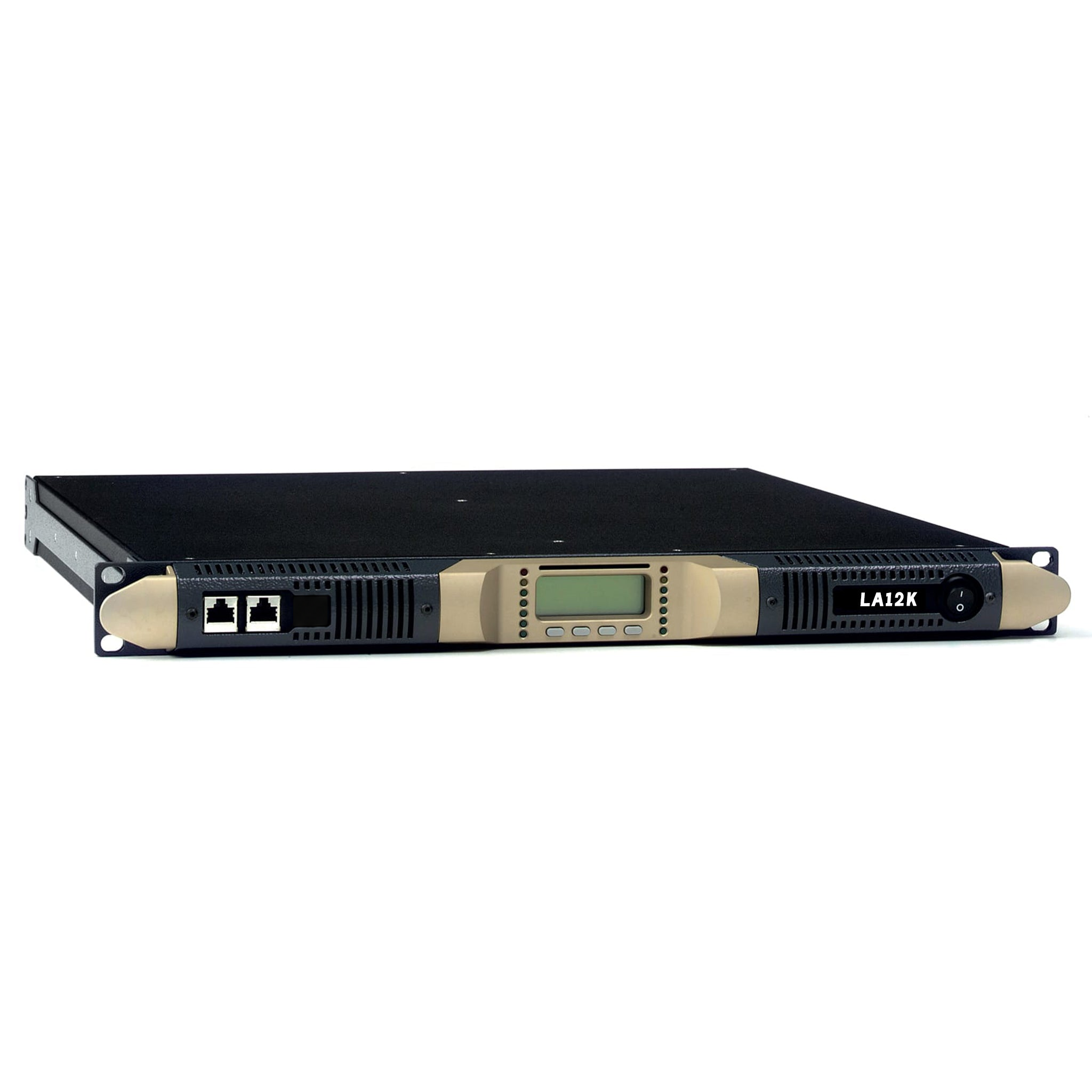

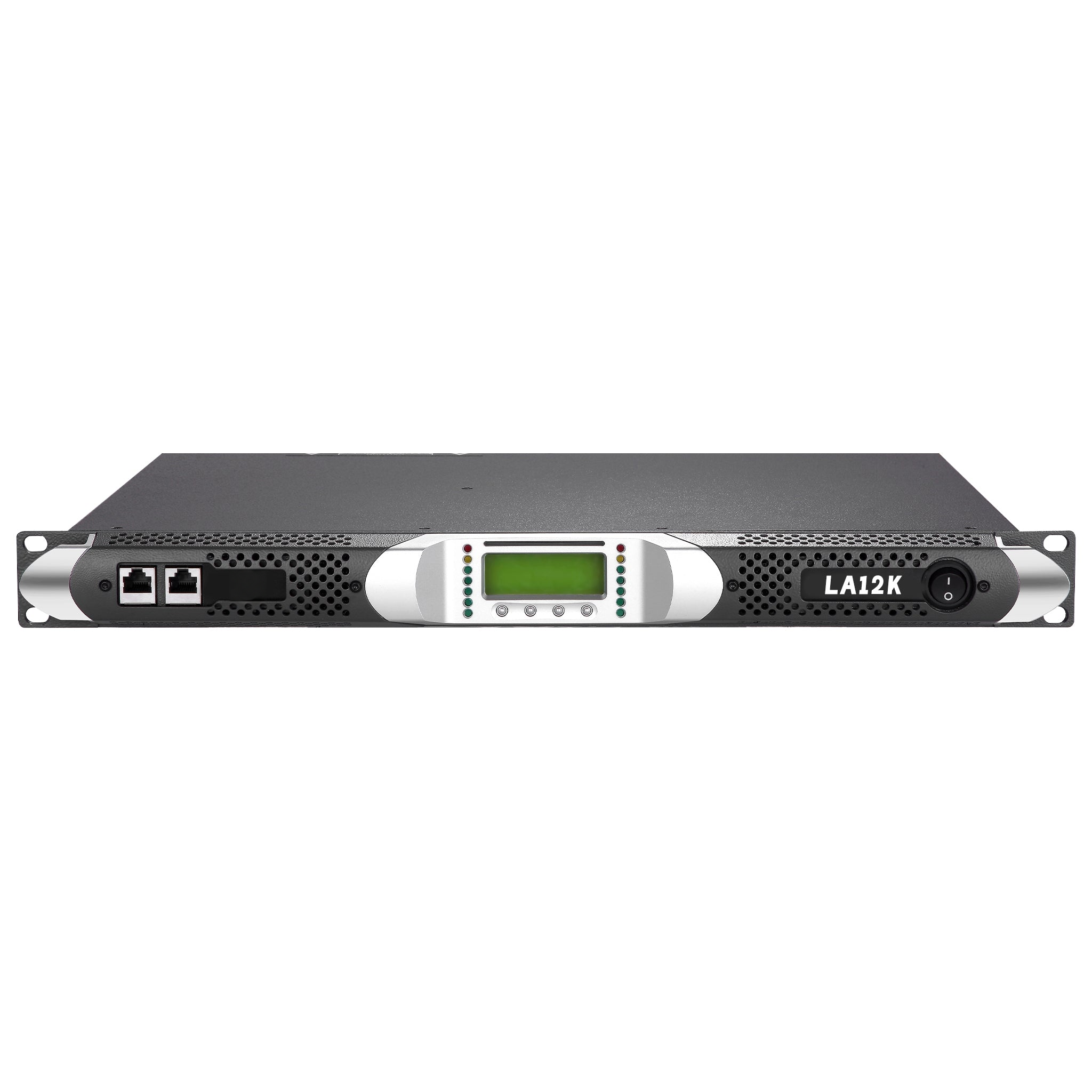

LA12K Dual Channel Digital Amplifier
LA12K Dual Channel Digital Amplifier is listed in the amplifiers & processing category as a amplifier or audio processing product. The reference lists output power: Stereo 2 x 2000 W / 8 ohm, 2 x 4000 W / 4 ohm, 2 x 6000 W / 2 ohm; bridged 8000 W / 8 ohm, 12000 W / 4 ohm; working voltage: 90 V - 264 V. Confirm the exact model, current specifications and supply details before use.
WHATSAPPRequest a Quote- Frequency response
- 20Hz-20kHz (±0.5dB)@1W, 8Ω
- Weight
- about 12kg
Technical specifications
- Output power
- Stereo 2 x 2000 W / 8 ohm, 2 x 4000 W / 4 ohm, 2 x 6000 W / 2 ohm; bridged 8000 W / 8 ohm, 12000 W / 4 ohm
- Working voltage
- 90 V - 264 V
- Frequency response
- 20 Hz - 20 kHz (+/-0.5 dB) @ 1 W, 8 ohm
- Signal-to-noise ratio
- >110 dBA
- Maximum output power (EIAJ test standard)
- Stereo 2*2000W/8Ω, 2*4000W/4Ω, 2*6000W/2Ω; bridged 8000W/8Ω, bridged 12000W/4Ω
- Working voltage
- 90V-264V
- Gain
- 26dB\29dB\32dB\35dB
- Input sensitivity
- 6.34V/4.49V/3.18V/2.25V
- Frequency response
- 20Hz-20kHz (±0.5dB)@1W, 8Ω
- Signal-to-noise ratio
- >110dBA (20Hz-20kHz, A weighted)
- Crosstalk isolation
- >66dB@1kHz
- THD+N
- < 0.3% from 1W to full power
- DIM100
- < 0.3% from 1W to full power
- Input impedance
- 10kΩ balanced
- Conversion rate
- 50V/μs@8Ω, input filter bypassed
- Damping coefficient
- >5000@20-200Hz
- Such as
- overheating, AC, DC, short circuit, overload, clipping limiter, long-term limiter, etc.
- System configuration
- Global adaptive wide voltage power supply (90V-264V) • Class D amplifier
Physical specifications
- Dimensions
- 483 x 44.5 x 475 mm
- Weight
- About 12 kg
- Size (L*H*W)
- 483mm*44.5mm*475mm
- Weight
- about 12kg
Compatibility and deployment
- Applications
- touring sound systems, rental production, fixed installation and loudspeaker system control.
- Function / configuration
- Global adaptive wide voltage power supply (90V-264V)
- Function / configuration
- Temperature forecast, LCD screen historical temperature display
- Function / configuration
- User selectable maximum output power per channel
TECHNICAL REFERENCE
Product specifications.
Published product details. Ask our team about any configuration that is not listed.
| Output power | Stereo 2 x 2000 W / 8 ohm, 2 x 4000 W / 4 ohm, 2 x 6000 W / 2 ohm; bridged 8000 W / 8 ohm, 12000 W / 4 ohm |
|---|---|
| Working voltage | 90 V - 264 V |
| Frequency response | 20 Hz - 20 kHz (+/-0.5 dB) @ 1 W, 8 ohm |
| Signal-to-noise ratio | >110 dBA |
| Dimensions | 483 x 44.5 x 475 mm |
| Weight | About 12 kg |
| Applications | touring sound systems, rental production, fixed installation and professional loudspeaker system control. |
| Maximum output power (EIAJ test standard) | Stereo 2*2000W/8Ω, 2*4000W/4Ω, 2*6000W/2Ω; bridged 8000W/8Ω, bridged 12000W/4Ω |
| Working voltage | 90V-264V |
| Gain | 26dB\29dB\32dB\35dB |
| Input sensitivity | 6.34V/4.49V/3.18V/2.25V |
| Frequency response | 20Hz-20kHz (±0.5dB)@1W, 8Ω |
| Signal-to-noise ratio | >110dBA (20Hz-20kHz, A weighted) |
| Crosstalk isolation | >66dB@1kHz |
| THD+N | < 0.3% from 1W to full power |
| Size (L*H*W) | 483mm*44.5mm*475mm |
| Weight | about 12kg |
Downloads
Product documents are being prepared. Contact YL for the current information for LA12K Dual Channel Digital Amplifier.
Request product documentsSystem accessories
Contact YL to confirm the available accessories and the exact configuration for LA12K Dual Channel Digital Amplifier.
Ask about compatible accessoriesProduct videos
Ask for an available demonstration of LA12K Dual Channel Digital Amplifier and the configuration you need.
