Product identification
- Model
- D80 Four-Channel High-Power Amplifier
- Product category
- Amplifiers & Processing

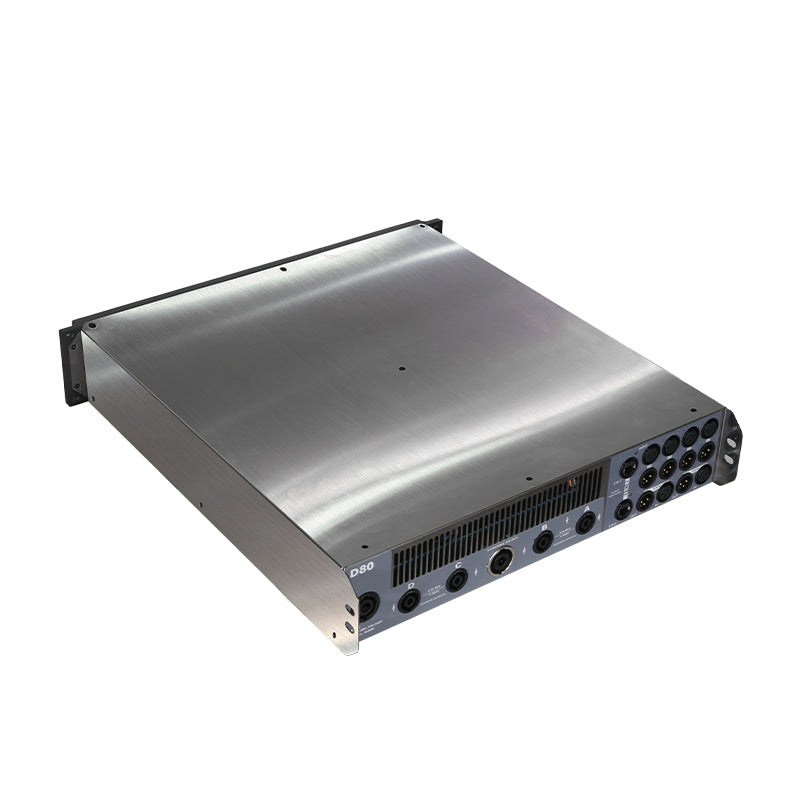

D80 Four-Channel High-Power Amplifier
D80 Four-Channel High-Power Amplifier is listed in the amplifiers & processing category as a amplifier or audio processing product. The reference lists maximum output power: 4 x 4000 W into 4 Ω; display: Colour TFT touchscreen, 3.5"/320 x 240 pixel. Confirm the exact model, current specifications and supply details before use.
WHATSAPPRequest a Quote- Frequency generator
- Pink noise or Sine wave
- S/N ratio (unweighted, RMS) Analog input Digital input
- > 114 dBr
- Weight
- 19 kg/42 lb
Technical specifications
- Maximum output power
- 4 x 4000 W into 4 Ω
- Display
- Colour TFT touchscreen, 3.5"/320 x 240 pixel
- Equalizer
- 2 x 16-band. PEQ/notch/shelving/asymmetric
- Latency analog and digital inputs
- 0.3 ms
- Delay setting
- 0.3 - 10000 ms
- Frequency generator
- Pink noise or Sine wave
- Sampling rate
- 96 kHz/27 Bit ADC/24 Bit DAC
- Power
- Mains power switch
- SCROLL/EDIT
- Digital rotary encoder
- ISP, GR, OVL A/B
- Colour TFT

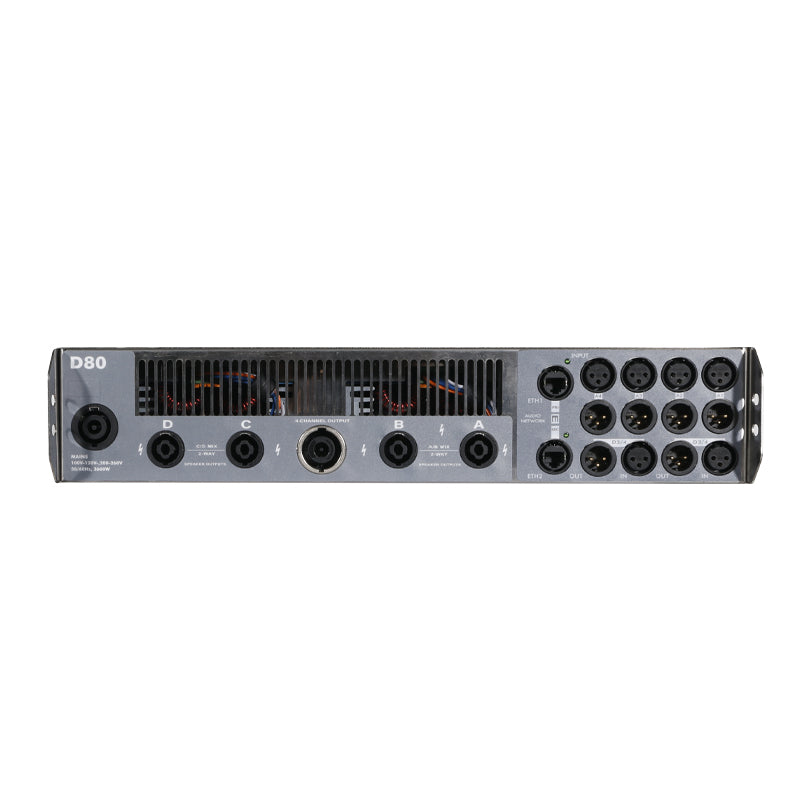

- INPUT ANALOG (A1 - A4)
- 3 pin XLR female
- ANALOG LINK (A1 - A4)
- 3 pin XLR male
- INPUT DIGITAL (D1/2, D3/4)
- 3 pin XLR female AES3
- DIGITAL LINK (Output)
- 3 pin XLR male
- Sampling Digital AES/EBU
- 48 kHz/96 kHz
- Speaker outputs A/B/C/D
- NL4
- 4 Channel output
- NL8
- CAN
- 2 x RJ 45 parallel
- Ethernet
- 2 x etherCON, 10/100 Mbit Ethernet
- Mains connector
- powerCON-HC
- Maximum output power per channel (THD+N < 0.5%, all channels driven) CF = 6 dB at 4 / 8 ohms CF = 12 dB at 4 / 8 ohms
- 4 x 2600/2000 W 4 x 4000/2000 W
- Type
- Autosensing switch mode power supply with active Power Factor Correction (PFC)
- Rated mains voltage high range
- 208 - 240 V, 50 - 60 Hz
- Rated mains voltage low range
- 100 - 127 V, 50 - 60 Hz
- Display/indicators
- LCD and LED's
- Navigation
- Rotary encoder, power and mute keys
- Third-party management solutions
- Q-SYS / Crestron / Control4 / Savant/ SNMP / Extron
- Temperature
- 0º C / 32º F to +50º C / 122º F
- Configurations
- current loudspeakers and linear mode
- remote control software
- LA Network Manager
Compatibility and deployment
- EFunction switches
- loudspeaker specific circuits
- Function / configuration
- Maximum output power
- Function / configuration
- 4 x 4000 W into 4 Ω
- Function / configuration
- All current loudspeaker setups
- Function / configuration
- Display Colour TFT touchscreen, 3.5"/320 x 240 pixel
Physical specifications
- S/N ratio (unweighted, RMS) Analog input Digital input
- > 114 dBr
- Dimensions (H x W x D)
- 2 RU x 19" x 530 mm/20.9"
- Weight
- 19 kg/42 lb
- Height
- 2U
- TWeight
- 11.3 kg / 24.9 lb
- Protection rating
- IP30
- S/N ratio (unweighted, RMS) Analog input Digital input
- - | | > 114 dBr
TECHNICAL REFERENCE
Product specifications.
Published product details. Ask our team about any configuration that is not listed.
| Maximum output power | 4 x 4000 W into 4 Ω |
|---|---|
| Display | Colour TFT touchscreen, 3.5"/320 x 240 pixel |
| Equalizer | 2 x 16-band. PEQ/notch/shelving/asymmetric |
| Latency analog and digital inputs | 0.3 ms |
| Delay setting | 0.3 - 10000 ms |
| EFunction switches | loudspeaker specific circuits |
| Frequency generator | Pink noise or Sine wave |
| Sampling rate | 96 kHz/27 Bit ADC/24 Bit DAC |
| Power | Mains power switch |
| SCROLL/EDIT | Digital rotary encoder |
| ISP, GR, OVL A/B | Colour TFT |
| INPUT ANALOG (A1 - A4) | 3 pin XLR female |
| ANALOG LINK (A1 - A4) | 3 pin XLR male |
| INPUT DIGITAL (D1/2, D3/4) | 3 pin XLR female AES3 |
| DIGITAL LINK (Output) | 3 pin XLR male |
| Sampling Digital AES/EBU | 48 kHz/96 kHz |
| Speaker outputs A/B/C/D | NL4 |
| 4 Channel output | NL8 |
| CAN | 2 x RJ 45 parallel |
| Ethernet | 2 x etherCON, 10/100 Mbit Ethernet |
| Mains connector | powerCON-HC |
| Maximum output power per channel (THD+N < 0.5%, all channels driven) CF = 6 dB at 4 / 8 ohms CF = 12 dB at 4 / 8 ohms | 4 x 2600/2000 W 4 x 4000/2000 W |
| S/N ratio (unweighted, RMS) Analog input Digital input | > 114 dBr |
| Type | Autosensing switch mode power supply with active Power Factor Correction (PFC) |
| Rated mains voltage high range | 208 - 240 V, 50 - 60 Hz |
| Rated mains voltage low range | 100 - 127 V, 50 - 60 Hz |
| Dimensions (H x W x D) | 2 RU x 19" x 530 mm/20.9" |
| Weight | 19 kg/42 lb |
| Display/indicators | LCD and LED's |
| Navigation | Rotary encoder, power and mute keys |
| Third-party management solutions | Q-SYS / Crestron / Control4 / Savant/ SNMP / Extron |
| Temperature | 0º C / 32º F to +50º C / 122º F |
| Height | 2U |
| TWeight | 11.3 kg / 24.9 lb |
| Protection rating | IP30 |
Downloads
Product documents are being prepared. Contact YL for the current information for D80 Four-Channel High-Power Amplifier.
Request product documentsSystem accessories
Contact YL to confirm the available accessories and the exact configuration for D80 Four-Channel High-Power Amplifier.
Ask about compatible accessoriesProduct videos
Ask for an available demonstration of D80 Four-Channel High-Power Amplifier and the configuration you need.
Request a product demonstrationYou may also like
