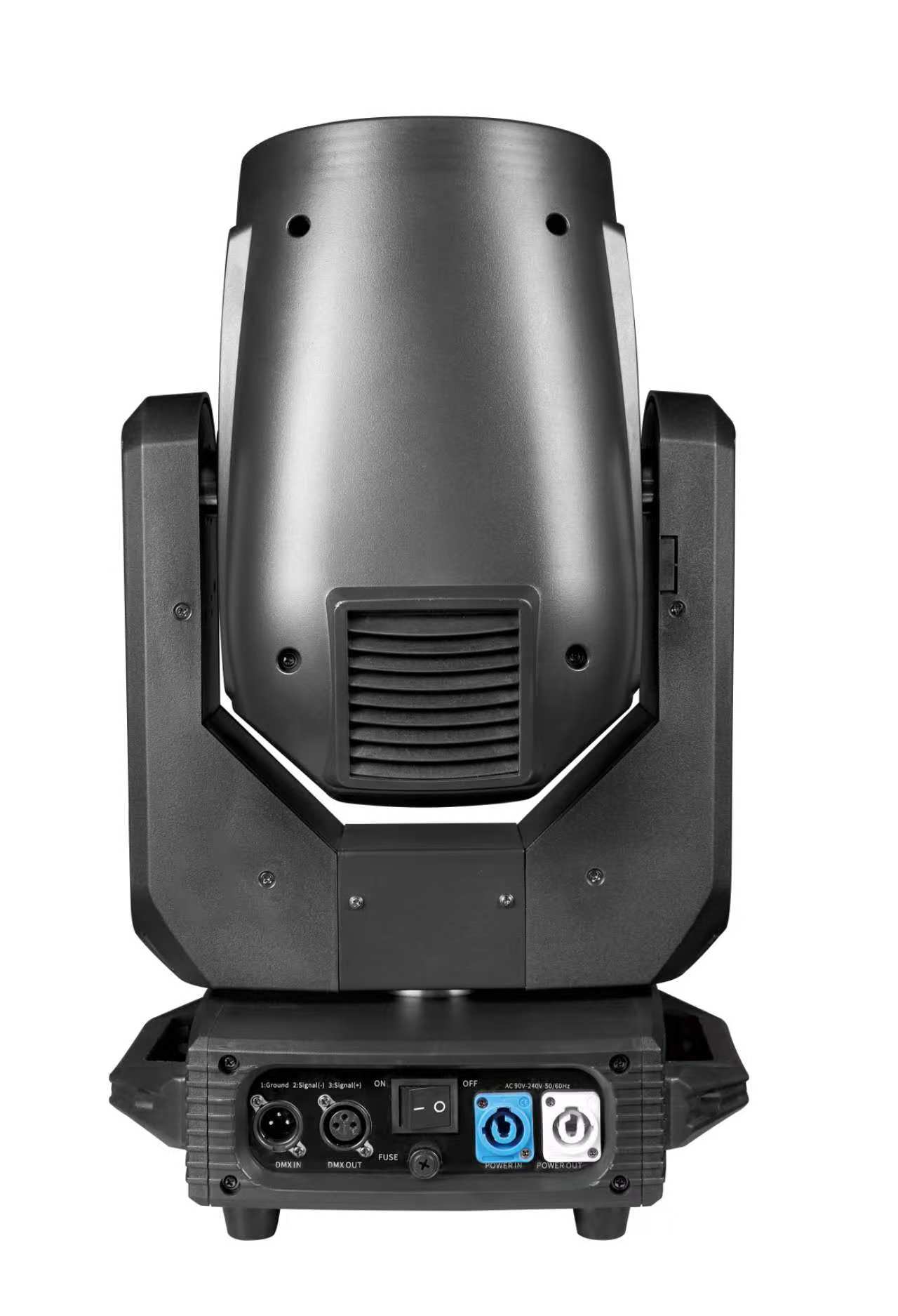

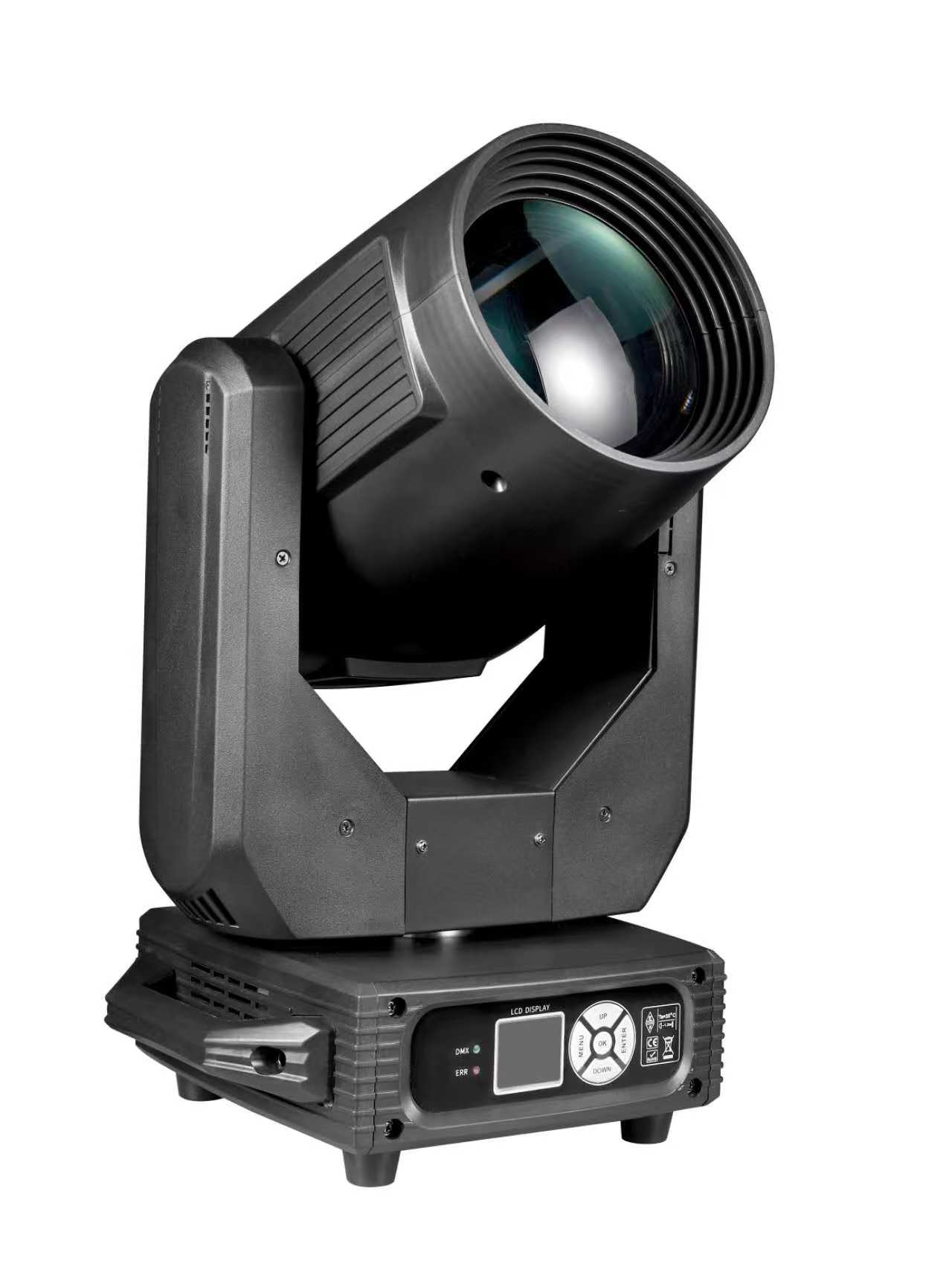

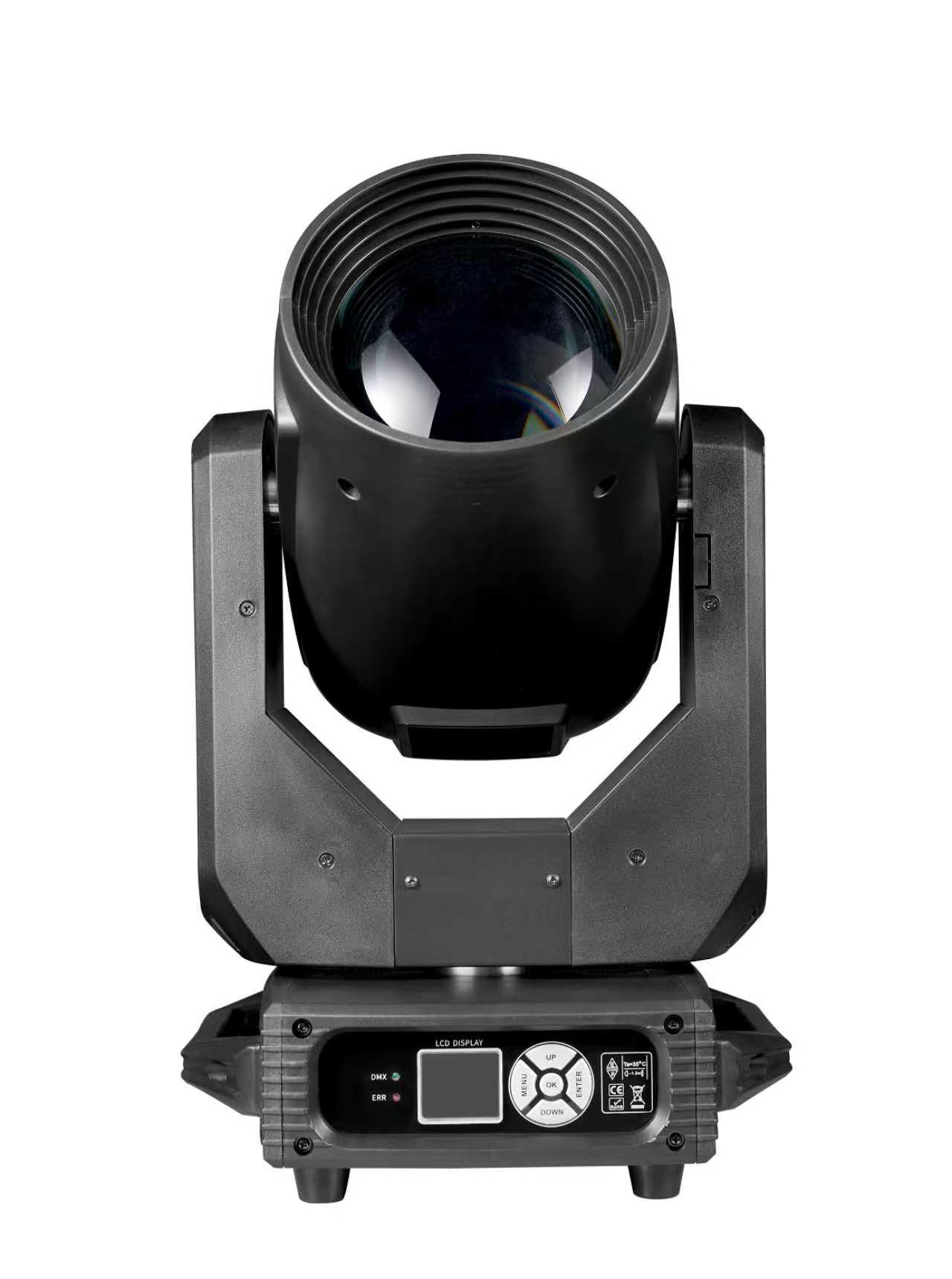

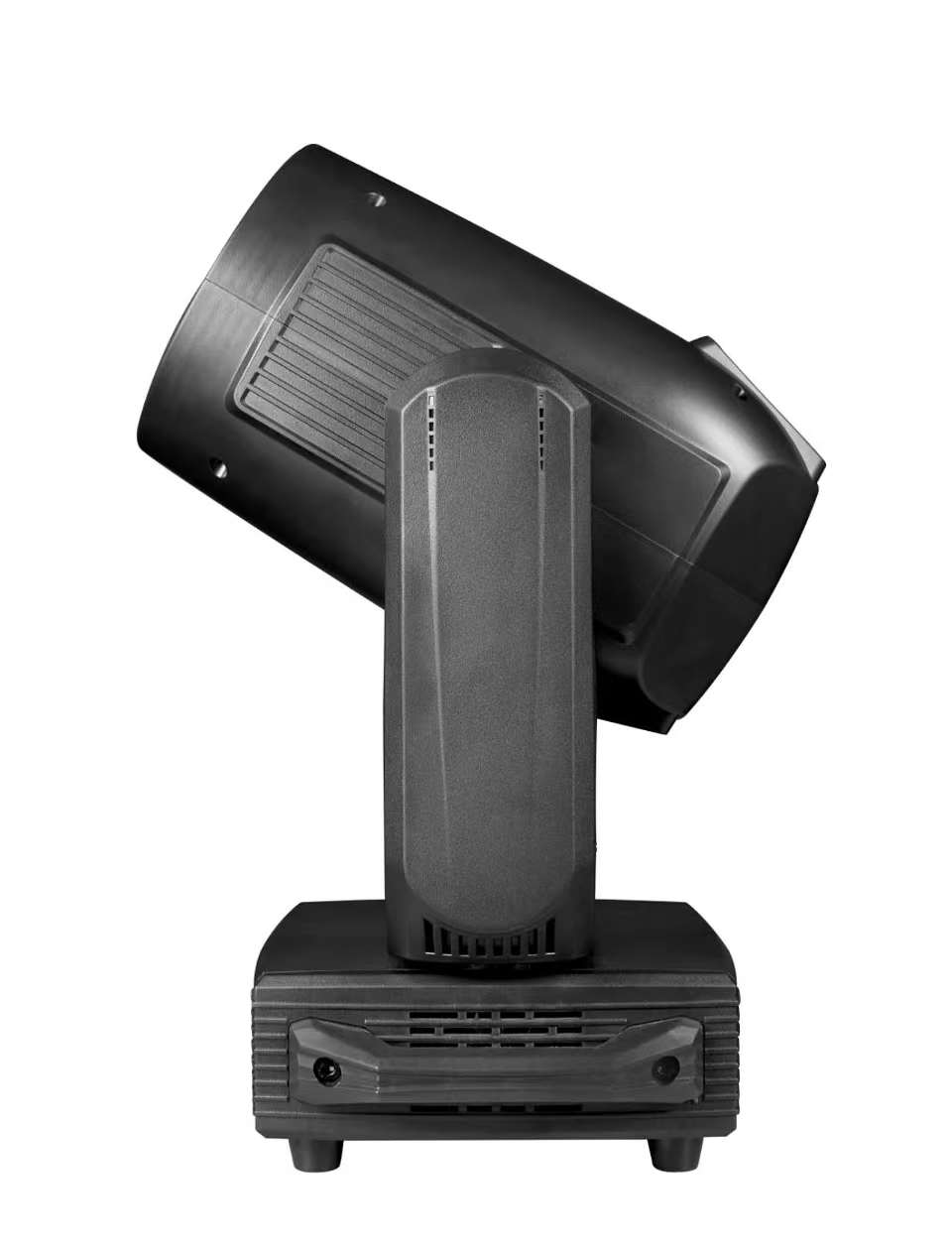

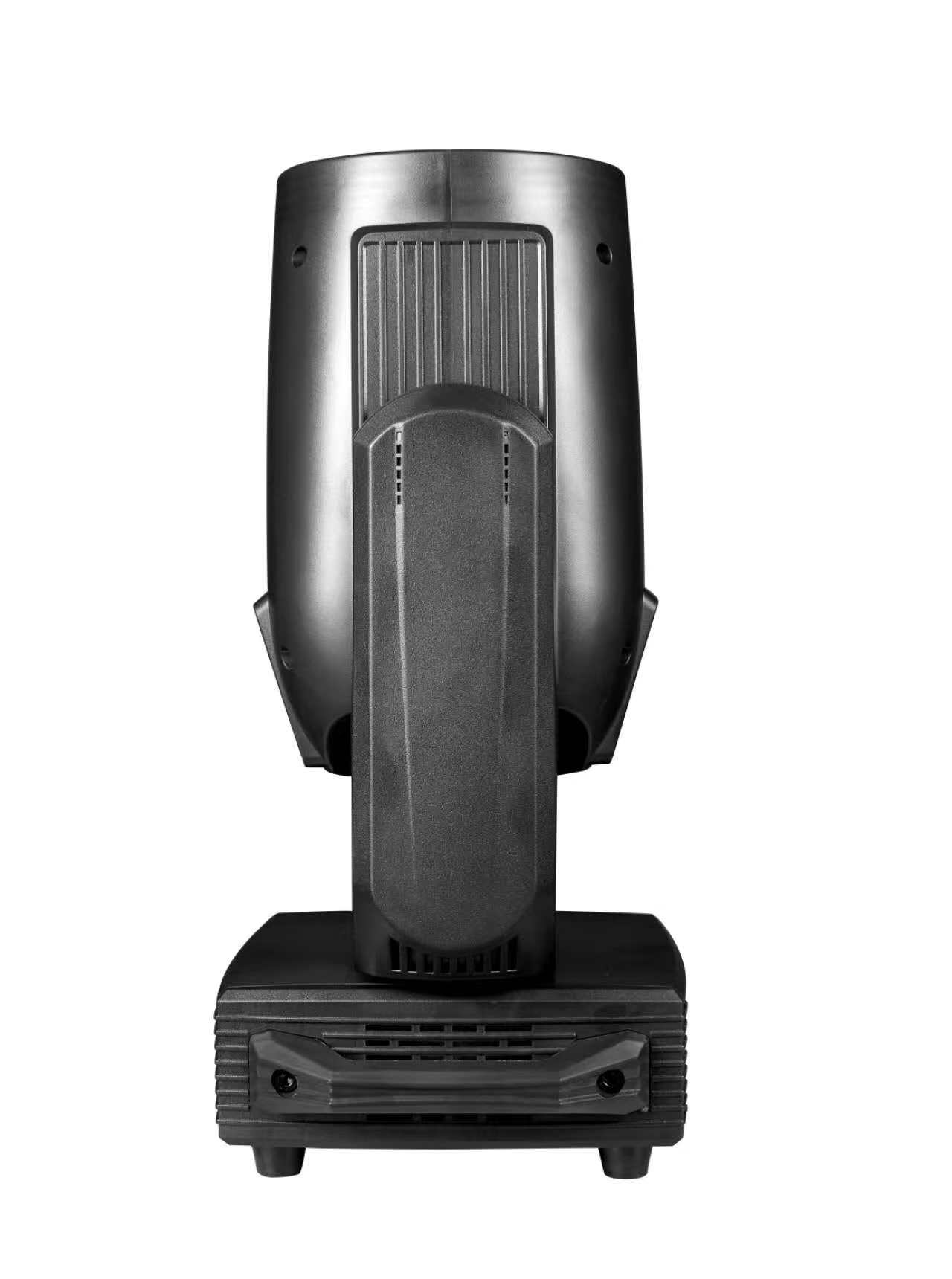

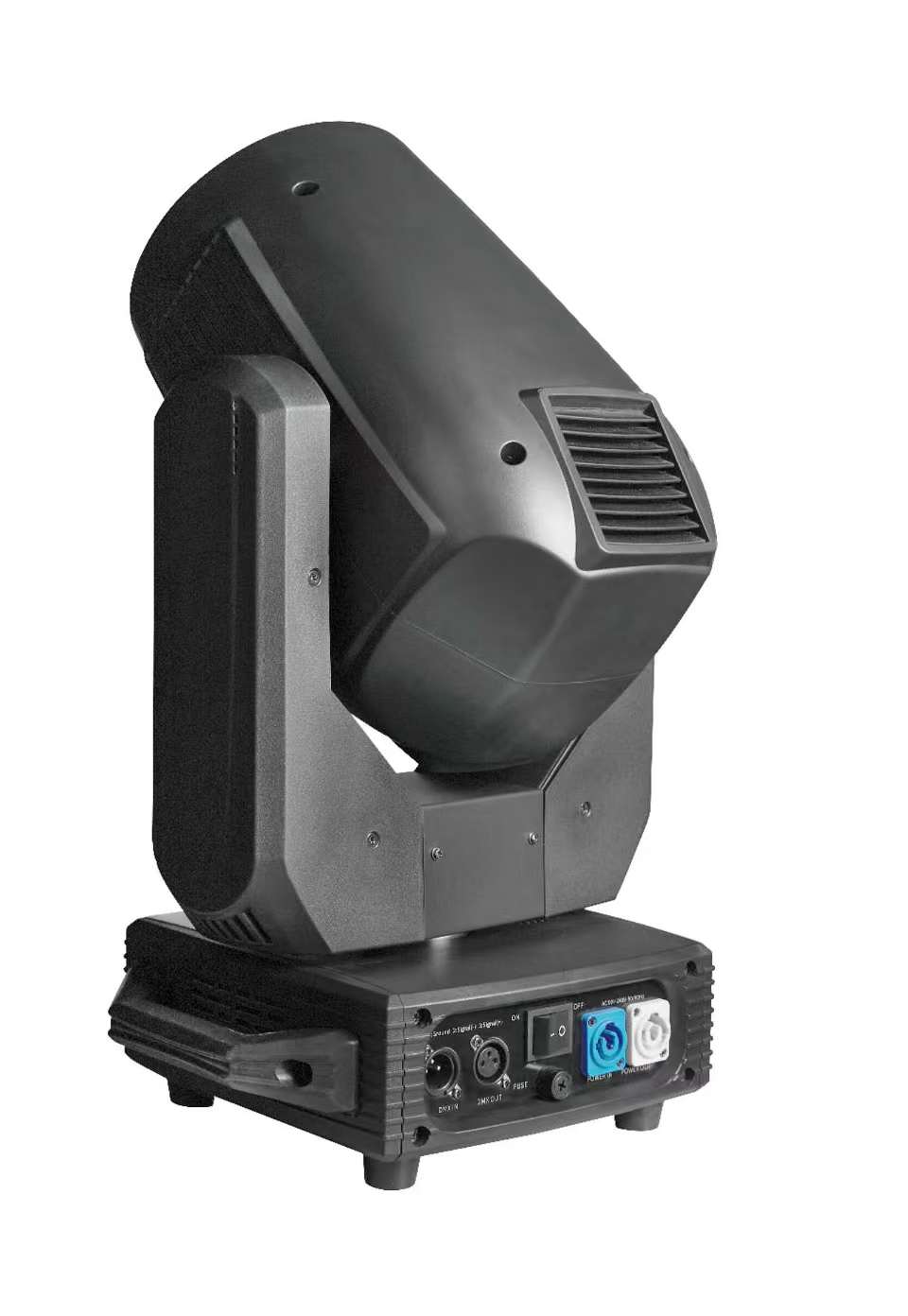

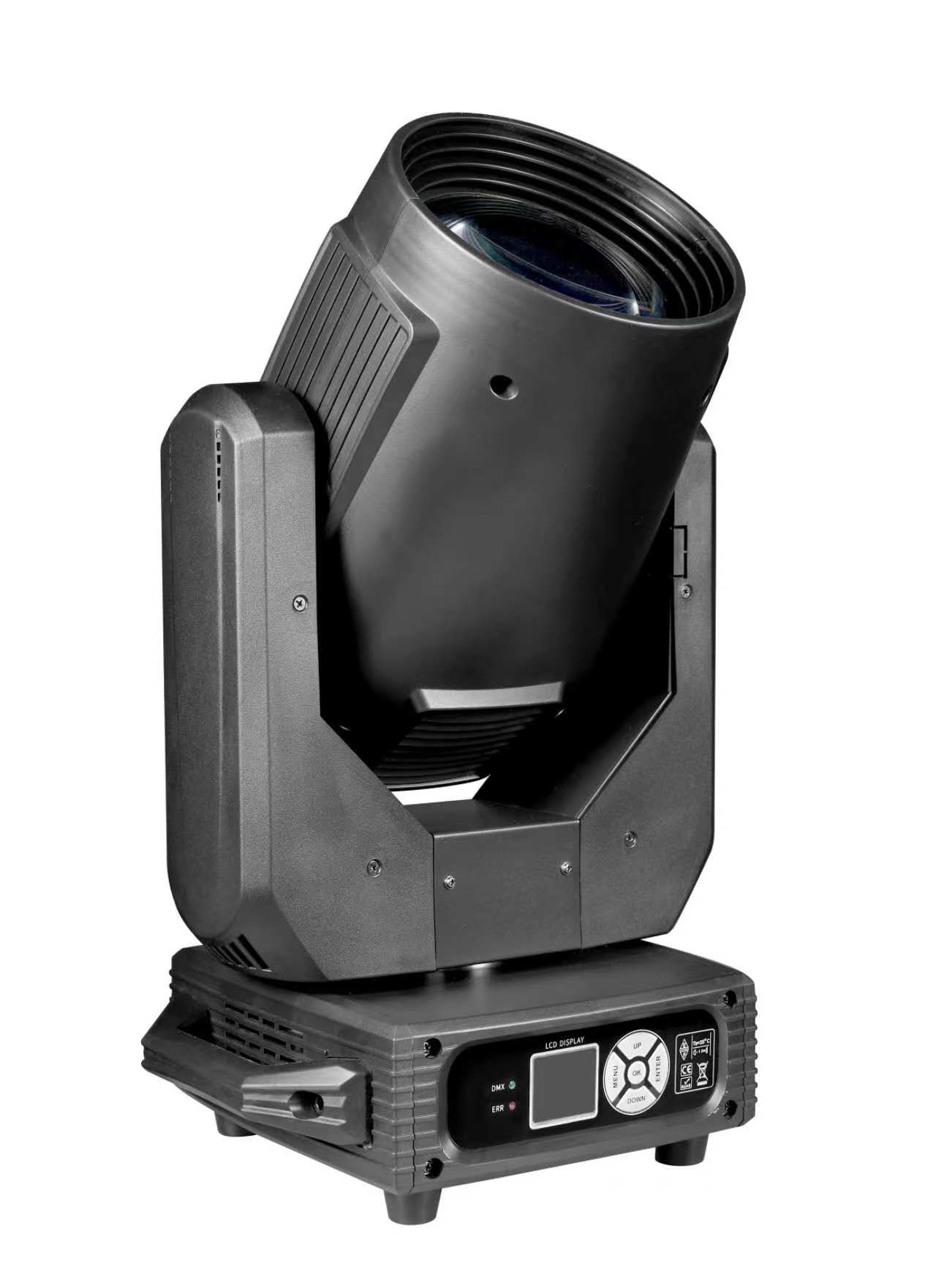

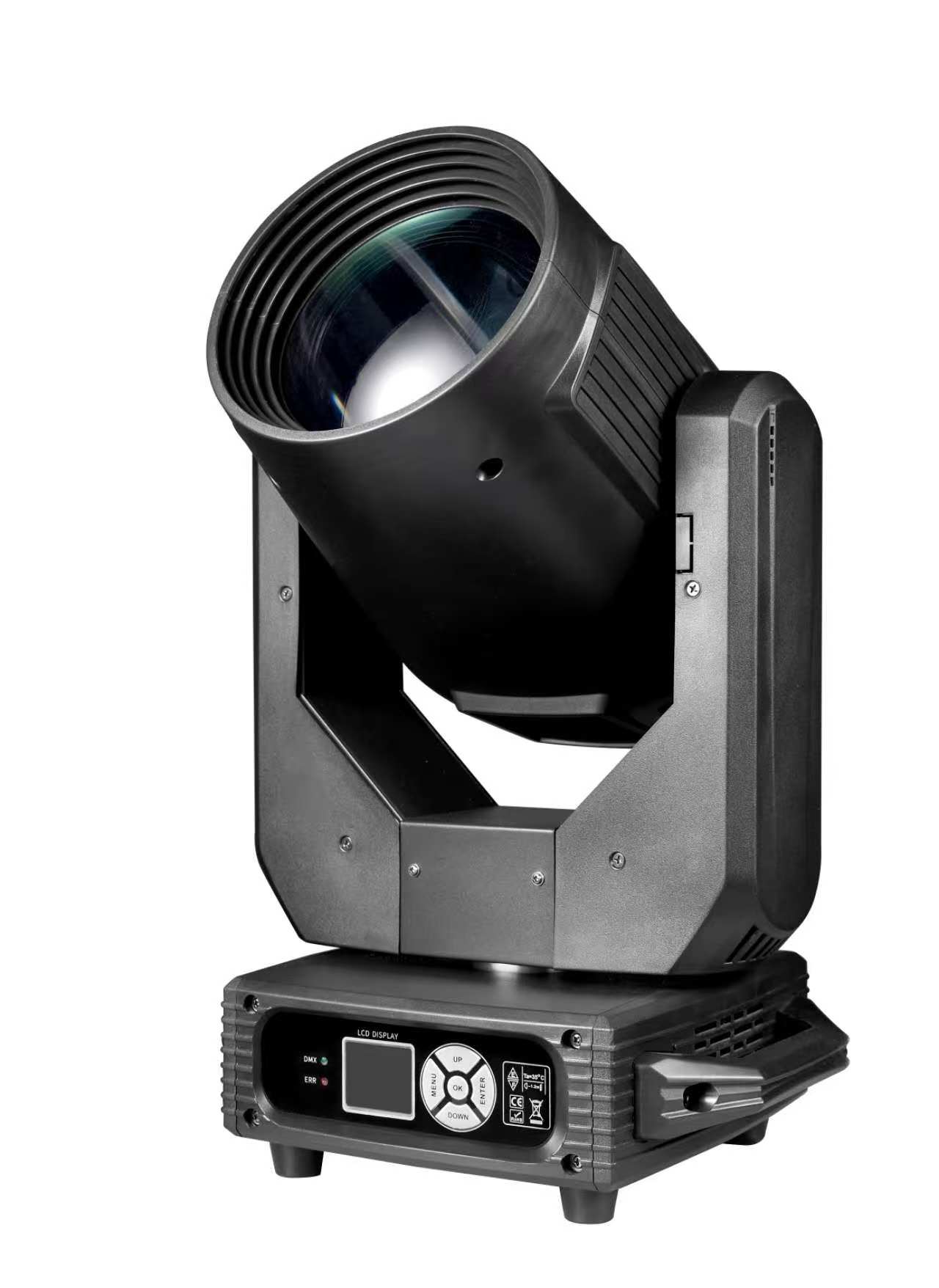

Phoenix TM300 Moving Head Beam Light
Moving Head Beam Light
The Phoenix TM300 moving head beam light in a compact 12.15 kg housing. It combines 14 colours, a six-colour effect, 13 gobos and two stackable prisms (8-facet and 8+16+24 honeycomb) with dual-motor HD focus and an integrated frost.
Pan 540° / tilt 270° with 16-bit electronic correction, variable single strobe and 0-100% dimming. DMX512 (16 channels), sound-active, auto and master-slave modes; a reversible 1.8-inch colour display for truss mounting.
Specification
| Rated power | 450W |
|---|---|
| Input voltage | AC100-240V, 50/60Hz |
| Color wheel | 14 colours + white; six-colour effect |
| Fixed gobos | 13 gobos + open |
| Prism | Two independent prisms: 8-facet + 8+16+24 honeycomb, stackable |
| Focus | Dual-motor HD focus |
| Frost | Frost and six-colour effect frame |
| Strobe | Single strobe, variable speed |
| Dimming | 0-100% linear |
| Pan / Tilt | 540° / 270°, 16-bit, electronic correction |
| Control modes | DMX512, sound-active, auto, master-slave |
| DMX channels | 16CH |
| Display | 1.8-inch colour screen, 180° reversible, English / Chinese |
| Housing | High-temperature plastic and alloy |
| Protection rating | IP20 (indoor) |
| Product size | 31 x 25 x 51 cm |
| Net weight | 12.15 kg |
| Packing size | 56 x 38 x 44 cm |
