Planning this product into your project
Start with the visual task and the distance from this fixture to the stage or subject. Compare its documented optics, movement, colour and control functions against that position in the lighting plan.
Philips TM300W Moving Head Beam Light
Moving Head Beam Light
Philips TM300W Moving Head Beam Light is a stage lighting catalogue item in the moving head beam light category. Reference specifications list rated power: 450W; light source: Philips 250W discharge lamp. Confirm the exact fixture version, specifications and current supply details before ordering.
Specification
| Rated power | 450W |
|---|---|
| Light source | Philips 250W discharge lamp |
| DMX channels | 16CH DMX512 |
| Movement | Pan 540 degrees / tilt 270 degrees / fine channels |
| Product | Philips TM300W Moving Head Beam Light |
| Input voltage | AC100-220V, 50/60Hz |
| Control modes | DMX512 / sound / auto / master-slave |
| Color wheel | 14 colors + white |
| Fixed gobos | 13 fixed gobos + open |
| Prism system | Two independent wheels: 8-facet + honeycomb; overlay |
| Frost / color effect | Frost insertion on CH8; color effect on CH15 |
| Focus | Motorized focus |
| Dimming / strobe | 0-100% dimming; variable and random strobe |
| Protection | IP20, professional indoor use |
| Lamp control | Lamp off, lamp on and full motor reset on CH16 |
| Electrical protection | Use a grounded supply. Rated current and fuse value must follow the product nameplate; the fuse holder is on the rear power p anel. |
Product details
Product configuration
- Movement
- Pan 540 degrees / tilt 270 degrees / fine channels
- Product
- Philips TM300W Moving Head Beam Light
- Focus
- Motorized focus
- Dimming / strobe
- 0-100% dimming; variable and random strobe
Optical performance
- Rated power
- 450W
- Light source
- Philips 250W discharge lamp
- Color wheel
- 14 colors + white
- Fixed gobos
- 13 fixed gobos + open
- Prism system
- Two independent wheels: 8-facet + honeycomb; overlay
- Frost / color effect
- Frost insertion on CH8; color effect on CH15
Control and connections
- DMX channels
- 16CH DMX512
- Input voltage
- AC100-220V, 50/60Hz
- Control modes
- DMX512 / sound / auto / master-slave
- Lamp control
- Lamp off, lamp on and full motor reset on CH16
Construction and dimensions
- Protection
- IP20, professional indoor use
- Electrical protection
- Use a grounded supply. Rated current and fuse value must follow the product nameplate; the fuse holder is on the rear power p anel.
What to confirm for your quotation
- Provide the throw distance, mounting height and beam or coverage required.
- Confirm the exact light source, optical functions and channel mode for the quoted variant.
- Request relevant photometric data and a demonstration using the intended colour and zoom settings.
- Check power, connectors, weight, protection rating and the included mounting accessories.

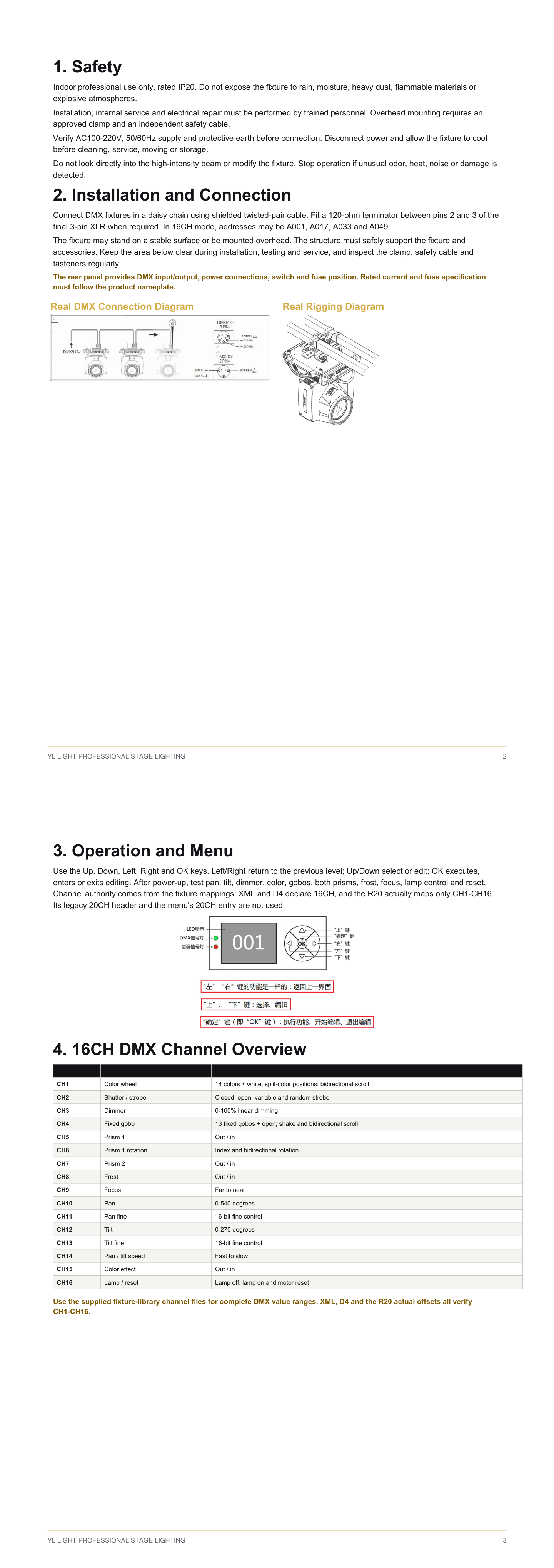

Product setup and control reference — pages 2–3
Model-specific setup, control and technical reference pages. Follow the verification notes shown in the guide; unconfirmed modes, ratings and installation data are not a final specification for the supplied fixture. Download the full reference guide for readable tables and all stated limitations.

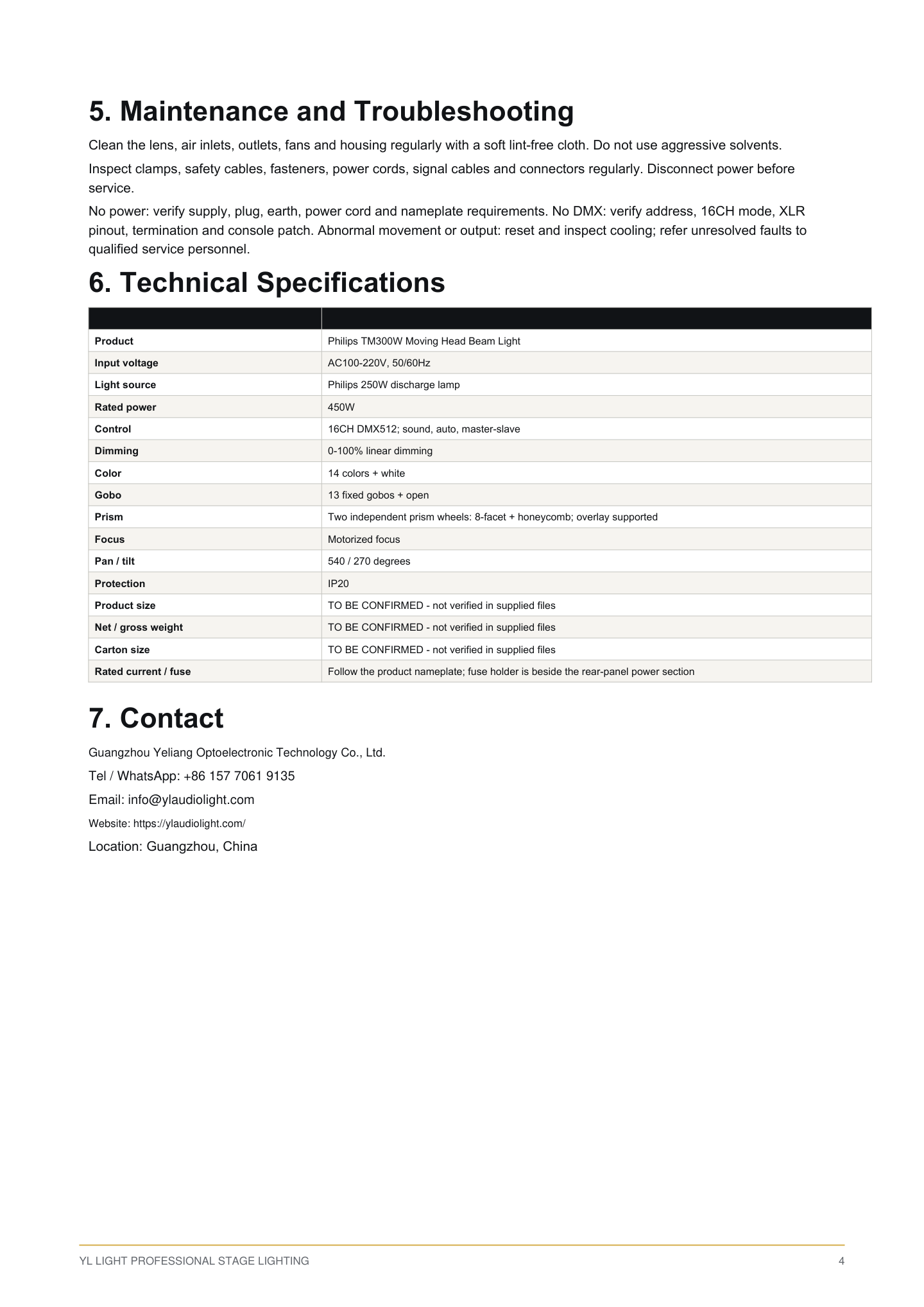

Product setup and control reference — pages 4–4
Model-specific setup, control and technical reference pages. Follow the verification notes shown in the guide; unconfirmed modes, ratings and installation data are not a final specification for the supplied fixture. Download the full reference guide for readable tables and all stated limitations.
