NXL 44-A MK2 Active Column Array Loudspeaker

Column Loudspeakers

Request a quote

Tell us about your project and the products you need.

Get the product catalogue

Tell us which models you need. Our team will confirm the available catalogue and documents.

DOWNLOAD FILE
WHATSAPPRequest a QuoteColumn Loudspeakers

Specification

NXL 44-A MK2 Active Column Array Loudspeaker — Specification
TypeActive two-way column array loudspeaker
Frequency response45 Hz - 20 kHz
Maximum SPL135 dB @ 1 m
Coverage100 deg x 25 deg
TransducersLF: 3 x 10 in neodymium woofers; HF: 1 x 1.4 in neo compression driver
AmplifierBuilt-in 2100 W peak Class-D amplifier
Dimensions1080 x 297.5 x 373 mm
Weight33.4 kg / 73.63 lb
Applicationsstand-alone reinforcement, pole or sub-mounted deployment, flown systems and fixed installation.

Product details

Product identification

Model
NXL 44-A MK2 Active Column Array Loudspeaker
Product category
Column Loudspeakers

Technical specifications

Type
Active two-way column array loudspeaker
Frequency response
45 Hz - 20 kHz
Maximum SPL
135 dB @ 1 m
Coverage
100 deg x 25 deg
Transducers
LF: 3 x 10 in neodymium woofers; HF: 1 x 1.4 in neo compression driver
Amplifier
Built-in 2100 W peak Class-D amplifier

Physical specifications

Dimensions
1080 x 297.5 x 373 mm
Weight
33.4 kg / 73.63 lb

Compatibility and deployment

Applications: stand-alone reinforcement, pole or sub-mounted deployment, flown systems and fixed installation.

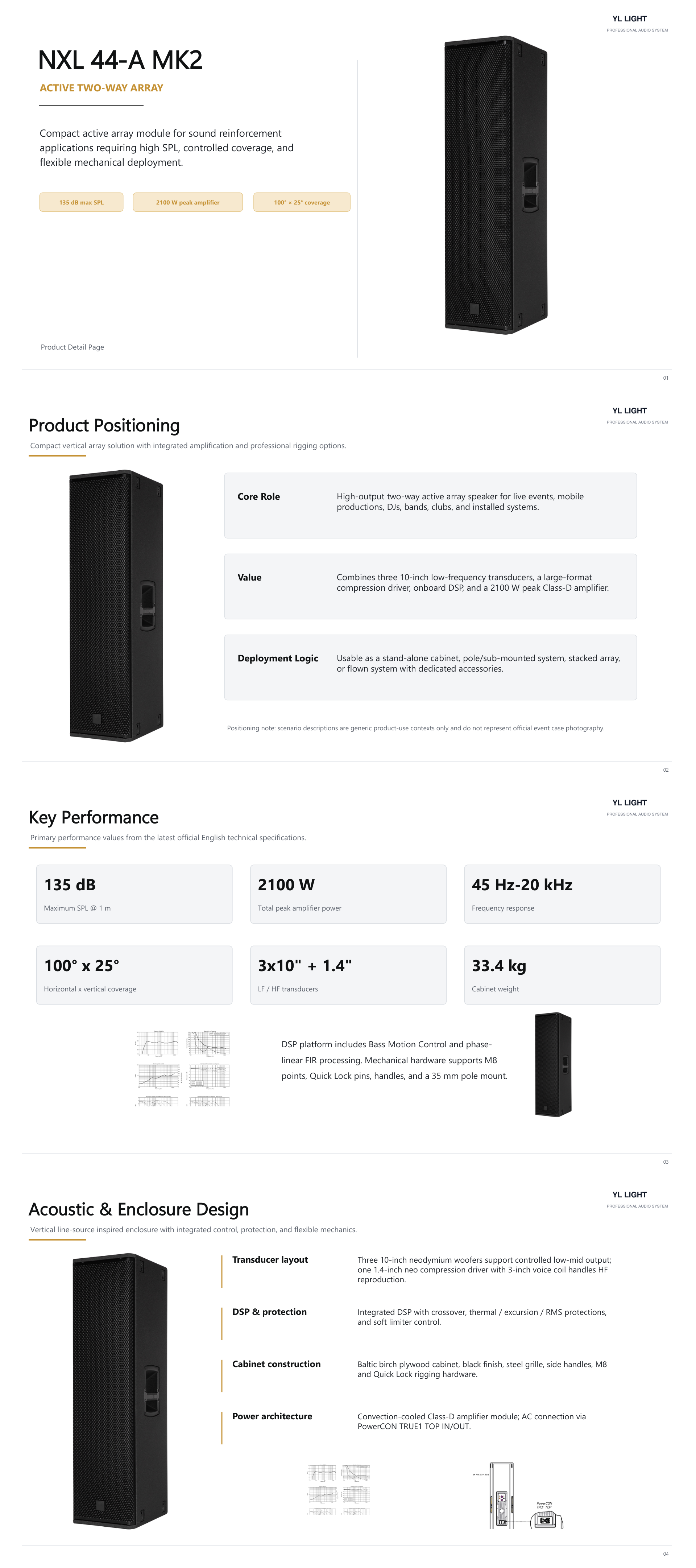

NXL-44-A-MK2 illustrated product details, pages 1 to 4

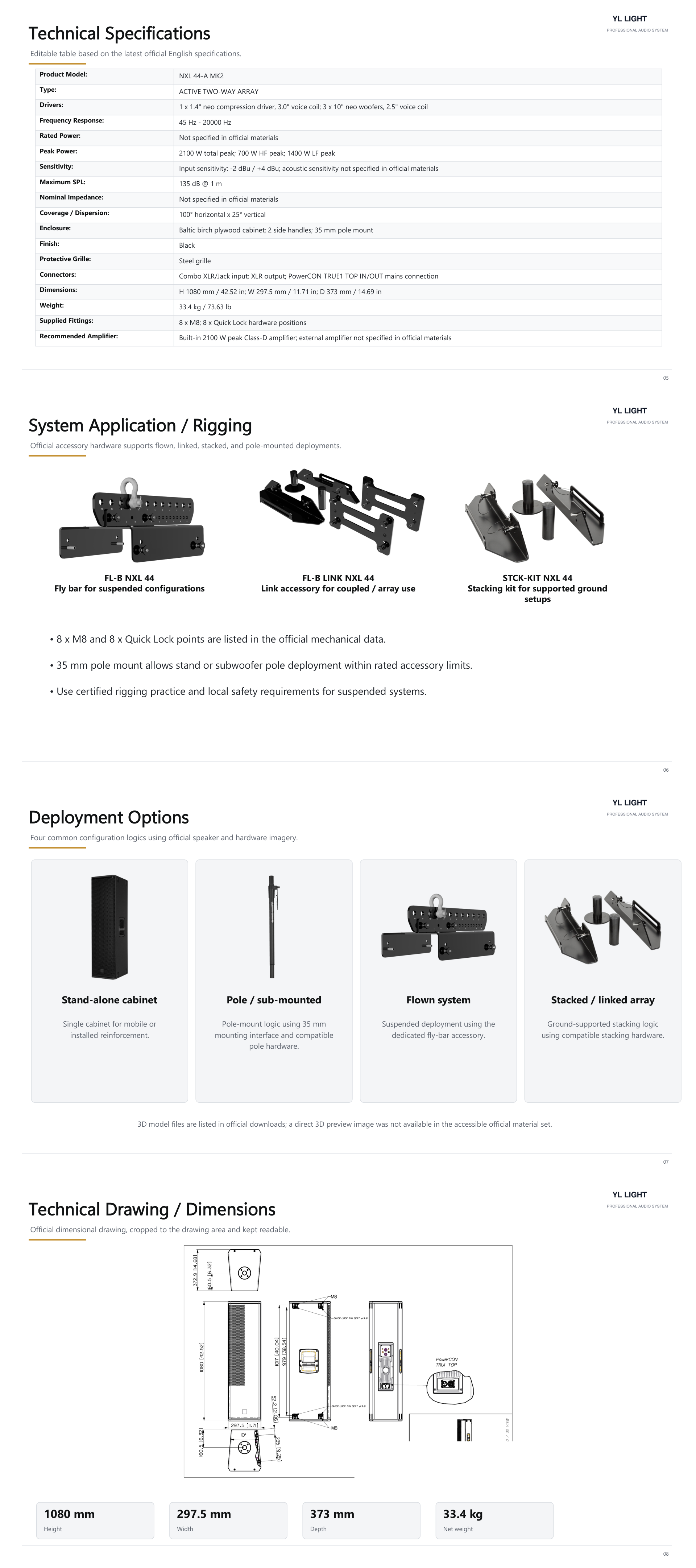

NXL-44-A-MK2 illustrated product details, pages 5 to 8

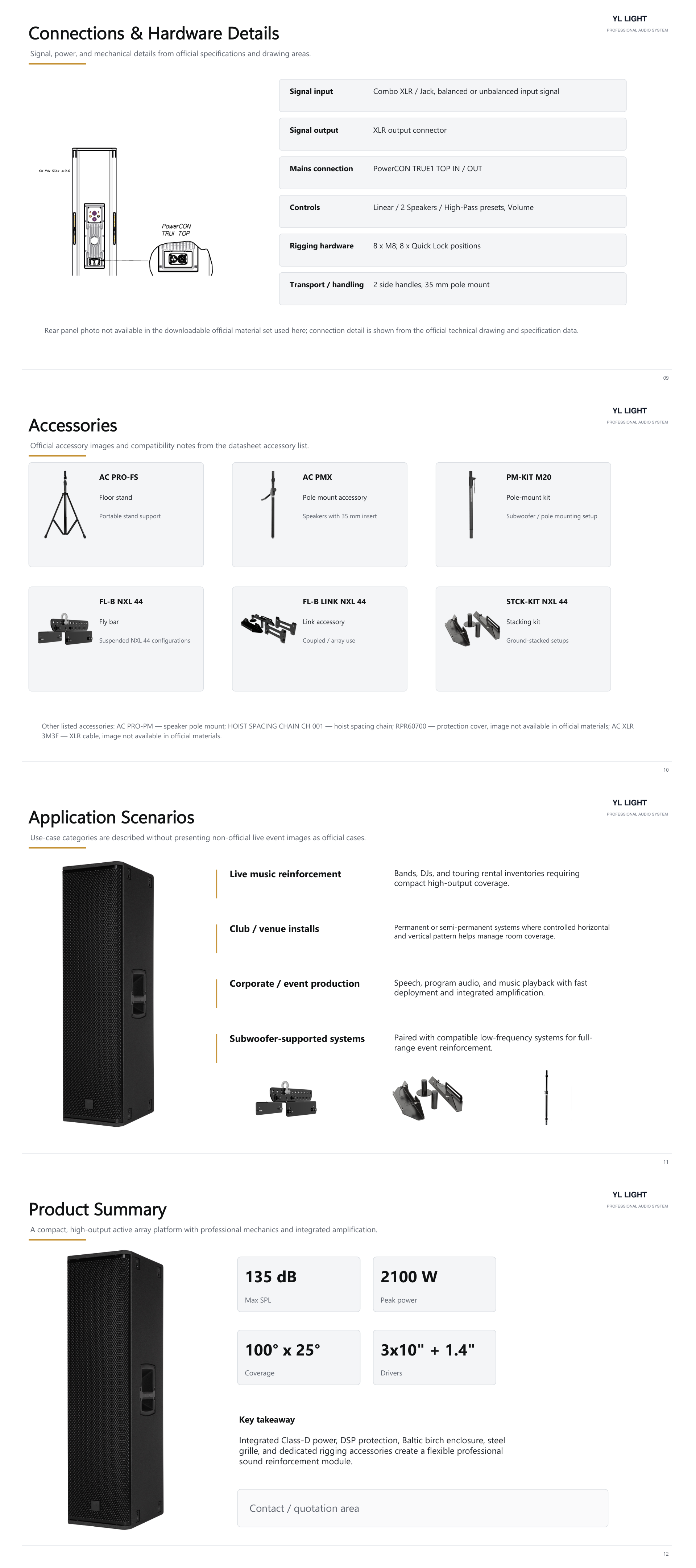

NXL-44-A-MK2 illustrated product details, pages 9 to 12

Download

YL NXL 44-A MK2 Selected Technical DataEnglishPDFNXL-44-A-MK2 Illustrated Product Guide (12 pages)EnglishPDF
