24 x 3W LED Strobe Panel with RGB and White Auxiliary Pixels
LED Strobe Light

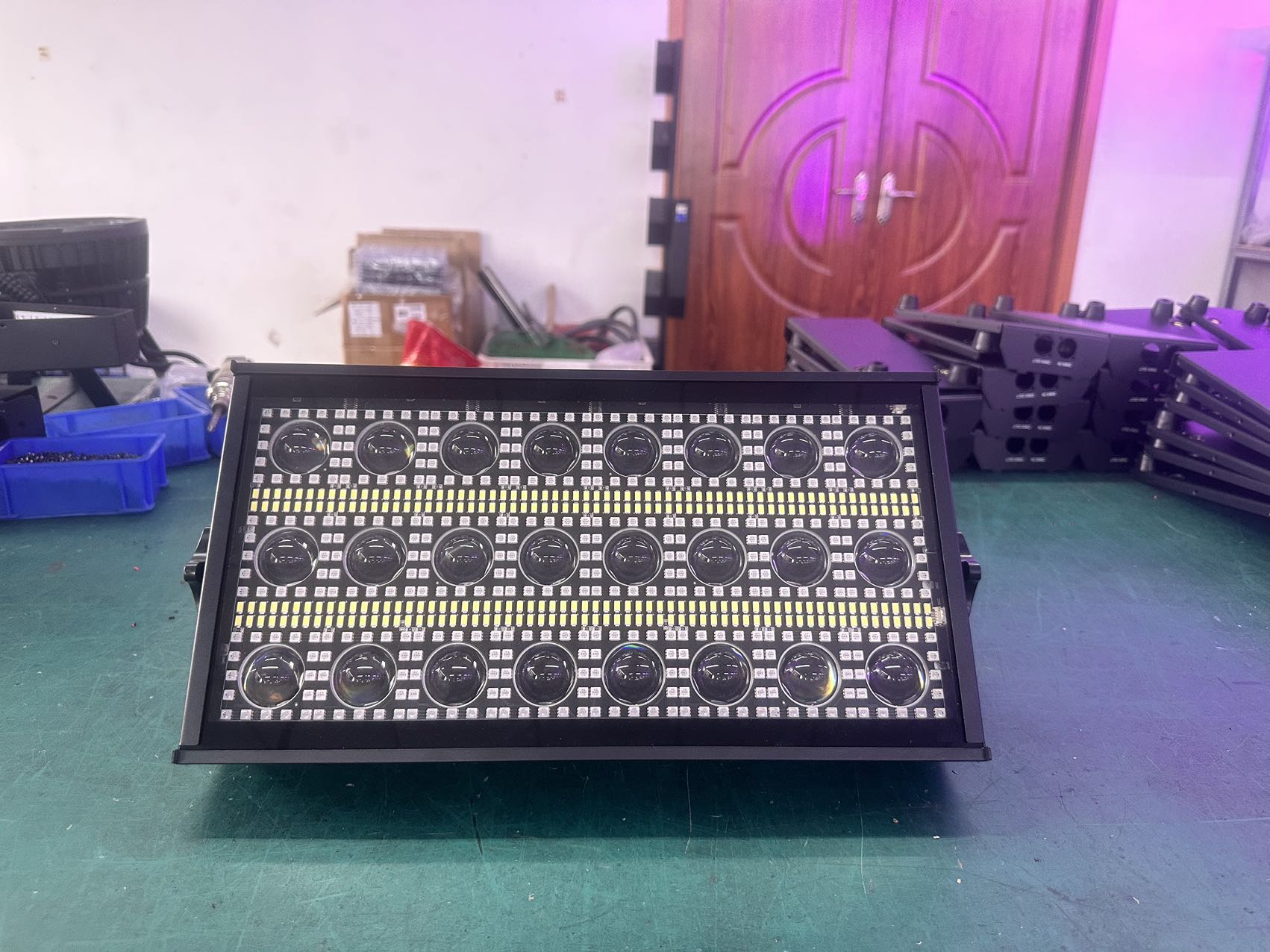

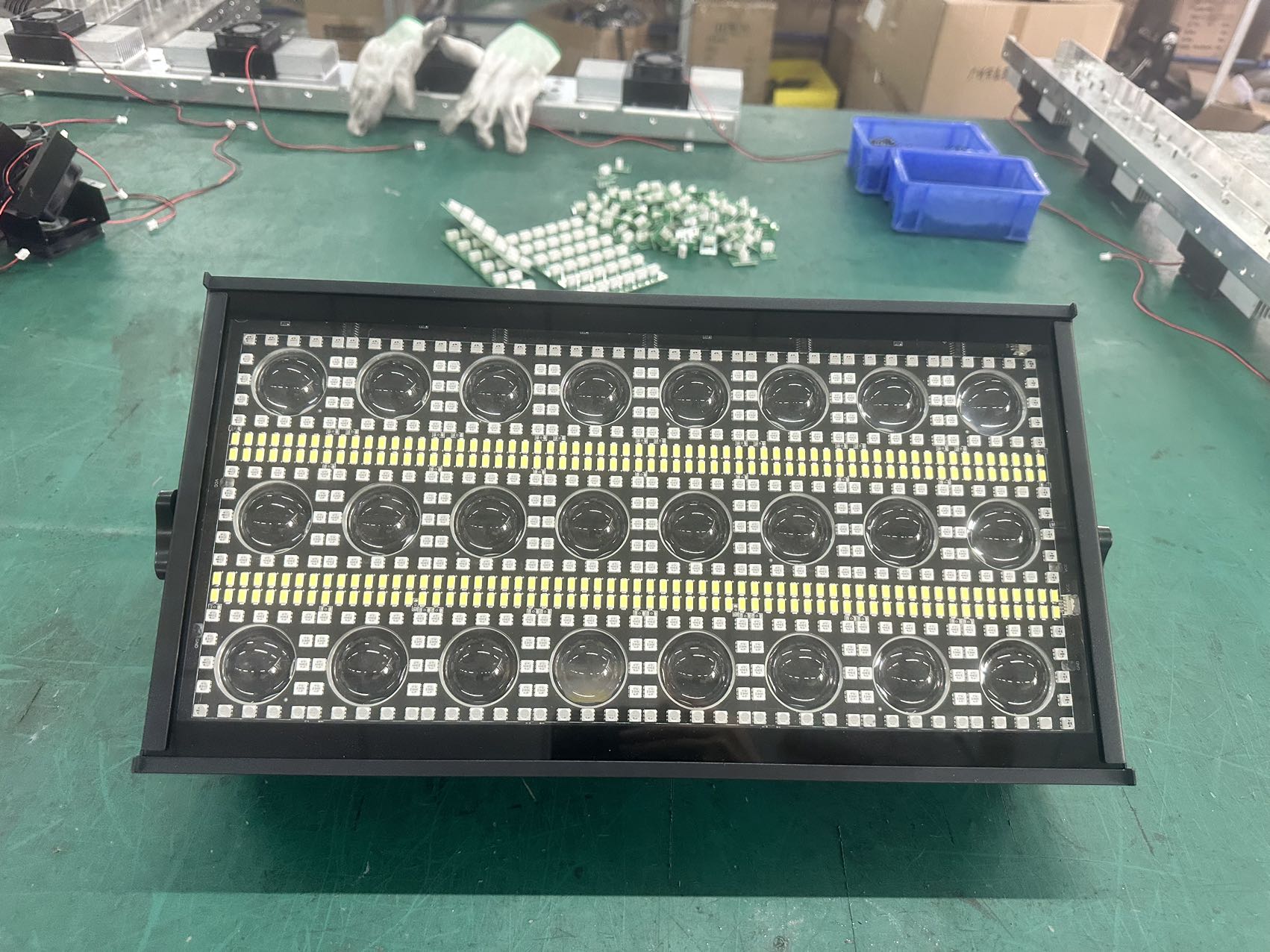

A 4-in-1 LED strobe panel with 24 x 3W cool-white strobe cells, 384 RGB pixels and 256 white pixels, each point-controllable in zones. It fires white strobe hits, colour washes and running pixel effects from one 3.7 kg panel.
32-bit linear dimming, 1-30 Hz strobe and DMX512 in 5, 10, 128 or 138 channels, plus auto and master-slave modes. 140W (use a power supply of at least 180W).
Specification
| Light source | 24 x 3W 3535 cool-white LEDs + 384 x 0.2W 5050 RGB LEDs + 256 x 0.5W 5730 white LEDs |
|---|---|
| Rated power | 140W (minimum power supply 180W) |
| Input voltage | AC100-240V, 50/60Hz |
| Pixel control | Point and zone control of every LED |
| Dimming | 32-bit, 0-100% linear |
| Strobe | 1-30 Hz |
| Control modes | DMX512, auto, master-slave |
| DMX channels | 5 / 10 / 128 / 138CH |

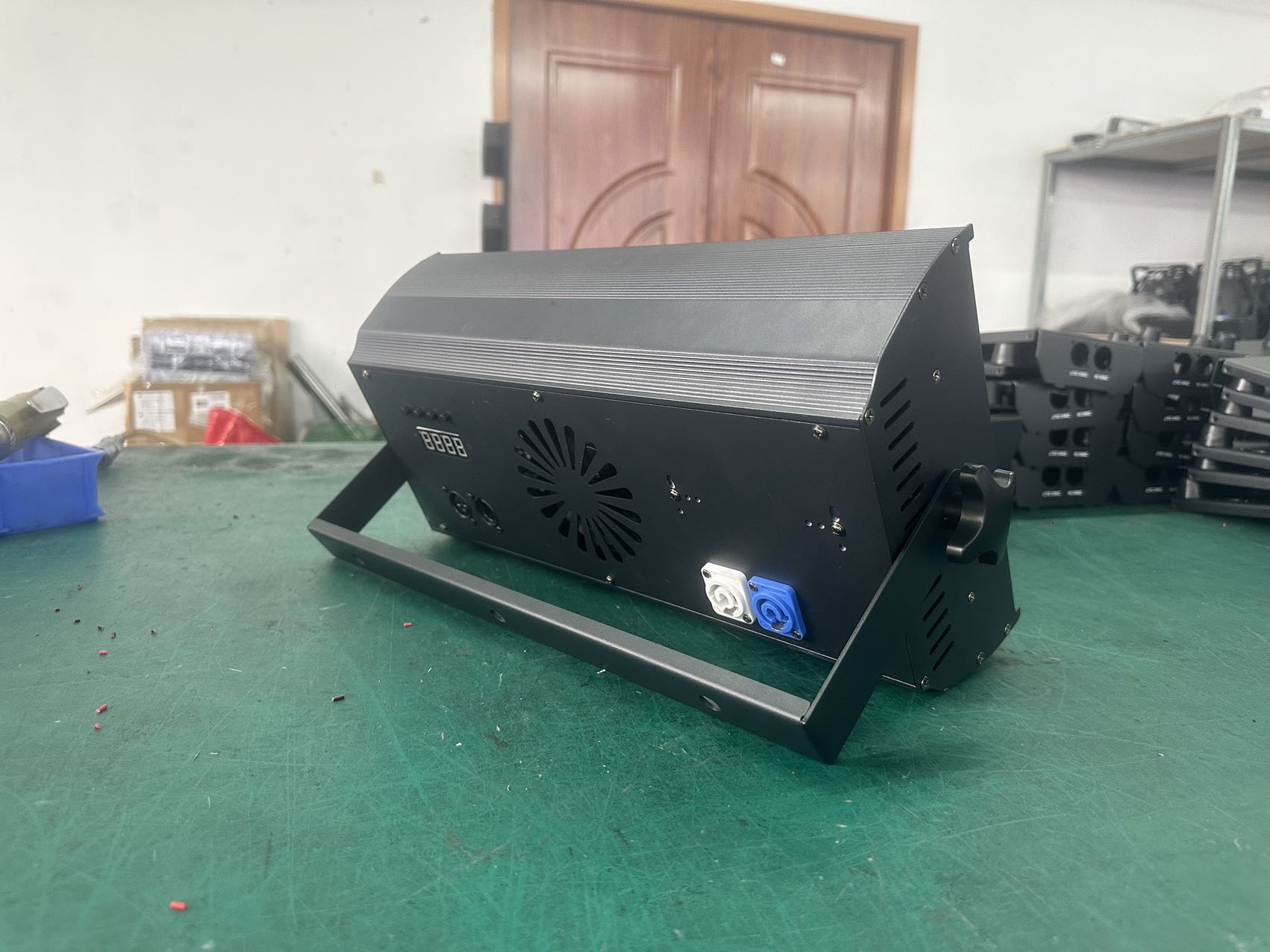

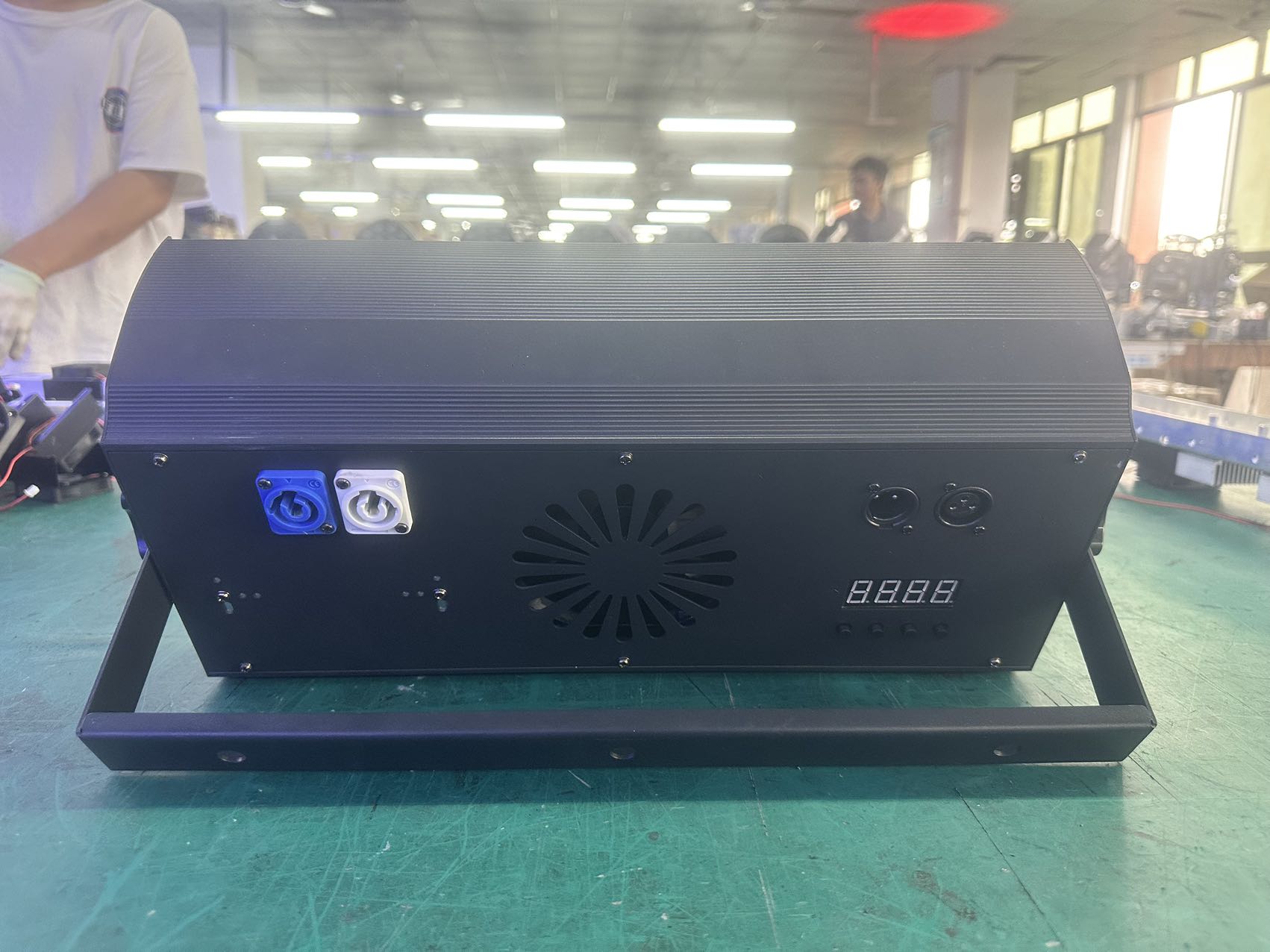

| Connections | DMX in / out, power in / out |
| Housing | Metal, black |
| Protection rating | IP20 (indoor) |
| Operating temperature | -30°C to 50°C |

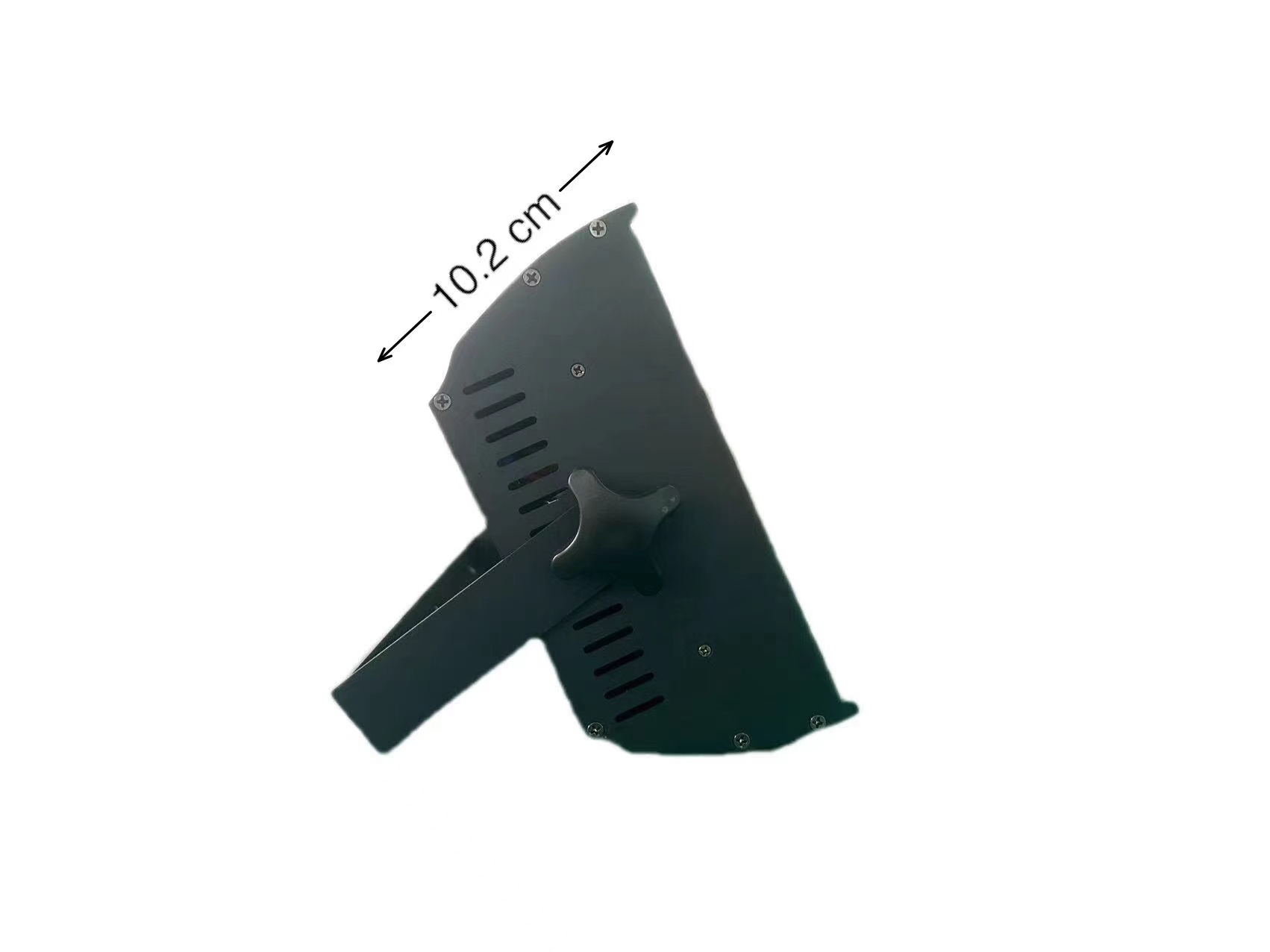

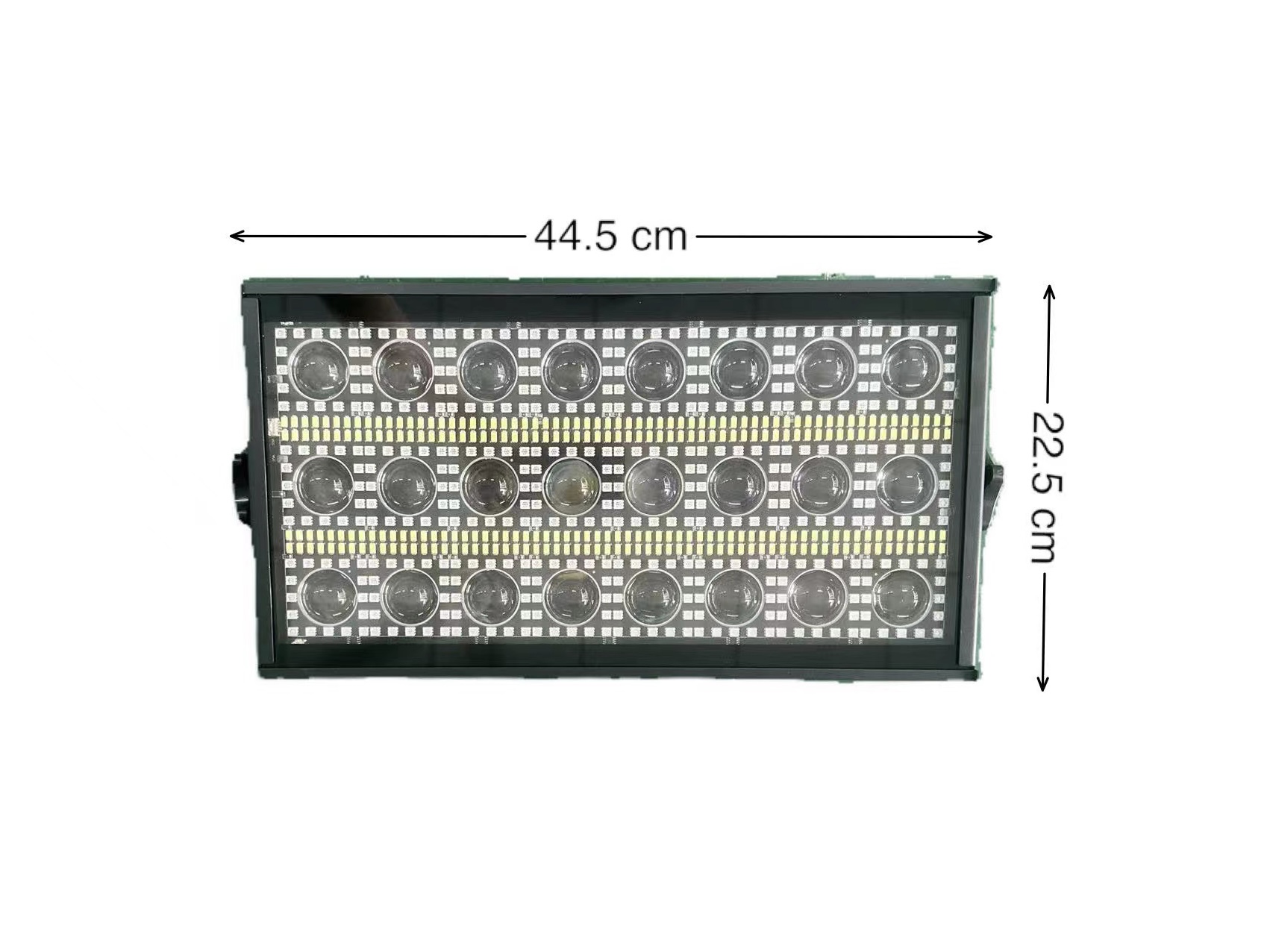

| Product size | 44.5 x 22.5 x 10.2 cm |
| Net weight | 3.7 kg |
