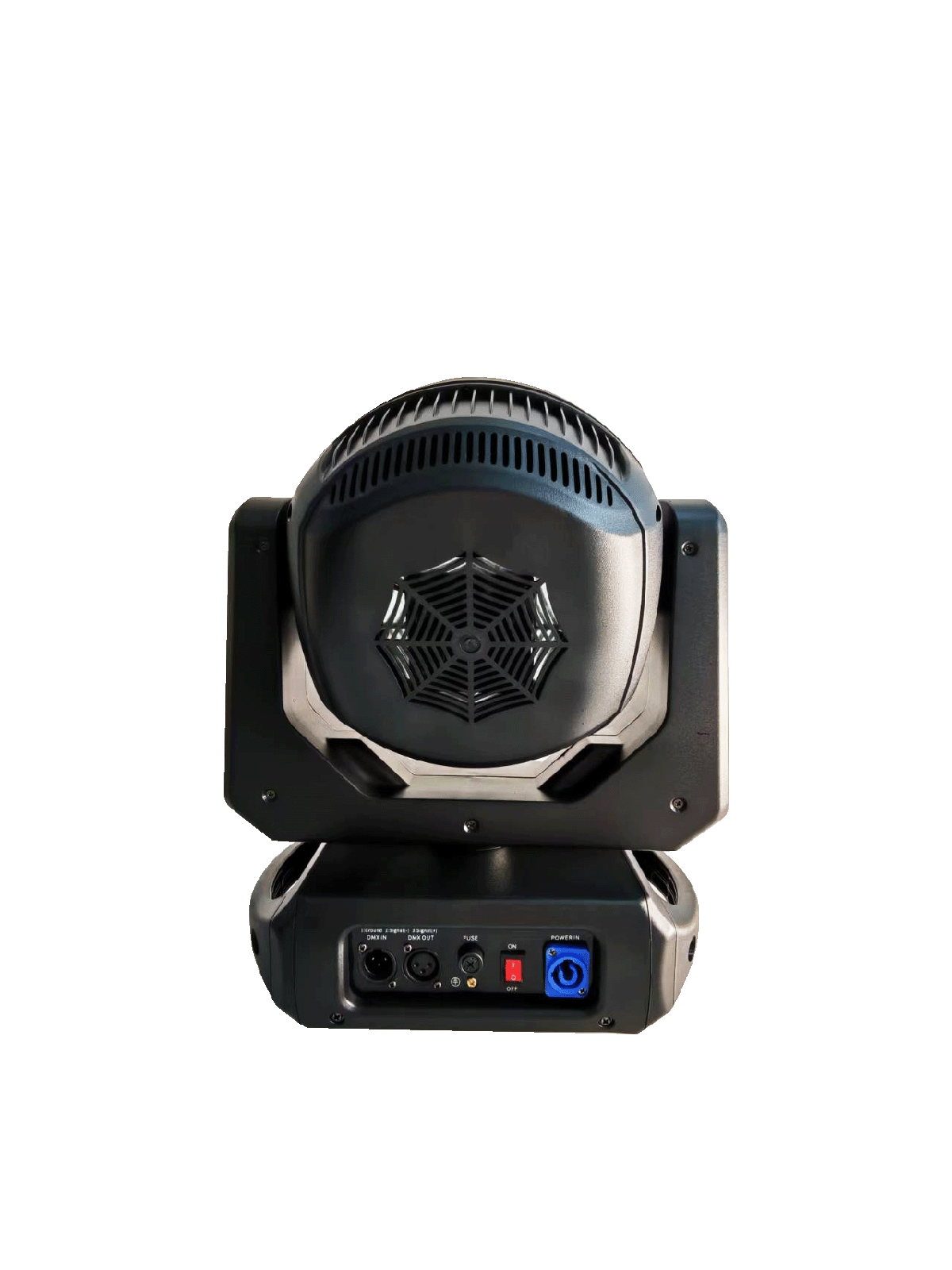

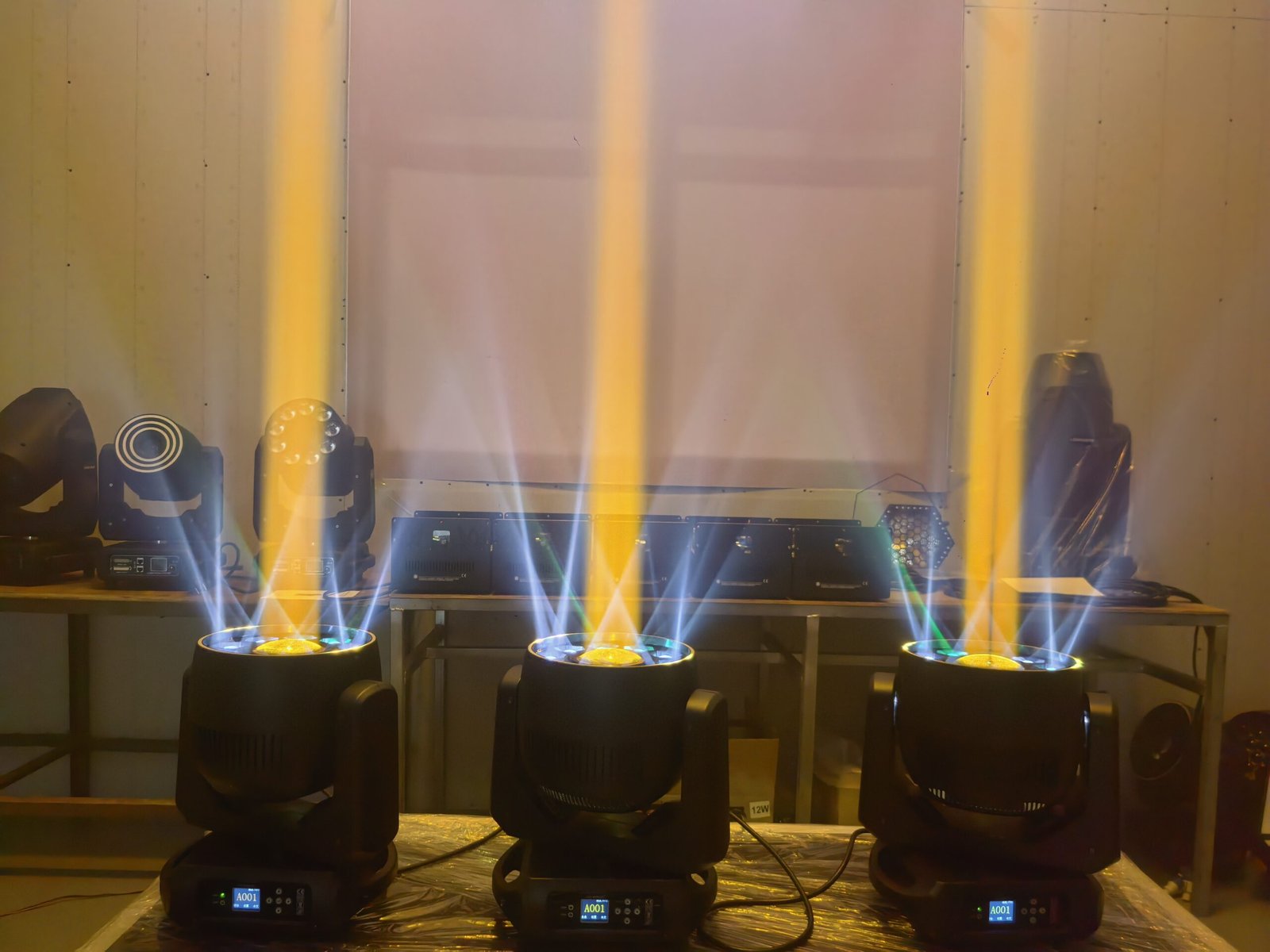

Beacon Effect Light
A multi-source effect fixture with ten 20W RGBW emitters, an additional 80W source and DMX512 / RDM control.
WHATSAPPRequest a Quote- Maximum power consumption
- 300 W
- Beam angle
- 3.5°
- Golden beam angle
- 5.5°
TECHNICAL REFERENCE
Product specifications.
Published product details. Ask our team about any configuration that is not listed.
| Power input | AC 220 V, 50 Hz |
|---|---|
| Maximum power consumption | 300 W |
| Light sources | 10 × 20 W RGBW + 1 × 80 W |
| Light source life | Average 50,000 hours |
| Beam angle | 3.5° |
| Golden beam angle | 5.5° |
| Dimming | 0–100% |
| Strobe | 25 flashes per second |
| Control | DMX512 / RDM, master-slave, auto, sound |
| DMX channels | 22 / 28 / 64 |
| Cooling | Air-cooled |
| Housing | Aluminium, black |
| Protection rating | IP20 |
| Operating temperature | −20 to 50 °C |
| Connections | DMX512 input / output; power input / output |
Downloads
Product documents are being prepared. Contact YL for the current information for Beacon Effect Light.
Request product documentsSystem accessories
Contact YL to confirm the available accessories and the exact configuration for Beacon Effect Light.
Ask about compatible accessoriesProduct videos
