Product identification
- Model
- V7P–V210PF
- Product category
- Point sources

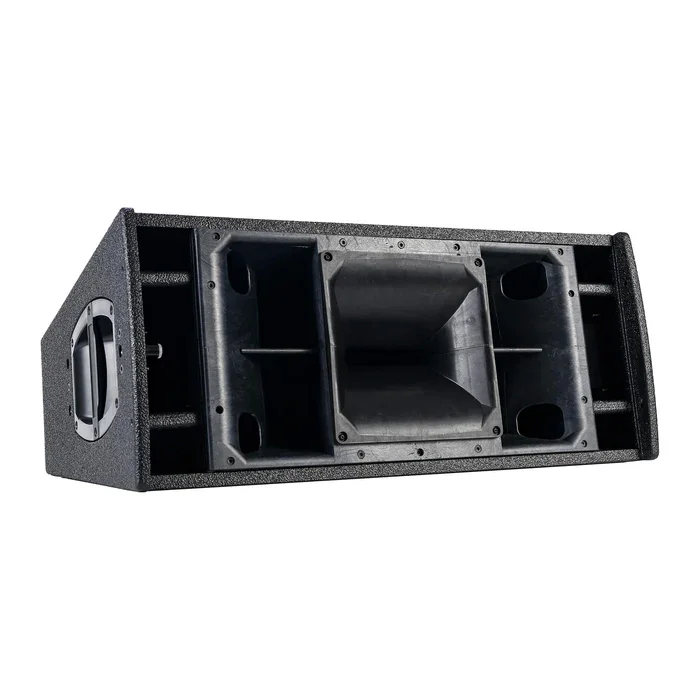

V7P–V210PF
A 3-way passive point source loudspeaker with dual 10-inch low-frequency drivers.
WHATSAPPRequest a Quote- Maximum SPL
- 143 dB
- Bandwidth (−5 dB)
- 59 Hz – 18 kHz
- Weight
- 33 kg / 73 lb
Technical specifications
- Configuration
- Point source loudspeaker, 3-way passive
- Maximum SPL
- 143 dB
- Bandwidth (−5 dB)
- 59 Hz – 18 kHz
- Low-frequency drivers
- 2 × 10″
- Mid-frequency drivers
- 1 × 8″
- High-frequency drivers
- 2 × 1.4″ compression drivers
- Coverage / directivity
- V210PF H: 75° | V210PW H: 110° | V: 40°
- Nominal impedance
- 8 Ω
- Power handling
- 800 W AES / 1600 W Program / 3200 W Peak
Physical specifications
- Weight
- 33 kg / 73 lb
- Dimensions (H × W × D)
- 580 × 370 × 600 mm
Compatibility and deployment
- Function / configuration
- A 3-way passive point source loudspeaker with dual 10-inch low-frequency drivers.
- Function / configuration
- 3-way point source loudspeaker
TECHNICAL REFERENCE
Product specifications.
Published product details. Ask our team about any configuration that is not listed.
| Configuration | Point source loudspeaker, 3-way passive |
|---|---|
| Maximum SPL | 143 dB |
| Bandwidth (−5 dB) | 59 Hz – 18 kHz |
| Low-frequency drivers | 2 × 10″ |
| Mid-frequency drivers | 1 × 8″ |
| High-frequency drivers | 2 × 1.4″ compression drivers |
| Weight | 33 kg / 73 lb |
| Coverage / directivity | V210PF H: 75° | V210PW H: 110° | V: 40° |
| Dimensions (H × W × D) | 580 × 370 × 600 mm |
| Nominal impedance | 8 Ω |
| Power handling | 800 W AES / 1600 W Program / 3200 W Peak |
Downloads
Product documents are being prepared. Contact YL for the current information for V7P–V210PF.
Request product documentsSystem accessories
Contact YL to confirm the available accessories and the exact configuration for V7P–V210PF.
Ask about compatible accessoriesProduct videos
Ask for an available demonstration of V7P–V210PF and the configuration you need.
