Product identification
- Model
- Y118SUB Compact Cardioid Subwoofer
- Product category
- Subwoofer Systems

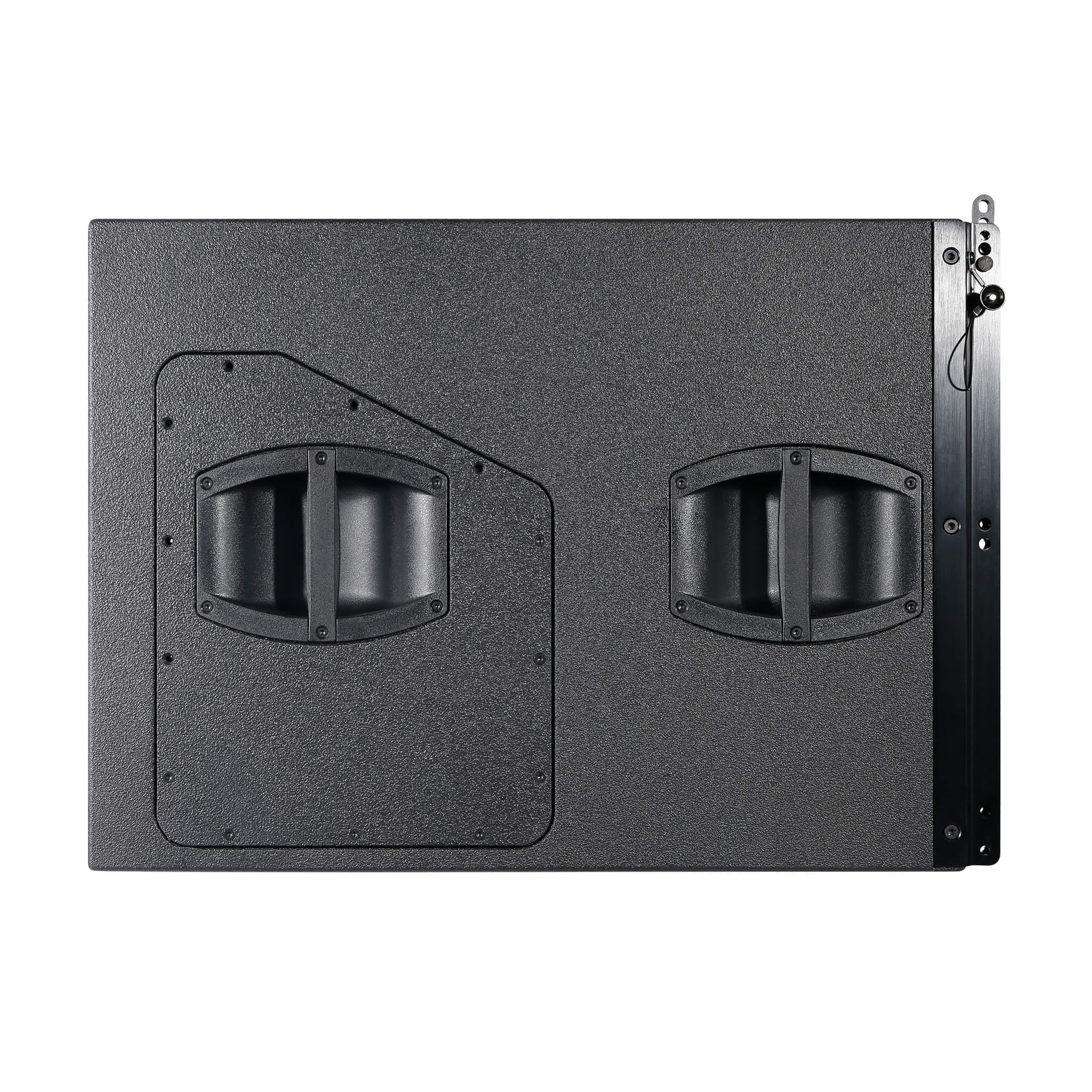

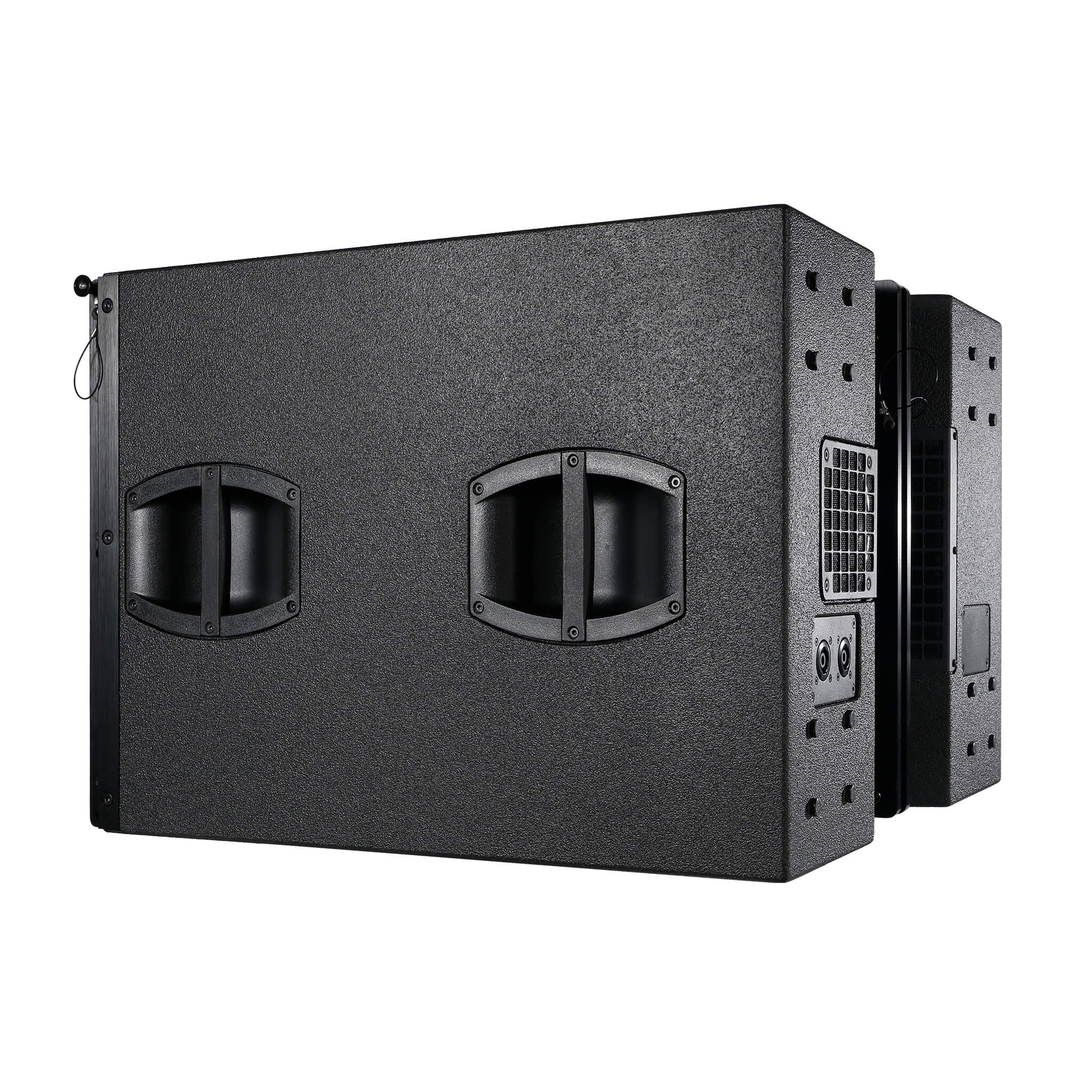

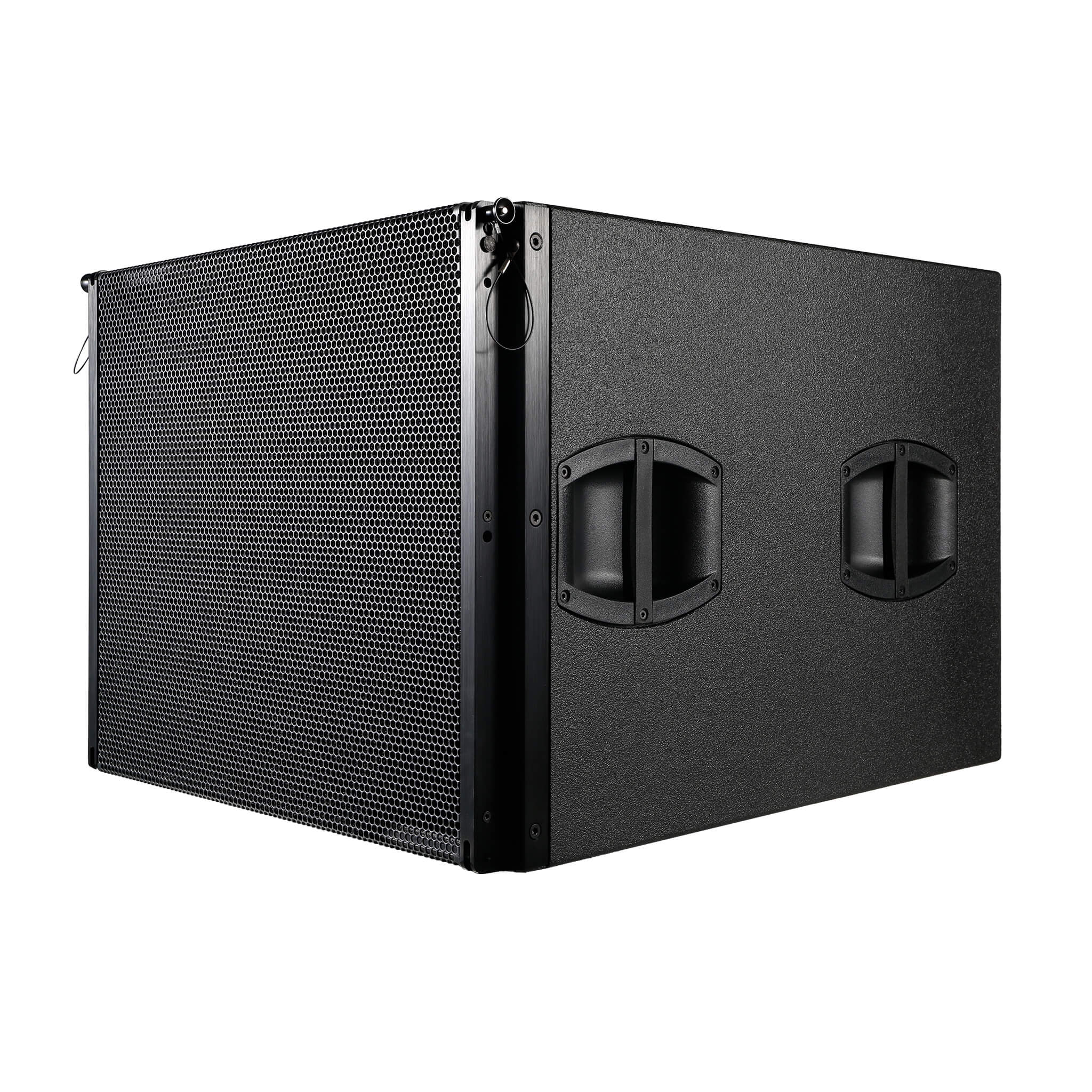

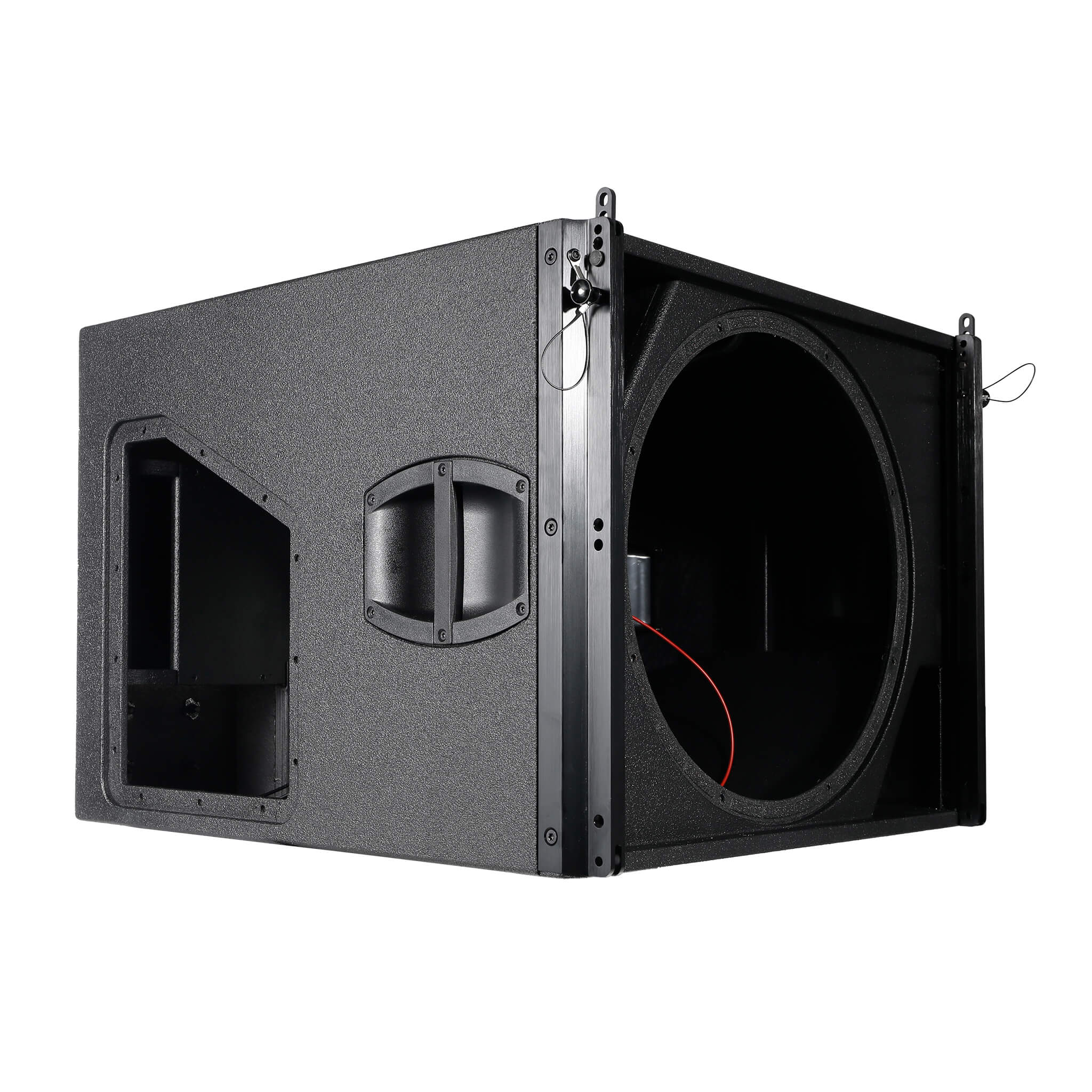

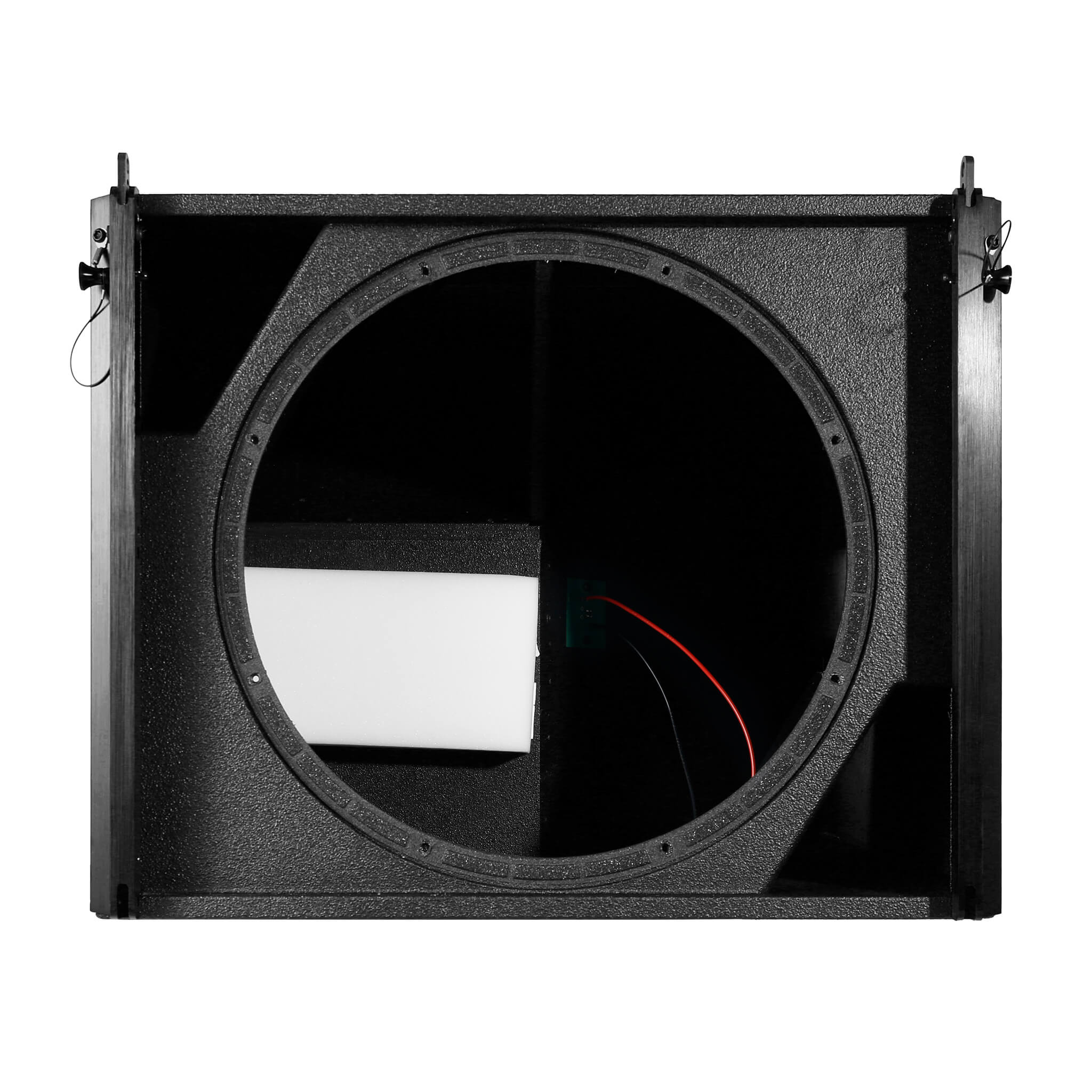

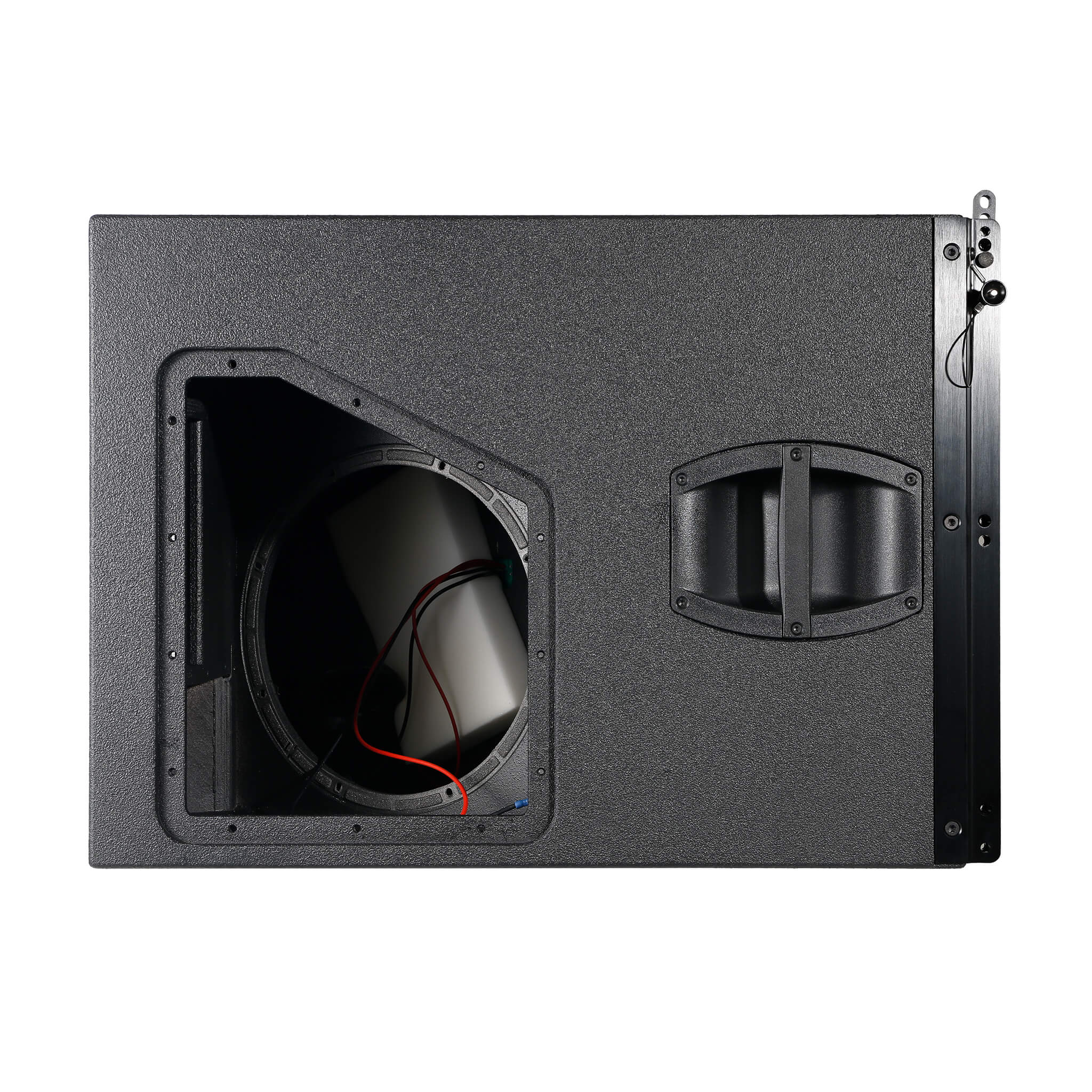

Y118SUB Compact Cardioid Subwoofer
Y118SUB Compact Cardioid Subwoofer is listed in the subwoofer systems category as a subwoofer system. The reference lists maximum spl: 134 dB; bandwidth: 37 Hz – 140 Hz. Confirm the exact model, current specifications and supply details before use.
WHATSAPPRequest a Quote- Maximum SPL
- 134 dB
- Bandwidth
- 37 Hz – 140 Hz
- Weight
- 52 kg115 lb
Technical specifications
- Maximum SPL
- 134 dB
- Bandwidth
- 37 Hz – 140 Hz
- Transducers

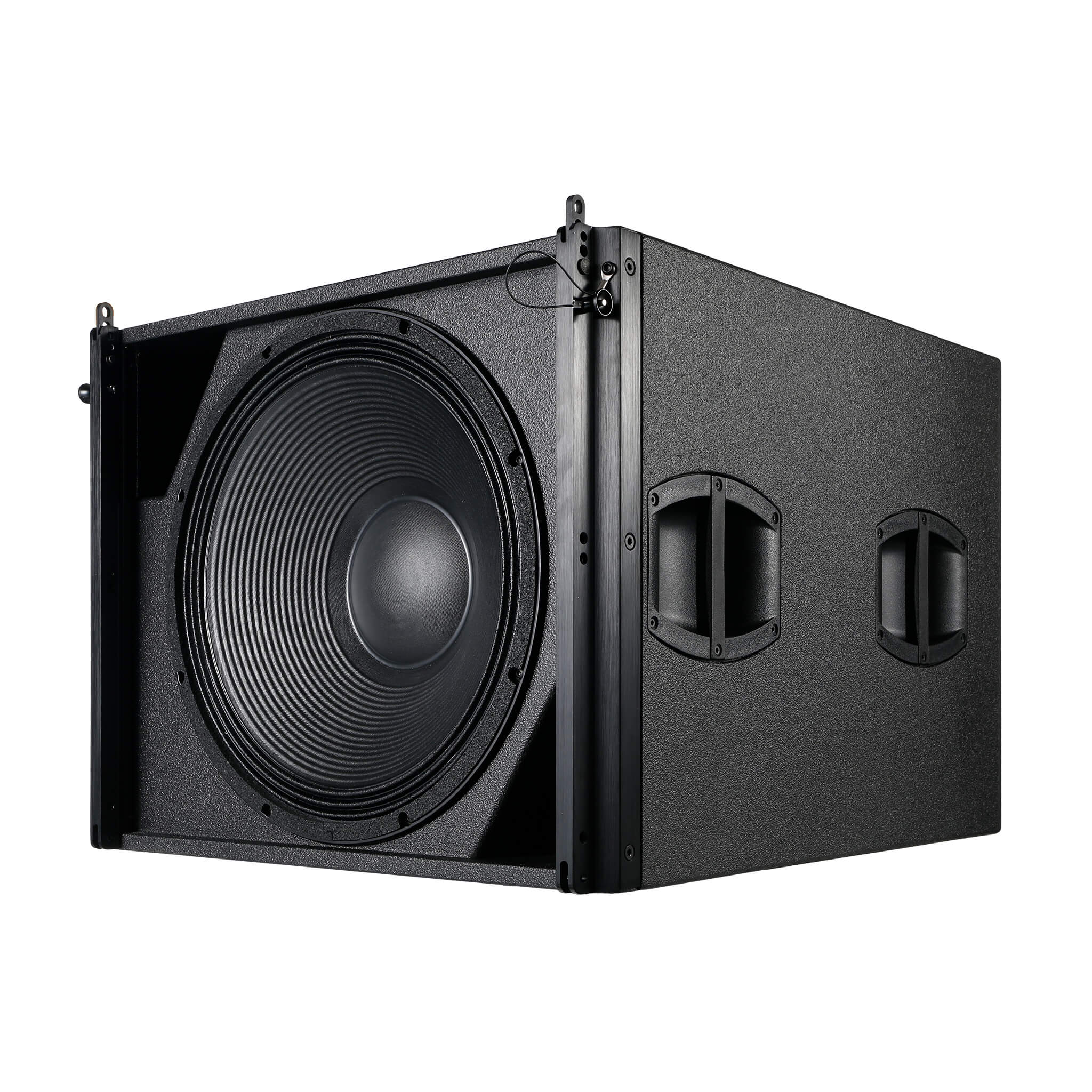

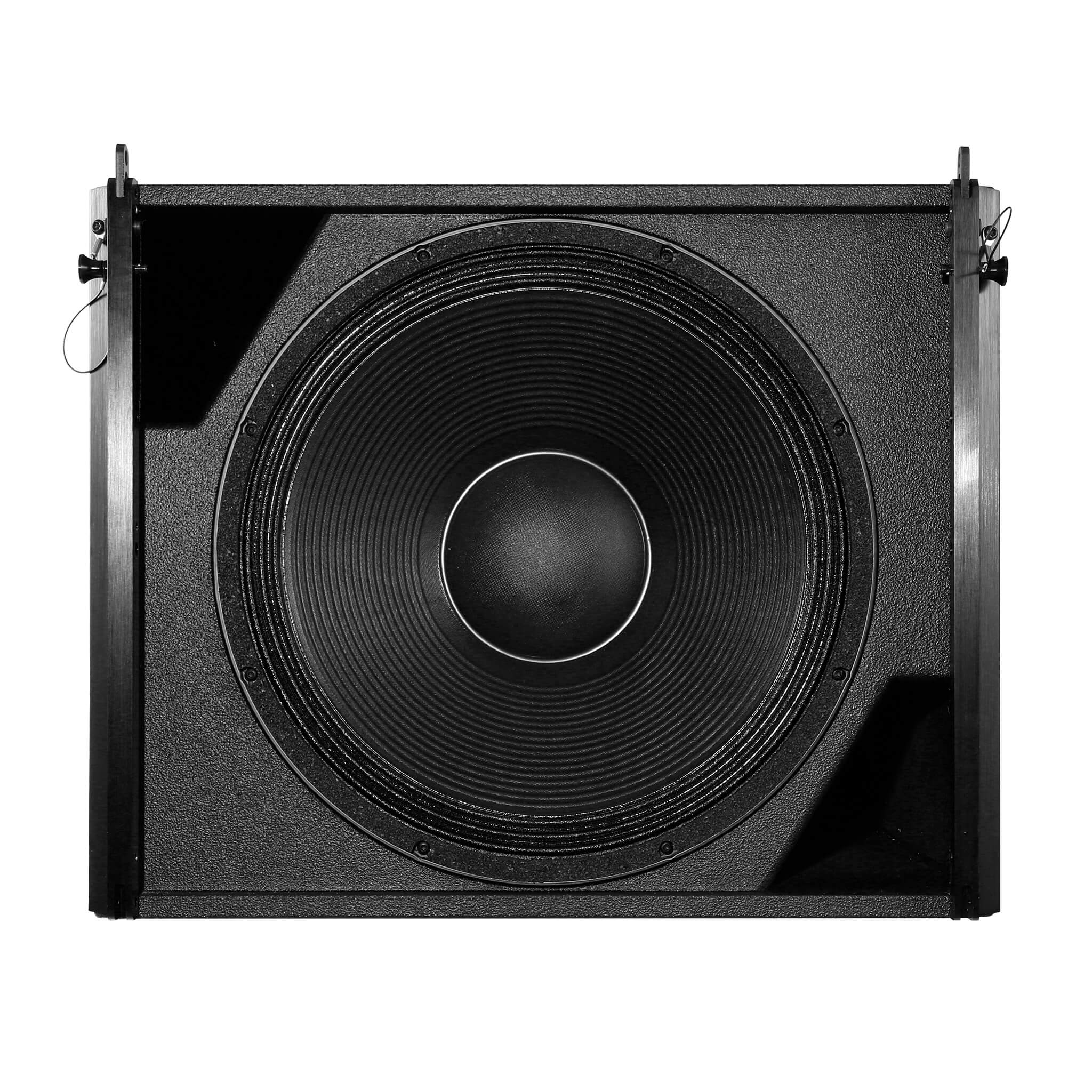

- LF: 1 × 18″ (front) + 1 × 12″ (rear)
- Frequency response (-5 dB standard)
- 39 Hz - 140 Hz
- Frequency response (-5 dB 100 Hz mode)
- 39 Hz - 110 Hz
- Max. sound pressure1 with 10D
- 128 dB with D20/30D:131 dB with D40/D80/40D2:134 dB
- Configuration
- High performance flyable cardioid subwoofer
- Nominal impedance
- 8 Ω
- Power handling capacity (RMS/peak 10 ms)
- 600/2400 W
- Components
- 1 x 18" driver with neodymium magnet 1 x 12" driver with neodymium magnet

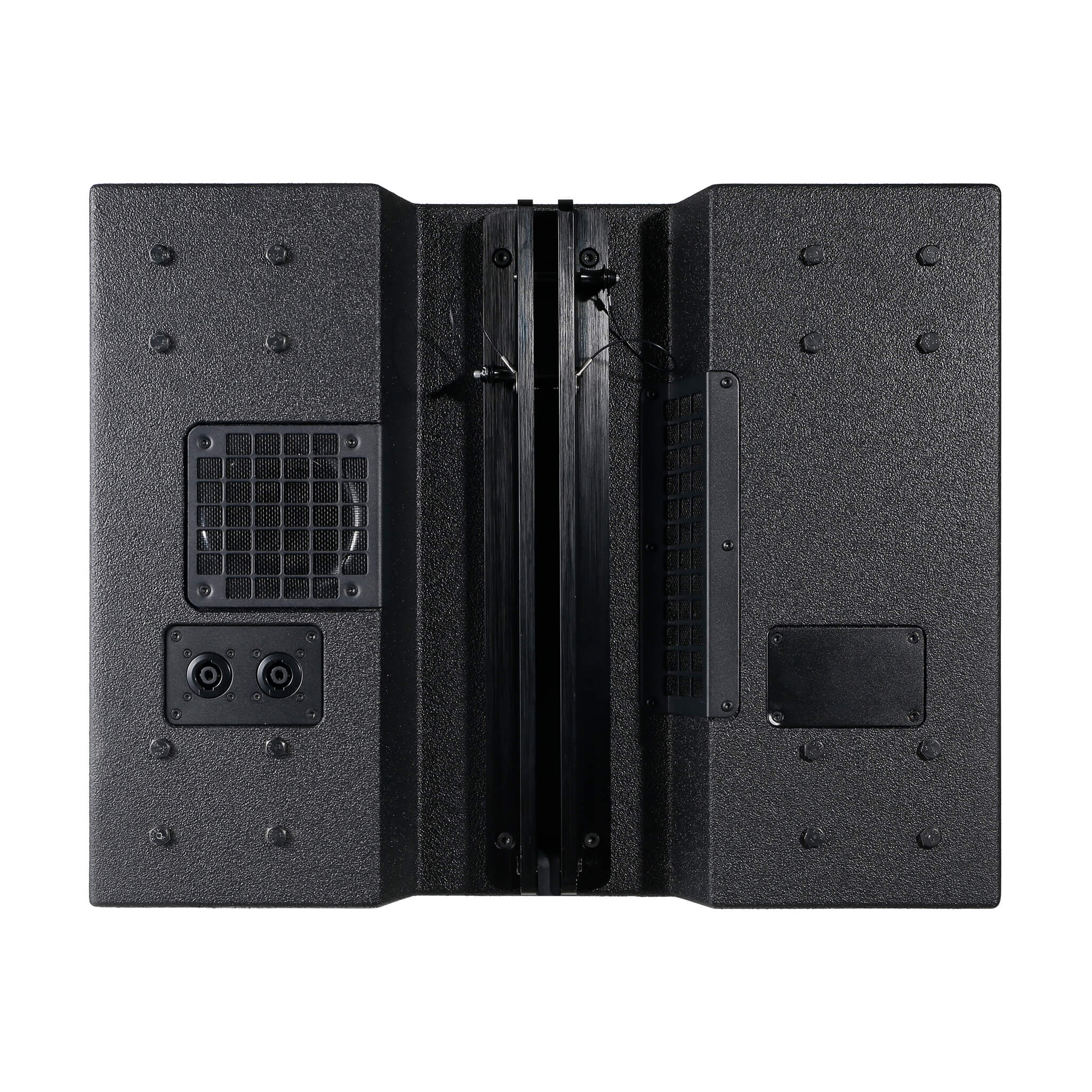

- Connections

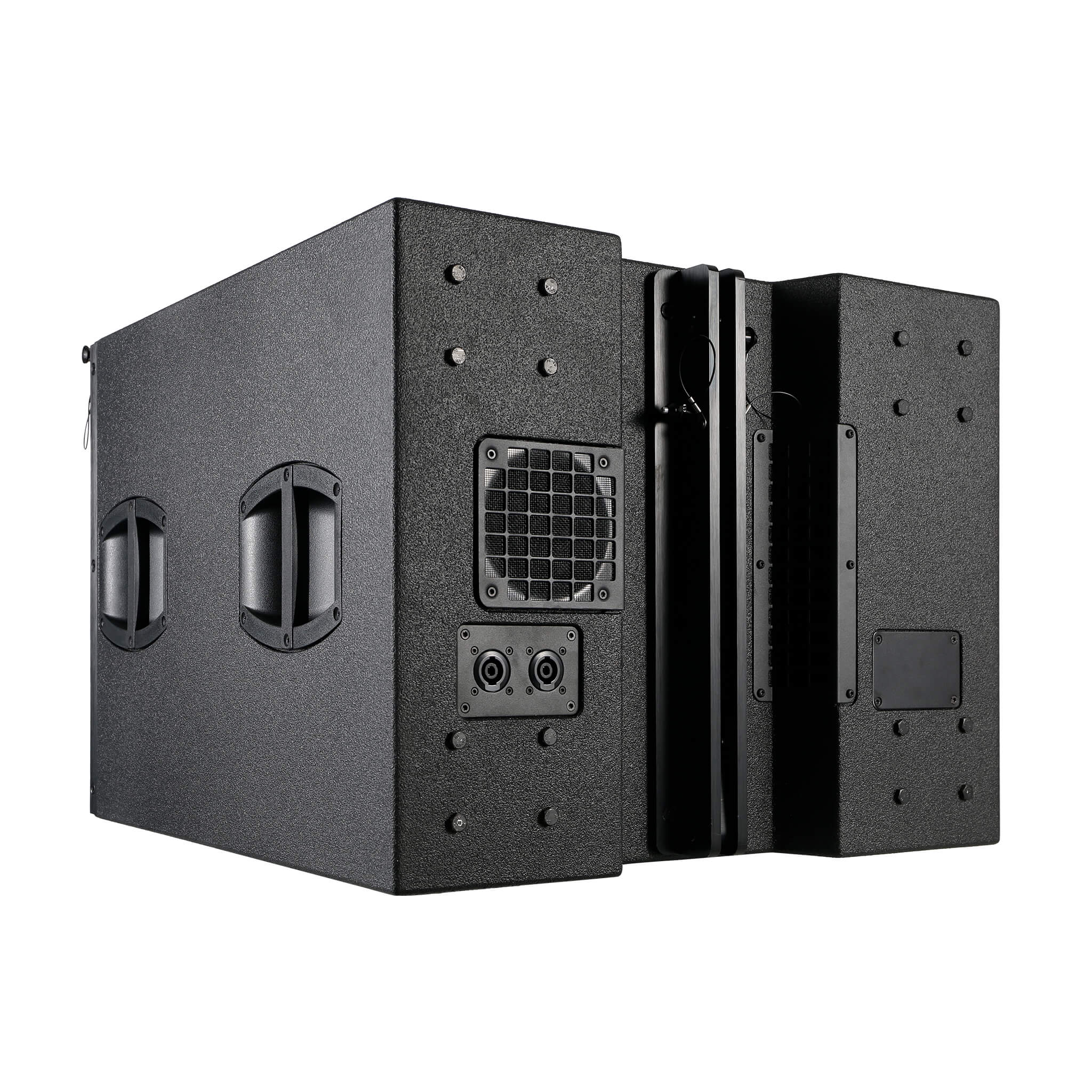

- 2 x NLT4 F/M
Physical specifications
- Dimensions
- 515 × 700 × 720 mm
- Weight
- 52 kg / 115 lb
- Cabinets per amplifier channel
- 2
- Weight
- 52 kg115 lb
Compatibility and deployment
- Splay angle settings
- 0° and 2.5°
- Function / configuration
- Loudspeaker data
TECHNICAL REFERENCE
Product specifications.
Published product details. Ask our team about any configuration that is not listed.
| Maximum SPL | 134 dB |
|---|---|
| Bandwidth | 37 Hz – 140 Hz |
| Transducers | • LF: 1 × 18″ (front) + 1 × 12″ (rear) |
| Dimensions | 515 × 700 × 720 mm |
| Weight | 52 kg / 115 lb |
| Frequency response (-5 dB standard) | 39 Hz - 140 Hz |
| Frequency response (-5 dB 100 Hz mode) | 39 Hz - 110 Hz |
| Max. sound pressure1 with 10D | 128 dB with D20/30D:131 dB with D40/D80/40D2:134 dB |
| Cabinets per amplifier channel | 2 |
| Configuration | High performance flyable cardioid subwoofer |
| Nominal impedance | 8 Ω |
| Power handling capacity (RMS/peak 10 ms) | 600/2400 W |
| Splay angle settings | 0° and 2.5° |
| Components | 1 x 18" driver with neodymium magnet 1 x 12" driver with neodymium magnet |
| Connections | 2 x NLT4 F/M |
| Dimensions (H x W x D) | 500 x 630 x 700 / 804 mm19.7 x 24.8 x 27.6 / 31.6" |
| Weight | 52 kg115 lb |
