Product identification
- Model
- Y10P-Y210P 2-Way Dual 10-Inch Point Source Loudspeaker
- Product category
- Point Source Loudspeakers

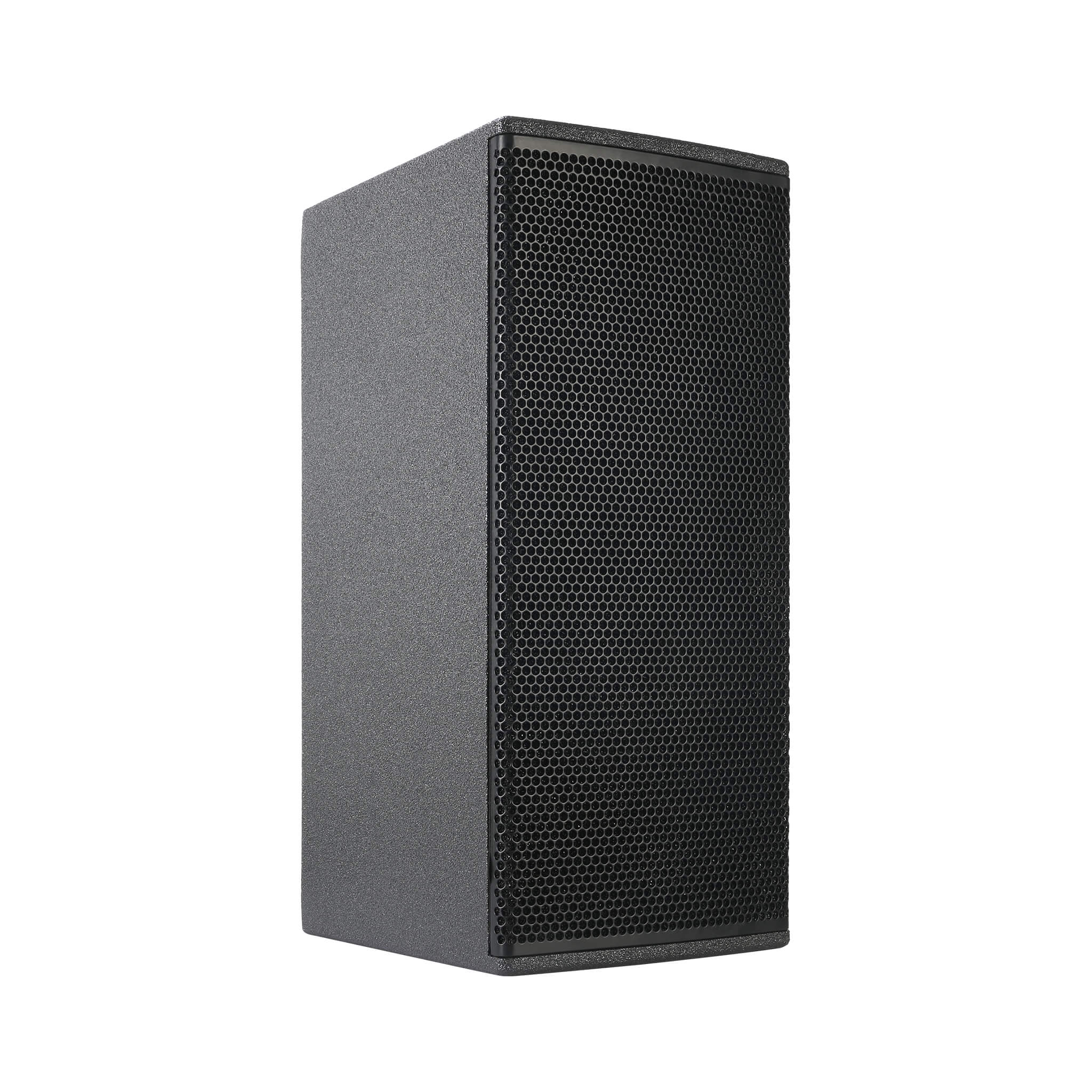

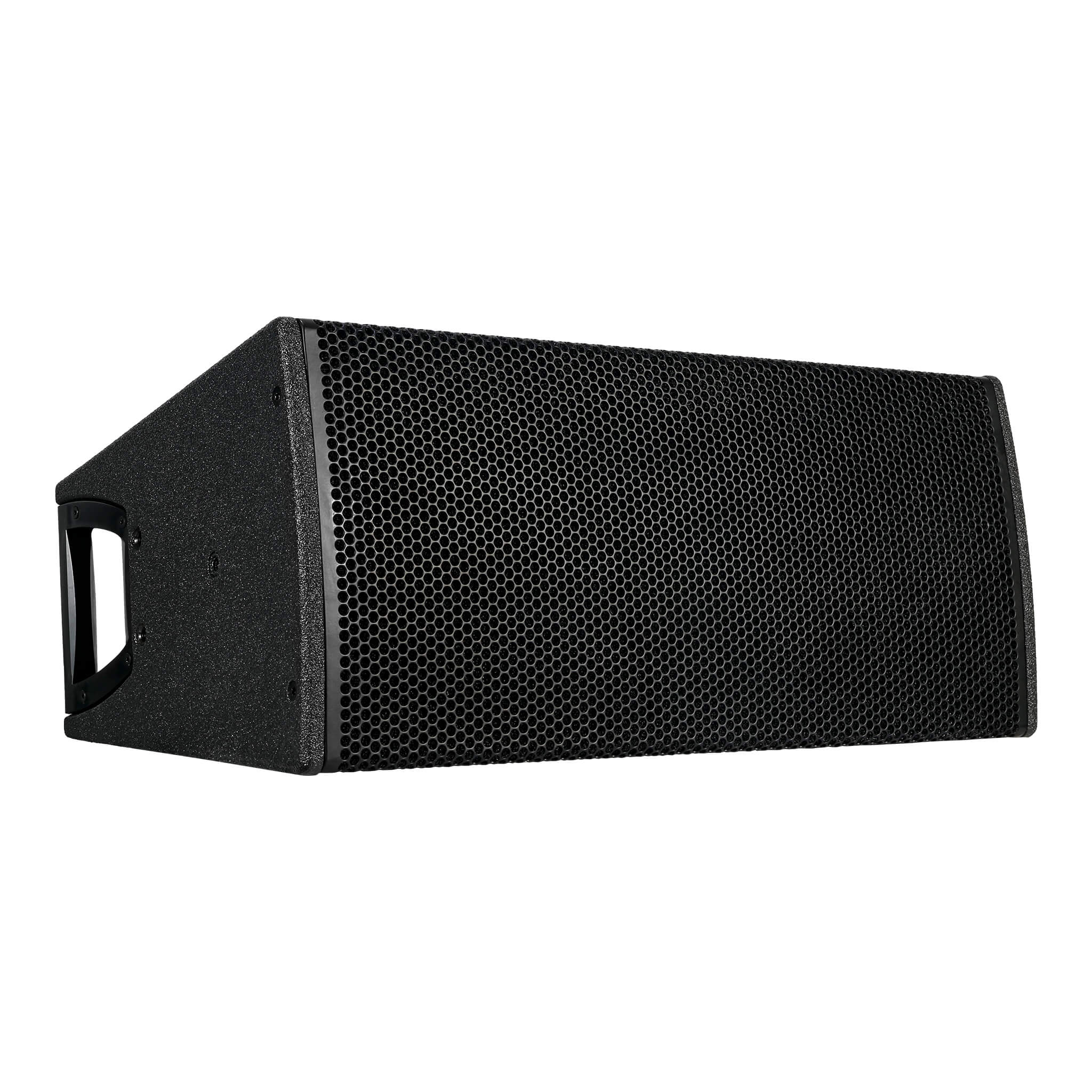

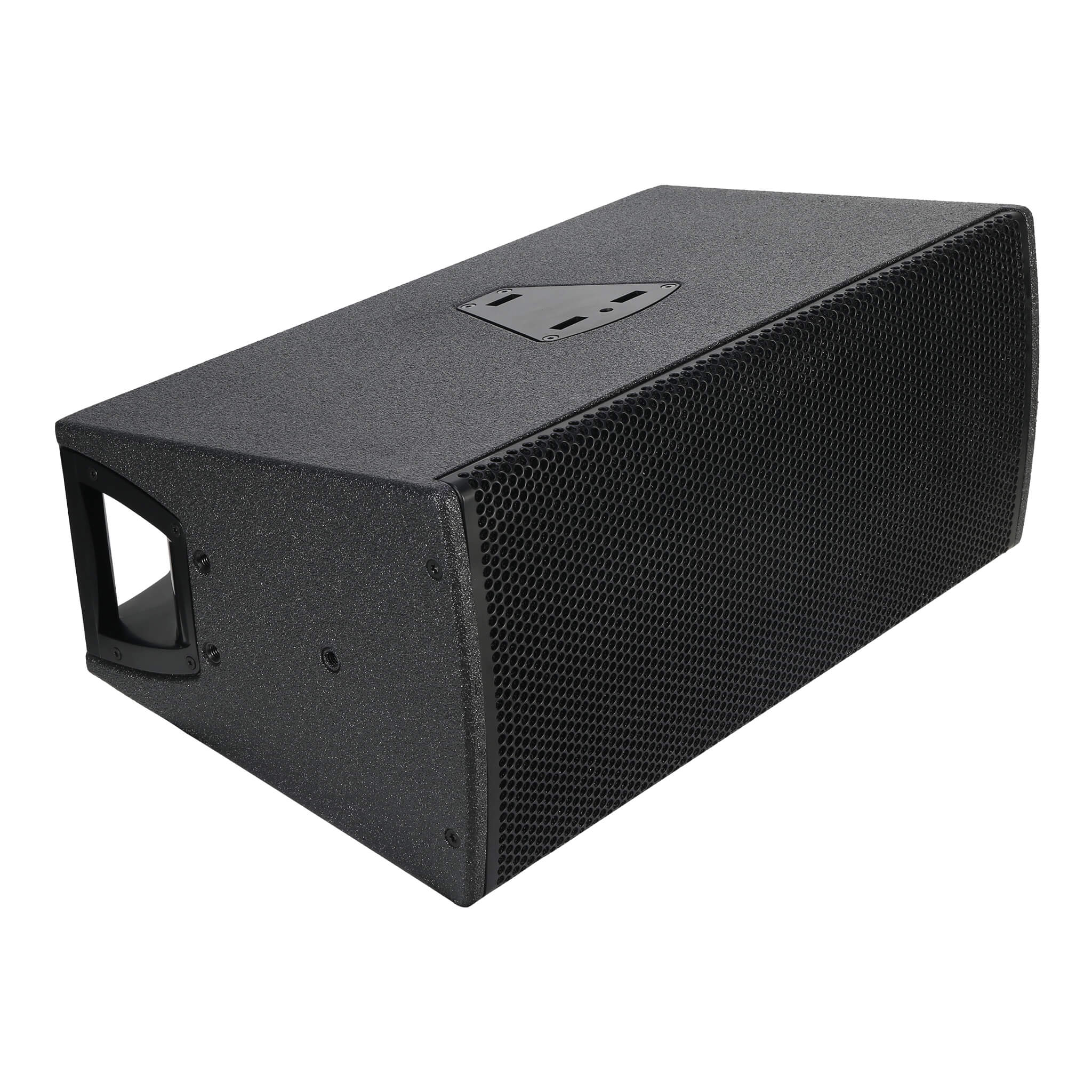

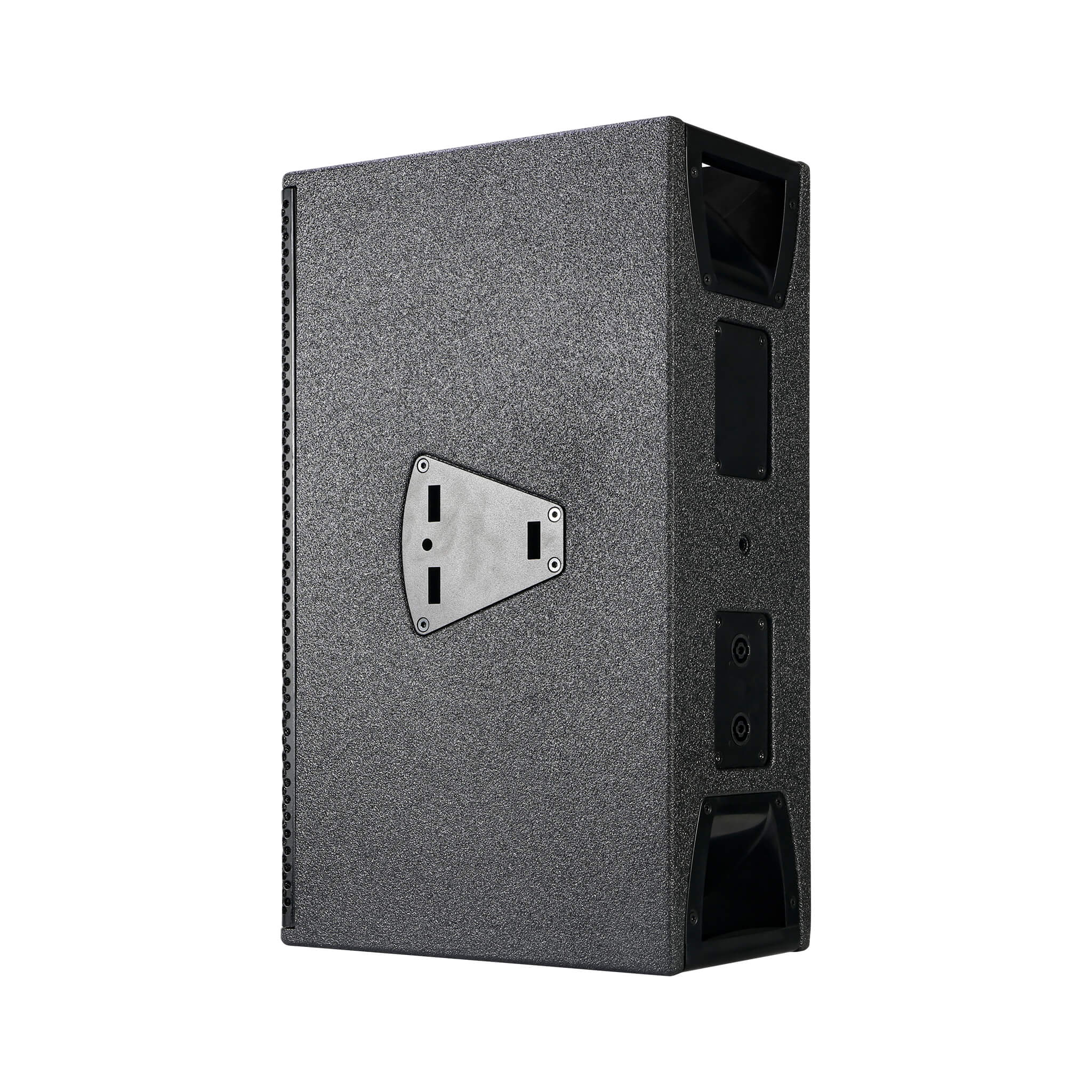

Y10P-Y210P 2-Way Dual 10-Inch Point Source Loudspeaker
Y10P-Y210P 2-Way Dual 10-Inch Point Source Loudspeaker is listed in the point source loudspeakers category as a point source loudspeaker. The reference lists max spl: 137 dB; bandwidth (-5 db): 59 Hz – 18 kHz. Confirm the exact model, current specifications and supply details before use.
WHATSAPPRequest a Quote- Max SPL
- 137 dB
- Bandwidth (-5 dB)
- 59 Hz – 18 kHz
- Weight
- 18 kg 40 lb
Technical specifications
- Configuration
- Point source loudspeaker, 2-way passive, dual 10″ LF
- Max SPL
- 137 dB
- Bandwidth (-5 dB)
- 59 Hz – 18 kHz
- LF transducers
- 2 × 10″
- HF transducers
- 1 × 1.4″ compression driver
- Directivity
- H: 110° | V: 40°
- Nominal Impedance
- 8 Ω
- Power Handling
- 600 W AES / 1200 W Program / 2400 W Peak
- Frequency response (-5 dB standard)
- 59 Hz - 18 kHz
- Frequency response (-5 dB CUT mode)
- 118 Hz - 18 kHz
- Max. sound pressure1 with 10D
- 131 dB with D20/30D:134 dB with D40/D80/40D:136 dB
- Power handling capacity (RMS/peak 10 ms)
- 400/1600 W

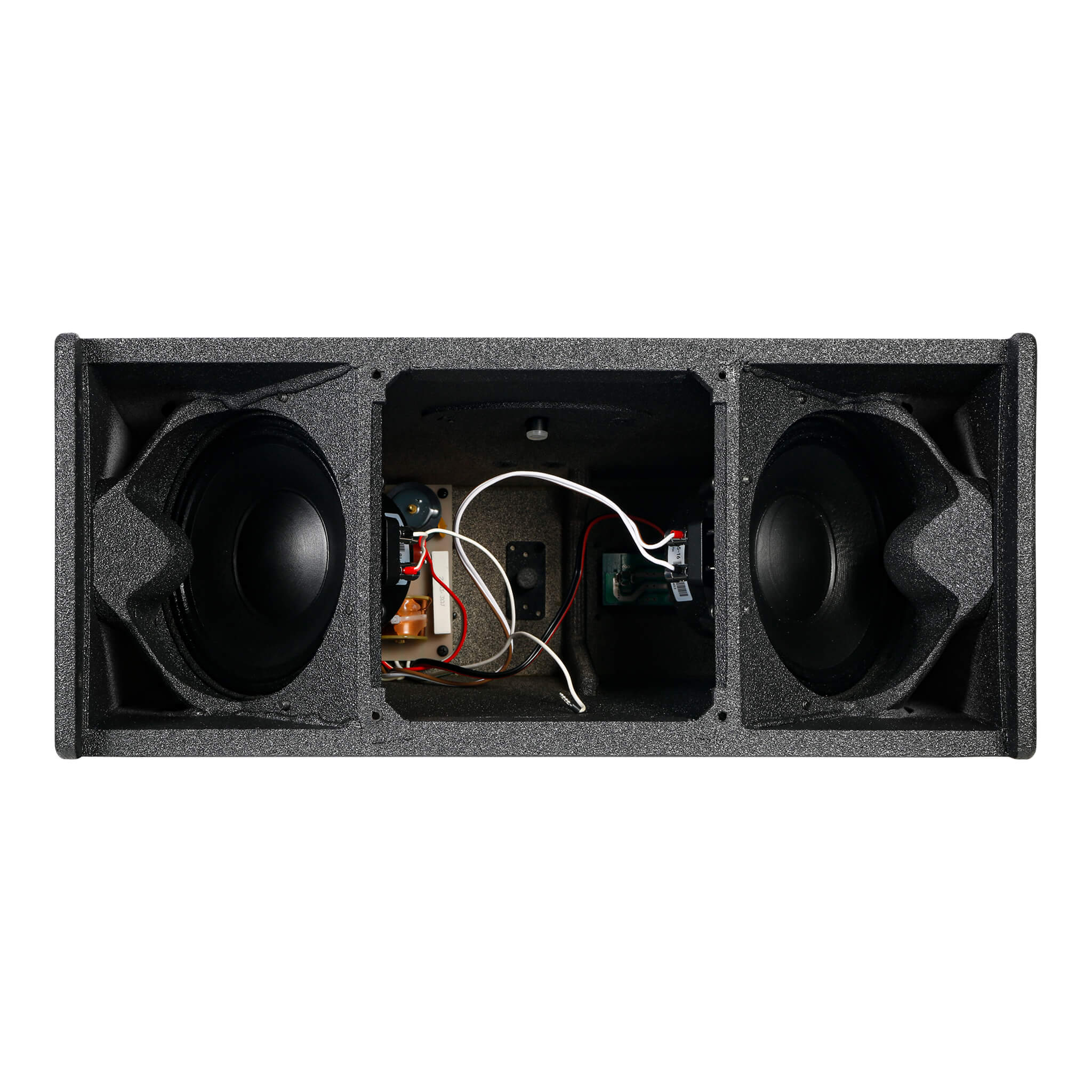

- Components
- 2 x 8" driver with neodymium magnet 1.4" exit compression driver passive crossover network

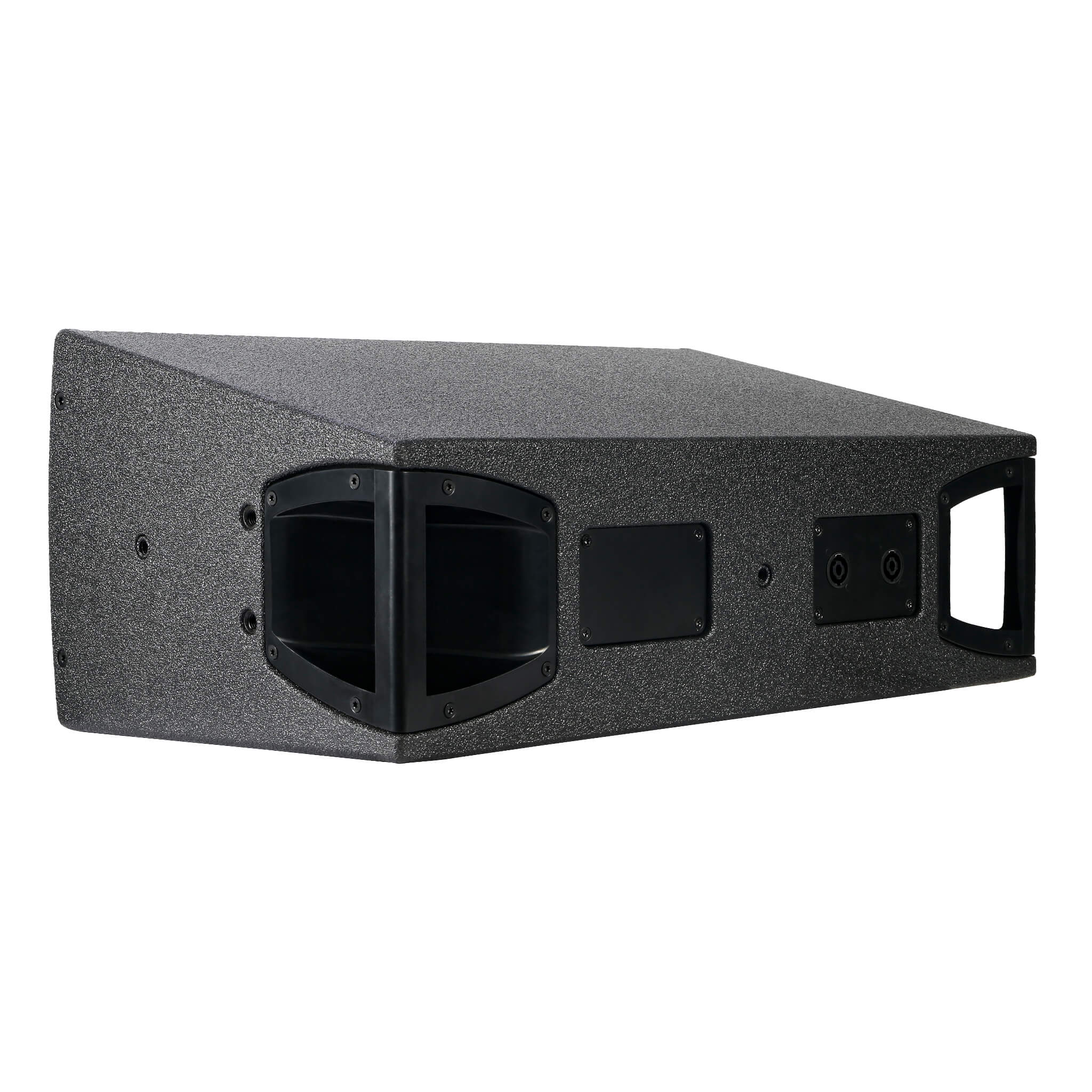

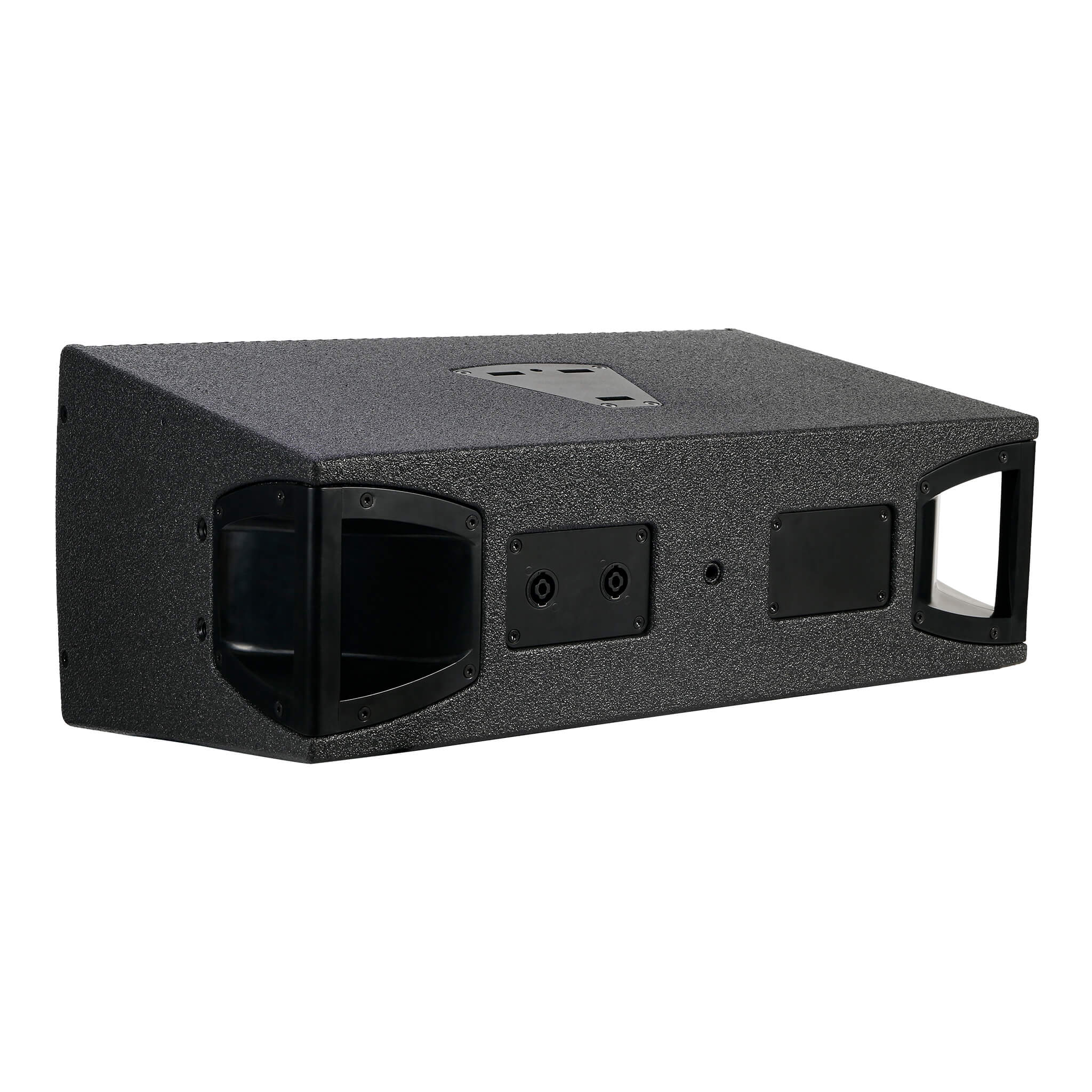

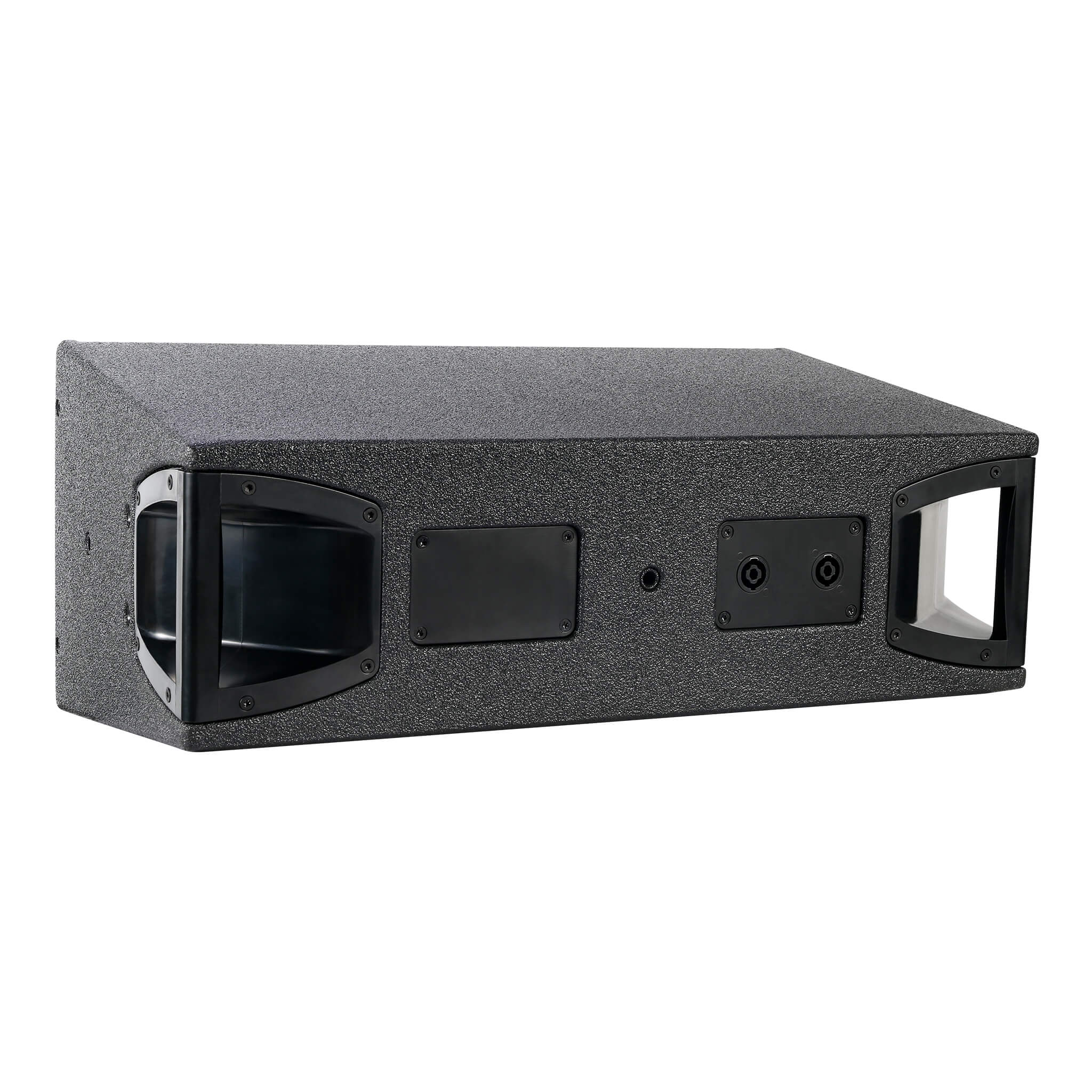

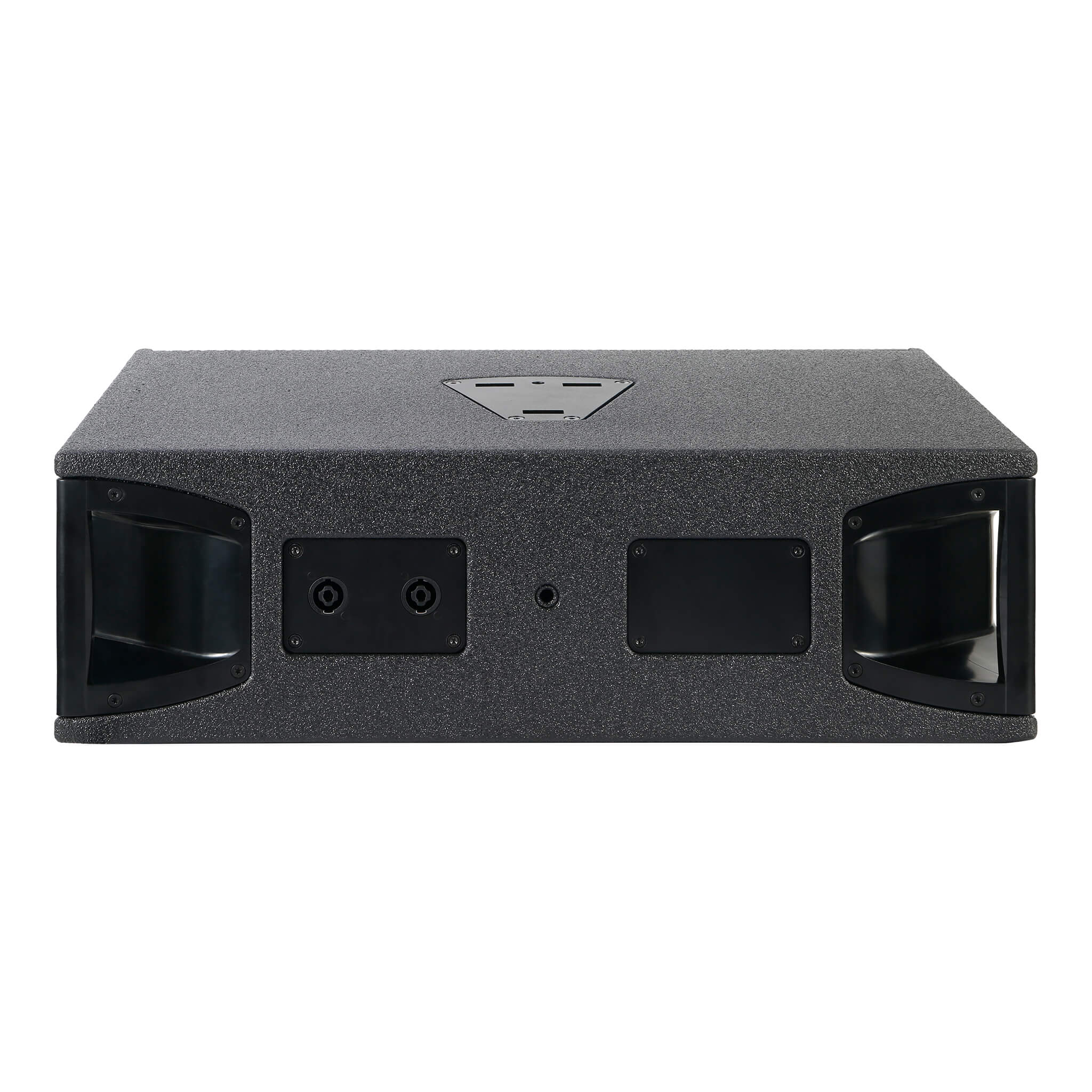

- Connections
- 2 x NLT4 F/M optional 2 x NL4
- Transducers
- LF: 2 × 10″
Physical specifications
- Weight
- 23 kg / 51 lb
- Dimensions (H × W × D)
- 580 × 370 × 380 mm
- Cabinets per amplifier channel
- 2
Compatibility and deployment
- Nominal dispersion angle (h x v)
- 110° x 40°
- Function / configuration
- Loudspeaker data
TECHNICAL REFERENCE
Product specifications.
Published product details. Ask our team about any configuration that is not listed.
| Configuration | Point source loudspeaker, 2-way passive, dual 10″ LF |
|---|---|
| Max SPL | 137 dB |
| Bandwidth (-5 dB) | 59 Hz – 18 kHz |
| LF | 2 × 10″ |
| HF | 1 × 1.4″ compression driver |
| Weight | 23 kg / 51 lb |
| Directivity | H: 110° | V: 40° |
| Dimensions (H × W × D) | 580 × 370 × 380 mm |
| Nominal Impedance | 8 Ω |
| Power Handling | 600 W AES / 1200 W Program / 2400 W Peak |
| Frequency response (-5 dB standard) | 59 Hz - 18 kHz |
| Frequency response (-5 dB CUT mode) | 118 Hz - 18 kHz |
| Max. sound pressure1 with 10D | 131 dB with D20/30D:134 dB with D40/D80/40D:136 dB |
| Cabinets per amplifier channel | 2 |
| Configuration | High performance 2-way passive point source loudspeaker |
| Power handling capacity (RMS/peak 10 ms) | 400/1600 W |
| Nominal dispersion angle (h x v) | 110° x 40° |
| Components | 2 x 8" driver with neodymium magnet 1.4" exit compression driver passive crossover network |
| Connections | 2 x NLT4 F/M optional 2 x NL4 |
| Dimensions (H x W x D) | 580 x 257 x 341 mm 22.8 x 10 x 13.4" |
| Weight | 18 kg 40 lb |
Downloads
Product documents are being prepared. Contact YL for the current information for Y10P-Y210P 2-Way Dual 10-Inch Point Source Loudspeaker.
Request product documentsSystem accessories
Contact YL to confirm the available accessories and the exact configuration for Y10P-Y210P 2-Way Dual 10-Inch Point Source Loudspeaker.
Ask about compatible accessoriesProduct videos
Ask for an available demonstration of Y10P-Y210P 2-Way Dual 10-Inch Point Source Loudspeaker and the configuration you need.
