Product identification
- Model
- XD15 Passive 2-Way Portable Point Source Loudspeaker
- Product category
- Point Source Loudspeakers

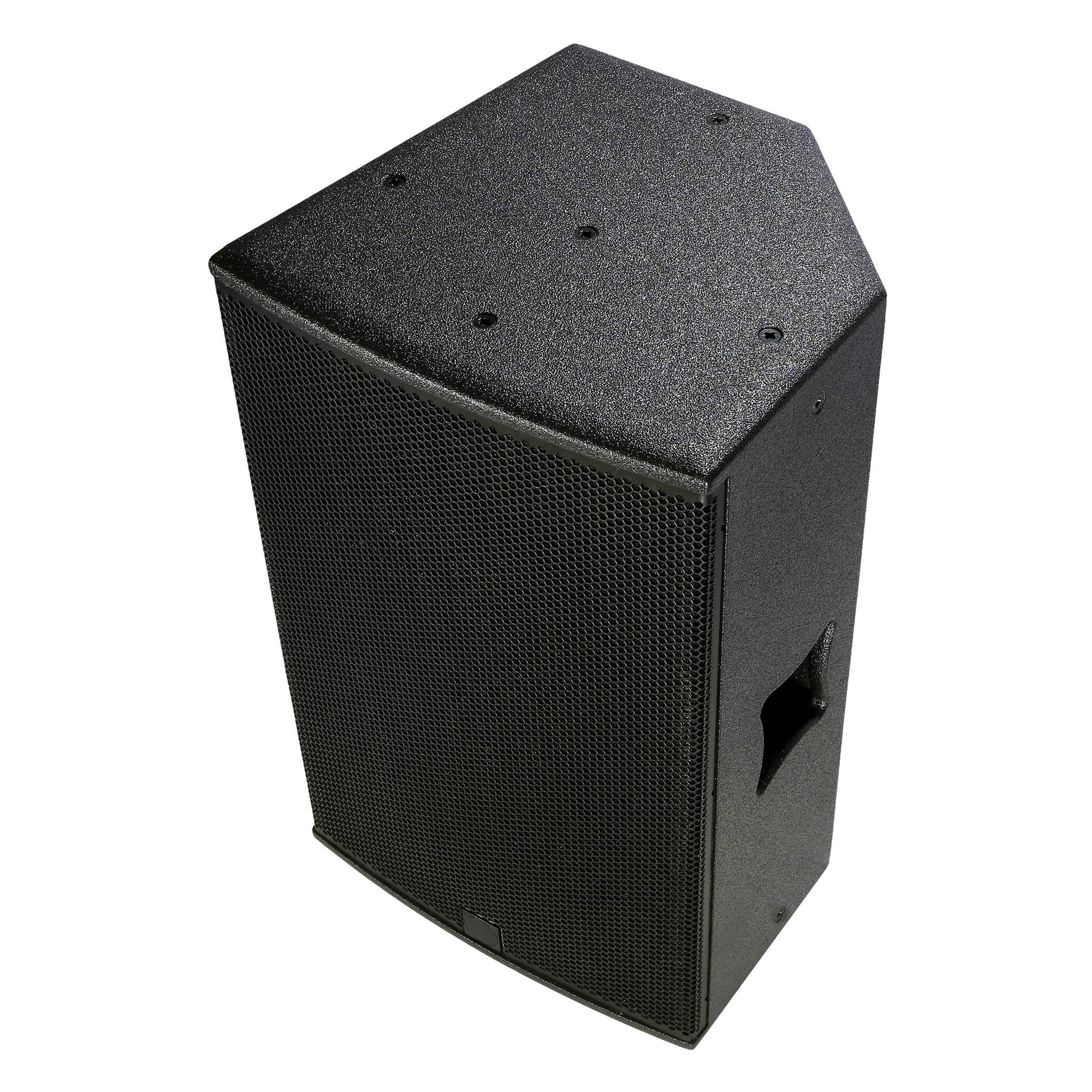

XD15 Passive 2-Way Portable Point Source Loudspeaker
XD15 Passive 2-Way Portable Point Source Loudspeaker is listed in the point source loudspeakers category as a point source loudspeaker. The reference lists lf: 600W AES, 2400W peak; hf: 80W AES, 320W peak. Confirm the exact model, current specifications and supply details before use.
WHATSAPPRequest a QuoteTechnical specifications
- LF power rating
- 600W AES, 2400W peak
- HF power rating
- 80W AES, 320W peak
- FR sensitivity
- 99dB
- FR/LF impedance
- 8Ω
- LF sensitivity
- 100dB
- HF sensitivity
- 108dB
- FR sound pressure level
- 126dB continuous, 132dB peak
- LF sound pressure level
- 127dB continuous, 133dB peak
- HF sound pressure level
- 127dB continuous, 133dB peak
- HF impedance
- 16Ω
- FR/LF (+,-) connector pin assignment
- 1+,1-
- HF (+.-) connector pin assignment
- 2+,2-
- DISPERSION
- (-6DB)
Compatibility and deployment
- Function / configuration
- TYPE Very high-output, passive/bi-amp two-way system
- Function / configuration
- FREQUENCY RESPONSE55Hz-18kHz ± 3dB-10dB @ 45Hz
- Function / configuration

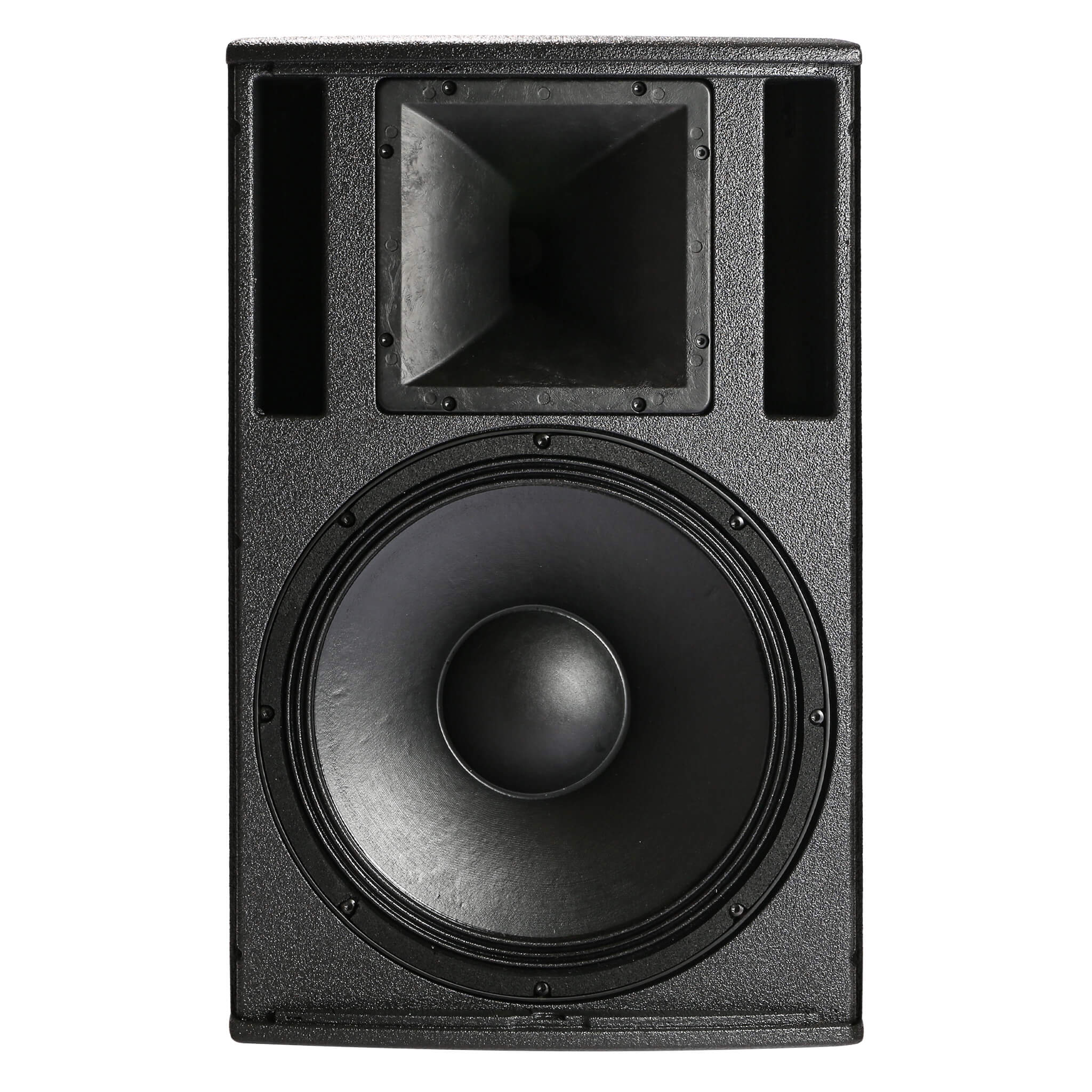

- 15" (380mm)/4" (100mm) voice coil, long- excursion, neodymium magnet LF driver
- Function / configuration
- 1.4" (35mm) exit/3" (75mm) voice coil, titanium dome, neodymium magnet HF compression driver
- Function / configuration
- 80° horizontal
- Function / configuration
- 50° vertical user rotatable
- Function / configuration
- CROSSOVER1.75kHz switchable passive/bi-amp
- Function / configuration
- ENCLOSURE68 litre, multi-laminate birch ply
- Function / configuration
- PROTECTIVE GRILLEBlack perforated steel, Declon backed
- Function / configuration

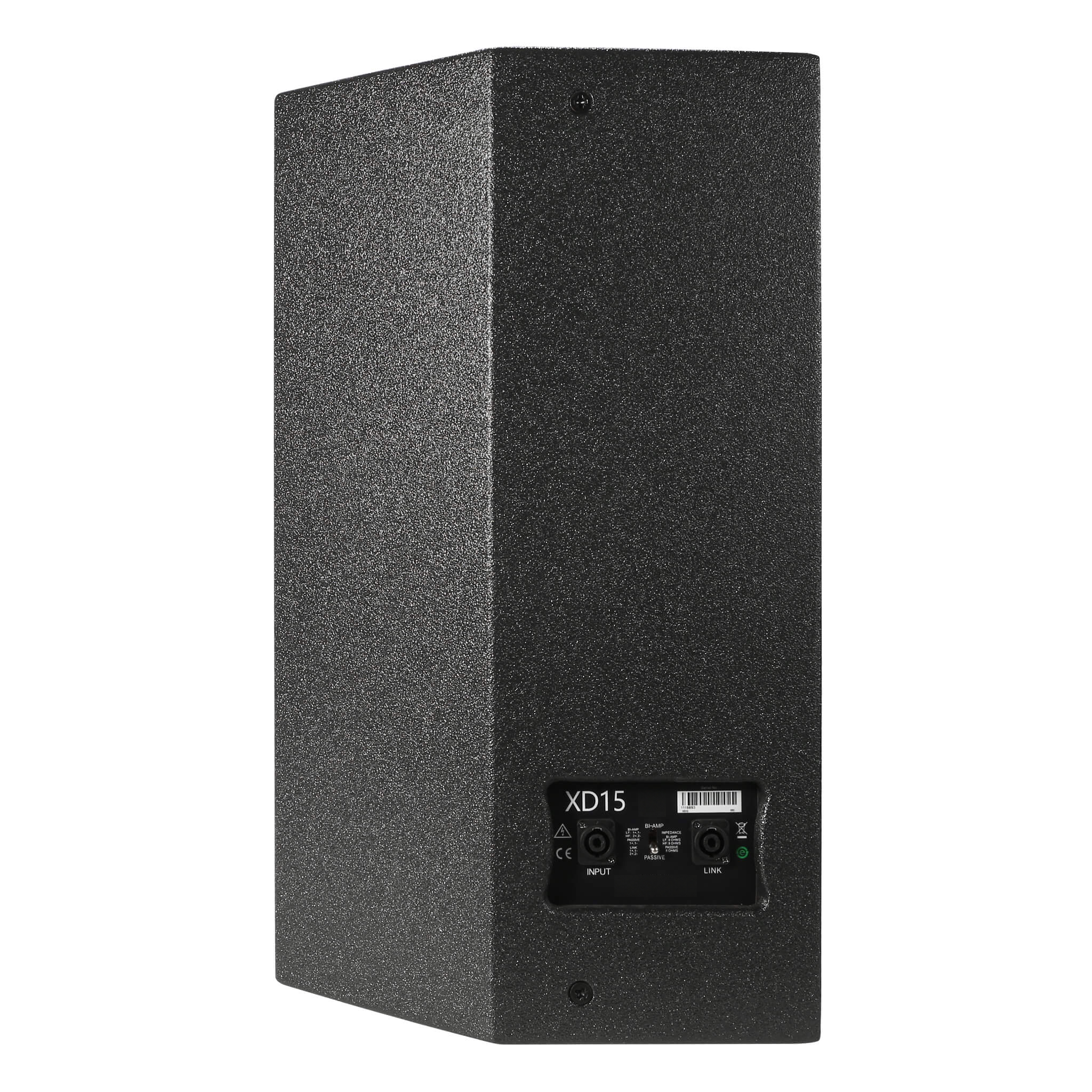

- CONNECTORS2 x Neutrik NL4
- Function / configuration
- INPUT CONNECTIONS
- Function / configuration

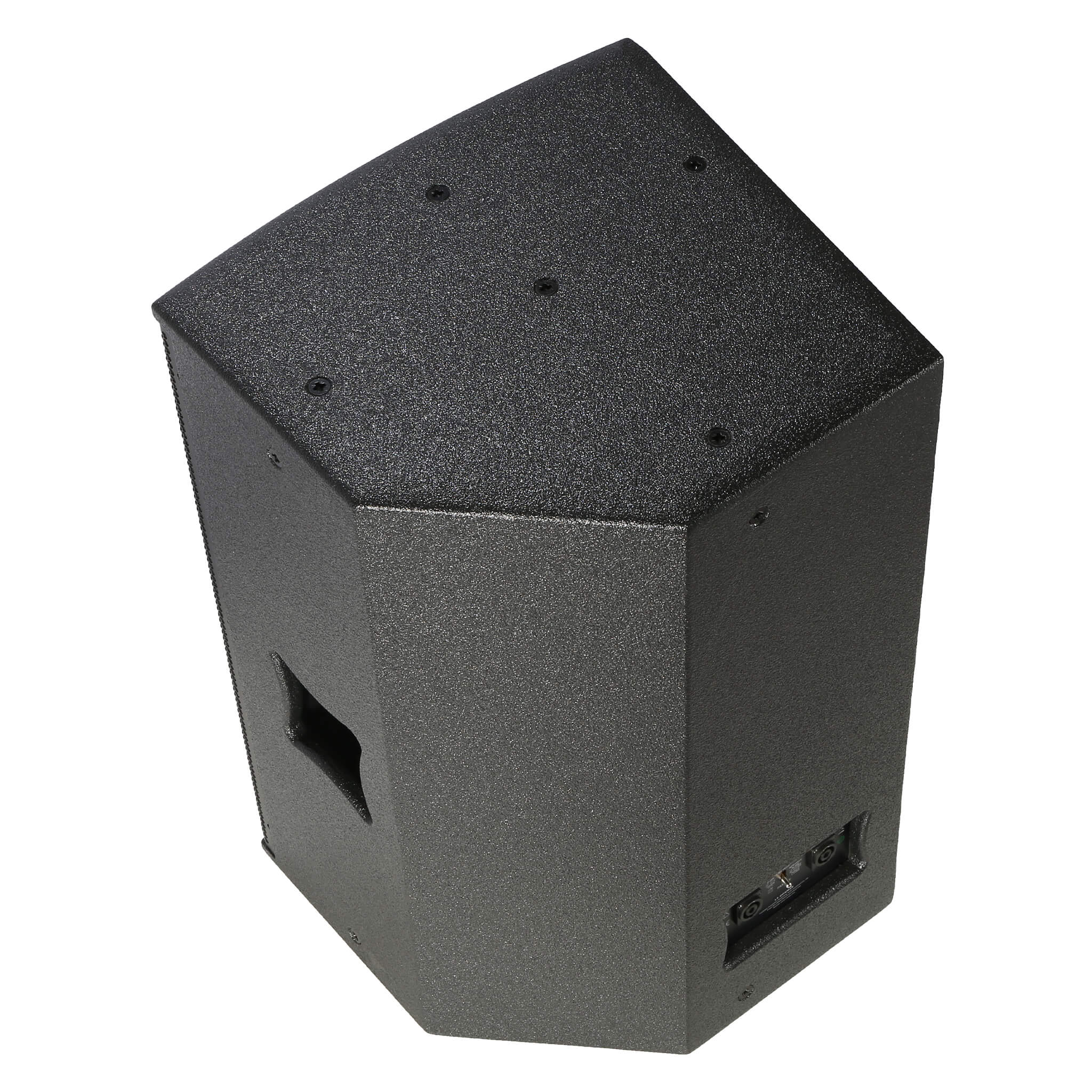

- 17 x M8 threaded inserts
- Function / configuration
- 1 x Pole mounting socket
- Function / configuration

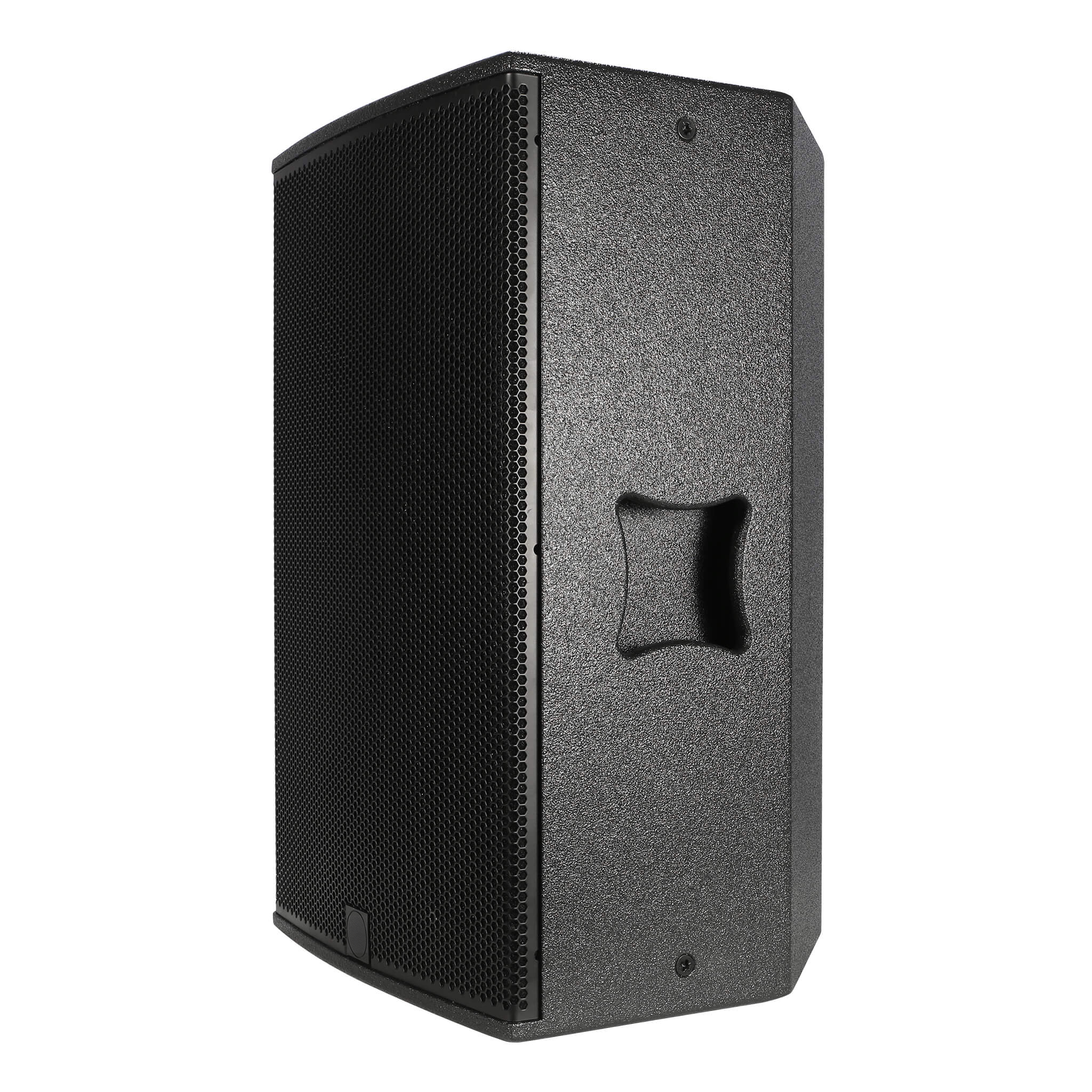

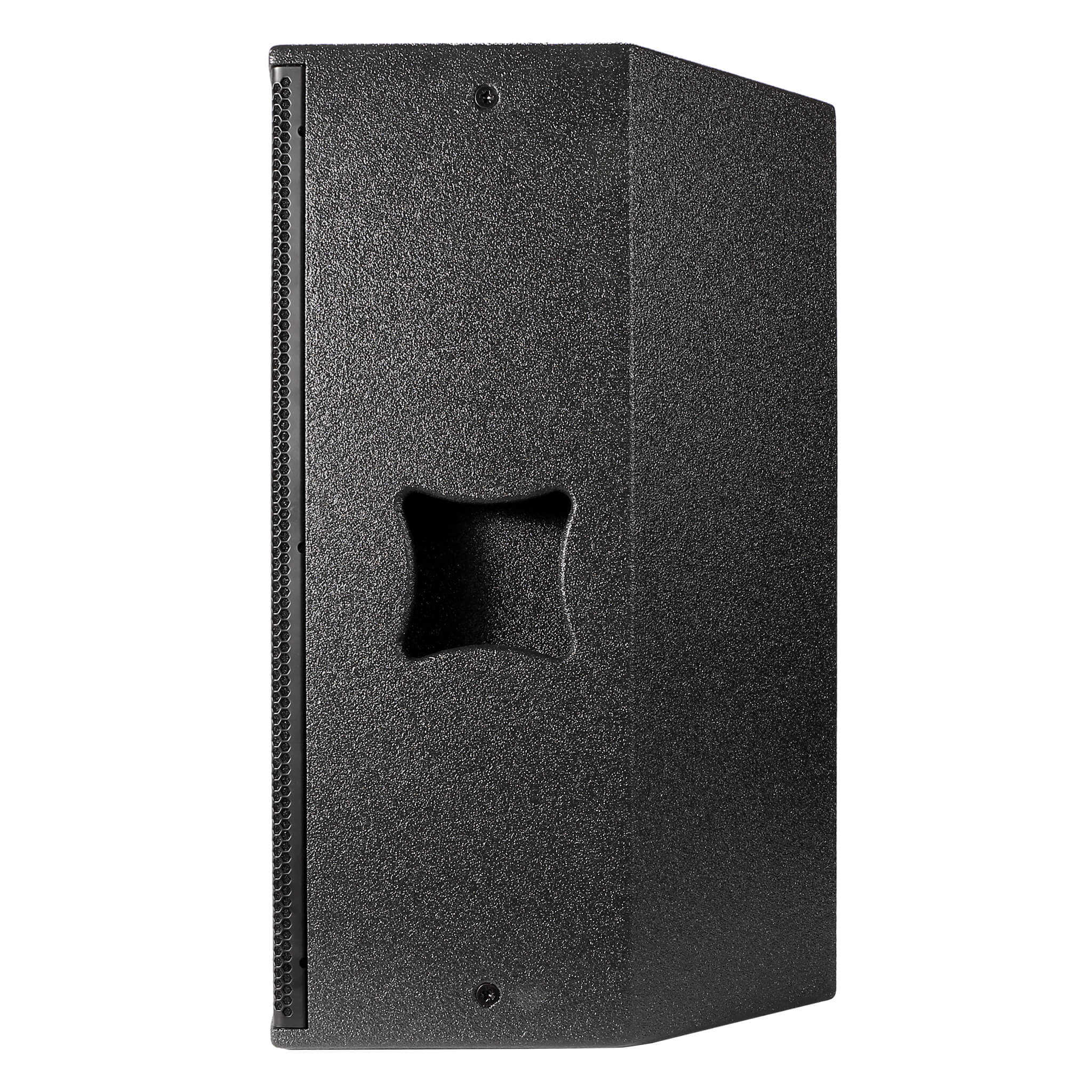

- 2 x Pocket Handle
- Function / configuration
- (W) 429mm x (H) 690mm x (D) 414mm
- Function / configuration
- WEIGHT34Kg (75lbs)
TECHNICAL REFERENCE
Product specifications.
Published product details. Ask our team about any configuration that is not listed.
| LF | 600W AES, 2400W peak |
|---|---|
| HF | 80W AES, 320W peak |
| FR | 99dB |
| FR/LF | 8Ω |
Downloads
| Title | File type | Download |
|---|---|---|
| YL XD15 Selected Technical DataEnglish | PDF73 KB |
