Product identification
- Model
- X8 Compact 2-Way Passive Point Source Loudspeaker
- Product category
- Point Source Loudspeakers

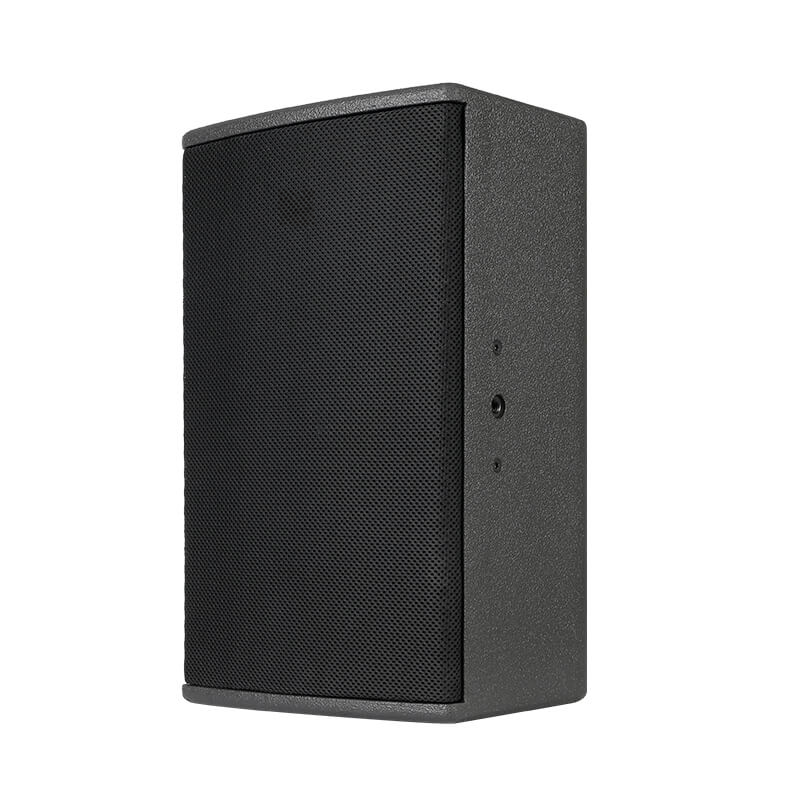

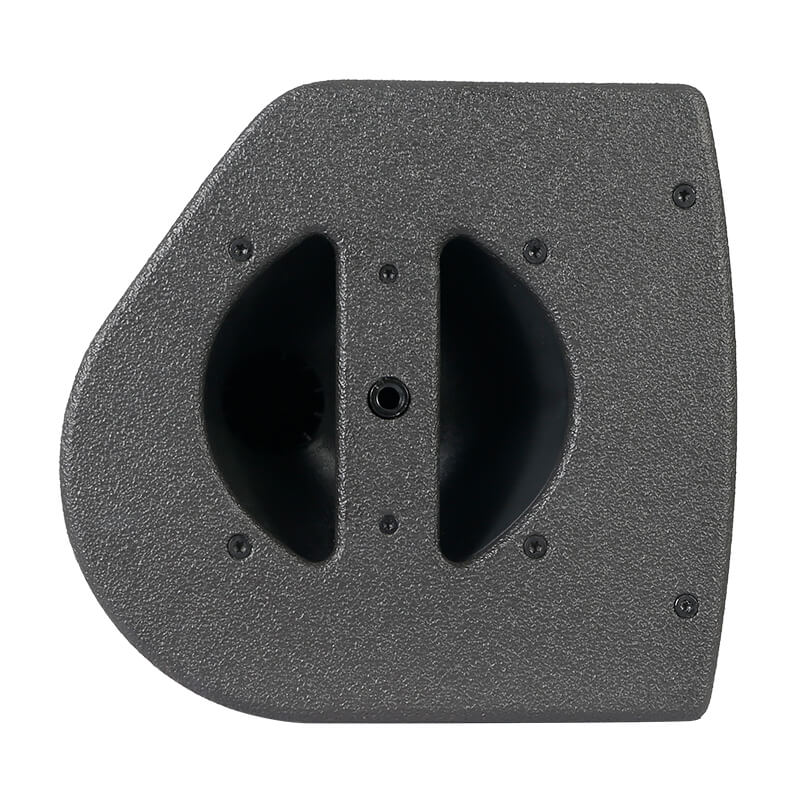

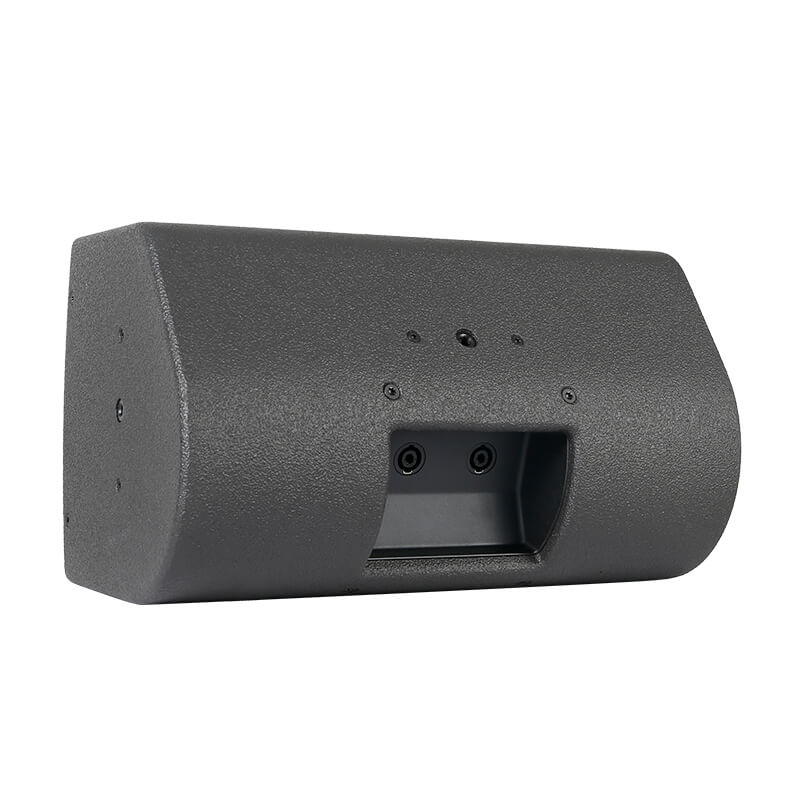

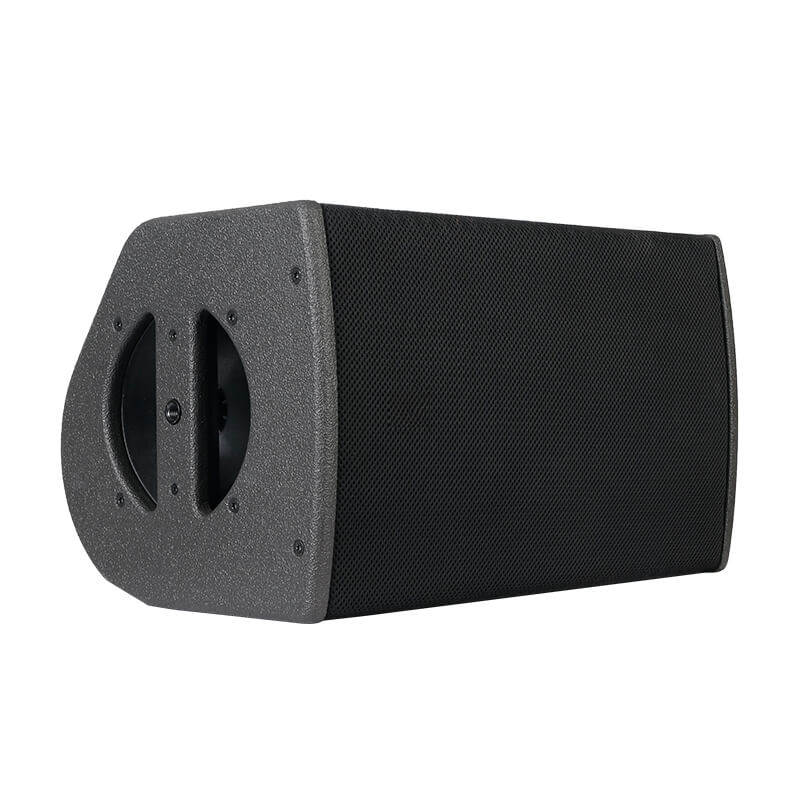

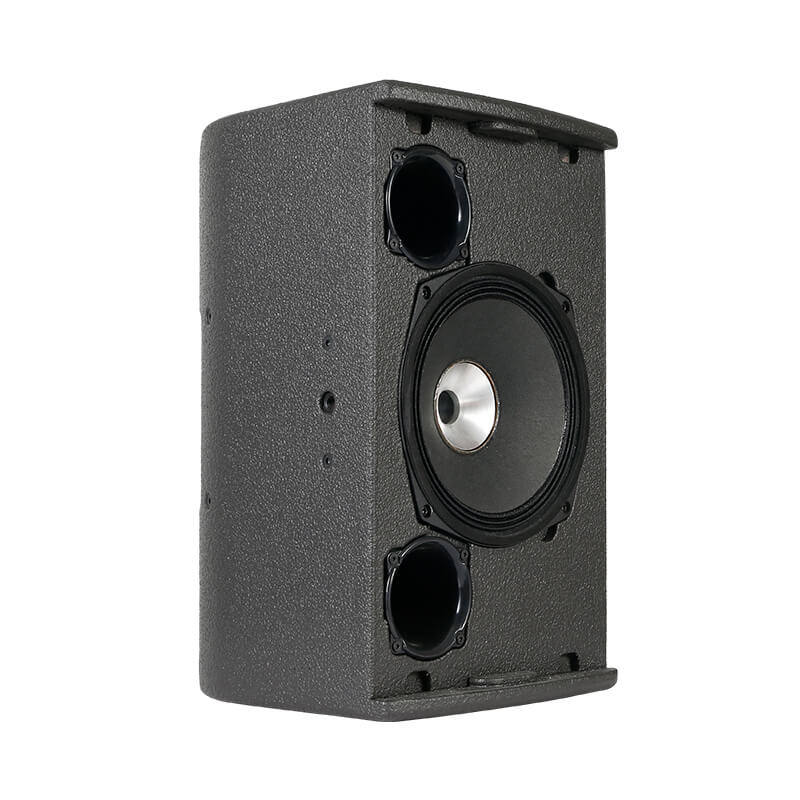

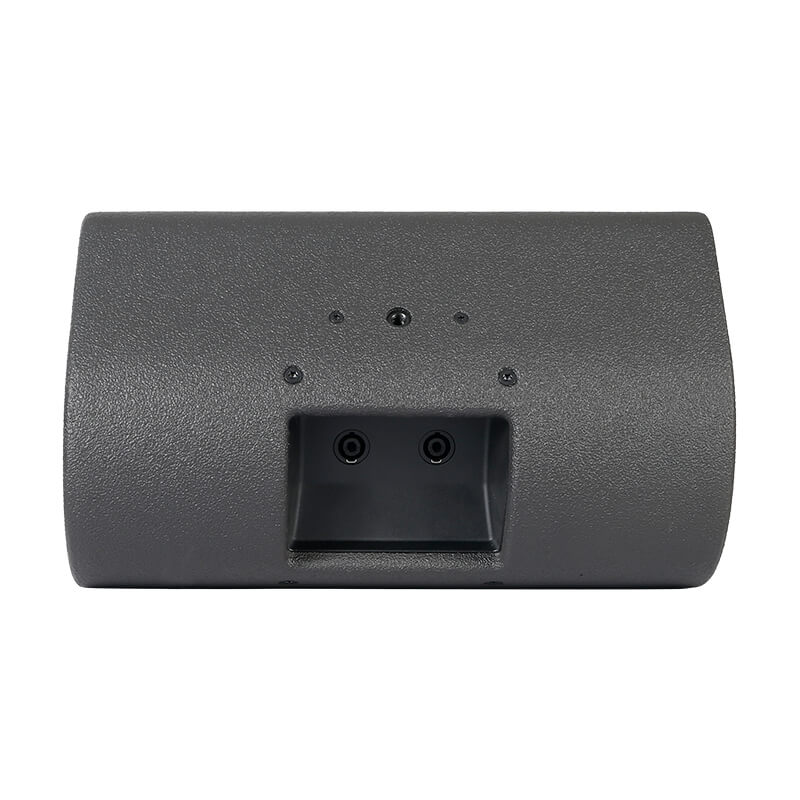

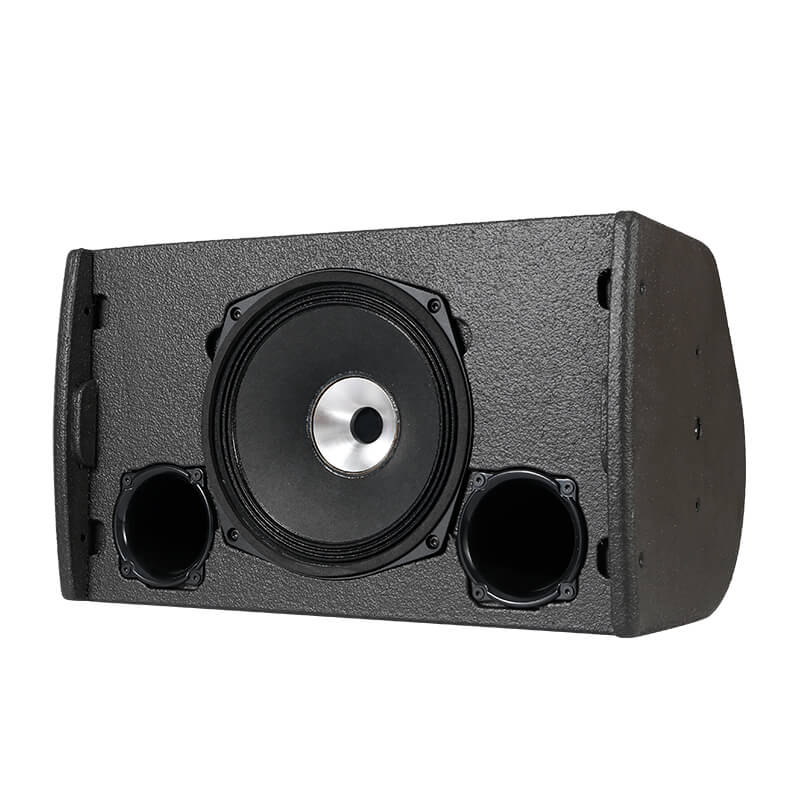

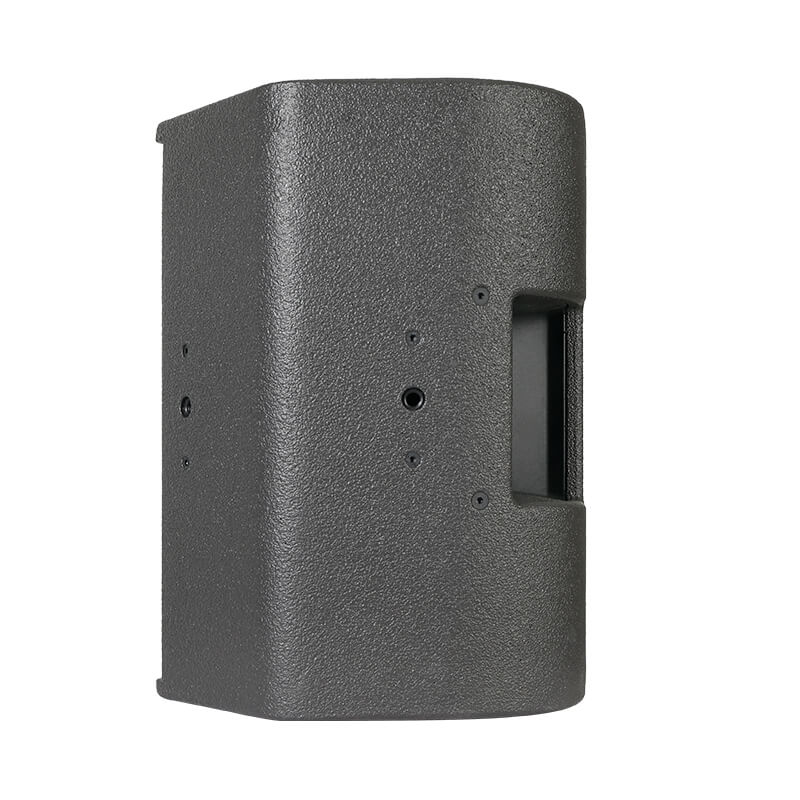

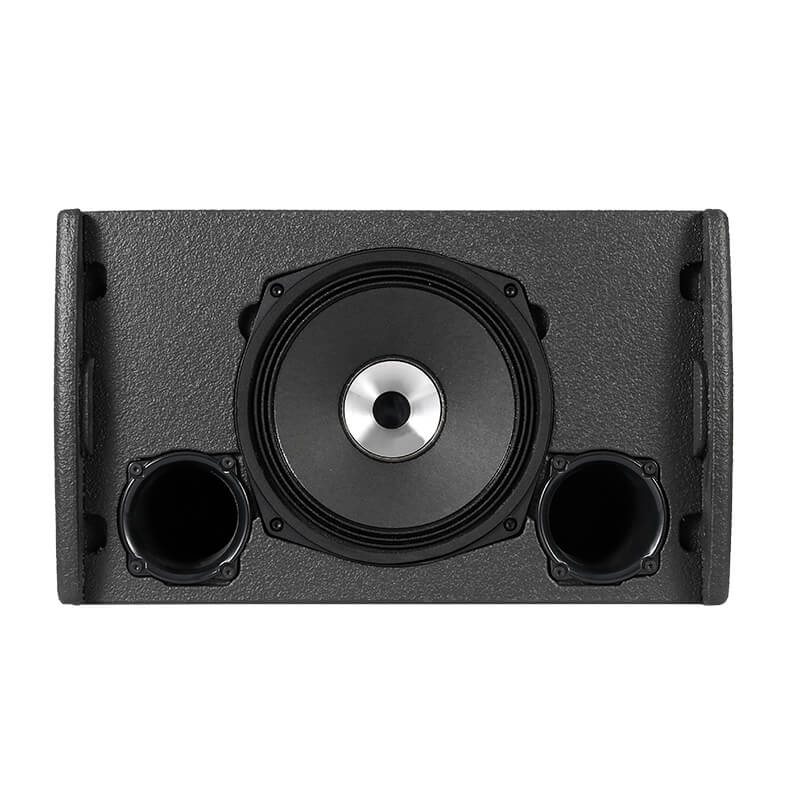

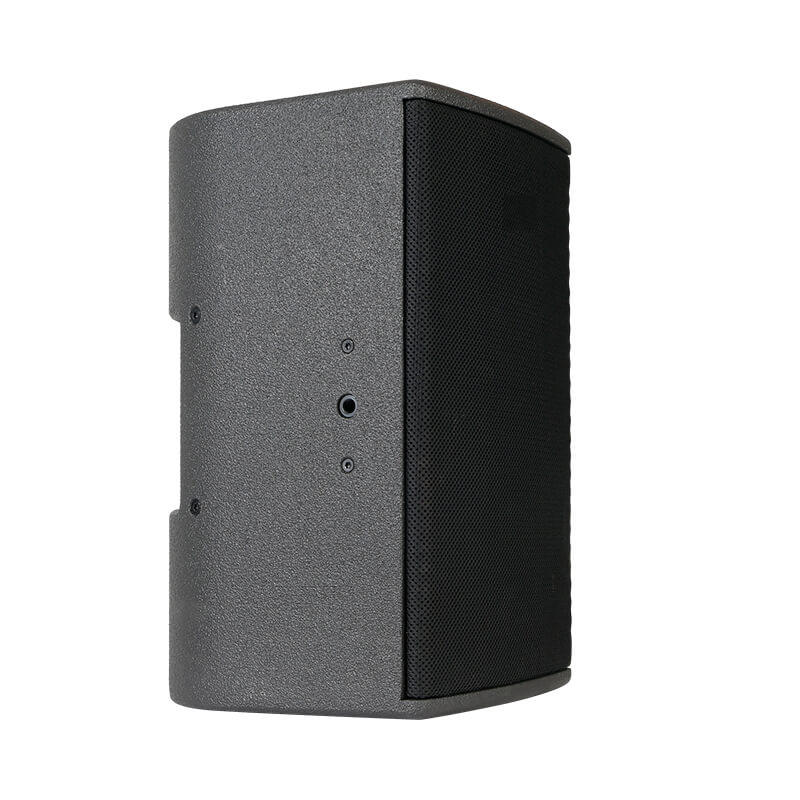

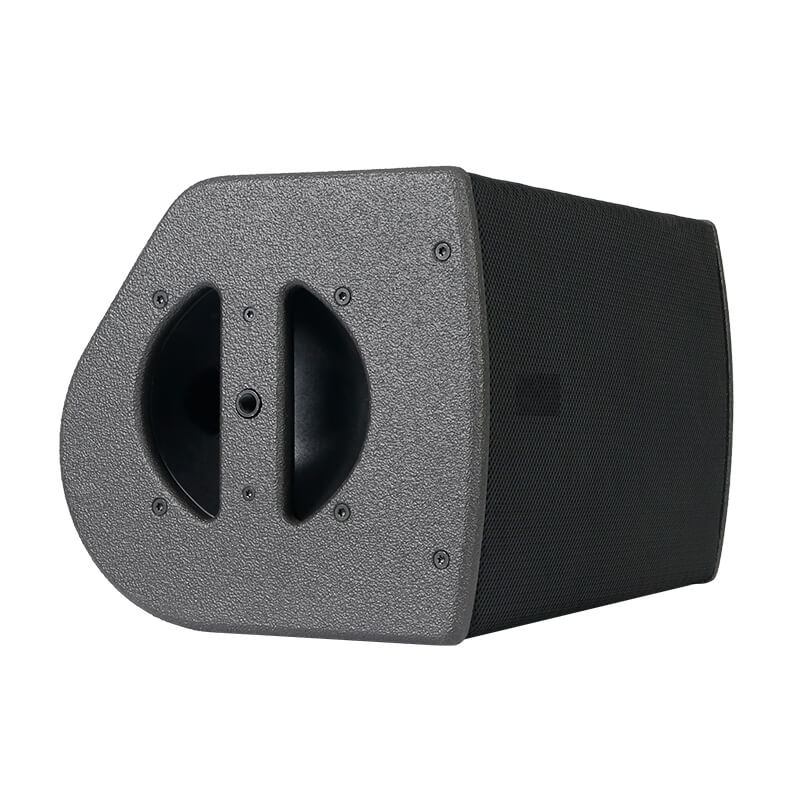

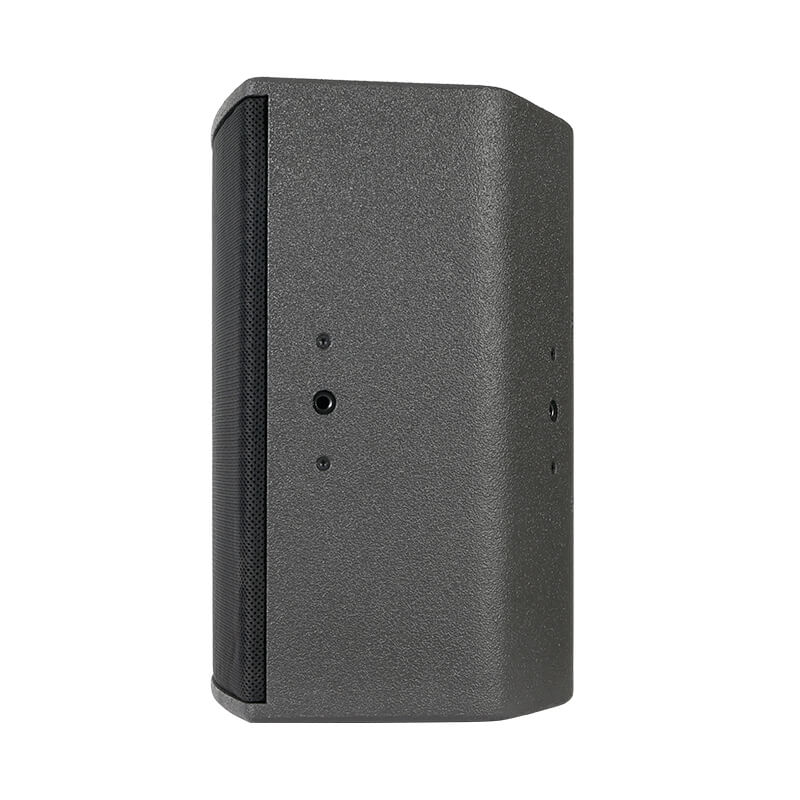

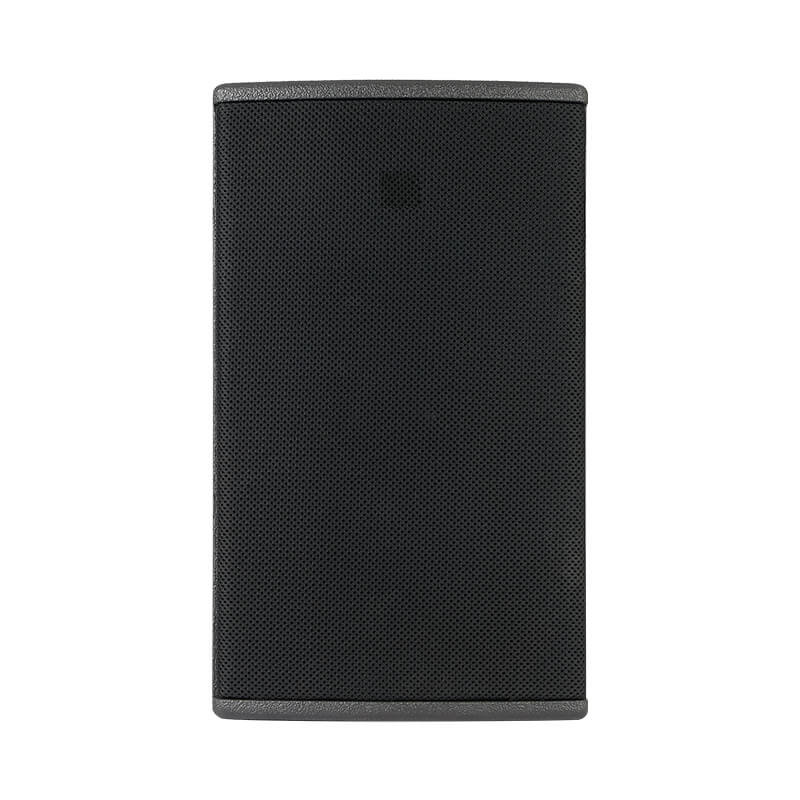

X8 Compact 2-Way Passive Point Source Loudspeaker
X8 Compact 2-Way Passive Point Source Loudspeaker is listed in the point source loudspeakers category as a point source loudspeaker. The reference lists max spl: 129 dB; bandwidth: 60 Hz - 20 kHz. Confirm the exact model, current specifications and supply details before use.
WHATSAPPRequest a Quote- Max SPL
- 129 dB
- Bandwidth
- 60 Hz - 20 kHz
- Weight
- 12 kg / 26.5 lb
Technical specifications
- Max SPL
- 129 dB
- Bandwidth
- 60 Hz - 20 kHz
- Transducers
- LF: 1 x 8-inch cone driver; HF: 1 x 1.5-inch diaphragm compression driver
- Nominal Directivity
- 100° axisymmetric
- Nominal Impedance
- 8 ohms
- Usable bandwidth (-10 dB)
- 60 Hz – 20 kHz ([X8])
- Maximum SPL1
- 129 dB ([X8])
- Nominal directivity (-6 dB)
- 100° axisymmetric

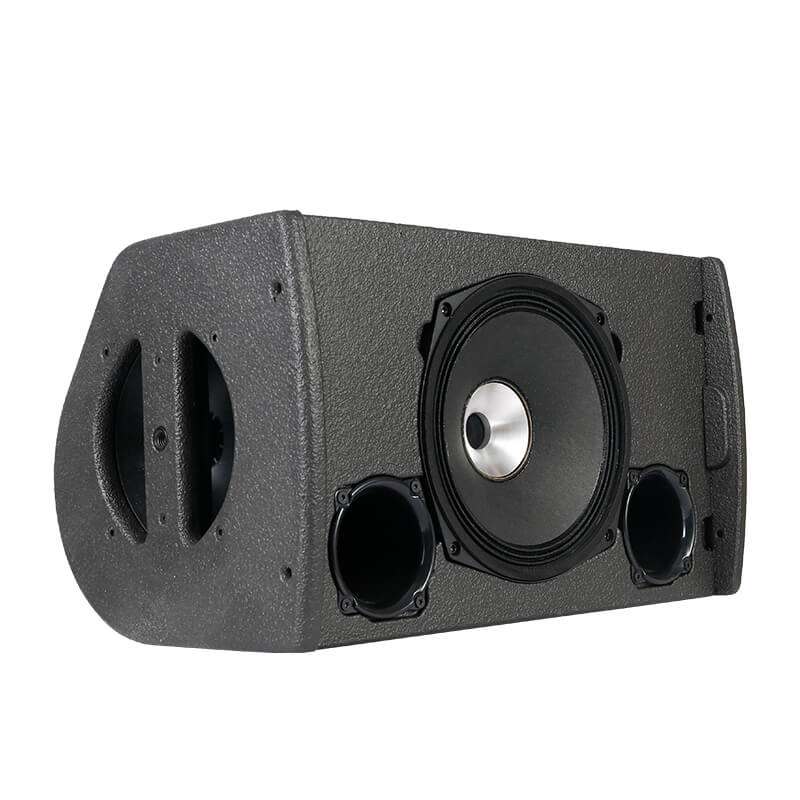

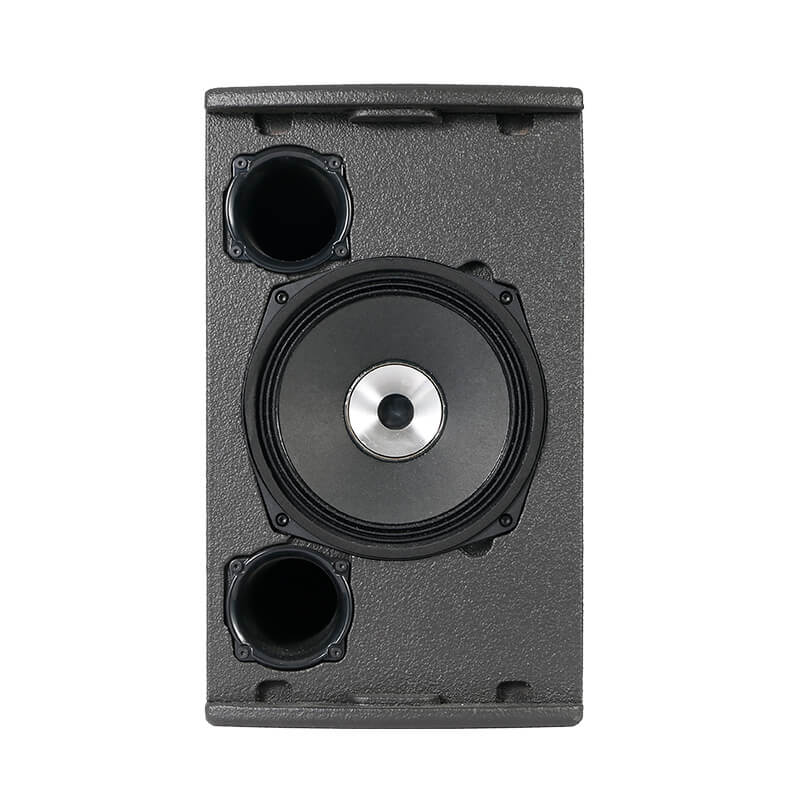

- Transducers LF
- 1 × 8″ cone driver HF: 1 × 1.5″ diaphragm compression driver, neodymium

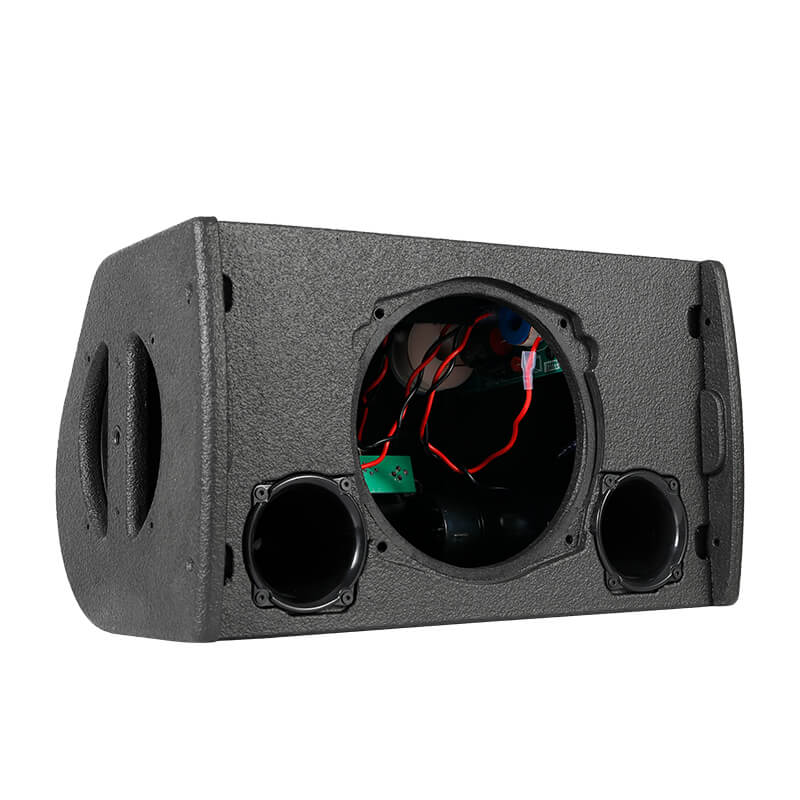

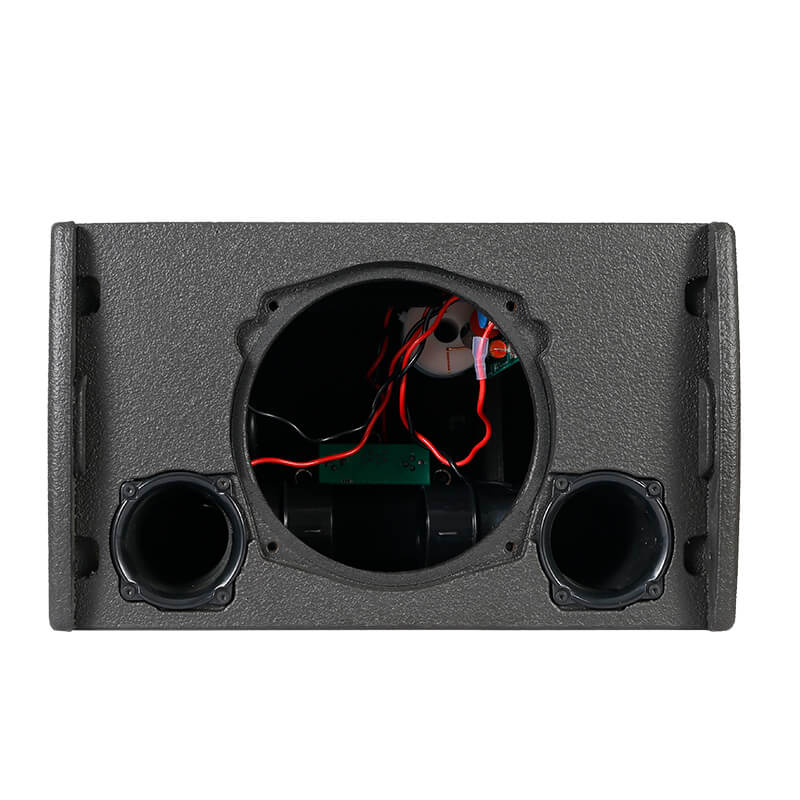

- Acoustical load LF
- bass-reflex, L-Vents HF: conical waveguide
- Nominal impedance
- 8 Ω

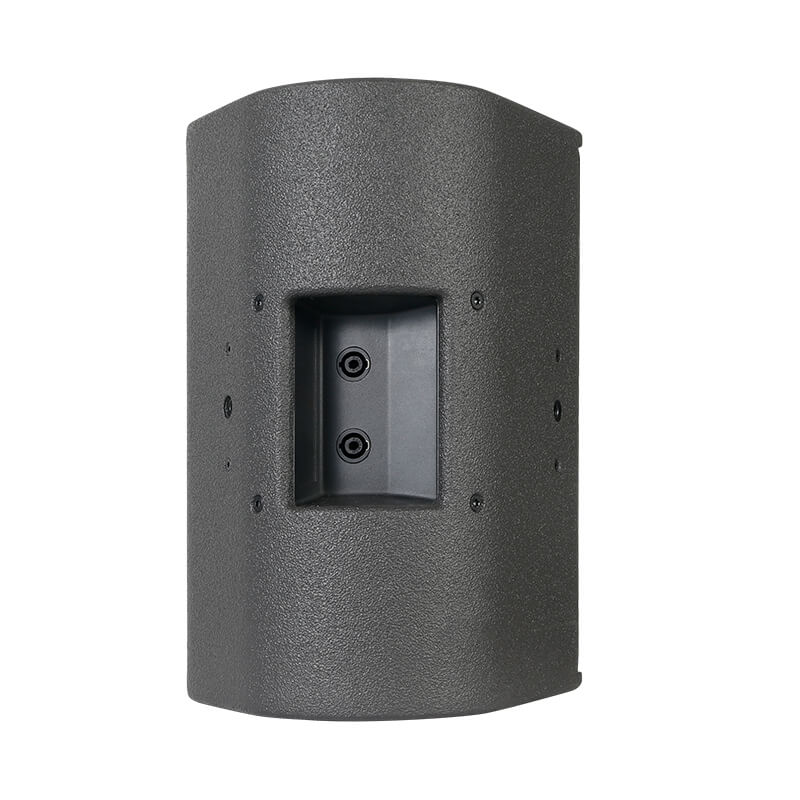

- Connectors IN
- 1 × 4-point speakON LINK: 1 × 4-point speakON
- HF transducers
- 1 × 1.5″ diaphragm compression driver, neodymium
- Acoustical load LF
- bass-reflex, L-Vents
- HF
- conical waveguide
- LINK
- 1 × 4-point speakON
Physical specifications
- Dimensions
- 250 x 424 x 164 mm
- Weight
- 12 kg / 26.5 lb
- Cabinet
- Baltic beech and birch plywood
- Front
- Coated steel grill Acoustically neutral 3D fabric
- Finish
- Dark grey brown Pantone 426 C pure white RAL 9010 custom RAL code on special order
- IP
- IP43
- Front
- Coated steel grill
Compatibility and deployment
- Monitor angle
- 35°
- Function / configuration
- 2-way passive coaxial enclosure
- Function / configuration
- amplified by LA4X / LA12X
- Function / configuration
- Rigging and handling 1 handle
- Function / configuration
- 1 35 mm pole socket
- Function / configuration
- 2-way passive coaxial enclosure amplified by LA4X / LA12X
- Function / configuration

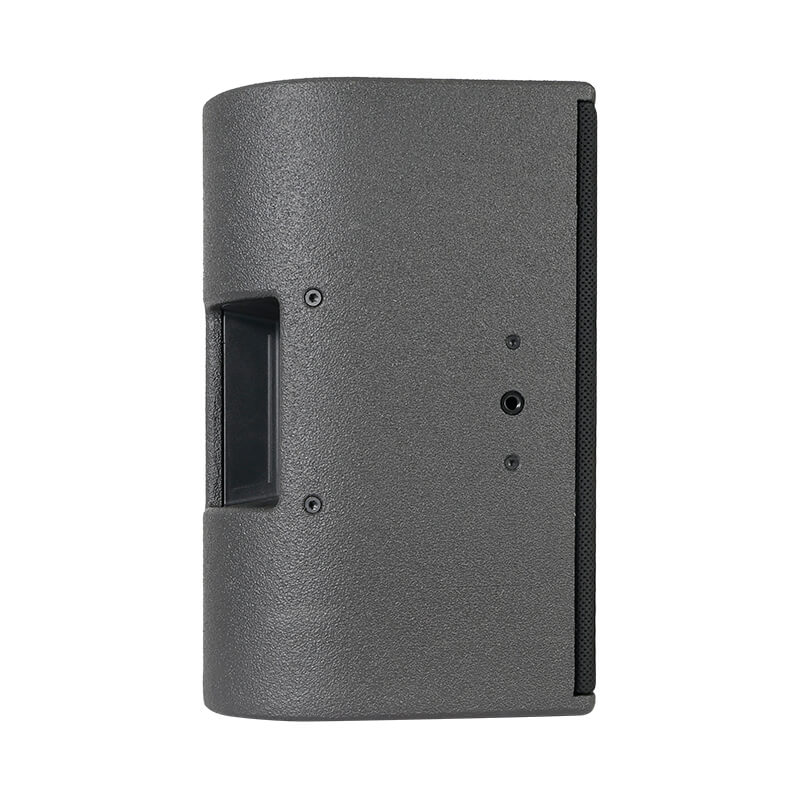

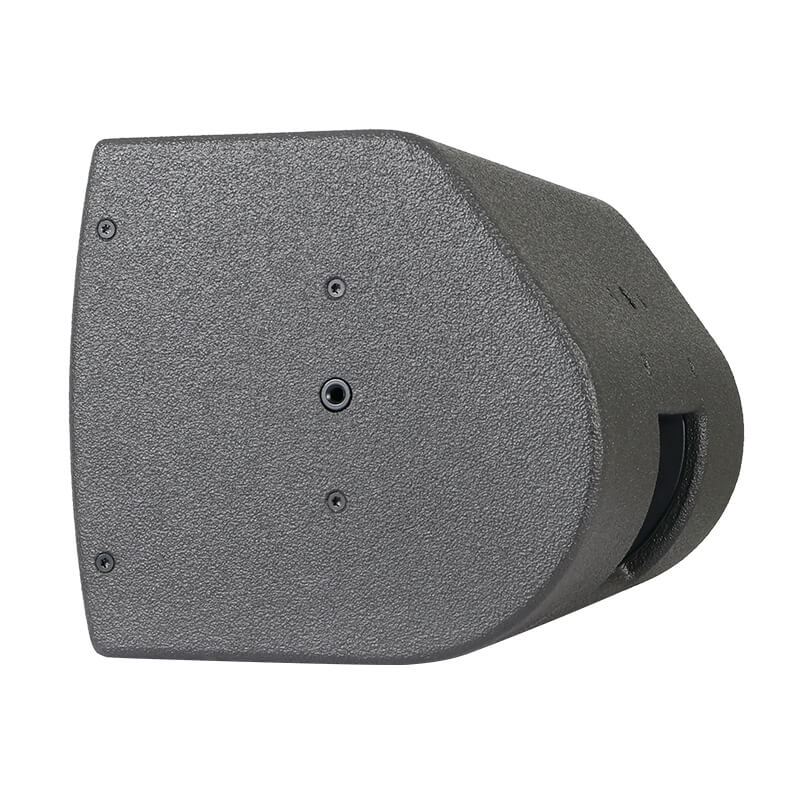

- Rigging and handling 1 handle DIN580-compatible M8 threaded insert 4 M10 threaded inserts 1 35 mm pole socket
TECHNICAL REFERENCE
Product specifications.
Published product details. Ask our team about any configuration that is not listed.
| Max SPL | 129 dB |
|---|---|
| Bandwidth | 60 Hz - 20 kHz |
| Transducers | LF: 1 x 8-inch cone driver; HF: 1 x 1.5-inch diaphragm compression driver |
| Nominal Directivity | 100° axisymmetric |
| Nominal Impedance | 8 ohms |
| Dimensions | 250 x 424 x 164 mm |
| Weight | 12 kg / 26.5 lb |
| Usable bandwidth (-10 dB) | 60 Hz – 20 kHz ([X8]) |
| Maximum SPL1 | 129 dB ([X8]) |
| Nominal directivity (-6 dB) | 100° axisymmetric |
| Monitor angle | 35° |
| Transducers LF | 1 × 8″ cone driver HF: 1 × 1.5″ diaphragm compression driver, neodymium |
| Acoustical load LF | bass-reflex, L-Vents HF: conical waveguide |
| Nominal impedance | 8 Ω |
| Connectors IN | 1 × 4-point speakON LINK: 1 × 4-point speakON |
| Weight (net) | 12 kg / 26.5 lb |
| Cabinet | Premium grade Baltic beech and birch plywood |
| Front | Coated steel grill Acoustically neutral 3D fabric |
| Finish | Dark grey brown Pantone 426 C pure white RAL 9010 custom RAL code on special order |
| IP | IP43 |
