Product identification
- Model
- X12 Passive 2-Way Point Source Loudspeaker
- Product category
- Point Source Loudspeakers

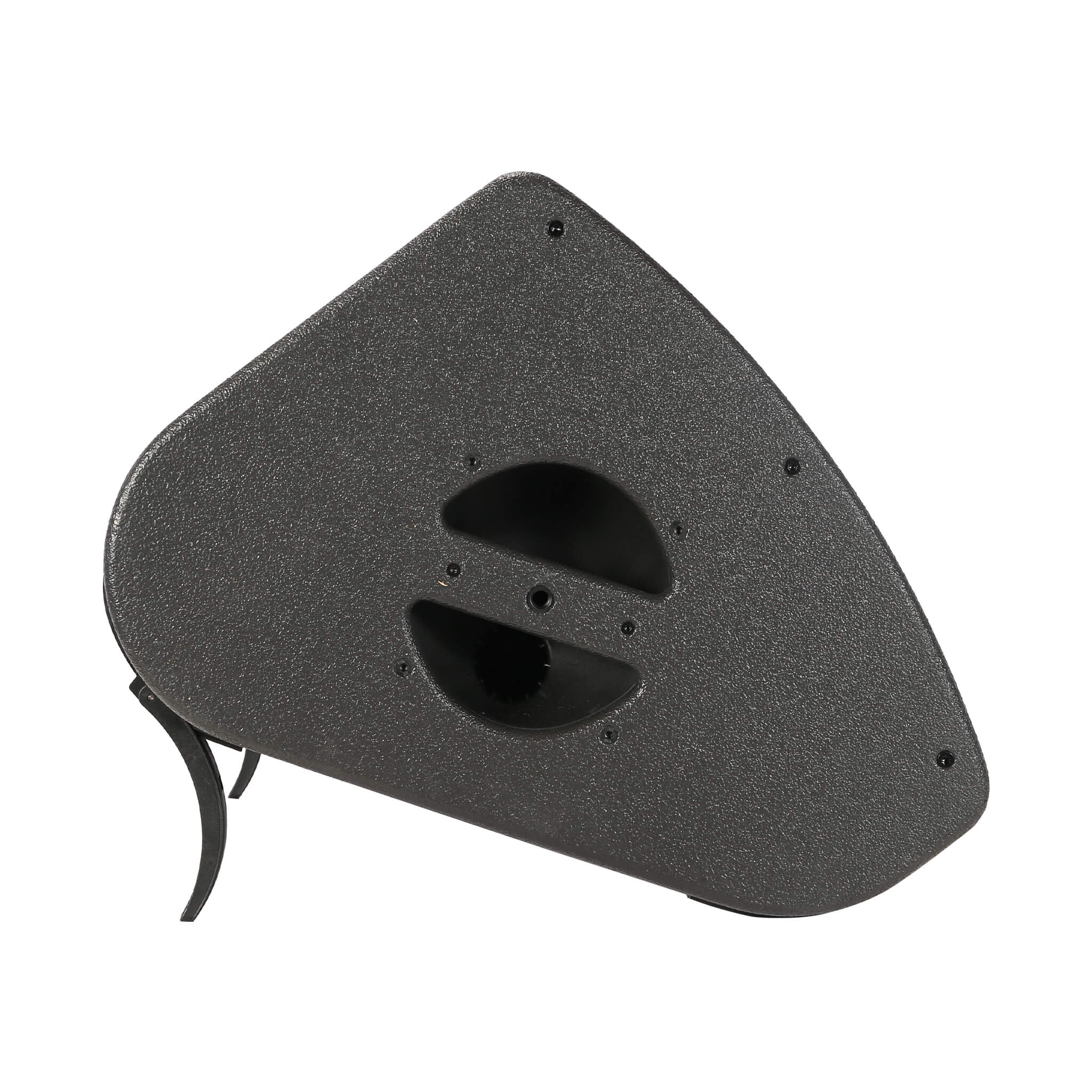

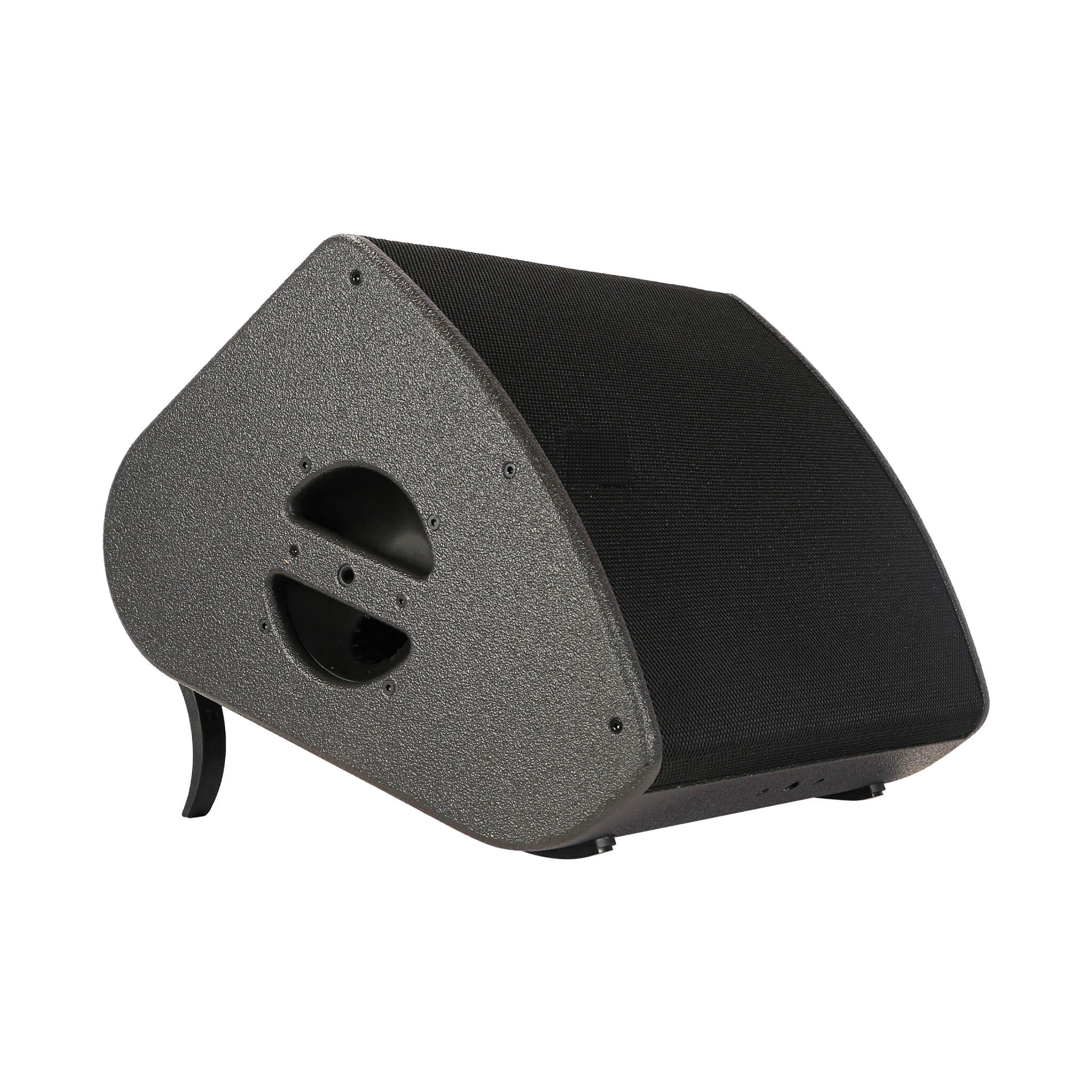

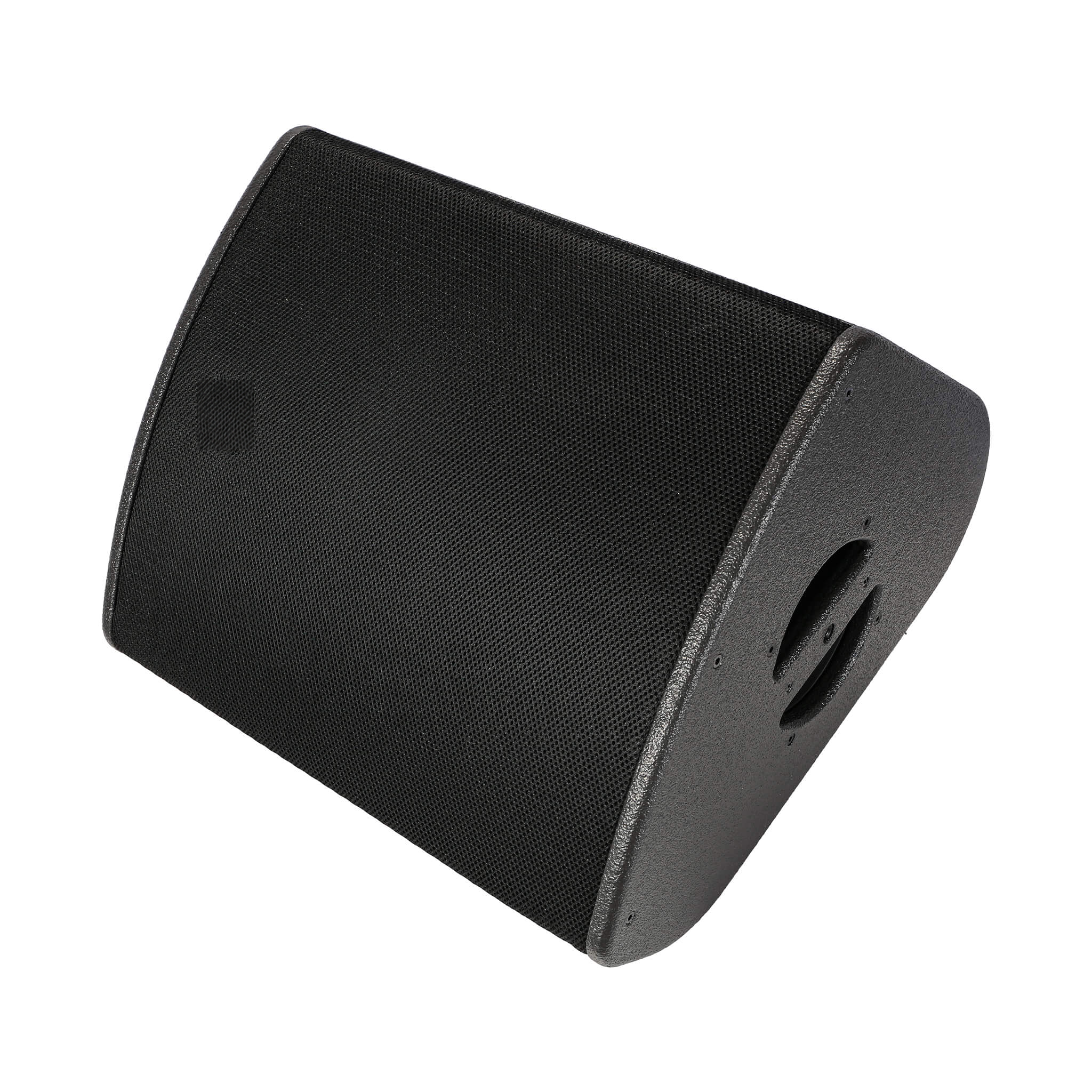

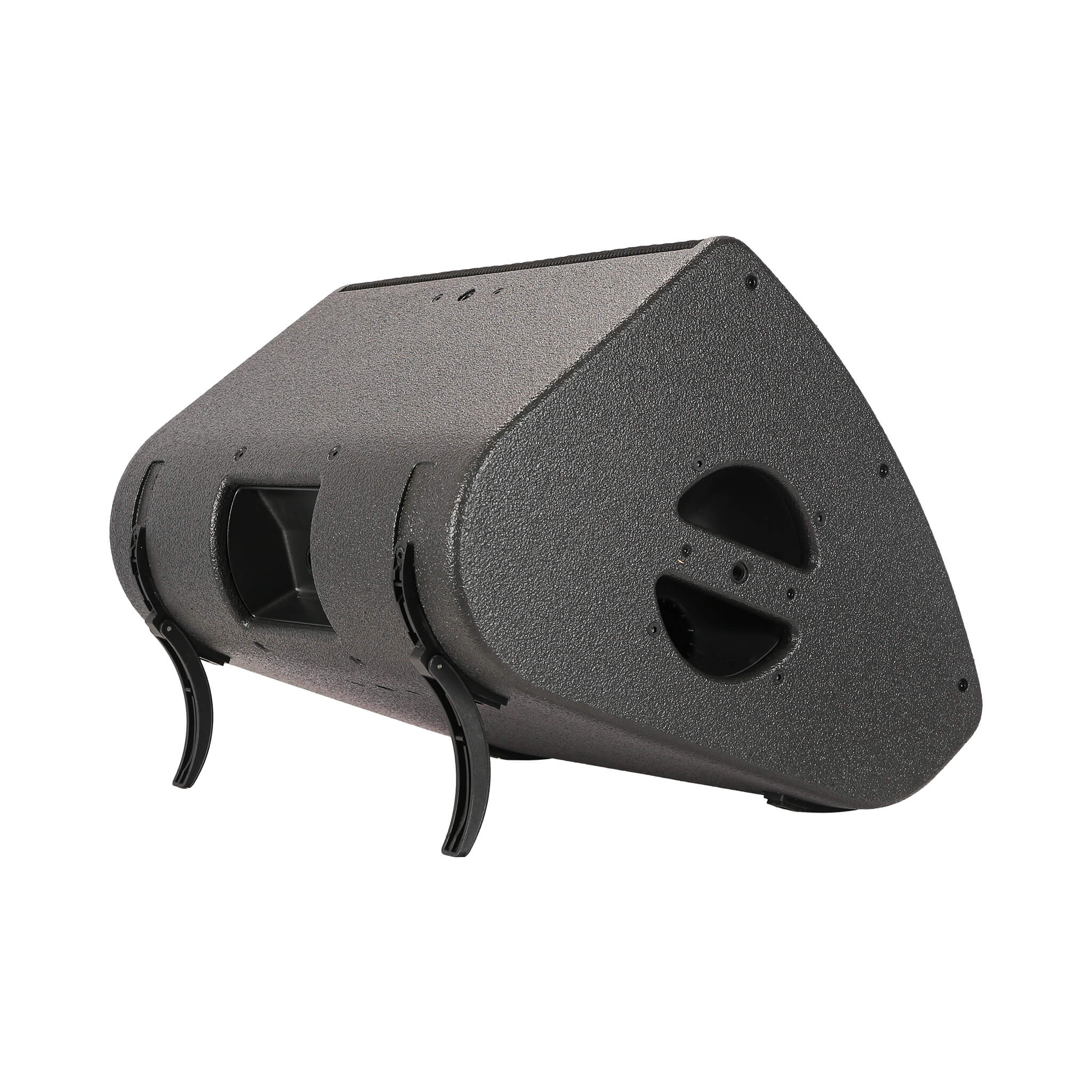

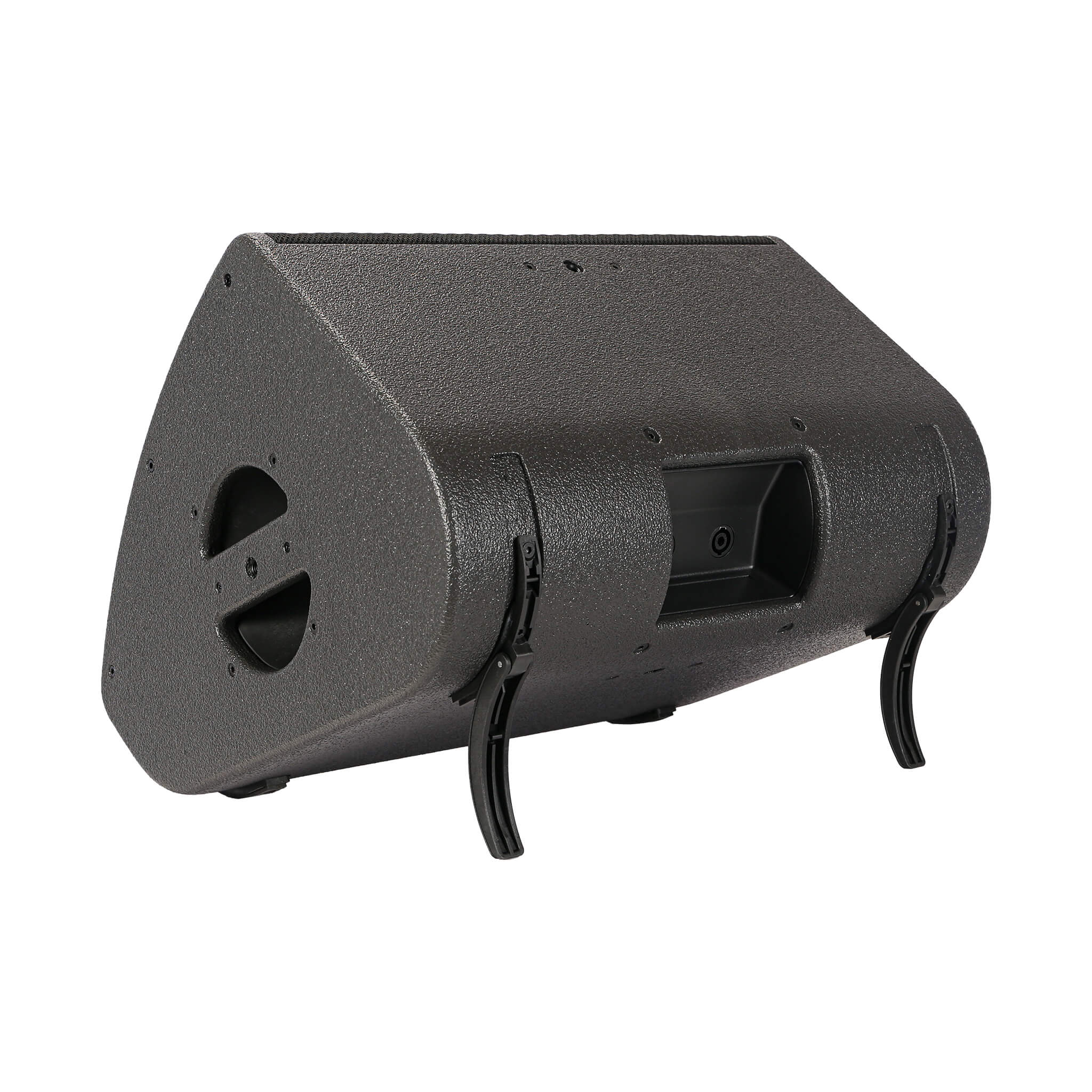

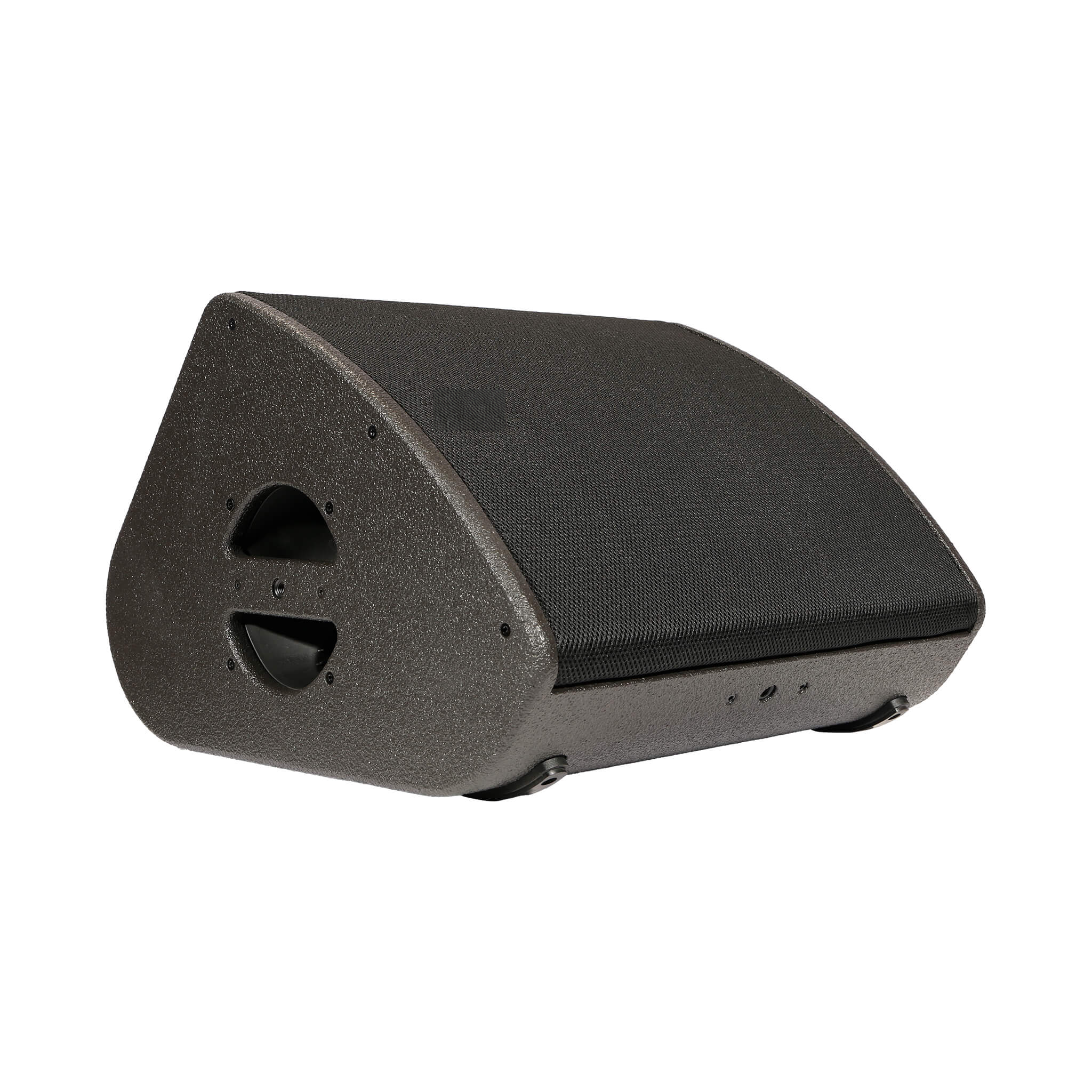

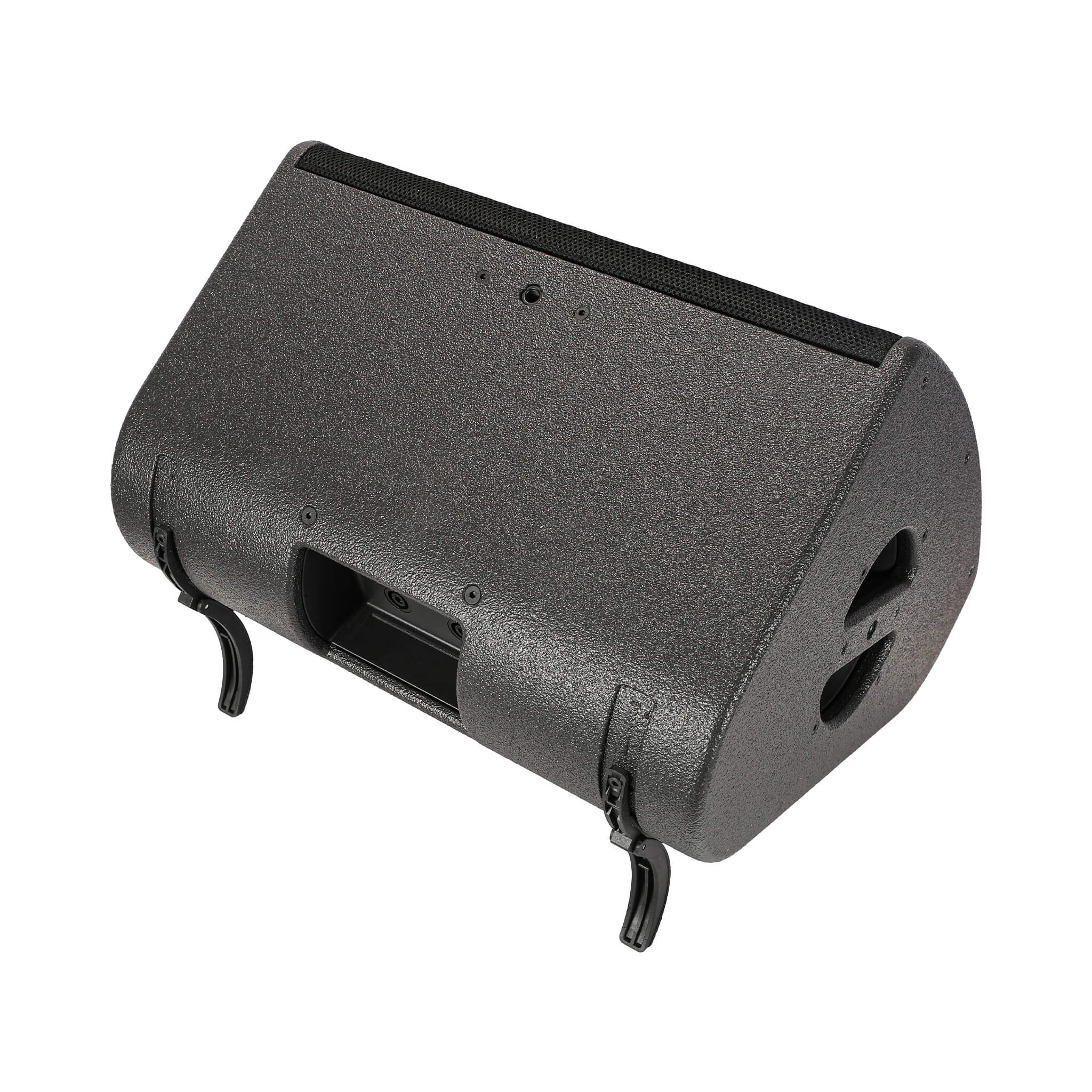

X12 Passive 2-Way Point Source Loudspeaker
X12 Passive 2-Way Point Source Loudspeaker is listed in the point source loudspeakers category as a point source loudspeaker. The reference lists max spl: 136 dB; bandwidth: 59 Hz- 20 kHz. Confirm the exact model, current specifications and supply details before use.
WHATSAPPRequest a Quote- Max SPL
- 136 dB
- Bandwidth
- 59 Hz- 20 kHz
- Weight
- 20 kg / 44.1 lb
Technical specifications
- Max SPL
- 136 dB
- Bandwidth
- 59 Hz- 20 kHz
- Transducers LF
- 1 x 12"
- HF transducers
- 1 x 3"
- Directivity H
- 90°
- V
- 60°
- Nominal directivity (-6 dB) Vertical
- 90° symmetric
- horizontal
- 60° symmetric
- with risers
- 55°
- Transducers LF
- 1 × 12″cone driver
- HF transducers
- 1 × 3″diaphragm compression driver, neodymium
- Connectors IN
- 1 × 4-point speakON LINK: 1 × 4-point speakON Rigging and handling 2 × handles DIN580-compatible M8 threaded insert 4 M10 threaded inserts 1 × 35 mm pole socket Weight (net) 20 kg / 44.1 lb Cabinet Baltic beech and birch plywood Front Steel with anti-corrosion coating acoustically neutral 3D fabric Finish Dark grey brown Pantone 426 C pure white RAL 9010 custom RAL code on special order IP IP43
- LINK
- 1 × 4-point speakON
Physical specifications
- Weight
- 20 kg / 44.1 lb
- Weight
- (net) 20 kg / 44.1 lb
Compatibility and deployment
- Monitor angle Without risers
- 35°
- Function / configuration
- 2-way passive coaxial enclosure
- Function / configuration
- amplified by LA2Xi / LA4X / LA8 / LA12X
- Function / configuration
- Usable bandwidth (-10 dB) 59 Hz – 20
- Function / configuration
- Maximum SPL1 136 dB ([X12])
- Function / configuration
- Nominal impedance 8 Ω
- Function / configuration
- 1 Peak level measured at 1 m under free field
- Function / configuration
- conditions using pink noise with crest factor 4 (preset specified in brackets).
- Function / configuration
- Rigging and handling 2 × handles
- Function / configuration
- 1 × 35 mm pole socket
- Function / configuration
- 2-way passive coaxial enclosure amplified by LA2Xi / LA4X / LA8 / LA12X
- Function / configuration
- Usable bandwidth (-10 dB) 59 Hz – 20 kHz ([X12])
- Function / configuration
- 1 Peak level measured at 1 m under free field conditions using pink noise with crest factor 4 (preset specified in brackets).
TECHNICAL REFERENCE
Product specifications.
Published product details. Ask our team about any configuration that is not listed.
| Max SPL | 136 dB |
|---|---|
| Bandwidth | 59 Hz- 20 kHz |
| Transducers LF | 1 x 12" |
| HF | 1 x 3" |
| Weight | 20 kg / 44.1 lb |
| Directivity H | 90° |
| V | 60° |
| Nominal directivity (-6 dB) Vertical | 90° symmetric |
| horizontal | 60° symmetric |
| Monitor angle Without risers | 35° |
| with risers | 55° |
| Transducers LF | 1 × 12″cone driver |
| HF | 1 × 3″diaphragm compression driver, neodymium |
| Connectors IN | 1 × 4-point speakON LINK: 1 × 4-point speakON Rigging and handling 2 × handles DIN580-compatible M8 threaded insert 4 M10 threaded inserts 1 × 35 mm pole socket Weight (net) 20 kg / 44.1 lb Cabinet Premium grade Baltic beech and birch plywood Front Steel with anti-corrosion coating acoustically neutral 3D fabric Finish Dark grey brown Pantone 426 C pure white RAL 9010 custom RAL code on special order IP IP43 |
Downloads
| Title | File type | Download |
|---|---|---|
| YL X12 Selected Technical DataEnglish | PDF74 KB |
