Product identification
- Model
- X115Q / X15 HiQ 15-Inch Coaxial Stage Monitor Loudspeaker
- Product category
- Stage Monitors

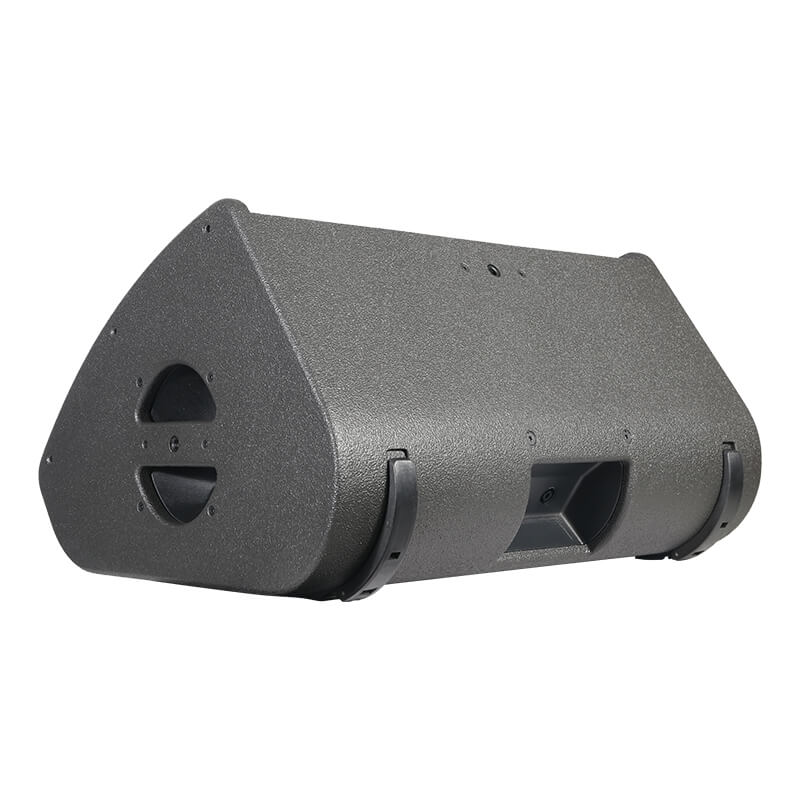

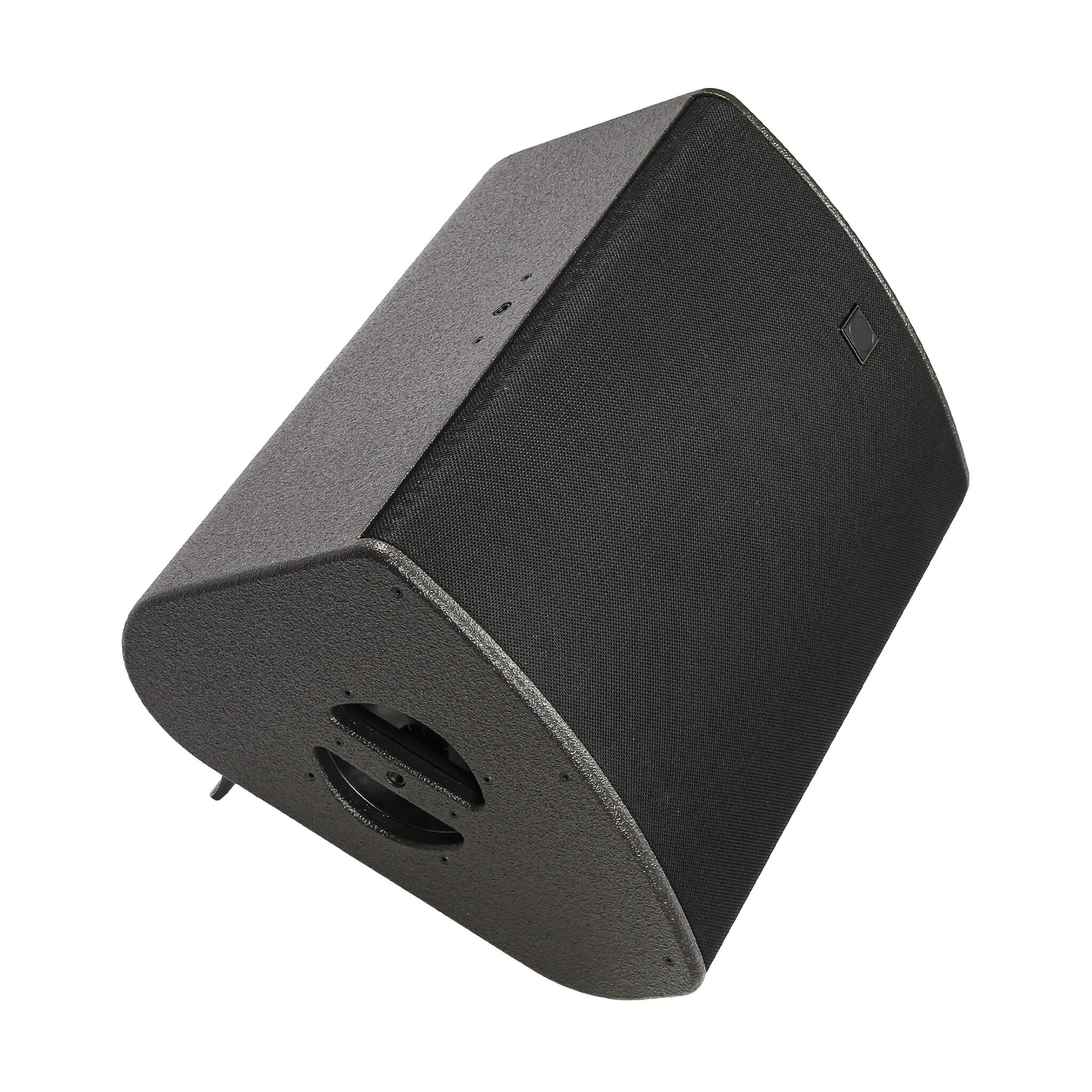

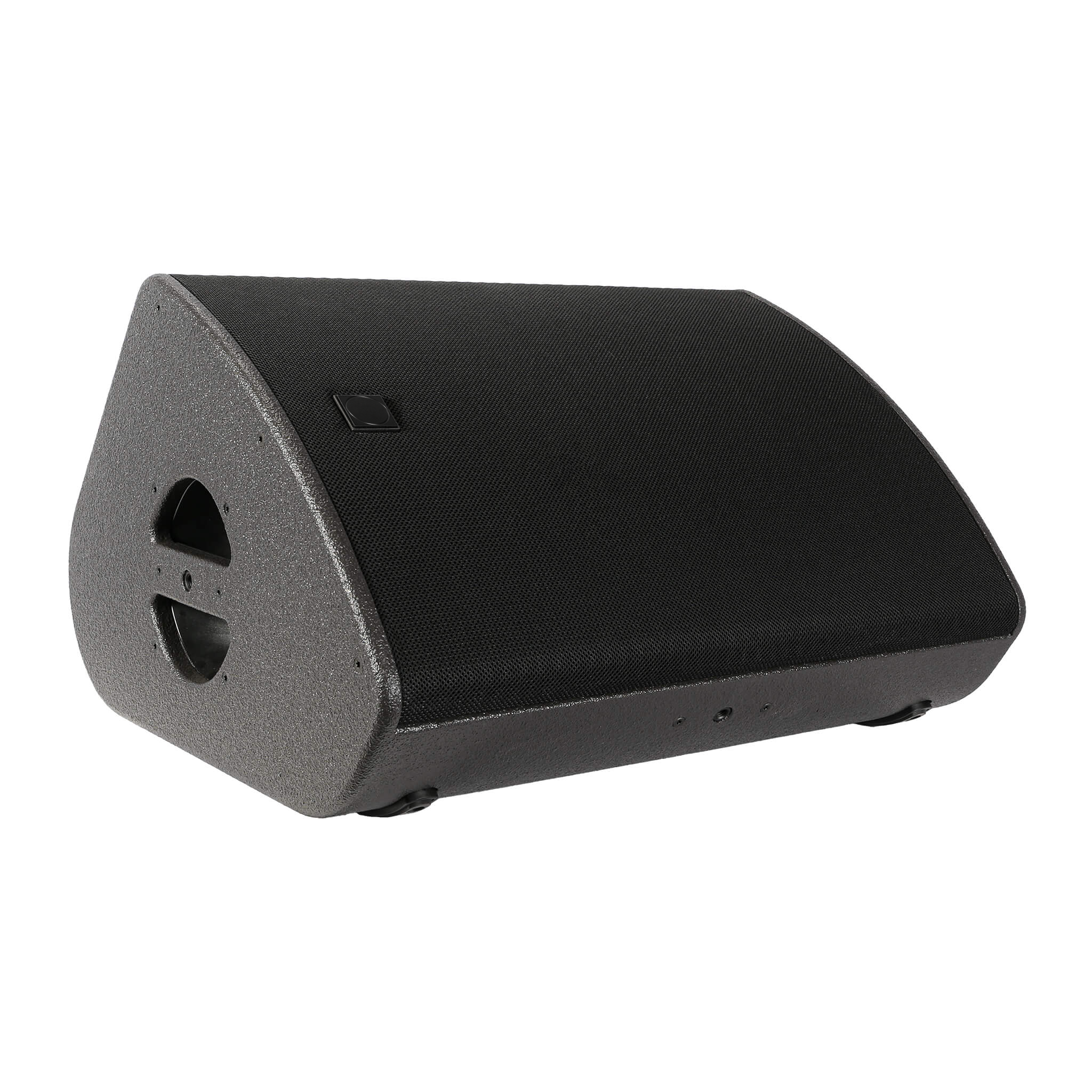

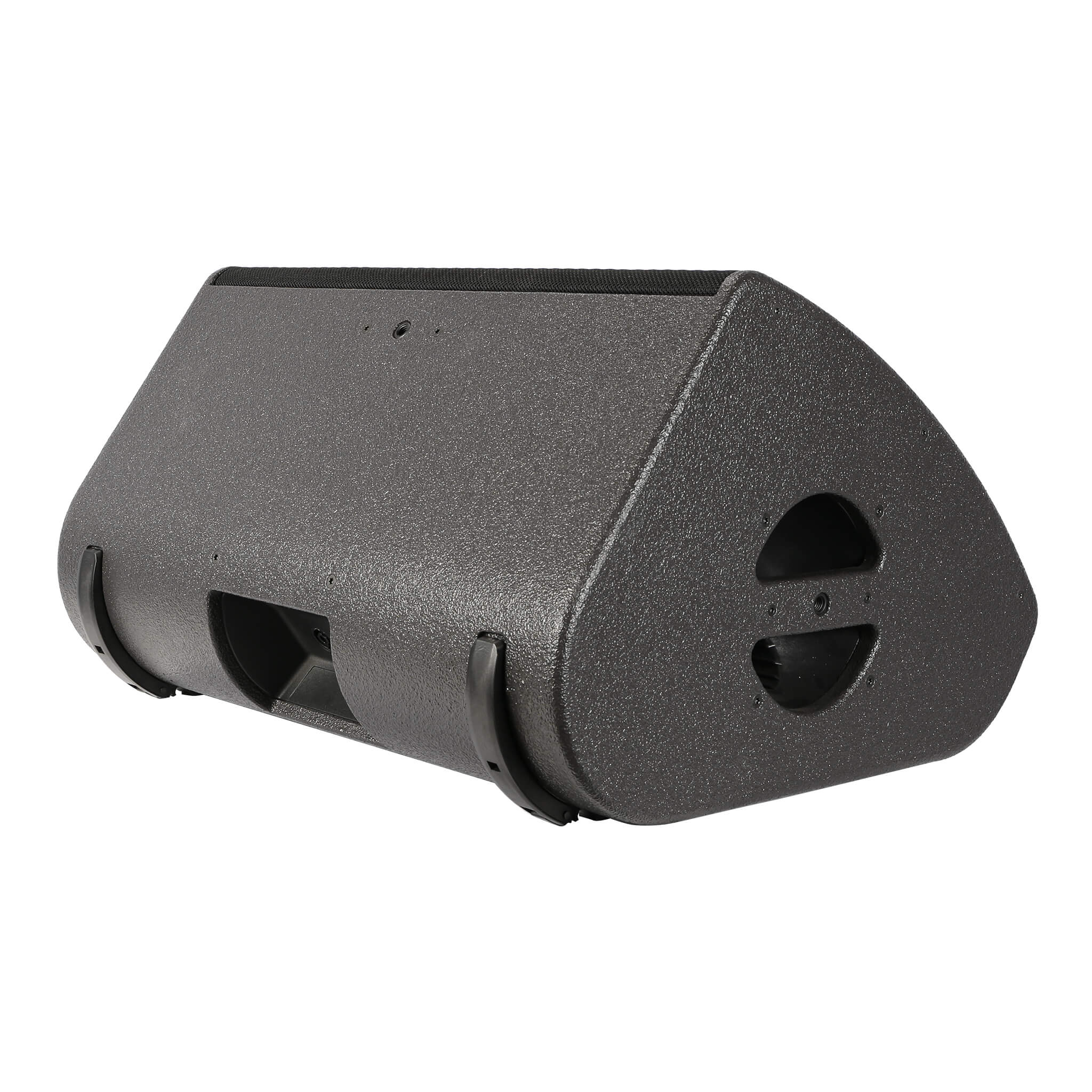

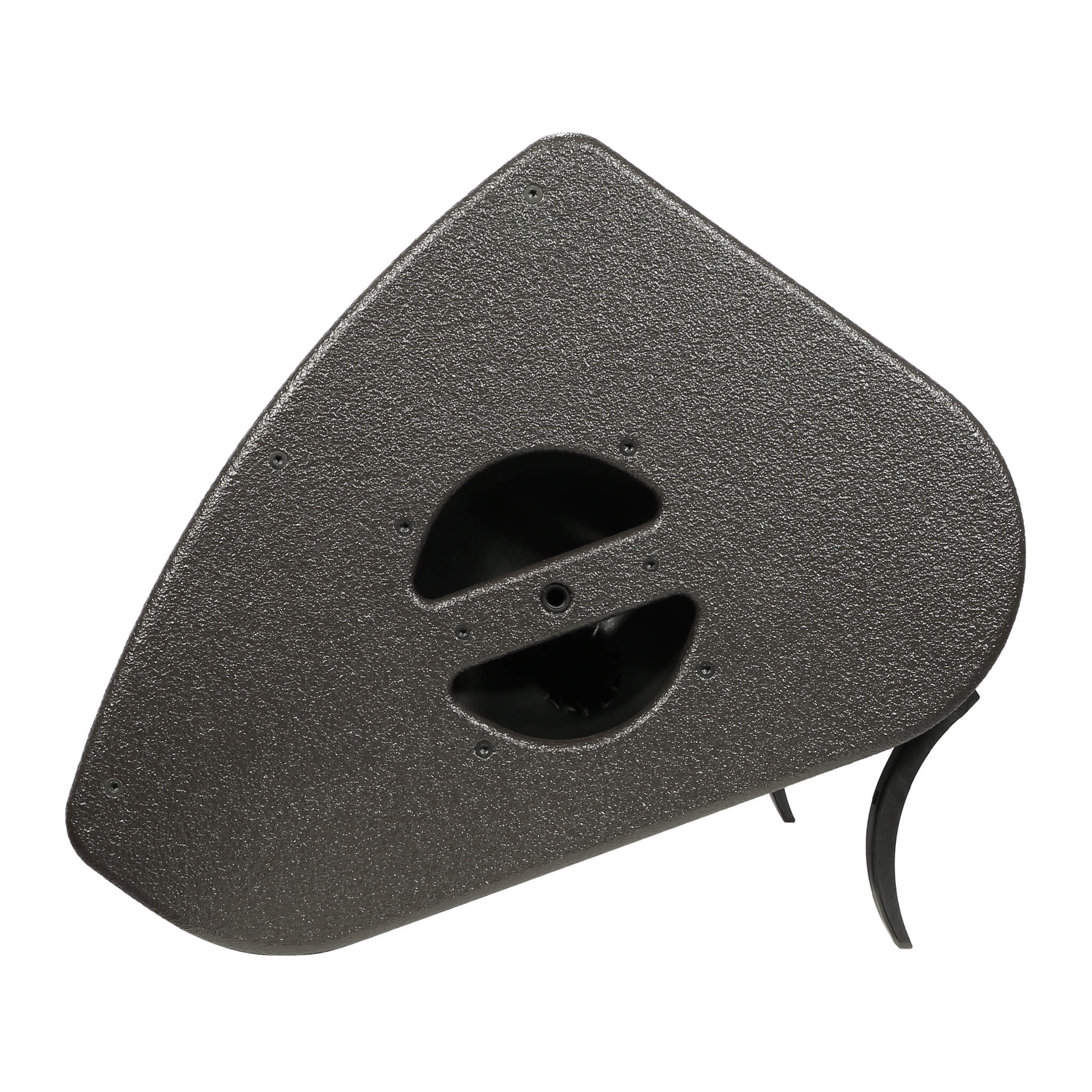

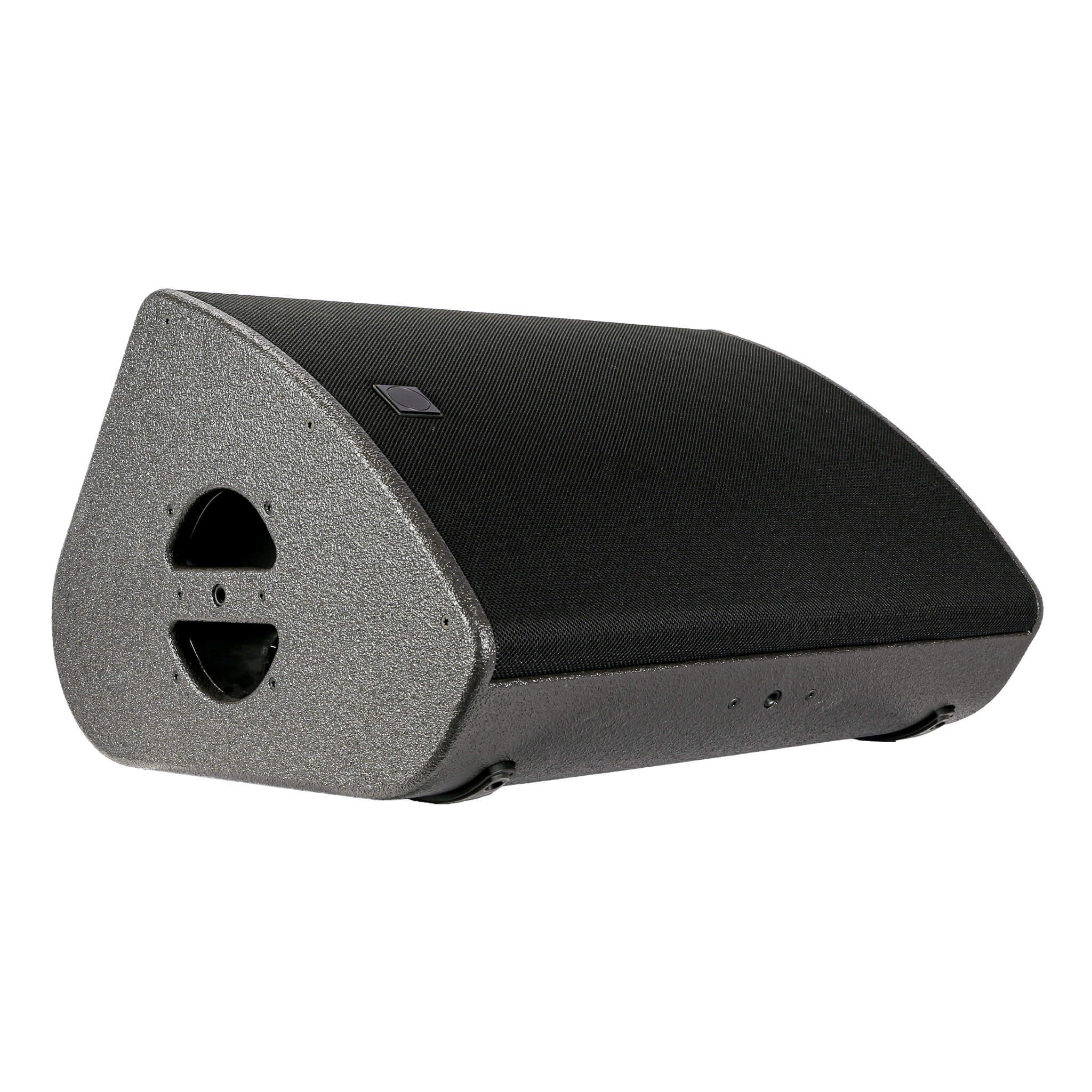

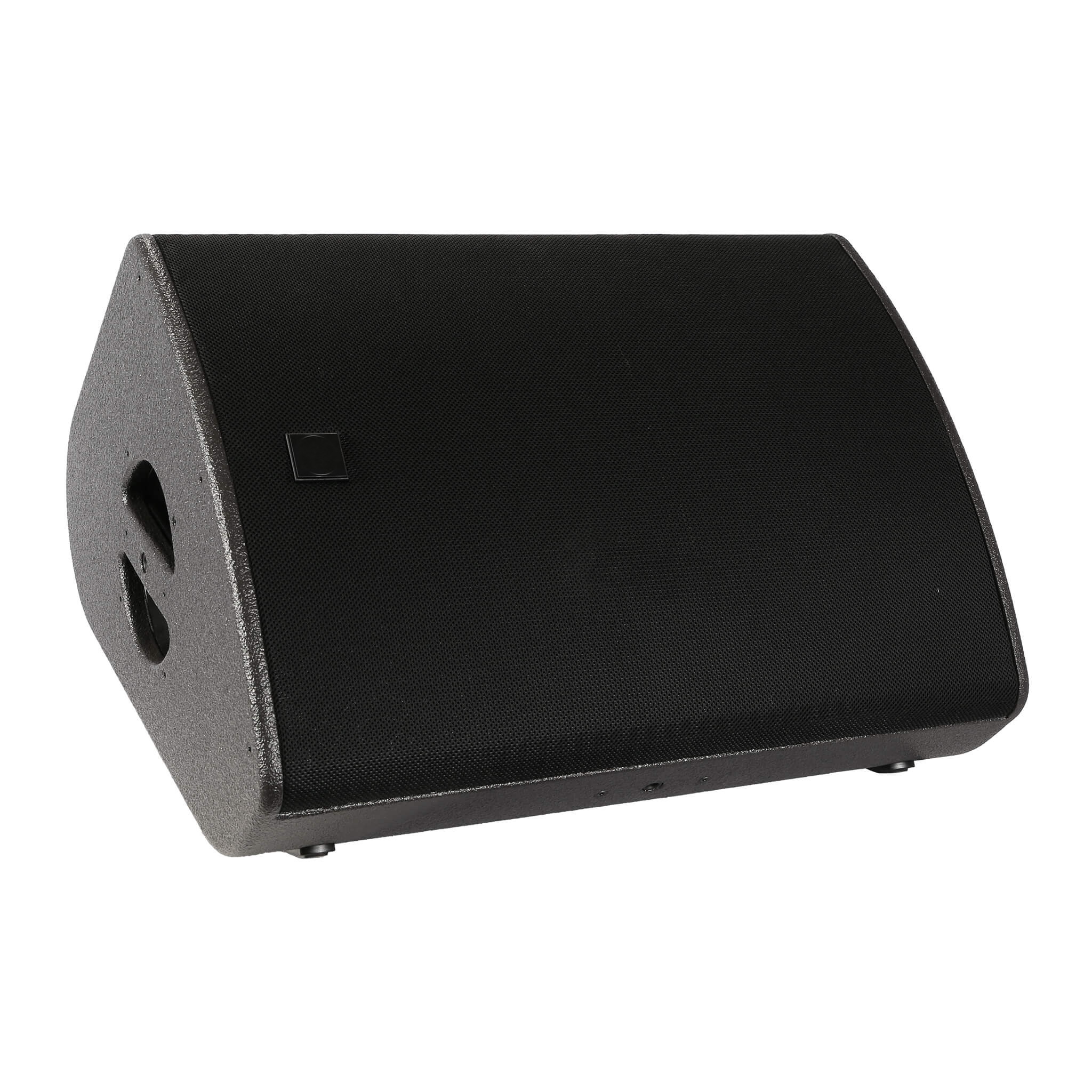

X115Q / X15 HiQ 15-Inch Coaxial Stage Monitor Loudspeaker
X115Q / X15 HiQ 15-Inch Coaxial Stage Monitor Loudspeaker is listed in the stage monitors category as a stage monitor. The reference lists usable bandwidth: 55 Hz - 20 kHz (-10 dB, X15 preset); maximum spl: 138 dB peak @ 1 m, free field. Confirm the exact model, current specifications and supply details before use.
WHATSAPPRequest a Quote- Maximum SPL
- 138 dB peak @ 1 m, free field
- Usable bandwidth
- 55 Hz - 20 kHz (-10 dB, X15 preset)
- Net weight
- 21 kg / 46.2 lb
Technical specifications
- System type
- 2-way active-crossover coaxial enclosure
- Usable bandwidth
- 55 Hz - 20 kHz (-10 dB, X15 preset)
- Maximum SPL
- 138 dB peak @ 1 m, free field
- Nominal directivity
- 40° horizontal × 60° vertical
- Transducers
- 1 × 15-inch LF neodymium transducer + 1 × 3-inch HF neodymium compression driver
- Nominal impedance
- LF 8 Ω / HF 8 Ω
- Connectors

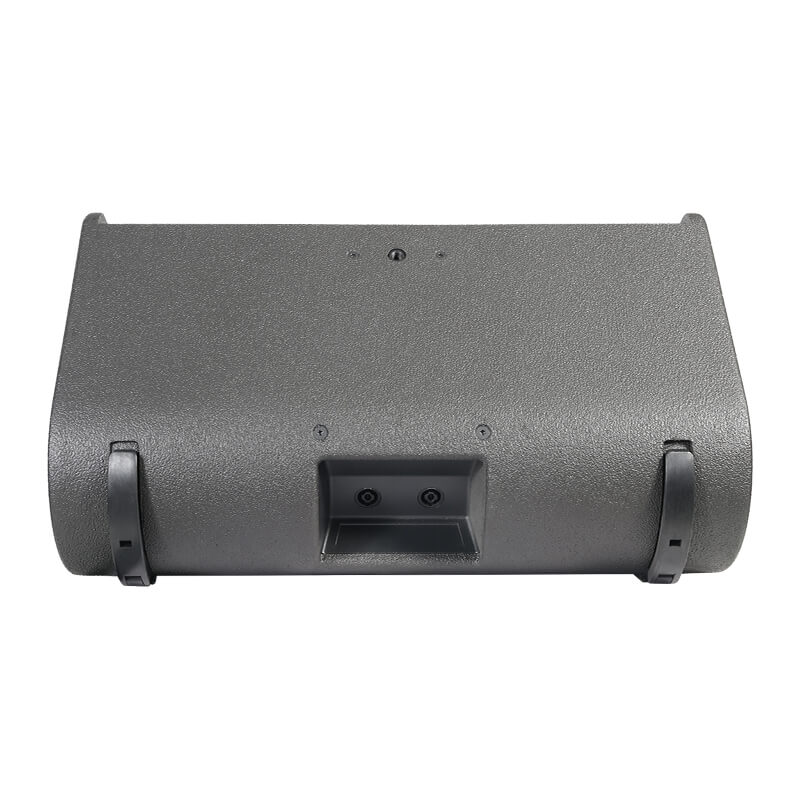

- 2 × 4-point speaker connectors, IN / LINK
- Controlled ellipsoid coverage
- 40° horizontal × 60° vertical directivity focuses useful energy and reduces unwanted stage spill.
- Model
- X115Q / X15 HiQ
- LF transducer
- 1 × 15-inch neodymium, bass-reflex
- HF transducer
- 1 × 3-inch neodymium compression driver
- Pin assignment
- 1+/1- LF; 2+/2- HF
- Ingress protection
- IP43
- Control
- Use approved amplified controllers with X15 or X15_MO factory preset.
- System configuration
- Its compact low-profile enclosure, controlled 40° × 60° directivity and controller-driven active crossover workflow give performers clear monitoring
- Reference stage monitoring
- high SPL, low-profile geometry and dual built-in monitor angles support demanding live stages.
- Coaxial point-source behavior
- the LF and HF sources share one acoustic axis for smooth off-axis response and stable coverage.
- Flexible deployment
- use as a floor monitor, pole-mounted narrow fill, wall / ceiling speaker or flown single enclosure with approved accessories.
- Controller-driven performance
- use approved amplified controllers with the X15 or X15_MO factory preset for crossover, alignment, linearization and protection.
Compatibility and deployment
- Monitoring angles

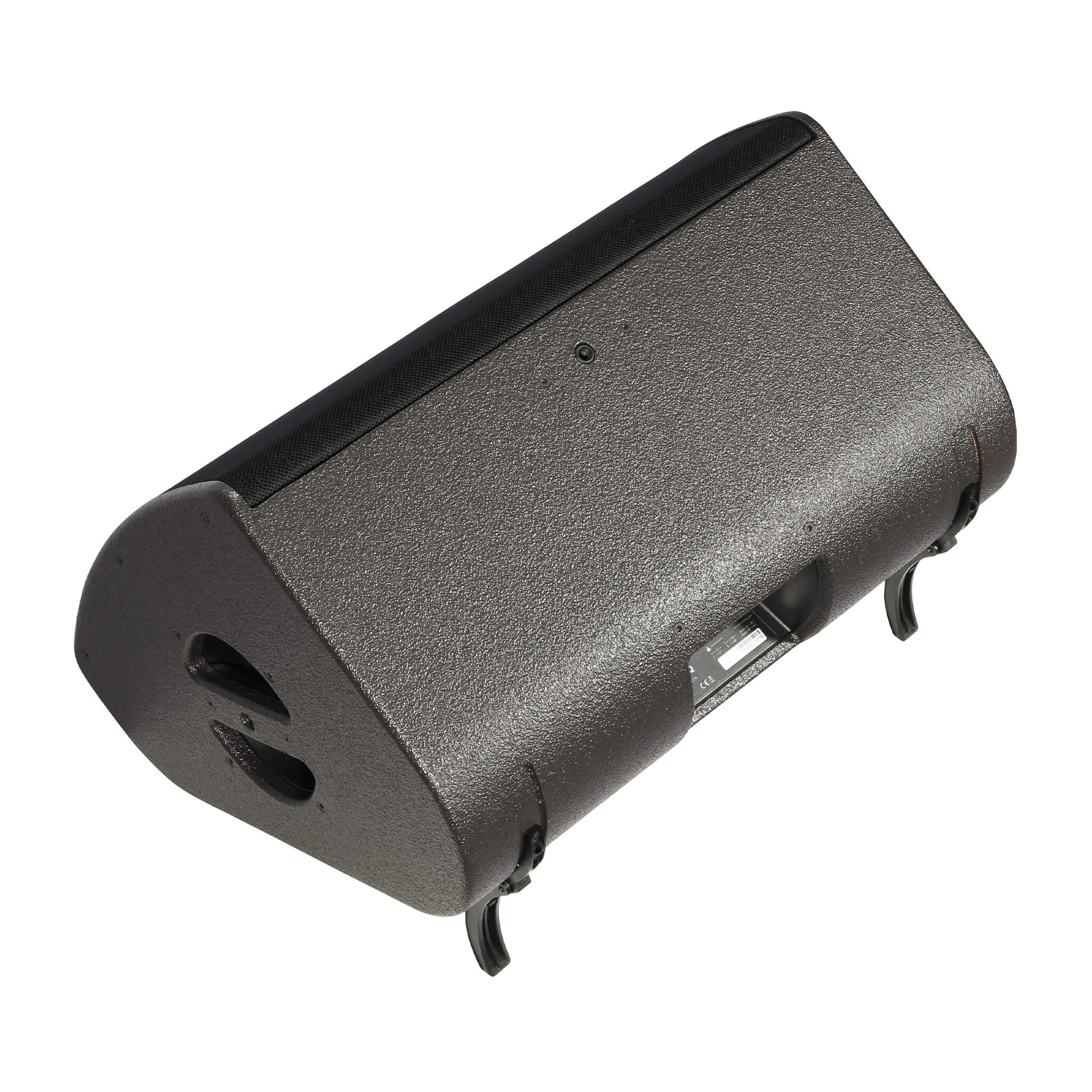

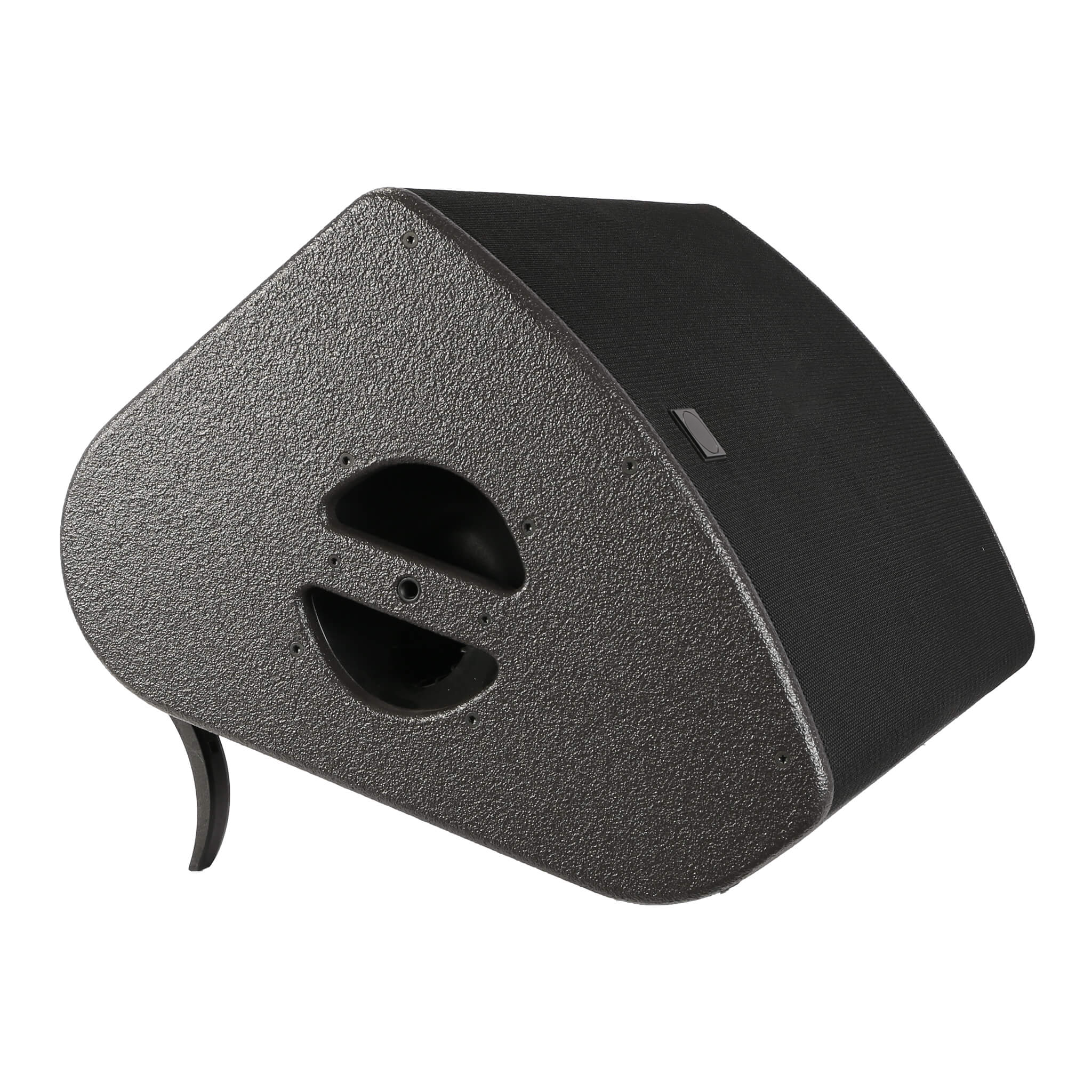

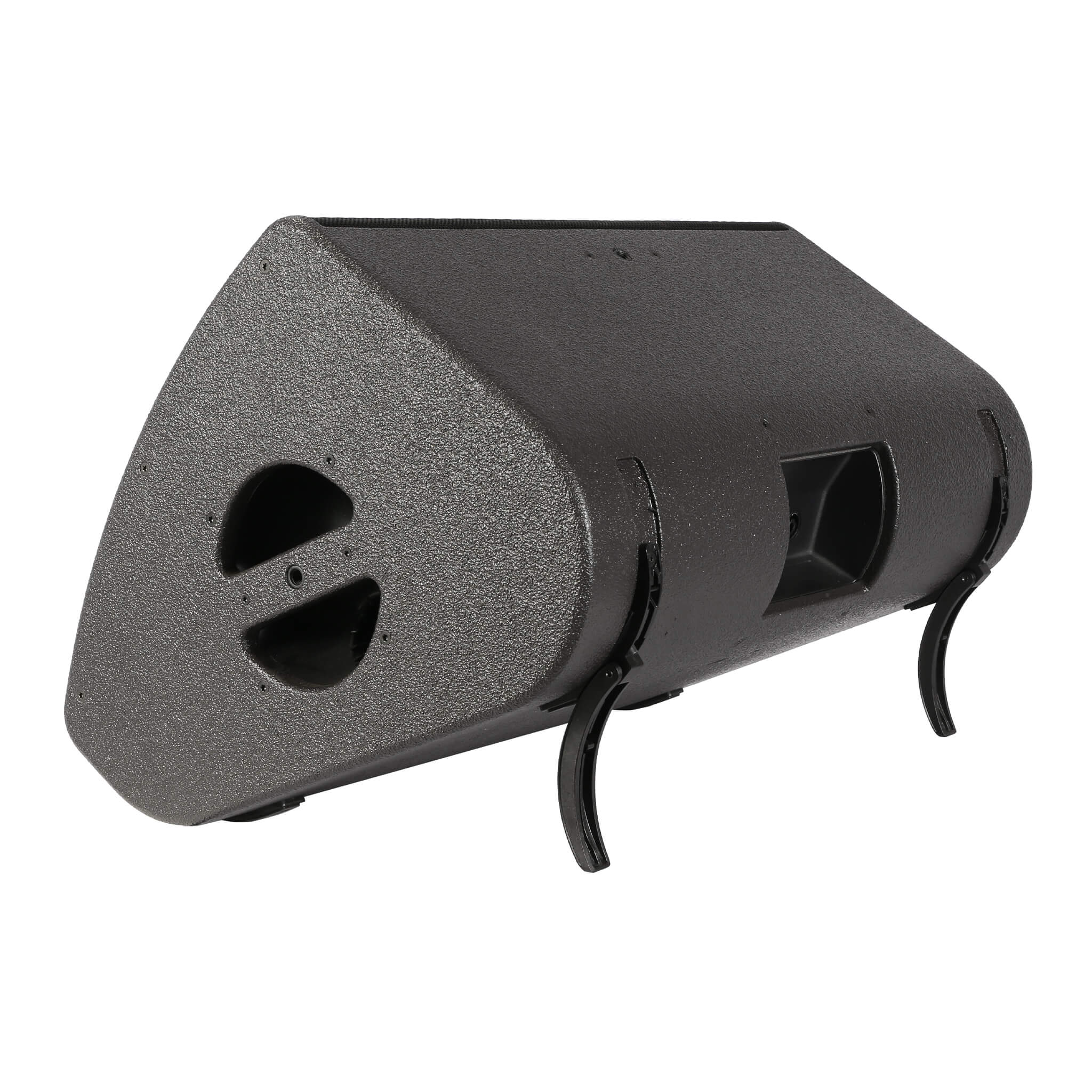

- 35° without risers / 55° with risers
- Rigging
- M8 safety insert; 4 × M10; 2 × 35 mm sockets
- Applications
- Touring stages, broadcast productions, theatres, houses of worship and precision short-throw fill.
- Function / configuration
- Connection, Rigging & Physical Data
Physical specifications
- Dimensions (H × W × D)
- 580 × 430 × 375 mm
- Net weight
- 21 kg / 46.2 lb
TECHNICAL REFERENCE
Product specifications.
Published product details. Ask our team about any configuration that is not listed.
| System type | 2-way active-crossover coaxial enclosure |
|---|---|
| Usable bandwidth | 55 Hz - 20 kHz (-10 dB, X15 preset) |
| Maximum SPL | 138 dB peak @ 1 m, free field |
| Nominal directivity | 40° horizontal × 60° vertical |
| Monitoring angles | 35° without risers / 55° with risers |
| Transducers | 1 × 15-inch LF neodymium transducer + 1 × 3-inch HF neodymium compression driver |
| Nominal impedance | LF 8 Ω / HF 8 Ω |
| Connectors | 2 × 4-point speaker connectors, IN / LINK |
| Dimensions (H × W × D) | 580 × 430 × 375 mm |
| Net weight | 21 kg / 46.2 lb |
| Controlled ellipsoid coverage | 40° horizontal × 60° vertical directivity focuses useful energy and reduces unwanted stage spill. |
| Model | X115Q / X15 HiQ |
| LF transducer | 1 × 15-inch neodymium, bass-reflex |
| HF transducer | 1 × 3-inch neodymium compression driver |
| Pin assignment | 1+/1- LF; 2+/2- HF |
| Rigging | M8 safety insert; 4 × M10; 2 × 35 mm sockets |
| Ingress protection | IP43 |
| Control | Use approved amplified controllers with X15 or X15_MO factory preset. |
| Applications | Touring stages, broadcast productions, theatres, houses of worship and precision short-throw fill. |
Downloads
| Title | File type | Download |
|---|---|---|
| YL X115Q Selected Technical DataEnglish | PDF74 KB |
