Product identification
- Model
- VTX S28-X G28 Dual 18-Inch Subwoofer
- Product category
- Subwoofer Systems

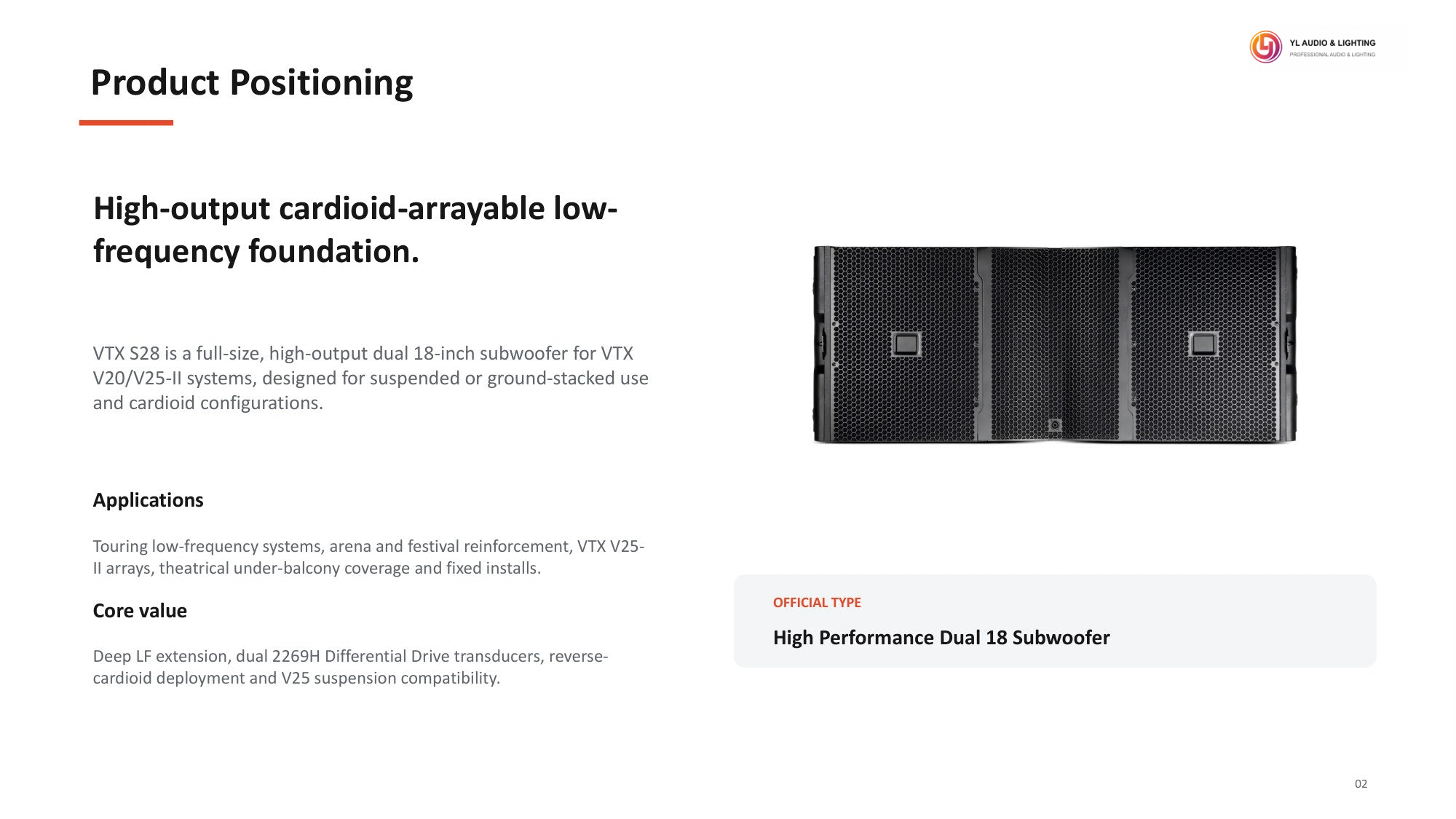

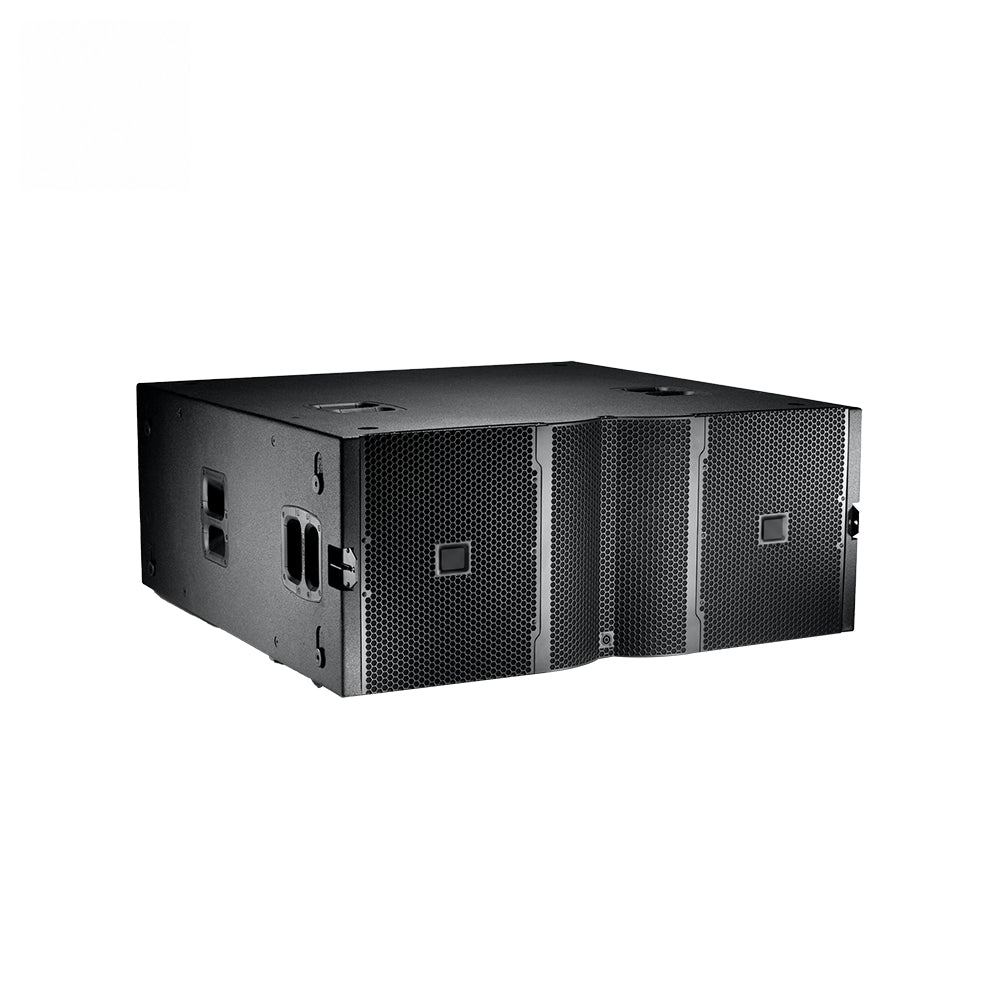

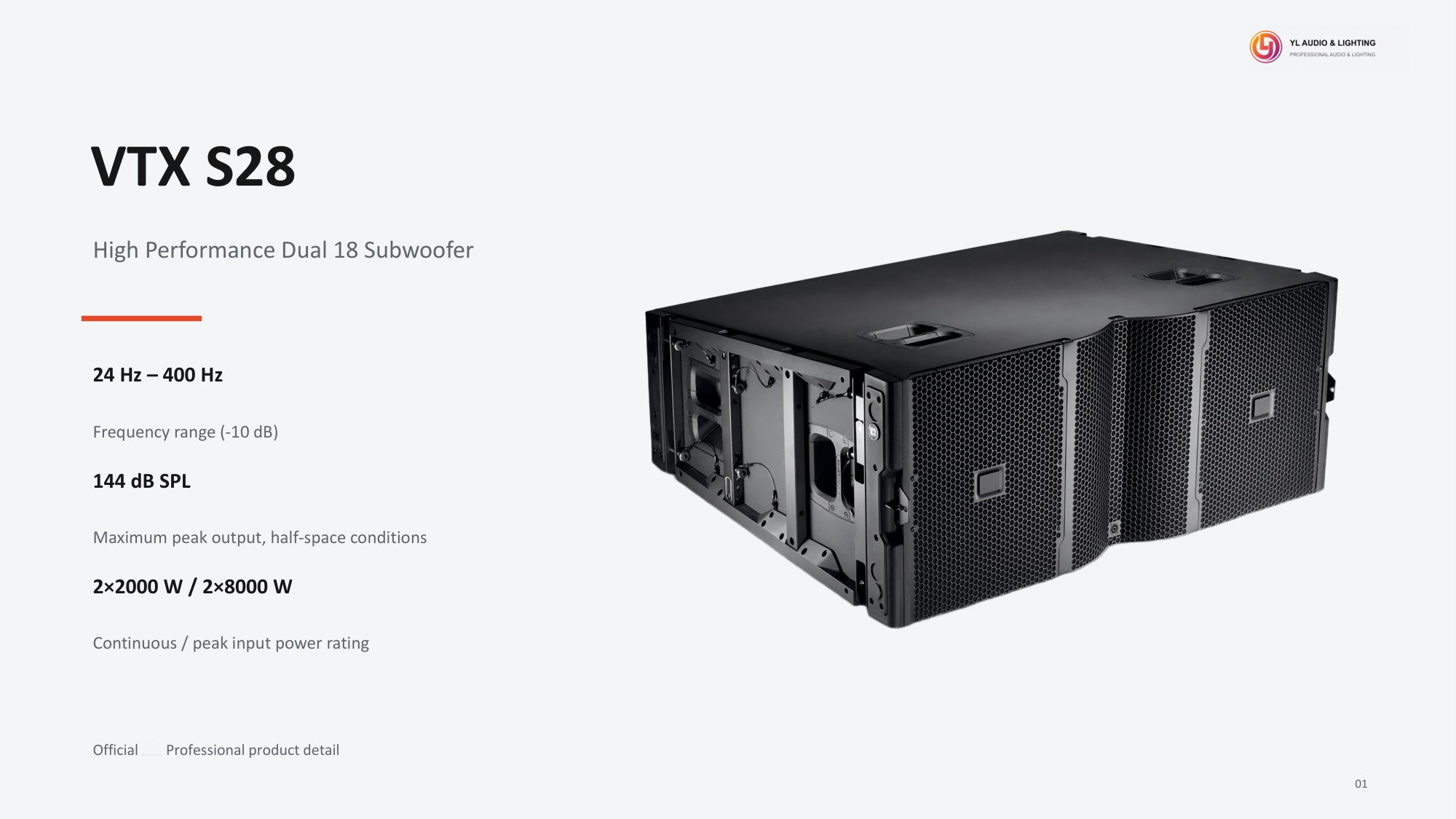

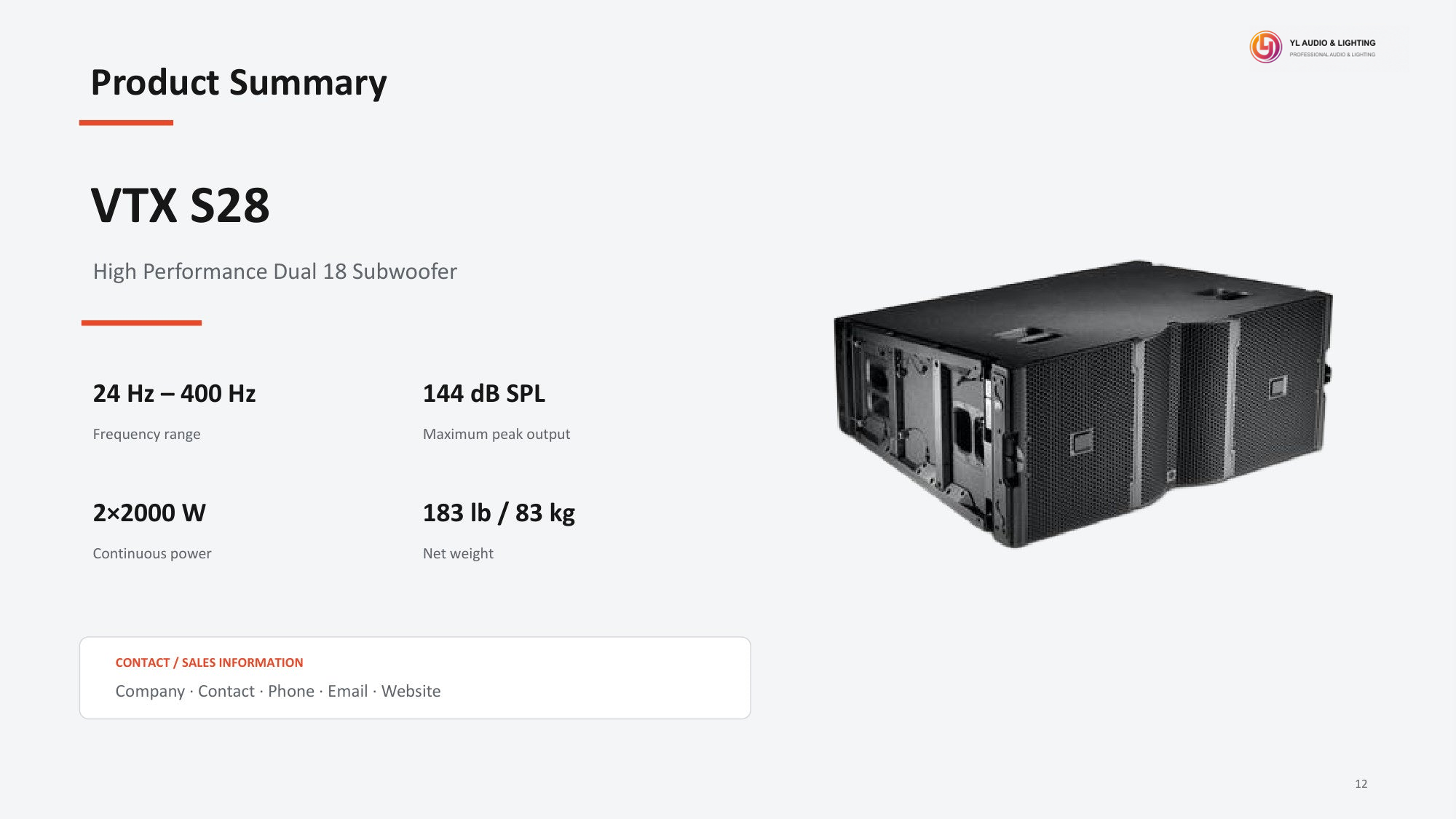

VTX S28-X G28 Dual 18-Inch High-Performance Subwoofer
VTX S28-X G28 Dual 18-Inch High-Performance Subwoofer is listed in the subwoofer systems category as a subwoofer system. The reference lists drivers: Low Frequency 2 x 2269H, 457 mm (18 in), 100 mm (4 in) dual coil, neodymium Differential Drive, Direct Cooled; frequency range: 24 Hz - 400 Hz (-10 dB). Confirm the exact model, current specifications and supply details before use.
WHATSAPPRequest a Quote- Maximum SPL
- 144 dB SPL, half-space conditions
- Frequency Range
- 24 Hz - 400 Hz (-10 dB)
- Weight
- 83.0 kg / 183 lb

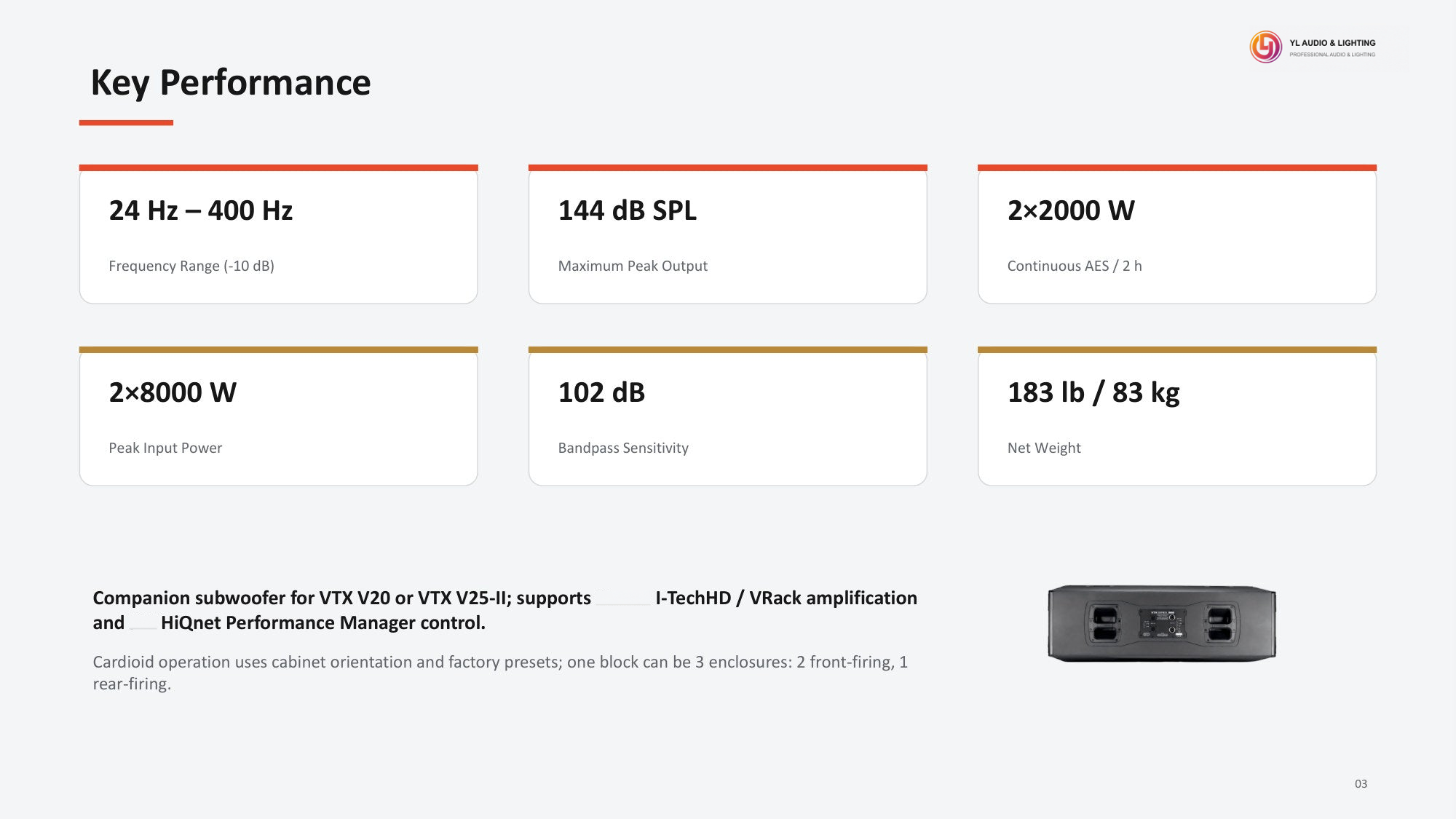

Technical specifications
- Product Model
- VTX S28
- Company Model
- X G28 SUB
- Type
- High Performance Dual 18 Subwoofer / VTX Series dual 18-inch subwoofer
- Drivers
- Low Frequency 2 x 2269H, 457 mm (18 in), 100 mm (4 in) dual coil, neodymium Differential Drive, Direct Cooled
- Frequency Range
- 24 Hz - 400 Hz (-10 dB)
- Rated Power
- 2 x 2000 W Continuous (AES / 2 hour)
- Peak Power
- 2 x 8000 W Peak (AES / 2 hour)
- Maximum SPL
- 144 dB SPL, half-space conditions
- Nominal Impedance
- LF 2 x 8 ohms
- Coverage / Dispersion
- Cardioid-arrayable; reverse-cardioid and front-firing configurations based on preset and cabinet orientation

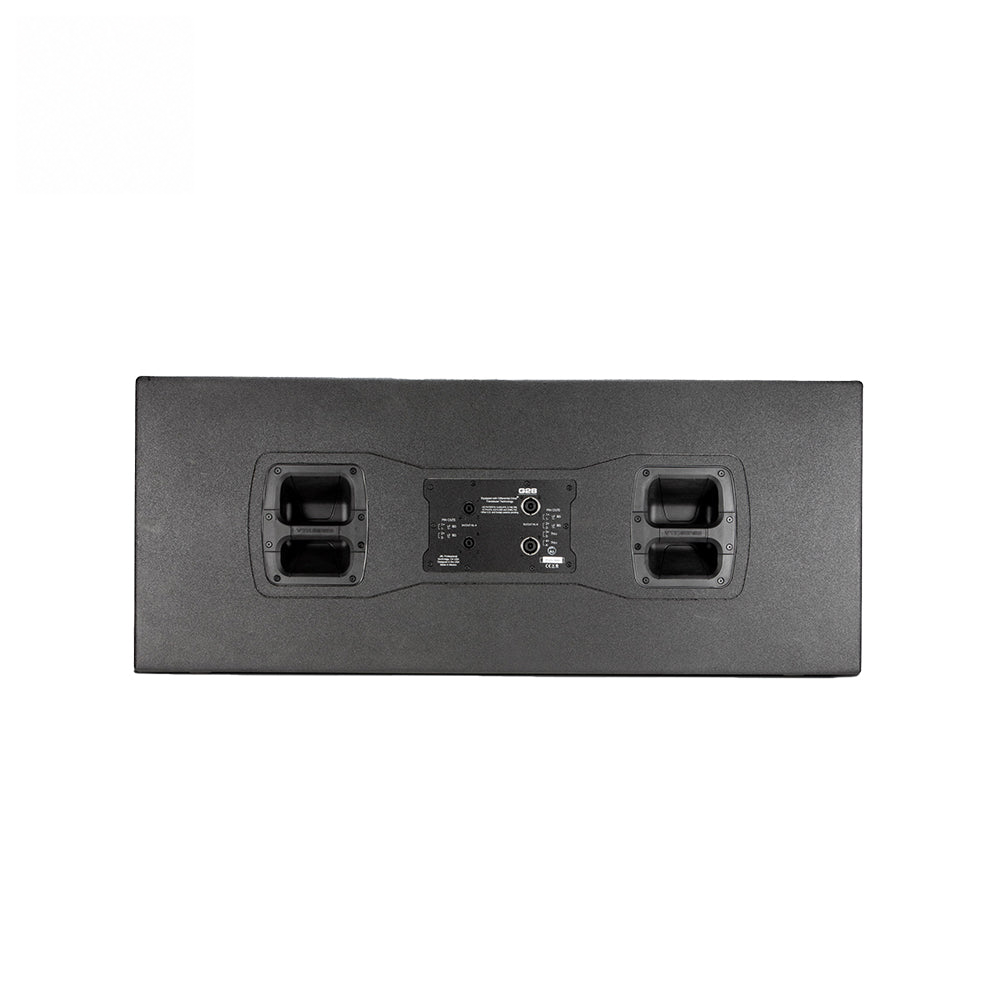

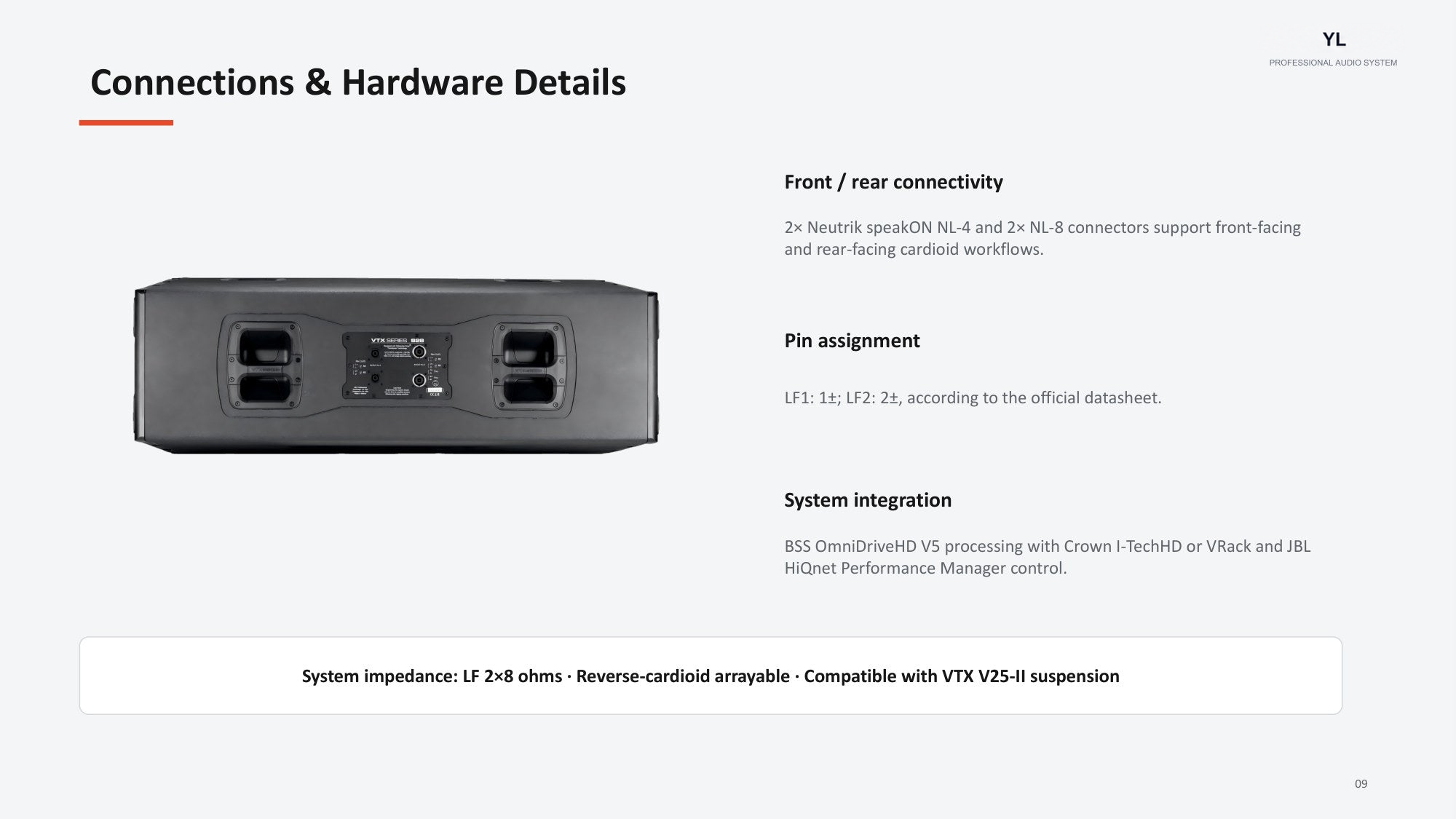

- Connectors
- 2 x Neutrik speakON NL-4 and 2 x NL-8; LF1 1 +/-, LF2 2 +/
- Sensitivity
- 102 dB, 1 W / 1 m, half-space conditions
- Connectors
- 2 x Neutrik speakON NL-4 and 2 x NL-8; LF1 1 +/-, LF2 2 +/-
- Supplied Fittings
- Fixed angle ASM suspension system; 0-10 degree inter-enclosure angles at 1 degree increments
- Recommended Amplifier
- Crown I-TechHD or VRack with BSS OmniDriveHD V5 / HiQnet Performance Manager
- System Control
- HiQnet Performance Manager
- Model
- VTX S28 / X G28 SUB
- Frequency response
- Not specified in official materials; frequency range (-10 dB): 24 Hz - 400 Hz
- Peak power
- 2 x 8000 W Peak (AES / 2 hour) Sensitivity: 102 dB, 1 W / 1 m, half-space conditions
- Nominal impedance
- LF 2 x 8 ohms Coverage / dispersion: Cardioid-arrayable; reverse-cardioid and front-firing configurations based on factory preset and cabinet orientation
- Recommended amplifier
- Crown I-TechHD or VRack with BSS OmniDriveHD V5 / HiQnet Performance Manager System control: HiQnet Performance Manager Suspension: Compatible with VTX V25-II suspension; can be suspended or ground-stacked
- Coverage / dispersion
- Cardioid-arrayable; reverse-cardioid and front-firing configurations based on factory preset and cabinet orientation
Physical specifications
- Dimensions

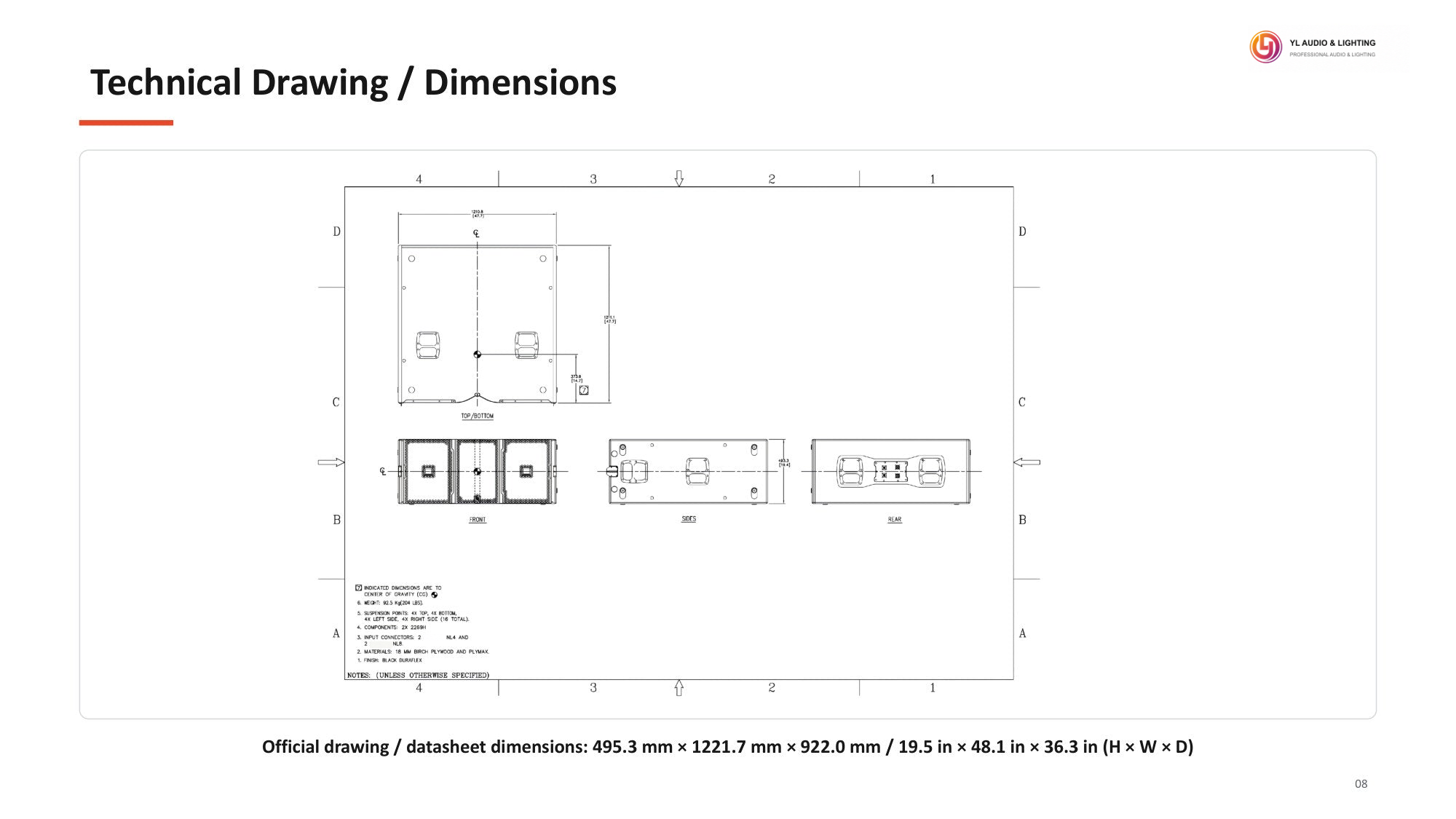

- 495.3 x 1221.7 x 922.0 mm / 19.5 x 48.1 x 36.3 in (H x W x D)
- Weight
- 83.0 kg / 183 lb

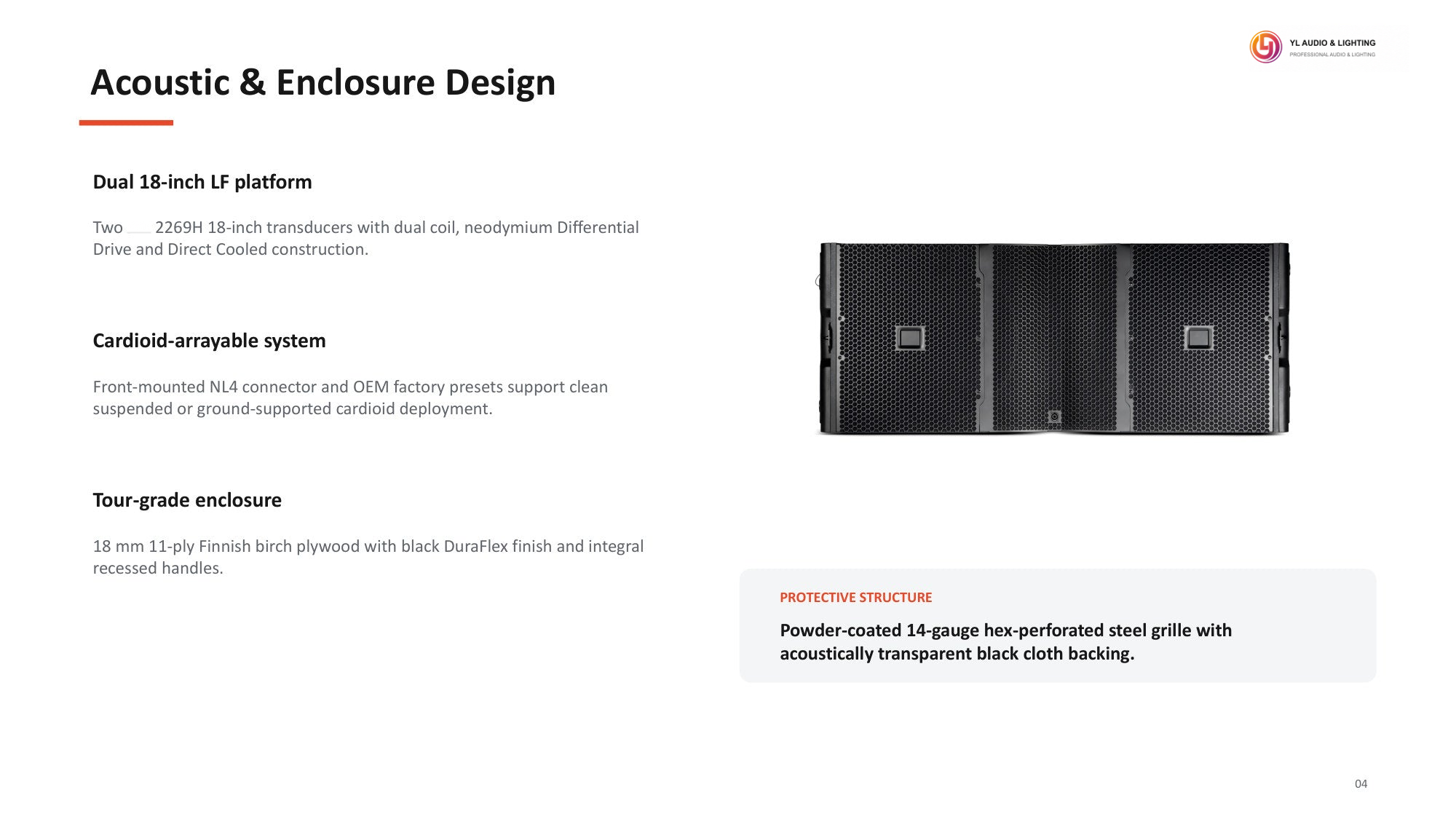

- Enclosure
- 18 mm 11-ply Finnish birch plywood with integral recessed handles
- Finish
- Black DuraFlex finish
- Protective Grille
- Powder-coated 14-gauge hex-perforated steel with acoustically transparent black cloth backing
- Enclosure
- 18 mm 11-ply Finnish birch plywood with integral recessed handles Finish: Black DuraFlex finish Protective grille: Powder-coated 14-gauge hex-perforated steel with acoustically transparent black cloth backing Supplied fittings: Fixed angle ASM suspension system; 0-10 degree inter-enclosure angles at 1 degree increments

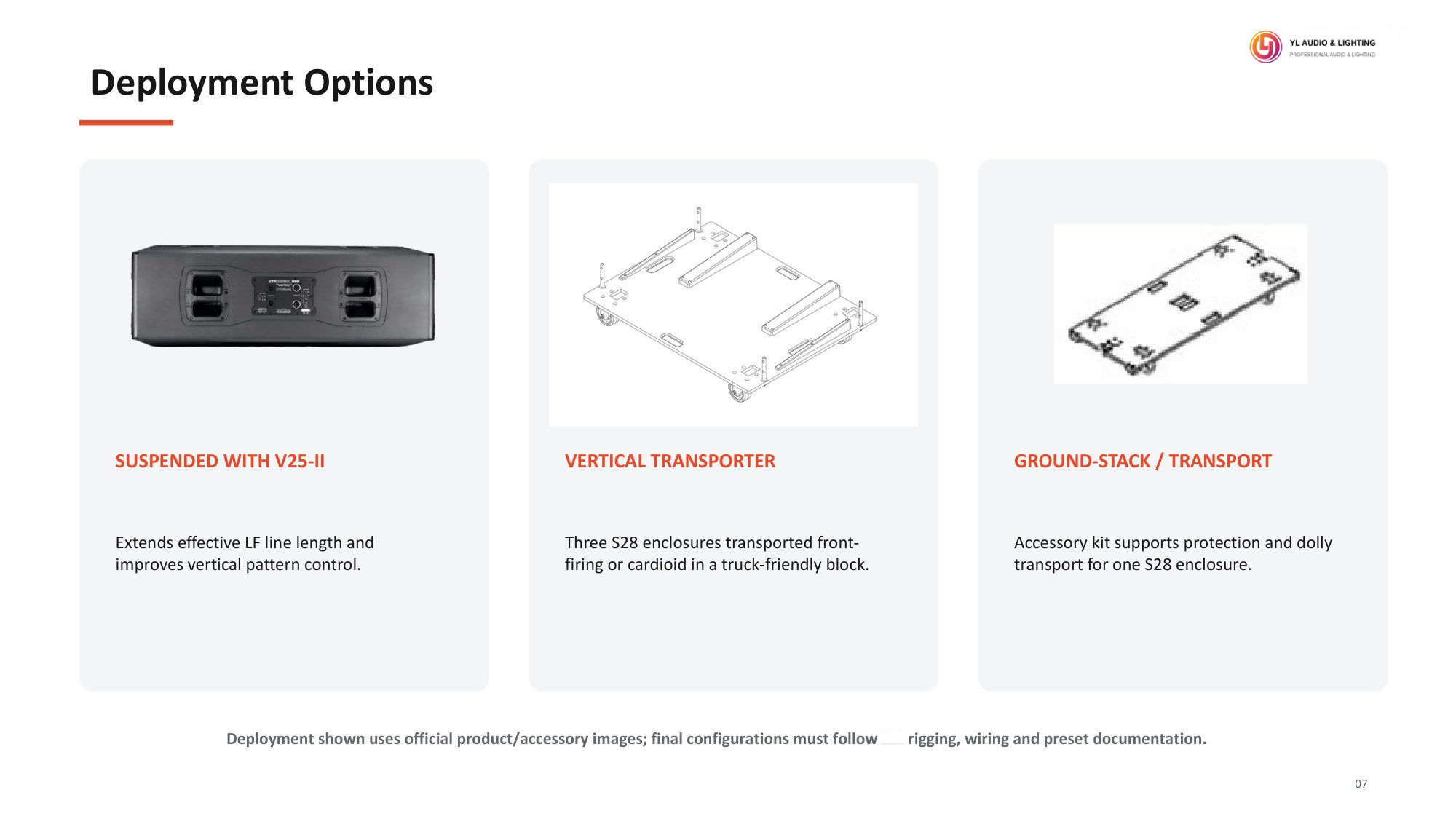

Compatibility and deployment
Suspension: Compatible with VTX V25-II suspension; can be suspended or ground-stacked
Reference configuration and component names are retained from the source platform. They do not establish a YL certification or a verified rigging configuration; use model-specific approved documentation for the supplied equipment.

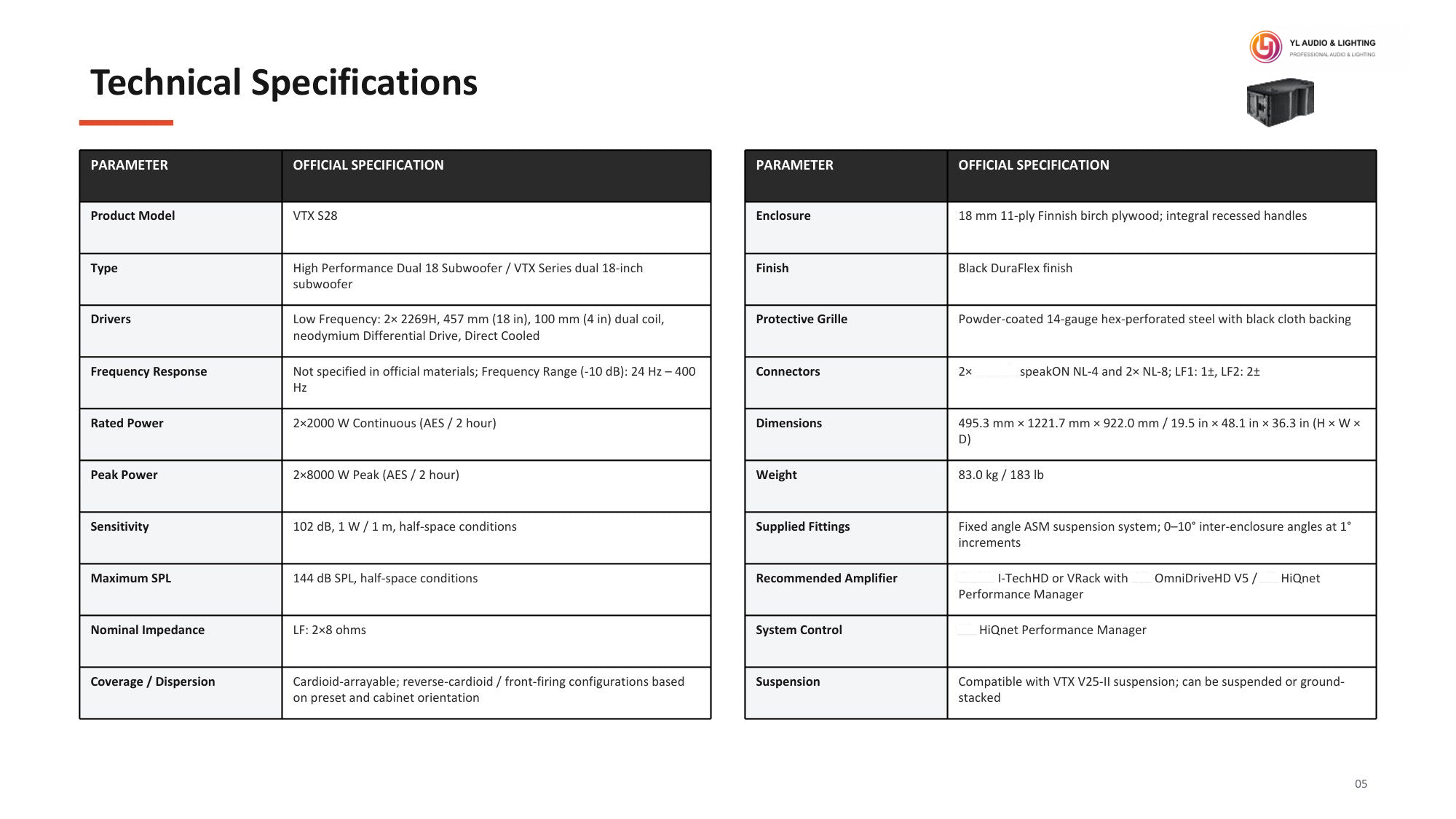

TECHNICAL REFERENCE
Product specifications.
Published product details. Ask our team about any configuration that is not listed.
| Product Model | VTX S28 |
|---|---|
| Company Model | X G28 SUB |
| Type | High Performance Dual 18 Subwoofer / VTX Series dual 18-inch subwoofer |
| Drivers | Low Frequency 2 x 2269H, 457 mm (18 in), 100 mm (4 in) dual coil, neodymium Differential Drive, Direct Cooled |
| Frequency Range | 24 Hz - 400 Hz (-10 dB) |
| Rated Power | 2 x 2000 W Continuous (AES / 2 hour) |
| Peak Power | 2 x 8000 W Peak (AES / 2 hour) |
| Maximum SPL | 144 dB SPL, half-space conditions |
| Nominal Impedance | LF 2 x 8 ohms |
| Coverage / Dispersion | Cardioid-arrayable; reverse-cardioid and front-firing configurations based on preset and cabinet orientation |
| Connectors | 2 x Neutrik speakON NL-4 and 2 x NL-8; LF1 1 +/-, LF2 2 +/ |
| Dimensions | 495.3 x 1221.7 x 922.0 mm / 19.5 x 48.1 x 36.3 in (H x W x D) |
| Weight | 83.0 kg / 183 lb |
| Enclosure | 18 mm 11-ply Finnish birch plywood with integral recessed handles |
| Finish | Black DuraFlex finish |
| Protective Grille | Powder-coated 14-gauge hex-perforated steel with acoustically transparent black cloth backing |
| Sensitivity | 102 dB, 1 W / 1 m, half-space conditions |
Downloads
| Title | File type | Download |
|---|---|---|
| YL G28 Product DetailsEnglish | PDF7.6 MB | |
| YL G28 Product Details — Additional ViewsEnglish | PDF292 KB |

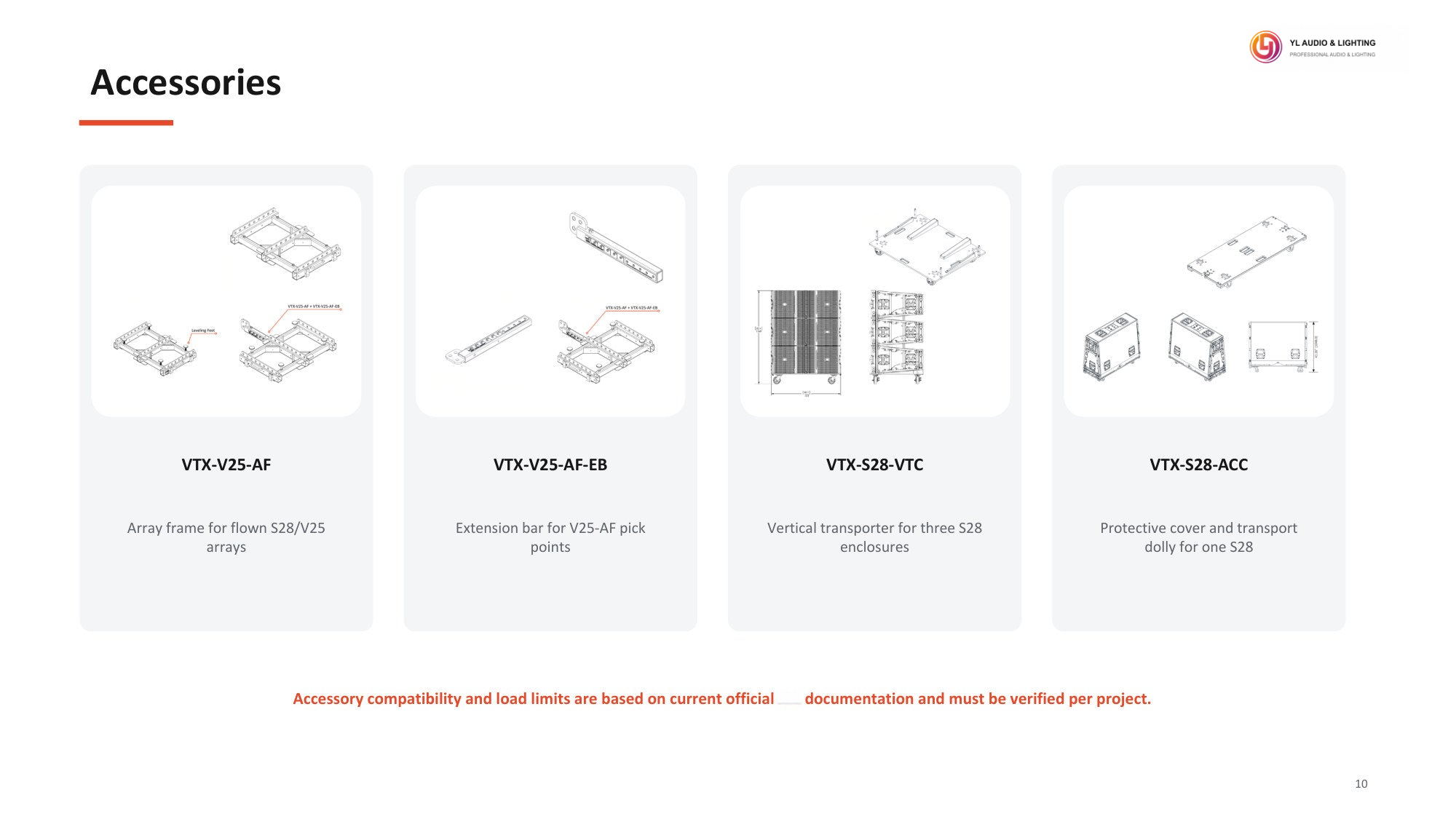

System accessories
YL LightYL-JBLX
Rigging & Accessories

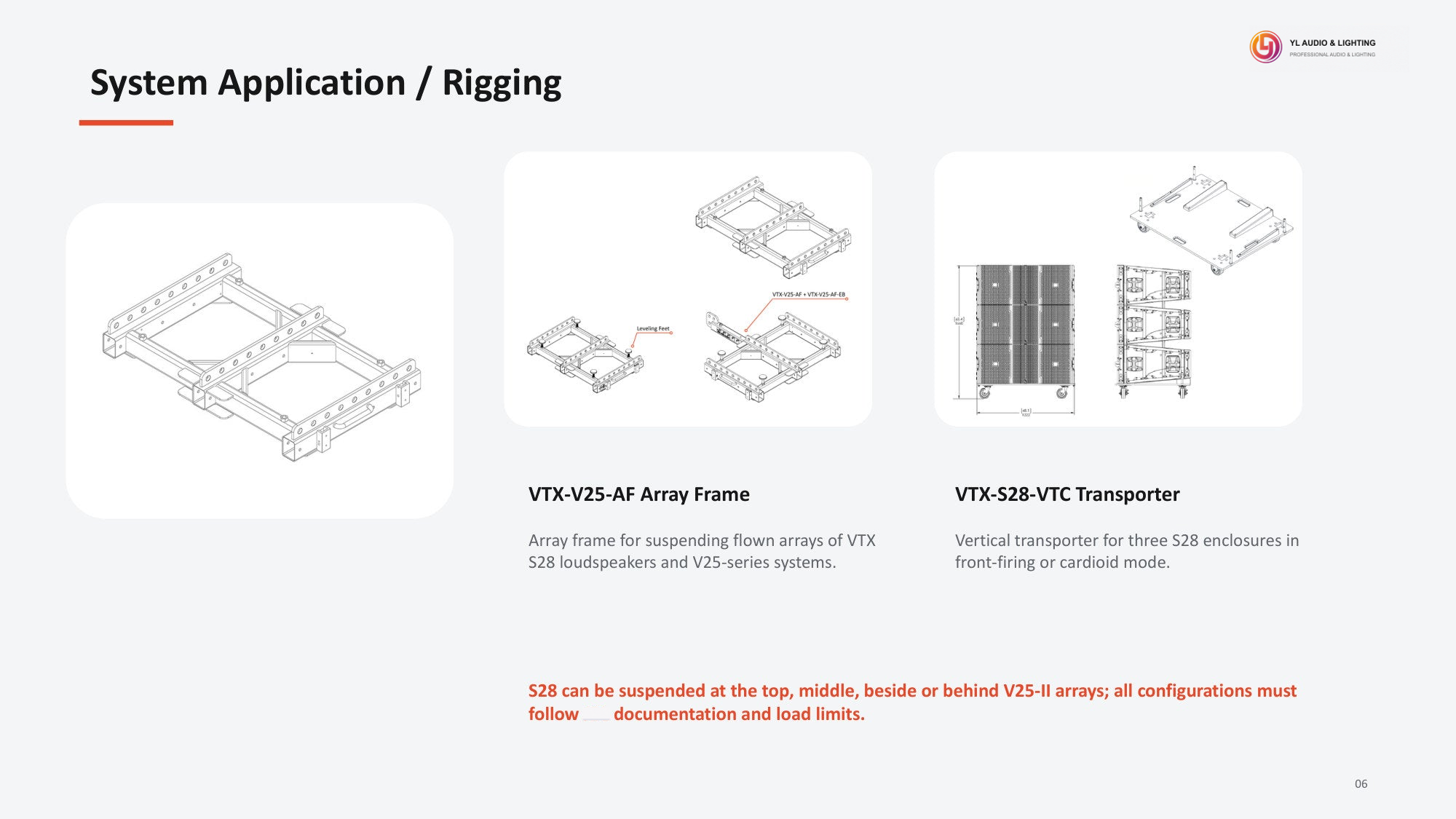

VTX-V25-AF Array Frame
