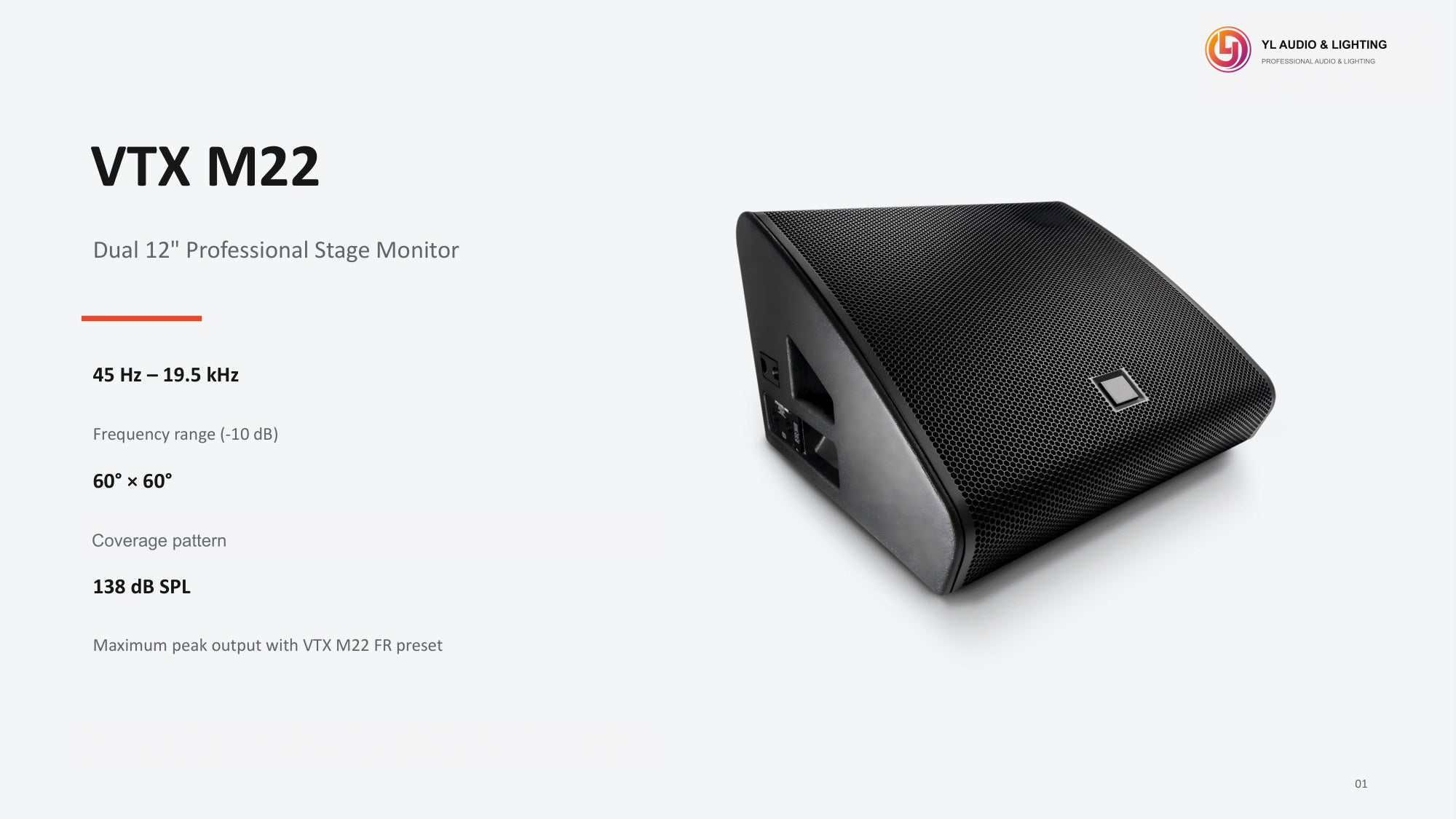

Product identification
- Model
- VTX M22-M22-Dual 12-inch Stage Monitor
- Product category
- Stage Monitors

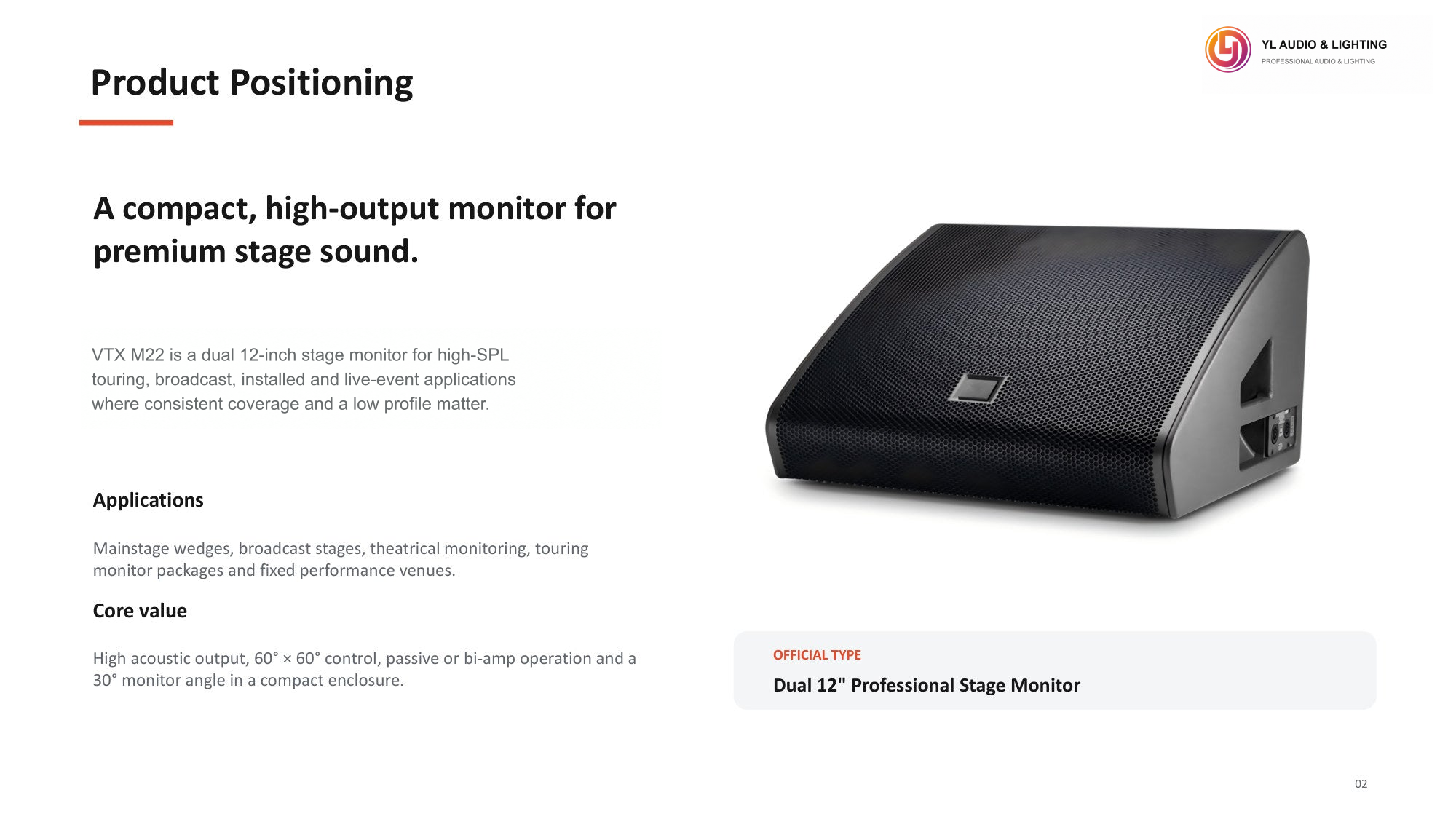

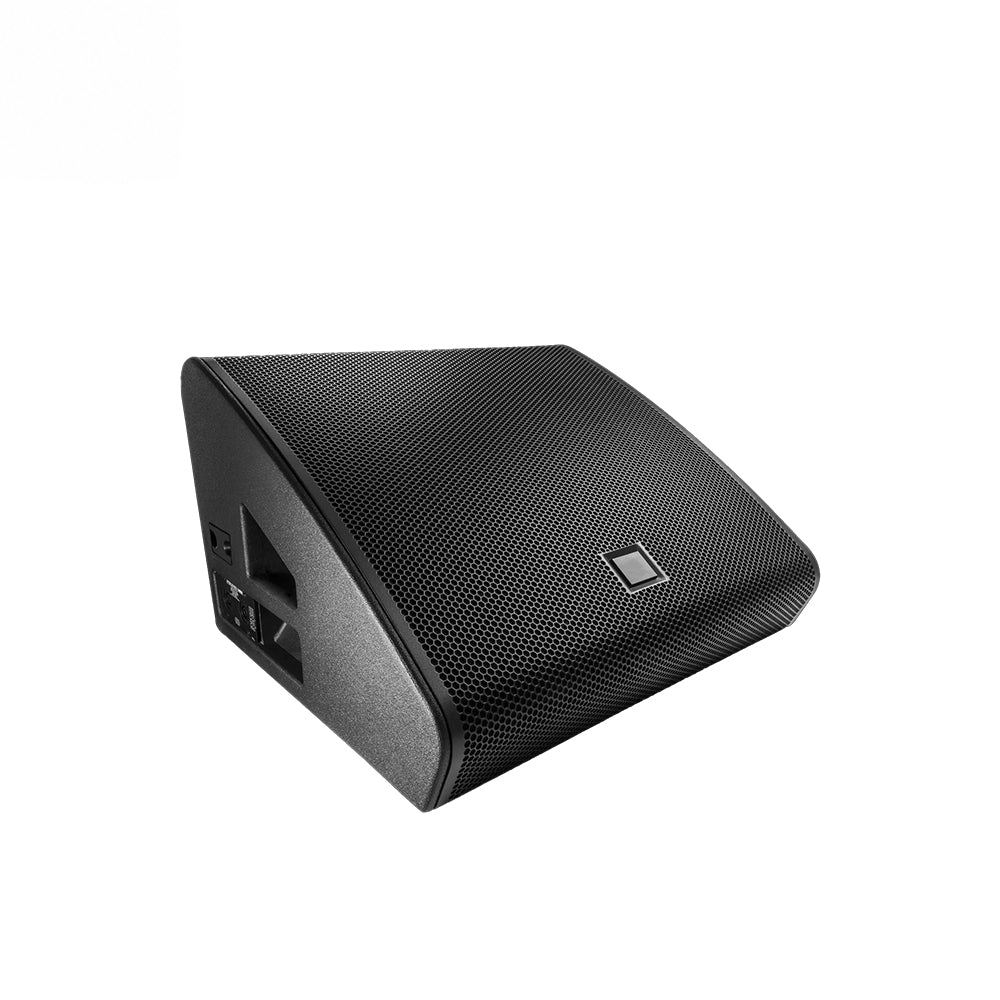

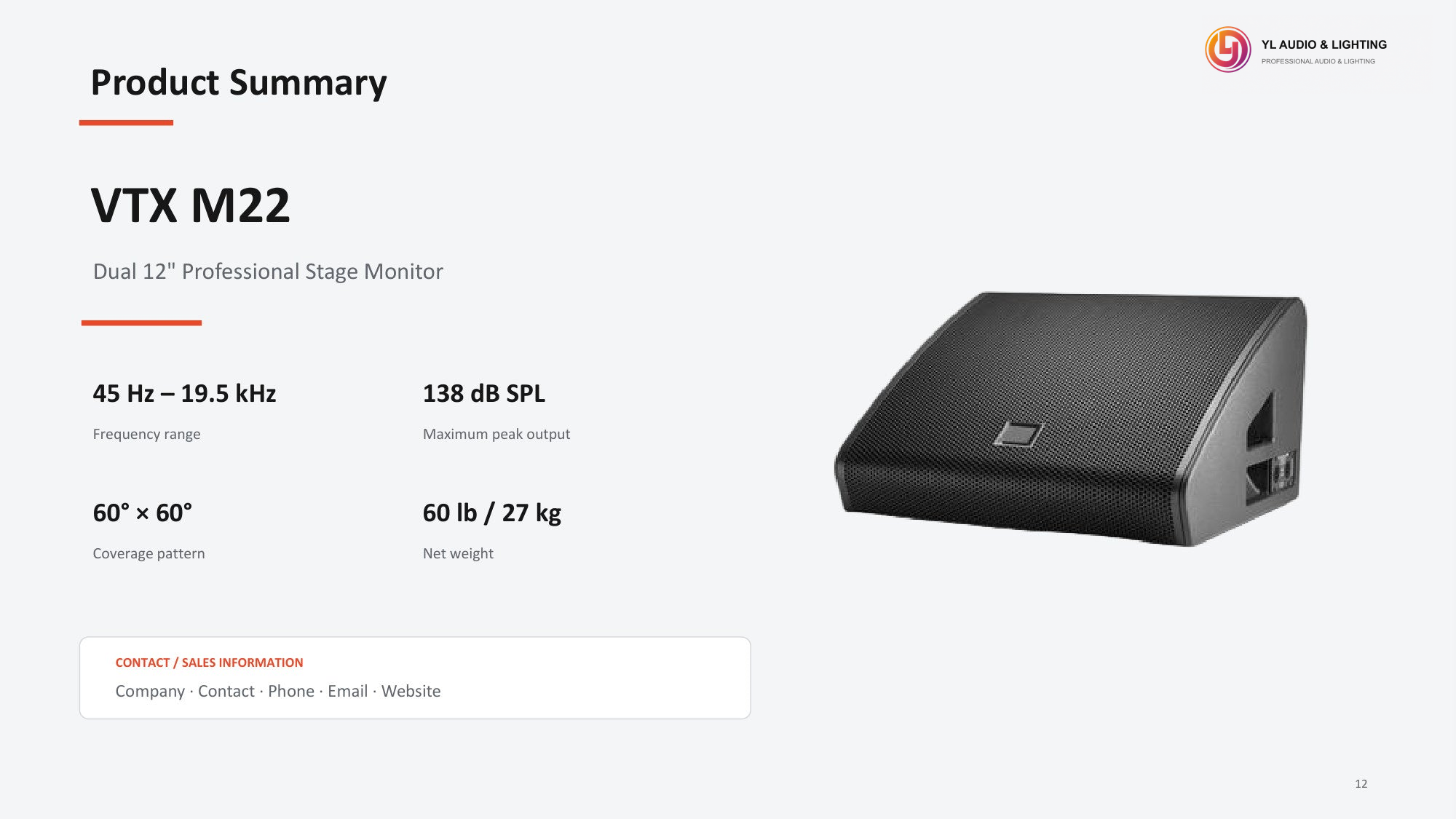

VTX M22-M22-Dual 12-inch Professional Stage Monitor
VTX M22-M22-Dual 12-inch Professional Stage Monitor is listed in the stage monitors category as a stage monitor. The reference lists drivers: LF 2 x 2262H, 304 mm (12 in), dual 76 mm (3 in) voice coil, NDD, Direct Cooled; HF 1 x D2430H, D2 dual diaphragm, dual 76 mm (3 in) voice coil; frequency range: 45 Hz - 19.5 kHz (-10 dB). Confirm the exact model, current specifications and supply details before use.
WHATSAPPRequest a Quote- Maximum SPL
- 138 dB SPL (Preset: VTX M22 FR)
- Frequency Range
- 45 Hz - 19.5 kHz (-10 dB)
- Weight
- 27 kg / 60 lb

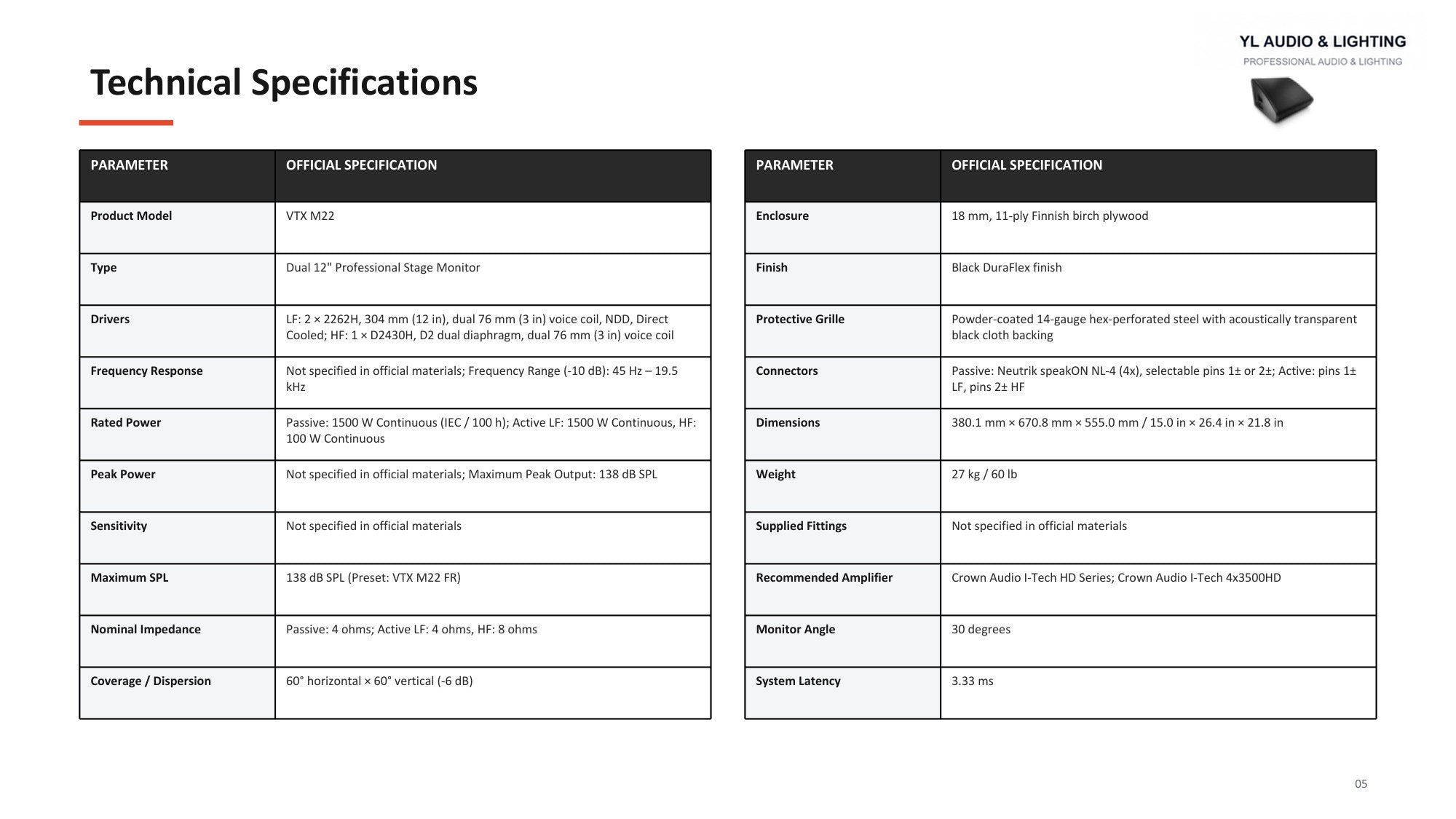

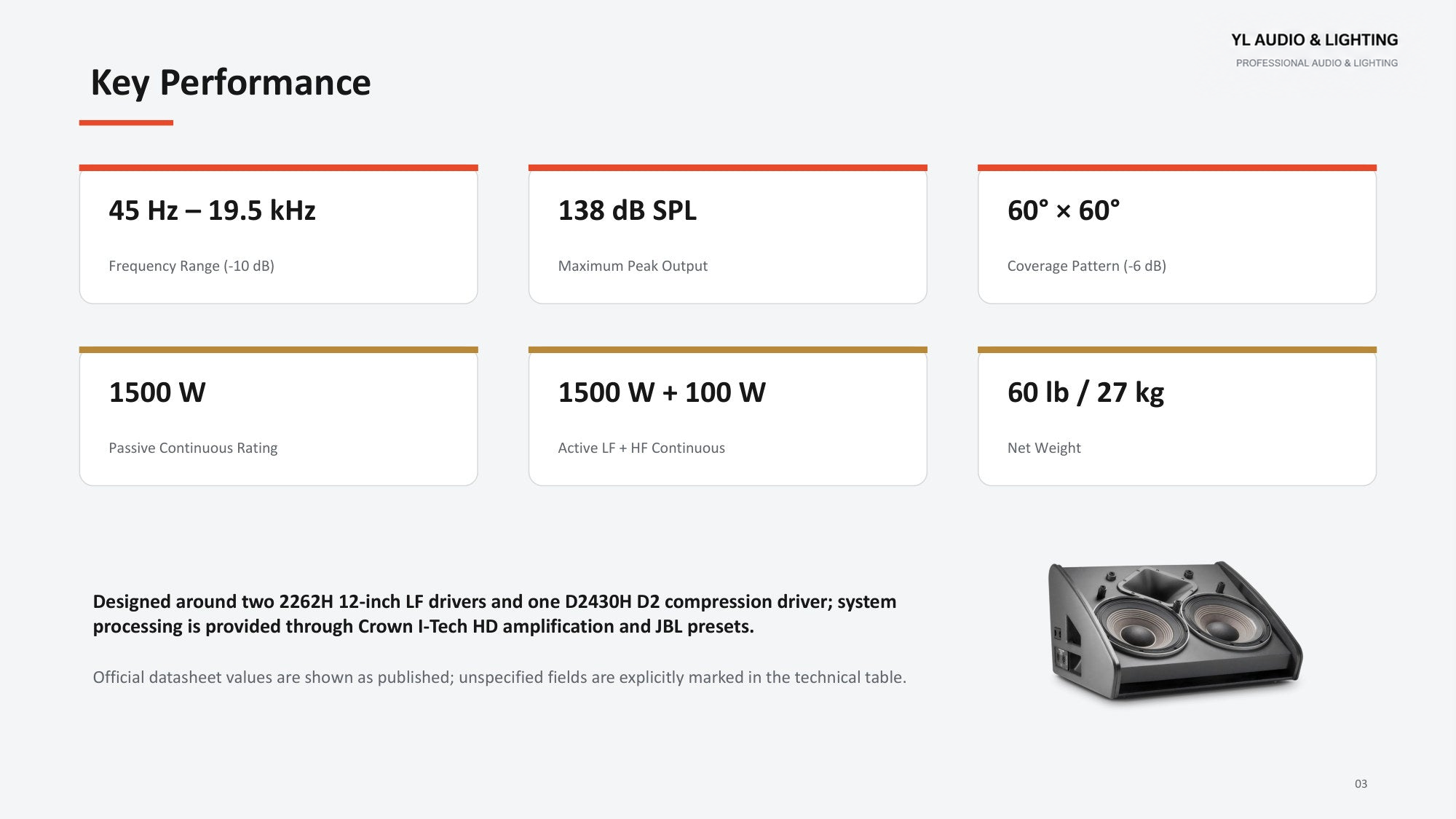

Technical specifications
- Product Model
- VTX M22
- Company Model
- M22
- Type
- Dual 12" Stage Monitor

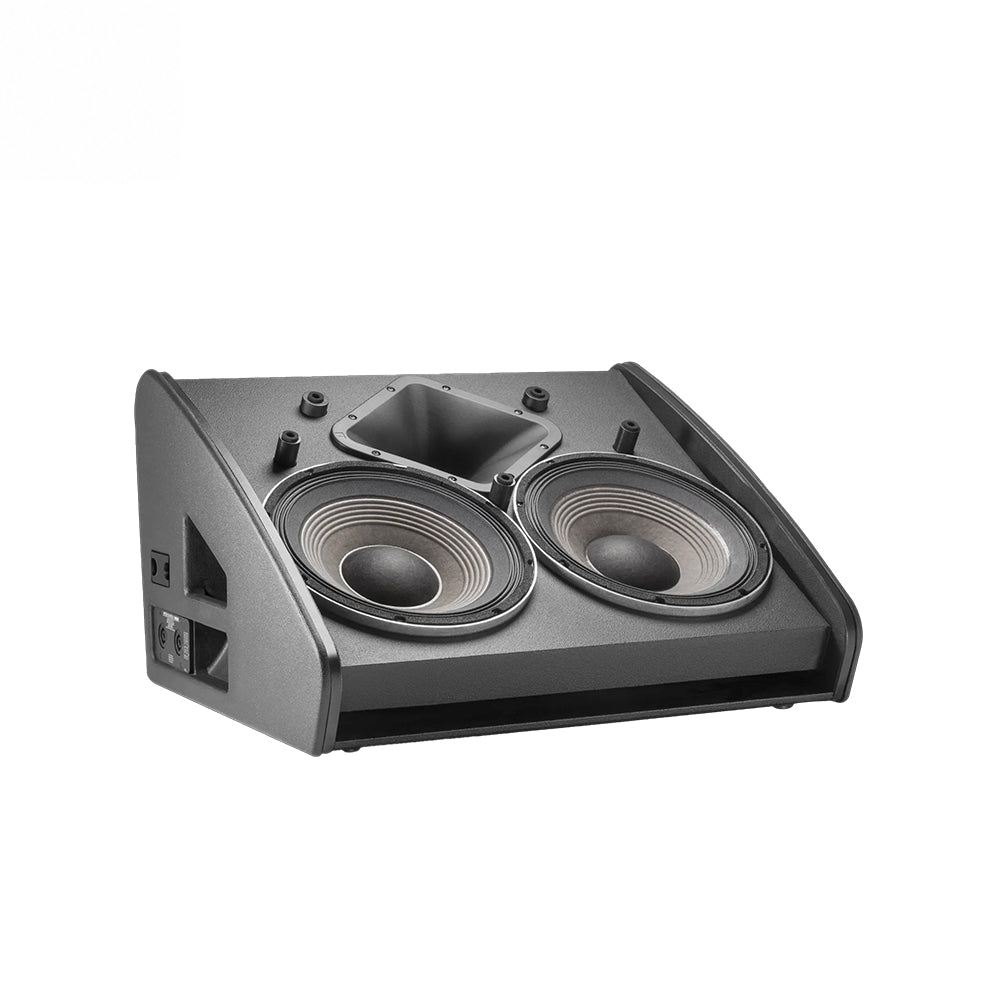

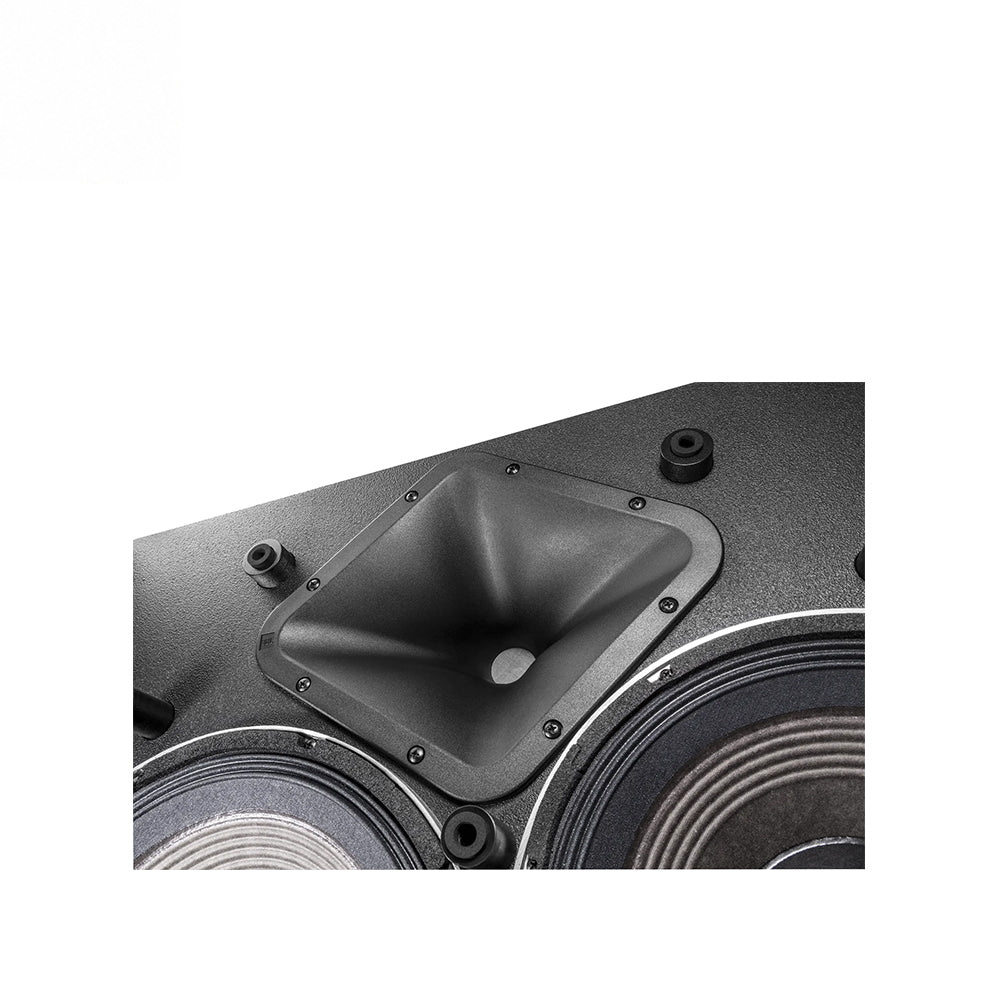

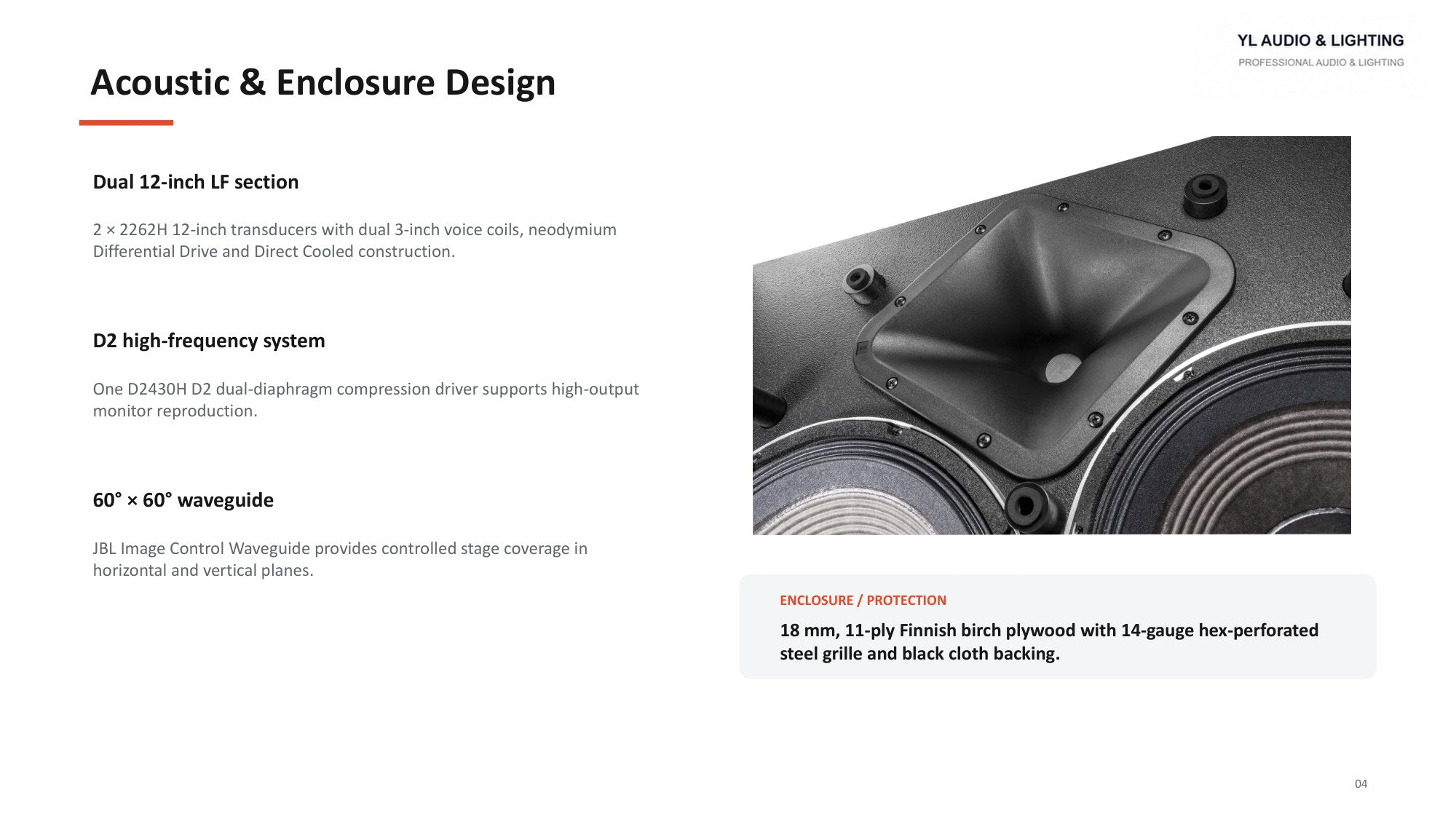

- Drivers
- LF 2 x 2262H, 304 mm (12 in), dual 76 mm (3 in) voice coil, NDD, Direct Cooled; HF 1 x D2430H, D2 dual diaphragm, dual 76 mm (3 in) voice coil
- Frequency Range
- 45 Hz - 19.5 kHz (-10 dB)
- Rated Power
- Passive 1500 W Continuous (IEC / 100 h); Active LF 1500 W Continuous, HF 100 W Continuous
- Peak Power
- Not specified in official materials; Maximum Peak Output 138 dB SPL
- Maximum SPL
- 138 dB SPL (Preset: VTX M22 FR)
- Nominal Impedance
- Passive 4 ohms; Active LF 4 ohms, HF 8 ohms
- Coverage / Dispersion
- 60 degrees horizontal x 60 degrees vertical (-6 dB)

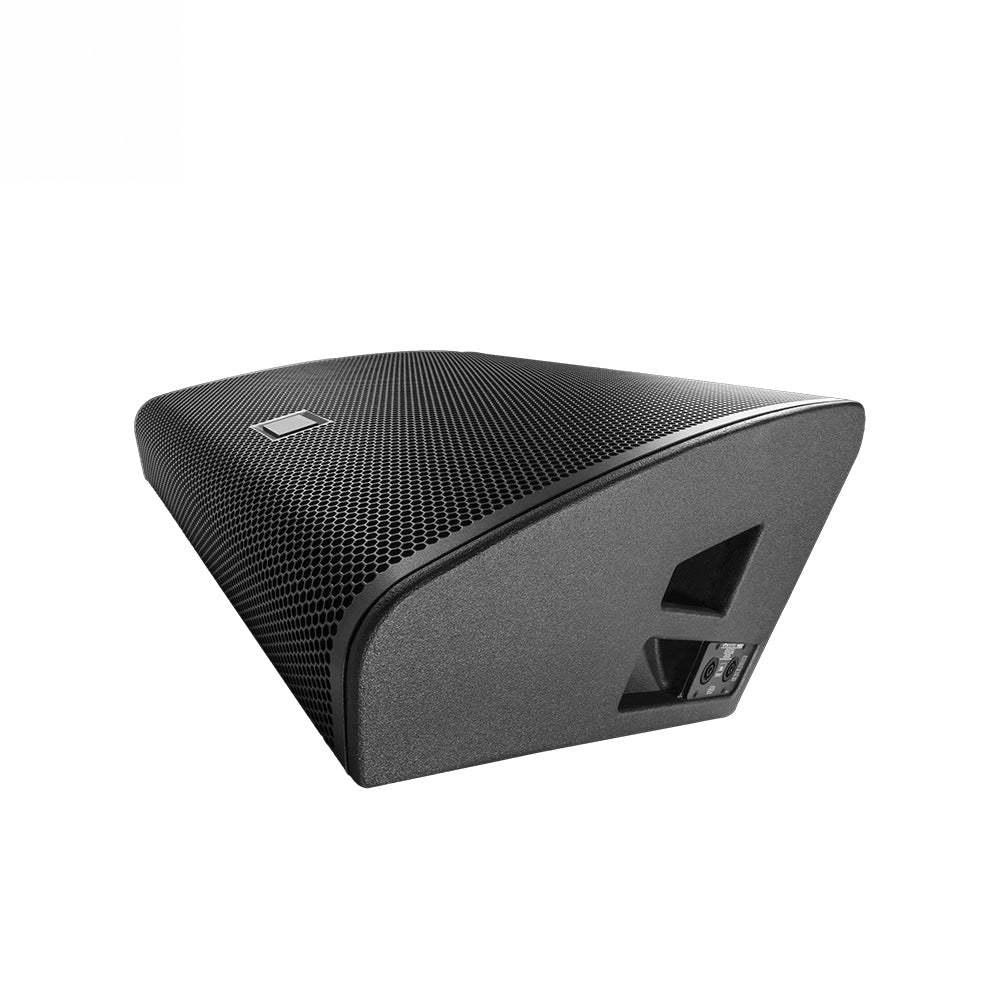

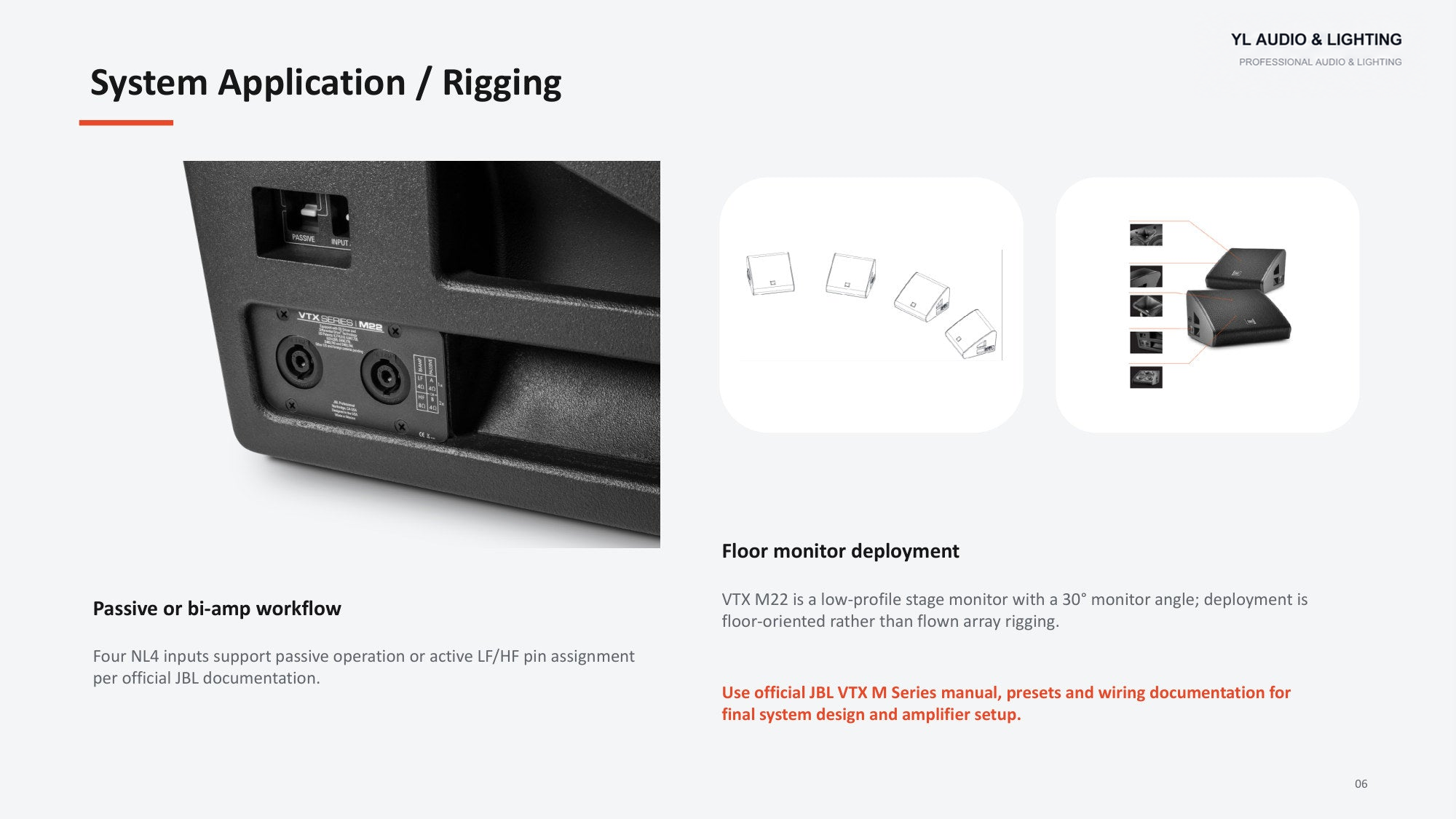

- Connectors

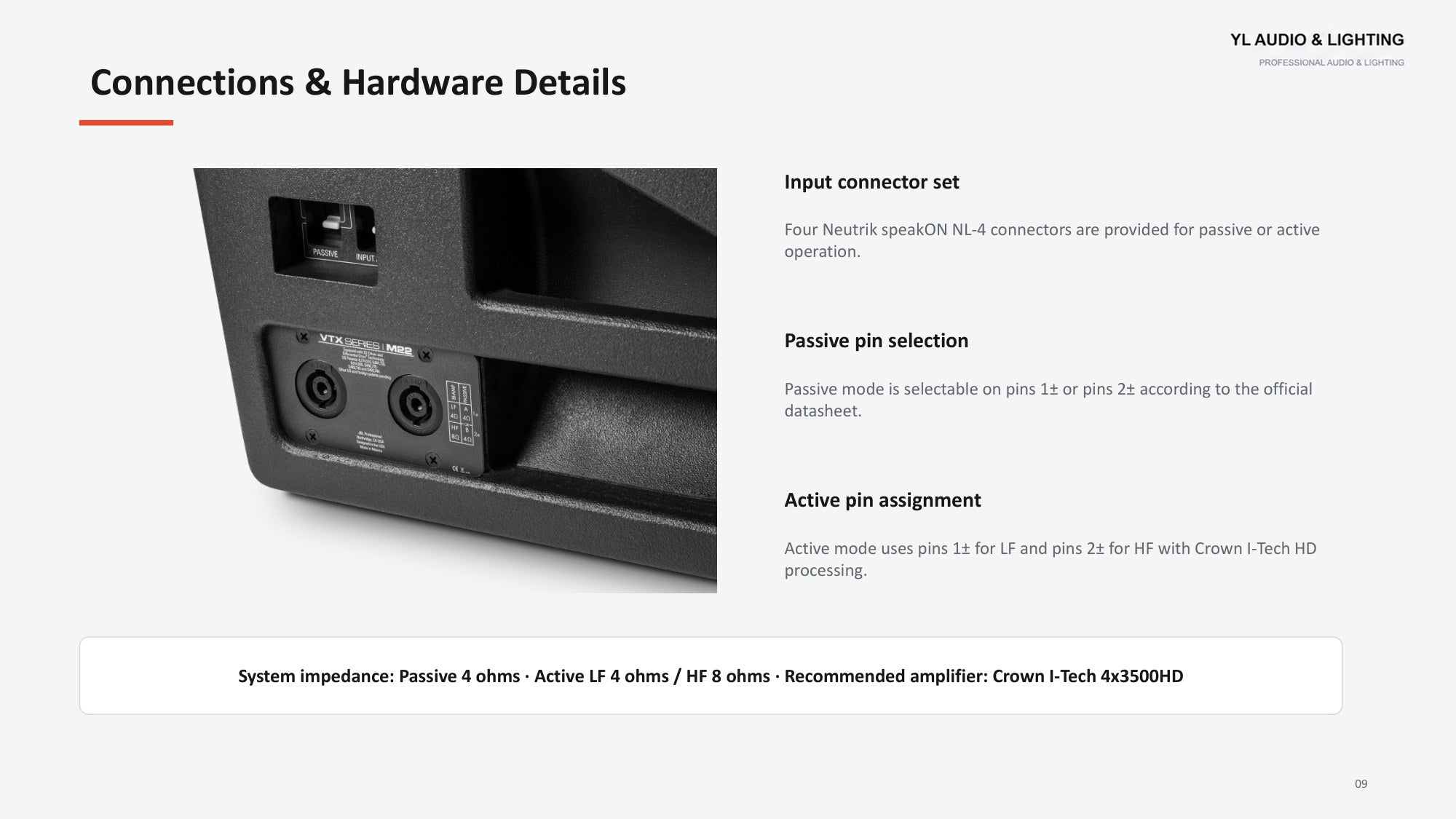

- Passive Neutrik speakON NL-4 (4x), selectable pins 1 +/- or 2 +/-; Active pins 1 +/- LF, pins 2 +/- HF
- System Latency
- 3.33 ms
- Recommended Amplifier
- Crown Audio I-Tech HD Series; Crown Audio I-Tech 4x3500HD
- Model
- VTX M22 / M22
- Frequency response
- Not specified in official materials; frequency range (-10 dB): 45 Hz - 19.5 kHz
- Peak power
- Not specified in official materials; maximum peak output 138 dB SPL Sensitivity: Not specified in official materials
- Nominal impedance
- Passive 4 ohms; Active LF 4 ohms, HF 8 ohms Coverage / dispersion: 60 degrees horizontal x 60 degrees vertical (-6 dB)
- Recommended amplifier
- Crown Audio I-Tech HD Series; Crown Audio I-Tech 4x3500HD Monitor angle: 30 degrees System latency: 3.33 ms
- Sensitivity
- Not specified in official materials
- Supplied fittings
- Not specified in official materials
Physical specifications
- Dimensions
- 380.1 x 670.8 x 555.0 mm / 15.0 x 26.4 x 21.8 in
- Weight
- 27 kg / 60 lb
- Enclosure
- 18 mm, 11-ply Finnish birch plywood
- Finish
- Black DuraFlex finish
- Protective Grille
- Powder-coated 14-gauge hex-perforated steel with acoustically transparent black cloth backing
- Enclosure
- 18 mm, 11-ply Finnish birch plywood Finish: Black DuraFlex finish Protective grille: Powder-coated 14-gauge hex-perforated steel with acoustically transparent black cloth backing Supplied fittings: Not specified in official materials

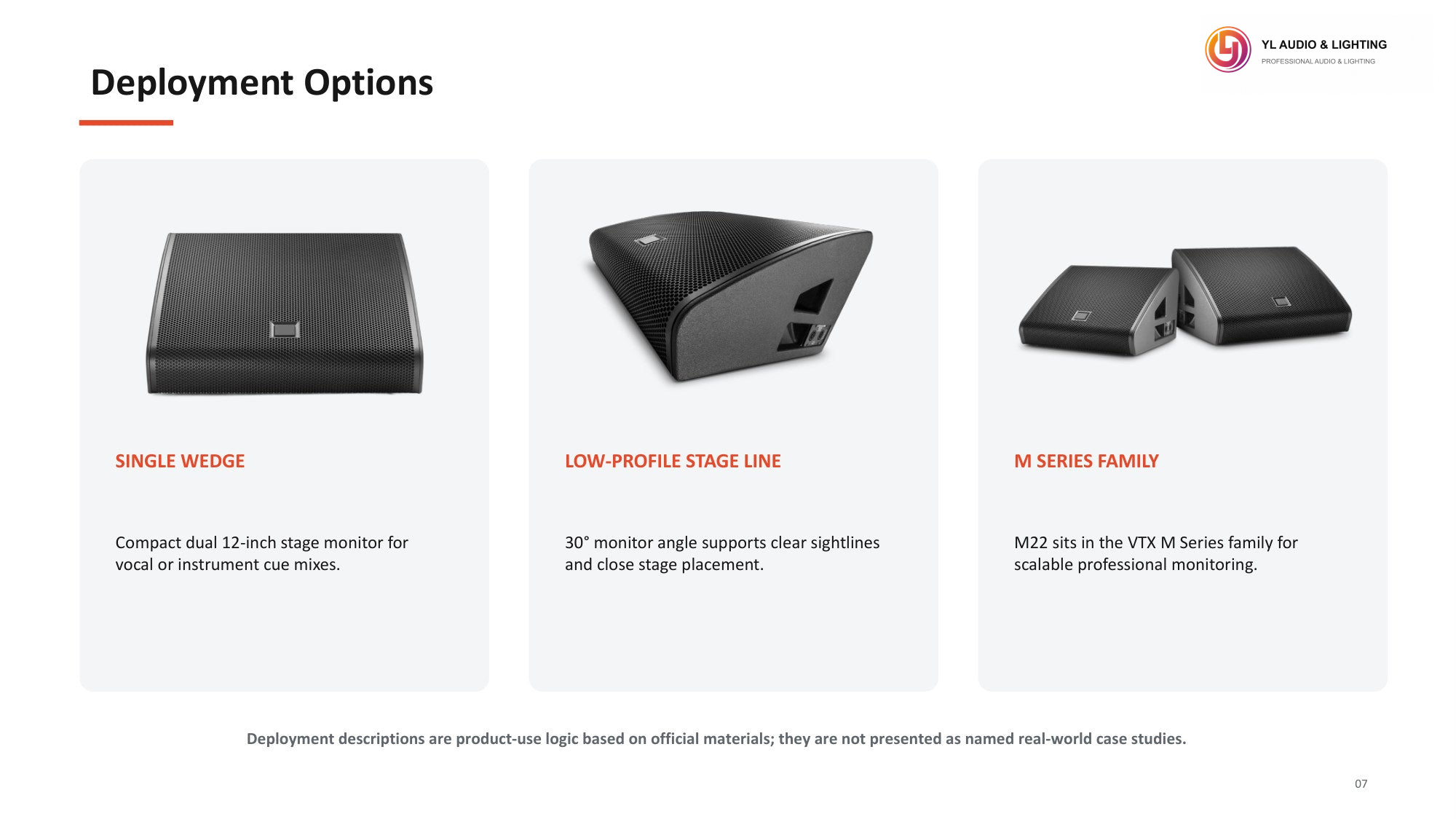

Compatibility and deployment
Monitor Angle: 30 degrees
Amplifier recommendations, controller models and presets refer to the exact system combination described in the source. Preserve the stated component names and wiring conditions. A recommendation does not establish compatibility with a substituted amplifier, preset or driver.
Differential Drive, Image Control Waveguide and DuraFlex, where named in the supplied data, identify the source technology or finish. They are not renamed as YL inventions. The quoted configuration must identify which documented components and finish are actually supplied.
Amplifier recommendations, controller models and presets refer to the exact system combination described in the source. Preserve the stated component names and wiring conditions. A recommendation does not establish compatibility with a substituted amplifier, preset or driver.
Amplifier recommendations, controller models and presets refer to the exact system combination described in the source. Preserve the stated component names and wiring conditions. A recommendation does not establish compatibility with a substituted amplifier, preset or driver.
Reference configuration and component names are retained from the source platform. They do not establish a YL certification or a verified rigging configuration; use model-specific approved documentation for the supplied equipment.
Amplifier recommendations, controller models and presets refer to the exact system combination described in the source. Preserve the stated component names and wiring conditions. A recommendation does not establish compatibility with a substituted amplifier, preset or driver.

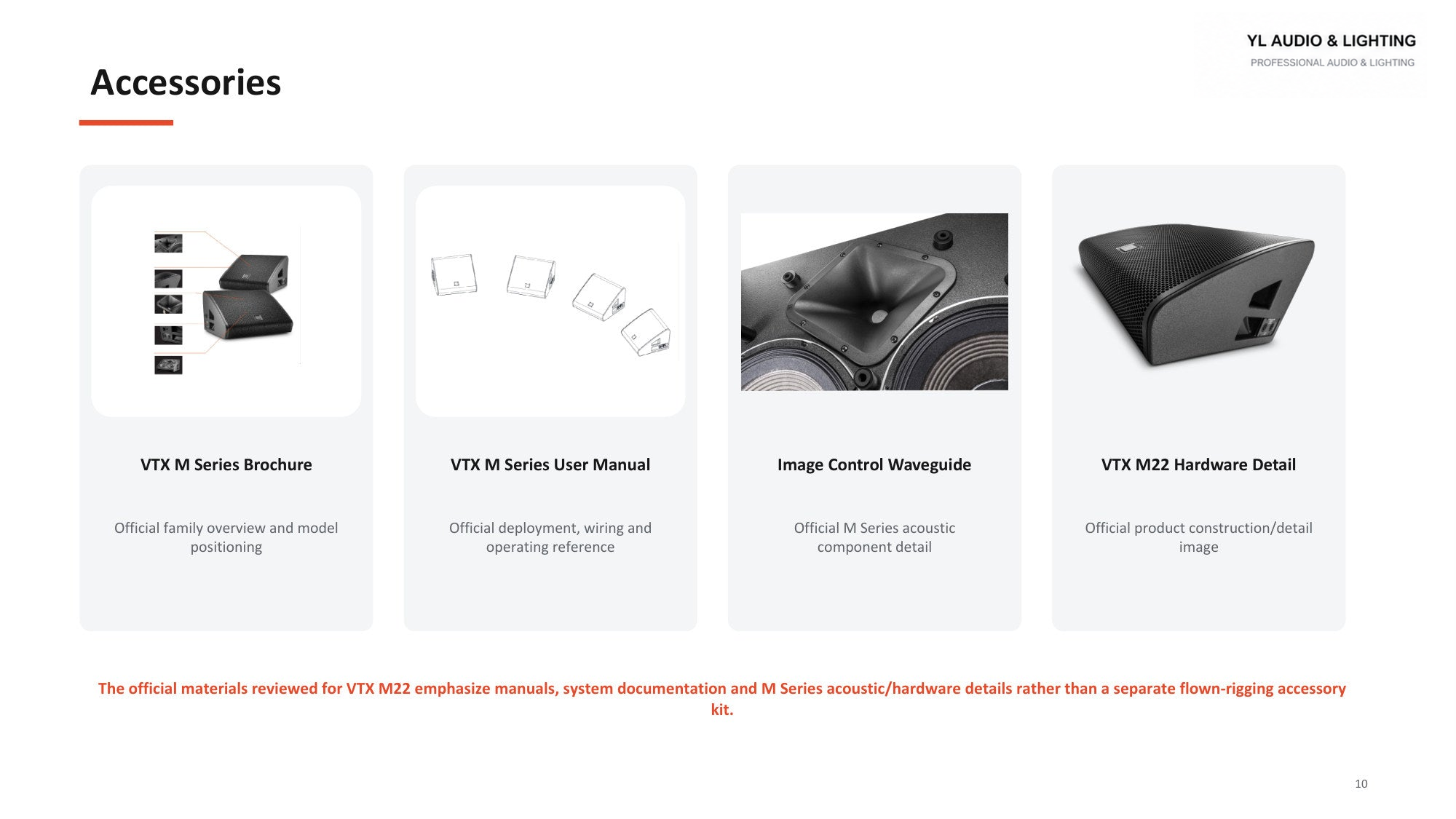

Document and software names identify the source system resources. A pictured manual cover is not a download link or proof that a corresponding YL document is available. Use the actual linked resource and the exact hardware revision to verify instructions.
TECHNICAL REFERENCE
Product specifications.
Published product details. Ask our team about any configuration that is not listed.
| Product Model | VTX M22 |
|---|---|
| Company Model | M22 |
| Type | Dual 12" Professional Stage Monitor |
| Drivers | LF 2 x 2262H, 304 mm (12 in), dual 76 mm (3 in) voice coil, NDD, Direct Cooled; HF 1 x D2430H, D2 dual diaphragm, dual 76 mm (3 in) voice coil |
| Frequency Range | 45 Hz - 19.5 kHz (-10 dB) |
| Rated Power | Passive 1500 W Continuous (IEC / 100 h); Active LF 1500 W Continuous, HF 100 W Continuous |
| Peak Power | Not specified in official materials; Maximum Peak Output 138 dB SPL |
| Maximum SPL | 138 dB SPL (Preset: VTX M22 FR) |
| Nominal Impedance | Passive 4 ohms; Active LF 4 ohms, HF 8 ohms |
| Coverage / Dispersion | 60 degrees horizontal x 60 degrees vertical (-6 dB) |

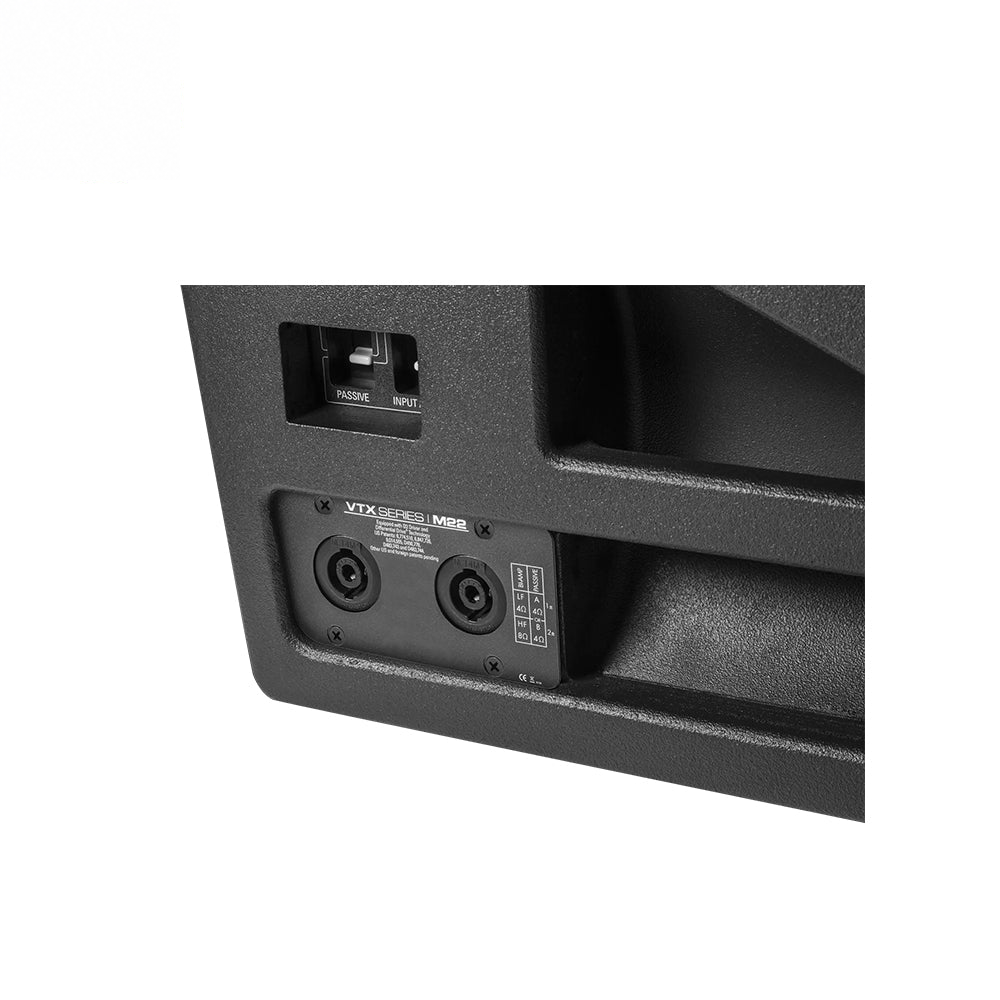

| Connectors | Passive Neutrik speakON NL-4 (4x), selectable pins 1 +/- or 2 +/-; Active pins 1 +/- LF, pins 2 +/- HF |

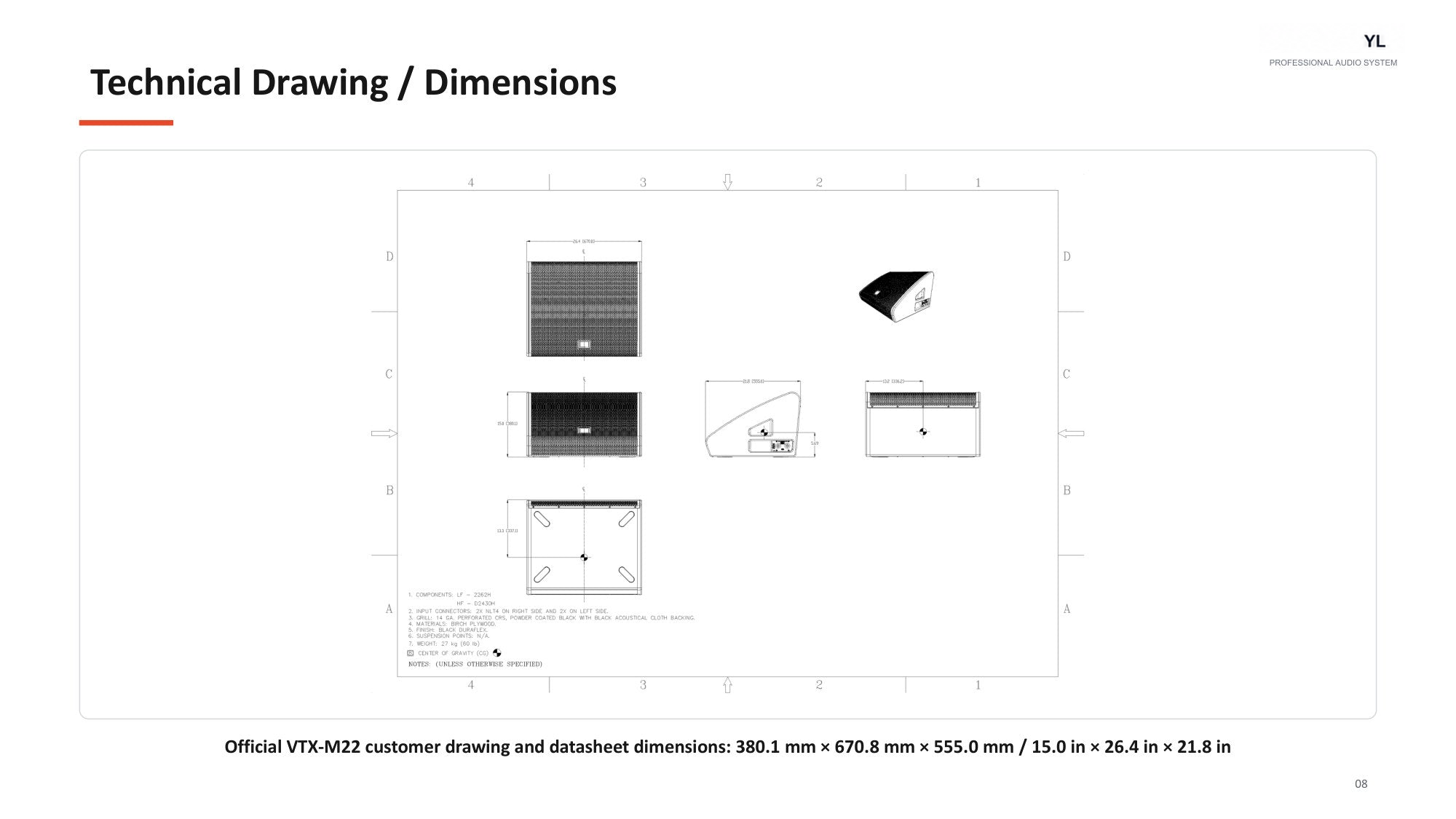

| Dimensions | 380.1 x 670.8 x 555.0 mm / 15.0 x 26.4 x 21.8 in |
| Weight | 27 kg / 60 lb |
| Enclosure | 18 mm, 11-ply Finnish birch plywood |
| Finish | Black DuraFlex finish |
| Protective Grille | Powder-coated 14-gauge hex-perforated steel with acoustically transparent black cloth backing |
| Monitor Angle | 30 degrees |
| System Latency | 3.33 ms |
