Product identification
- Model
- VTX B28 Arrayable Dual 18-Inch Subwoofer
- Product category
- Subwoofer Systems

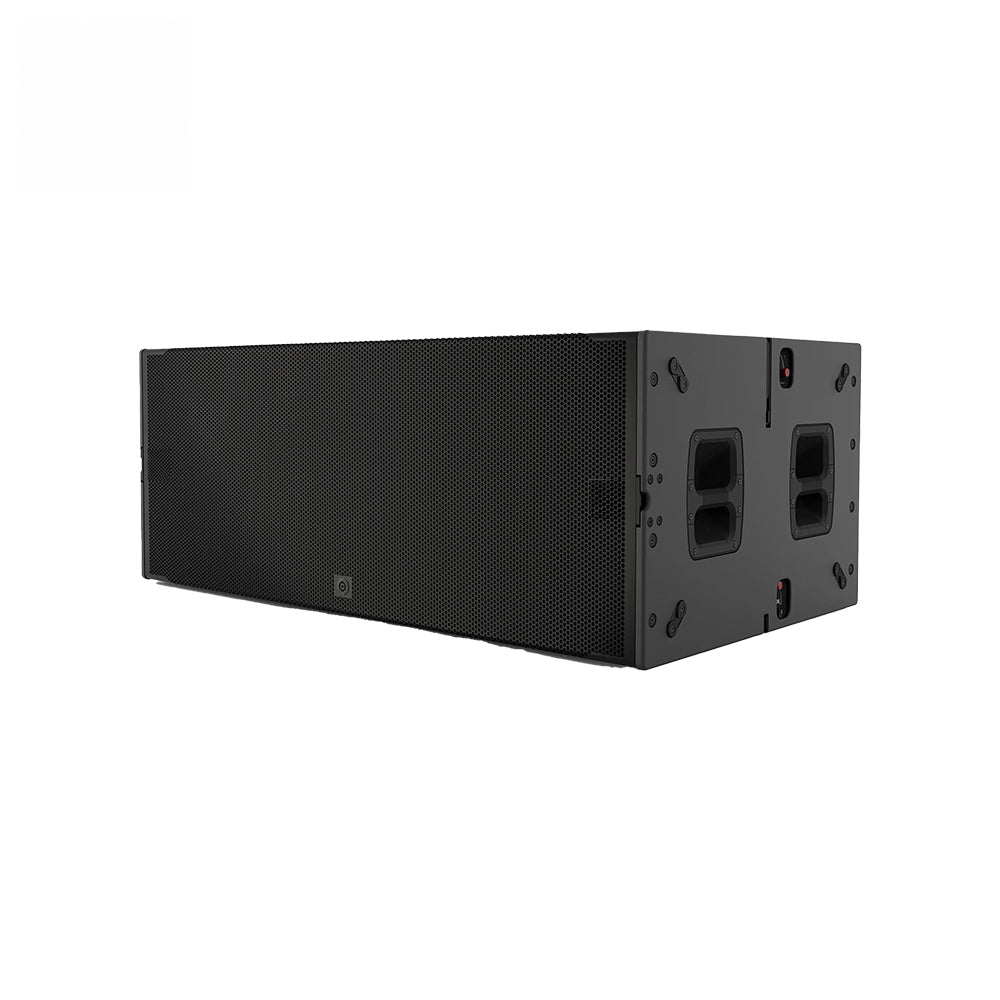

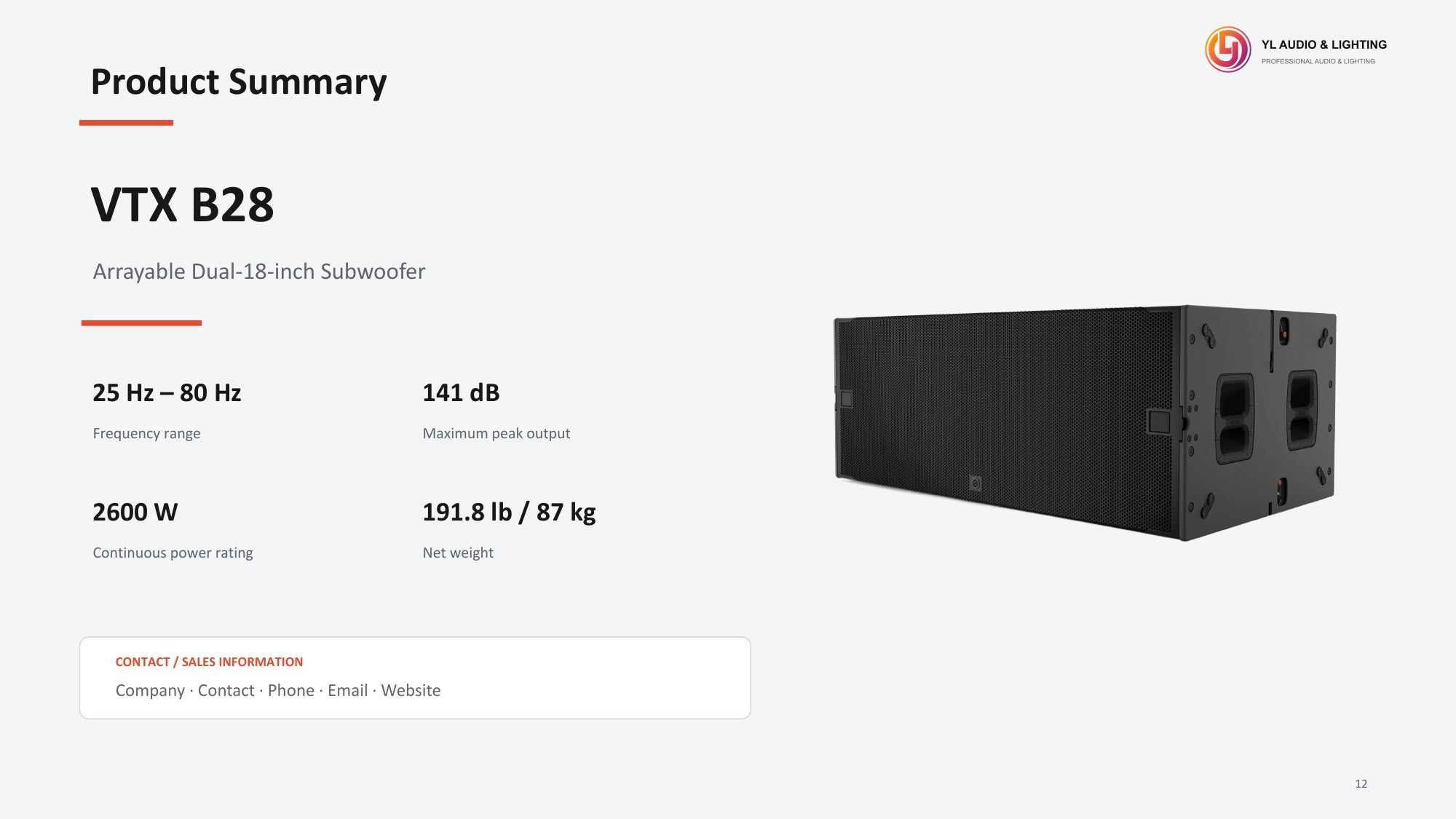

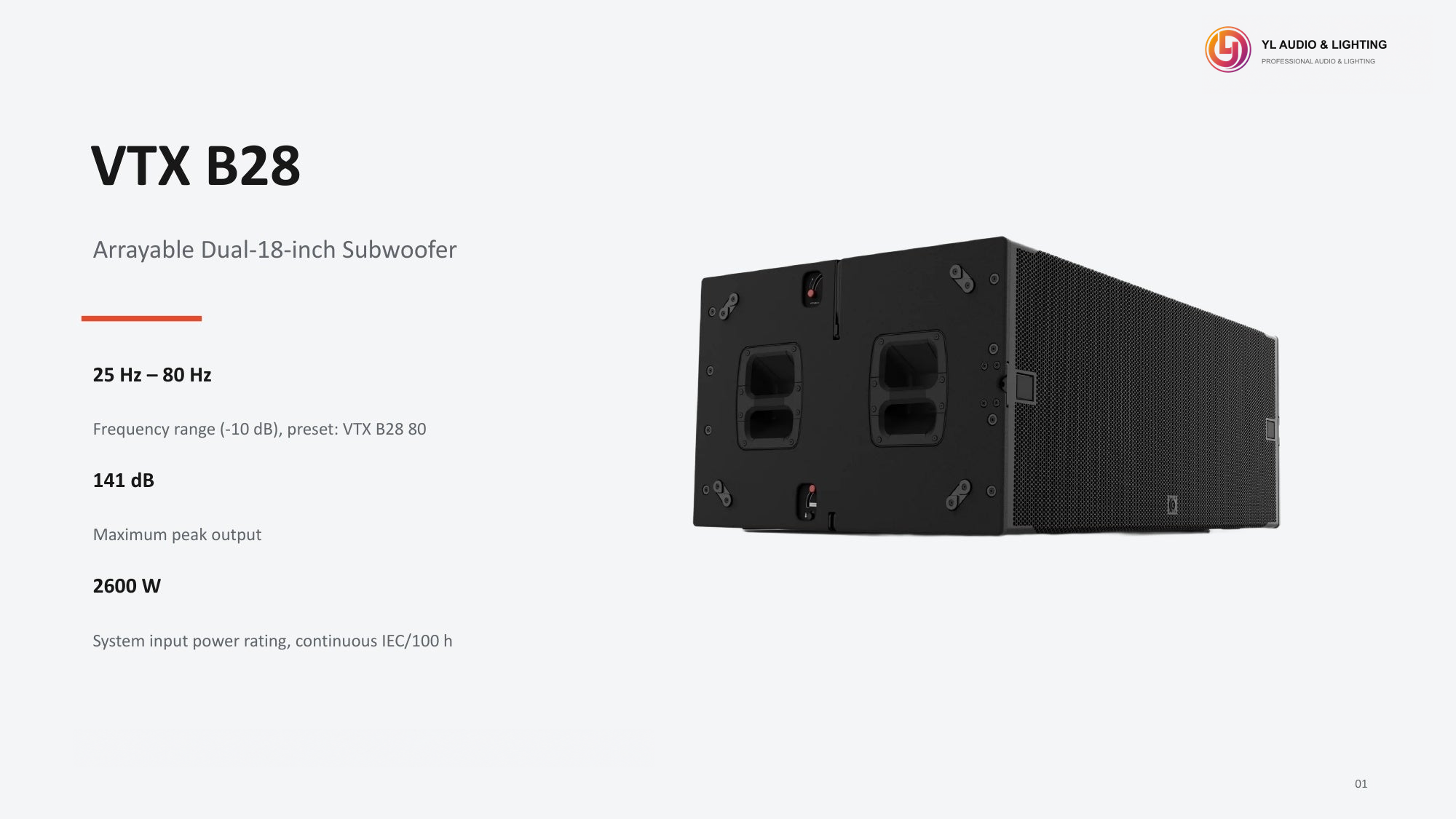

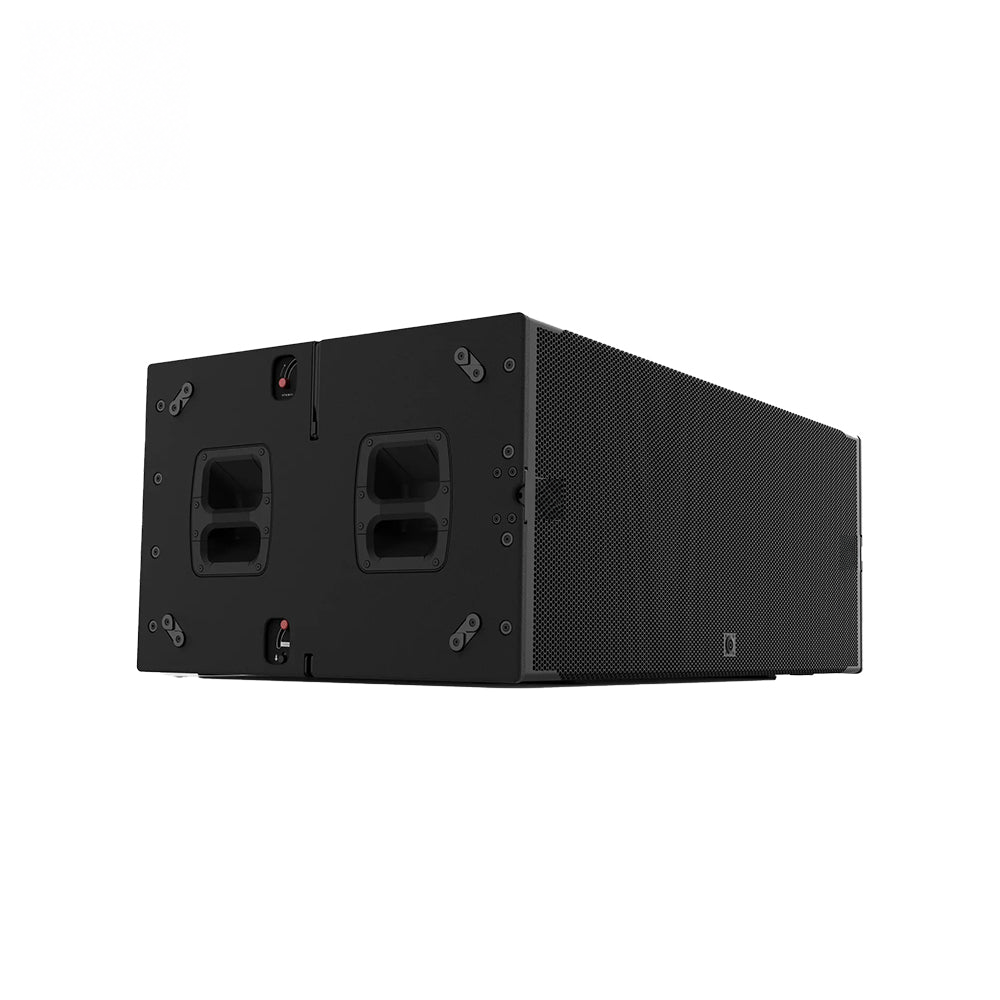

VTX B28 Arrayable Dual 18-Inch Subwoofer
VTX B28 Arrayable Dual 18-Inch Subwoofer is listed in the subwoofer systems category as a subwoofer system. The reference lists frequency range: 25 Hz - 80 Hz (-10 dB), preset VTX B28 80; system input power rating: 2600 W Continuous (IEC/100 h). Confirm the exact model, current specifications and supply details before use.
WHATSAPPRequest a Quote- Maximum SPL
- 141 dB maximum peak output
- Frequency Range
- 25 Hz - 80 Hz (-10 dB), preset VTX B28 80
- Weight
- 87 kg / 191.8 lb

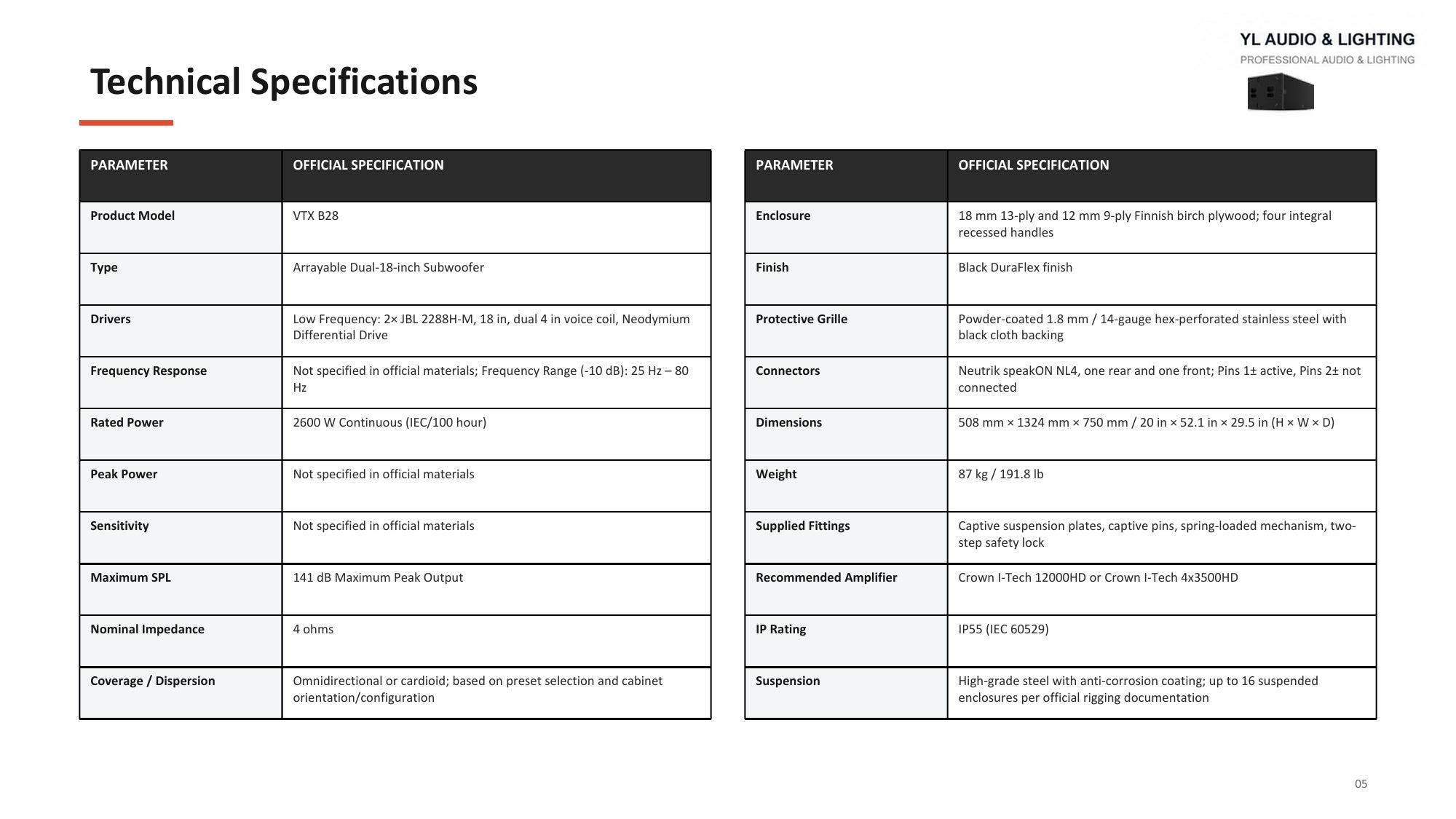

Technical specifications
- Product Model
- VTX B28
- Company Model
- B28 SUB
- Type
- Arrayable Dual-18-inch Subwoofer
- Frequency Range
- 25 Hz - 80 Hz (-10 dB), preset VTX B28 80
- System Input Power Rating
- 2600 W Continuous (IEC/100 h)
- Maximum SPL
- 141 dB maximum peak output
- Nominal Impedance
- 4 ohms

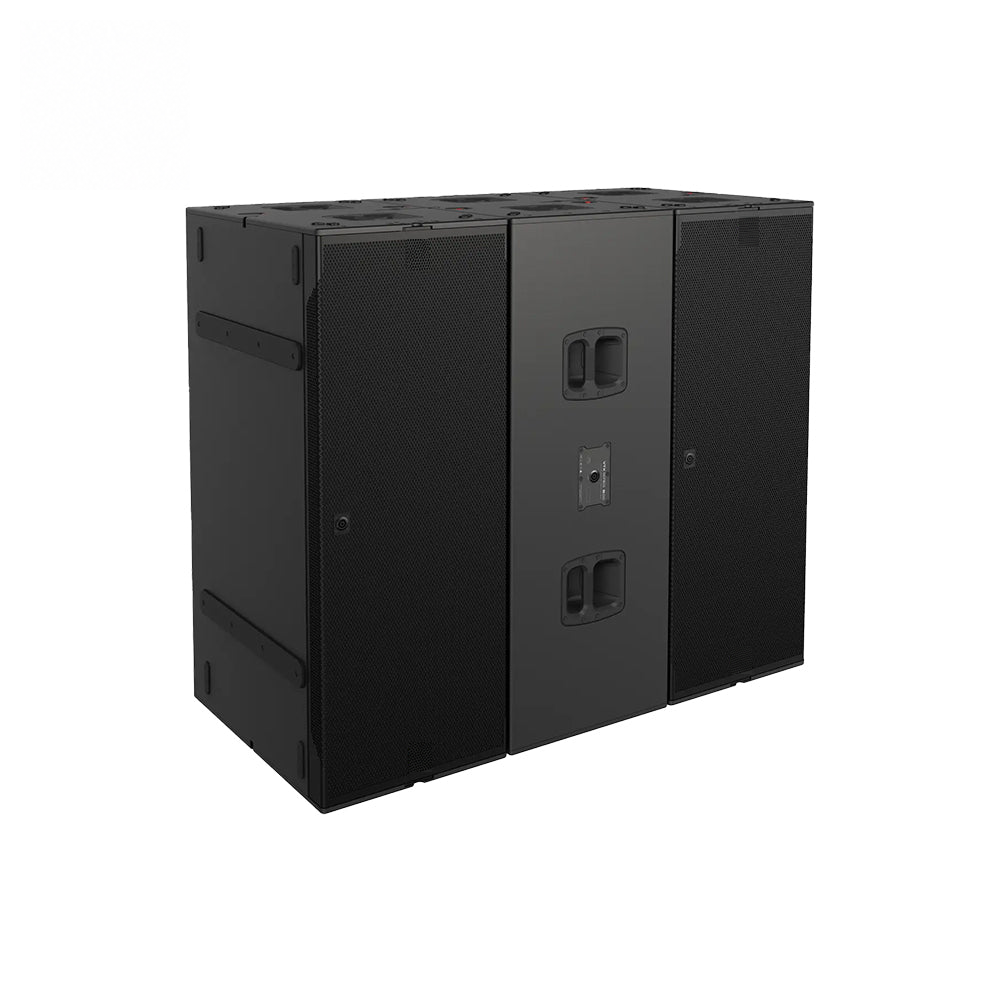

- Coverage / Configuration
- Omnidirectional or cardioid based on preset selection and cabinet orientation/configuration
- Connectors
- Neutrik speakON NL4, one rear and one front; Pins 1 +/- active; Pins 2 +/- not connected
- IP Rating
- IP55 (IEC 60529)
- Drivers
- 2 x 2288H-M, 18 in, dual 4 in voice coil, Neodymium Differential Drive

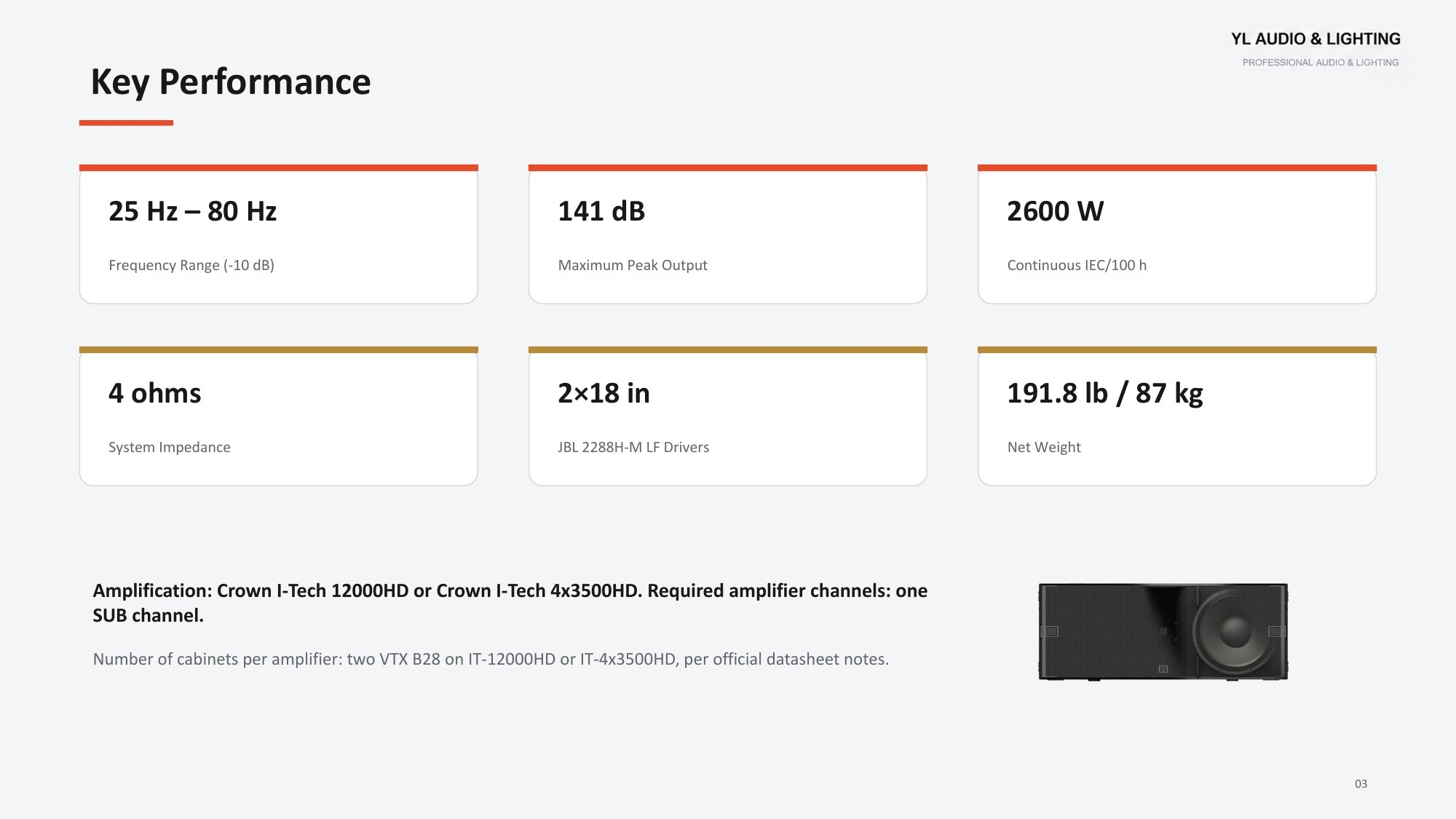

- Recommended Amplifier
- Crown I-Tech 12000HD or Crown I-Tech 4x3500HD
- Model
- VTX B28 / B28 SUB
- Drivers
- 2 x 2288H-M, 18 in, dual 4 in voice coil, Neodymium Differential Drive Frequency range: 25 Hz - 80 Hz (-10 dB), preset VTX B28 80 System input power rating: 2600 W Continuous (IEC/100 h)
- Nominal impedance
- 4 ohms Coverage / configuration: Omnidirectional or cardioid based on preset selection and cabinet orientation/configuration
- Recommended amplifier
- Crown I-Tech 12000HD or Crown I-Tech 4x3500HD IP rating: IP55 (IEC 60529) Suspension: High-grade steel with anti-corrosion coating; up to 16 suspended enclosures per official rigging documentation
Physical specifications

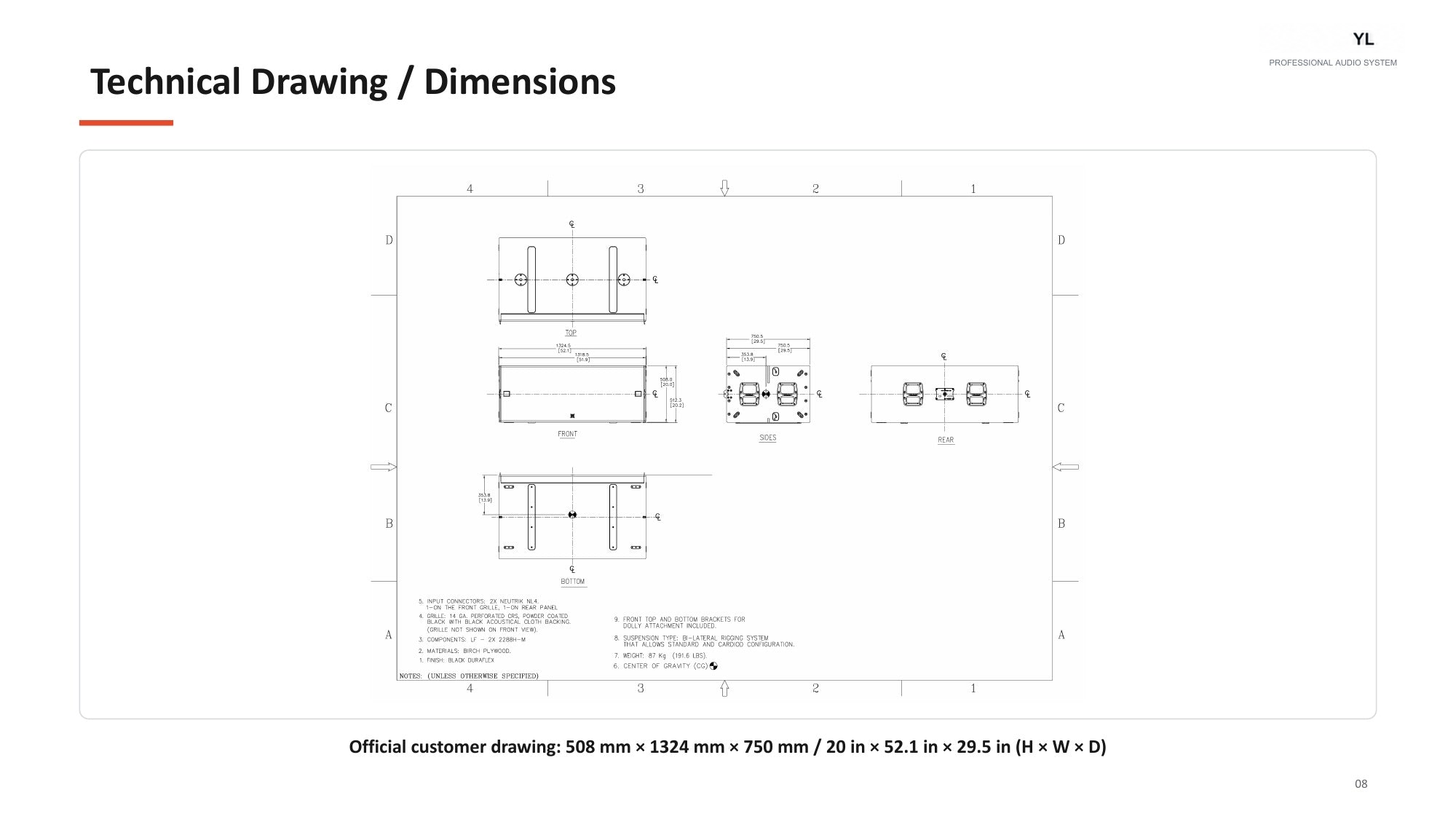

- Dimensions
- 508 x 1324 x 750 mm / 20 x 52.1 x 29.5 in (H x W x D)
- Weight
- 87 kg / 191.8 lb

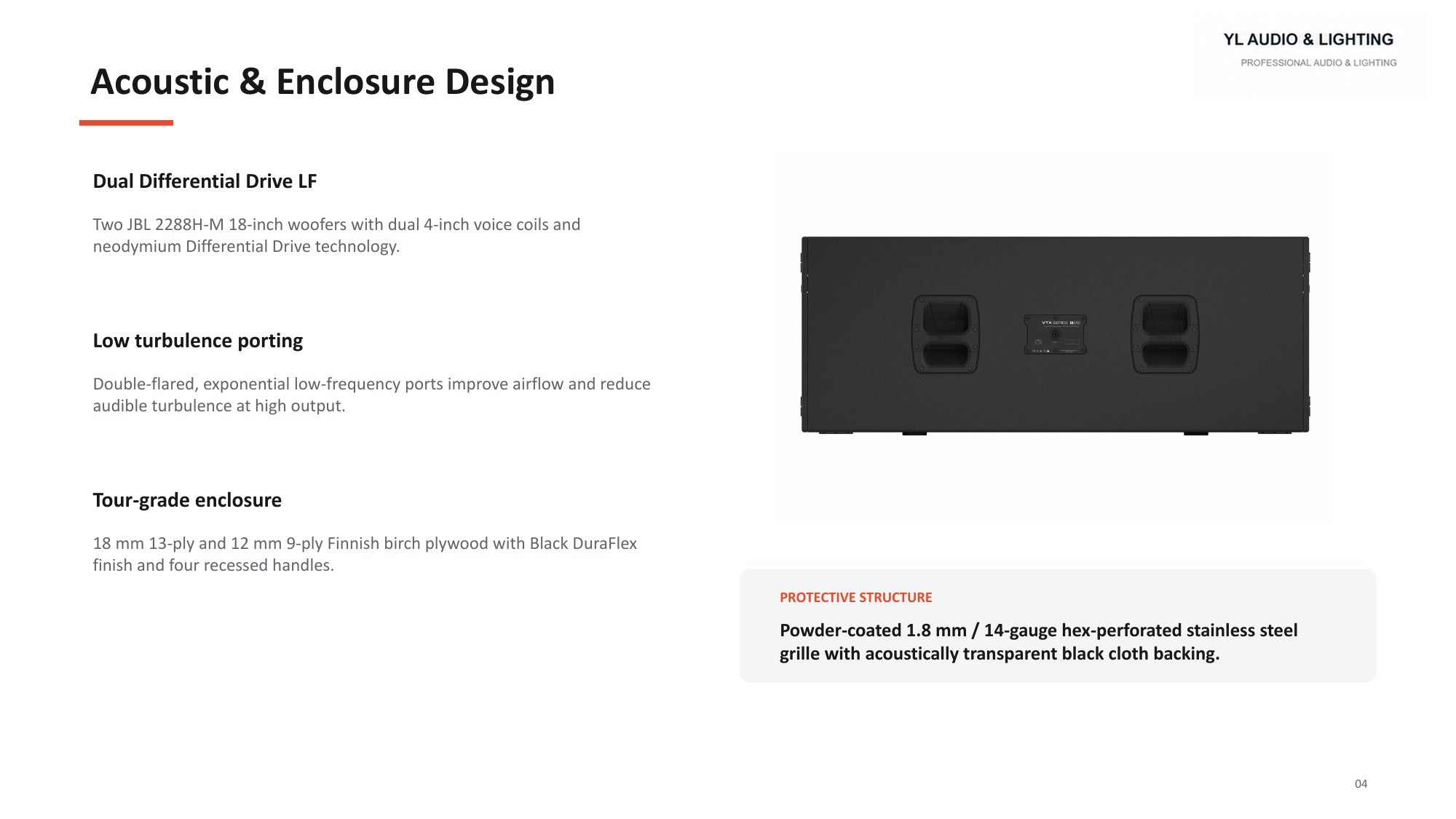

- Enclosure
- 18 mm 13-ply and 12 mm 9-ply Finnish birch plywood with four integral recessed handles
- Finish
- Black DuraFlex finish
- Protective Grille
- Powder-coated 1.8 mm / 14-gauge hex-perforated stainless steel with black cloth backing
- Enclosure
- 18 mm 13-ply and 12 mm 9-ply Finnish birch plywood with four integral recessed handles Finish: Black DuraFlex finish Protective grille: Powder-coated 1.8 mm / 14-gauge hex-perforated stainless steel with black cloth backing
Compatibility and deployment

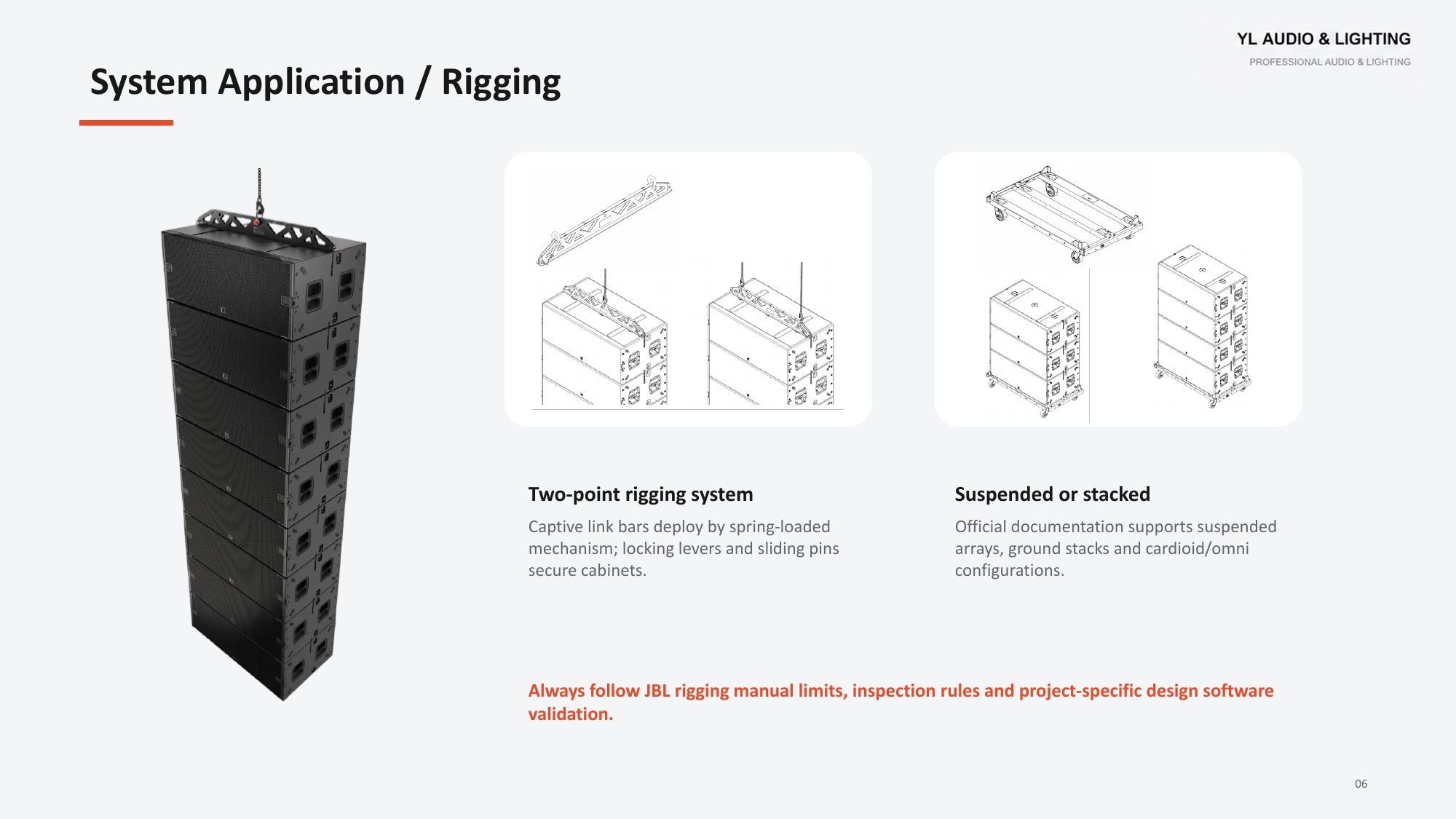

Suspension: High-grade steel with anti-corrosion coating; up to 16 suspended enclosures per official rigging documentation
The source attributes the described driver or rigging design to its original technology supplier. Any patent or proprietary-design wording refers to that supplier and does not establish YL ownership of the technology. Follow the applicable rigging documentation for the exact supplied configuration.
Amplifier recommendations, controller models and presets refer to the exact system combination described in the source. Preserve the stated component names and wiring conditions. A recommendation does not establish compatibility with a substituted amplifier, preset or driver.
Differential Drive, Image Control Waveguide and DuraFlex, where named in the supplied data, identify the source technology or finish. They are not renamed as YL inventions. The quoted configuration must identify which documented components and finish are actually supplied.
Amplifier recommendations, controller models and presets refer to the exact system combination described in the source. Preserve the stated component names and wiring conditions. A recommendation does not establish compatibility with a substituted amplifier, preset or driver.
The named driver, connector, software or accessory identifies the documented component or original system relationship. Keep those factual names and the source installation conditions. They are not replaced with YL technology, certification or unconditional compatibility claims.
Amplifier recommendations, controller models and presets refer to the exact system combination described in the source. Preserve the stated component names and wiring conditions. A recommendation does not establish compatibility with a substituted amplifier, preset or driver.
Reference configuration and component names are retained from the source platform. They do not establish a YL certification or a verified rigging configuration; use model-specific approved documentation for the supplied equipment.
Reference configuration and component names are retained from the source platform. They do not establish a YL certification or a verified rigging configuration; use model-specific approved documentation for the supplied equipment.
TECHNICAL REFERENCE
Product specifications.
Published product details. Ask our team about any configuration that is not listed.
| Product Model | VTX B28 |
|---|---|
| Company Model | B28 SUB |
| Type | Arrayable Dual-18-inch Subwoofer |
| Frequency Range | 25 Hz - 80 Hz (-10 dB), preset VTX B28 80 |
| System Input Power Rating | 2600 W Continuous (IEC/100 h) |
| Maximum SPL | 141 dB maximum peak output |
| Nominal Impedance | 4 ohms |
| Coverage / Configuration | Omnidirectional or cardioid based on preset selection and cabinet orientation/configuration |
| Connectors | Neutrik speakON NL4, one rear and one front; Pins 1 +/- active; Pins 2 +/- not connected |
| Dimensions | 508 x 1324 x 750 mm / 20 x 52.1 x 29.5 in (H x W x D) |
| Weight | 87 kg / 191.8 lb |
| Enclosure | 18 mm 13-ply and 12 mm 9-ply Finnish birch plywood with four integral recessed handles |
| Finish | Black DuraFlex finish |
| Protective Grille | Powder-coated 1.8 mm / 14-gauge hex-perforated stainless steel with black cloth backing |
| IP Rating | IP55 (IEC 60529) |
Downloads
| Title | File type | Download |
|---|---|---|
| YL B28 Product DetailsEnglish | PDF2.1 MB |

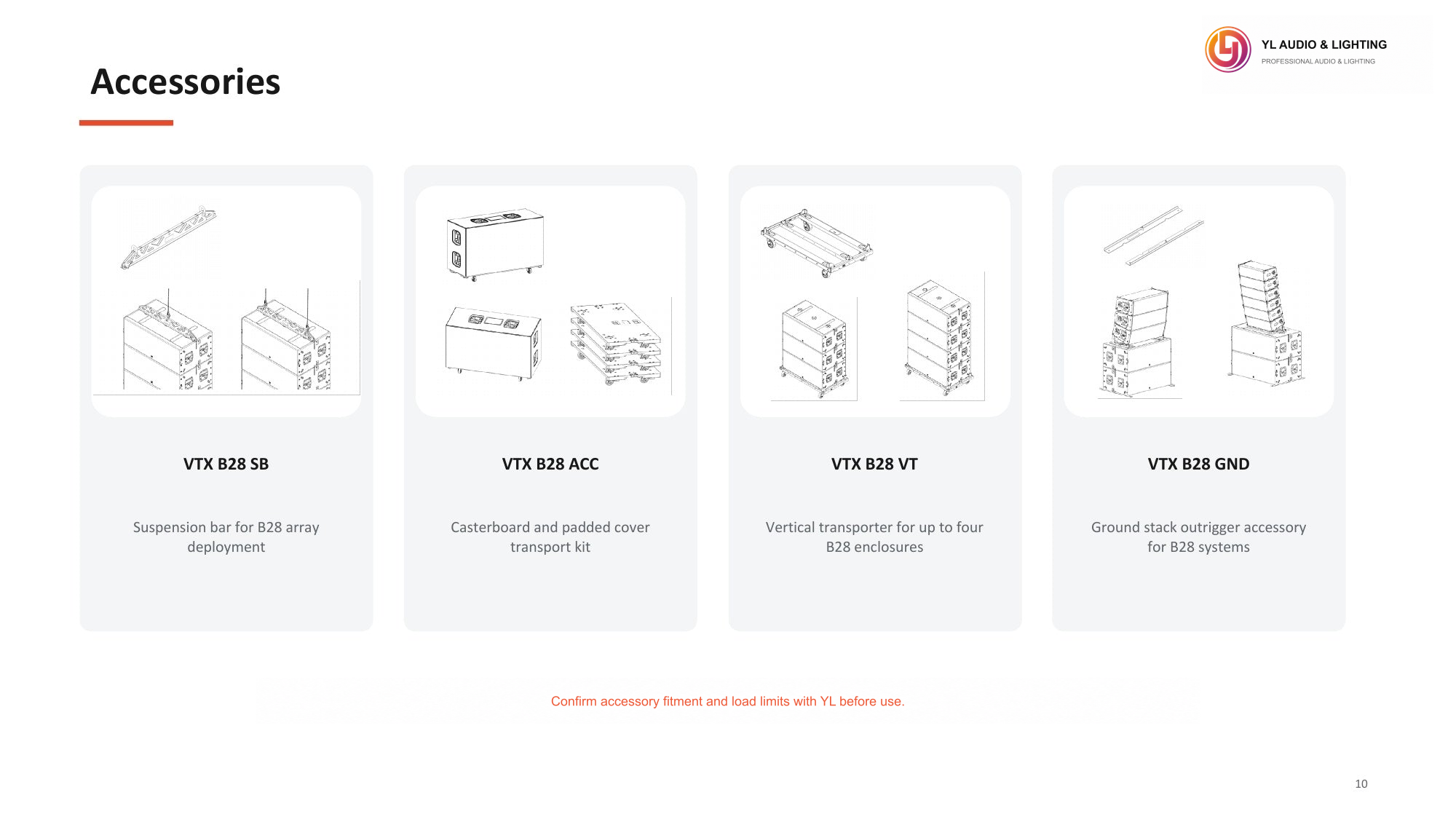

System accessories
YL LightYL-JBLX
Rigging & Accessories
B28 SB Suspension Bar
B28 SB Suspension Bar is listed in the rigging & accessories category as a audio rigging or accessory product. The source does not provide a clearly labelled technical specification for this item. Confirm the exact model, current specifications and supply details before use.
YL LightYL-JBLX
Rigging & Accessories

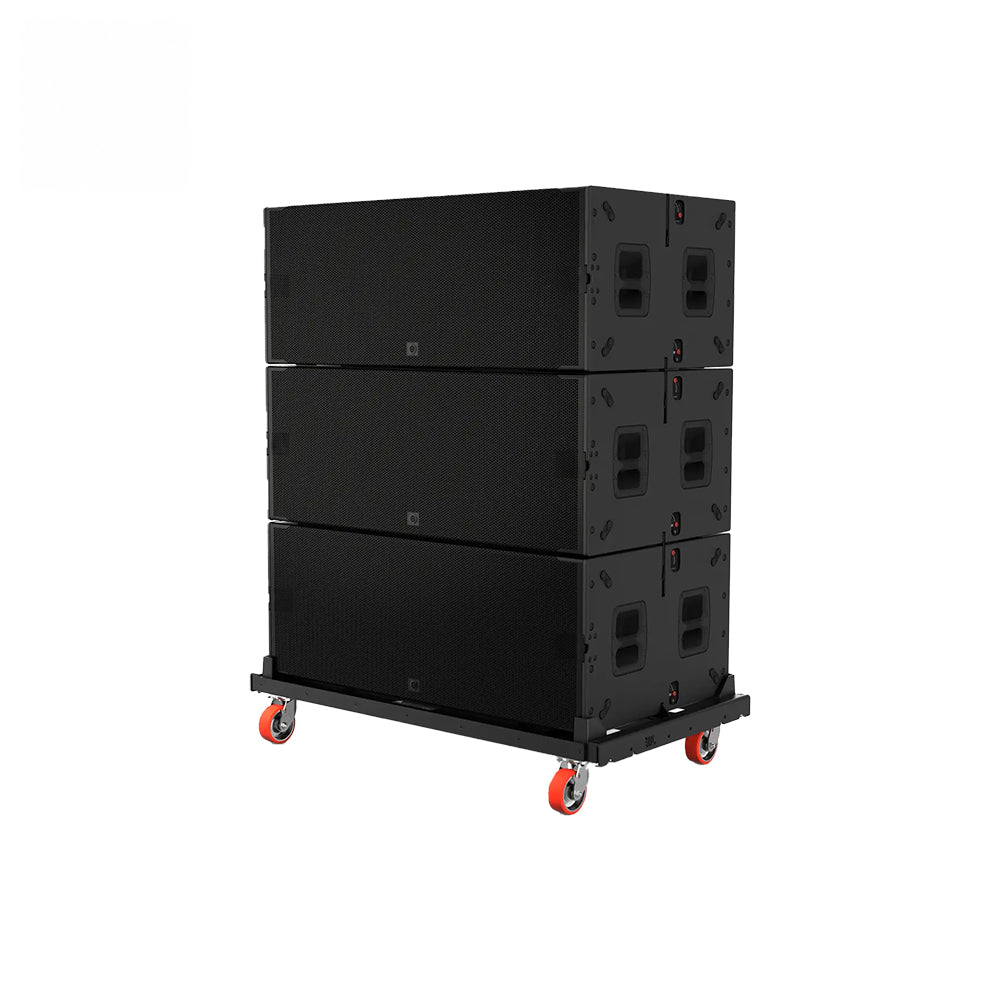

B28 SB Larger Images - Vertical transport cart for up to four B28
