Product identification
- Model
- V10P-V210PW 3-Way Dual 10-Inch Point Source Loudspeaker
- Product category
- Point Source Loudspeakers

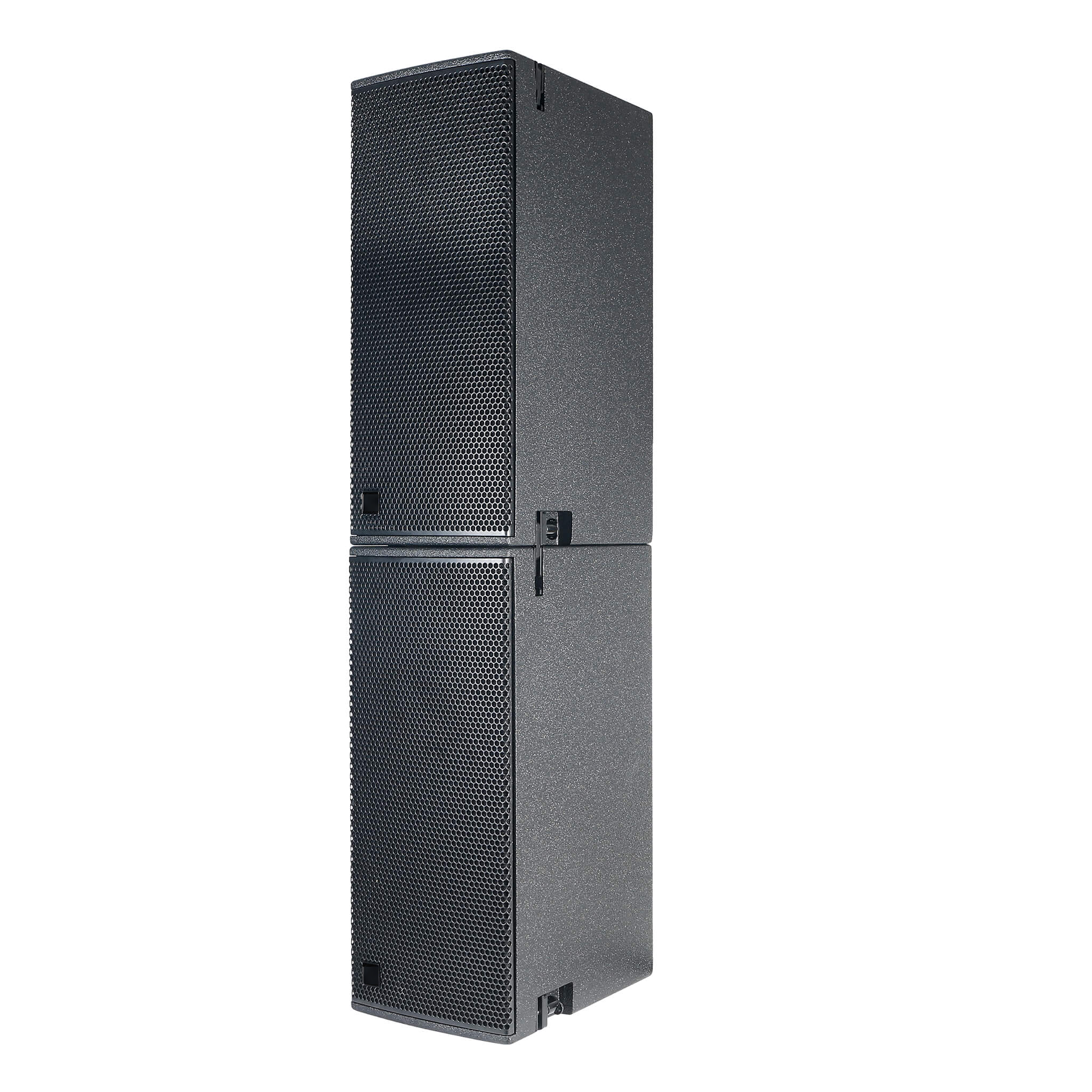

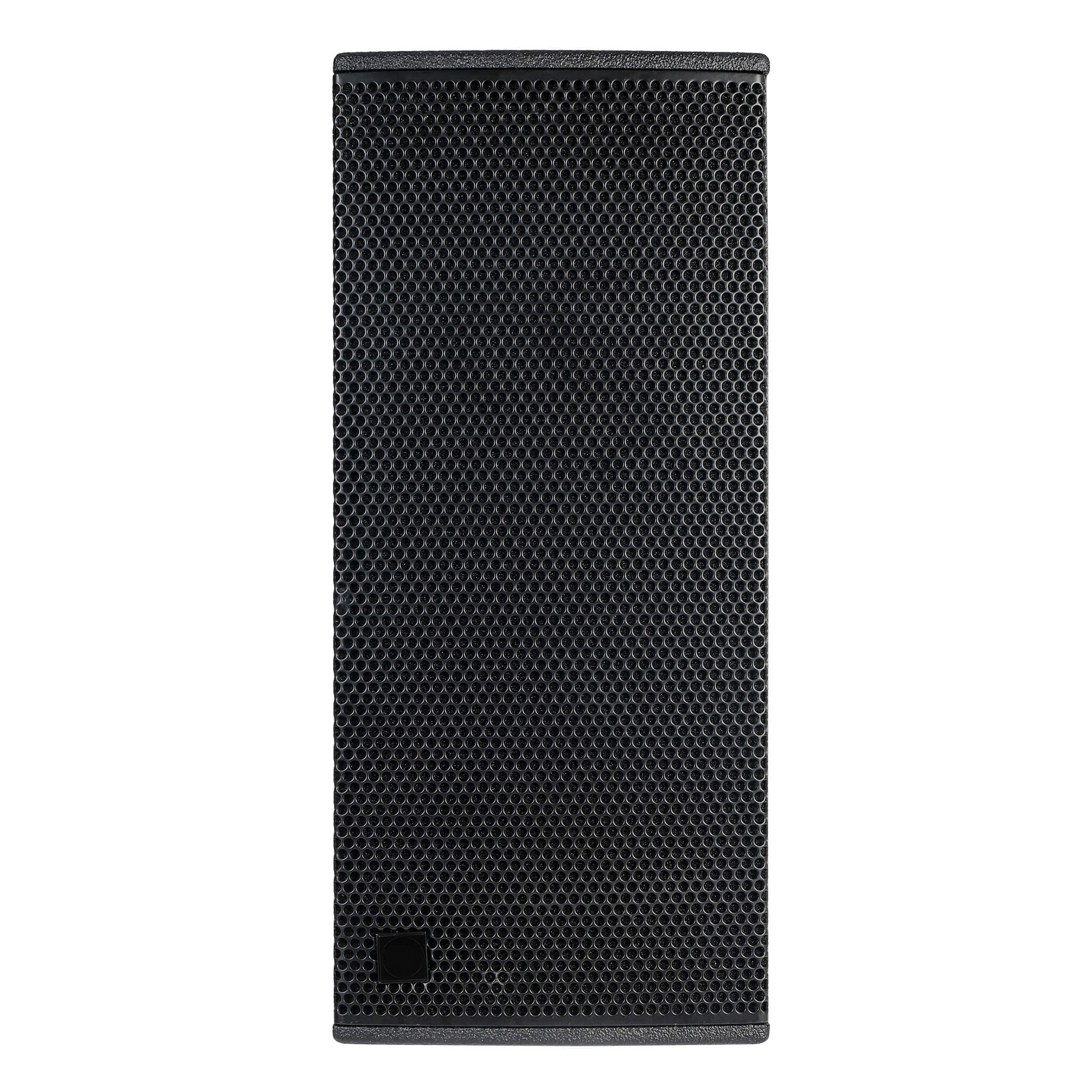

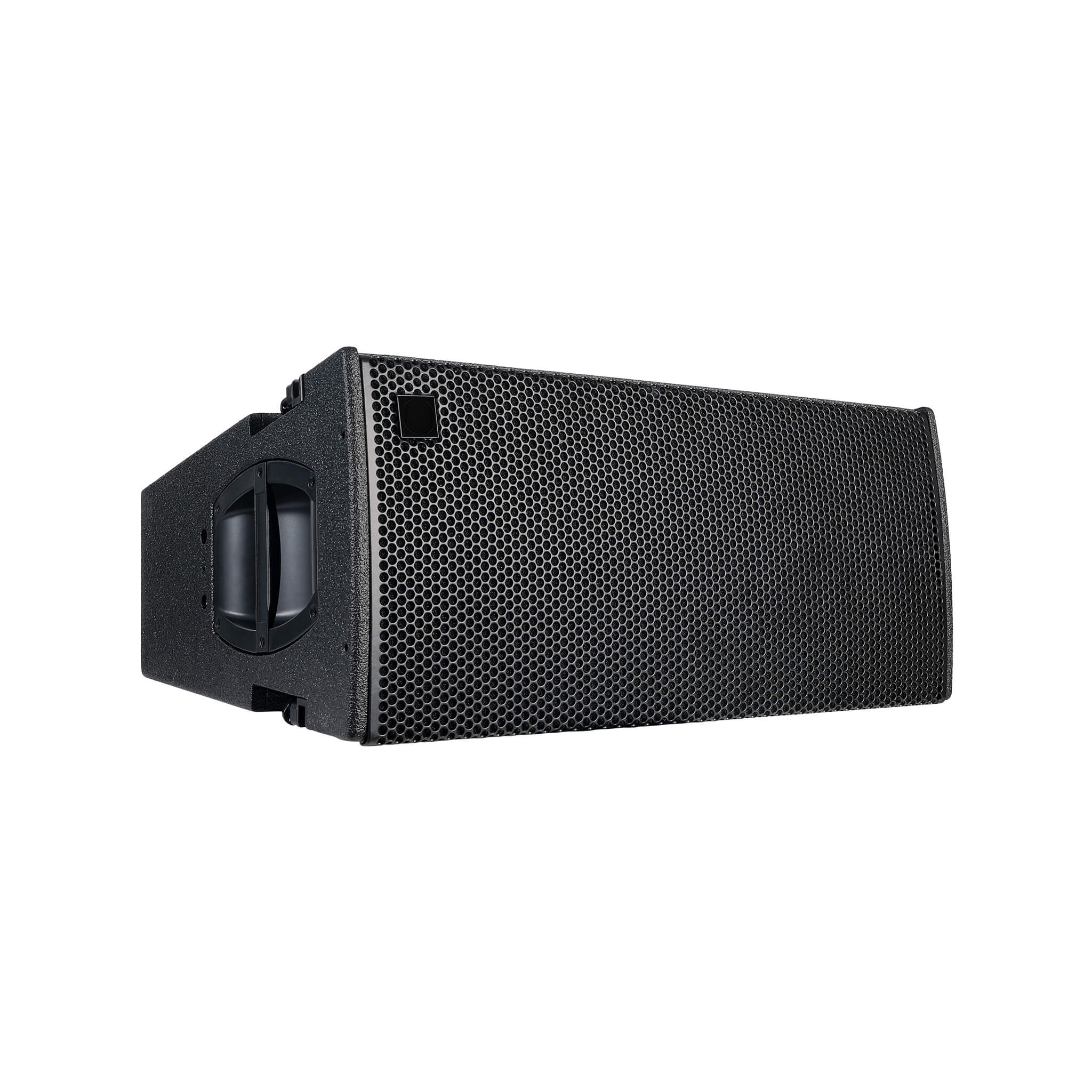

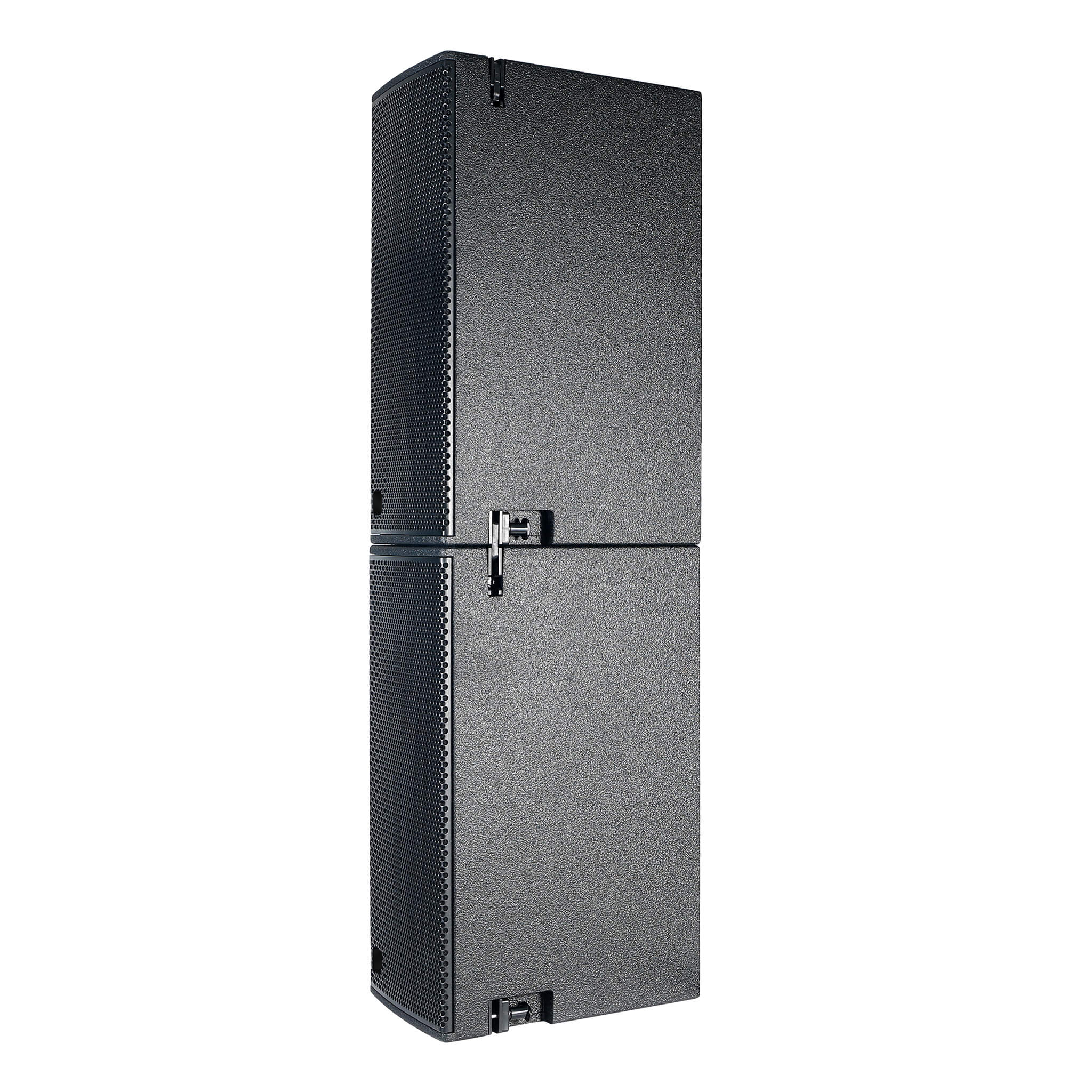

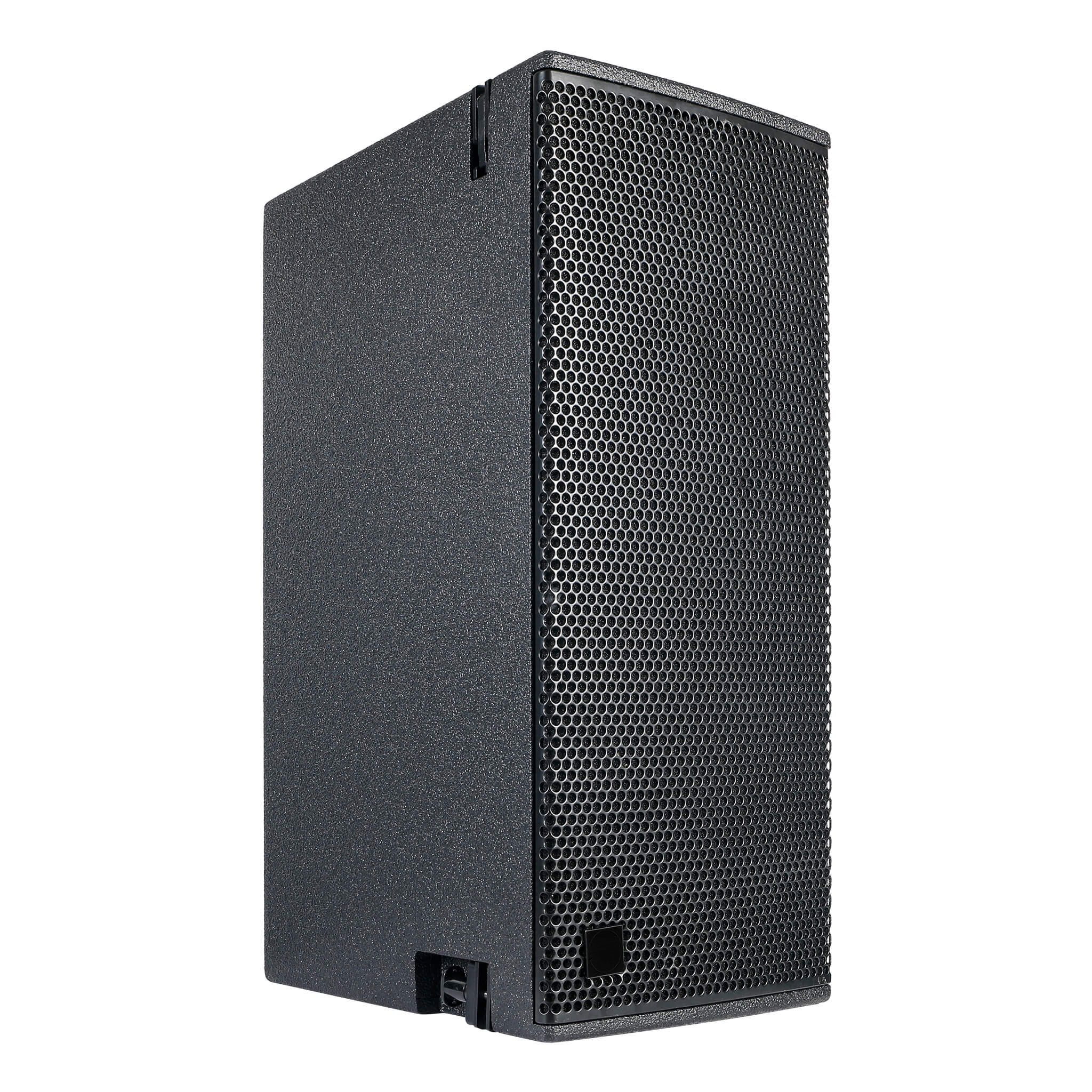

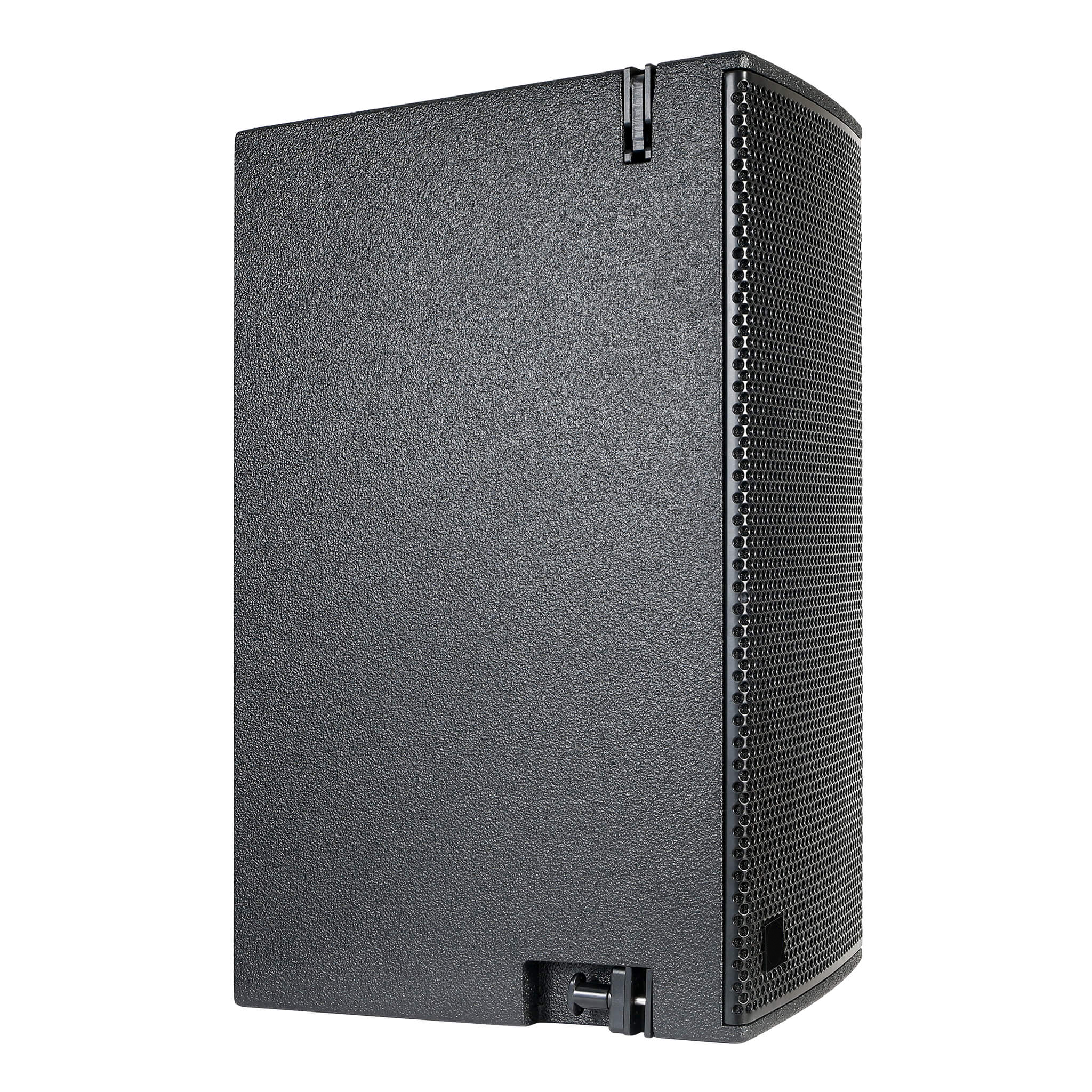

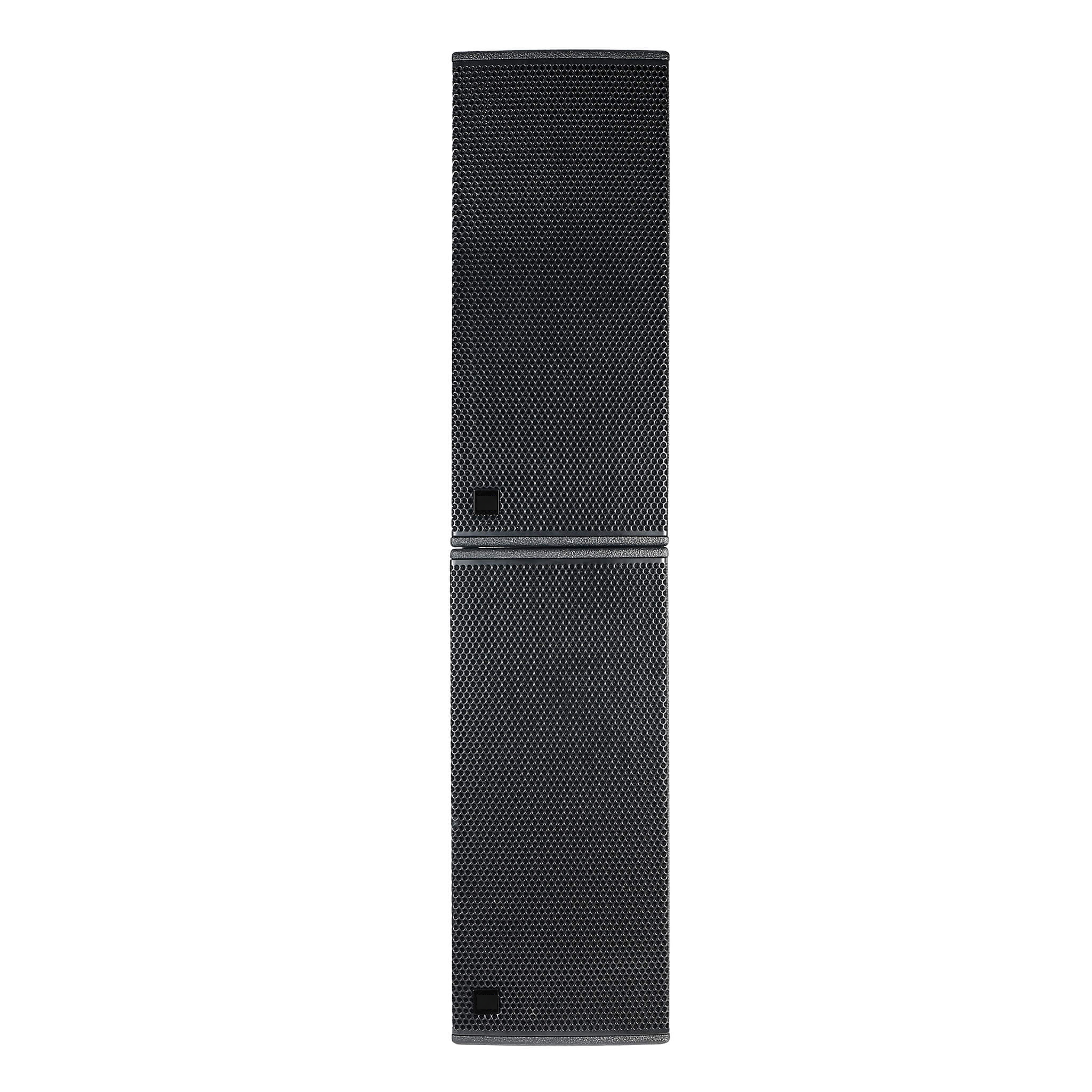

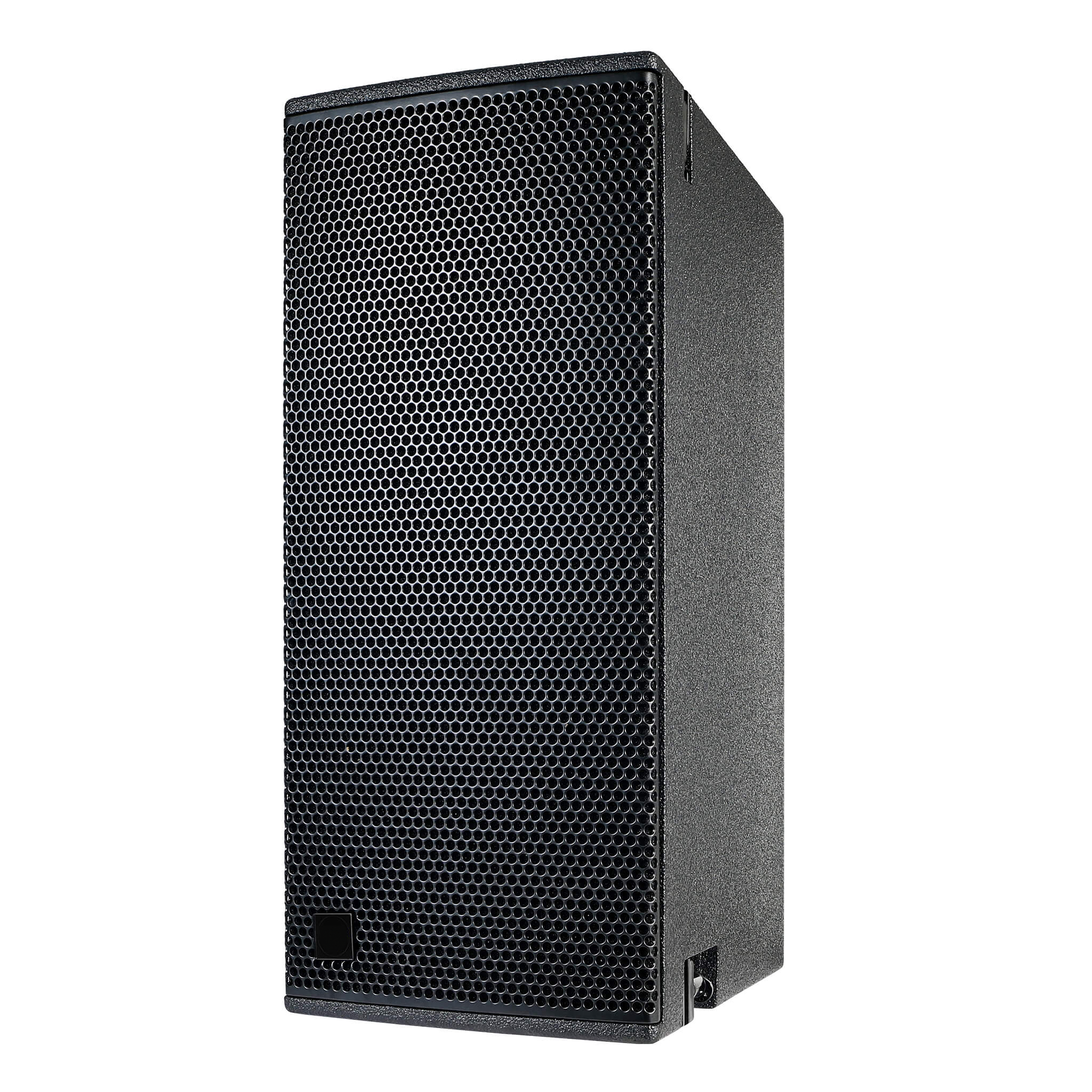

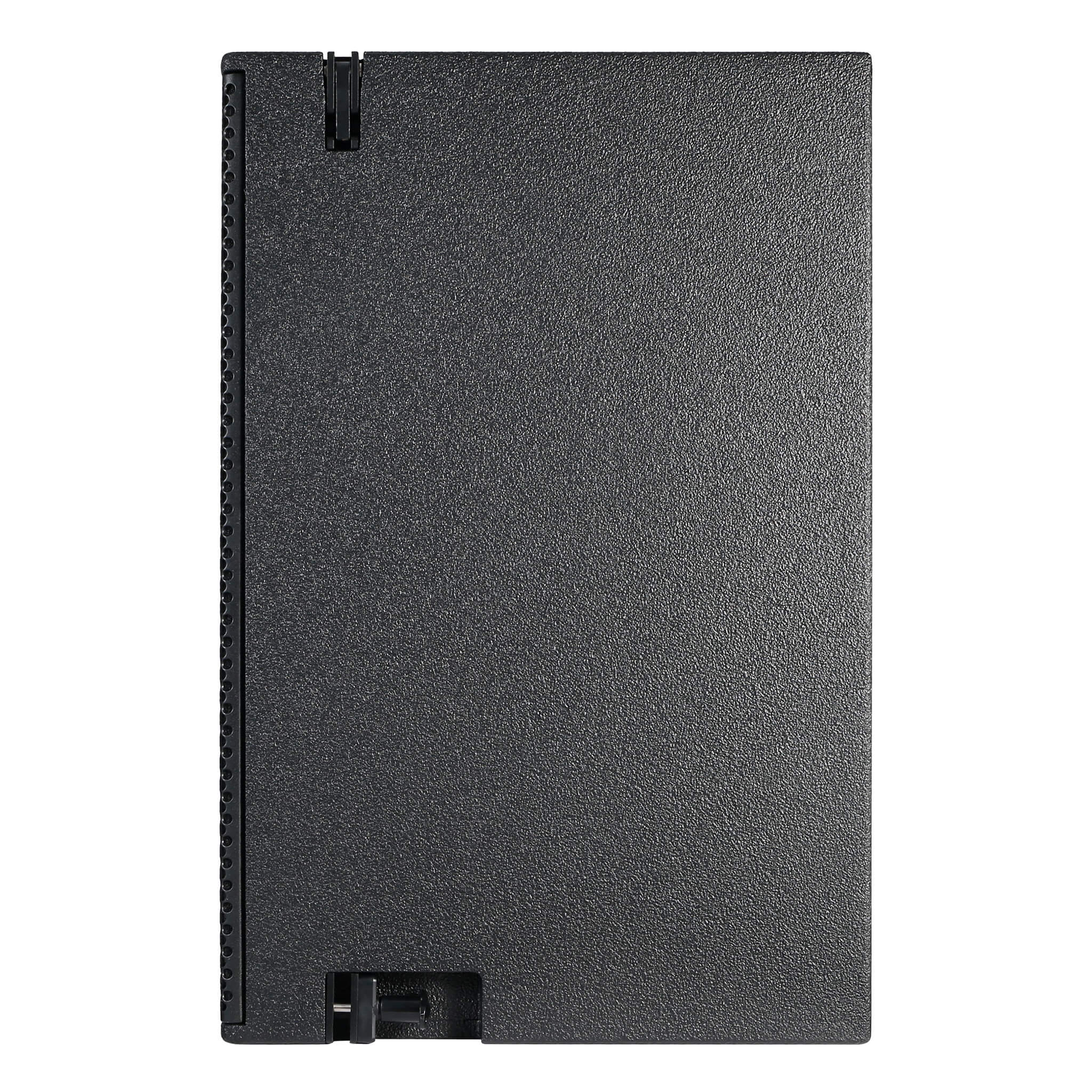

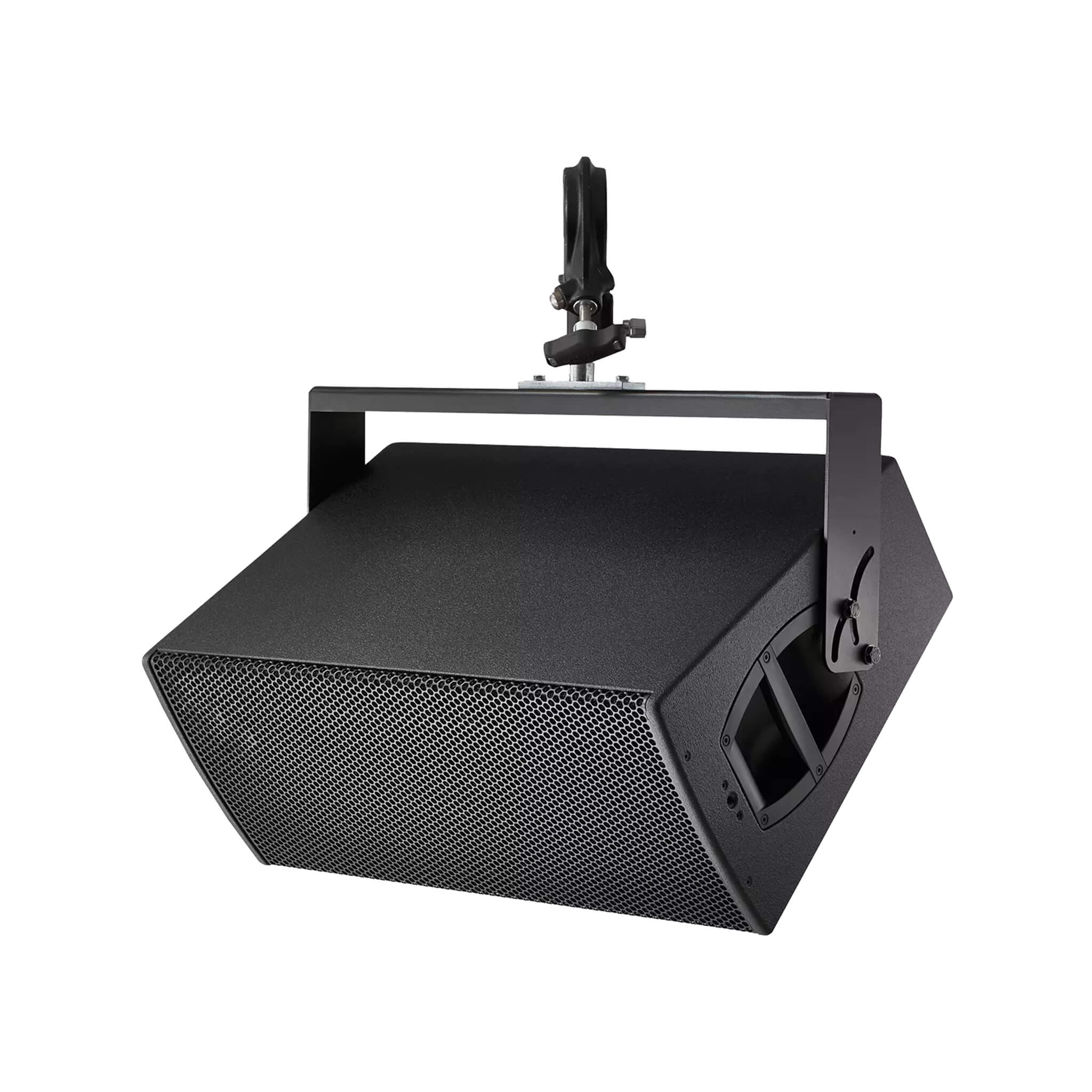

V10P-V210PW 3-Way Dual 10-Inch Point Source Loudspeaker
V10P-V210PW 3-Way Dual 10-Inch Point Source Loudspeaker is listed in the point source loudspeakers category as a point source loudspeaker. The reference lists maximum spl: 143 dB; bandwidth: 59 Hz – 18 kHz. Confirm the exact model, current specifications and supply details before use.
WHATSAPPRequest a Quote- Maximum SPL
- 143 dB
- Bandwidth
- 59 Hz – 18 kHz
- Weight
- 33 kg75 lb
Technical specifications
- Maximum SPL
- 143 dB
- Bandwidth
- 59 Hz – 18 kHz
- Transducers
- LF: 2 × 10″ • MF: 1 × 8″ • HF: 1 × 1.4″ compression drivers
- Frequency response (-5 dB standard)
- 59 Hz - 18 kHz
- Frequency response (-5 dB CUT mode)
- 100 Hz - 18 kHz
- Max. sound pressure1 with D20/30D
- 136 dB withD40/D80/40D:139 dB
- Configuration
- Highperformance 3-way passive point source loudspeaker
- Nominal impedance
- 8 Ω
- Power handling capacity (RMS/peak 10 ms)
- 500/2000 W

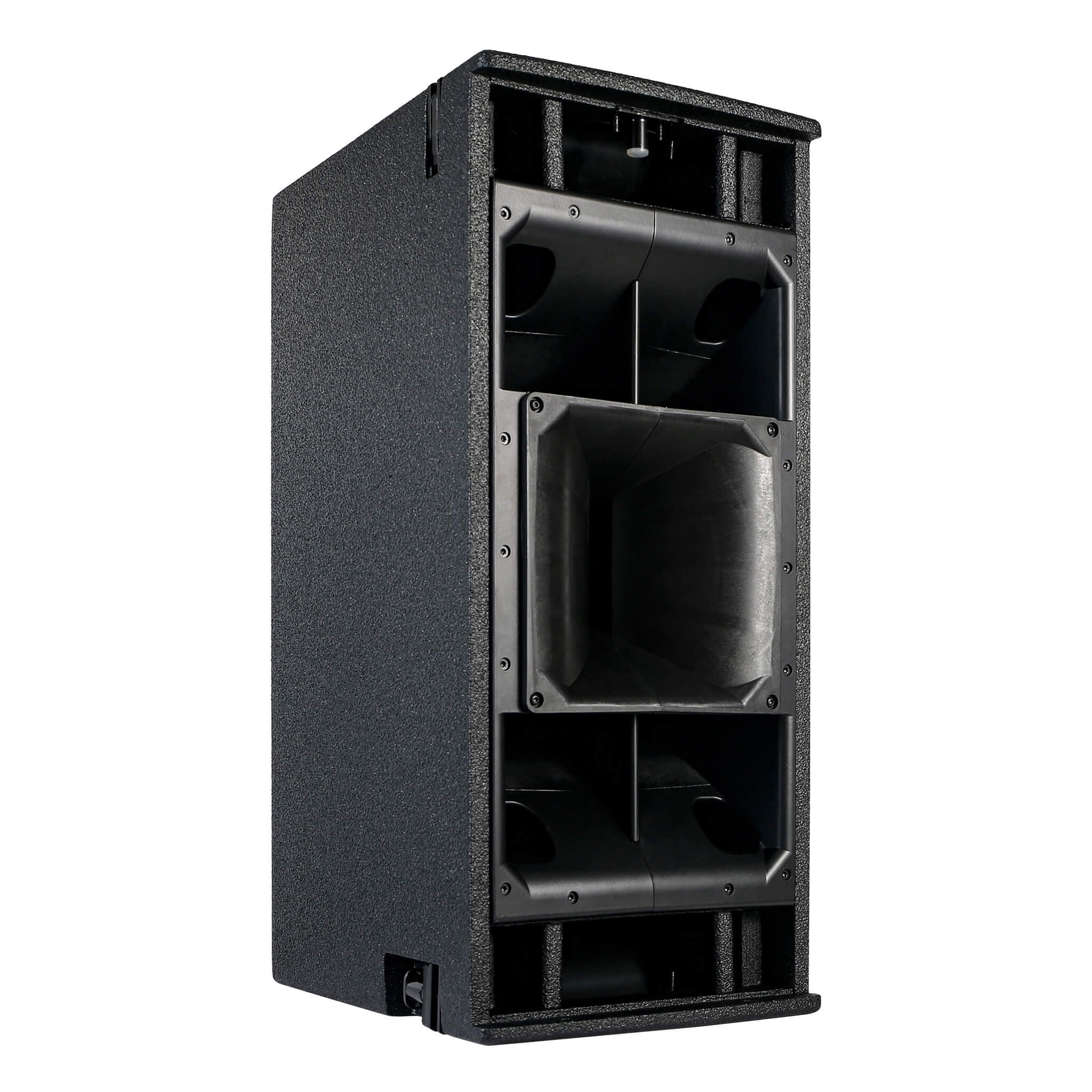

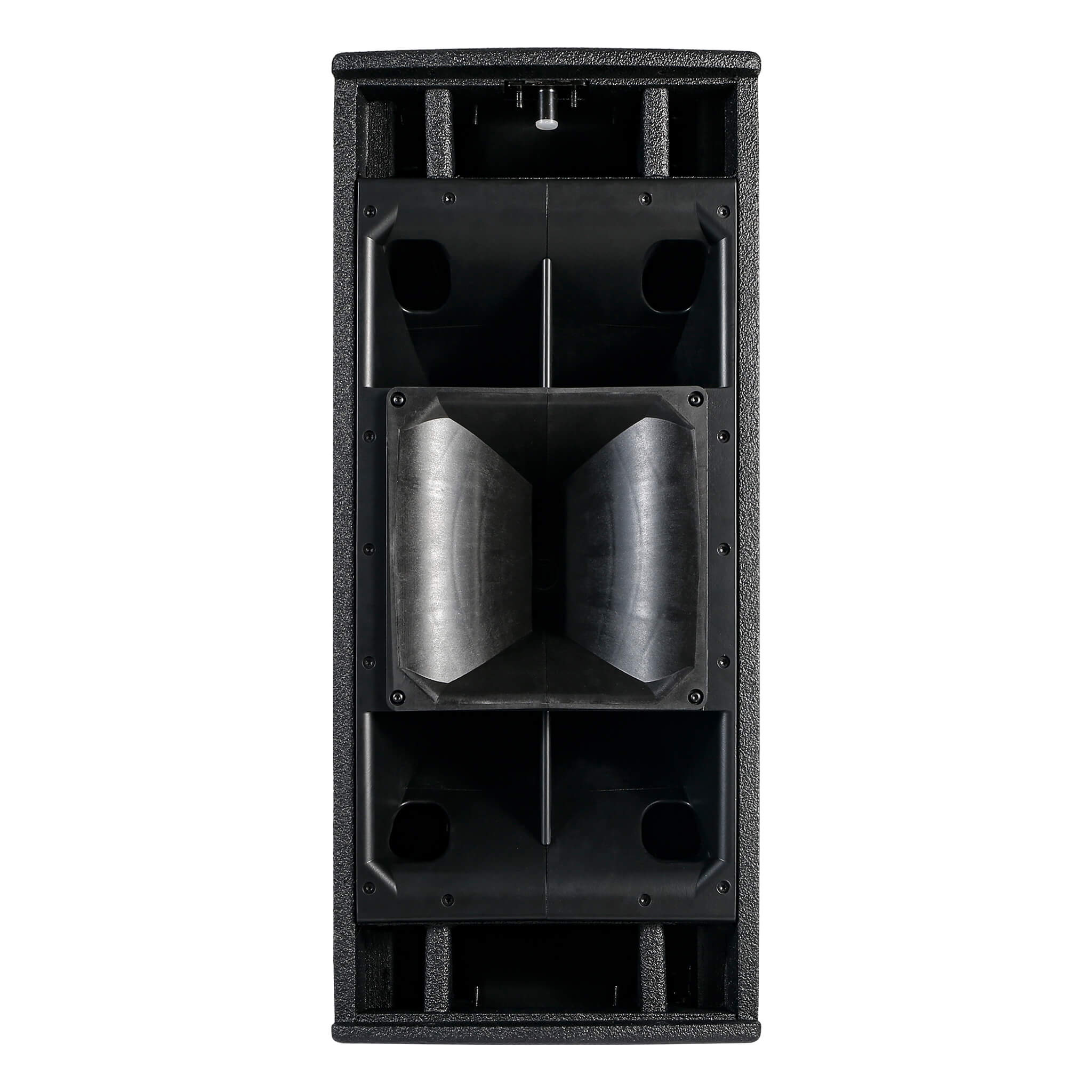

- Components
- 2 x 10" LF driver with neodymium magnet 1 x 8" MF driver with neodymium magnet 1 x 3” exit compression driverPassive crossover network

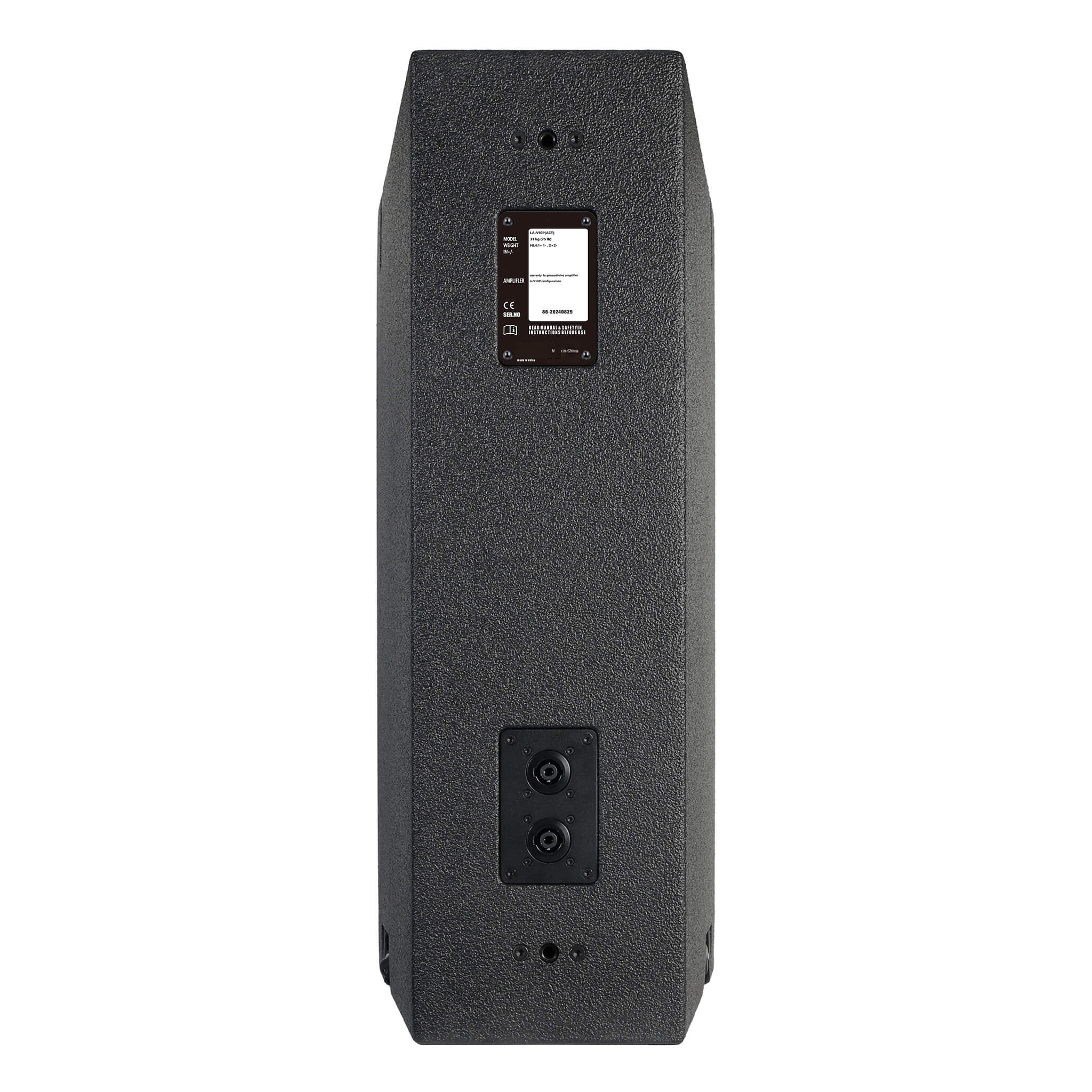

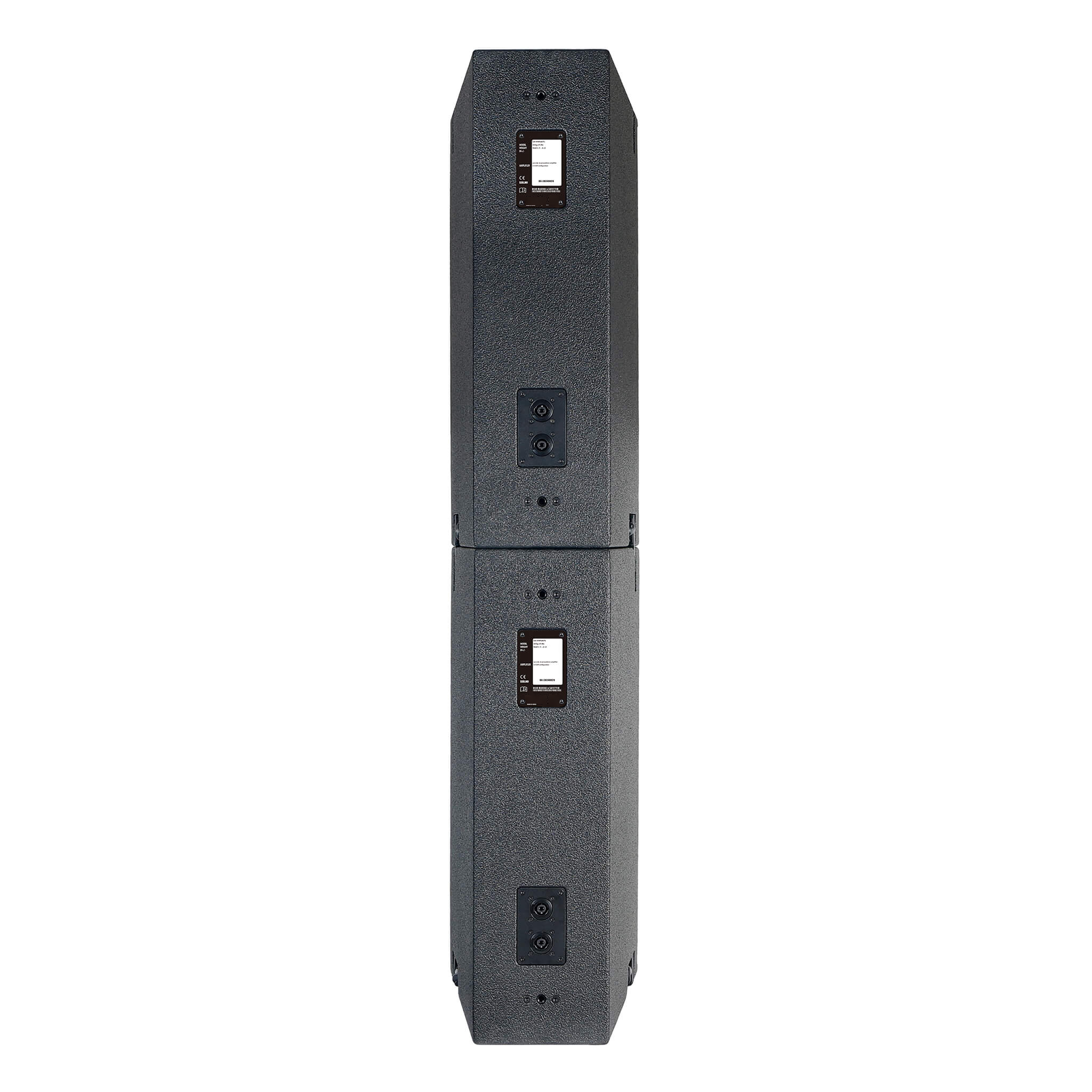

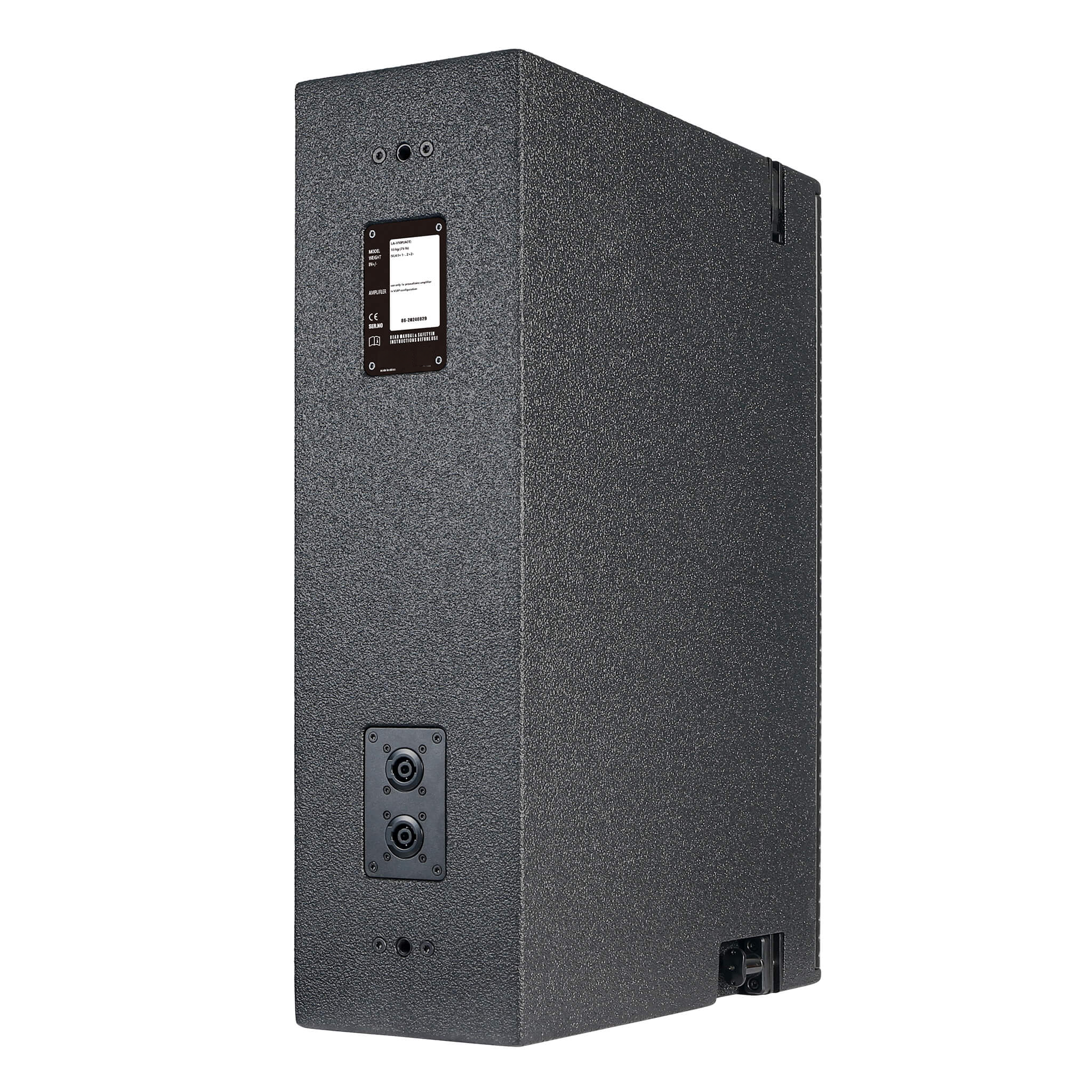

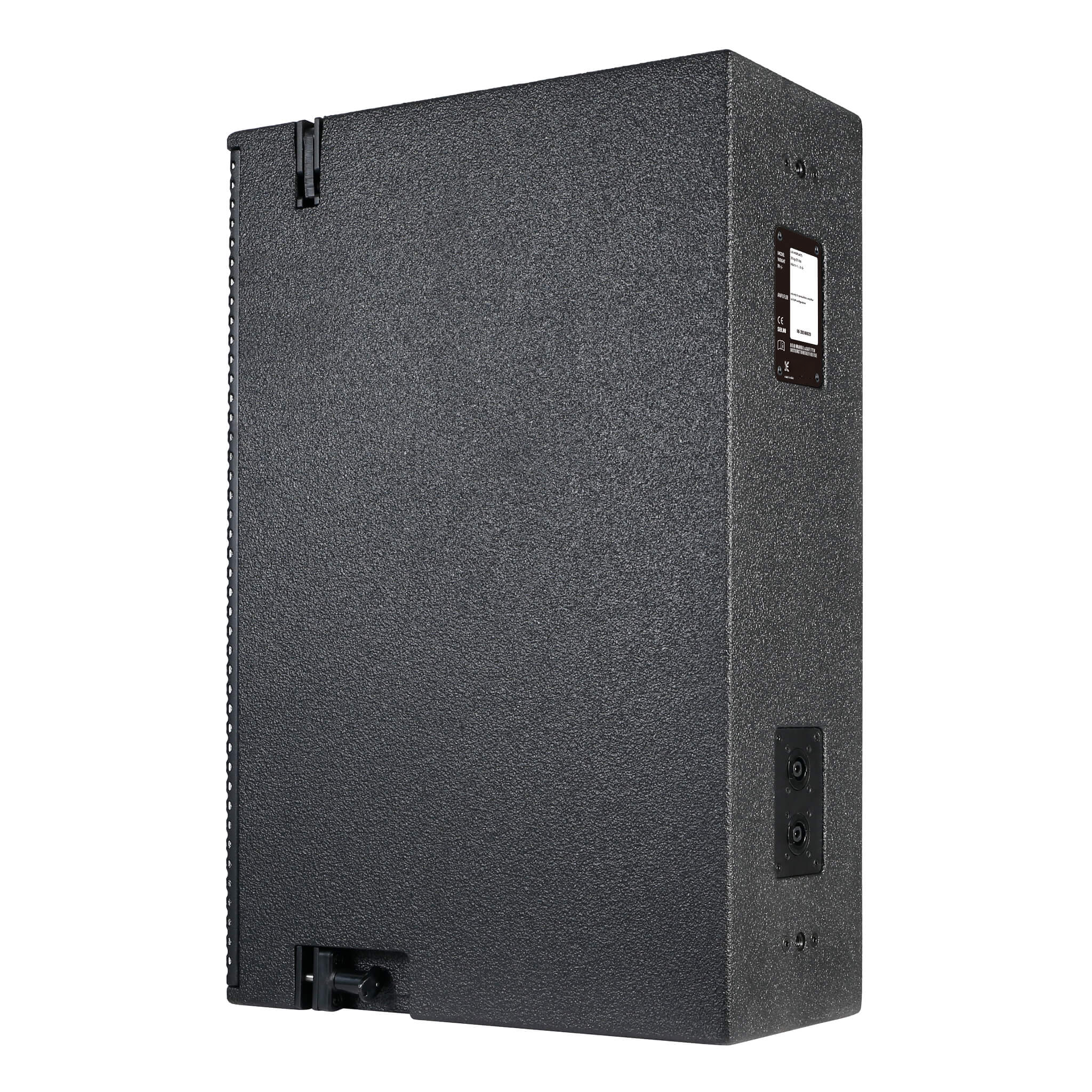

- Connections
- 2 x NLT4 F/M optional 2 x NL4 M
Physical specifications
- Dimensions
- 580 × 370 × 600 mm
- Weight
- 33 kg / 73 lb
- Cabinets per amplifier channel
- 2
Compatibility and deployment
- Nominal dispersion angle (h x v)
- 110° x 40°
- Function / configuration
- Loudspeaker data
TECHNICAL REFERENCE
Product specifications.
Published product details. Ask our team about any configuration that is not listed.
| Maximum SPL | 143 dB |
|---|---|
| Bandwidth | 59 Hz – 18 kHz |
| Transducers | • LF: 2 × 10″ • MF: 1 × 8″ • HF: 1 × 1.4″ compression drivers |
| Dimensions | 580 × 370 × 600 mm |
| Weight | 33 kg / 73 lb |
| Frequency response (-5 dB standard) | 59 Hz - 18 kHz |
| Frequency response (-5 dB CUT mode) | 100 Hz - 18 kHz |
| Max. sound pressure1 with D20/30D | 136 dB withD40/D80/40D:139 dB |
| Cabinets per amplifier channel | 2 |
| Configuration | Highperformance 3-way passive point source loudspeaker |
| Nominal impedance | 8 Ω |
| Power handling capacity (RMS/peak 10 ms) | 500/2000 W |
| Nominal dispersion angle (h x v) | 110° x 40° |
| Components | 2 x 10" LF driver with neodymium magnet 1 x 8" MF driver with neodymium magnet 1 x 3” exit compression driverPassive crossover network |
| Connections | 2 x NLT4 F/M optional 2 x NL4 M |
| Dimensions (H x W x D) | 700 x 308 x 466 mm27.5 x 12 x 18.3" |
| Weight | 33 kg75 lb |
