Product identification
- Model
- V-GSUB Active Cardioid Subwoofer
- Product category
- Subwoofer Systems

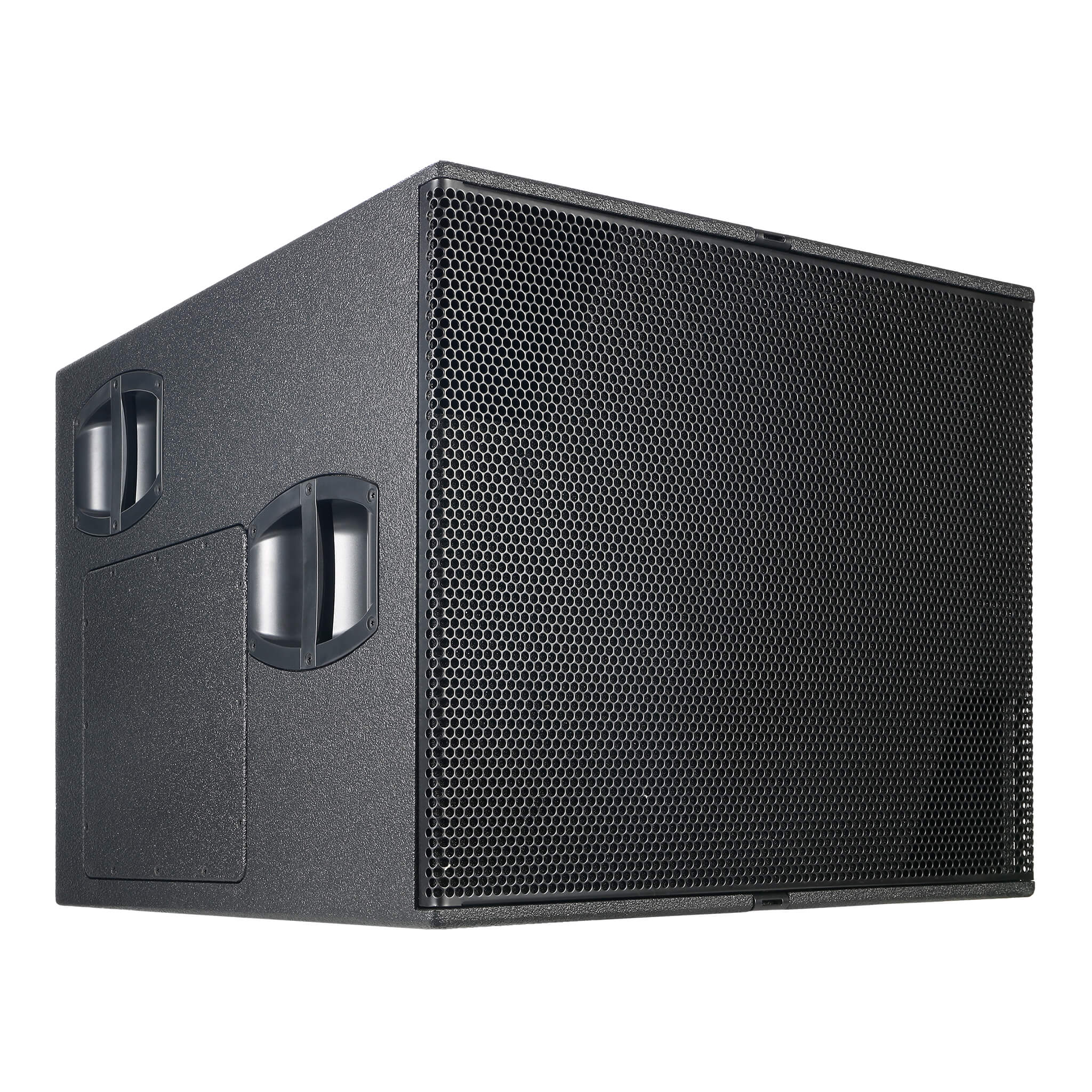

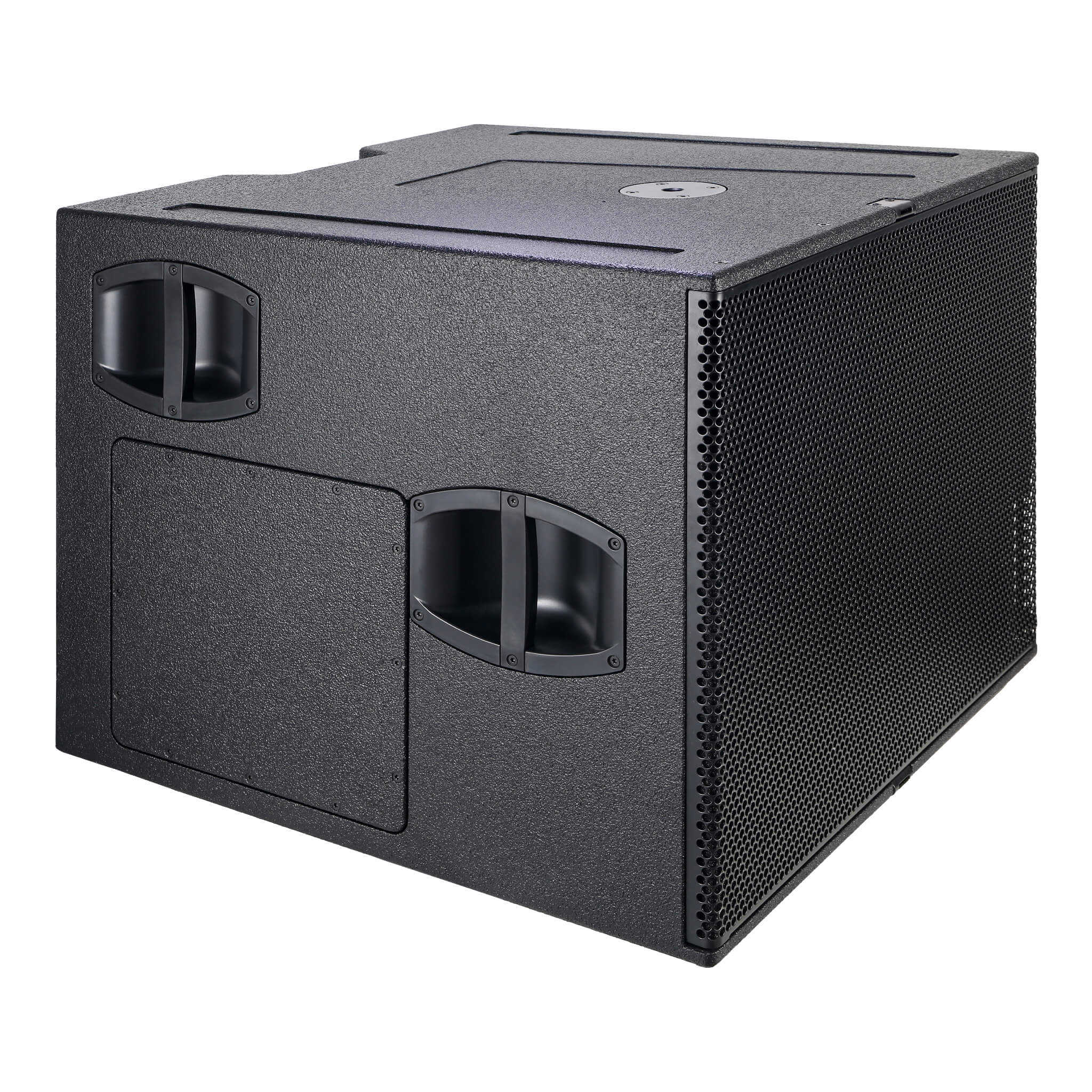

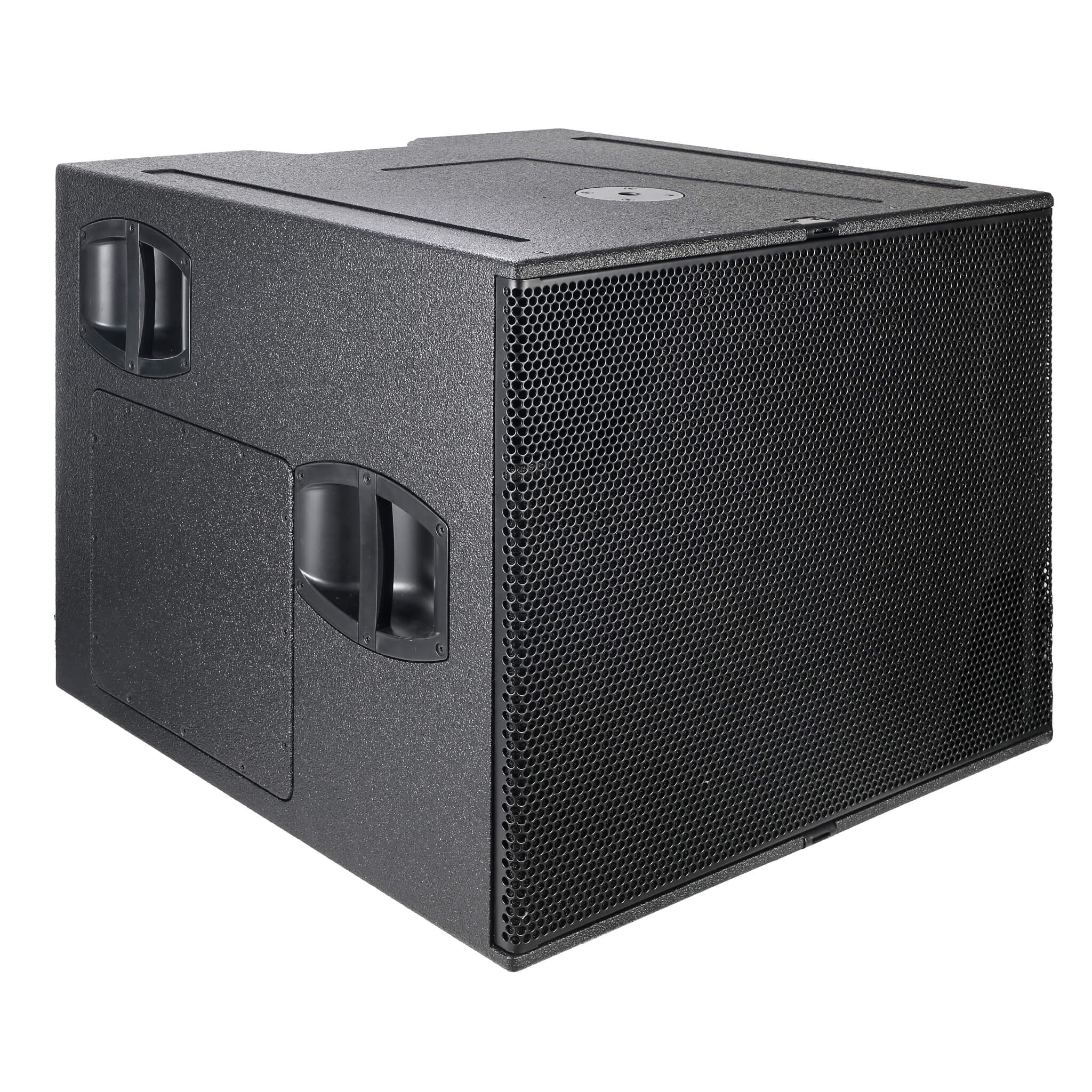

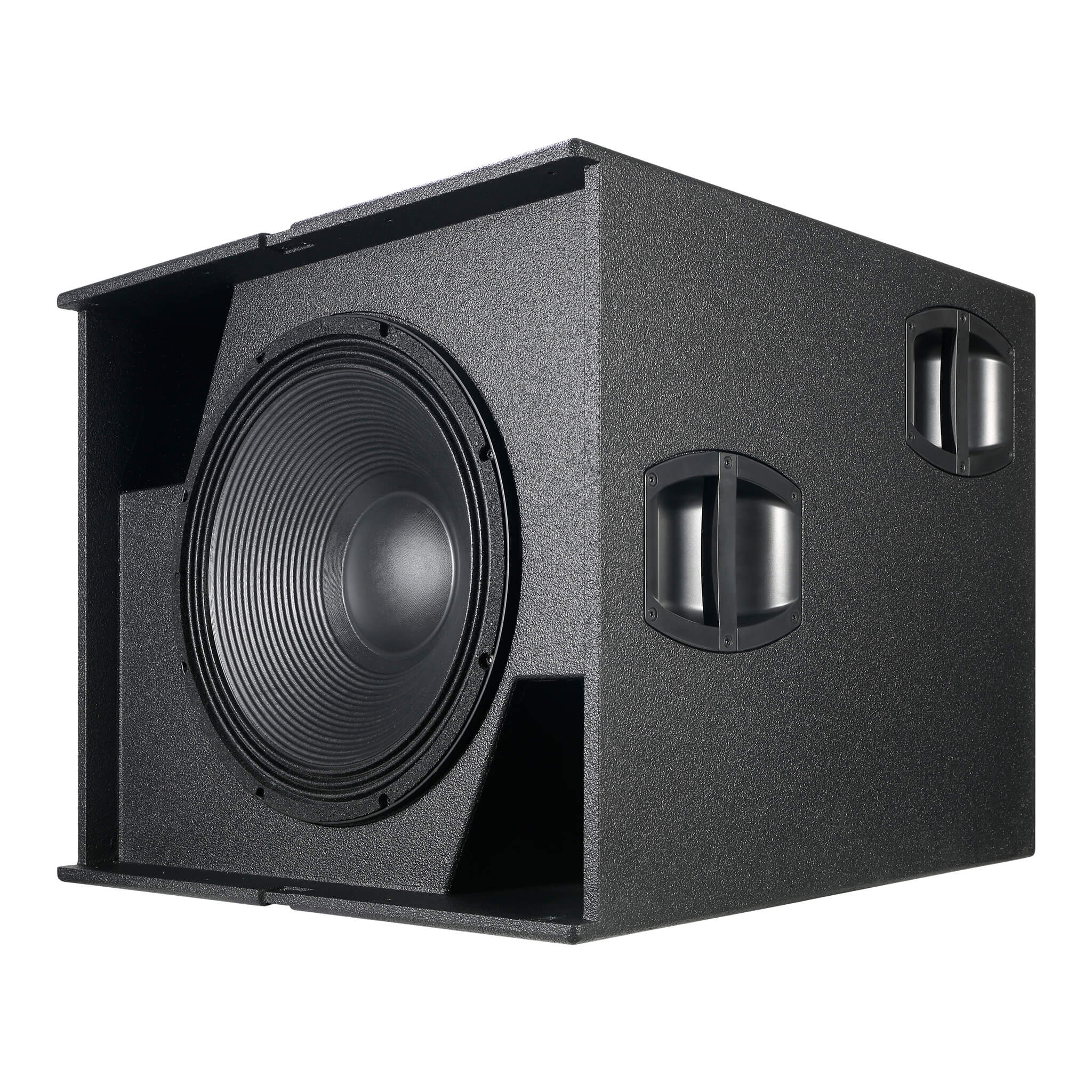

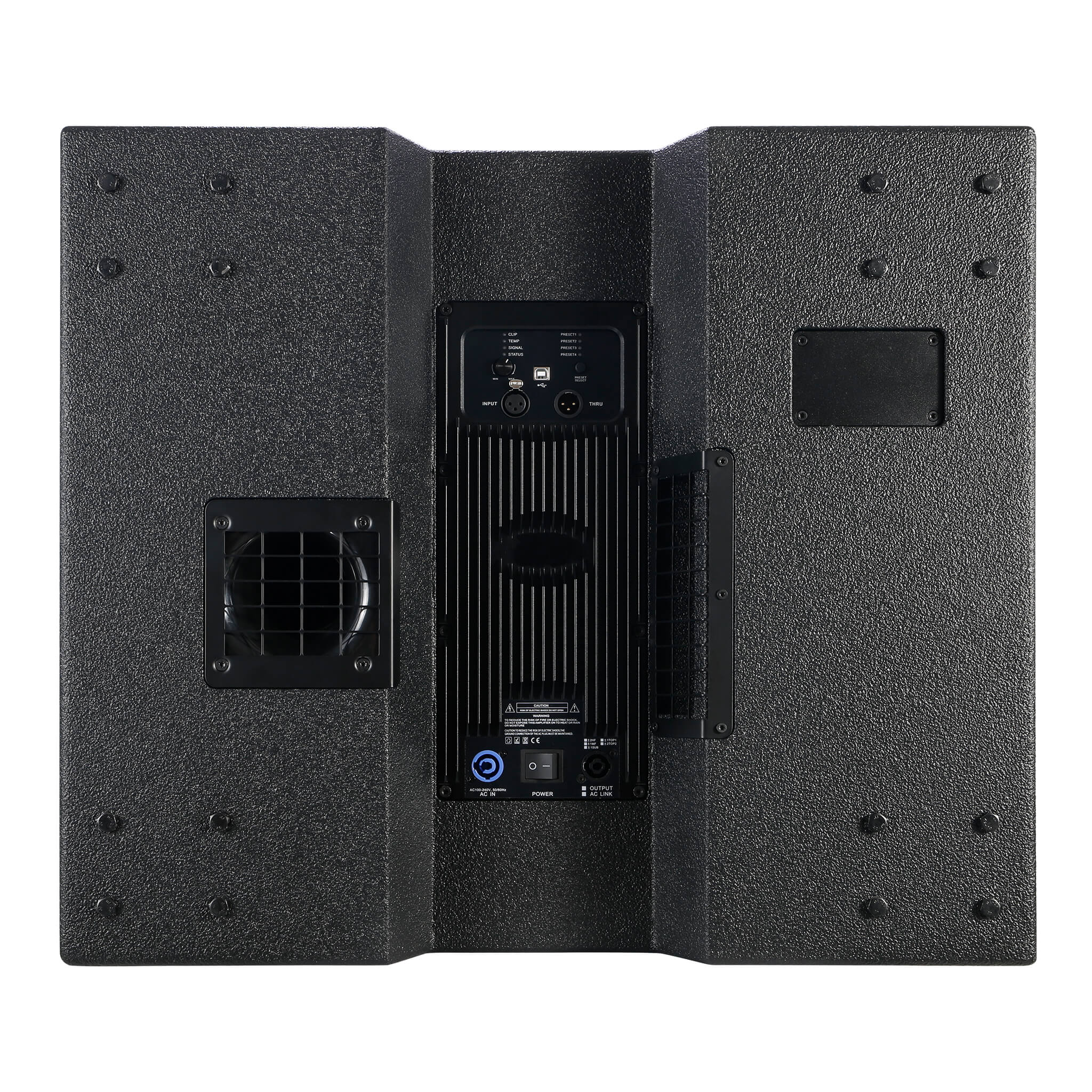

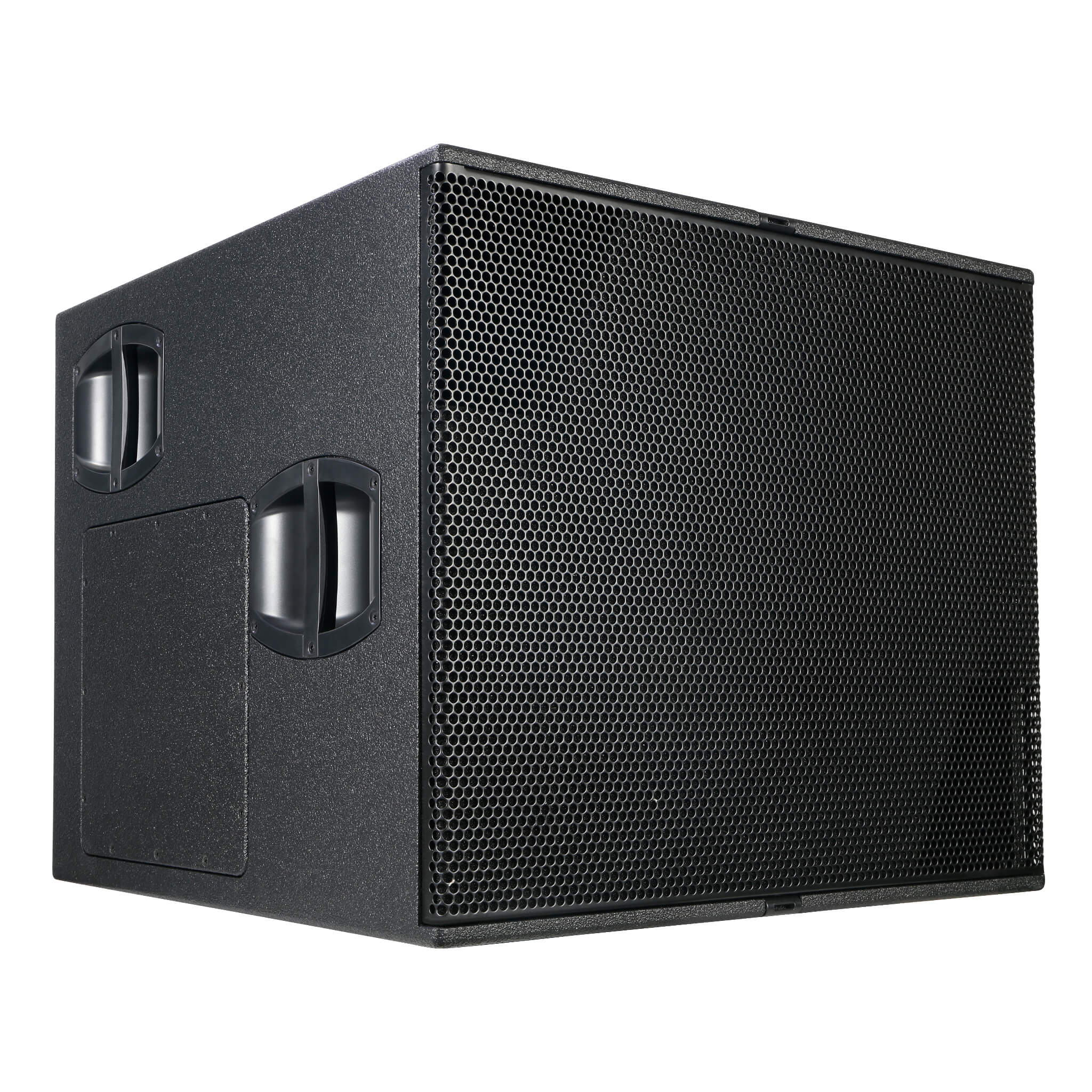

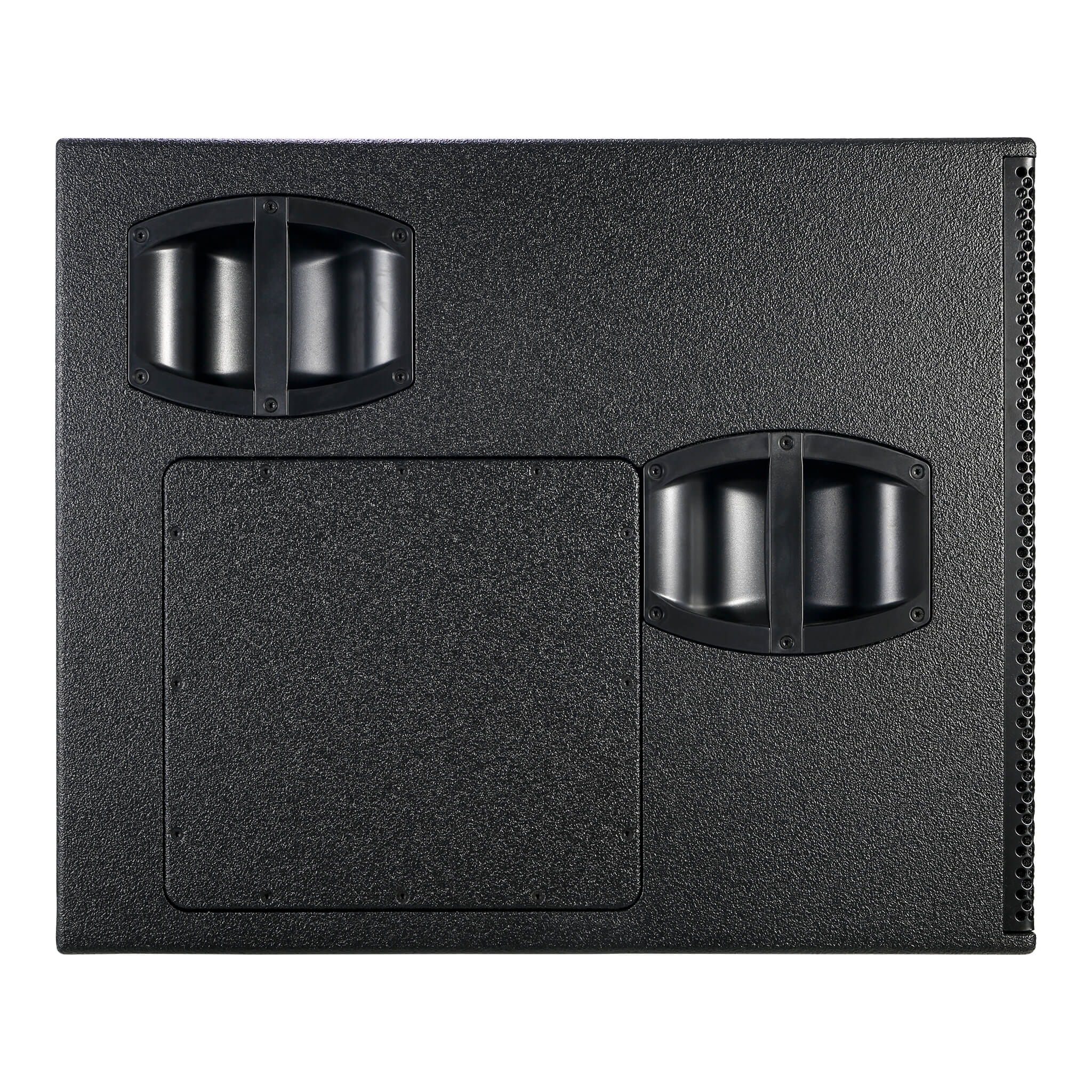

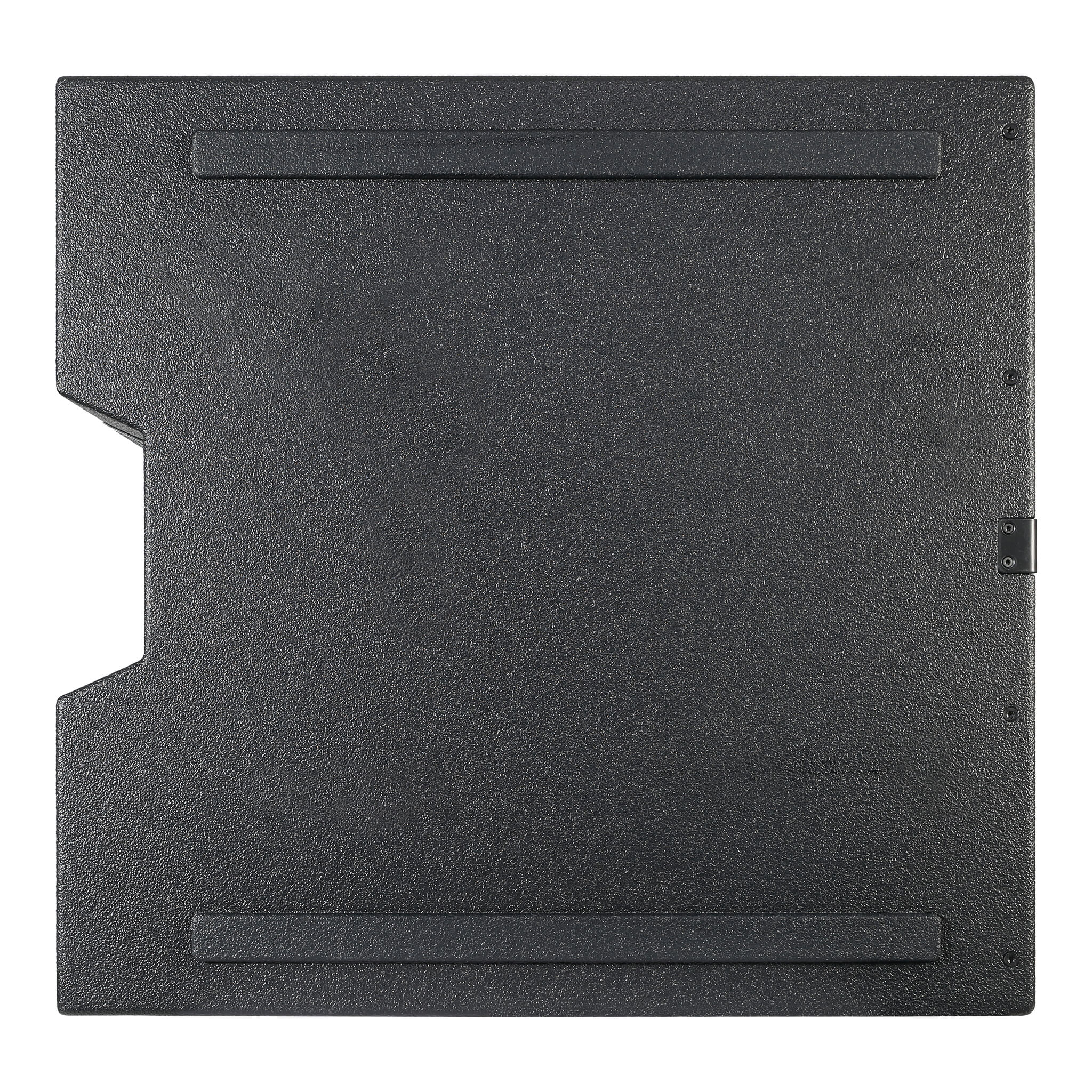

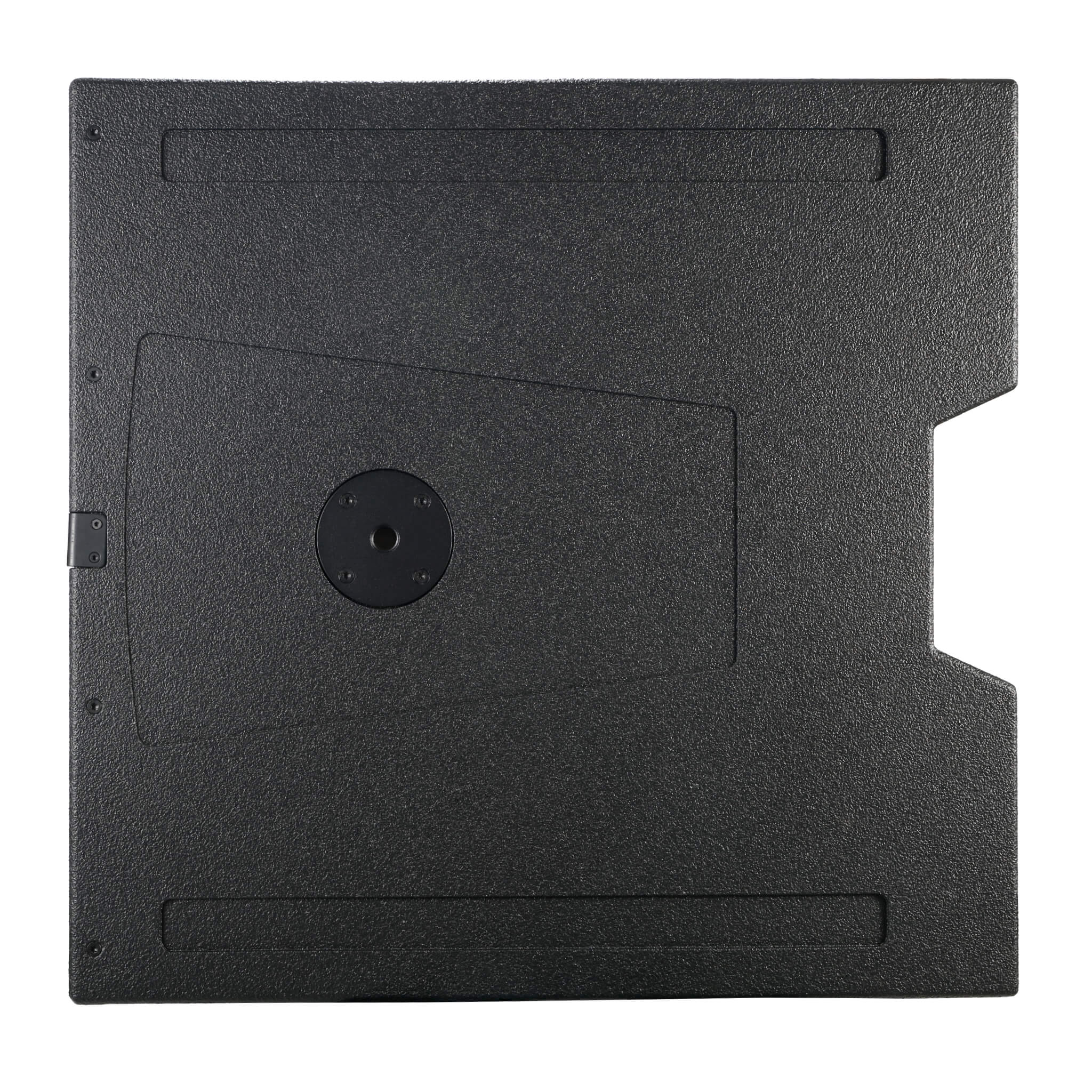

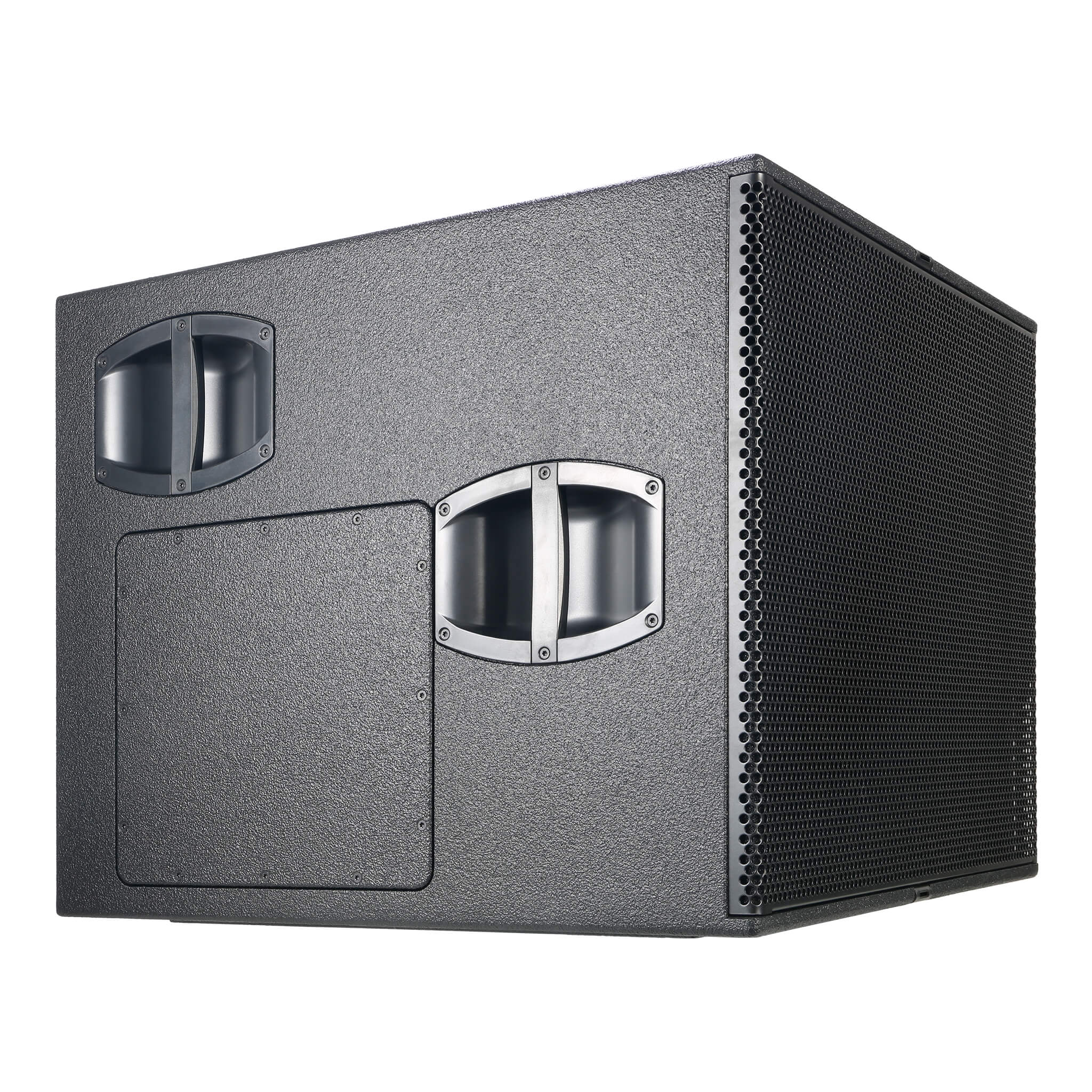

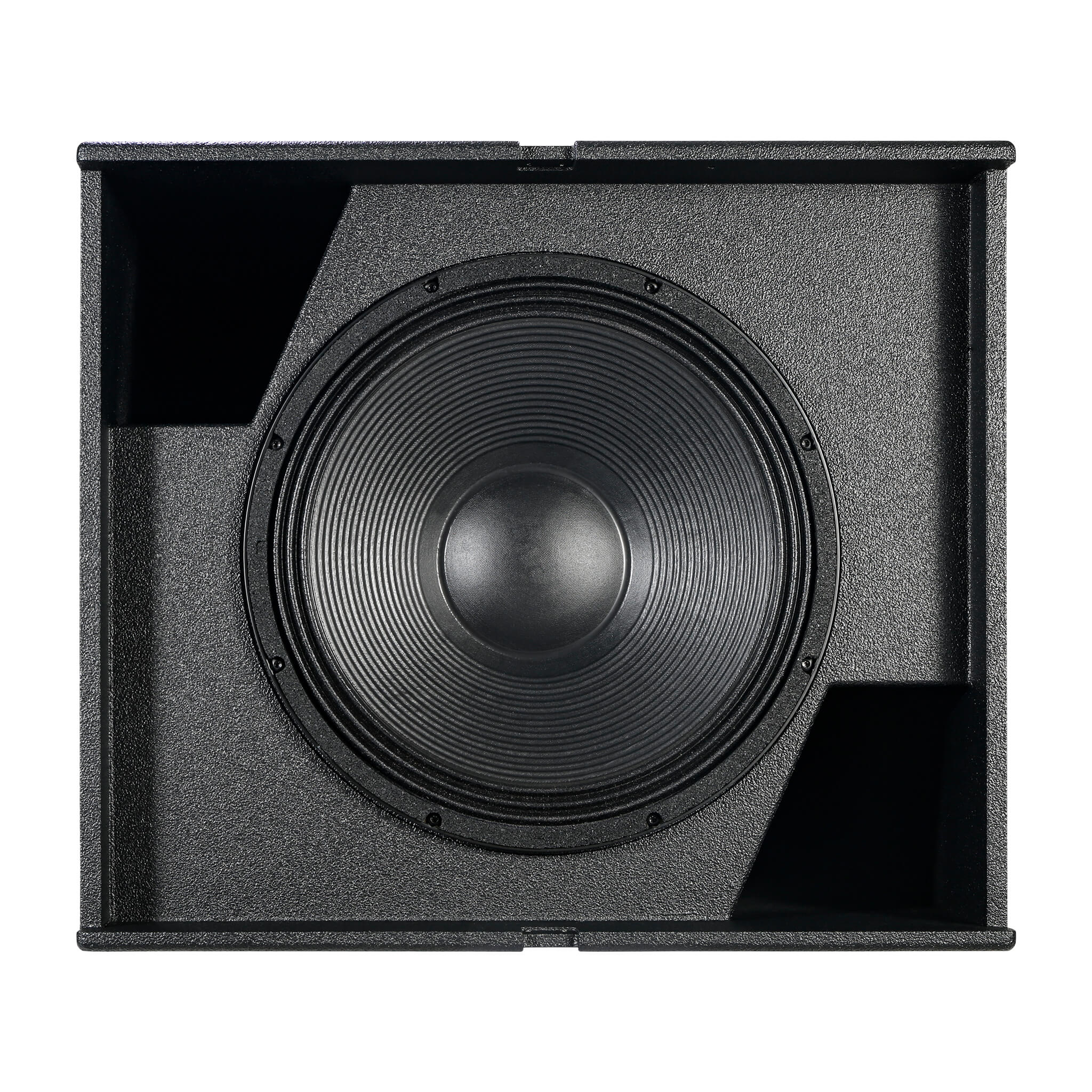

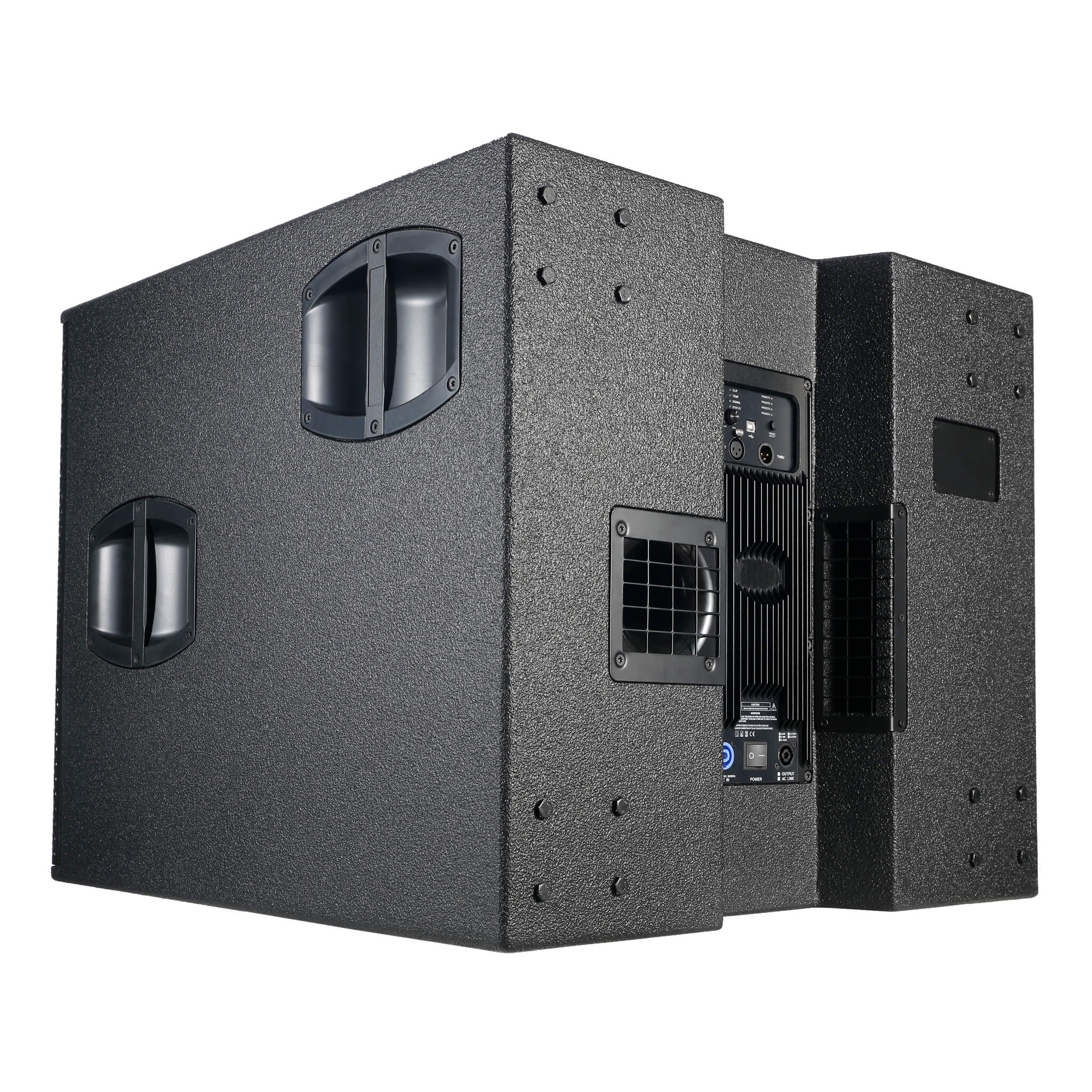

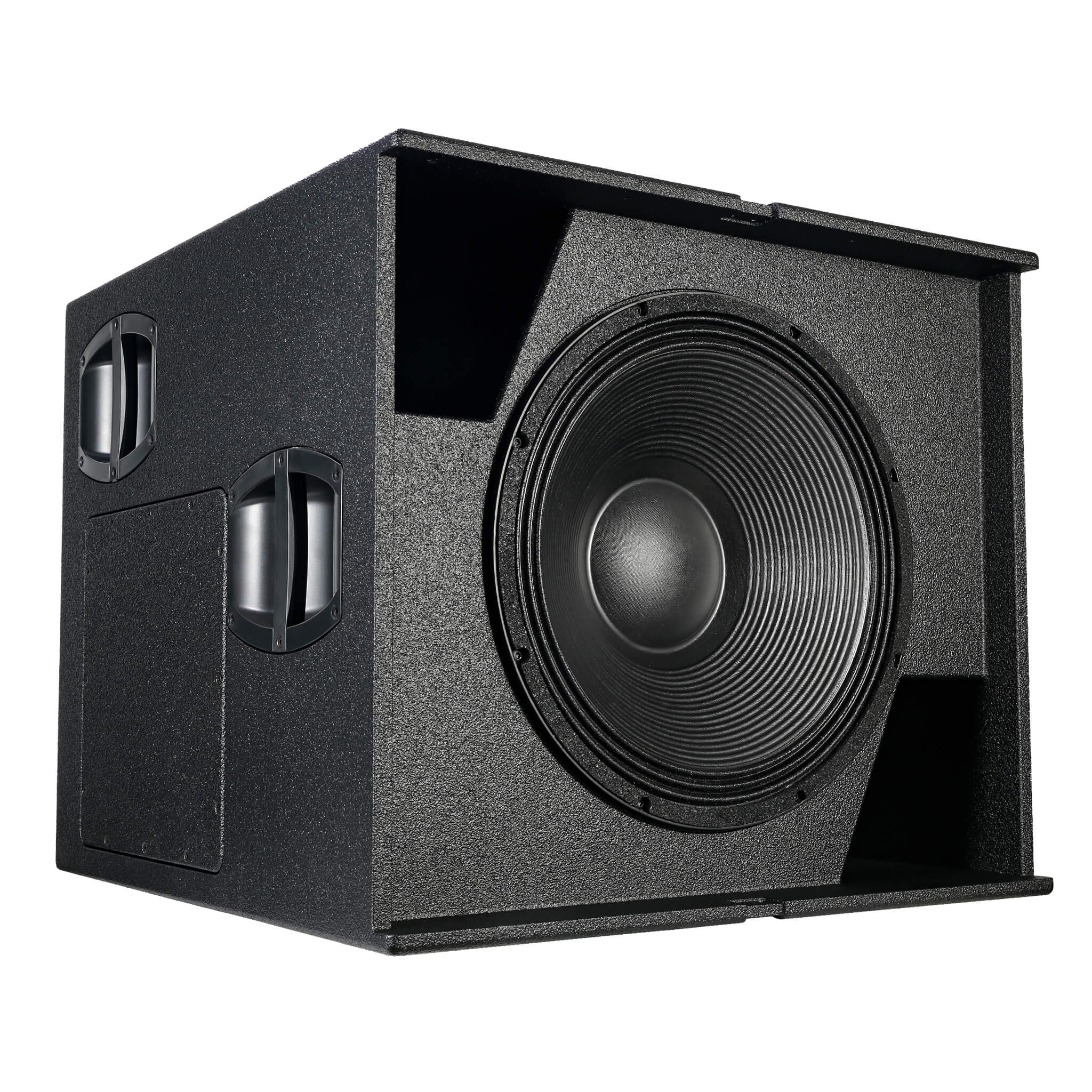

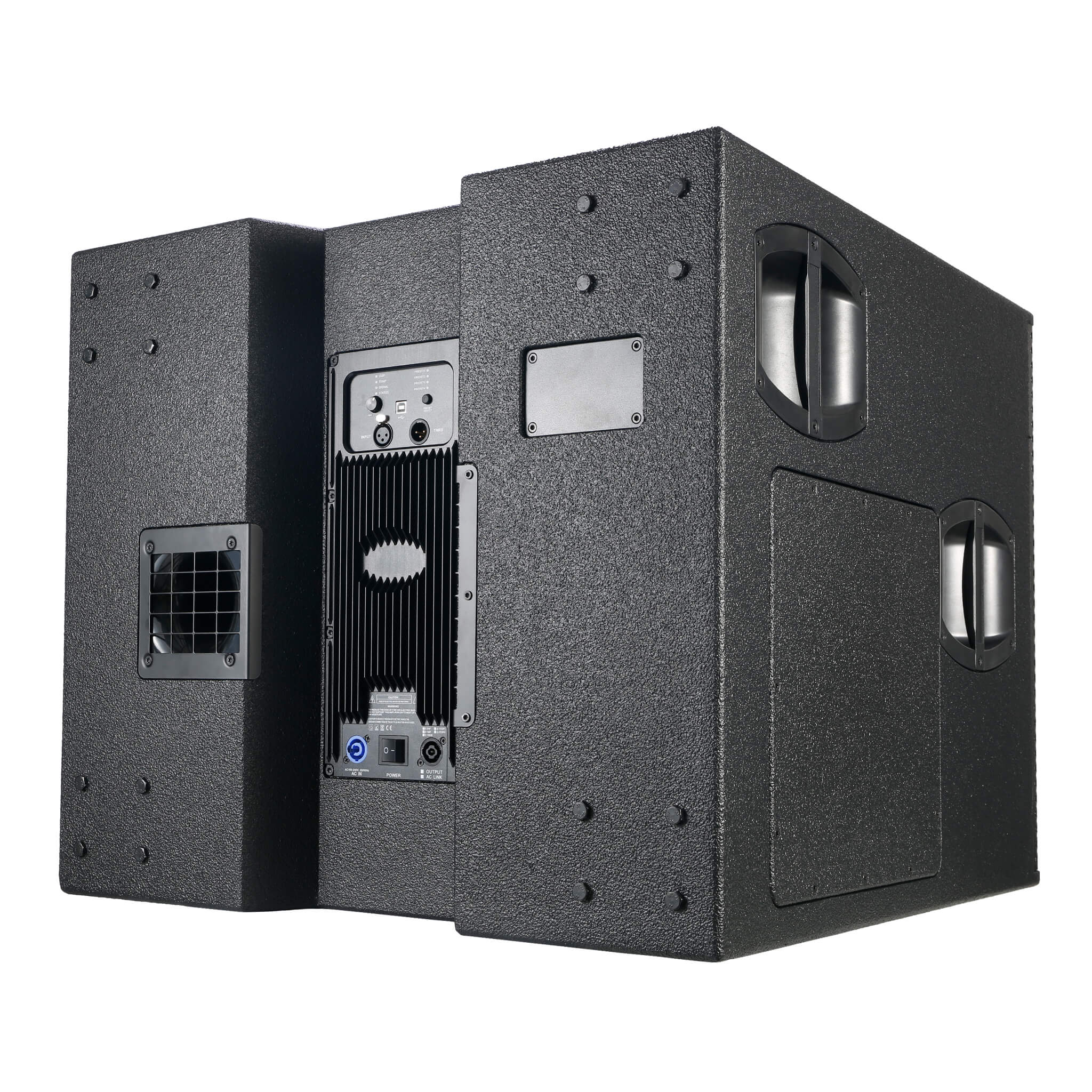

V-GSUB Active Cardioid Subwoofer
V-GSUB Active Cardioid Subwoofer is listed in the subwoofer systems category as a subwoofer system. The reference lists components: 18-inch / 12-inch low-frequency configuration; dispersion: Cardioid. Confirm the exact model, current specifications and supply details before use.
WHATSAPPRequest a Quote- Maximum SPL
- 137 dB
- Frequency response (-5 dB standard)
- 37 Hz - 115 Hz
- Weight
- 61 kg 135 lb
Technical specifications
- Components
- 18-inch / 12-inch low-frequency configuration
- Dispersion
- Cardioid
- Maximum SPL
- 137 dB
- Frequency response (-5 dB standard)
- 37 Hz - 115 Hz
- Frequency response (-5 dB 100 Hz mode)
- 37 Hz - 95 Hz
- with D20/30D
- 133dB with:D40/D80/40D2:137 dB
- Configuration
- High performance cardioid subwoofer
- Nominal impedance
- 8 Ω
- Power handling capacity (RMS/peak 10 ms)
- 800/3200 W
- Connections
- 2 x NLT4 F/M optional 2 x NL4 M
Physical specifications
- Weight
- 61 kg / 135 lb
- Cabinets per amplifier channel
- 2
- Dimensions (H x W x D)
- 606 x 700 x 7283/ 830 mm 23.8 x 27.5 x 28.63/ 32.6"
- Weight
- 61 kg 135 lb
Compatibility and deployment
- Applications
- cardioid subwoofer arrays, touring systems, rental inventory and fixed installation.
- Function / configuration
- Loudspeaker data
TECHNICAL REFERENCE
Product specifications.
Published product details. Ask our team about any configuration that is not listed.
| Components | 18-inch / 12-inch low-frequency configuration |
|---|---|
| Dispersion | Cardioid |
| Maximum SPL | 137 dB |
| Weight | 61 kg / 135 lb |
| Applications | cardioid subwoofer arrays, touring systems, rental inventory and fixed installation. |
| Frequency response (-5 dB standard) | 37 Hz - 115 Hz |
| Frequency response (-5 dB 100 Hz mode) | 37 Hz - 95 Hz |
| with D20/30D | 133dB with:D40/D80/40D2:137 dB |
| Cabinets per amplifier channel | 2 |
| Configuration | High performance cardioid subwoofer |
| Nominal impedance | 8 Ω |
| Power handling capacity (RMS/peak 10 ms) | 800/3200 W |
| Components | 1 x 18" driver 1 x 12" driver |
| Connections | 2 x NLT4 F/M optional 2 x NL4 M |
| Dimensions (H x W x D) | 606 x 700 x 7283/ 830 mm 23.8 x 27.5 x 28.63/ 32.6" |
| Weight | 61 kg 135 lb |
